1-31 — AIR DUCT (#4386) — 508 parça

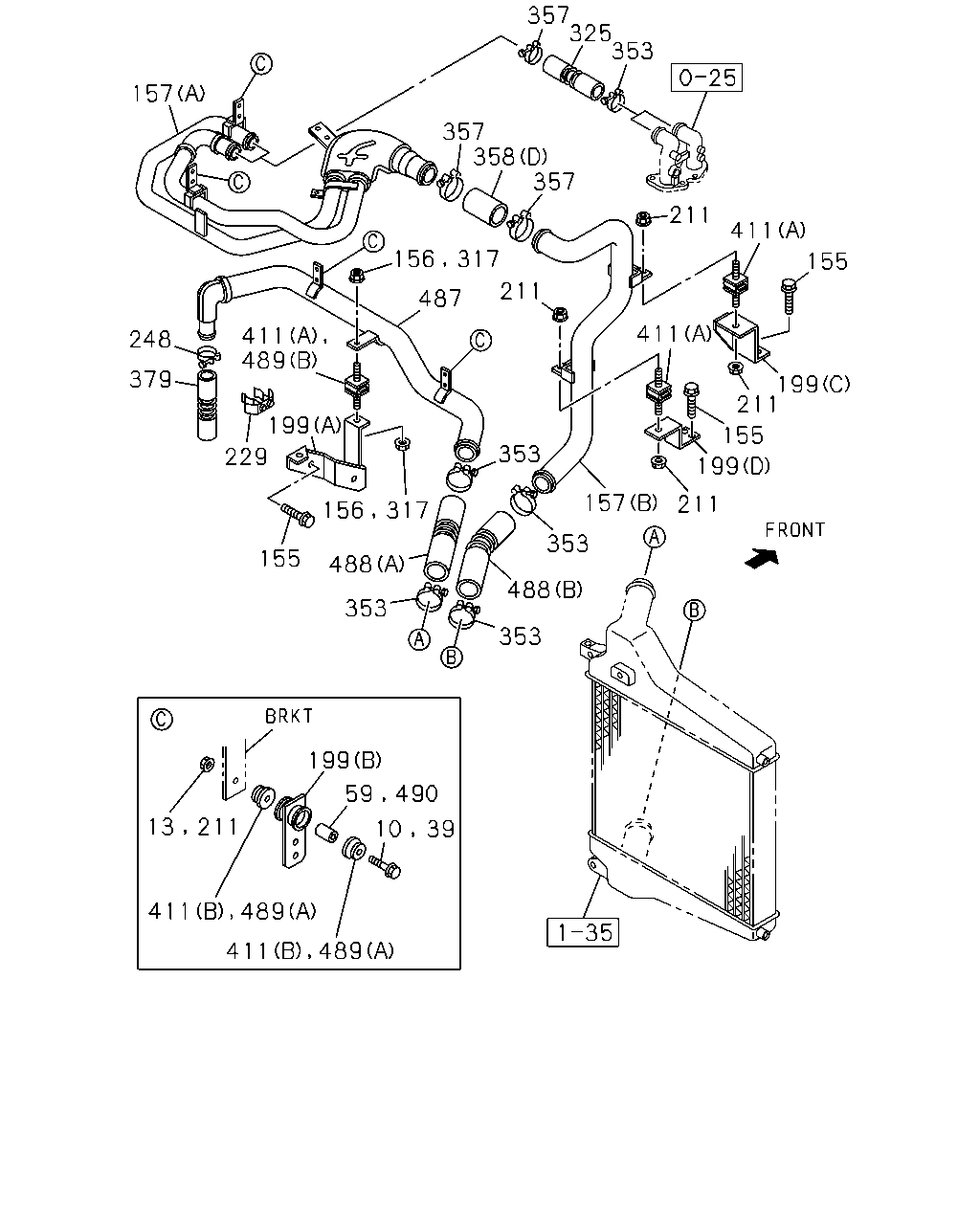

çizim 5059
357 325 353 157 357 358 357 211 411 155 211 487 411 411 489 248 379 199 211 199 155 353 229 199 157 211 353 155 488 488 353 353 199 10 39 13 211 411 489 156 317 156 317 59 490 411 489
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 BOLT; BRKT FIX
M10X60 FLANGE 		0-28081-060-0 02 1 9702-9709 ●
10 BOLT; BRKT FIX
M10X60 FLANGE 		0-28081-060-0 02 1 9710-0105 ● ●
10 BOLT; BRKT FIX
M10X50 FLANGE 		0-28081-050-0 02 1 0106-0512 ● ●
10 BOLT; BRKT FIX
M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
13 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 9702-9709 ●
13 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 02 1 9710-0602 ● ●
13 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
39 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9702-9709 ●
39 BOLT; BRKT
M10X60 FLANGE 		0-28081-060-0 02 1 9710-0105 ● ●
39 BOLT; BRKT
M10X50 FLANGE 		0-28081-050-0 02 1 0106-0512 ● ●
39 BOLT; BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0601- ● ●
59 TUBE; DIST,AIR INT DUCT
L=22 		9-22159-024-0 02 1 9702-9709 ●
59 TUBE; DIST,AIR INT DUCT
L=22 		9-22159-024-0 02 1 9710- ● ●
155 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 04 1 9702-9709 ●
155 BOLT; BRKT
M6X16 FLANGE 		0-28680-616-0 04 1 9710-0512 ● ●
155 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0601- ● ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 9702-9709 ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 14 1 9710-9801 ● ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 10 1 9802-9805 ● ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 9806-0512 ● ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 11 1 0601- ● ●
155 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 9802-0512 ● ●
155 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
156 NUT; BRKT
M8 FLANGE 		0-91150-208-0 04 1 9702-9705 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9706-9709 ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ●
156 NUT; BRKT
M8 FLANGE 		0-91150-108-0 05 1 9806-0602 ● ●
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
157 PIPE; AIR
(B) 		1-14121-129-0 01 1 9702-9709 ●
157 PIPE; AIR
(B) 		1-14121-129-0 01 1 9710- ● ●
157 PIPE; AIR
(A) 		1-14121-130-0 01 1 9702-9709 ●
157 PIPE; AIR
(A) 		1-14121-130-0 01 1 9710- ● ●
199 BRACKET; PIPE
(B) 		1-14239-253-0 04 1 9702-9709 ●
199 BRACKET; PIPE
(B) 		1-14239-253-0 04 1 9710- ● ●
199 BRACKET; PIPE
(A) 		1-47477-919-1 01 1 9702-9709 ●
199 BRACKET; PIPE
(A) 		1-47477-919-1 01 1 9710- ● ●
199 BRACKET; PIPE
(C) 		1-47477-920-0 01 1 9702-9705 ●
199 BRACKET; PIPE
(C) 		1-47477-990-0 01 1 9706-9709 ●
199 BRACKET; PIPE
(C) 		1-47477-990-0 01 1 9710- ● ●
199 BRACKET; PIPE
(D) 		1-47477-921-0 01 1 9702-9709 ●
199 BRACKET; PIPE
(D) 		1-47477-921-0 01 1 9710- ● ●
211 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
211 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9801 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-208-0 12 1 9702-9705 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9706-9709 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9710-9801 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 06 1 9802-0602 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9702-9709 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9710-9801 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9802-9802 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
229 PROTECTOR; HEAT 1-14181-264-0 01 1 9702-9709 ●
229 PROTECTOR; HEAT 1-14181-264-0 01 1 9710- ● ●
248 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 02 1 1002- ● ●
248 CLIP; RUBBER HOSE
ID=50-69 		8-94316-991-0 02 1 9702-9705 ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 02 1 9706-9709 ●
248 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 02 1 9710-0306 ● ●
248 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0307-0811 ● ●
248 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-1001 ● ●
248 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 02 1 1002- ● ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-208-0 08 1 9702-9705 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 08 1 9706-9709 ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 08 1 9710-9801 ● ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91150-108-0 06 1 9802-0602 ● ●
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
325 HOSE; RUBBER,ENG TO PIPE 1-09360-980-0 02 1 9702-9709 ●
325 HOSE; RUBBER,ENG TO PIPE 1-09360-980-0 02 1 9710- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ● ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 03 1 0307-0810 ●
353 CLIP; RUBBER HOSE
ID=75-95 		8-98133-357-0 03 1 0811-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=75-95 		8-98133-357-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=87-113 		1-09707-199-0 01 1 0307-0811 ●
353 CLIP; RUBBER HOSE
ID=90-110 		8-98133-365-0 01 1 0812-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9702-9709 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9710-0306 ● ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0811 ● ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 06 1 1002- ● ●
357 CLIP; RUBBER HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		8-94419-723-0 02 1 9101-9504 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 04 1 9702-9705 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9706-9709 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9710-0306 ● ●
357 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 06 1 0307-0811 ● ●
357 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 06 1 0812-1001 ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 06 1 1002- ● ●
357 CLIP; RUBBER HOSE
ID=50-69 		8-94316-991-0 02 1 9702-9705 ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14231-559-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9505- ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14231-713-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-14231-570-1 01 1 9101-9504 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-940-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-940-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-909-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-909-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) ID=62 L=70 		1-09360-797-1 01 1 9702-9705 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9706-9709 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9710- ● ●
379 HOSE; RUBBER 1-09360-981-0 01 1 9702-9709 ●
379 HOSE; RUBBER 1-09360-981-0 01 1 9710- ● ●
411 RUBBER; CUSHION
(B) OD=40 		1-22159-193-0 04 1 9702-9709 ●
411 RUBBER; CUSHION
(B) OD=40 		1-22159-193-0 04 1 9710- ● ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 04 1 9702-9709 ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 04 1 9710-9801 ● ●
411 RUBBER; CUSHION
(A) 		1-22226-002-0 03 1 9802- ● ●
487 PIPE; TURBO TO CHARGE AIR COOLER 1-14121-128-0 01 1 9702-9709 ●
487 PIPE; TURBO TO CHARGE AIR COOLER 1-14121-128-0 01 1 9710- ● ●
488 HOSE; RUBBER,PIPE
(A) 		8-94390-035-0 01 1 9702-9709 ●
488 HOSE; RUBBER,PIPE
(A) 		8-94390-035-0 01 1 9710-1408 ● ●
488 HOSE; RUBBER,PIPE
(A) 		8-98245-238-0 01 1 1409- ● ●
488 HOSE; RUBBER,PIPE
(B) 		8-94390-043-0 01 1 9702-9709 ●
488 HOSE; RUBBER,PIPE
(B) 		8-94390-043-0 01 1 9710- ● ●
489 RUBBER; SUPPORT
(A) OD=40 		1-22159-193-0 04 1 9702-9709 ●
489 RUBBER; SUPPORT
(A) OD=40 		1-22159-193-0 04 1 9710- ● ●
489 RUBBER; SUPPORT
(B) 		1-22226-002-0 01 1 9702-9709 ●
489 RUBBER; SUPPORT
(B) 		1-22226-002-0 01 1 9710- ● ●
490 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9702-9709 ●
490 TUBE; DIST,SUPPORT RUBBER
L=22 		9-22159-024-0 02 1 9710- ● ●

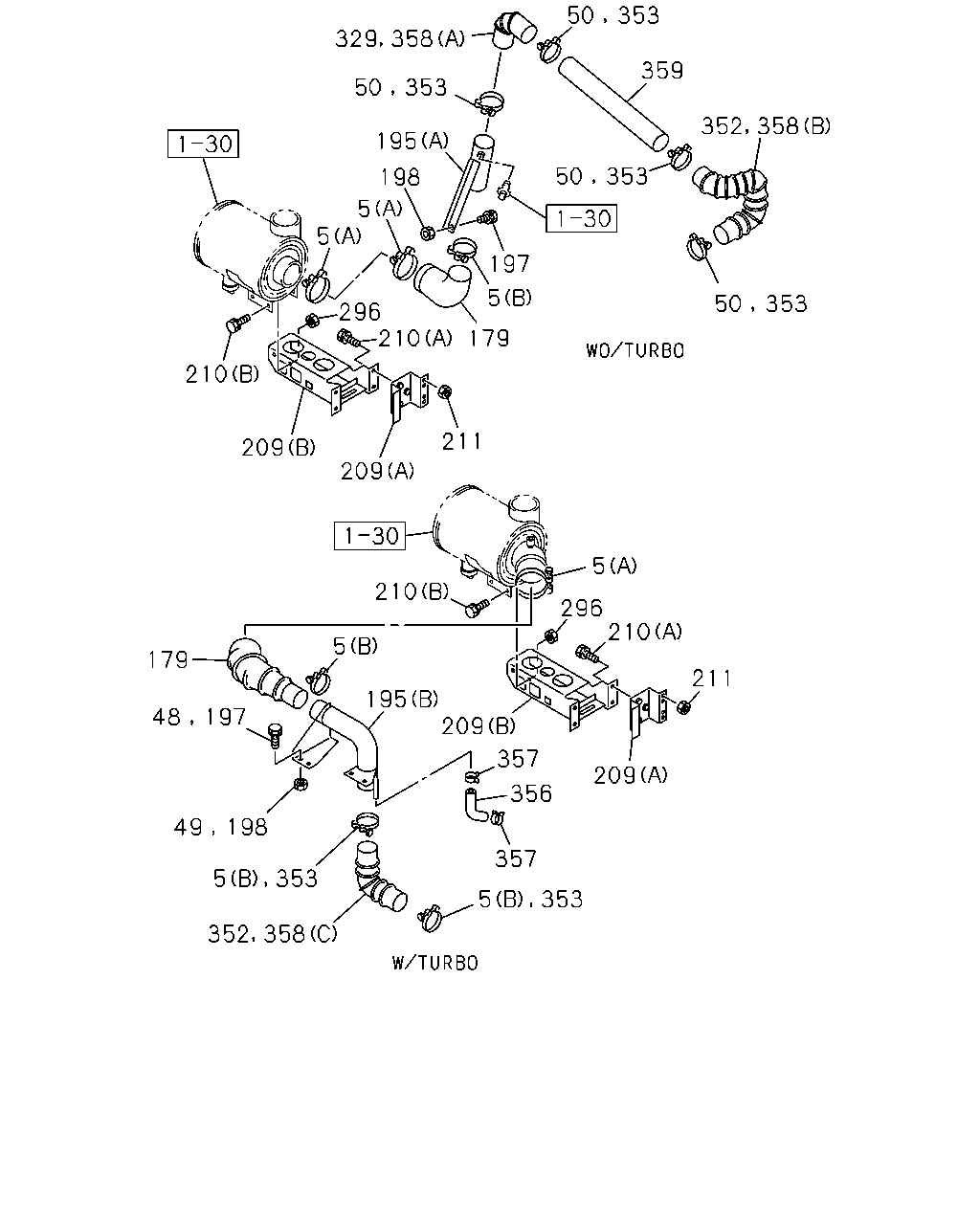

çizim 5682
359 195 198 5 5 197 5 296 210 179 210 211 209 209 5 210 296 210 5 179 211 195 209 48 197 357 209 356 49 198 357 329 358 50 353 50 353 358 352 50 353 353 50 5 353 352 358 5 353
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1002-1109 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1110- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 02 1 1002-1109 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0905-1109 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9505-9705 ●
5 CLIP; AIR DUCT
(D) ID=104-142 		1-09707-155-0 03 1 9706-0306 ●
5 CLIP; AIR DUCT
(D) ID=104-139 		1-09707-200-0 03 1 0307-0812 ●
5 CLIP; AIR DUCT
(D) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=110-130 		8-98133-359-0 01 1 1002- ●
5 CLIP; AIR DUCT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9505-9701 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9702-9709 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9710-0306 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0307-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 03 1 9101-9504 ●
5 CLIP; AIR DUCT
(C) ID=139 		9-09915-613-0 02 1 9605-9705 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 02 1 0901-0904 ● ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 01 1 0905-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1002-1109 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1110- ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 03 1 9702-9705 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=130-165 		1-09707-201-0 01 1 0307-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=150-170 		8-98133-369-0 01 1 0811-0904 ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 0905-1109 ● ●
48 BOLT; AIR DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 03 1 9101-9504 ●
49 NUT; AIR DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 03 1 9101-9504 ●
50 CLIP; JOINT HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 04 1 9101-9504 ● ●
179 HOSE; AIR INT 1-09360-564-0 01 1 9101-9504 ● ●
179 HOSE; AIR INT 1-09360-564-0 01 1 9505- ●
179 HOSE; AIR INT 1-14231-238-0 01 1 9101-9504 ●
195 PIPE; CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14121-074-1 01 1 9101-9504 ● ●
195 PIPE; CONN
(A) 		1-14121-074-1 01 1 9505- ●
195 PIPE; CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14121-062-0 01 1 9101-9504 ● ●
195 PIPE; CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14114-685-1 01 1 9101-9504 ●
195 PIPE; CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14114-443-1 01 1 9101-9504 ●
197 BOLT; CLAMP
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9101-9504 ● ●
197 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 01 1 9505-9606 ●
197 BOLT; CLAMP
M10X25 FLANGE 		0-28681-025-0 01 1 9607-0512 ●
197 BOLT; CLAMP
M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
197 BOLT; CLAMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 05 1 9101-9504 ●
198 NUT; CLAMP 9-09110-510-0 01 1 9101-9307 ● ●
198 NUT; CLAMP
M10 		9-09110-510-0 01 1 9308-9504 ● ●
198 NUT; CLAMP
M10 		9-09110-510-0 01 1 9505-9606 ●
198 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 01 1 9607-0602 ●
198 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
198 NUT; CLAMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09110-508-0 05 1 9101-9504 ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9505- ●
209 BRACKET; ACL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53497-193-2 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-193-2 01 1 9505- ●
209 BRACKET; ACL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53419-119-1 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-596-0 01 1 9702-9703 ●
209 BRACKET; ACL
(A) 		1-53497-605-2 01 1 9704-9709 ●
209 BRACKET; ACL
(A) 		1-53497-605-3 01 1 9710- ● ●
209 BRACKET; ACL
(B) 		1-53497-597-0 01 1 9702-9703 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9704-9709 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9710- ● ●
210 BOLT; ACL BRKT
(B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
(C) M10X25 FLANGE 		0-28081-025-0 08 1 9505-9606 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9802 ● ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9702 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9703-9709 ● ●
210 BOLT; ACL BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9101-9504 ● ● ●
211 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
211 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9801 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-208-0 12 1 9702-9705 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9706-9709 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9710-9801 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 06 1 9802-0602 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9702-9709 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9710-9801 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9802-9802 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
296 NUT; ACL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 04 1 9101-9307 ● ● ●
296 NUT; ACL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 04 1 9308-9504 ● ● ●
329 HOSE; JOINT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-14121-198-0 01 1 9101-9504 ● ●
352 HOSE; RUBBER,AIR DUCT TO ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-14231-013-0 01 1 9101-9504 ● ●
352 HOSE; RUBBER,AIR DUCT TO ENG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-09360-479-0 01 1 9101-9504 ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ● ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 03 1 0307-0810 ●
353 CLIP; RUBBER HOSE
ID=75-95 		8-98133-357-0 03 1 0811-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=75-95 		8-98133-357-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=87-113 		1-09707-199-0 01 1 0307-0811 ●
353 CLIP; RUBBER HOSE
ID=90-110 		8-98133-365-0 01 1 0812-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9702-9709 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9710-0306 ● ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0811 ● ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ●
356 HOSE; RUBBER,DUCT TO TURBOCHARGER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=100 		1-09360-430-0 01 1 9101-9504 ●
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 06 1 1002- ● ●
357 CLIP; RUBBER HOSE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		8-94419-723-0 02 1 9101-9504 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 04 1 9702-9705 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9706-9709 ●
357 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 06 1 9710-0306 ● ●
357 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 06 1 0307-0811 ● ●
357 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 06 1 0812-1001 ● ●
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 06 1 1002- ● ●
357 CLIP; RUBBER HOSE
ID=50-69 		8-94316-991-0 02 1 9702-9705 ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14231-559-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9505- ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14231-713-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-14231-570-1 01 1 9101-9504 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-940-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-940-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-909-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-909-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) ID=62 L=70 		1-09360-797-1 01 1 9702-9705 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9706-9709 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9710- ● ●
359 PIPE; HOSE CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=590 		1-14121-073-0 01 1 9101-9504 ● ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=590 		1-14121-073-0 01 1 9505-9601 ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> L=590 		1-14121-073-0 01 1 9602-9805 ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> L=590 		1-14121-073-0 01 1 9806- ●
359 PIPE; HOSE CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=520 		1-14121-043-1 01 1 9101-9504 ● ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=405 		1-14121-125-0 01 1 9505-9601 ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=405 		1-14121-125-0 01 1 9602-9805 ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=405 		1-14121-125-0 01 1 9806- ●

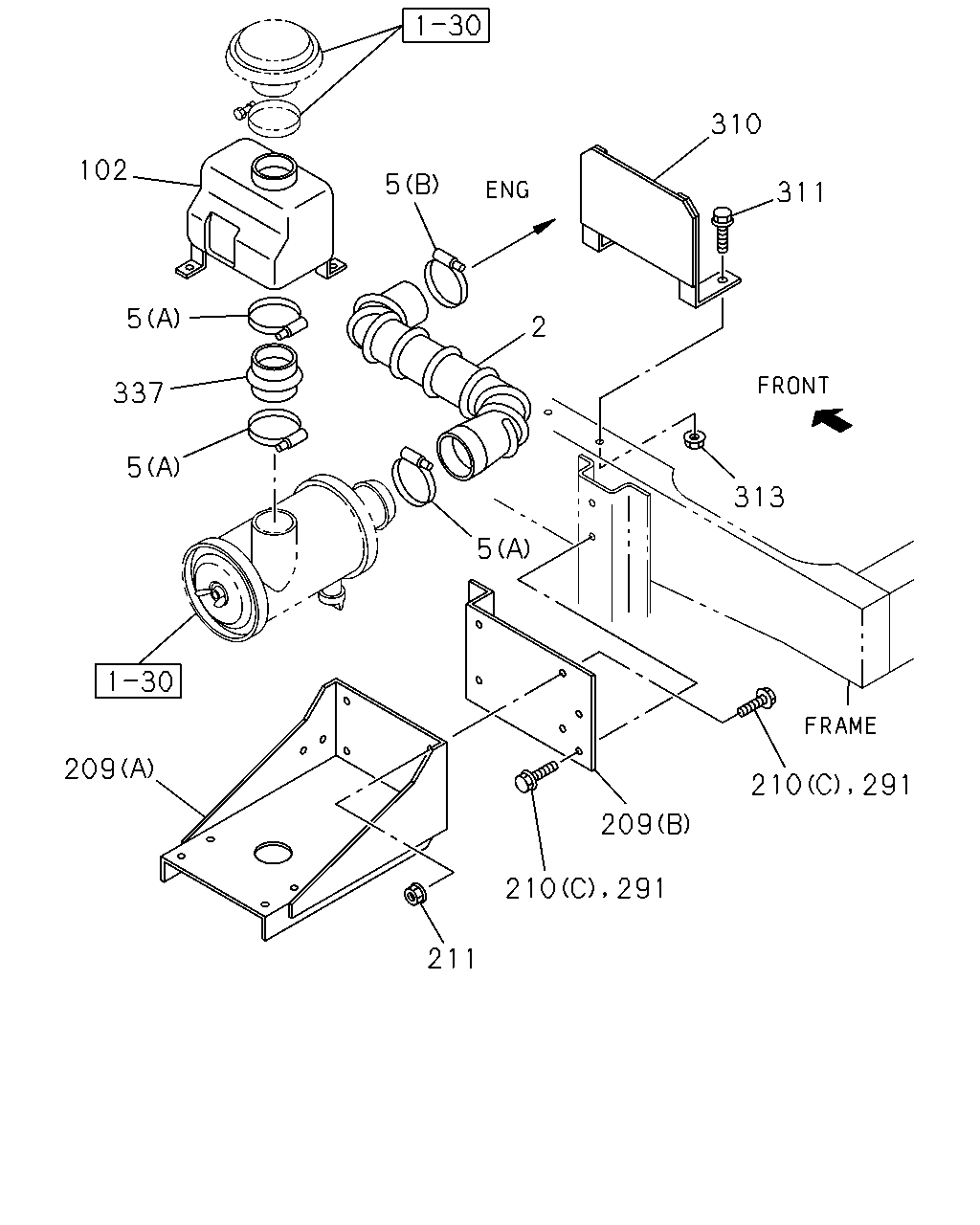

çizim 36587
310 102 5 311 5 2 337 5 313 5 209 209 211 210 291 210 291
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 HOSE; ACL 1-14231-971-0 01 1 9702-9709 ●
2 HOSE; ACL 1-14231-971-0 01 1 9710- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1002-1109 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1110- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 02 1 1002-1109 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0905-1109 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9505-9705 ●
5 CLIP; AIR DUCT
(D) ID=104-142 		1-09707-155-0 03 1 9706-0306 ●
5 CLIP; AIR DUCT
(D) ID=104-139 		1-09707-200-0 03 1 0307-0812 ●
5 CLIP; AIR DUCT
(D) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=110-130 		8-98133-359-0 01 1 1002- ●
5 CLIP; AIR DUCT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9505-9701 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9702-9709 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9710-0306 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0307-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 03 1 9101-9504 ●
5 CLIP; AIR DUCT
(C) ID=139 		9-09915-613-0 02 1 9605-9705 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 02 1 0901-0904 ● ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 01 1 0905-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1002-1109 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1110- ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 03 1 9702-9705 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=130-165 		1-09707-201-0 01 1 0307-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=150-170 		8-98133-369-0 01 1 0811-0904 ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 0905-1109 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9605-9702 ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9703-9709 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9710-1109 ● ● ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9505- ●
209 BRACKET; ACL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53497-193-2 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-193-2 01 1 9505- ●
209 BRACKET; ACL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53419-119-1 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-596-0 01 1 9702-9703 ●
209 BRACKET; ACL
(A) 		1-53497-605-2 01 1 9704-9709 ●
209 BRACKET; ACL
(A) 		1-53497-605-3 01 1 9710- ● ●
209 BRACKET; ACL
(B) 		1-53497-597-0 01 1 9702-9703 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9704-9709 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9710- ● ●
210 BOLT; ACL BRKT
(B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
(C) M10X25 FLANGE 		0-28081-025-0 08 1 9505-9606 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9802 ● ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9702 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9703-9709 ● ●
210 BOLT; ACL BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9101-9504 ● ● ●
211 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
211 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9801 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-208-0 12 1 9702-9705 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9706-9709 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9710-9801 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 06 1 9802-0602 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9702-9709 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9710-9801 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9802-9802 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
291 BOLT; ACL
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9805 ● ● ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9806-0512 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
310 PROTECTOR; HEAT,ACL 1-53219-824-1 01 1 9702-9709 ●
310 PROTECTOR; HEAT,ACL 1-53219-824-1 01 1 9710- ● ●
311 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28680-825-0 02 1 9702-9709 ●
311 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28680-825-0 02 1 9710-0512 ● ●
311 BOLT; HEAT PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-208-0 02 1 9702-9705 ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 9706-9709 ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91150-108-0 02 1 9710-0602 ● ●
313 NUT; HEAT PROTECTOR
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
337 HOSE; CONN,DUCT TO RESONATOR 9-09912-895-1 01 1 9605-1109 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9702-9709 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9710-1109 ● ●

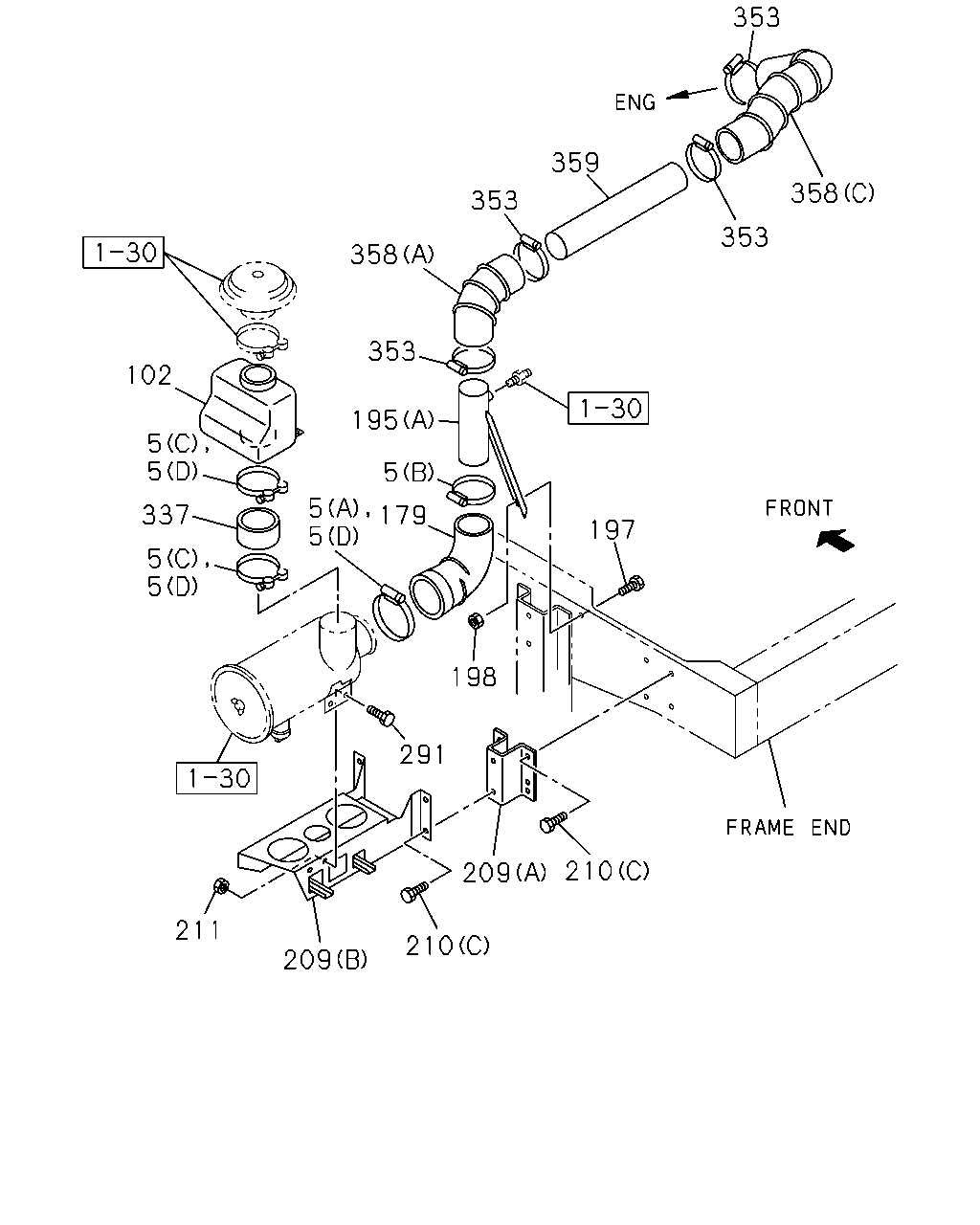

çizim 38771
353 359 358 353 353 358 353 102 195 5 5 5 5 179 5 337 197 5 5 198 291 210 209 211 210 209
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99 		1-09707-141-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1002-1109 ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 1110- ● ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 02 1 1002-1109 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0905-1109 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 9505-9705 ●
5 CLIP; AIR DUCT
(D) ID=104-142 		1-09707-155-0 03 1 9706-0306 ●
5 CLIP; AIR DUCT
(D) ID=104-139 		1-09707-200-0 03 1 0307-0812 ●
5 CLIP; AIR DUCT
(D) ID=110-130 		8-98133-359-0 01 1 0901-1001 ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=110-130 		8-98133-359-0 01 1 1002- ●
5 CLIP; AIR DUCT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 01 1 9101-9504 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9505-9701 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9702-9709 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9710-0306 ● ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-198-0 01 1 0307-0810 ● ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 01 1 0811-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=75-95 		8-98133-357-0 01 1 1002- ● ● ●
5 CLIP; AIR DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) ID=77-95 		1-09707-114-0 03 1 9101-9504 ●
5 CLIP; AIR DUCT
(C) ID=139 		9-09915-613-0 02 1 9605-9705 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 02 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=104-139 		1-09707-200-0 02 1 0307-0812 ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 02 1 0901-0904 ● ● ●
5 CLIP; AIR DUCT
(A) ID=120-140 		8-98133-367-0 01 1 0905-1001 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1002-1109 ● ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=120-140 		8-98133-367-0 01 1 1110- ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 03 1 9702-9705 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9706-9709 ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 9710-0306 ● ●
5 CLIP; AIR DUCT
(A) ID=130-165 		1-09707-201-0 01 1 0307-0810 ● ●
5 CLIP; AIR DUCT
(A) ID=150-170 		8-98133-369-0 01 1 0811-0904 ● ●
5 CLIP; AIR DUCT
(A) ID=130-169 		1-09707-157-0 01 1 0905-1109 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9605-9702 ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9703-9709 ● ●
102 RESONATOR; AIR INT 1-14114-678-0 01 1 9710-1109 ● ● ●
179 HOSE; AIR INT 1-09360-564-0 01 1 9101-9504 ● ●
179 HOSE; AIR INT 1-09360-564-0 01 1 9505- ●
179 HOSE; AIR INT 1-14231-238-0 01 1 9101-9504 ●
195 PIPE; CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14121-074-1 01 1 9101-9504 ● ●
195 PIPE; CONN
(A) 		1-14121-074-1 01 1 9505- ●
195 PIPE; CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14121-062-0 01 1 9101-9504 ● ●
195 PIPE; CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14114-685-1 01 1 9101-9504 ●
195 PIPE; CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14114-443-1 01 1 9101-9504 ●
197 BOLT; CLAMP
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9101-9504 ● ●
197 BOLT; CLAMP
M10X20 FLANGE 		0-28081-020-0 01 1 9505-9606 ●
197 BOLT; CLAMP
M10X25 FLANGE 		0-28681-025-0 01 1 9607-0512 ●
197 BOLT; CLAMP
M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
197 BOLT; CLAMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 05 1 9101-9504 ●
198 NUT; CLAMP 9-09110-510-0 01 1 9101-9307 ● ●
198 NUT; CLAMP
M10 		9-09110-510-0 01 1 9308-9504 ● ●
198 NUT; CLAMP
M10 		9-09110-510-0 01 1 9505-9606 ●
198 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 01 1 9607-0602 ●
198 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 01 1 0603- ●
198 NUT; CLAMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-09110-508-0 05 1 9101-9504 ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(B) 		1-53497-036-3 01 1 9505- ●
209 BRACKET; ACL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53497-193-2 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-193-2 01 1 9505- ●
209 BRACKET; ACL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-53419-119-1 01 1 9101-9504 ● ● ●
209 BRACKET; ACL
(A) 		1-53497-596-0 01 1 9702-9703 ●
209 BRACKET; ACL
(A) 		1-53497-605-2 01 1 9704-9709 ●
209 BRACKET; ACL
(A) 		1-53497-605-3 01 1 9710- ● ●
209 BRACKET; ACL
(B) 		1-53497-597-0 01 1 9702-9703 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9704-9709 ●
209 BRACKET; ACL
(B) 		1-53497-604-1 01 1 9710- ● ●
210 BOLT; ACL BRKT
(B) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
(C) M10X25 FLANGE 		0-28081-025-0 08 1 9505-9606 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9802 ● ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28681-030-0 08 1 9803-0512 ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ●
210 BOLT; ACL BRKT
EURO2 SPECIFICATION<THN> (C) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9607-9702 ●
210 BOLT; ACL BRKT
(C) M10X30 FLANGE 		0-28681-030-0 08 1 9703-9709 ● ●
210 BOLT; ACL BRKT
(A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
210 BOLT; ACL BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9101-9504 ● ● ●
211 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 01 1 9101-9504 ● ● ●
211 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-9801 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-208-0 12 1 9702-9705 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9706-9709 ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 12 1 9710-9801 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91150-108-0 06 1 9802-0602 ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0603- ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9702-9709 ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 9710-9801 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9802-9802 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91150-210-0 04 1 9803-0602 ● ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
211 NUT; BRKT
EURO2 SPECIFICATION<THN> M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
291 BOLT; ACL
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9805 ● ● ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9806-0512 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
291 BOLT; ACL
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
337 HOSE; CONN,DUCT TO RESONATOR 9-09912-895-1 01 1 9605-1109 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9702-9709 ●
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 9710-1109 ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002- ● ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=87-116 		1-09707-138-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=77-99 		1-09707-141-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ● ●
353 CLIP; RUBBER HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=77-95 		1-09707-114-0 02 1 9101-9504 ● ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-114-0 03 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=77-95 		1-09707-198-0 03 1 0307-0810 ●
353 CLIP; RUBBER HOSE
ID=75-95 		8-98133-357-0 03 1 0811-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=75-95 		8-98133-357-0 03 1 1002- ●
353 CLIP; RUBBER HOSE
ID=87-116 		1-09707-144-0 01 1 9505-0306 ●
353 CLIP; RUBBER HOSE
ID=87-113 		1-09707-199-0 01 1 0307-0811 ●
353 CLIP; RUBBER HOSE
ID=90-110 		8-98133-365-0 01 1 0812-1001 ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=90-110 		8-98133-365-0 01 1 1002- ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9702-9709 ●
353 CLIP; RUBBER HOSE
ID=58-79 		8-94126-771-0 08 1 9710-0306 ● ●
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0307-0811 ● ●
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001 ● ●
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002- ● ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-14231-559-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
(A) 		1-14231-559-0 01 1 9505- ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-14231-713-0 01 1 9101-9504 ● ●
358 HOSE; RUBBER,PIPE TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-14231-570-1 01 1 9101-9504 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-940-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-940-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> (C) 		1-14231-909-0 01 1 9505-9601 ●
358 HOSE; RUBBER,PIPE TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> (C) 		1-14231-909-0 01 1 9602- ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) ID=62 L=70 		1-09360-797-1 01 1 9702-9705 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9706-9709 ●
358 HOSE; RUBBER,PIPE TO PIPE
(D) 		1-09360-992-0 01 1 9710- ● ●
359 PIPE; HOSE CONN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=590 		1-14121-073-0 01 1 9101-9504 ● ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=590 		1-14121-073-0 01 1 9505-9601 ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> L=590 		1-14121-073-0 01 1 9602-9805 ●
359 PIPE; HOSE CONN
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EMISSIONSYSTEM ECE REQUIREMENT VAR2<TDZ> L=590 		1-14121-073-0 01 1 9806- ●
359 PIPE; HOSE CONN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=520 		1-14121-043-1 01 1 9101-9504 ● ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=405 		1-14121-125-0 01 1 9505-9601 ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=405 		1-14121-125-0 01 1 9602-9805 ●
359 PIPE; HOSE CONN
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5>, EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EMISSION SYSTEM ECE REQUIREMENT VAR2<TDZ> L=405 		1-14121-125-0 01 1 9806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
