Sayfa 1-45 - Isuzu EPC

1-45 — WATER SEDIMENTER; FUEL (#43859) — 317 parça

21 20 1 1 20 55 19 20 21 20 19 1 1 20 55 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (D)	8-98017-806-2	01	1	0507-
1	03.890 SEDIMENTER; FUEL (A)	8-94144-933-3	01	1	9412-0105
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-3	01	1	0106-0212
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) (B)	8-97188-042-0	01	1	0301-0310
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) TURBOCHARGER(K51) (C)	8-97081-814-2	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-94144-933-3	01	1	0311-0501
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0502-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ) (C)	8-98012-530-0	01	1	0507-
19	03.890 BRACKET; FUEL SEDIMENTER (A)	8-97090-294-3	01	1	9412-0212
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-97090-294-4	01	1	0311-0503
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0504-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9412-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0301-0310
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9412-9704
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-0105
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0311-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0601-0804
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0311-0506
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	01	1	9412-0212
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9702
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9703-9704
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9703-9704
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9705-0212
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0602
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-
55	03.890 BOLT; BRKT 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512
55	03.890 BOLT; BRKT 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0602
55	03.890 BOLT; BRKT 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0603-0804
55	03.890 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0805-

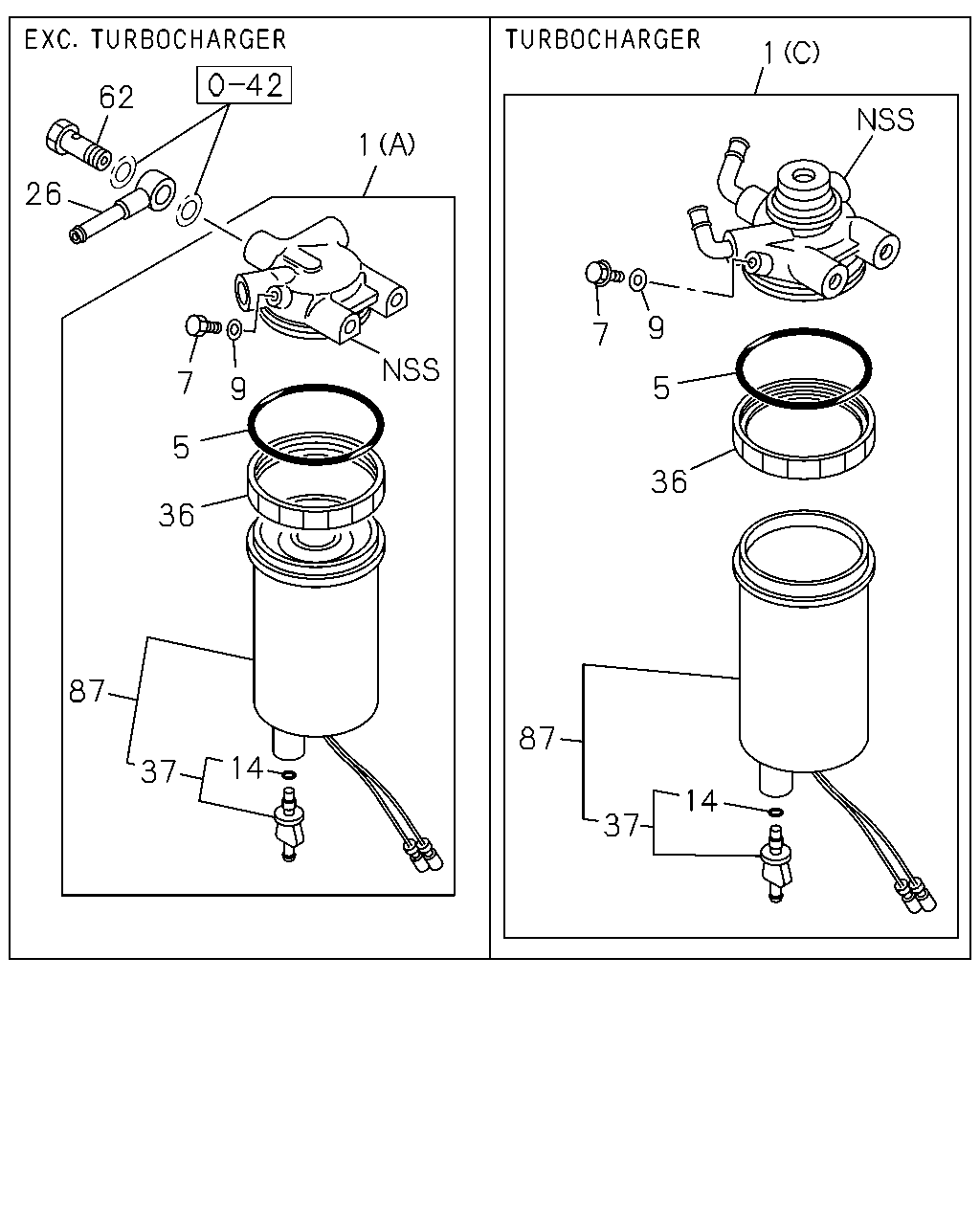

62 1 26 7 9 5 36 56 41 14 15 37 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (D)	8-98017-806-2	01	1	0507-
1	03.890 SEDIMENTER; FUEL (A)	8-94144-933-3	01	1	9412-0105
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-3	01	1	0106-0212
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) (B)	8-97188-042-0	01	1	0301-0310
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) TURBOCHARGER(K51) (C)	8-97081-814-2	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-94144-933-3	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9412-0105
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0106-0212
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY)	1-09623-491-0	01	1	0301-0310
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0311-0611
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0507-
7	03.890 PLUG; DRAIN,SEDIMENTER 03.895	9-09612-021-0	01	1	9412-9810
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9811-0105
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0106-0212
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	9-13219-070-0	01	1	0301-0310
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0311-0611
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 03.895	9-09571-406-0	01	1	9412-0105
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0106-0212
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0301-0310
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94132-675-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0311-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94416-377-0	01	1	9412-9808
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9809-0105
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH)	8-94447-156-0	01	1	0106-0611
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	0612-
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ)	8-98009-886-0	01	1	0507-
15	03.890 SENSOR ASM; SEDIMENTER	8-94153-430-0	01	1	9412-9808
26	03.163 PIPE; FUEL,IN & OUT	5-15411-223-1	02	1	9412-0105
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0106-0212
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	5-15411-223-1	02	1	0407-0501
26	03.163 PIPE; FUEL,IN & OUT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-15411-223-1	02	1	0407-0501
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0502-
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9412-0105
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0106-0212
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY)	1-13219-226-0	01	1	0301-0310
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0311-0501
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0311-0611
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ)	8-98004-899-0	01	1	0507-
37	03.890 PLUG; SENSOR	8-94416-376-0	01	1	9412-9808
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9809-0105
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH)	8-94453-746-0	01	1	0106-0611
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	0612-
39	03.890 HOSE; SEDIMENTER	8-94242-117-0	01	1	9412-9711
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ) 08.927	9-09563-334-0	01	1	0507-0611
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ) 03.417	1-09623-649-0	01	1	0612-
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	9412-9808
56	03.890 CASE; FUEL SEDIMENTER	5-13211-030-1	01	1	9412-9808
62	03.162 BOLT; EYE,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9412-9511
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) M14X29 EYE-BOLT	9-09906-325-1	02	1	0502-
62	03.162 BOLT; EYE,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9512-0105
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) M14X29 EYE-BOLT	9-09906-325-1	02	1	0106-0212
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT	9-09906-325-1	02	1	0311-0501

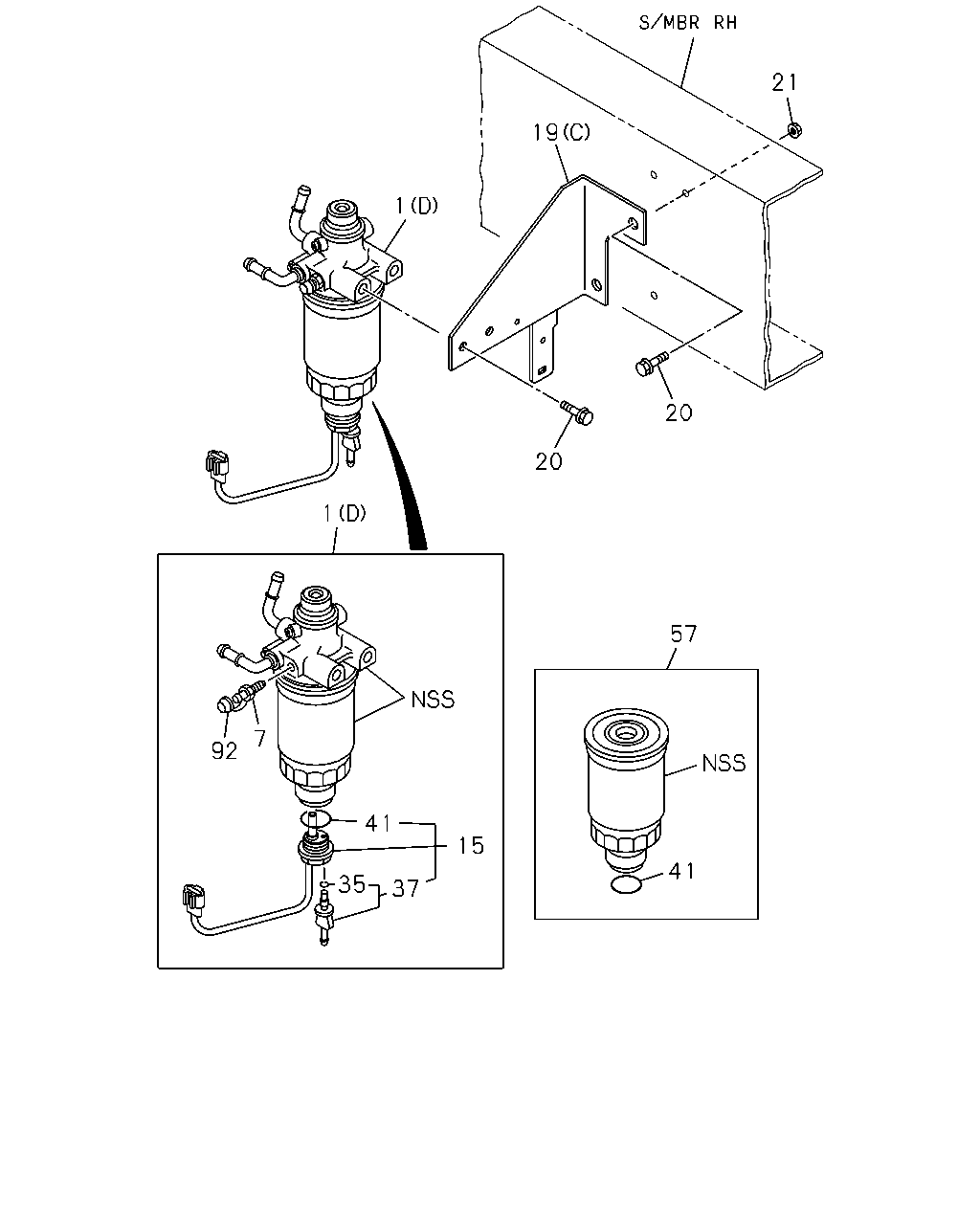

21 19 1 20 20 1 57 7 92 41 15 41 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (D)	8-98017-806-2	01	1	0507-
1	03.890 SEDIMENTER; FUEL (A)	8-94144-933-3	01	1	9412-0105
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-3	01	1	0106-0212
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) (B)	8-97188-042-0	01	1	0301-0310
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) TURBOCHARGER(K51) (C)	8-97081-814-2	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-94144-933-3	01	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0507-
7	03.890 PLUG; DRAIN,SEDIMENTER 03.895	9-09612-021-0	01	1	9412-9810
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9811-0105
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0106-0212
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	9-13219-070-0	01	1	0301-0310
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0311-0611
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
15	03.890 SENSOR ASM; SEDIMENTER 4HK1-TCN ENG(RDQ)	8-98009-886-0	01	1	0507-
15	03.890 SENSOR ASM; SEDIMENTER	8-94153-430-0	01	1	9412-9808
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0502-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) (B)	8-98011-681-0	01	1	0805-
19	03.890 BRACKET; FUEL SEDIMENTER 4HK1-TCN ENG(RDQ) (C)	8-98012-530-0	01	1	0507-
19	03.890 BRACKET; FUEL SEDIMENTER (A)	8-97090-294-3	01	1	9412-0212
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-97090-294-4	01	1	0311-0503
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0504-0804
19	03.890 BRACKET; FUEL SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98017-562-0	01	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9412-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0301-0310
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9412-9704
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-0105
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0311-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0601-0804
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0311-0506
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602
21	03.890 NUT; BRKT TO FRAME 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
21	03.890 NUT; BRKT TO FRAME 08.917 M10 FLANGE	0-91150-210-0	01	1	9412-0212
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9512-9702
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9703-9704
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9703-9704
21	03.890 NUT; BRKT TO FRAME 07.633 M8 FLANGE	0-91150-108-0	02	1	9705-0212
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0602
21	03.890 NUT; BRKT TO FRAME 4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-0804
21	03.890 NUT; BRKT TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 M10 FLANGE	0-91180-110-0	01	1	0805-
35	03.890 GASKET; DRAIN PLUG 4HK1-TCN ENG(RDQ)	8-98004-898-0	01	1	0507-
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY)	1-09623-490-0	01	1	0301-0310
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	0311-0501
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ)	8-98004-899-0	01	1	0507-
37	03.890 PLUG; SENSOR	8-94416-376-0	01	1	9412-9808
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9809-0105
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH)	8-94453-746-0	01	1	0106-0611
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	0612-
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ) 08.927	9-09563-334-0	01	1	0507-0611
41	03.890 GASKET; SENSOR TO CASE 4HK1-TCN ENG(RDQ) 03.417	1-09623-649-0	01	1	0612-
41	03.890 GASKET; SENSOR TO CASE 08.927	9-09563-334-0	01	1	9412-9808
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ)	8-98021-811-0	01	1	0507-0511
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ)	8-98031-847-0	01	1	0512-0611
57	03.890 CARTRIDGE KIT; FUEL FILTER 4HK1-TCN ENG(RDQ)	8-98037-481-0	01	1	0612-
92	01.203 CAP; DRAIN 4HK1-TCN ENG(RDQ) 03.417	8-97172-548-0	01	1	0507-

1 6 8 40 7 9 4 6 8 40 4 29 42 38 5 3 34 36 35 20 1 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (D)	8-98017-806-2	01	1	0507-
1	03.890 SEDIMENTER; FUEL (A)	8-94144-933-3	01	1	9412-0105
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-3	01	1	0106-0212
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) (B)	8-97188-042-0	01	1	0301-0310
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) TURBOCHARGER(K51) (C)	8-97081-814-2	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-94144-933-3	01	1	0311-0501
3	03.890 BODY ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13211-192-0	01	1	0301-0310
3	03.890 BODY ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13211-192-0	01	1	0311-0501
4	03.890 COVER; UPR,SEDIMENTER ASM 4HE1 ENG(RLY)	1-13212-146-0	01	1	0301-0310
4	03.890 COVER; UPR,SEDIMENTER ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13212-146-0	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9412-0105
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0106-0212
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY)	1-09623-491-0	01	1	0301-0310
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0311-0611
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	0612-
6	03.890 CONNECTOR ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13229-002-0	02	1	0301-0310
6	03.890 CONNECTOR ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-002-0	02	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0507-
7	03.890 PLUG; DRAIN,SEDIMENTER 03.895	9-09612-021-0	01	1	9412-9810
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9811-0105
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0106-0212
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	9-13219-070-0	01	1	0301-0310
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0311-0611
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
8	03.890 STOPPER; CONN,SEDIMENTER 4HE1 ENG(RLY)	1-13229-001-0	02	1	0301-0310
8	03.890 STOPPER; CONN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-001-0	02	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 03.895	9-09571-406-0	01	1	9412-0105
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0106-0212
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0301-0310
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94132-675-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0311-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 00.685 M10X30 FLANGE	0-28081-030-0	03	1	9412-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0301-0310
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0311-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0612-
20	03.890 BOLT; BRKT TO SEDIMENTER 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9412-9704
20	03.890 BOLT; BRKT TO SEDIMENTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9705-0105
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0212
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0311-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0601-0804
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M10X30 FLANGE	0-28051-030-0	03	1	0805-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0311-0506
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0611
20	03.890 BOLT; BRKT TO SEDIMENTER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-
24	03.890 NUT; SEDIMENTER 4HE1 ENG(RLY) 08.917 M10 FLANGE	0-91150-210-0	02	1	0301-0310
24	03.890 NUT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	0311-0501
29	03.890 SCREEN ASM; SEDIMENTER 4HE1 ENG(RLY)	1-13219-228-0	01	1	0301-0310
29	03.890 SCREEN ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-228-0	01	1	0311-0501
34	03.890 PLUG; DRAIN,FUEL FILTER 4HE1 ENG(RLY)	1-13219-225-0	01	1	0301-0310
34	03.890 PLUG; DRAIN,FUEL FILTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-225-0	01	1	0311-0501
35	03.890 GASKET; DRAIN PLUG 4HK1-TCN ENG(RDQ)	8-98004-898-0	01	1	0507-
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY)	1-09623-490-0	01	1	0301-0310
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	0311-0501
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9412-0105
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0106-0212
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY)	1-13219-226-0	01	1	0301-0310
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0311-0501
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0311-0611
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	0612-
38	03.890 FLOAT; SEDIMENTER 4HE1 ENG(RLY)	1-13219-227-0	01	1	0301-0310
38	03.890 FLOAT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-227-0	01	1	0311-0501
40	03.890 GASKET; CONNECTOR TO COVER 4HE1 ENG(RLY) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0301-0310
40	03.890 GASKET; CONNECTOR TO COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0501
42	03.890 PLATE; BAFFLE 4HE1 ENG(RLY)	1-13219-229-0	01	1	0301-0310
42	03.890 PLATE; BAFFLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-229-0	01	1	0311-0501

1 62 1 26 9 7 7 5 9 5 36 36 87 87 14 37 14 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HG1-T ENG(RDP) (C)	8-97081-814-3	01	1	0612-
1	03.890 SEDIMENTER; FUEL 4HK1-TCN ENG(RDQ) (D)	8-98017-806-2	01	1	0507-
1	03.890 SEDIMENTER; FUEL (A)	8-94144-933-3	01	1	9412-0105
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-3	01	1	0106-0212
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) (B)	8-97188-042-0	01	1	0301-0310
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97188-042-0	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) TURBOCHARGER(K51) (C)	8-97081-814-2	01	1	0311-0501
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) (A)	8-94144-933-4	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) (A)	8-94144-933-3	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER	5-09623-075-0	01	1	9412-0105
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0106-0212
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY)	1-09623-491-0	01	1	0301-0310
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0311-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1 ENG(RJH)	5-09623-075-0	01	1	0311-0611
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-09623-075-0	01	1	0612-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HK1-TCN ENG(RDQ)	8-97172-546-1	01	1	0507-
7	03.890 PLUG; DRAIN,SEDIMENTER 03.895	9-09612-021-0	01	1	9412-9810
7	03.890 PLUG; DRAIN,SEDIMENTER	8-94132-674-0	01	1	9811-0105
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0106-0212
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY)	9-13219-070-0	01	1	0301-0310
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0311-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1 ENG(RJH)	8-94132-674-0	01	1	0311-0611
7	03.890 PLUG; DRAIN,SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94132-674-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1-T ENG(RDP)	8-94132-675-0	01	1	0612-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 03.895	9-09571-406-0	01	1	9412-0105
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0106-0212
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0301-0310
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94132-675-0	01	1	0311-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) 03.895	9-09571-406-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.895	9-09571-406-0	01	1	0311-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94416-377-0	01	1	9412-9808
14	03.890 GASKET; SENSOR TO CENTER BOLT	8-94447-156-0	01	1	9809-0105
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1 ENG(RJH)	8-94447-156-0	01	1	0106-0611
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94447-156-0	01	1	0612-
26	03.163 PIPE; FUEL,IN & OUT	5-15411-223-1	02	1	9412-0105
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0106-0212
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV)	5-15411-223-1	02	1	0407-0501
26	03.163 PIPE; FUEL,IN & OUT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-15411-223-1	02	1	0407-0501
26	03.163 PIPE; FUEL,IN & OUT 4HG1 ENG(RJH)	5-15411-223-1	02	1	0502-
36	03.890 RING; BODY TO CASE	5-13234-001-0	01	1	9412-0105
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0106-0212
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY)	1-13219-226-0	01	1	0301-0310
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0311-0501
36	03.890 RING; BODY TO CASE 4HG1 ENG(RJH)	5-13234-001-0	01	1	0311-0611
36	03.890 RING; BODY TO CASE 4HG1-T ENG(RDP),4HG1 ENG(RJH)	5-13234-001-0	01	1	0612-
37	03.890 PLUG; SENSOR 4HK1-TCN ENG(RDQ)	8-98004-899-0	01	1	0507-
37	03.890 PLUG; SENSOR	8-94416-376-0	01	1	9412-9808
37	03.890 PLUG; SENSOR	8-94453-746-0	01	1	9809-0105
37	03.890 PLUG; SENSOR 4HG1 ENG(RJH)	8-94453-746-0	01	1	0106-0611
37	03.890 PLUG; SENSOR 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-94453-746-0	01	1	0612-
62	03.162 BOLT; EYE,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9412-9511
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) M14X29 EYE-BOLT	9-09906-325-1	02	1	0502-
62	03.162 BOLT; EYE,FUEL FILTER M14X29 EYE-BOLT	9-09906-325-1	02	1	9512-0105
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) M14X29 EYE-BOLT	9-09906-325-1	02	1	0106-0212
62	03.162 BOLT; EYE,FUEL FILTER 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) M14X29 EYE-BOLT	9-09906-325-1	02	1	0311-0501
87	03.890 CASE ASM; SEDIMENTER	8-97219-363-0	01	1	9809-0105
87	03.890 CASE ASM; SEDIMENTER 4HG1 ENG(RJH)	8-97219-363-0	01	1	0106-0611
87	03.890 CASE ASM; SEDIMENTER 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97219-363-1	01	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
