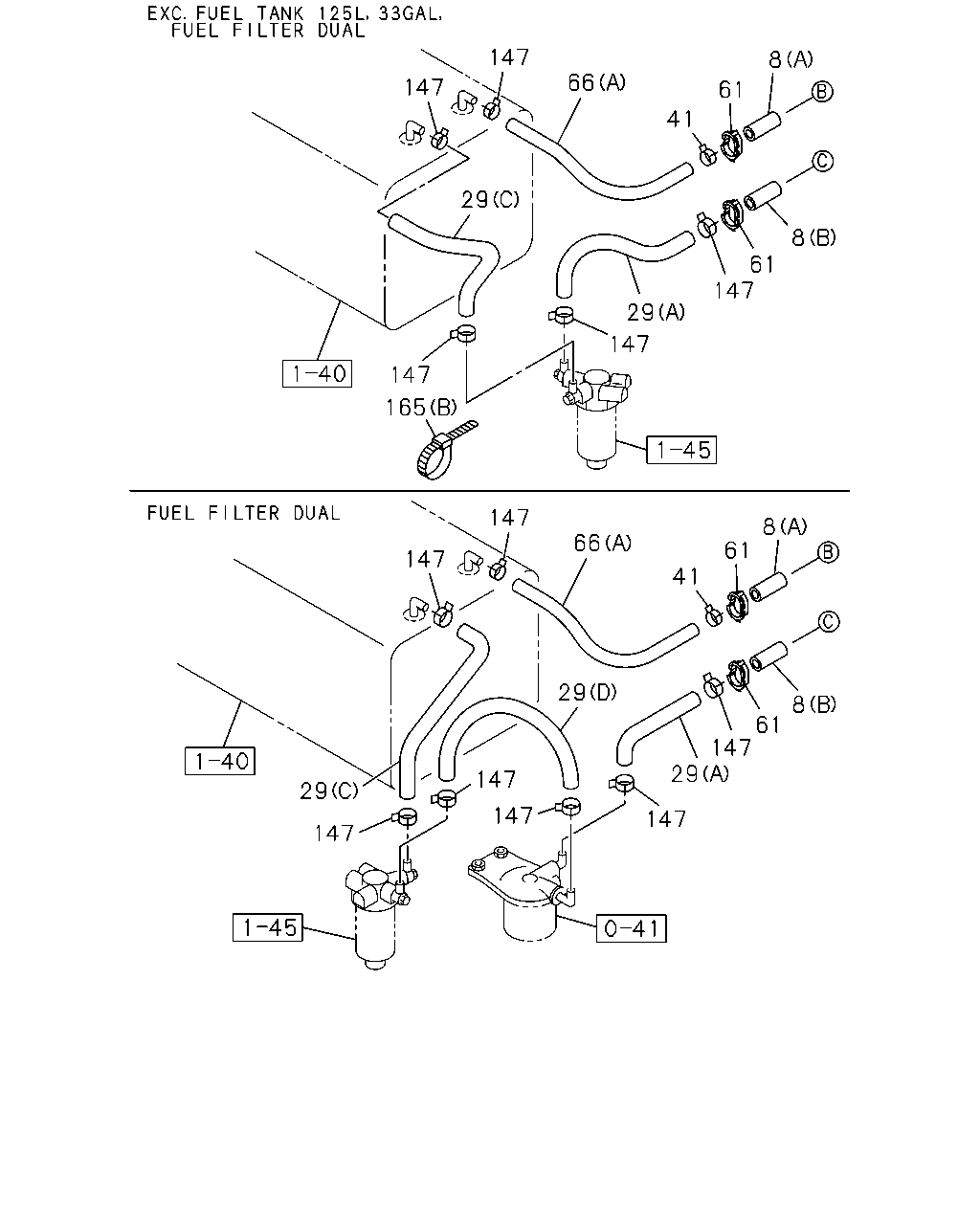

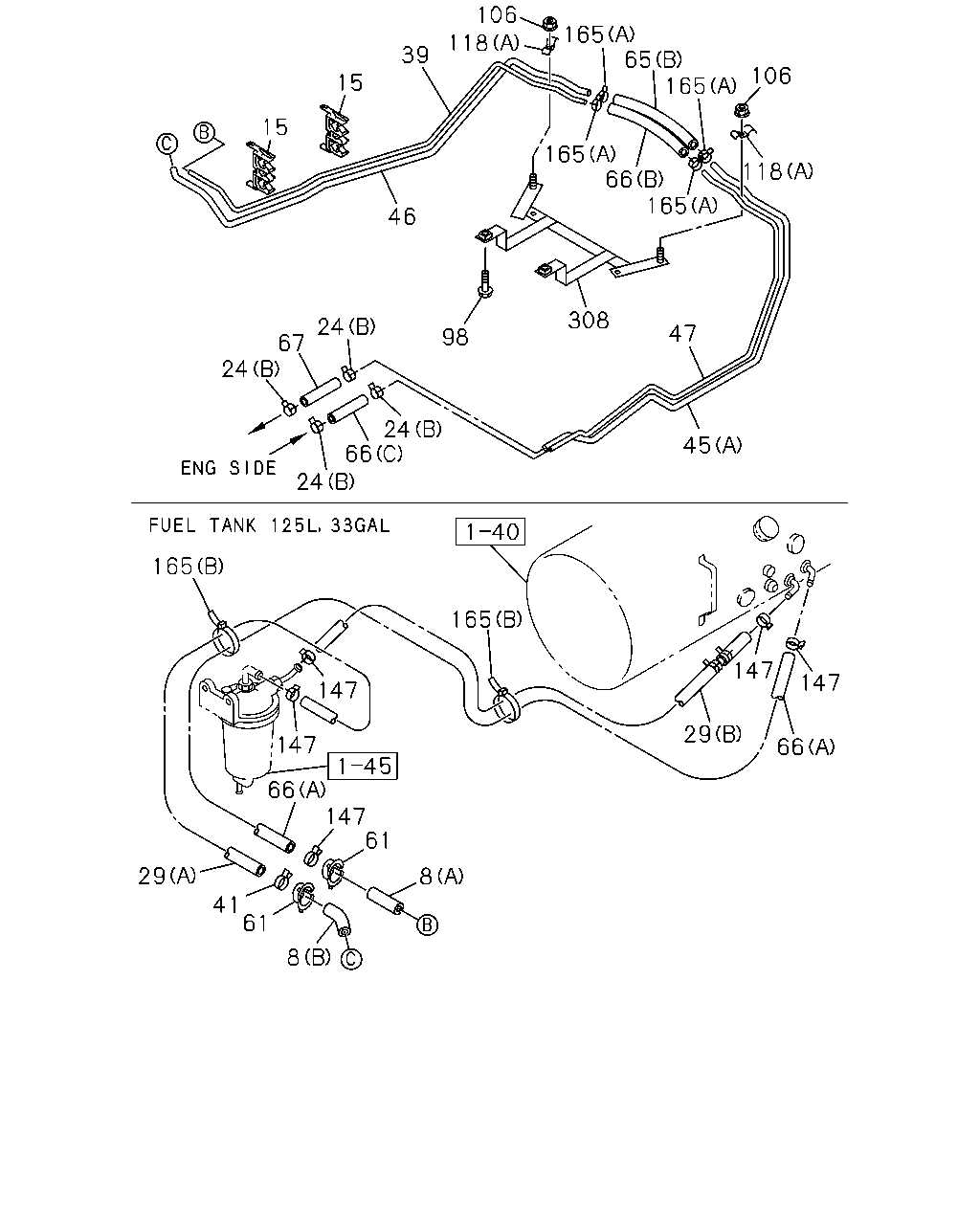

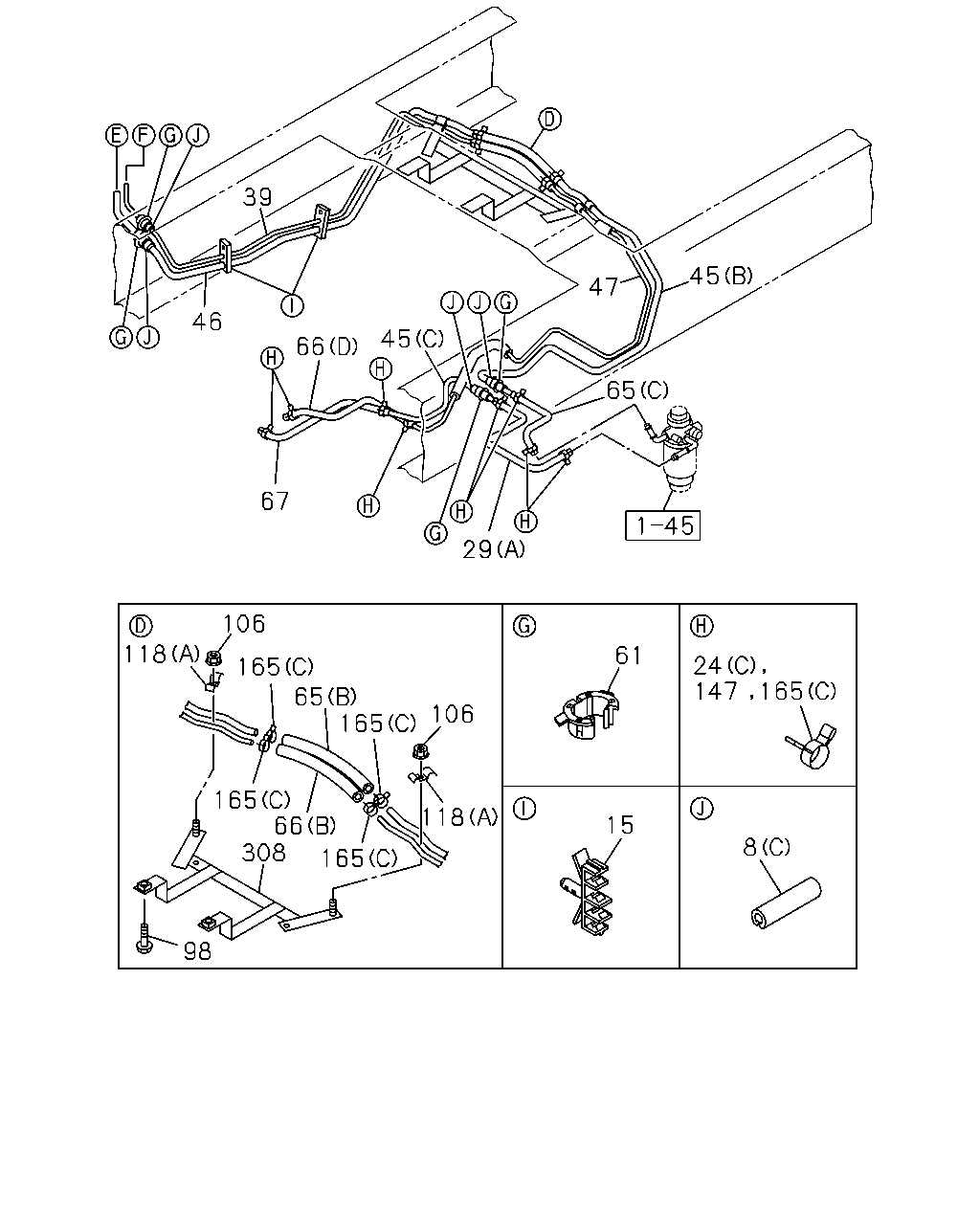

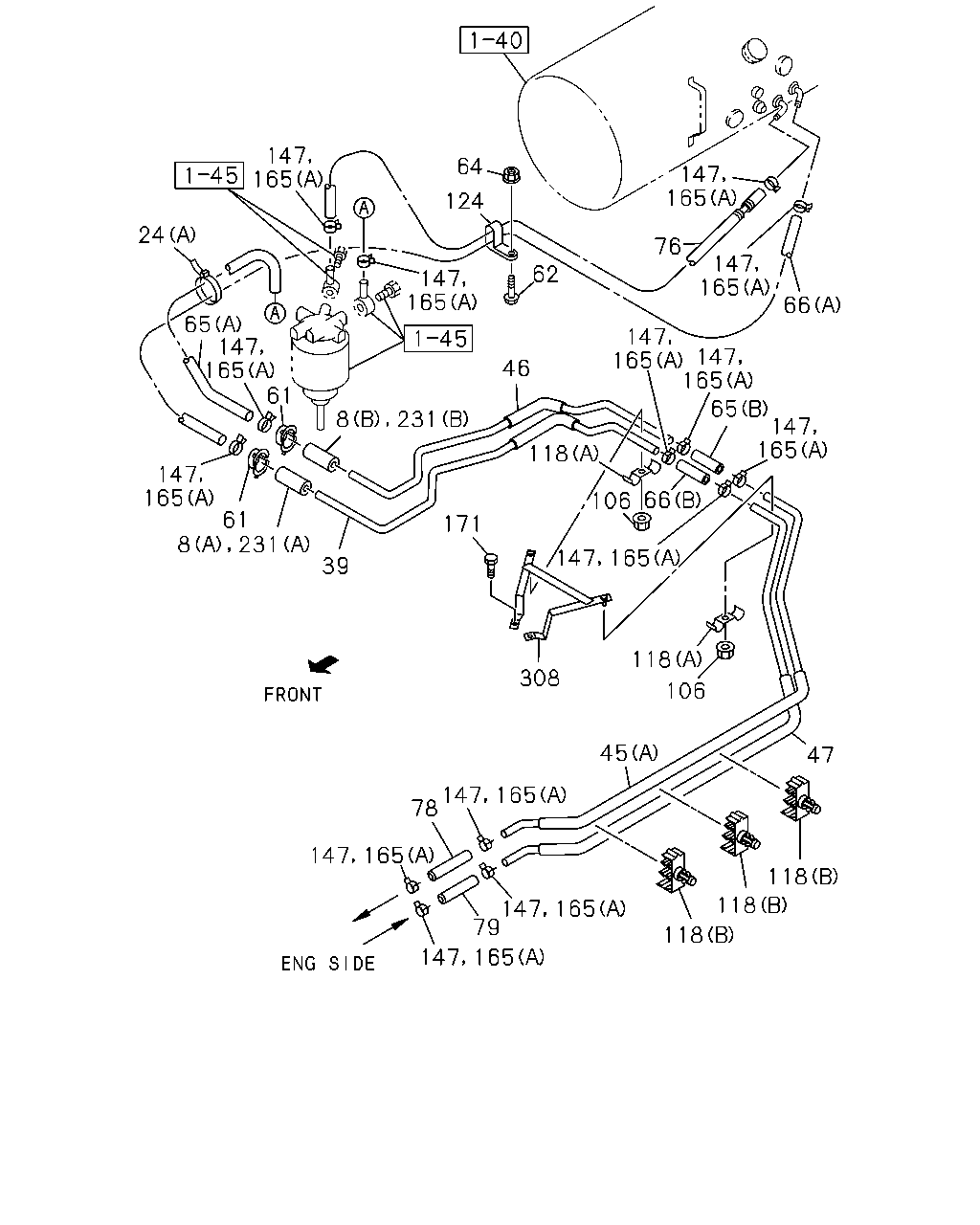

1-41 — FUEL PIPING; CHASSIS (#43858) — 658 parça

106 118 165 65 165 39 106 15 15 165 66 165 118 46 308 24 47 98 67 24 24 66 24 45 165 165 147 147 147 29 147 66 66 147 61 29 8 41 61 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG 4HK1-TCN ENG(RDQ) (C) OD=16.5 L=50	8-97214-235-0	03	1	0507-
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0106-
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0106-0212
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0301-0310
8	03.162 RUBBER; MTG 4HG1 ENG(RJH),4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0311-0501
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0502-0611
8	03.162 RUBBER; MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0612-
15	03.162 CLIP; FUEL PIPE 04.930 ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0301-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9503-0212
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=13	8-98150-357-0	02	1	0912-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) (C) L=500	8-97353-527-0	01	1	0805-
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0804
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0805-
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
29	03.163 HOSE; FUEL 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) (B)	8-97120-448-1	01	1	0301-0310
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> (B)	8-97120-448-1	01	1	0311-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) (C) L=380	8-97353-524-0	01	1	0311-
39	03.163 PIPE; FUEL 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98012-734-0	01	1	0507-
39	03.163 PIPE; FUEL	8-97047-034-3	01	1	9412-0212
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-841-2	01	1	0301-0309
39	03.163 PIPE; FUEL	8-97325-841-2	01	1	0310-0501
39	03.163 PIPE; FUEL M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0502
39	03.163 PIPE; FUEL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0611
39	03.163 PIPE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0612-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.219 ID=12	8-94238-610-0	01	1	0507-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	01	1	0912-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0301-0310
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0311-0501
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0502-0611
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0612-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=13	8-98150-357-0	01	1	0912-
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A)	8-98079-876-1	01	1	0804-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (B)	8-97376-689-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (C)	8-97376-690-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97047-033-2	01	1	9412-0212
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97325-828-2	01	1	0301-0310
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> (A)	8-97325-828-2	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) (A)	8-97373-726-0	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0502-0611
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0612-0803
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0804-
46	03.163 PIPE; FUEL,TANK SIDE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-688-0	01	1	0507-
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9412-9511
46	03.163 PIPE; FUEL,TANK SIDE	8-97047-032-3	01	1	9512-9602
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9603-0212
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-838-2	01	1	0301-0309
46	03.163 PIPE; FUEL,TANK SIDE	8-97325-838-2	01	1	0310-0501
46	03.163 PIPE; FUEL,TANK SIDE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0502-0611
46	03.163 PIPE; FUEL,TANK SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0612-
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) M/T MYY5T(RSM)	8-98079-877-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-691-0	01	1	0507-
47	03.163 PIPE; FUEL,RETURN	8-97047-035-3	01	1	9412-0212
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-834-3	01	1	0301-0310
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL>	8-97325-834-3	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH)	8-97373-727-0	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0502-0611
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0612-0803
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0804-
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	04	1	0507-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9412-0501
61	03.162 GROMMET; PIPE TO FRAME 4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0502-0611
61	03.162 GROMMET; PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (C)	8-97376-703-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (D) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0105
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0310
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0311-0501
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (D)	8-97367-176-2	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (A) L=1050 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0309
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0310-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0310
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0612-0807
67	03.163 HOSE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ)	8-97358-767-3	01	1	0507-
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
67	03.163 HOSE; FUEL,DELIVERY 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
67	03.163 HOSE; FUEL,DELIVERY 4HG1 ENG(RJH) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
67	03.163 HOSE; FUEL,DELIVERY 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
98	03.162 BOLT; BRKT,FUEL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
98	03.162 BOLT; BRKT,FUEL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	02	1	9412-0602
106	03.162 NUT; FUEL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HK1-TCN ENG(RDQ) 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	02	1	0507-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9412-0501
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0502-0611
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0612-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9412-0212
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.762 GRAY ID=19	8-94238-569-0	05	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) BLACK ID=19	8-98150-356-0	05	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.219 BLACK ID=12	8-94238-610-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.240 BLACK ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 04.930 GRAY ID=16	8-94238-568-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> GRAY ID=16	8-98008-098-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	08	1	9412-9711
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 04.930 GRAY ID=16	8-94238-568-0	03	1	0301-0309
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0310-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 GRAY ID=19	8-94238-569-0	01	1	0502-0506
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 01.762 GRAY ID=19	8-94238-569-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.166 BLACK ID=14	8-94238-572-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> 01.166 BLACK ID=14	8-94238-572-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 100 LITTER<N02> 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	07	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	07	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	01	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.166 (A) ID=14	8-94238-572-0	01	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=13	8-98150-357-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0301-0606
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-
308	03.162 BRACKET; FUEL PIPE	8-97089-085-2	01	1	9412-0212
308	03.162 BRACKET; FUEL PIPE	8-97350-456-0	01	1	0301-

147 165 64 147 165 124 24 76 62 147 165 66 147 165 65 147 165 61 147 165 147 165 46 65 147 165 118 147 165 61 231 171 8 147 165 39 118 308 106 45 47 147 78 165 147 165 118 118 165 147 79 118 147 165 106 66 8 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG 4HK1-TCN ENG(RDQ) (C) OD=16.5 L=50	8-97214-235-0	03	1	0507-
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0106-
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0106-0212
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0301-0310
8	03.162 RUBBER; MTG 4HG1 ENG(RJH),4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0311-0501
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0502-0611
8	03.162 RUBBER; MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0612-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9503-0212
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=13	8-98150-357-0	02	1	0912-
39	03.163 PIPE; FUEL 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98012-734-0	01	1	0507-
39	03.163 PIPE; FUEL	8-97047-034-3	01	1	9412-0212
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-841-2	01	1	0301-0309
39	03.163 PIPE; FUEL	8-97325-841-2	01	1	0310-0501
39	03.163 PIPE; FUEL M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0502
39	03.163 PIPE; FUEL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0611
39	03.163 PIPE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0612-
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A)	8-98079-876-1	01	1	0804-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (B)	8-97376-689-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (C)	8-97376-690-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97047-033-2	01	1	9412-0212
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97325-828-2	01	1	0301-0310
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> (A)	8-97325-828-2	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) (A)	8-97373-726-0	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0502-0611
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0612-0803
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0804-
46	03.163 PIPE; FUEL,TANK SIDE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-688-0	01	1	0507-
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9412-9511
46	03.163 PIPE; FUEL,TANK SIDE	8-97047-032-3	01	1	9512-9602
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9603-0212
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-838-2	01	1	0301-0309
46	03.163 PIPE; FUEL,TANK SIDE	8-97325-838-2	01	1	0310-0501
46	03.163 PIPE; FUEL,TANK SIDE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0502-0611
46	03.163 PIPE; FUEL,TANK SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0612-
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) M/T MYY5T(RSM)	8-98079-877-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-691-0	01	1	0507-
47	03.163 PIPE; FUEL,RETURN	8-97047-035-3	01	1	9412-0212
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-834-3	01	1	0301-0310
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL>	8-97325-834-3	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH)	8-97373-727-0	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0502-0611
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0612-0803
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0804-
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	04	1	0507-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9412-0501
61	03.162 GROMMET; PIPE TO FRAME 4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0502-0611
61	03.162 GROMMET; PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0612-
62	03.162 BOLT; CLIP FIX 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9503-9505
62	03.162 BOLT; CLIP FIX 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9506-9511
62	03.162 BOLT; CLIP FIX 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9512-0212
64	03.162 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (C)	8-97376-703-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (D) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0105
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0310
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0311-0501
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (D)	8-97367-176-2	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (A) L=1050 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0309
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0310-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0310
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0612-0807
76	03.163 HOSE; FUEL,TANK	8-97120-448-1	01	1	9412-0212
78	03.163 HOSE; FUEL,PUMP TO PIPE 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0212
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN L=250 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	02	1	9412-0602
106	03.162 NUT; FUEL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HK1-TCN ENG(RDQ) 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	02	1	0507-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9412-0501
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0502-0611
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0612-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9412-0212
124	03.162 CLIP; HOSE 4HG1 ENG(RJH) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97089-536-0	01	1	0507-0611
124	03.162 CLIP; HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02>	8-97089-536-0	01	1	0612-
124	03.162 CLIP; HOSE 04.047	8-97028-508-2	01	1	9503-0212
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.762 GRAY ID=19	8-94238-569-0	05	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) BLACK ID=19	8-98150-356-0	05	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.219 BLACK ID=12	8-94238-610-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.240 BLACK ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 04.930 GRAY ID=16	8-94238-568-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> GRAY ID=16	8-98008-098-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	08	1	9412-9711
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 04.930 GRAY ID=16	8-94238-568-0	03	1	0301-0309
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0310-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 GRAY ID=19	8-94238-569-0	01	1	0502-0506
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 01.762 GRAY ID=19	8-94238-569-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.166 BLACK ID=14	8-94238-572-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> 01.166 BLACK ID=14	8-94238-572-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 100 LITTER<N02> 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	07	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	07	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	01	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.166 (A) ID=14	8-94238-572-0	01	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=13	8-98150-357-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0301-0606
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-
171	03.162 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9412-0212
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9412-0105
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9412-0105
308	03.162 BRACKET; FUEL PIPE	8-97089-085-2	01	1	9412-0212
308	03.162 BRACKET; FUEL PIPE	8-97350-456-0	01	1	0301-

147 8 66 147 61 41 29 8 61 147 29 147 147 165 147 8 66 61 147 41 29 8 61 147 29 147 29 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG 4HK1-TCN ENG(RDQ) (C) OD=16.5 L=50	8-97214-235-0	03	1	0507-
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0106-
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0106-0212
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0301-0310
8	03.162 RUBBER; MTG 4HG1 ENG(RJH),4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0311-0501
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0502-0611
8	03.162 RUBBER; MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) (C) L=500	8-97353-527-0	01	1	0805-
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0804
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0805-
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
29	03.163 HOSE; FUEL 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) (B)	8-97120-448-1	01	1	0301-0310
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> (B)	8-97120-448-1	01	1	0311-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) (C) L=380	8-97353-524-0	01	1	0311-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.219 ID=12	8-94238-610-0	01	1	0507-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	01	1	0912-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0301-0310
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0311-0501
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0502-0611
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0612-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=13	8-98150-357-0	01	1	0912-
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	04	1	0507-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9412-0501
61	03.162 GROMMET; PIPE TO FRAME 4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0502-0611
61	03.162 GROMMET; PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (D)	8-97367-176-2	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (A) L=1050 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0309
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0310-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0310
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0612-0807
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.762 GRAY ID=19	8-94238-569-0	05	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) BLACK ID=19	8-98150-356-0	05	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.219 BLACK ID=12	8-94238-610-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.240 BLACK ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 04.930 GRAY ID=16	8-94238-568-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> GRAY ID=16	8-98008-098-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	08	1	9412-9711
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 04.930 GRAY ID=16	8-94238-568-0	03	1	0301-0309
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0310-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 GRAY ID=19	8-94238-569-0	01	1	0502-0506
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 01.762 GRAY ID=19	8-94238-569-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.166 BLACK ID=14	8-94238-572-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> 01.166 BLACK ID=14	8-94238-572-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 100 LITTER<N02> 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	07	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	07	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	01	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.166 (A) ID=14	8-94238-572-0	01	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=13	8-98150-357-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0301-0606
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-

39 45 47 46 45 66 65 67 29 106 118 61 24 165 65 165 106 165 66 308 118 15 8 165 98 165 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	03.162 RUBBER; MTG 4HK1-TCN ENG(RDQ) (C) OD=16.5 L=50	8-97214-235-0	03	1	0507-
8	03.162 RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0106-
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0106-0212
8	03.162 RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0301-0310
8	03.162 RUBBER; MTG 4HG1 ENG(RJH),4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	01	1	0311-0501
8	03.162 RUBBER; MTG 4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0502-0611
8	03.162 RUBBER; MTG 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) OD=15 L=50	8-97077-629-0	01	1	0612-
15	03.162 CLIP; FUEL PIPE 04.930 ID=10X2 OR 12X2 & 6.35	8-97326-157-1	02	1	0301-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
24	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE (A) L=140	5-09707-031-1	01	1	9503-0212
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (B) ID=16	8-94238-568-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (B) ID=16	8-94238-568-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0301-0310
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (B) ID=13	8-94238-571-0	02	1	0311-0501
24	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0502-0611
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (B) ID=13	8-94238-571-0	02	1	0612-0911
24	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) ID=13	8-98150-357-0	02	1	0912-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) (C) L=500	8-97353-527-0	01	1	0805-
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0804
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0805-
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
29	03.163 HOSE; FUEL 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) (B)	8-97120-448-1	01	1	0301-0310
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> (B)	8-97120-448-1	01	1	0311-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) (C) L=380	8-97353-524-0	01	1	0311-
39	03.163 PIPE; FUEL 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-98012-734-0	01	1	0507-
39	03.163 PIPE; FUEL	8-97047-034-3	01	1	9412-0212
39	03.163 PIPE; FUEL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-841-2	01	1	0301-0309
39	03.163 PIPE; FUEL	8-97325-841-2	01	1	0310-0501
39	03.163 PIPE; FUEL M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0502
39	03.163 PIPE; FUEL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0502-0611
39	03.163 PIPE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-841-2	01	1	0612-
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP) M/T MYY5T(RSM) (A)	8-98079-876-1	01	1	0804-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (B)	8-97376-689-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM) (C)	8-97376-690-0	01	1	0507-
45	03.163 PIPE; FUEL,DELIVERY (A)	8-97047-033-2	01	1	9412-0212
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97325-828-2	01	1	0301-0310
45	03.163 PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL> (A)	8-97325-828-2	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) (A)	8-97373-726-0	01	1	0311-0501
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0502-0611
45	03.163 PIPE; FUEL,DELIVERY 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0612-0803
45	03.163 PIPE; FUEL,DELIVERY 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97373-726-0	01	1	0804-
46	03.163 PIPE; FUEL,TANK SIDE 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-688-0	01	1	0507-
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9412-9511
46	03.163 PIPE; FUEL,TANK SIDE	8-97047-032-3	01	1	9512-9602
46	03.163 PIPE; FUEL,TANK SIDE	8-97120-522-0	01	1	9603-0212
46	03.163 PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-838-2	01	1	0301-0309
46	03.163 PIPE; FUEL,TANK SIDE	8-97325-838-2	01	1	0310-0501
46	03.163 PIPE; FUEL,TANK SIDE 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0502-0611
46	03.163 PIPE; FUEL,TANK SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97325-838-2	01	1	0612-
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP) M/T MYY5T(RSM)	8-98079-877-1	01	1	0804-
47	03.163 PIPE; FUEL,RETURN 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM)	8-97376-691-0	01	1	0507-
47	03.163 PIPE; FUEL,RETURN	8-97047-035-3	01	1	9412-0212
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97325-834-3	01	1	0301-0310
47	03.163 PIPE; FUEL,RETURN 4HE1 ENG(RLY) M/T MYY5T(RSM) CHARGE AIR COOLER<6PL>	8-97325-834-3	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH)	8-97373-727-0	01	1	0311-0501
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0502-0611
47	03.163 PIPE; FUEL,RETURN 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0612-0803
47	03.163 PIPE; FUEL,RETURN 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97373-727-0	01	1	0804-
61	03.162 GROMMET; PIPE TO FRAME 4HK1-TCN ENG(RDQ) 02.343 ID=17	8-94128-319-2	04	1	0507-
61	03.162 GROMMET; PIPE TO FRAME 02.343 ID=17	8-94128-319-2	02	1	9412-0501
61	03.162 GROMMET; PIPE TO FRAME 4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0502-0611
61	03.162 GROMMET; PIPE TO FRAME 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 ID=17	8-94128-319-2	02	1	0612-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (C)	8-97376-703-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (D) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0105
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0310
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0311-0501
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (D)	8-97367-176-2	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (A) L=1050 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0309
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0310-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0310
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0612-0807
67	03.163 HOSE; FUEL,DELIVERY 4HK1-TCN ENG(RDQ)	8-97358-767-3	01	1	0507-
67	03.163 HOSE; FUEL,DELIVERY 4HE1 ENG(RLY) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
67	03.163 HOSE; FUEL,DELIVERY 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
67	03.163 HOSE; FUEL,DELIVERY 4HG1 ENG(RJH) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
67	03.163 HOSE; FUEL,DELIVERY 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 L=250 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
98	03.162 BOLT; BRKT,FUEL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0512
98	03.162 BOLT; BRKT,FUEL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
106	03.162 NUT; FUEL PIPE 04.594 M6 FLANGE	0-91150-106-0	02	1	9412-0602
106	03.162 NUT; FUEL PIPE 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HK1-TCN ENG(RDQ) 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	02	1	0507-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	9412-0501
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0502-0611
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.785 (A) ID=11 & 7 L=15 & 15	1-09700-071-0	02	1	0612-
118	03.162 CLIP; MTG,FUEL PIPE TO FRT SIDE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	9412-0212
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.762 GRAY ID=19	8-94238-569-0	05	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) BLACK ID=19	8-98150-356-0	05	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.219 BLACK ID=12	8-94238-610-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.240 BLACK ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 04.930 GRAY ID=16	8-94238-568-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> GRAY ID=16	8-98008-098-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	08	1	9412-9711
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 04.930 GRAY ID=16	8-94238-568-0	03	1	0301-0309
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0310-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 GRAY ID=19	8-94238-569-0	01	1	0502-0506
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 01.762 GRAY ID=19	8-94238-569-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.166 BLACK ID=14	8-94238-572-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> 01.166 BLACK ID=14	8-94238-572-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 100 LITTER<N02> 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	01	1	0612-0804
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP) (B) L=140	5-09707-031-1	03	1	0805-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.762 (C) ID=19	8-94238-569-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) (C) ID=19	8-98150-356-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.219 (C) ID=12	8-94238-610-0	02	1	0507-0911
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ) 01.240 (C) ID=12	8-98150-358-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 04.930 (A) ID=16	8-94238-568-0	07	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	07	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 (A) ID=16	8-94238-568-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 (A) ID=16	8-94238-568-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=16	8-98008-098-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE 01.166 (A) ID=14	8-94238-572-0	01	1	9712-0105
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.166 (A) ID=14	8-94238-572-0	01	1	0106-0212
165	03.162 CLIP; FUEL HOSE 4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0301-0310
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 (A) ID=13	8-94238-571-0	02	1	0311-0501
165	03.162 CLIP; FUEL HOSE 4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0502-0611
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 (A) ID=13	8-94238-571-0	02	1	0612-0911
165	03.162 CLIP; FUEL HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) ID=13	8-98150-357-0	02	1	0912-
165	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	02	1	0301-0606
165	03.162 CLIP; FUEL HOSE 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B) L=140	5-09707-031-1	02	1	0607-
308	03.162 BRACKET; FUEL PIPE	8-97089-085-2	01	1	9412-0212
308	03.162 BRACKET; FUEL PIPE	8-97350-456-0	01	1	0301-

147 66 147 41 147 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP) (C) L=500	8-97353-527-0	01	1	0805-
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0804
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (D) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0805-
29	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) (A) L=380 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0309
29	03.163 HOSE; FUEL 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0310-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) EXC. FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) (B)	8-97120-448-1	01	1	0301-0310
29	03.163 HOSE; FUEL 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> (B)	8-97120-448-1	01	1	0311-0501
29	03.163 HOSE; FUEL 4HG1 ENG(RJH) (C) L=380	8-97353-524-0	01	1	0311-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.219 ID=12	8-94238-610-0	01	1	0507-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HK1-TCN ENG(RDQ) 01.240 ID=12	8-98150-358-0	01	1	0912-
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0301-0310
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 ID=13	8-94238-571-0	01	1	0311-0501
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0502-0611
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 ID=13	8-94238-571-0	01	1	0612-0911
41	03.162 CLIP; FUEL PIPE,FUEL TANK 4HG1-T ENG(RDP),4HG1 ENG(RJH) ID=13	8-98150-357-0	01	1	0912-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) (C)	8-97376-703-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (D) L=950 SERVICED BY L=3000	0-01262-300-0	01	1	0507-
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0105
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0106-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 03.003 (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9412-0212
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0301-0310
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0311-0501
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0502-0611
65	03.163 HOSE; FUEL,DELIVERY PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.003 (B) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP) (C) L=240 SERVICED BY L=3000	0-01256-300-0	01	1	0808-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (B) L=140 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) (D)	8-97367-176-2	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE 4HK1-TCN ENG(RDQ) FUEL TANK 125L,33GAL<NL7> (A) L=1050 SERVICED BY L=3000	0-01755-300-0	01	1	0507-
66	03.163 HOSE; FUEL,RETURN PIPE (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE (A) L=1100 SERVICED BY L=3000	0-01256-300-0	01	1	9412-0212
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0309
66	03.163 HOSE; FUEL,RETURN PIPE (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0310-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0502-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0612-
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0310
66	03.163 HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> CHARGE AIR COOLER<6PL> (A) L=1060 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0501
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1 ENG(RJH) (A) L=600 SERVICED BY L=3000	0-01256-300-0	01	1	0311-0611
66	03.163 HOSE; FUEL,RETURN PIPE 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=250 SERVICED BY L=3000	0-01256-300-0	01	1	0612-0807
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) 04.930 GRAY ID=16	8-94238-568-0	02	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) GRAY ID=16	8-98008-098-0	02	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.762 GRAY ID=19	8-94238-569-0	05	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) BLACK ID=19	8-98150-356-0	05	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.219 BLACK ID=12	8-94238-610-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HK1-TCN ENG(RDQ) 01.240 BLACK ID=12	8-98150-358-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 04.930 GRAY ID=16	8-94238-568-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> GRAY ID=16	8-98008-098-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	08	1	9412-9711
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 04.930 GRAY ID=16	8-94238-568-0	03	1	0301-0309
147	03.162 CLIP; FUEL PIPE TO HOSE 04.930 GRAY ID=16	8-94238-568-0	03	1	0310-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 01.762 GRAY ID=19	8-94238-569-0	01	1	0502-0506
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> 01.762 GRAY ID=19	8-94238-569-0	01	1	0507-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FUEL TANK 125L,33GAL<NL7>,FUEL TANK 100 LITTER<N02> BLACK ID=19	8-98150-356-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.219 GRAY ID=13	8-94238-571-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.219 GRAY ID=13	8-94238-571-0	01	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=13	8-98150-357-0	01	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) 01.166 BLACK ID=14	8-94238-572-0	01	1	0301-0310
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 125L,33GAL<NL7> 01.166 BLACK ID=14	8-94238-572-0	01	1	0311-0501
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0502-0611
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.930 GRAY ID=16	8-94238-568-0	03	1	0612-0911
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1-T ENG(RDP),4HG1 ENG(RJH) GRAY ID=16	8-98008-098-0	03	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE 4HG1 ENG(RJH),4HE1 ENG(RLY) FUEL TANK 100 LITTER<N02> 01.762 BLACK ID=19	8-94238-569-0	01	1	0311-0501

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
