Isuzu WW
▶
TRUCKS
▶
NPS
▶
50701 - NPS-RHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

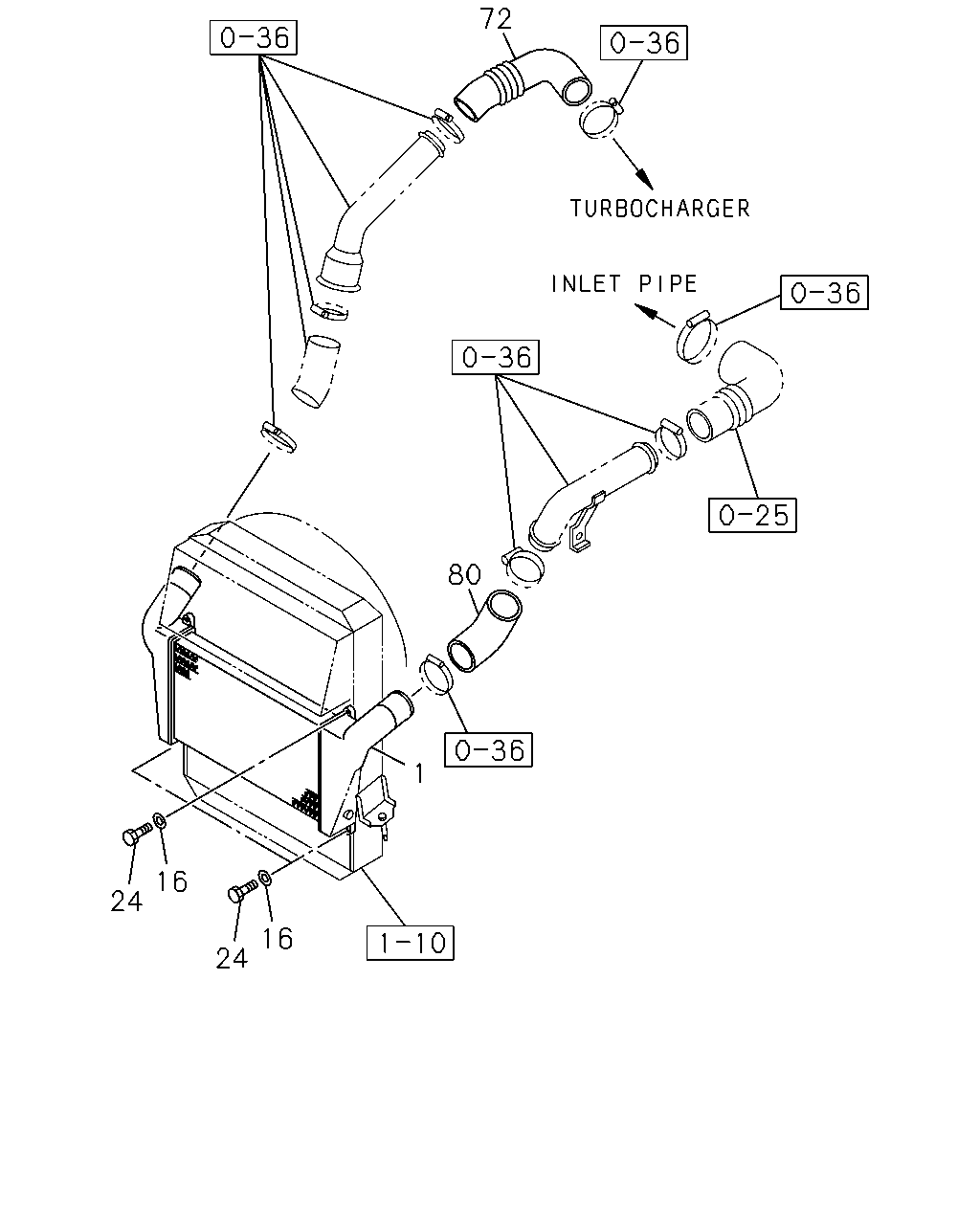

1-35 — CHARGE AIR COOLER
(#43856) — 14 parça
72
1
16
24
16
24
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ)
8-97218-394-4
01
1
0507-
1
03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY)
8-97218-394-4
01
1
0301-0310
1
03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97218-394-4
01
1
0311-0501
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 16.674 ID=8.4
9-09160-508-0
04
1
0507-1103
16
03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ) 03.417 ID=8.4 OD=16
0-91610-508-0
04
1
1104-
24
03.374 BOLT; COOLER TO RAD
4HK1-TCN ENG(RDQ) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0507-
24
03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0301-0310
24
03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
0311-0501
72
01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ)
8-97203-993-2
01
1
0507-
72
01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY)
8-97203-993-1
01
1
0301-0310
72
01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97203-993-1
01
1
0311-0501
80
01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ)
8-98019-958-1
01
1
0507-
80
01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY)
8-97360-427-0
01
1
0301-0310
80
01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>
8-97360-427-0
01
1
0311-0501
