◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#43855) — 352 parça

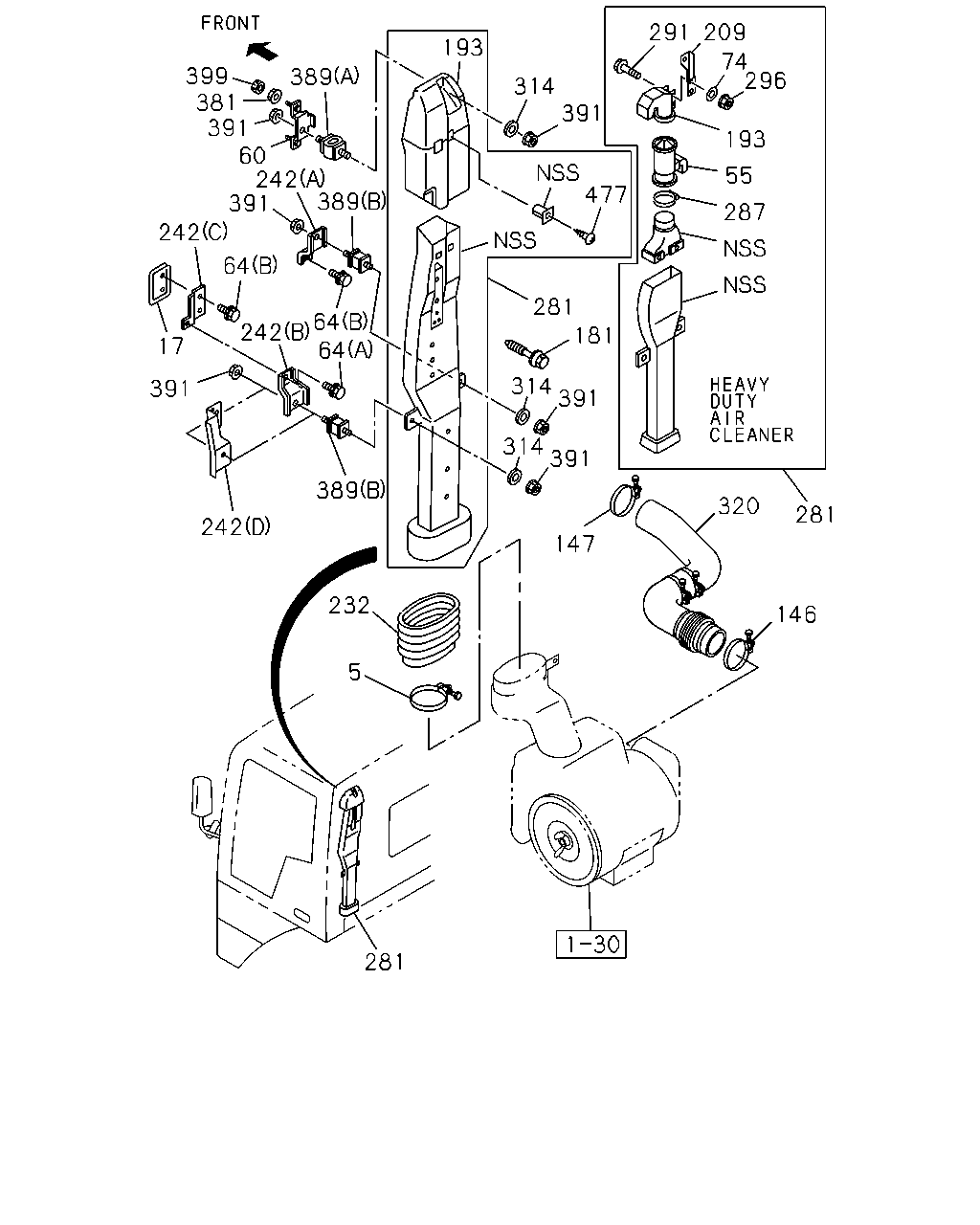

çizim 18404
291 209 193 74 296 399 381 391 60 242 391 389 314 391 193 477 55 389 287 242 64 281 64 242 64 181 17 314 391 314 391 391 389 320 281 242 147 232 146 5 281
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90 		8-98122-372-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9412-9511
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0311-0611
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9512-0105
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0106-0212
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) ID=58-79 		1-09707-136-0 01 1 0301-0310
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 0311-0501
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=68-85 		1-09707-202-0 01 1 0507-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=65-85 		8-98133-350-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85 		8-98133-350-0 01 1 1002-
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9412-0105
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH) 		8-97853-699-2 01 1 0106-0611
17 03.403 GASKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97853-699-2 01 1 0612-
55 03.402 CLEANER ASM; AIR,PRE
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 0510-
55 03.402 CLEANER ASM; AIR,PRE
HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 9503-0105
55 03.402 CLEANER ASM; AIR,PRE
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97126-267-0 01 1 0106-0212
60 03.417 BRACKET; AIR DUCT,UPR 8-97856-957-0 01 1 9412-0105
60 03.417 BRACKET; AIR DUCT,UPR
4HG1 ENG(RJH) 		8-97856-957-1 01 1 0106-0611
60 03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97856-957-1 01 1 0612-
64 03.417 BOLT; BRKT,AIR DUCT
04.047 (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9412-9412
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9412-0105
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH) 03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106-0611
64 03.417 BOLT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0612-
74 03.417 WASHER; PL,ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0510-0605
74 03.417 WASHER; PL,ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 04.595 ID=8.4 OD=22 		0-91610-708-0 02 1 0606-
74 03.417 WASHER; PL,ACL
HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9503-0105
74 03.417 WASHER; PL,ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 0106-0212
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
03.008 ID=95 		9-09915-733-1 01 1 9412-0105
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0106-0212
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) 03.407 ID=112 		9-09915-074-1 01 1 0301-0310
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0502-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0507-
147 03.417 CLIP; HOSE TO ENG
03.008 ID=95 		9-09915-733-1 01 1 9412-0105
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0106-0611
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-0612
147 03.417 CLIP; HOSE TO ENG
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0612-0612
147 03.417 CLIP; HOSE TO ENG
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0701-
181 03.407 BOLT; AIR DUCT TO RAD
06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9412-9605
181 03.407 BOLT; AIR DUCT TO RAD
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-0105
181 03.407 BOLT; AIR DUCT TO RAD
4HG1 ENG(RJH) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
181 03.407 BOLT; AIR DUCT TO RAD
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0611
181 03.407 BOLT; AIR DUCT TO RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-2 01 1 0510-
193 03.417 COVER; DUCT,AIR INT 8-97113-189-0 01 1 9412-9502
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97113-189-0 01 1 9503-9511
193 03.417 COVER; DUCT,AIR INT
HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9503-0105
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 0106-0212
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9606-0105
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 0106-0212
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97138-604-0 01 1 0311-0501
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) 		8-97138-604-1 01 1 0502-0509
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-1 01 1 0510-
209 03.405 BRACKET; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 0510-
209 03.405 BRACKET; ACL
HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 9503-0105
209 03.405 BRACKET; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-080-1 01 1 0106-0212
232 03.417 HOSE; CONN 8-97109-423-0 01 1 9412-0105
232 03.417 HOSE; CONN
4HG1 ENG(RJH) 		8-97109-423-0 01 1 0106-0611
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97109-423-0 01 1 0612-0802
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.407 		8-98115-594-0 01 1 0803-
242 03.417 BRACKET; AIR DUCT
(A) 		8-97853-633-1 01 1 9412-0105
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (A) 		8-97853-633-1 01 1 0106-0212
242 03.417 BRACKET; AIR DUCT
(B) 		8-97853-634-0 01 1 9412-9412
242 03.417 BRACKET; AIR DUCT
(D) 		8-97857-844-0 01 1 9501-0105
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (D) 		8-97857-844-0 01 1 0106-0212
242 03.417 BRACKET; AIR DUCT
(C) 		8-97853-635-1 01 1 9412-9412
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0311-0611
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0612-
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (D) 		8-97857-844-1 01 1 0311-0611
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (D) 		8-97857-844-1 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT 8-97108-552-0 01 1 9412-9502
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9511
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9512-9605
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) 		8-97180-995-0 01 1 0301-0310
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97161-847-1 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) 		8-97161-847-2 01 1 0502-0509
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) 		8-97180-995-0 01 1 0507-
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 0510-
287 03.417 CLIP; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 9503-0105
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 03.407 ID=87 		9-09915-071-1 01 1 0106-0212
291 03.405 BOLT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0510-0512
291 03.405 BOLT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 03.403 M8X30 FLANGE 		0-28650-830-0 02 1 0601-
291 03.405 BOLT; ACL
HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 9503-0105
291 03.405 BOLT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 04.686 M8X30 FLANGE 		0-28680-830-0 02 1 0106-0212
296 03.405 NUT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0510-0602
296 03.405 NUT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
296 03.405 NUT; ACL
HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9503-0105
296 03.405 NUT; ACL
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0212
314 03.417 WASHER; PL,AIR INT DUCT
16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9412-0105
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106-0611
314 03.417 WASHER; PL,AIR INT DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0612-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL 8-97043-079-0 01 1 9412-0105
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-0 01 1 0106-0212
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0301-0310
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97043-079-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-1 01 1 0502-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-873-1 01 1 0507-
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9412-0105
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106-0611
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9412-0105
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0106-0212
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9412-0105
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0106-0212
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0311-0611
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0311-0611
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0612-
391 03.417 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 06 1 9412-0105
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0106-0611
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0612-0910
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 W/LK WASHER 		8-97581-234-0 06 1 0911-
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9412-9511
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH) 		8-94273-605-0 02 1 0311-0611
399 03.417 CAP; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94273-605-0 02 1 0612-
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9512-0103
477 03.417 SCREW; COVER
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9412-9502
477 03.417 SCREW; COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9503-9511
477 03.417 SCREW; COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9711-0105
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106-0212
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0311-0501
477 03.417 SCREW; COVER
4HG1 ENG(RJH) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0502-0509
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0510-0604
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0605-0611
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
477 03.417 SCREW; COVER
4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-

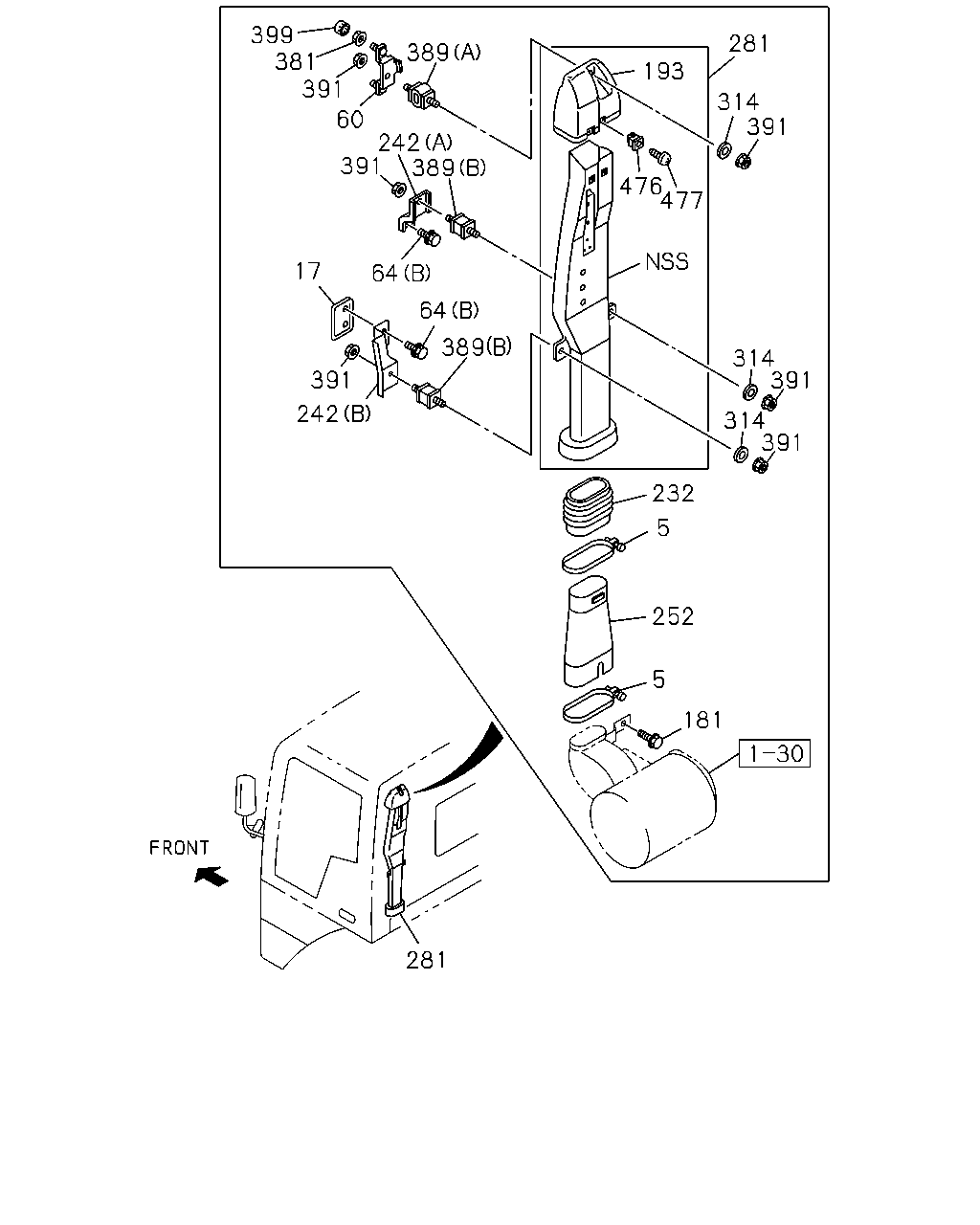

çizim 69948
399 381 391 281 389 193 314 391 60 242 391 389 476 477 17 64 64 389 314 391 391 314 391 242 232 5 252 5 181 281
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90 		8-98122-372-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9412-9511
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0311-0611
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9512-0105
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0106-0212
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) ID=58-79 		1-09707-136-0 01 1 0301-0310
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 0311-0501
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=68-85 		1-09707-202-0 01 1 0507-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=65-85 		8-98133-350-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85 		8-98133-350-0 01 1 1002-
17 03.403 GASKET; AIR DUCT 8-97853-699-2 01 1 9412-0105
17 03.403 GASKET; AIR DUCT
4HG1 ENG(RJH) 		8-97853-699-2 01 1 0106-0611
17 03.403 GASKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97853-699-2 01 1 0612-
60 03.417 BRACKET; AIR DUCT,UPR 8-97856-957-0 01 1 9412-0105
60 03.417 BRACKET; AIR DUCT,UPR
4HG1 ENG(RJH) 		8-97856-957-1 01 1 0106-0611
60 03.417 BRACKET; AIR DUCT,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97856-957-1 01 1 0612-
64 03.417 BOLT; BRKT,AIR DUCT
04.047 (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 9412-9412
64 03.417 BOLT; BRKT,AIR DUCT
03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9412-0105
64 03.417 BOLT; BRKT,AIR DUCT
4HG1 ENG(RJH) 03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106-0611
64 03.417 BOLT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.483 (B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0612-
181 03.407 BOLT; AIR DUCT TO RAD
06.672 M8X16 FLANGE 		0-28280-816-0 01 1 9412-9605
181 03.407 BOLT; AIR DUCT TO RAD
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9606-0105
181 03.407 BOLT; AIR DUCT TO RAD
4HG1 ENG(RJH) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0512
181 03.407 BOLT; AIR DUCT TO RAD
4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601-0611
181 03.407 BOLT; AIR DUCT TO RAD
4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0612-
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-2 01 1 0510-
193 03.417 COVER; DUCT,AIR INT 8-97113-189-0 01 1 9412-9502
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97113-189-0 01 1 9503-9511
193 03.417 COVER; DUCT,AIR INT
HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 9503-0105
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-078-1 01 1 0106-0212
193 03.417 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 9606-0105
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-0 01 1 0106-0212
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97138-604-0 01 1 0311-0501
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) 		8-97138-604-1 01 1 0502-0509
193 03.417 COVER; DUCT,AIR INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97138-604-1 01 1 0510-
232 03.417 HOSE; CONN 8-97109-423-0 01 1 9412-0105
232 03.417 HOSE; CONN
4HG1 ENG(RJH) 		8-97109-423-0 01 1 0106-0611
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97109-423-0 01 1 0612-0802
232 03.417 HOSE; CONN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.407 		8-98115-594-0 01 1 0803-
242 03.417 BRACKET; AIR DUCT
(A) 		8-97853-633-1 01 1 9412-0105
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (A) 		8-97853-633-1 01 1 0106-0212
242 03.417 BRACKET; AIR DUCT
(B) 		8-97853-634-0 01 1 9412-9412
242 03.417 BRACKET; AIR DUCT
(D) 		8-97857-844-0 01 1 9501-0105
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (D) 		8-97857-844-0 01 1 0106-0212
242 03.417 BRACKET; AIR DUCT
(C) 		8-97853-635-1 01 1 9412-9412
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0311-0611
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) 		8-97853-633-2 01 1 0612-
242 03.417 BRACKET; AIR DUCT
4HG1 ENG(RJH) (D) 		8-97857-844-1 01 1 0311-0611
242 03.417 BRACKET; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) (D) 		8-97857-844-1 01 1 0612-
252 03.417 DUCT; AIR INT
4HG1-T ENG(RDP) 		8-98049-610-1 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT 8-97108-552-0 01 1 9412-9502
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9511
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9512-9605
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) 		8-97180-995-0 01 1 0301-0310
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97161-847-1 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) 		8-97161-847-2 01 1 0502-0509
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) 		8-97180-995-0 01 1 0507-
314 03.417 WASHER; PL,AIR INT DUCT
16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 9412-0105
314 03.417 WASHER; PL,AIR INT DUCT
4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0106-0611
314 03.417 WASHER; PL,AIR INT DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.335 ID=10.2 T=3.2 		8-94279-642-0 03 1 0612-
381 03.417 NUT; BRKT,AIR DUCT
16.800 M6 FLANGE 		1-09984-018-0 02 1 9412-0105
381 03.417 NUT; BRKT,AIR DUCT
4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0106-0611
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.800 M6 FLANGE 		1-09984-018-0 02 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (A) 		8-97080-149-0 01 1 9412-0105
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0106-0212
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-97081-886-0 02 1 9412-0105
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0106-0212
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0311-0611
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) 		8-97080-149-0 01 1 0612-
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0311-0611
389 03.317 RUBBER; SUPPORT,AIR INT UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (B) 		8-97081-886-0 02 1 0612-
391 03.417 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 06 1 9412-0105
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0106-0611
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 FLANGE 		8-94279-517-0 06 1 0612-0910
391 03.417 NUT; SUPPORT RUBBER,UPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) M8 W/LK WASHER 		8-97581-234-0 06 1 0911-
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9412-9511
399 03.417 CAP; BRKT,AIR DUCT
4HG1 ENG(RJH) 		8-94273-605-0 02 1 0311-0611
399 03.417 CAP; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94273-605-0 02 1 0612-
399 03.417 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9512-0103
476 03.417 GROMMET; SCREW,COVER
4HG1-T ENG(RDP) 16.445 		1-09983-081-0 04 1 0612-
477 03.417 SCREW; COVER
09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9412-9502
477 03.417 SCREW; COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 09.744 M5X20 TAPPING W/PL WASHER 		0-74110-520-0 18 1 9503-9511
477 03.417 SCREW; COVER
EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 9711-0105
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0106-0212
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0311-0501
477 03.417 SCREW; COVER
4HG1 ENG(RJH) 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0502-0509
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 16.802 M5X16 TAPPING W/PL WASHER 		0-74110-516-0 04 1 0510-0604
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0605-0611
477 03.417 SCREW; COVER
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-
477 03.417 SCREW; COVER
4HG1-T ENG(RDP) 02.895 M5X16 TAPPING W/PL WASHER 		0-74160-516-0 04 1 0612-

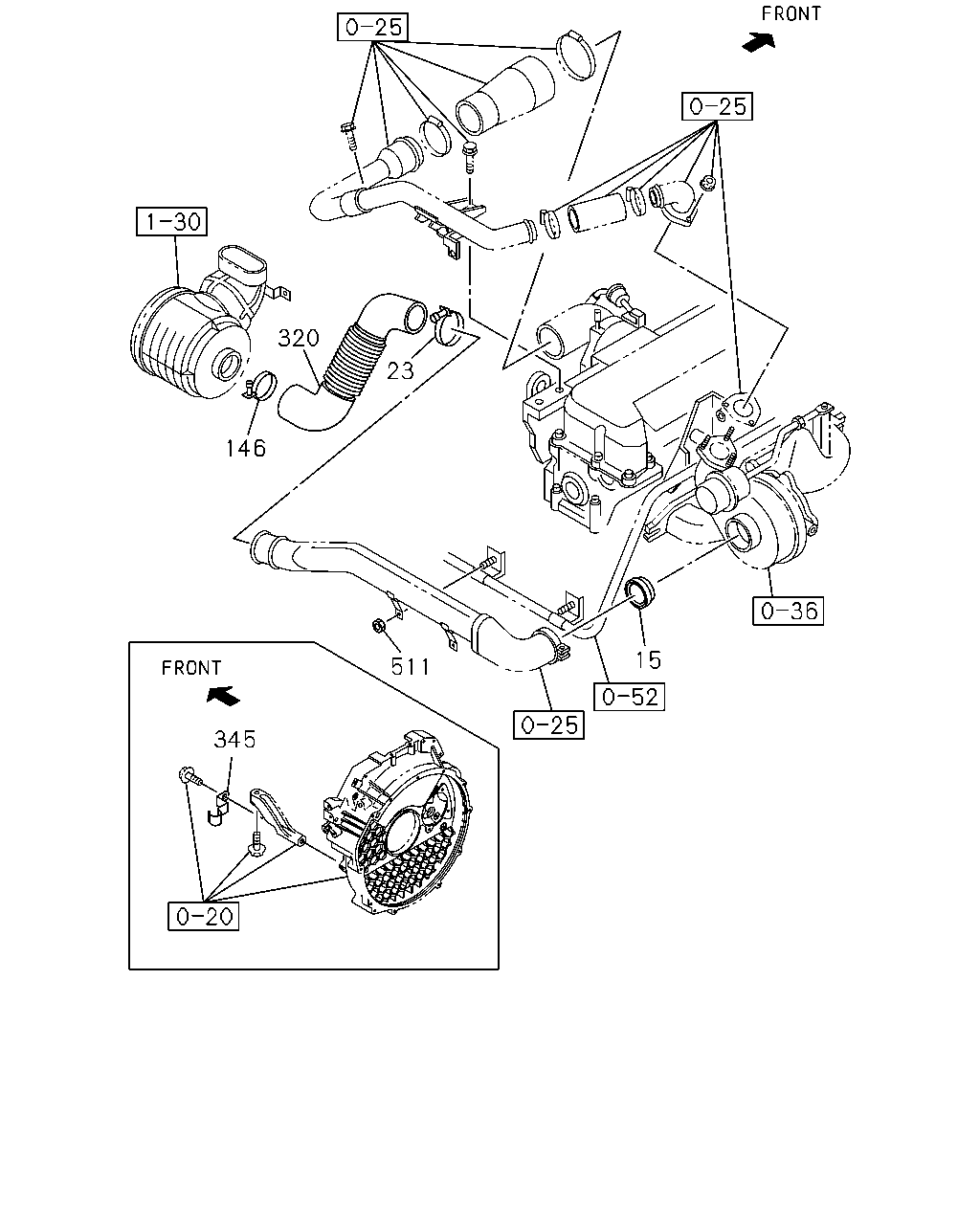

çizim 70021
320 23 146 15 511 345
BalonParca AdiParca NoAdetTipApplied Date
15 03.417 INSULATOR
4HG1-T ENG(RDP) 03.407 		8-94454-802-0 01 1 0612-
23 03.417 CLIP; HOSE
4HG1-T ENG(RDP) 03.407 ID=87 		8-97087-432-0 01 1 0612-
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
03.008 ID=95 		9-09915-733-1 01 1 9412-0105
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0106-0212
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) 03.407 ID=112 		9-09915-074-1 01 1 0301-0310
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0502-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0507-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL 8-97043-079-0 01 1 9412-0105
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-0 01 1 0106-0212
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0301-0310
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97043-079-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-1 01 1 0502-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-873-1 01 1 0507-
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0301-0307
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0308-0310
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97369-959-0 01 1 0311-0501
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0311-0501
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0507-
511 03.417 NUT; PIPE
4HG1-T ENG(RDP) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0612-

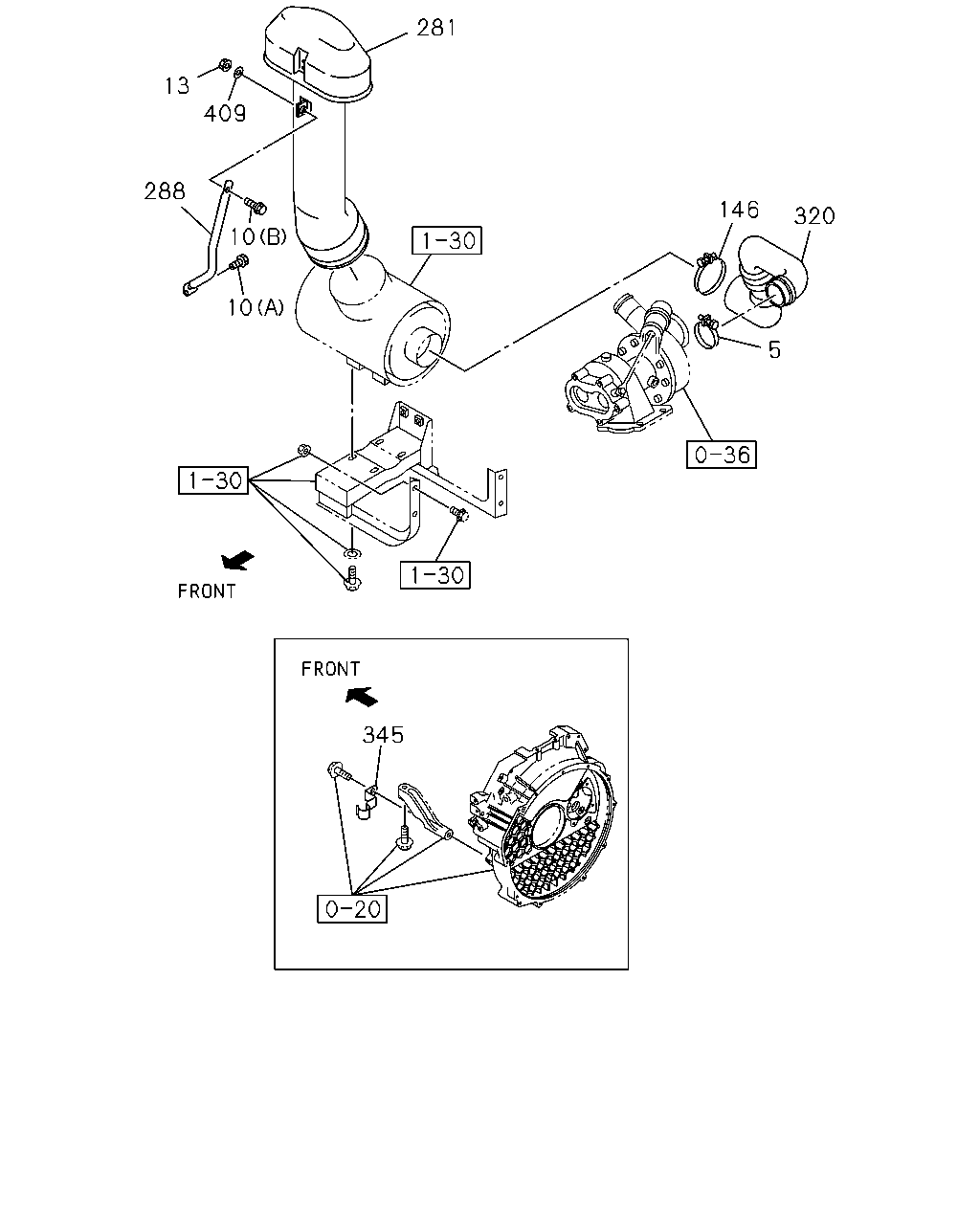

çizim 72432
281 13 409 288 146 320 10 10 5 345
BalonParca AdiParca NoAdetTipApplied Date
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90 		8-98122-372-0 01 1 1002-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9412-9511
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0311-0611
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
4HG1-T ENG(RDP) D=101.6 		9-09915-502-1 01 1 0612-
5 03.407 CLIP; AIR DUCT
D=101.6 		9-09915-502-1 01 1 9512-0105
5 03.407 CLIP; AIR DUCT
4HG1 ENG(RJH) D=101.6 		9-09915-502-1 01 1 0106-0212
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) ID=58-79 		1-09707-136-0 01 1 0301-0310
5 03.407 CLIP; AIR DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> ID=58-79 		1-09707-136-0 01 1 0311-0501
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=68-85 		1-09707-202-0 01 1 0507-0810
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) ID=65-85 		8-98133-350-0 01 1 0811-1001
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85 		8-98133-350-0 01 1 1002-
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0301-0310
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0311-0501
10 03.417 BOLT; BRKT FIX
4HG1 ENG(RJH) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0502-0502
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0301-0310
10 03.417 BOLT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0311-0501
10 03.417 BOLT; BRKT FIX
4HG1 ENG(RJH) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0502-0502
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0507-0512
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0507-0512
10 03.417 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0301-0310
13 03.417 NUT; BRKT FIX
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0311-0501
13 03.417 NUT; BRKT FIX
4HG1 ENG(RJH) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0502
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602
13 03.417 NUT; BRKT FIX
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-
146 03.417 CLIP; HOSE,ACL
4HG1-T ENG(RDP) 03.407 ID=117 		9-09915-075-1 01 1 0612-
146 03.417 CLIP; HOSE,ACL
03.008 ID=95 		9-09915-733-1 01 1 9412-0105
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0106-0212
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) 03.407 ID=112 		9-09915-074-1 01 1 0301-0310
146 03.417 CLIP; HOSE,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 03.407 ID=112 		9-09915-074-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 03.008 ID=95 		9-09915-733-1 01 1 0311-0501
146 03.417 CLIP; HOSE,ACL
4HG1 ENG(RJH) 03.008 ID=95 		9-09915-733-1 01 1 0502-
146 03.417 CLIP; HOSE,ACL
4HK1-TCN ENG(RDQ) 03.407 ID=112 		9-09915-074-1 01 1 0507-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP) 		8-97125-174-2 01 1 0612-
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT 8-97108-552-0 01 1 9412-9502
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97108-552-0 01 1 9503-9511
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97139-239-0 01 1 9512-9605
281 03.417 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-0 01 1 9606-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-0 01 1 9503-0105
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) HEAVY DUTY AIR CLEANER<K46> 		8-97120-084-1 01 1 0106-0212
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) 		8-97180-995-0 01 1 0301-0310
281 03.417 DUCT; AIR,VERTICAL INT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97180-995-0 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97161-847-1 01 1 0311-0501
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) 		8-97161-847-2 01 1 0502-0509
281 03.417 DUCT; AIR,VERTICAL INT
4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97161-847-2 01 1 0510-
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ) 		8-97180-995-0 01 1 0507-
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) 		8-97183-041-2 01 1 0301-0310
288 03.417 BRACKET; DUCT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97183-041-2 01 1 0311-0501
288 03.417 BRACKET; DUCT
4HG1 ENG(RJH) 		8-97183-041-2 01 1 0502-0502
288 03.417 BRACKET; DUCT
4HK1-TCN ENG(RDQ) 		8-97183-041-2 01 1 0507-
320 03.417 HOSE; CONN,ACL
4HG1-T ENG(RDP) 		8-98049-601-0 01 1 0612-
320 03.417 HOSE; CONN,ACL 8-97043-079-0 01 1 9412-0105
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-0 01 1 0106-0212
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) 		8-97209-707-0 01 1 0301-0310
320 03.417 HOSE; CONN,ACL
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 		8-97209-707-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51) 		8-97043-079-0 01 1 0311-0501
320 03.417 HOSE; CONN,ACL
4HG1 ENG(RJH) 		8-97043-079-1 01 1 0502-
320 03.417 HOSE; CONN,ACL
4HK1-TCN ENG(RDQ) 		8-98000-873-1 01 1 0507-
345 03.417 CLIP; PCV HOSE
4HG1-T ENG(RDP) 		8-97369-959-0 01 1 0612-
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97066-710-1 01 1 0301-0307
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0308-0310
345 03.417 CLIP; PCV HOSE
4HG1 ENG(RJH) TURBOCHARGER(K51) 		8-97369-959-0 01 1 0311-0501
345 03.417 CLIP; PCV HOSE
4HE1 ENG(RLY) 		8-97369-959-0 01 1 0311-0501
345 03.417 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ) 		8-98020-040-0 01 1 0507-
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0301-0310
409 03.417 WASHER; PL,BRKT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0311-0501
409 03.417 WASHER; PL,BRKT
4HG1 ENG(RJH) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0502-0502
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0507-0605
409 03.417 WASHER; PL,BRKT
4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22 		0-91610-708-0 01 1 0606-

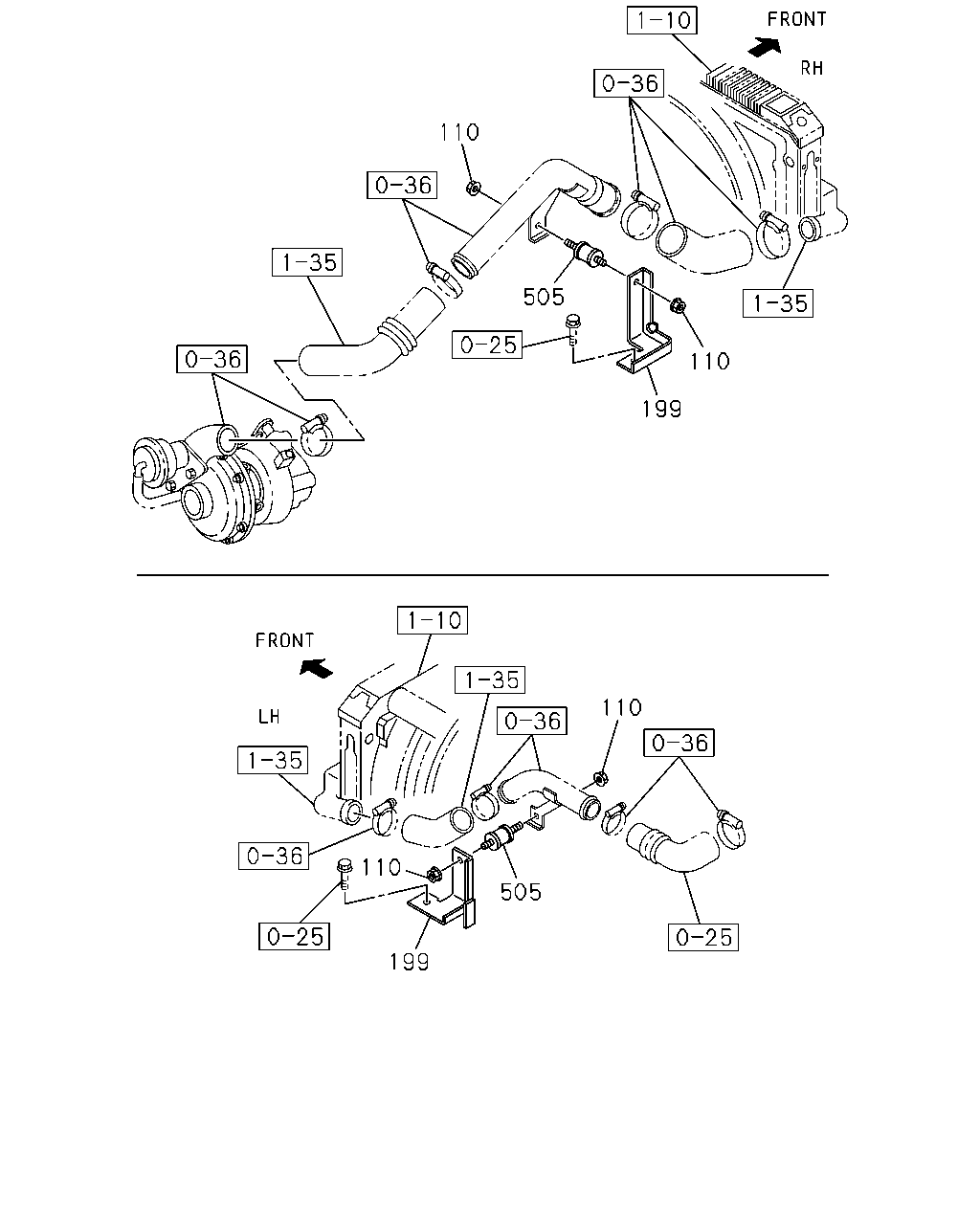

çizim 72469
110 505 110 199 110 110 505 199
BalonParca AdiParca NoAdetTipApplied Date
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0301-0310
110 03.403 NUT; RUBBER MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0311-0501
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE 		0-91150-108-0 04 1 0507-0602
110 03.403 NUT; RUBBER MTG
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 0603-
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) 		8-97350-402-0 01 1 0301-0310
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97350-402-0 01 1 0311-0501
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) 		8-97350-403-0 01 1 0301-0310
199 03.417 BRACKET; PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 		8-97350-403-0 01 1 0311-0501
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) 		8-97350-402-0 01 1 0507-
199 03.417 BRACKET; PIPE
4HK1-TCN ENG(RDQ) 		8-97350-403-0 01 1 0507-
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) 03.405 		8-94158-155-1 02 1 0301-0310
505 03.406 RUBBER; MTG
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 		8-94158-155-1 02 1 0311-0501
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.405 		8-94158-155-1 02 1 0507-0611
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ) 03.417 		8-98036-826-0 02 1 0612-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
