Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#43853) — 255 parça

56 128 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	01.159 HOSE; SURGE TANK 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9412-9505
55	01.173 HOSE; WATER,RAD OUTLET	8-97034-023-0	01	1	9412-9501
55	01.173 HOSE; WATER,RAD OUTLET	8-97124-745-0	01	1	9502-0212
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY)	8-97216-029-0	01	1	0301-0310
55	01.173 HOSE; WATER,RAD OUTLET 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97216-029-0	01	1	0311-0501
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH)	8-97124-745-0	01	1	0311-0611
55	01.173 HOSE; WATER,RAD OUTLET 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97124-745-0	01	1	0612-
55	01.173 HOSE; WATER,RAD OUTLET 4HK1-TCN ENG(RDQ)	8-98019-472-0	01	1	0507-
56	01.166 CLIP; WATER HOSE,RAD ID=48	5-09704-049-0	02	1	9412-0001
56	01.166 CLIP; WATER HOSE,RAD ID=40	8-97245-216-0	02	1	0002-0105
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH) ID=40	8-97245-216-0	02	1	0106-0212
56	01.166 CLIP; WATER HOSE,RAD 4HE1 ENG(RLY) ID=40	8-97245-216-0	02	1	0301-0310
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40	8-97245-216-0	02	1	0311-0501
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH) ID=40	8-97245-216-0	02	1	0502-0506
56	01.166 CLIP; WATER HOSE,RAD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	02	1	0507-0611
56	01.166 CLIP; WATER HOSE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	02	1	0612-
128	01.159 HOSE; WATER,RAD INL	8-97034-011-0	01	1	9412-9502
128	01.159 HOSE; WATER,RAD INL	8-97128-677-0	01	1	9503-0212
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY)	8-97160-257-1	01	1	0301-0310
128	01.159 HOSE; WATER,RAD INL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97160-257-1	01	1	0311-0501
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH)	8-97128-677-0	01	1	0311-0611
128	01.159 HOSE; WATER,RAD INL 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97128-677-0	01	1	0612-
128	01.159 HOSE; WATER,RAD INL 4HK1-TCN ENG(RDQ)	8-97160-257-1	01	1	0507-

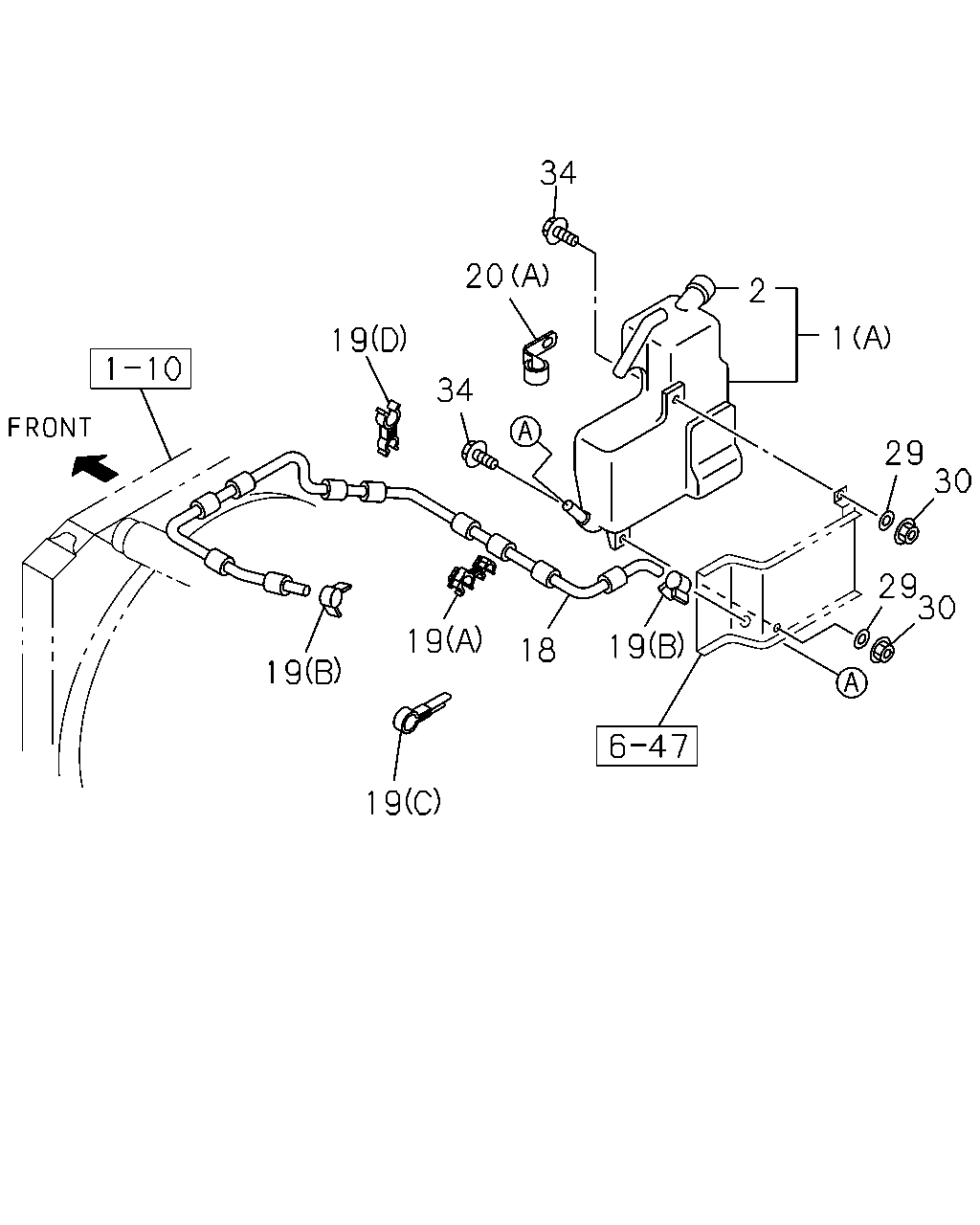

19 18 1 34 29 2 1 34 29 20 19 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD (A)	8-97120-913-1	01	1	9412-9505
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9506-9811
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-0105
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0106-0212
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0301-0310
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0311-0501
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0502-0506
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0507-0611
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0612-1010
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98178-177-0	01	1	1011-
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9412-9811
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-0105
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0106-0212
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0301-0310
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97217-796-0	01	1	0311-0501
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0502-0506
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0507-0611
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0612-1010
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98178-074-0	01	1	1011-
3	01.159 HOSE; SURGE TANK 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9412-9505
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP)	8-98049-038-2	01	1	0612-
18	01.240 HOSE; RAD TO SURGE TANK	8-97095-865-0	01	1	9412-9504
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-559-0	01	1	9505-0212
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY)	8-97353-956-1	01	1	0301-0310
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97353-956-1	01	1	0311-0501
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH)	8-97129-559-1	01	1	0311-
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ)	8-98019-824-0	01	1	0507-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=10 & 12	8-94416-613-0	01	1	0807-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9412-9503
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	9504-9511
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9512-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (C) ID=14 L=47	5-09700-319-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	0502-0807
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (C) ID=14 L=47	5-09700-319-0	02	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (B) ID=12	8-94238-610-0	02	1	9412-0911
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=12	8-98150-358-0	02	1	0912-
19	01.240 CLIP; HOSE,SURGE TANK 03.162 (D) ID=11.5 & 14.5	8-94314-293-0	01	1	9412-9509
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	9510-0105
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0106-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0502-0506
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0507-0611
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0612-
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	9412-0806
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (A) ID=10 & 12	8-94416-613-0	02	1	0807-
20	01.166 CLIP; HOSE,RAD 03.483 (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9412-9505
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) (B) ID=10.8	8-97354-231-0	01	1	0301-0310
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) ID=10.8	8-97354-231-0	01	1	0311-0501
20	01.166 CLIP; HOSE,RAD 4HK1-TCN ENG(RDQ) (B) ID=10.8	8-97354-231-0	01	1	0507-
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9412-0105
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0212
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0301-0310
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0311-0501
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0611
29	01.203 WASHER; PL,RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9412-0105
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-0212
30	01.203 NUT 4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0301-0310
30	01.203 NUT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0311-0501
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0502-0506
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0507-0602
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-0611
30	01.203 NUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9412-9703
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9704-0105
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-0212
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0301-0310
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0311-0501
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0502-0506
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0507-0512
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-0611
34	01.203 BOLT; RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-

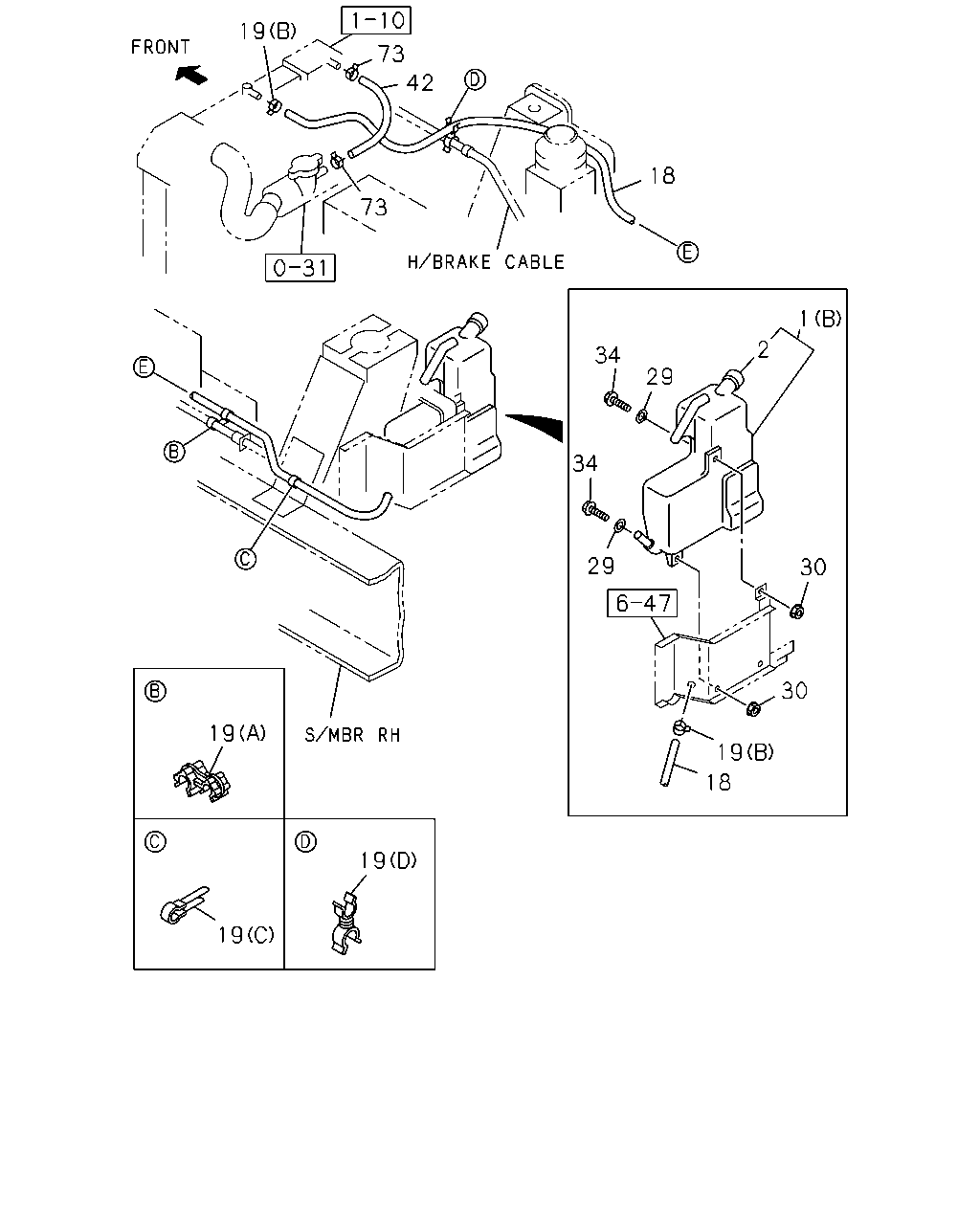

19 73 42 18 73 1 2 34 29 34 29 30 30 19 19 18 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD (A)	8-97120-913-1	01	1	9412-9505
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9506-9811
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-0105
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0106-0212
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0301-0310
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0311-0501
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0502-0506
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0507-0611
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0612-1010
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98178-177-0	01	1	1011-
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9412-9811
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-0105
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0106-0212
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0301-0310
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97217-796-0	01	1	0311-0501
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0502-0506
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0507-0611
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0612-1010
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98178-074-0	01	1	1011-
3	01.159 HOSE; SURGE TANK 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9412-9505
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP)	8-98049-038-2	01	1	0612-
18	01.240 HOSE; RAD TO SURGE TANK	8-97095-865-0	01	1	9412-9504
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-559-0	01	1	9505-0212
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY)	8-97353-956-1	01	1	0301-0310
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97353-956-1	01	1	0311-0501
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH)	8-97129-559-1	01	1	0311-
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ)	8-98019-824-0	01	1	0507-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=10 & 12	8-94416-613-0	01	1	0807-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9412-9503
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	9504-9511
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9512-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (C) ID=14 L=47	5-09700-319-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	0502-0807
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (C) ID=14 L=47	5-09700-319-0	02	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (B) ID=12	8-94238-610-0	02	1	9412-0911
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=12	8-98150-358-0	02	1	0912-
19	01.240 CLIP; HOSE,SURGE TANK 03.162 (D) ID=11.5 & 14.5	8-94314-293-0	01	1	9412-9509
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	9510-0105
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0106-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0502-0506
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0507-0611
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0612-
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	9412-0806
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (A) ID=10 & 12	8-94416-613-0	02	1	0807-
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9412-0105
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0212
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0301-0310
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0311-0501
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0611
29	01.203 WASHER; PL,RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9412-0105
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-0212
30	01.203 NUT 4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0301-0310
30	01.203 NUT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0311-0501
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0502-0506
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0507-0602
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-0611
30	01.203 NUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9412-9703
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9704-0105
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-0212
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0301-0310
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0311-0501
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0502-0506
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0507-0512
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-0611
34	01.203 BOLT; RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-
42	01.159 HOSE; RUBBER L=350 SERVICED BY L=3000	0-03257-300-0	01	1	9505-9603
73	01.173 CLIP; RUBBER HOSE 01.219 ID=13	8-94238-571-0	02	1	9505-9603

34 20 2 1 19 34 29 30 29 30 19 19 18 19 19

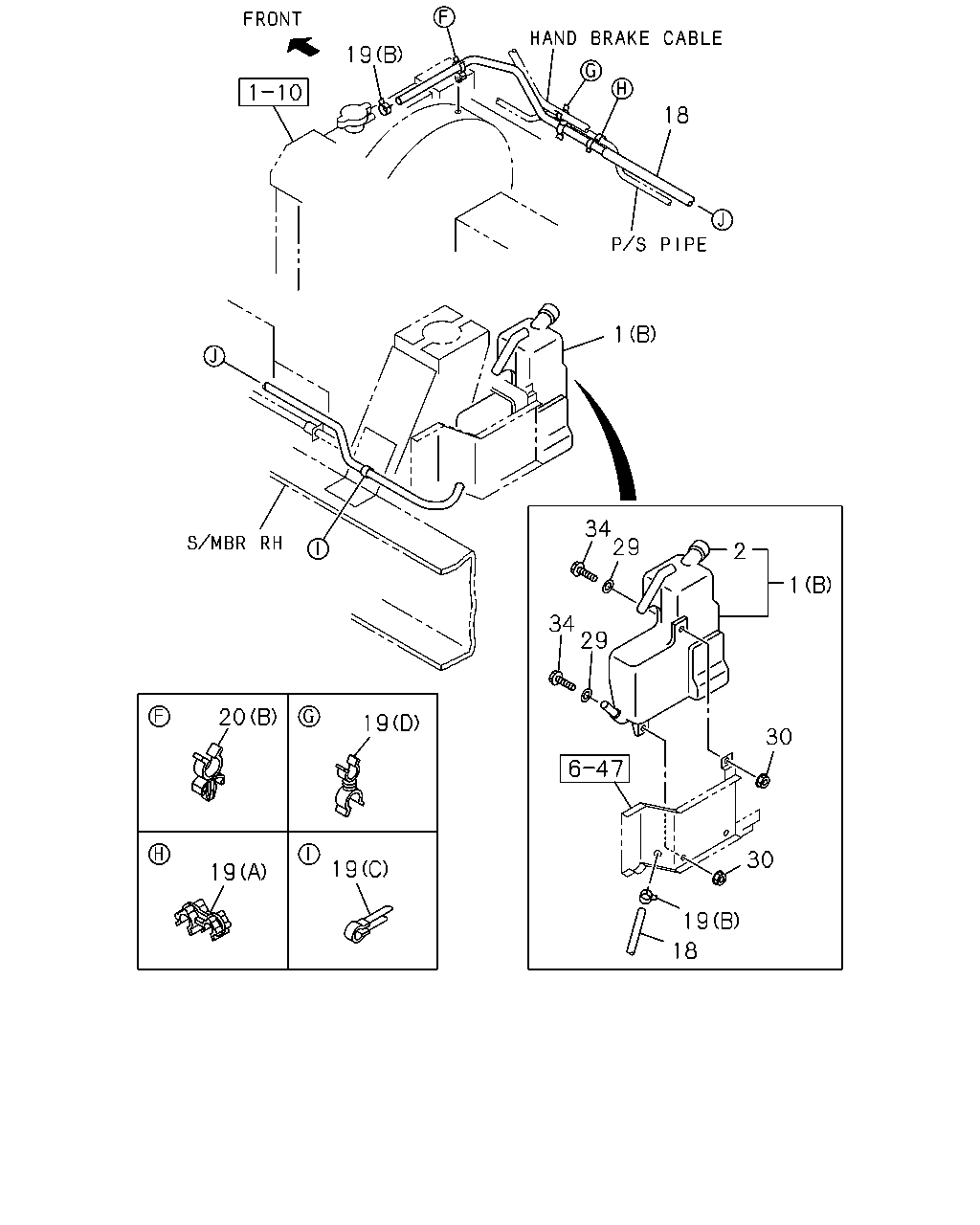

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 TANK; SURGE,RAD (A)	8-97120-913-1	01	1	9412-9505
1	01.219 TANK; SURGE,RAD (B)	8-97131-202-0	01	1	9506-9811
1	01.219 TANK; SURGE,RAD (B)	8-97210-844-0	01	1	9812-0105
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0106-0212
1	01.219 TANK; SURGE,RAD 4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0301-0310
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HE1 ENG(RLY) (B)	8-97210-844-0	01	1	0311-0501
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0502-0506
1	01.219 TANK; SURGE,RAD 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0507-0611
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-97210-844-0	01	1	0612-1010
1	01.219 TANK; SURGE,RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (B)	8-98178-177-0	01	1	1011-
2	01.203 CAP; SURGE TANK	8-97126-876-0	01	1	9412-9811
2	01.203 CAP; SURGE TANK	8-97217-796-0	01	1	9812-0105
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0106-0212
2	01.203 CAP; SURGE TANK 4HE1 ENG(RLY)	8-97217-796-0	01	1	0301-0310
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97217-796-0	01	1	0311-0501
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH)	8-97217-796-0	01	1	0502-0506
2	01.203 CAP; SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0507-0611
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-97217-796-0	01	1	0612-1010
2	01.203 CAP; SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH)	8-98178-074-0	01	1	1011-
3	01.159 HOSE; SURGE TANK 01.240 L=370 SERVICED BY L=3000	0-03157-300-0	01	1	9412-9505
18	01.240 HOSE; RAD TO SURGE TANK 4HG1-T ENG(RDP)	8-98049-038-2	01	1	0612-
18	01.240 HOSE; RAD TO SURGE TANK	8-97095-865-0	01	1	9412-9504
18	01.240 HOSE; RAD TO SURGE TANK	8-97129-559-0	01	1	9505-0212
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY)	8-97353-956-1	01	1	0301-0310
18	01.240 HOSE; RAD TO SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97353-956-1	01	1	0311-0501
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH)	8-97129-559-1	01	1	0311-
18	01.240 HOSE; RAD TO SURGE TANK 4HK1-TCN ENG(RDQ)	8-98019-824-0	01	1	0507-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (A) ID=10 & 12	8-94416-613-0	01	1	0807-
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9412-9503
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	02	1	9504-9511
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	9512-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) (C) ID=14 L=47	5-09700-319-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C) ID=14 L=47	5-09700-319-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK (C) ID=14 L=47	5-09700-319-0	01	1	0502-0807
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (C) ID=14 L=47	5-09700-319-0	02	1	0808-
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (B) ID=12	8-94238-610-0	02	1	9412-0911
19	01.240 CLIP; HOSE,SURGE TANK (B) ID=12	8-98150-358-0	02	1	0912-
19	01.240 CLIP; HOSE,SURGE TANK 03.162 (D) ID=11.5 & 14.5	8-94314-293-0	01	1	9412-9509
19	01.240 CLIP; HOSE,SURGE TANK 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	9510-0105
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0106-0212
19	01.240 CLIP; HOSE,SURGE TANK 4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0301-0310
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0311-0501
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0502-0506
19	01.240 CLIP; HOSE,SURGE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0507-0611
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.559 (D) ID=10 & 11	8-94438-996-0	01	1	0612-
19	01.240 CLIP; HOSE,SURGE TANK (A) ID=10 & 12	8-94416-613-0	01	1	9412-0806
19	01.240 CLIP; HOSE,SURGE TANK 4HG1-T ENG(RDP) (A) ID=10 & 12	8-94416-613-0	02	1	0807-
20	01.166 CLIP; HOSE,RAD 03.483 (A) ID=13 H=18 L=20	1-09700-813-0	01	1	9412-9505
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) (B) ID=10.8	8-97354-231-0	01	1	0301-0310
20	01.166 CLIP; HOSE,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) ID=10.8	8-97354-231-0	01	1	0311-0501
20	01.166 CLIP; HOSE,RAD 4HK1-TCN ENG(RDQ) (B) ID=10.8	8-97354-231-0	01	1	0507-
29	01.203 WASHER; PL,RESERVE TANK 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9412-0105
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0212
29	01.203 WASHER; PL,RESERVE TANK 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0301-0310
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0311-0501
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0502-0506
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0507-0605
29	01.203 WASHER; PL,RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0606-0611
29	01.203 WASHER; PL,RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.413 ID=6.4 OD=18	0-91610-706-0	03	1	0612-
30	01.203 NUT 04.594 M6 FLANGE	0-91150-106-0	03	1	9412-0105
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0106-0212
30	01.203 NUT 4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0301-0310
30	01.203 NUT 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 M6 FLANGE	0-91150-106-0	03	1	0311-0501
30	01.203 NUT 4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0502-0506
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.594 M6 FLANGE	0-91150-106-0	03	1	0507-0602
30	01.203 NUT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0603-0611
30	01.203 NUT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 M6 FLANGE	0-91180-106-0	03	1	0612-
34	01.203 BOLT; RESERVE TANK 03.704 M6X20 W/LK WASHER	0-50040-620-0	03	1	9412-9703
34	01.203 BOLT; RESERVE TANK 04.930 M6X20 FLANGE	0-28680-620-0	03	1	9704-0105
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-0212
34	01.203 BOLT; RESERVE TANK 4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0301-0310
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0311-0501
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0502-0506
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0507-0512
34	01.203 BOLT; RESERVE TANK 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0601-0611
34	01.203 BOLT; RESERVE TANK 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 M6X20 FLANGE	0-28650-620-0	03	1	0612-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
