Sayfa 1-10 - Isuzu EPC

1-10 — RADIATOR (#43852) — 781 parça

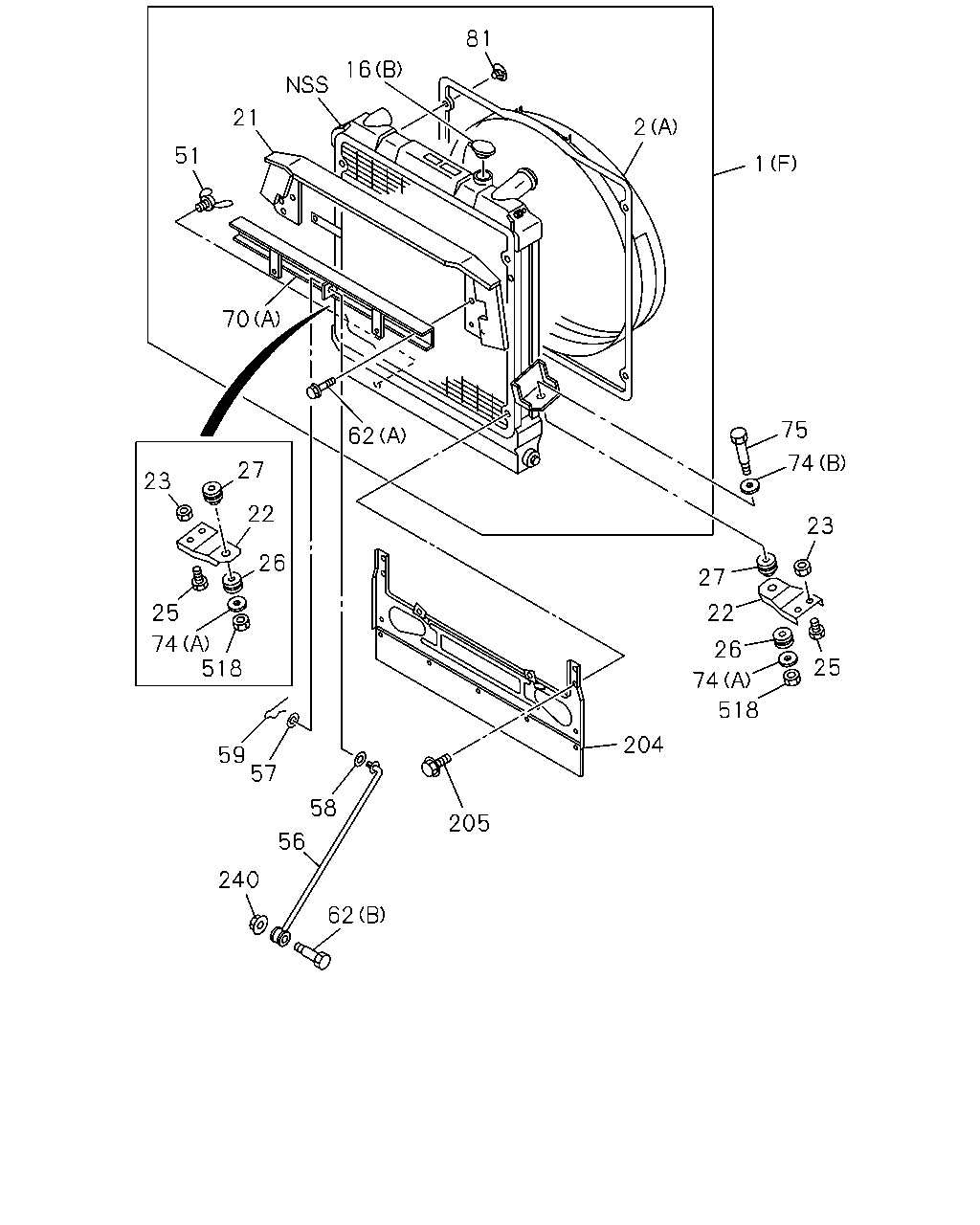

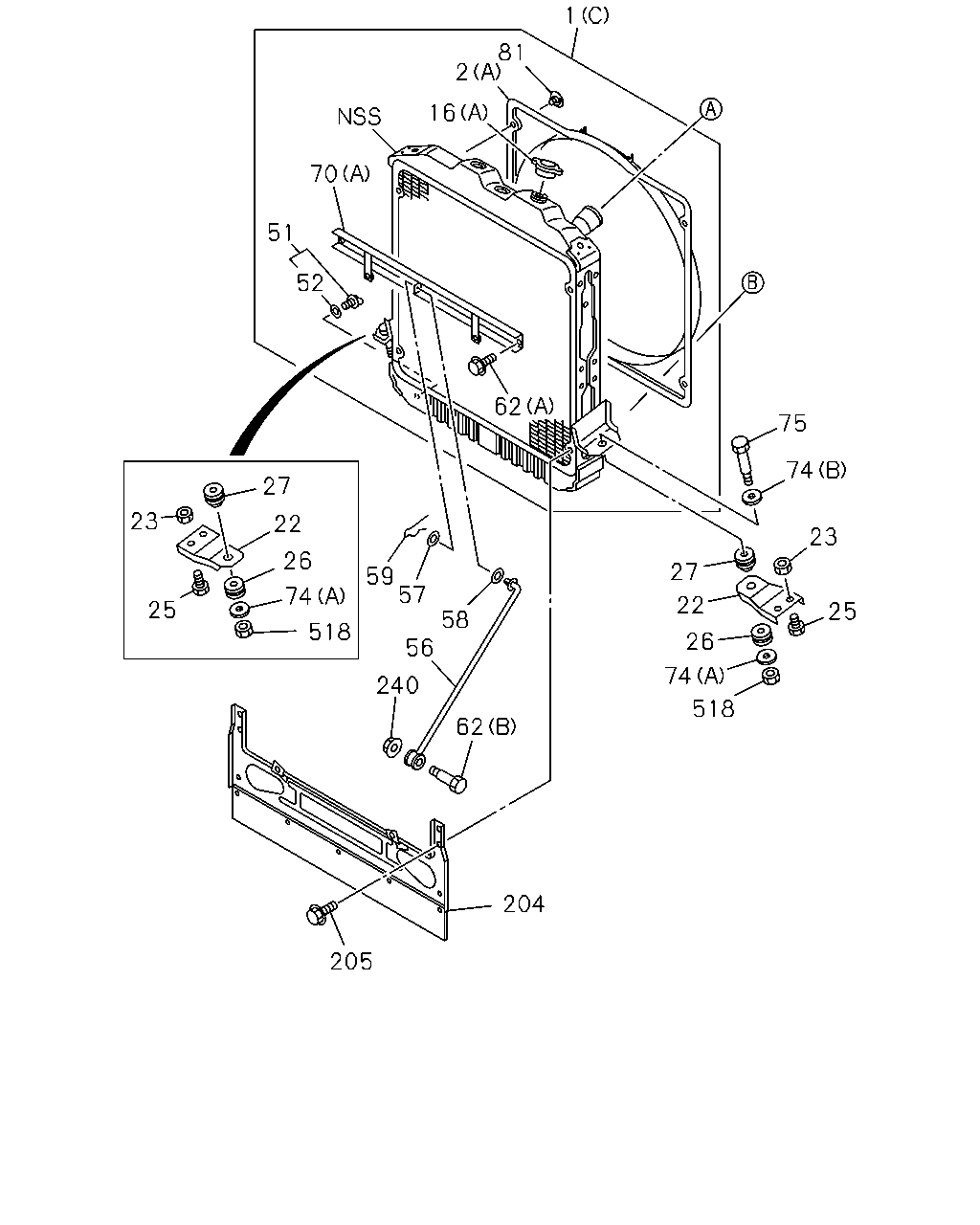

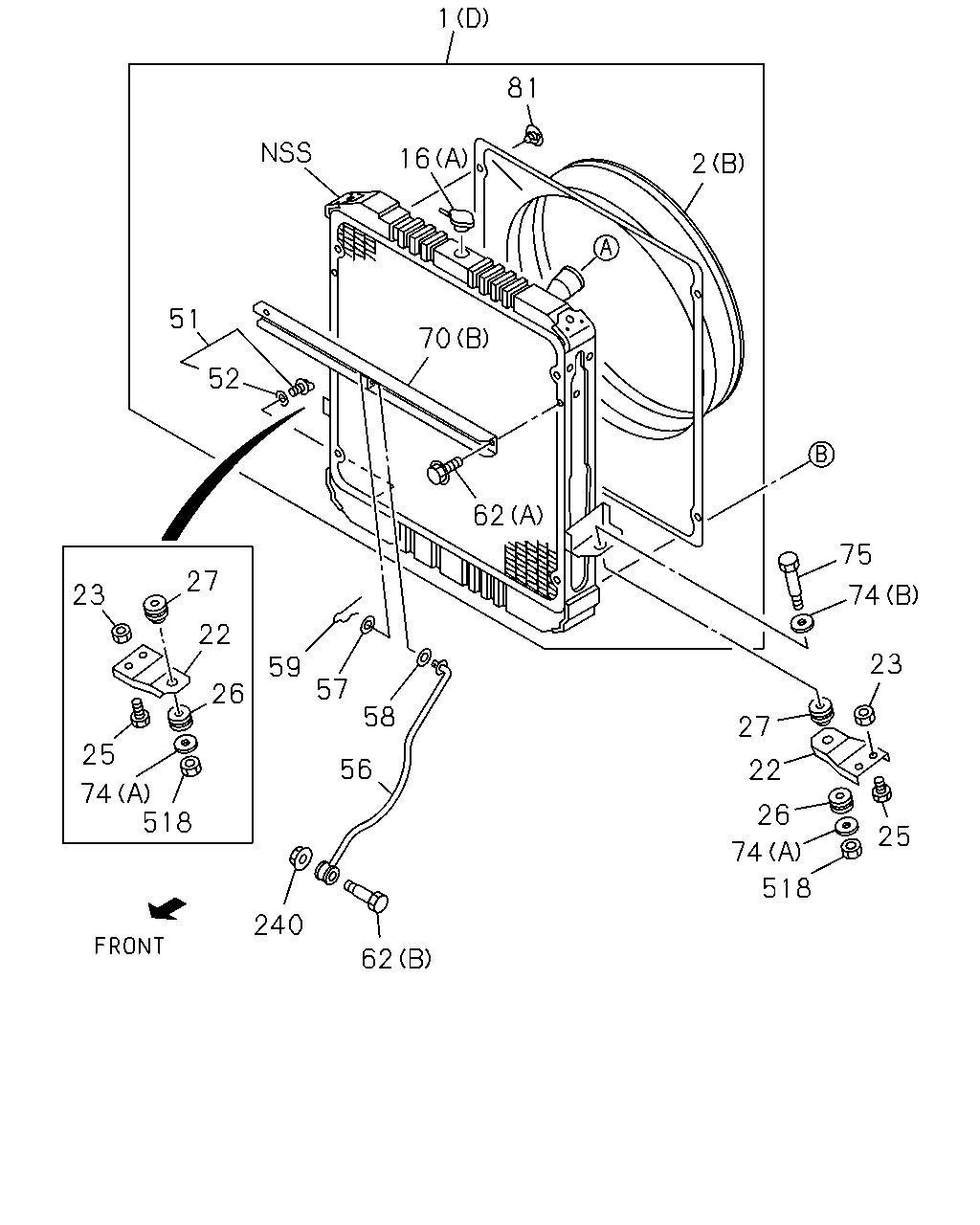

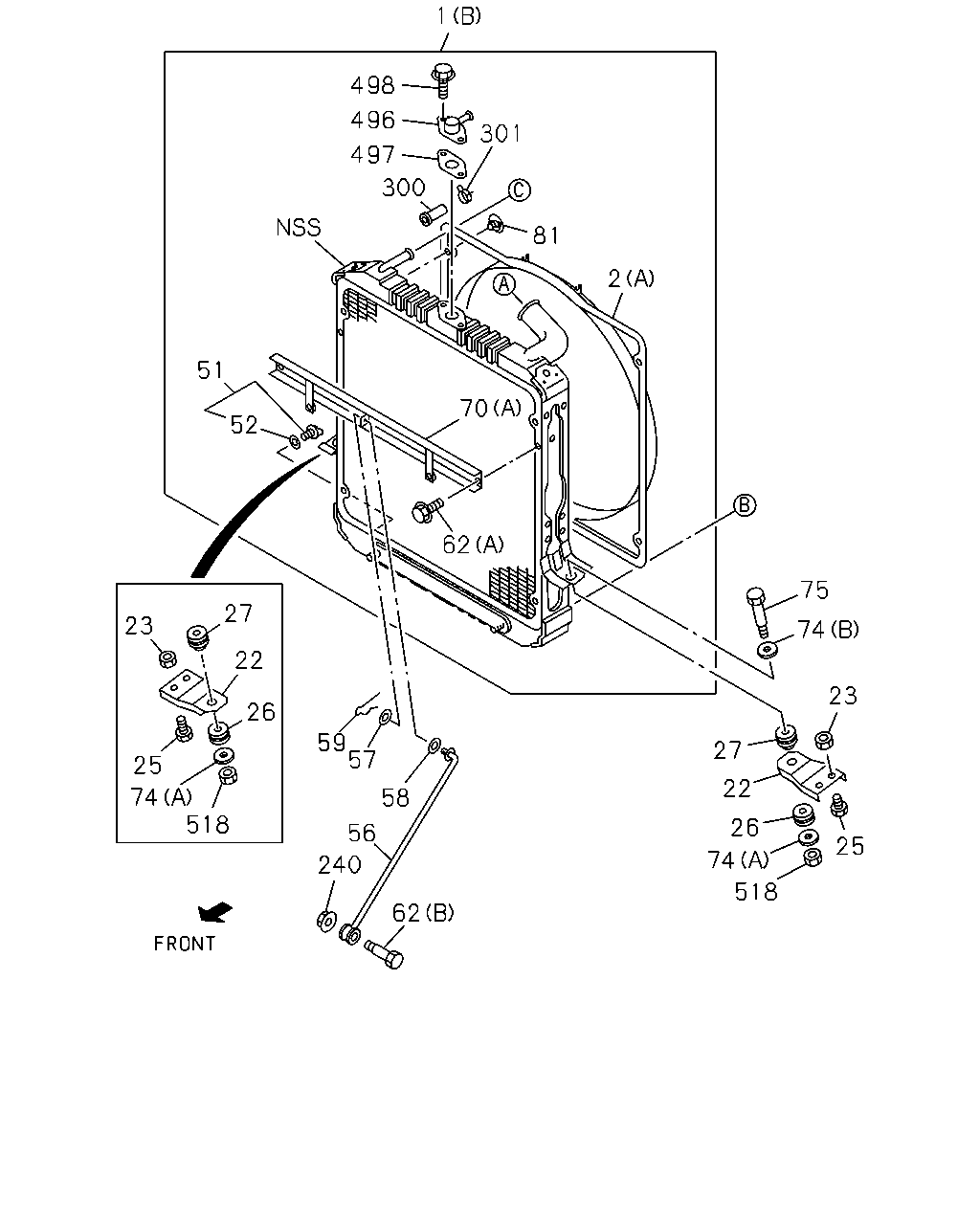

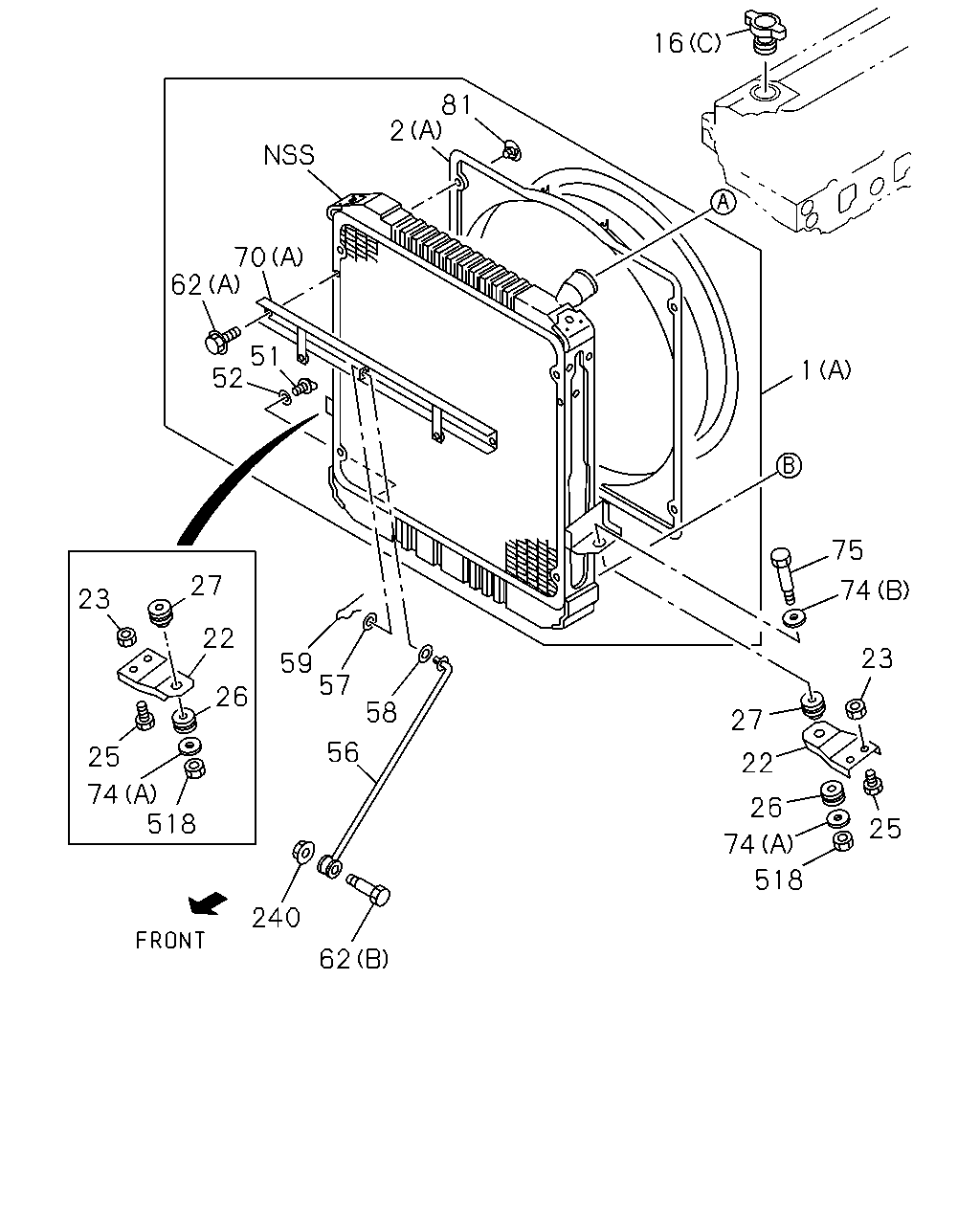

1 498 496 301 497 300 81 2 51 70 52 62 75 27 23 74 22 23 26 59 57 27 25 22 74 518 58 26 56 25 74 240 518 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9412-9502
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-0212
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0311-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9412-0212
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0311-0611
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
300	01.240 HOSE; WATER,OVERFLOW,RAD	8-97147-997-0	01	1	9604-9607
301	01.240 CLIP; HOSE,RAD,OVERFLOW 04.128 ID=15	8-94140-431-0	01	1	9604-9607
496	01.271 VALVE; PRESSURE	8-97129-063-0	01	1	9505-9607
497	01.271 GASKET; VLV,PRESSURE	8-97129-600-0	01	1	9505-9607
498	01.271 BOLT; VLV,PRESSURE 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9505-9511
498	01.271 BOLT; VLV,PRESSURE 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9512-9607
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

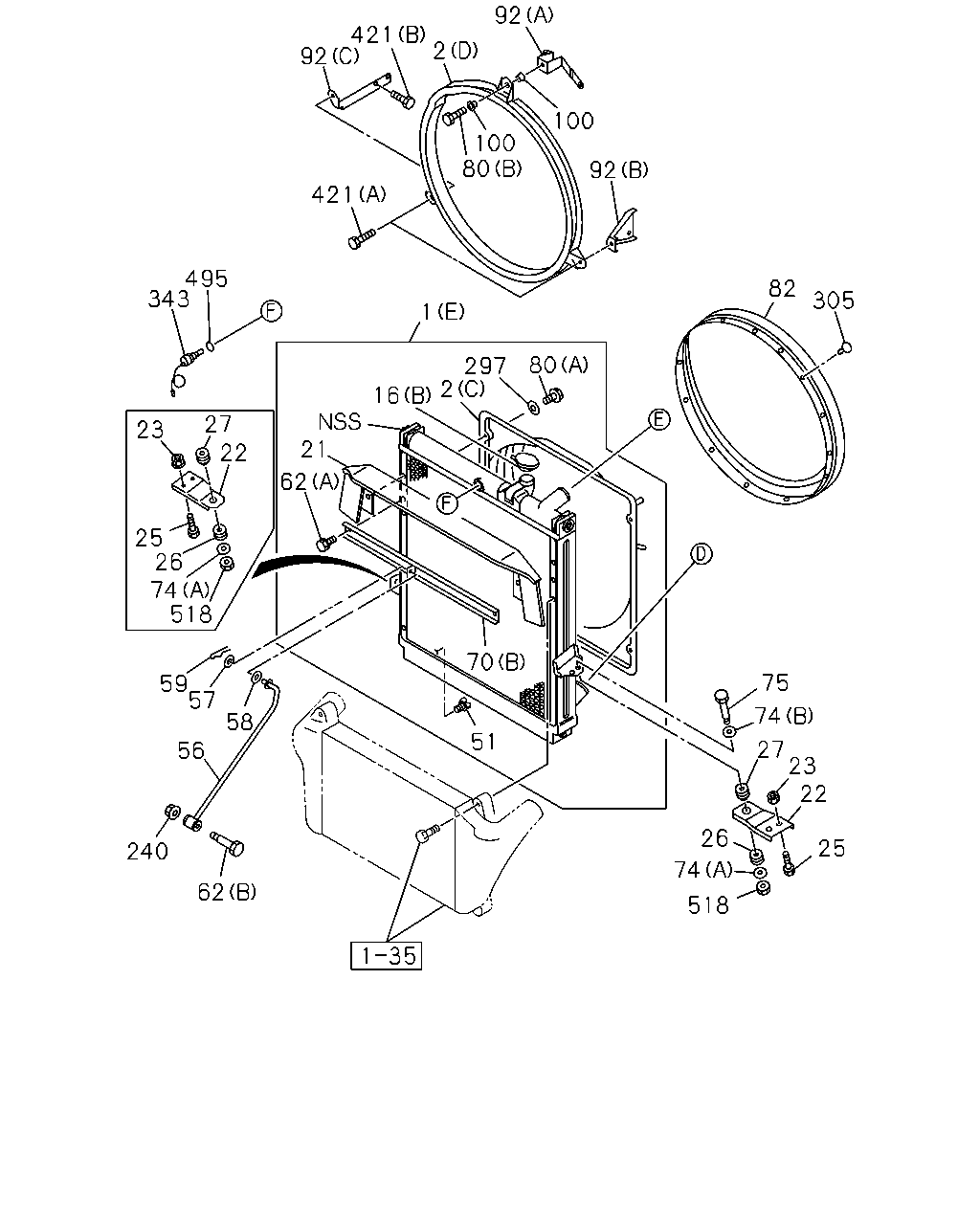

92 421 2 92 100 100 80 92 421 495 343 82 305 1 80 297 2 16 21 27 22 23 62 25 26 74 518 70 75 59 57 74 58 51 27 23 22 56 26 25 240 74 62 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-97372-501-0	01	1	0612-
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0301-0310
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0311-0501
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-1	01	1	0507-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0301-0310
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0311-0501
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0301-0310
80	01.277 BOLT; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0311-0501
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.428 (A) M6X12 FLANGE	0-28080-612-0	04	1	0507-
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50140-830-0	03	1	0507-0512
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 01.252 (B) M8X30 W/LK&PL WASHER	0-50640-830-0	03	1	0601-0806
80	01.277 BOLT; FAN GUIDE 4HK1-TCN ENG(RDQ) 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0807-
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY)	8-97218-799-0	01	1	0301-0310
82	01.277 COVER; FAN,RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-799-0	01	1	0311-0501
82	01.277 COVER; FAN,RAD 4HK1-TCN ENG(RDQ)	8-97218-799-0	01	1	0507-
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (B)	8-97148-940-0	01	1	0301-0310
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97148-940-0	01	1	0311-0501
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (C)	8-97148-941-1	01	1	0301-0310
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97148-941-1	01	1	0311-0501
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) (A)	8-97189-394-1	01	1	0301-0310
92	01.277 BRACKET; FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97189-394-1	01	1	0311-0501
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (B)	8-97148-940-0	01	1	0507-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (C)	8-97148-941-1	01	1	0507-
92	01.277 BRACKET; FAN GUIDE 4HK1-TCN ENG(RDQ) (A)	8-97189-394-1	01	1	0507-
100	01.277 RUBBER; MTG 4HE1 ENG(RLY)	1-09337-027-0	06	1	0301-0310
100	01.277 RUBBER; MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09337-027-0	06	1	0311-0501
100	01.277 RUBBER; MTG 4HK1-TCN ENG(RDQ)	1-09337-027-0	06	1	0507-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0301-0310
297	01.277 WASHER; PL,FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0311-0501
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY)	1-09470-009-0	12	1	0301-0310
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09470-009-0	12	1	0311-0501
305	01.277 CLIP; FAN COVER TO FAN GUIDE 4HK1-TCN ENG(RDQ)	1-09470-009-0	12	1	0507-
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) M18X12	1-09604-081-0	01	1	0301-0310
343	01.271 PLUG; WATER LEVEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M18X12	1-09604-081-0	01	1	0311-0501
343	01.271 PLUG; WATER LEVEL 4HK1-TCN ENG(RDQ) M18X12	1-09604-081-0	01	1	0507-
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0301-0310
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0311-0501
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0301-0310
421	01.277 BOLT; BRKT FAN GUIDE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0311-0501
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 01.540 (B) M10X20 FLANGE	0-28181-020-0	02	1	0507-0512
421	01.277 BOLT; BRKT FAN GUIDE 4HK1-TCN ENG(RDQ) 03.417 (B) M10X20 FLANGE	0-28151-020-0	02	1	0601-
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) 01.097	1-09623-185-0	01	1	0301-0310
495	01.274 GASKET; SENSOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.097	1-09623-185-0	01	1	0311-0501
495	01.274 GASKET; SENSOR 4HK1-TCN ENG(RDQ) 01.097	1-09623-185-0	01	1	0507-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

132 3 16 131 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	01.203 COVER; RAD 01.251	8-97131-155-1	01	1	9505-9602
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
131	01.166 CLIP; ENG SIDE TOP ID=52	9-09916-031-1	01	1	9412-9810
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-0001
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-0105
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0106-0212
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0301-0310
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0311-0501
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0502-0506
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0507-0611
131	01.166 CLIP; ENG SIDE TOP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0612-
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9412-0001
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-0105
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0106-0212
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0301-0310
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0311-0501
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0502-0506
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0507-0611
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0612-

1 81 2 16 70 51 52 62 75 74 27 23 22 23 26 27 59 57 74 22 25 25 58 56 518 26 74 240 518 62 204 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9412-9502
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-0212
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0311-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9412-0212
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0311-0611
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0507-0611
204	01.267 GUIDE ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0612-
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0611
205	01.267 BOLT; AIR GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

1 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
131	01.166 CLIP; ENG SIDE TOP ID=52	9-09916-031-1	01	1	9412-9810
131	01.166 CLIP; ENG SIDE TOP 00.413 ID=52	1-09704-057-0	01	1	9811-0001
131	01.166 CLIP; ENG SIDE TOP ID=40	8-97245-216-0	01	1	0002-0105
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0106-0212
131	01.166 CLIP; ENG SIDE TOP 4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0301-0310
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=40	8-97245-216-0	01	1	0311-0501
131	01.166 CLIP; ENG SIDE TOP 4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0502-0506
131	01.166 CLIP; ENG SIDE TOP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0507-0611
131	01.166 CLIP; ENG SIDE TOP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=40	8-97245-216-0	01	1	0612-
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=62	9-09915-068-1	01	1	9412-0001
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM ID=50	8-97245-217-0	01	1	0002-0105
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0106-0212
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0301-0310
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH),4HE1 ENG(RLY) ID=50	8-97245-217-0	01	1	0311-0501
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0502-0506
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0507-0611
132	01.166 CLIP; HOSE,ENG SIDE BOTTOM 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) ID=50	8-97245-217-0	01	1	0612-

1 81 16 2 51 70 52 62 75 27 23 74 22 23 59 57 26 58 27 25 56 22 74 518 26 25 74 518 240 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9412-9502
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-0212
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0311-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9412-0212
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0311-0611
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

16 81 2 70 62 51 52 1 75 27 74 23 22 23 59 57 26 58 27 56 25 22 74 518 26 25 74 518 240 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
52	08.951 GASKET; DRAIN PLUG 04.133 ID=9.8	9-09561-110-0	01	1	9412-9502
52	08.951 GASKET; DRAIN PLUG 01.203 ID=10	9-09720-557-0	01	1	9503-0212
52	08.951 GASKET; DRAIN PLUG 4HG1 ENG(RJH) 01.203 ID=10	9-09720-557-0	01	1	0311-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9412-0212
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0311-0611
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

81 16 21 2 51 1 70 75 62 74 27 23 22 23 26 27 25 22 74 518 26 25 74 518 204 59 57 58 205 56 240 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	01.219 RADIATOR ASM 4HG1-T ENG(RDP) (F)	8-97372-497-0	01	1	0612-
1	01.219 RADIATOR ASM (A)	8-97032-755-0	01	1	9412-9502
1	01.219 RADIATOR ASM (A)	8-97128-875-0	01	1	9503-9504
1	01.219 RADIATOR ASM (B)	8-97129-031-0	01	1	9505-9603
1	01.219 RADIATOR ASM (C)	8-97146-213-0	01	1	9604-9604
1	01.219 RADIATOR ASM (B)	8-97160-556-0	01	1	9604-9607
1	01.219 RADIATOR ASM (D)	8-97162-278-0	01	1	9608-9608
1	01.219 RADIATOR ASM (C)	8-97146-213-1	01	1	9609-0212
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) (E)	8-97326-163-0	01	1	0301-0310
1	01.219 RADIATOR ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (E)	8-97326-163-0	01	1	0311-0501
1	01.219 RADIATOR ASM 4HG1 ENG(RJH) (C)	8-97146-213-1	01	1	0311-
1	01.219 RADIATOR ASM 4HK1-TCN ENG(RDQ) (E)	8-97377-235-1	01	1	0507-
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9412-9607
2	01.277 GUIDE; FAN (B)	8-97166-285-0	01	1	9608-9608
2	01.277 GUIDE; FAN (A)	8-97066-017-0	01	1	9609-0212
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (D)	8-97068-803-0	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (D)	8-97068-803-0	01	1	0311-0501
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) (C)	8-97218-802-1	01	1	0301-0310
2	01.277 GUIDE; FAN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (C)	8-97218-802-1	01	1	0311-0501
2	01.277 GUIDE; FAN 4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0311-0611
2	01.277 GUIDE; FAN 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97066-017-0	01	1	0612-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (D)	8-97068-803-0	01	1	0507-
2	01.277 GUIDE; FAN 4HK1-TCN ENG(RDQ) (C)	8-97218-802-1	01	1	0507-
16	01.203 CAP; RAD (C)	8-97129-572-0	01	1	9503-9512
16	01.203 CAP; RAD (C)	8-97146-516-0	01	1	9601-9603
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9604-9604
16	01.203 CAP; RAD (A)	8-97148-007-0	01	1	9608-9608
16	01.203 CAP; RAD (A)	8-97167-854-0	01	1	9609-0212
16	01.203 CAP; RAD 4HE1 ENG(RLY) (B)	8-97239-187-0	01	1	0301-0310
16	01.203 CAP; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97239-187-0	01	1	0311-0501
16	01.203 CAP; RAD 4HG1 ENG(RJH) (A)	8-97177-872-0	01	1	0311-
16	01.203 CAP; RAD 4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0507-0611
16	01.203 CAP; RAD 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-97239-187-0	01	1	0612-
21	01.276 SEAL; RAD 4HG1-T ENG(RDP)	8-97372-501-0	01	1	0612-
21	01.276 SEAL; RAD 4HE1 ENG(RLY)	8-97218-801-1	01	1	0301-0310
21	01.276 SEAL; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97218-801-1	01	1	0311-0501
21	01.276 SEAL; RAD 4HK1-TCN ENG(RDQ)	8-97376-998-1	01	1	0507-
22	01.270 BRACKET; RAD MTG	8-94101-621-1	02	1	9412-0105
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0106-0212
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0301-0310
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) TURBOCHARGER(K51)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HE1 ENG(RLY)	8-94175-416-0	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH) EXC. TURBOCHARGER(K51)	8-94101-621-1	02	1	0311-0501
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0502-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP) INDONESIA EQUIPMENT(S4S)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH)	8-94101-621-1	02	1	0612-
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ)	8-94175-416-0	02	1	0507-0606
22	01.270 BRACKET; RAD MTG 4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0607-0611
22	01.270 BRACKET; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) EXC. INDONESIA EQUIPMENT(S4S)	8-94175-416-0	02	1	0612-
23	01.271 NUT; RAD MTG 07.874 M10 FLANGE	5-09440-006-0	04	1	9412-0501
23	01.271 NUT; RAD MTG 4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0502-0506
23	01.271 NUT; RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0507-0611
23	01.271 NUT; RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 07.874 M10 FLANGE	5-09440-006-0	04	1	0612-
25	01.271 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	04	1	9412-9703
25	01.271 BOLT; BRKT 00.685 M10X30 FLANGE	0-28081-030-0	04	1	9704-9704
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9705-9810
25	01.271 BOLT; BRKT 03.405 M10X30 FLANGE	0-28681-030-0	04	1	9811-0501
25	01.271 BOLT; BRKT 4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0502-0506
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.405 M10X30 FLANGE	0-28681-030-0	04	1	0507-0512
25	01.271 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0601-0611
25	01.271 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0612-
26	01.270 BUFFER; RAD,LWR	8-94249-347-0	02	1	9412-
27	01.270 BUFFER; RAD,UPR	8-94249-346-0	02	1	9412-
51	08.951 PLUG; DRAIN 4HG1-T ENG(RDP) W/GASKET	8-97171-437-0	01	1	0612-
51	08.951 PLUG; DRAIN	8-97036-939-0	01	1	9412-9502
51	08.951 PLUG; DRAIN 08.915 W/GASKET	8-94321-236-0	01	1	9503-0212
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) W/GASKET	1-09609-023-0	01	1	0301-0310
51	08.951 PLUG; DRAIN 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> W/GASKET	1-09609-023-0	01	1	0311-0501
51	08.951 PLUG; DRAIN 4HG1 ENG(RJH) 08.915 W/GASKET	8-94321-236-0	01	1	0311-
51	08.951 PLUG; DRAIN 4HK1-TCN ENG(RDQ) W/GASKET	1-09609-023-0	01	1	0507-
56	01.270 STAY; RAD	8-97032-801-2	01	1	9412-0212
56	01.270 STAY; RAD 4HE1 ENG(RLY)	8-97330-387-0	01	1	0301-0310
56	01.270 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97330-387-0	01	1	0311-0501
56	01.270 STAY; RAD 4HG1 ENG(RJH)	8-97032-801-2	01	1	0311-0611
56	01.270 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97032-801-2	01	1	0612-
56	01.270 STAY; RAD 4HK1-TCN ENG(RDQ)	8-97330-387-0	01	1	0507-
57	01.271 WASHER; PL,STAY 07.874 ID=10.5 OD=18	9-09160-510-0	01	1	9412-0605
57	01.271 WASHER; PL,STAY 17.198 ID=10.5	0-91610-510-0	01	1	0606-
58	01.271 WASHER; CURVED,STAY ID=12	8-97011-676-0	01	1	9412-
59	01.271 PIN; SNAP,STAY 03.452 L=32.6	8-94202-777-0	01	1	9412-0610
59	01.271 PIN; SNAP,STAY L=32.6	8-97359-052-0	01	1	0611-
62	01.271 BOLT; STAY 07.831 (A) M8X12	0-28010-812-0	02	1	9412-9502
62	01.271 BOLT; STAY 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	9503-0212
62	01.271 BOLT; STAY 4HE1 ENG(RLY) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0301-0310
62	01.271 BOLT; STAY 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0311-0501
62	01.271 BOLT; STAY 4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0502-0506
62	01.271 BOLT; STAY 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0507-0611
62	01.271 BOLT; STAY 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.900 (A) M8X12 FLANGE	0-28080-812-0	02	1	0612-
62	01.271 BOLT; STAY (B) M8X45	8-94401-350-0	01	1	9412-
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9412-9607
70	01.271 STAY; RAD (B)	8-97073-125-0	01	1	9608-9608
70	01.271 STAY; RAD (A)	8-97047-899-0	01	1	9609-0212
70	01.271 STAY; RAD 4HE1 ENG(RLY) (B)	8-97073-125-0	01	1	0301-0310
70	01.271 STAY; RAD 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97073-125-0	01	1	0311-0501
70	01.271 STAY; RAD 4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0311-0611
70	01.271 STAY; RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97047-899-0	01	1	0612-
70	01.271 STAY; RAD 4HK1-TCN ENG(RDQ) (B)	8-97073-125-0	01	1	0507-
74	01.270 WASHER; PL,CUSHION RUBBER 03.405 (A) ID=8.5 OD=36	8-94221-082-0	02	1	9412-0610
74	01.270 WASHER; PL,CUSHION RUBBER (A) ID=8.5 OD=36	8-97359-049-1	02	1	0611-
74	01.270 WASHER; PL,CUSHION RUBBER 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	9412-0501
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0502-0506
74	01.270 WASHER; PL,CUSHION RUBBER 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0507-0611
74	01.270 WASHER; PL,CUSHION RUBBER 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 04.792 (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 01.274 M8X63	8-94249-446-0	01	1	9412-0501
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0502-0506
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0507-0611
75	01.271 BOLT; CUSHION RUBBER,RAD MTG 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.274 M8X63	8-94249-446-0	01	1	0612-
81	01.277 SCREW; FAN GUIDE,RAD	8-97088-810-0	04	1	9412-0212
81	01.277 SCREW; FAN GUIDE,RAD 4HG1 ENG(RJH)	8-97088-810-0	04	1	0311-0611
81	01.277 SCREW; FAN GUIDE,RAD 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97088-810-0	04	1	0612-
204	01.267 GUIDE ASM; AIR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0507-0611
204	01.267 GUIDE ASM; AIR 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60)	8-97376-880-0	01	1	0612-
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0507-0512
205	01.267 BOLT; AIR GUIDE 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-0611
205	01.267 BOLT; AIR GUIDE 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0612-
240	01.271 NUT; STAY M8 FLANGE	8-94178-701-0	01	1	9412-
518	01.270 NUT 00.854 M8 FLANGE	5-09440-005-0	02	1	9412-0610
518	01.270 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
