Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#43851) — 340 parça

54 99 54 99 100 101 108 729 218 101 104 391 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (A) L=2775	8-97066-237-4	01	1	9412-9702
54	03.430 CABLE; ENG CONT (A) L=2775	8-97167-703-0	01	1	9703-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2840	8-97350-446-2	01	1	0301-0501
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	9503-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=384	8-97168-299-1	01	1	0301-0310
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0311-0501
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0612-
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0612-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	9503-0105
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0106-0212
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY)	8-97167-871-3	01	1	0301-0310
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0311-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0311-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0502-0506
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	0507-0611
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	0612-
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	9503-0105
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0106-0212
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97167-870-2	01	1	0301-0310
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0311-0501
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0311-0501
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0502-0506
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	0507-0611
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	0612-
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9503-0105
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0106-0212
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0301-0310
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0311-0501
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0502-0506
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0507-0611
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0612-
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-0105
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9503-0105
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0106-0212
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0301-0310
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97120-004-0	01	1	0311-0501
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0502-0506
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0507-0611
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	0612-
110	03.463 BOLT; BRKT TO HANGER 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9503-9607
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9608-0105
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-0212
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0310
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0311-0501
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0311-0512
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0611
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0612-
218	03.452 NUT; BRKT 01.540 M8 FLANGE	0-91150-208-0	01	1	9512-9606
218	03.452 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9607-0105
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0602
218	03.452 NUT; BRKT 4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
218	03.452 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
391	03.452 BRACKET; ENG CONT 02.483 (A)	8-97088-278-0	01	1	9512-9711
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	9712-0105
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0106-0212
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0301-0501
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0502-
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0311-0611
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0612-
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9503-0105
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0106-0212
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0301-0310
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97118-760-0	01	1	0311-0501
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0502-0506
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0507-0611
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	0612-

54 99 54 114 99 108 729 101 101 100 104 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (A) L=2775	8-97066-237-4	01	1	9412-9702
54	03.430 CABLE; ENG CONT (A) L=2775	8-97167-703-0	01	1	9703-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2840	8-97350-446-2	01	1	0301-0501
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	9503-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=384	8-97168-299-1	01	1	0301-0310
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0311-0501
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0612-
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0612-
99	03.463 BRACKET ASM; ENG CONT,INL MANIF	8-97118-729-0	01	1	9503-0105
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0106-0212
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY)	8-97167-871-3	01	1	0301-0310
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-871-3	01	1	0311-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0311-0501
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH)	8-97118-729-0	01	1	0502-0506
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-729-0	01	1	0507-0611
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-729-0	01	1	0612-
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	9503-0105
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0106-0212
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY)	8-97167-870-2	01	1	0301-0310
100	03.463 SHAFT ASM; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97167-870-2	01	1	0311-0501
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL>,ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0311-0501
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH)	8-97118-737-0	01	1	0502-0506
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-737-0	01	1	0507-0611
100	03.463 SHAFT ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-737-0	01	1	0612-
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	9503-0105
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0106-0212
101	03.463 WASHER; ENG CONT 4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0301-0310
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 01.276	8-94142-117-0	02	1	0311-0501
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0502-0506
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 01.276	8-94142-117-0	02	1	0507-0611
101	03.463 WASHER; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.276	8-94142-117-0	02	1	0612-
104	03.463 NUT; ENG CONT 07.633 M8 FLANGE	0-91150-108-0	01	1	9503-0105
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0212
104	03.463 NUT; ENG CONT 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0506
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611
104	03.463 NUT; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	9503-0105
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0106-0212
108	03.463 BUSHING; ENG CONT 4HE1 ENG(RLY)	8-97120-004-0	01	1	0301-0310
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97120-004-0	01	1	0311-0501
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH)	8-97120-004-0	01	1	0502-0506
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97120-004-0	01	1	0507-0611
108	03.463 BUSHING; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97120-004-0	01	1	0612-
110	03.463 BOLT; BRKT TO HANGER 00.662 M8X14 FLANGE	0-28080-814-0	03	1	9503-9607
110	03.463 BOLT; BRKT TO HANGER 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9608-0105
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0106-0212
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0310
110	03.463 BOLT; BRKT TO HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0311-0501
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0311-0512
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0601-0611
110	03.463 BOLT; BRKT TO HANGER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 M8X16 FLANGE	0-28050-816-0	03	1	0612-
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) 02.559 ID=7-10	8-94472-578-0	01	1	0301-0310
114	03.483 CLIP; HARNESS CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 ID=7-10	8-94472-578-0	01	1	0311-0501
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	9503-0105
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0106-0212
729	03.451 COLLAR; JOINT 4HE1 ENG(RLY)	8-97118-760-0	01	1	0301-0310
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97118-760-0	01	1	0311-0501
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH)	8-97118-760-0	01	1	0502-0506
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH) FLOOR REMOTE SHIFT<M11>	8-97118-760-0	01	1	0507-0611
729	03.451 COLLAR; JOINT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97118-760-0	01	1	0612-

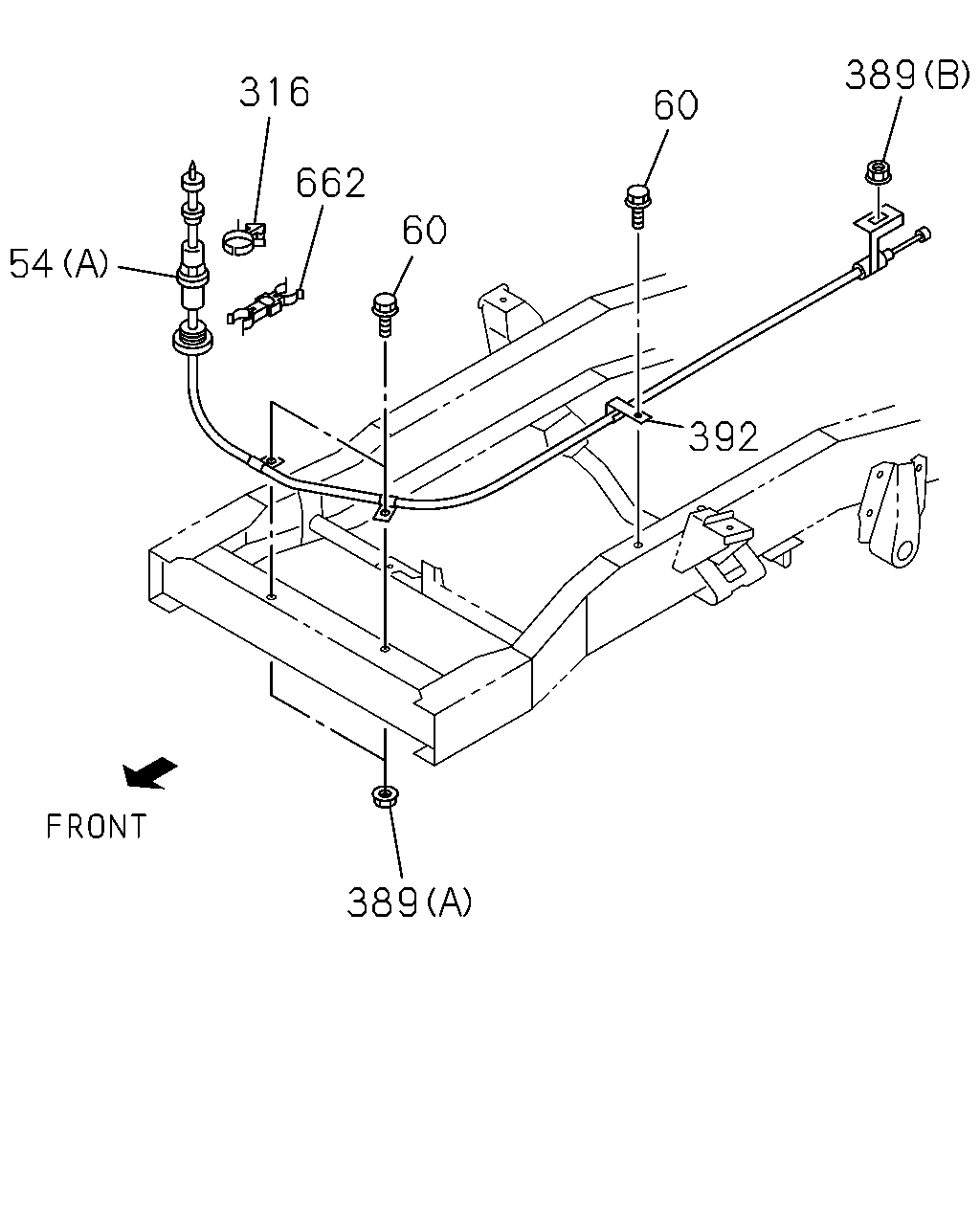

389 316 60 662 60 54 392 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (A) L=2775	8-97066-237-4	01	1	9412-9702
54	03.430 CABLE; ENG CONT (A) L=2775	8-97167-703-0	01	1	9703-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (A) L=2840	8-97350-446-2	01	1	0301-0501
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	9503-0105
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0106-0212
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) (B) L=384	8-97168-299-1	01	1	0301-0310
54	03.430 CABLE; ENG CONT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B) L=384	8-97168-299-1	01	1	0311-0501
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) L=293	8-97115-730-0	01	1	0612-
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0311-0611
54	03.430 CABLE; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A) L=2775	8-97167-703-2	01	1	0612-
60	08.155 BOLT; CABLE 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	03	1	9412-9504
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9505-9511
60	08.155 BOLT; CABLE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9512-0105
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0212
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0301-0310
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0311-0501
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0611
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0612-
60	08.155 BOLT; CABLE M8X25 FLANGE	0-28480-825-0	01	1	9512-0105
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) M8X25 FLANGE	0-28480-825-0	01	1	0106-0212
60	08.155 BOLT; CABLE 4HE1 ENG(RLY) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0501
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
60	08.155 BOLT; CABLE 4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0611
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0612-0805
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0806-
60	08.155 BOLT; CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0806-
316	03.425 CLIP; LAMP BRKT 02.559 ID=12	1-09987-201-0	01	1	9412-9503
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9504-0501
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH) 16.065 ID=9	5-09707-027-0	01	1	0502-0611
316	03.425 CLIP; LAMP BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 16.065 ID=9	5-09707-027-0	01	1	0612-
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	01	1	0301-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9412-0105
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0106-0212
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0301-0310
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0311-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0502-0602
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0603-0611
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0612-
389	03.483 NUT; ACCEL CONT CABLE FIX 03.417 (A) M8 FLANGE	8-94279-517-0	02	1	9412-9511
389	03.483 NUT; ACCEL CONT CABLE FIX 03.417 (A) M8 FLANGE	8-94279-517-0	03	1	9512-9801
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	03	1	9802-9902
389	03.483 NUT; ACCEL CONT CABLE FIX 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	9903-0105
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0106-0212
389	03.483 NUT; ACCEL CONT CABLE FIX 4HE1 ENG(RLY) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0301-0310
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HE1 ENG(RLY) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0311-0501
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0502-0611
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 07.833 (A) M8 W/LK WASHER	8-94327-073-0	02	1	0612-0805
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	02	1	0806-
392	03.483 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 04.785 ID=13 L=50	0-95235-286-0	01	1	0806-
662	03.430 CLIP; ACCEL CONT CABLE ID=6 & 6	8-94400-853-0	01	1	9412-9711
662	03.430 CLIP; ACCEL CONT CABLE 03.483 ID=6 & 6	8-94463-708-0	01	1	9712-9810
662	03.430 CLIP; ACCEL CONT CABLE 03.634 ID=6 & 6	1-09709-217-0	01	1	9811-0105
662	03.430 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 03.634 ID=6 & 6	1-09709-217-0	01	1	0106-0212
662	03.430 CLIP; ACCEL CONT CABLE 4HE1 ENG(RLY) 03.634 ID=6 & 6	1-09709-217-0	01	1	0301-0310
662	03.430 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) 03.634 ID=6 & 6	1-09709-217-0	01	1	0311-0501
662	03.430 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH) 03.634 ID=6 & 6	1-09709-217-0	01	1	0502-0611
662	03.430 CLIP; ACCEL CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.634 ID=6 & 6	1-09709-217-0	01	1	0612-

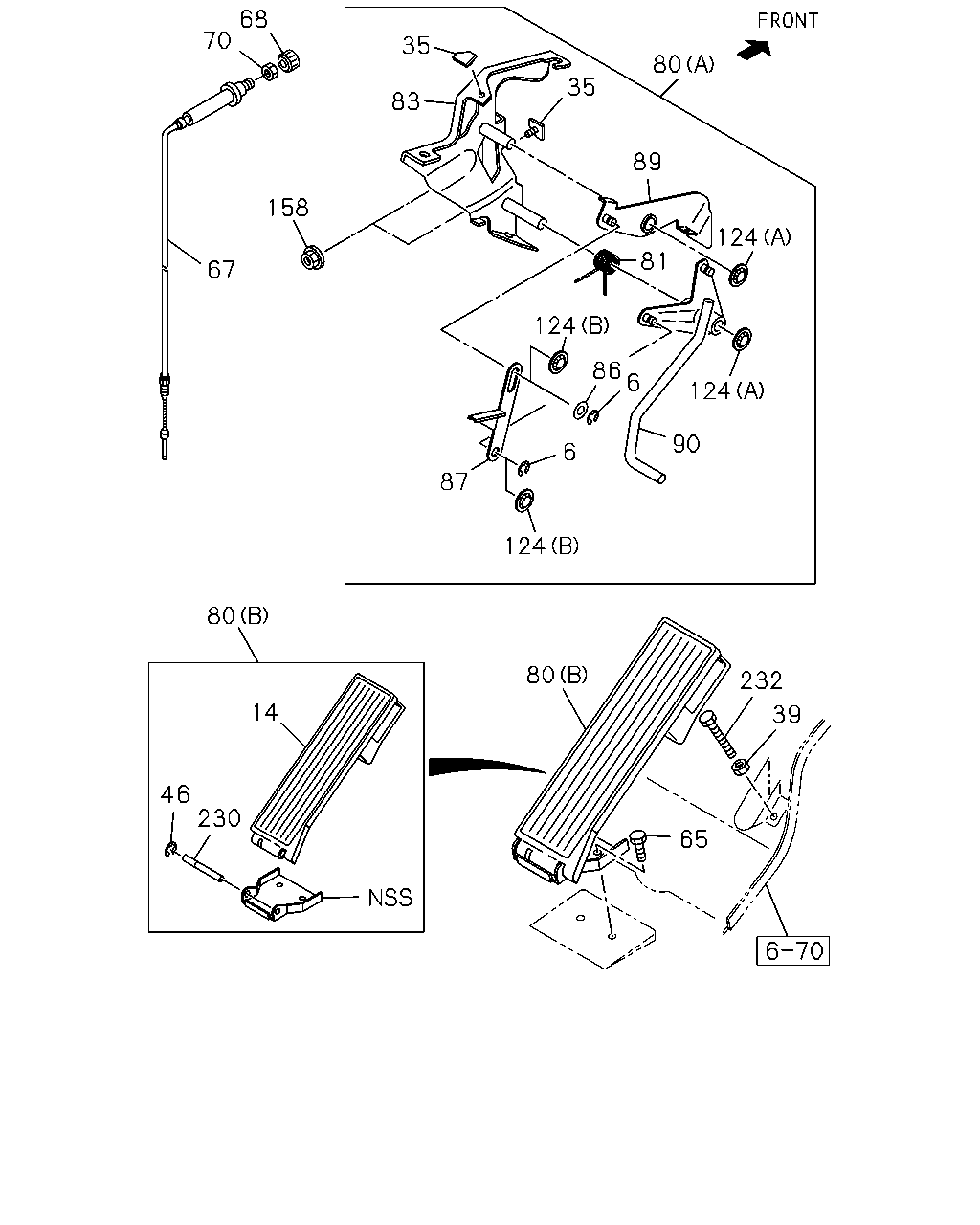

68 70 35 80 35 83 89 158 124 81 67 124 86 6 124 90 6 87 124 80 80 232 14 39 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	03.880 RING; SNAP,LINK TO LINK 04.040 ID=4	9-09185-404-0	02	1	9412-9609
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9412-
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	02	1	9412-9609
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9610-0012
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-0105
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97302-305-0	01	1	0106-0212
35	03.459 STOPPER; ACCEL PEDAL 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97302-305-0	01	1	0301-0310
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97302-305-0	01	1	0311-0501
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97302-305-0	01	1	0502-0611
35	03.459 STOPPER; ACCEL PEDAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97302-305-0	01	1	0612-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9412-0512
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9412-0604
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9412-9603
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9412-0105
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH) L=439	8-97853-058-1	01	1	0106-0212
67	03.480 CABLE ASM; IDLE CONT 4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0301-0310
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) L=439	8-97853-058-1	01	1	0311-0501
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH) L=439	8-97853-058-1	01	1	0502-0611
67	03.480 CABLE ASM; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) L=439	8-97853-058-1	01	1	0612-
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9412-0105
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	0106-0212
68	03.480 KNOB; IDLE CONT 4HE1 ENG(RLY)	8-97853-765-1	01	1	0301-0310
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4HE1 ENG(RLY)	8-97853-765-1	01	1	0311-0501
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH)	8-97853-765-1	01	1	0502-0611
68	03.480 KNOB; IDLE CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97853-765-1	01	1	0612-
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9412-0105
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0106-0212
70	03.483 NUT; CONT CABLE 4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0301-0310
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4HE1 ENG(RLY) M18	8-97853-233-0	01	1	0311-0501
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0502-0611
70	03.483 NUT; CONT CABLE 4HG1-T ENG(RDP),4HG1 ENG(RJH) M18	8-97853-233-0	01	1	0612-
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97997-556-6	01	1	0507-
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9412-0105
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-97853-057-9	01	1	0106-0212
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0301-0310
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0311-0501
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0502-0611
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0612-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9412-
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9412-0105
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97853-205-1	01	1	0106-0212
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-205-1	01	1	0301-0310
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-205-1	01	1	0311-0501
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-205-1	01	1	0502-0611
81	03.459 SPRING; RETURN,ENG CONT LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-205-1	01	1	0612-
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9412-0105
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97853-201-4	01	1	0106-0212
83	03.452 BRACKET; CONT LINK 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-201-4	01	1	0301-0310
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-201-4	01	1	0311-0501
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-201-4	01	1	0502-0611
83	03.452 BRACKET; CONT LINK 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-201-4	01	1	0612-
86	03.463 WASHER; PL,ENG CONT LEVER 16.125 ID=5.3 OD=12	9-09160-605-0	01	1	9412-9609
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-5	01	1	0507-
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9412-0105
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97853-204-1	01	1	0106-0212
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-204-1	01	1	0301-0310
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-204-1	01	1	0311-0501
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-204-1	01	1	0502-0611
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-204-1	01	1	0612-
89	03.454 LEVER; RELAY	8-97853-203-4	01	1	9412-9609
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9610-0105
89	03.454 LEVER; RELAY 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97868-042-0	01	1	0106-0212
89	03.454 LEVER; RELAY 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97868-042-0	01	1	0301-0310
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97868-042-0	01	1	0311-0501
89	03.454 LEVER; RELAY 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97868-042-0	01	1	0502-0611
89	03.454 LEVER; RELAY 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97868-042-0	01	1	0612-
90	03.454 LEVER; RELAY,ENG CONT	8-97853-202-6	01	1	9412-9609
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9610-0105
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97868-039-0	01	1	0106-0212
90	03.454 LEVER; RELAY,ENG CONT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97868-039-0	01	1	0301-0310
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97868-039-0	01	1	0311-0501
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97868-039-0	01	1	0502-0611
90	03.454 LEVER; RELAY,ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97868-039-0	01	1	0612-
124	03.463 NUT; LEVER 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9412-0105
124	03.463 NUT; LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0212
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MYY5T(RSM) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0301-0310
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0311-0501
124	03.463 NUT; LEVER 4HG1 ENG(RJH) M/T MYY5T(RSM) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0502-0611
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) 09.011 (A) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0612-
124	03.463 NUT; LEVER (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9610-0105
124	03.463 NUT; LEVER 4HG1 ENG(RJH) M/T MXA5R(RMT) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0212
124	03.463 NUT; LEVER 4HE1 ENG(RLY) M/T MYY5T(RSM) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0301-0310
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0311-0501
124	03.463 NUT; LEVER 4HG1 ENG(RJH) M/T MYY5T(RSM) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0502-0611
124	03.463 NUT; LEVER 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (B) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0612-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9412-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9412-
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9412-0404
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0506
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-0611
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0612-

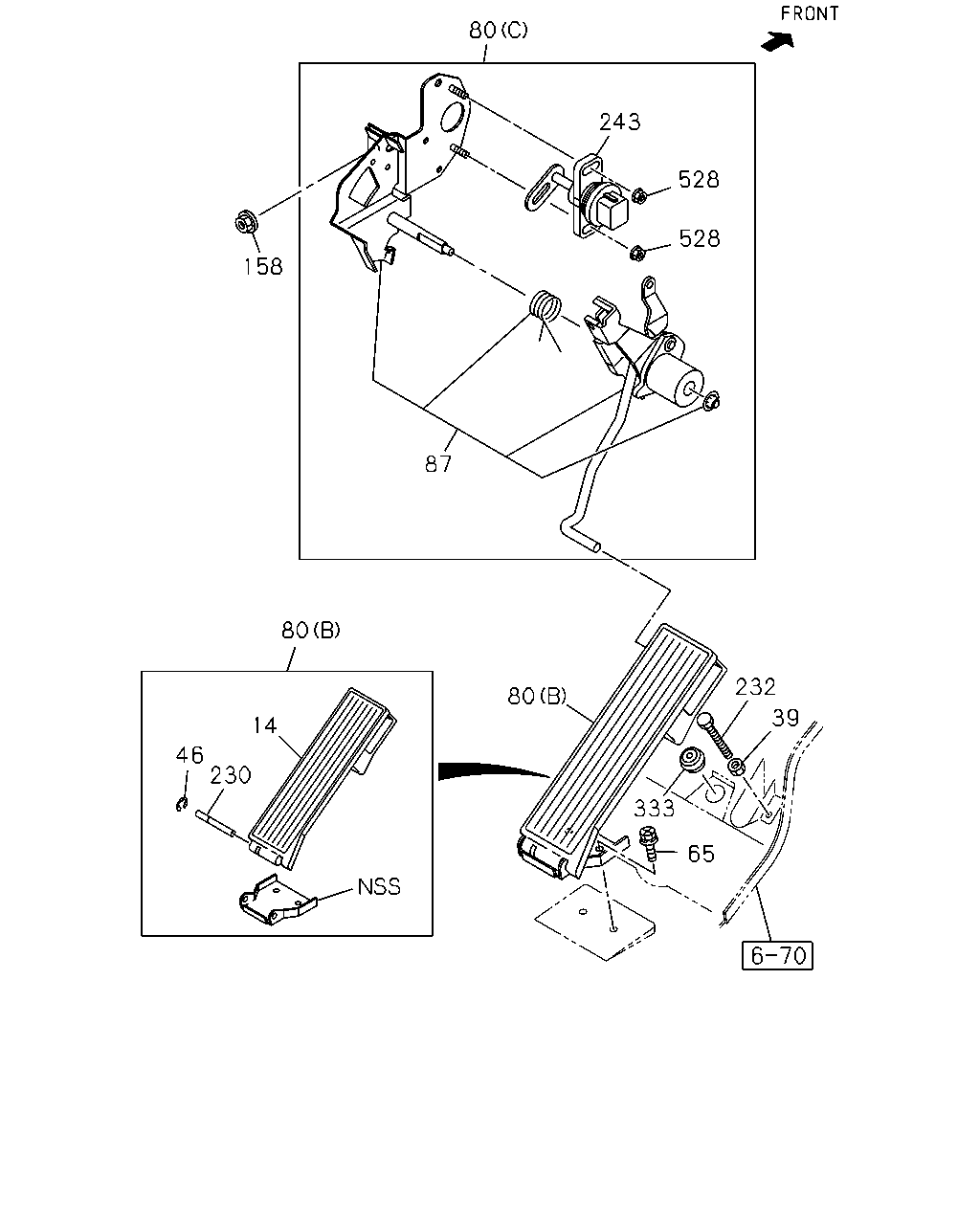

80 243 528 528 158 87 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9412-
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9412-0512
39	03.459 NUT; ACCEL PEDAL STOPPER 02.334 M8	0-91110-508-0	01	1	0601-
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9412-0604
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	03.483 BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9412-9603
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9604-
80	03.452 LINK ASM; ENG CONT 4HK1-TCN ENG(RDQ) (C)	8-97997-556-6	01	1	0507-
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9412-0105
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) M/T MXA5R(RMT) (A)	8-97853-057-9	01	1	0106-0212
80	03.452 LINK ASM; ENG CONT 4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0301-0310
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0311-0501
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0502-0611
80	03.452 LINK ASM; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) (A)	8-97853-057-9	01	1	0612-
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9412-
87	03.454 LINK; ENG CONT 4HK1-TCN ENG(RDQ)	8-97581-415-5	01	1	0507-
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9412-0105
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH) M/T MXA5R(RMT)	8-97853-204-1	01	1	0106-0212
87	03.454 LINK; ENG CONT 4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-204-1	01	1	0301-0310
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MYY5T(RSM)	8-97853-204-1	01	1	0311-0501
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-204-1	01	1	0502-0611
87	03.454 LINK; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM)	8-97853-204-1	01	1	0612-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9412-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9412-
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9412-0404
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-0506
232	03.459 BOLT; STOPPER,ACCEL PEDAL FLOOR REMOTE SHIFT<M11> M8X45	8-97378-461-0	01	1	0507-0611
232	03.459 BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0612-
243	03.425 SENSOR; ACCEL 4HK1-TCN ENG(RDQ)	8-97602-416-0	01	1	0507-
333	03.671 GROMMET; HOLE,CABLE 4HK1-TCN ENG(RDQ) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0507-
528	03.463 NUT; ACCEL SENSOR 4HK1-TCN ENG(RDQ) 12.183 M5	8-94169-022-0	02	1	0507-

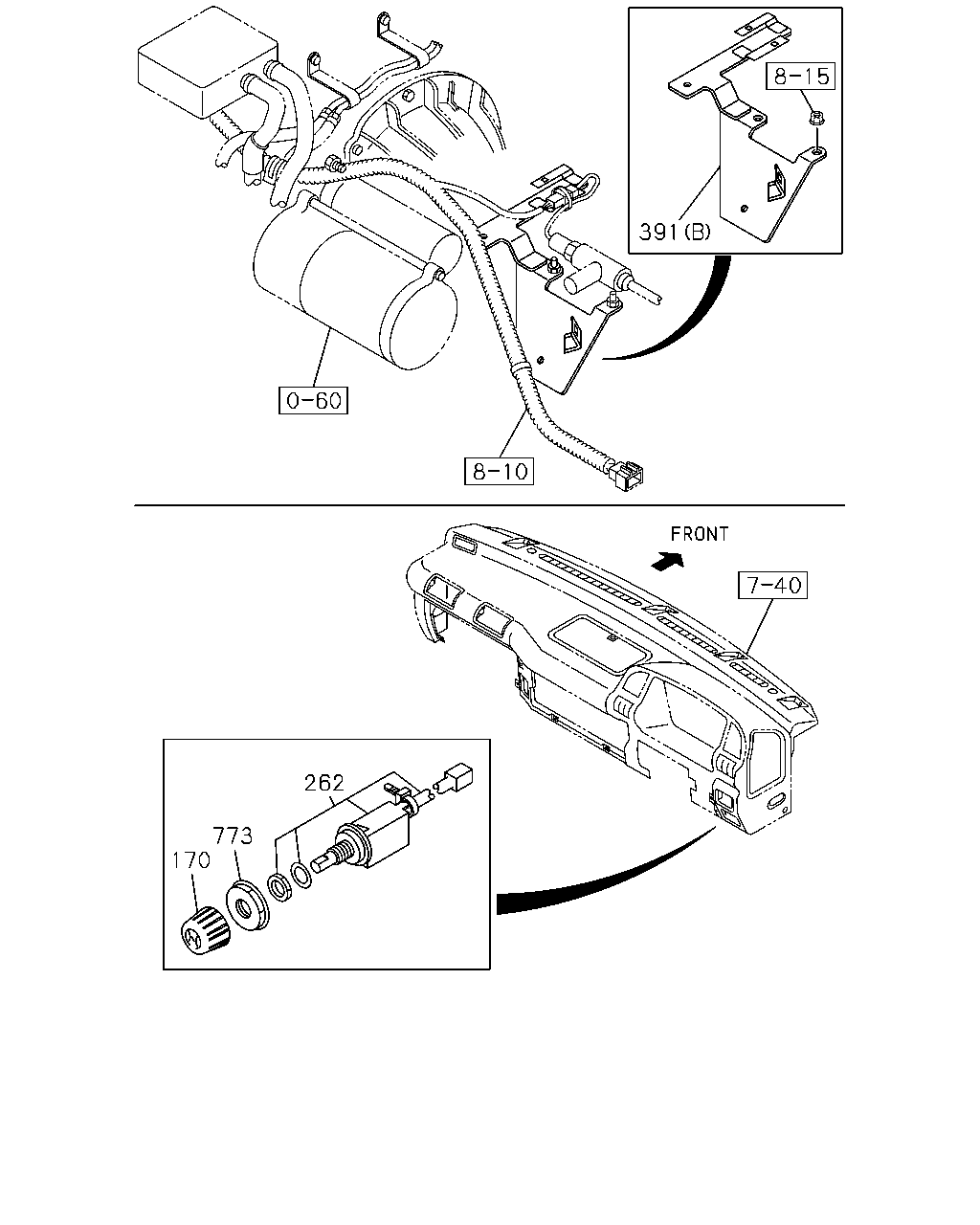

391 262 773 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
170	03.480 KNOB 4HK1-TCN ENG(RDQ)	8-97310-165-0	01	1	0507-
262	03.452 SWITCH; ACCEL,IDLE 4HK1-TCN ENG(RDQ)	8-97215-119-1	01	1	0507-
391	03.452 BRACKET; ENG CONT 02.483 (A)	8-97088-278-0	01	1	9512-9711
391	03.452 BRACKET; ENG CONT (A)	8-97172-882-0	01	1	9712-0105
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0106-0212
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0301-0501
391	03.452 BRACKET; ENG CONT (B)	8-97360-271-0	01	1	0502-
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0311-0611
391	03.452 BRACKET; ENG CONT 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-97172-882-0	01	1	0612-
773	03.452 HOLDER; ACCEL PEDAL 4HK1-TCN ENG(RDQ)	8-97352-127-0	01	1	0507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
