1-30 — AIR CLEANER (#4385) — 192 parça

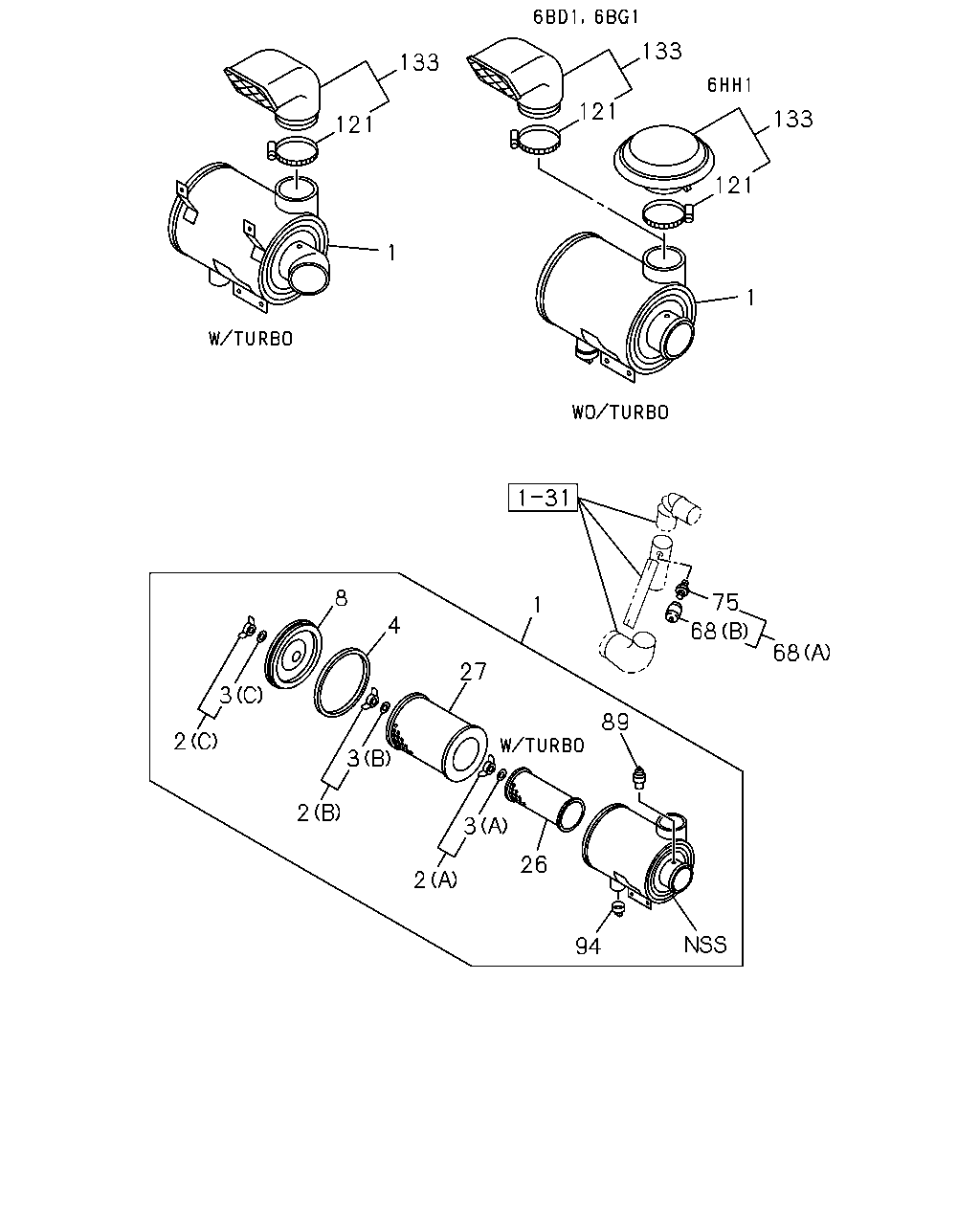

çizim 36815
133 133 121 133 121 121 1 1 8 75 68 1 4 68 27 3 3 89 2 3 2 26 2 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR 1-14210-750-1 01 1 0204- ● ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-509-3 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-509-3 01 1 9505-9805 ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8> 		1-14210-509-3 01 1 9806-0203 ●
1 CLEANER ASM; AIR 1-14210-509-3 01 1 0204- ●
1 CLEANER ASM; AIR
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-577-0 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-621-1 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-621-1 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8> 		1-14210-621-1 01 1 9505-9701 ●
1 CLEANER ASM; AIR
TAIWAN EQUIPMENT<WW5> 		1-14210-621-1 01 1 9505-9701 ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-621-1 01 1 9702-9805 ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8> 		1-14210-621-1 01 1 9806-0203 ●
1 CLEANER ASM; AIR
TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-622-1 01 1 9101-9504 ●
1 CLEANER ASM; AIR
EXC. TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-580-1 01 1 9101-9504 ●
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9702-9709 ●
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9710-0203 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9505- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9505-9701 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9702-9709 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9710- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9505-9701 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9702-9709 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9505-9701 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9702-9709 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9505-9701 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9702-9709 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9505- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0204- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9101-9504 ● ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9505- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9702-9709 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9710-0203 ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 0204- ● ●
8 COVER ASM; ACL
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-044-0 01 1 9101-9504 ● ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14212-092-0 01 1 9101-9504 ● ● ●
8 COVER ASM; ACL
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14212-101-0 01 1 9101-9504 ● ● ●
8 COVER ASM; ACL
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-101-0 01 1 9505-9805 ●
8 COVER ASM; ACL
CAUTIONS FRENCH<WJ8> 		1-14212-101-0 01 1 9806-0203 ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-092-0 01 1 9505-9805 ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8> 		1-14212-092-0 01 1 9806-0203 ●
8 COVER ASM; ACL 1-14212-092-0 01 1 0204- ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9702-9709 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9710-0203 ● ●
26 FILTER; ACL,INNER
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-119-0 01 1 9101-9504 ● ●
26 FILTER; ACL,INNER
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14215-145-0 01 1 9101-9504 ● ● ●
26 FILTER; ACL,INNER
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14215-111-0 01 1 9101-9504 ● ● ●
26 FILTER; ACL,INNER
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-111-0 01 1 9505-9805 ●
26 FILTER; ACL,INNER
CAUTIONS FRENCH<WJ8> 		1-14215-111-0 01 1 9806-0203 ●
26 FILTER; ACL,INNER
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-145-0 01 1 9505-9805 ●
26 FILTER; ACL,INNER
EXC. CAUTIONS FRENCH<WJ8> 		1-14215-145-0 01 1 9806-0203 ●
26 FILTER; ACL,INNER 1-14215-145-0 01 1 0204- ●
26 FILTER; ACL,INNER
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> BEST VALUE PARTS 		1-87610-118-0 01 1 9101-9504 ● ● ●
26 FILTER; ACL,INNER
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> BEST VALUE PARTS 		1-87610-118-0 01 1 9505-9805 ●
26 FILTER; ACL,INNER
CAUTIONS FRENCH<WJ8> BEST VALUE PARTS 		1-87610-118-0 01 1 9806-0203 ●
27 FILTER; ACL,OUTER
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-120-0 01 1 9101-9504 ● ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14215-171-0 01 1 9101-9504 ● ● ●
27 FILTER; ACL,OUTER
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14215-172-0 01 1 9101-9504 ● ● ●
27 FILTER; ACL,OUTER
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-172-0 01 1 9505-9805 ●
27 FILTER; ACL,OUTER
CAUTIONS FRENCH<WJ8> 		1-14215-172-0 01 1 9806-0203 ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14215-171-0 01 1 9505-9805 ●
27 FILTER; ACL,OUTER
EXC. CAUTIONS FRENCH<WJ8> 		1-14215-171-0 01 1 9806-0203 ●
27 FILTER; ACL,OUTER 1-14215-171-0 01 1 0204- ●
27 FILTER; ACL,OUTER
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> BEST VALUE PARTS 		1-87610-117-0 01 1 9101-9504 ● ● ●
27 FILTER; ACL,OUTER
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> BEST VALUE PARTS 		1-87610-117-0 01 1 9505-9805 ●
27 FILTER; ACL,OUTER
CAUTIONS FRENCH<WJ8> BEST VALUE PARTS 		1-87610-117-0 01 1 9806-0203 ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) WO/NIPPLE 		9-14219-141-0 01 1 9101-9307 ● ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) WO/NIPPLE 		1-14219-212-0 01 1 9308-9504 ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9505-9706 ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9707-9709 ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9710-0203 ● ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 0204- ● ● ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) W/NIPPLE 		9-14219-192-0 01 1 9101-9504 ● ●
68 INDICATOR; SERVICE
(A) W/NIPPLE 		9-14219-192-0 01 1 9505- ●
75 NIPPLE; INDICATOR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-14219-189-0 01 1 9101-9504 ● ●
75 NIPPLE; INDICATOR 9-14219-189-0 01 1 9505- ●
89 INDICATOR; ACL
EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		9-14219-141-0 01 1 9101-9504 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9101-9504 ● ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9505-9701 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9702-9709 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9710- ● ● ●
121 CLAMP; INL HOOD,ACL 1-09700-776-0 01 1 9101-9504 ● ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9505-9702 ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9703-9709 ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9710-1109 ● ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 1110- ●
133 HOOD ASM; INL,ACL 1-14219-200-0 01 1 1110- ● ●
133 HOOD ASM; INL,ACL 1-14219-166-0 01 1 9101-9504 ● ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9505-9702 ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9703-9709 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9710-1109 ● ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 1110- ●

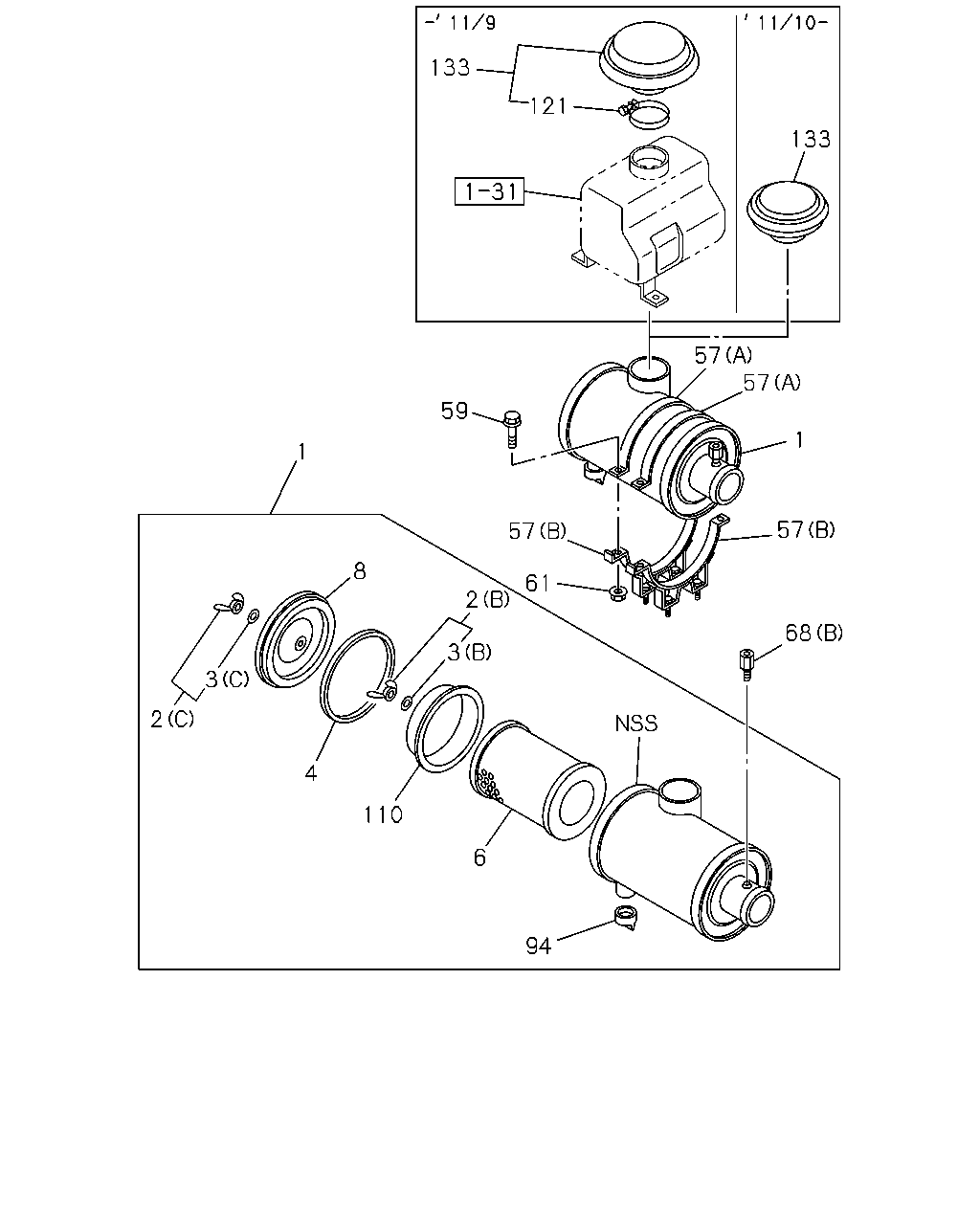

çizim 39075
133 121 133 57 57 59 1 1 57 57 8 61 2 68 3 3 2 4 110 6 94
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CLEANER ASM; AIR 1-14210-750-1 01 1 0204- ● ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-509-3 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-509-3 01 1 9505-9805 ●
1 CLEANER ASM; AIR
EXC. CAUTIONS FRENCH<WJ8> 		1-14210-509-3 01 1 9806-0203 ●
1 CLEANER ASM; AIR 1-14210-509-3 01 1 0204- ●
1 CLEANER ASM; AIR
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-577-0 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-621-1 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-621-1 01 1 9101-9504 ● ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8> 		1-14210-621-1 01 1 9505-9701 ●
1 CLEANER ASM; AIR
TAIWAN EQUIPMENT<WW5> 		1-14210-621-1 01 1 9505-9701 ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14210-621-1 01 1 9702-9805 ●
1 CLEANER ASM; AIR
CAUTIONS FRENCH<WJ8> 		1-14210-621-1 01 1 9806-0203 ●
1 CLEANER ASM; AIR
TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-622-1 01 1 9101-9504 ●
1 CLEANER ASM; AIR
EXC. TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14210-580-1 01 1 9101-9504 ●
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9702-9709 ●
1 CLEANER ASM; AIR 1-14210-750-0 01 1 9710-0203 ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9505- ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9505-9701 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9702-9709 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-049-0 01 1 9710- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9101-9504 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9505-9701 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9702-9709 ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9505-9701 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9702-9709 ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9505-9701 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9702-9709 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-156-0 01 1 9710- ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9101-9504 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		9-14219-177-0 01 1 9505- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0204- ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9101-9504 ● ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9505- ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9702-9709 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 9710-0203 ● ●
6 FILTER; ACL 1-14215-182-0 01 1 0204- ● ●
6 FILTER; ACL 1-14215-182-0 01 1 9702-9709 ●
6 FILTER; ACL 1-14215-182-0 01 1 9710-0203 ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 0204- ● ●
8 COVER ASM; ACL
DRY ACL DONALDSON 11"METAL ELEMENT<W68> EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-044-0 01 1 9101-9504 ● ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5>,DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14212-092-0 01 1 9101-9504 ● ● ●
8 COVER ASM; ACL
LEFT HAND DRIVE(LTR6FB) CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> EXC. DRY ACL DONALDSON 11"METAL ELEMENT<W68> 		1-14212-101-0 01 1 9101-9504 ● ● ●
8 COVER ASM; ACL
CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-101-0 01 1 9505-9805 ●
8 COVER ASM; ACL
CAUTIONS FRENCH<WJ8> 		1-14212-101-0 01 1 9806-0203 ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8>,TAIWAN EQUIPMENT<WW5> 		1-14212-092-0 01 1 9505-9805 ●
8 COVER ASM; ACL
EXC. CAUTIONS FRENCH<WJ8> 		1-14212-092-0 01 1 9806-0203 ●
8 COVER ASM; ACL 1-14212-092-0 01 1 0204- ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9702-9709 ●
8 COVER ASM; ACL 1-14212-064-0 01 1 9710-0203 ● ●
57 BAND; ACL
(B) 		1-53419-133-3 02 1 9702-9709 ●
57 BAND; ACL
(B) 		1-53419-133-3 02 1 9710-9810 ● ●
57 BAND; ACL
(B) 		1-53419-249-0 02 1 9811- ● ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9702-9709 ●
57 BAND; ACL
(A) 		1-53419-251-0 02 1 9710- ● ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9702-9709 ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28681-030-0 04 1 9710-0512 ● ●
59 BOLT; BAND,ACL
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9702-9709 ●
61 NUT; ACL BAND
M10 FLANGE 		0-91150-210-0 08 1 9710-0602 ● ●
61 NUT; ACL BAND
M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) WO/NIPPLE 		9-14219-141-0 01 1 9101-9307 ● ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) WO/NIPPLE 		1-14219-212-0 01 1 9308-9504 ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9505-9706 ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9707-9709 ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 9710-0203 ● ● ●
68 INDICATOR; SERVICE
(B) WO/NIPPLE 		1-14219-212-0 01 1 0204- ● ● ●
68 INDICATOR; SERVICE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) W/NIPPLE 		9-14219-192-0 01 1 9101-9504 ● ●
68 INDICATOR; SERVICE
(A) W/NIPPLE 		9-14219-192-0 01 1 9505- ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9101-9504 ● ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9505-9701 ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9702-9709 ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 9710- ● ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 0204- ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9702-9709 ●
110 ADAPTER; ACL 1-14219-175-0 01 1 9710-0203 ● ●
121 CLAMP; INL HOOD,ACL 1-09700-776-0 01 1 9101-9504 ● ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9505-9702 ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9703-9709 ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 9710-1109 ● ● ●
121 CLAMP; INL HOOD,ACL 1-14219-256-0 01 1 1110- ●
133 HOOD ASM; INL,ACL 1-14219-200-0 01 1 1110- ● ●
133 HOOD ASM; INL,ACL 1-14219-166-0 01 1 9101-9504 ● ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9505-9702 ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9703-9709 ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 9710-1109 ● ● ●
133 HOOD ASM; INL,ACL
W/CLAMP 		1-14219-171-0 01 1 1110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
