0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#43849) — 97 parça

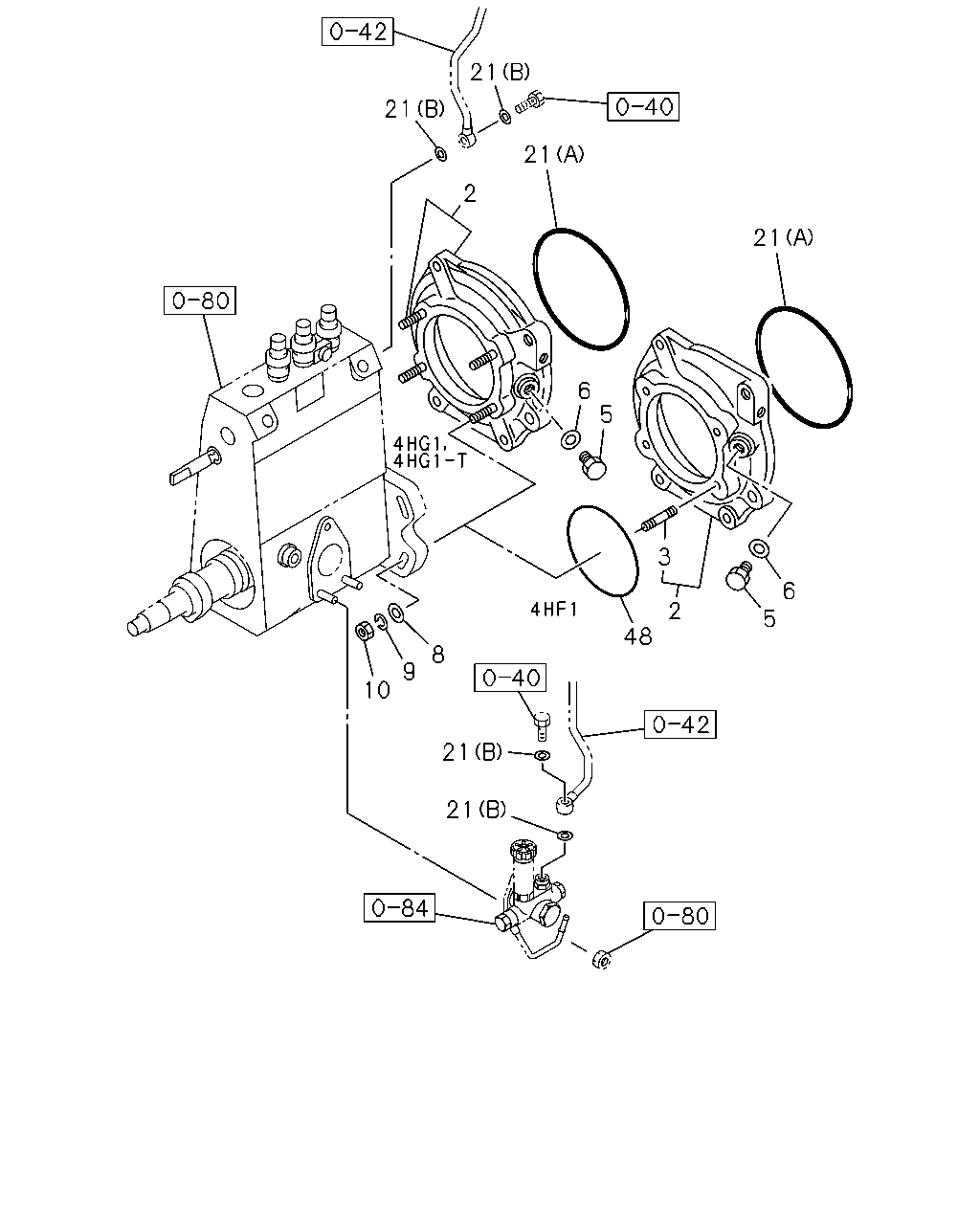

21 21 21 2 21 6 5 3 6 5 2 48 8 9 10 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97096-643-0	01	1	9503-9511	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	9512-9711	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	9712-0212		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97188-880-1	01	1	0301-0501			●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0311-0611		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0612-		●		●
3	03.330 STUD; HSG BRKT,INJ PUMP 08.981 M10X30 L=45	9-04101-030-0	04	1	9503-9711	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9503-9711	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9712-0212		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0301-0310			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0311-0501		●	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0502-0611		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0612-		●		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9503-9711	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9712-0212		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0301-0310			●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0311-0501		●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0502-0611		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0612-		●		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9503-9711	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9712-0212		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0301-0310			●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0311-0501		●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0502-0611		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0612-		●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9503-9511	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9712-0212		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0311-0611		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0612-		●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-510-0	04	1	0301-0501			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9503-9711	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9712-0212		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0301-0310			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0311-0501		●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0502-0611		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0612-		●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-				●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9503-9711	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9712-0212		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0301-0310			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0311-0501		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0502-0506		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0507-0611		●			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0612-		●		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9711	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0501			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-		●
48	03.306 GASKET; PIPE ADAPTER,INJ PUMP	8-97026-918-0	01	1	9604-9711	●

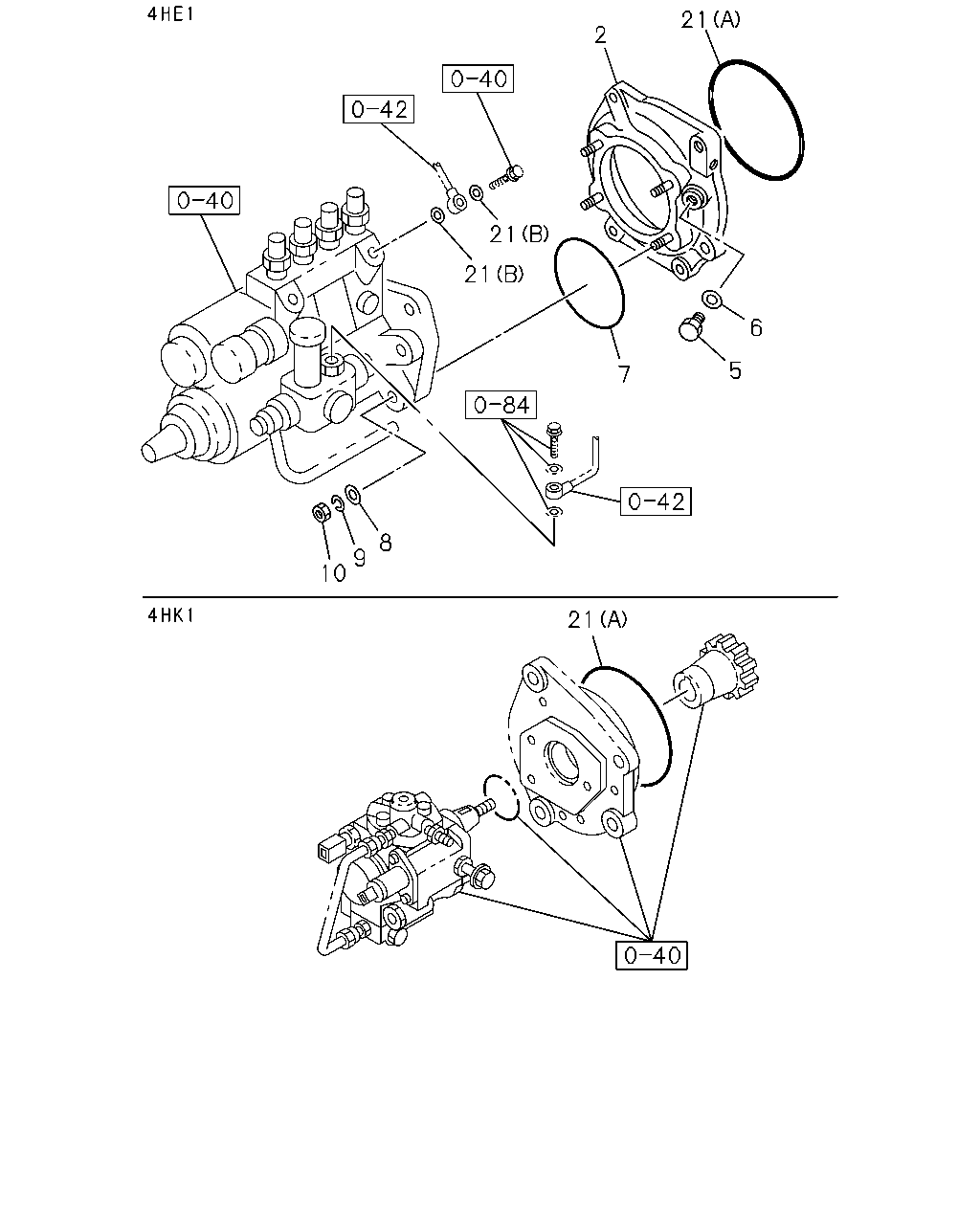

21 2 21 21 6 5 7 8 9 10 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97096-643-0	01	1	9503-9511	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	9512-9711	●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	9712-0212		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97188-880-1	01	1	0301-0501			●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0311-0611		●
2	03.306 BRACKET; HSG & TIMER,INJ PUMP	8-97123-609-0	01	1	0612-		●		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9503-9711	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	9712-0212		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0301-0310			●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0311-0501		●	●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0502-0611		●
5	03.306 PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0612-		●		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9503-9711	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	9712-0212		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0301-0310			●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0311-0501		●	●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0502-0611		●
6	03.306 GASKET; PLUG,INJ PUMP BRKT 03.308	1-15729-787-0	01	1	0612-		●		●
7	03.306 GASKET; HSG BRKT,ENG SIDE	8-97188-881-0	01	1	0301-0501			●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9503-9711	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	9712-0212		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0301-0310			●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0311-0501		●	●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0502-0611		●
8	03.306 WASHER; PL,HSG BRKT,INJ PUMP 06.896 ID=10.5	9-09164-510-0	04	1	0612-		●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9503-9511	●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	9712-0212		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0311-0611		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-610-0	04	1	0612-		●		●
9	03.306 WASHER; LK,HSG BRKT,INJ PUMP 00.002 ID=10.2	9-09150-510-0	04	1	0301-0501			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9503-9711	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	9712-0212		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0301-0310			●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0311-0501		●	●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0502-0611		●
10	03.306 NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0612-		●		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-				●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9503-9711	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	9712-0212		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0301-0310			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0311-0501		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0502-0506		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0507-0611		●			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0612-		●		●	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9711	●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212		●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0501			●
21	03.330 GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-		●
