◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-84 - FEED PUMP; INJECTION PUMP ▶
0-84 — FEED PUMP; INJECTION PUMP (#43847) — 129 parça

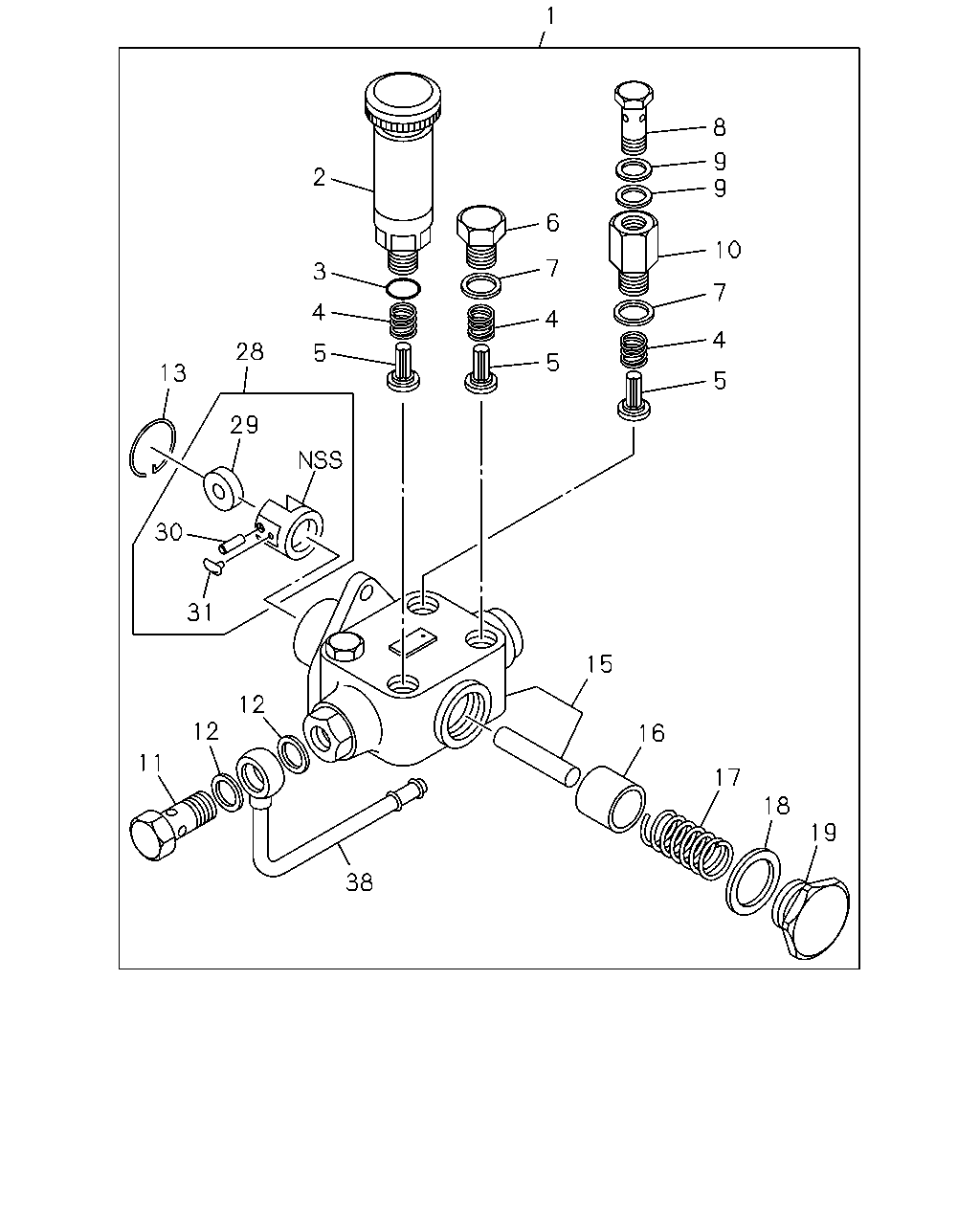

çizim 67197
1 8 9 9 2 6 10 7 3 7 4 4 4 28 5 5 13 5 29 30 31 15 12 12 16 11 17 18 19 38
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780 		8-97114-351-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		8-97117-944-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97185-289-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-533-1 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97224-396-0 01 1 -
2 03.910 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188 		1-15761-006-0 01 1 -
3 03.904 GASKET; PRIMING PUMP,FUEL FEED P
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188 		1-19623-016-0 01 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-702-0 04 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-702-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15755-002-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		1-15755-002-0 04 1 -
6 03.901 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-009-0 02 1 -
6 03.901 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-066-0 03 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-19623-016-0 01 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-19623-016-0 04 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		9-81355-031-0 03 1 -
8 03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-011-0 01 1 -
8 03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-051-0 01 1 -
9 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
03.163, ID=14.2 OD=19.2 ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		1-09630-085-0 02 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-003-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-052-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-067-0 01 1 -
11 03.162 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		1-15759-029-0 01 1 -
11 03.162 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: I = 8-97212-188-1, 97212188 		8-97203-957-0 01 1 -
12 03.162 GASKET; EYE BOLT,INL,FUEL FEED P
03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, I = 8-97212-188-1, 97212188 		1-09630-085-0 02 1 -
13 03.901 RING; SNAP,TAPPET,FUEL FEED PUMP
03.904 ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81355-025-0 01 1 -
13 03.901 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		9-81355-062-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15751-043-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97115-989-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-263-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005 		1-15725-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15752-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-205-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-264-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-466-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-302-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-042-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81355-035-0 01 1 -
19 03.901 PLUG; PISTON SPRING,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, F = 8-97178-485-5, 97178485, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		8-94171-185-0 01 1 -
28 03.935 TAPPET ASM; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15754-002-0 01 1 -
28 03.935 TAPPET ASM; FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-265-0 01 1 -
29 03.901 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-043-0 01 1 -
29 03.901 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97212-776-0 01 1 -
30 03.901 PIN; TAPPET ROLLER,FUEL FEED PUM
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-056-0 01 1 -
30 03.901 PIN; TAPPET ROLLER,FUEL FEED PUM
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81351-406-0 01 1 -
31 03.901 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-057-0 02 1 -
31 03.901 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81351-416-0 02 1 -
38 03.163 PIPE; FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		8-97093-411-0 01 1 -
38 03.163 PIPE; FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97185-288-0 01 1 -

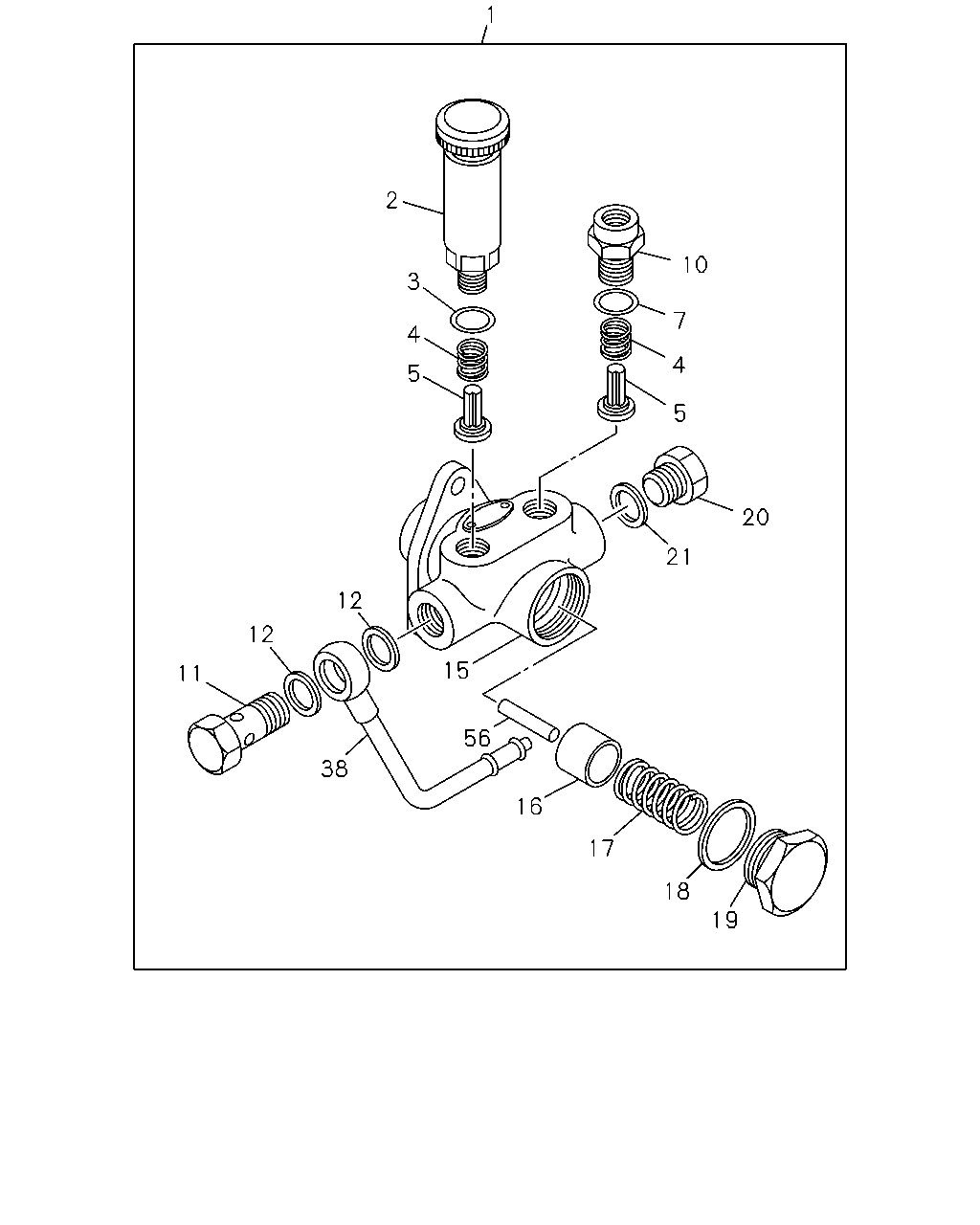

çizim 70289
1 2 10 3 7 4 4 5 5 20 21 12 12 15 11 56 38 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780 		8-97114-351-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		8-97117-944-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97185-289-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-533-1 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97224-396-0 01 1 -
2 03.910 PUMP; PRIMING,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188 		1-15761-006-0 01 1 -
3 03.904 GASKET; PRIMING PUMP,FUEL FEED P
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188 		1-19623-016-0 01 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-702-0 04 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-702-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15755-002-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		1-15755-002-0 04 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-19623-016-0 01 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-19623-016-0 04 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		9-81355-031-0 03 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-003-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-052-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-067-0 01 1 -
11 03.162 BOLT; EYE,FUEL INL,FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		1-15759-029-0 01 1 -
11 03.162 BOLT; EYE,FUEL INL,FEED PUMP
M14X30 ASM PART: I = 8-97212-188-1, 97212188 		8-97203-957-0 01 1 -
12 03.162 GASKET; EYE BOLT,INL,FUEL FEED P
03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, I = 8-97212-188-1, 97212188 		1-09630-085-0 02 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15751-043-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97115-989-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-263-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005 		1-15725-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15752-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-205-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-264-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-466-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-302-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-042-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81355-035-0 01 1 -
19 03.901 PLUG; PISTON SPRING,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, F = 8-97178-485-5, 97178485, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		8-94171-185-0 01 1 -
20 03.901 PLUG; HSG,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-004-0 01 1 -
21 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-007-0 01 1 -
38 03.163 PIPE; FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		8-97093-411-0 01 1 -
38 03.163 PIPE; FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97185-288-0 01 1 -
56 03.901 PUSH ROD
ASM PART: D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97115-990-0 01 1 -
56 03.901 PUSH ROD
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780 		8-97115-991-0 01 1 -
çizim 70994
1 8 9 9 10 6 7 7 28 13 4 4 5 29 5 30 31 15 16 17 18 19
BalonParca AdiParca NoAdetTipApplied Date
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780 		8-97114-351-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505 		8-97117-944-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97185-289-0 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-533-1 01 1 -
1 03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97224-396-0 01 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-702-0 04 1 -
4 03.901 SPRING; VLV,FUEL FEED PUMP
03.927 ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-702-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15755-002-0 02 1 -
5 03.927 VALVE; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		1-15755-002-0 04 1 -
6 03.901 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-009-0 02 1 -
6 03.901 PLUG; VLV SPRING,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-066-0 03 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-19623-016-0 01 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-19623-016-0 04 1 -
7 03.904 GASKET; PLUG,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		9-81355-031-0 03 1 -
8 03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-011-0 01 1 -
8 03.162 BOLT; EYE,FUEL OUTLET,FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-051-0 01 1 -
9 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
03.163, ID=14.2 OD=19.2 ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		1-09630-085-0 02 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-003-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-052-0 01 1 -
10 03.901 ADAPTER; EYE BOLT,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-067-0 01 1 -
13 03.901 RING; SNAP,TAPPET,FUEL FEED PUMP
03.904 ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81355-025-0 01 1 -
13 03.901 RING; SNAP,TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		9-81355-062-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15751-043-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		8-97115-989-0 01 1 -
15 03.900 HOUSING; FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-263-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005 		1-15725-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15752-001-0 01 1 -
16 03.925 PISTON; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81351-205-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-264-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		8-97214-466-0 01 1 -
17 03.901 SPRING; PISTON,FUEL FEED PUMP
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		9-81351-302-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102 		1-15759-042-0 01 1 -
18 03.904 GASKET; PISTON PLUG,FUEL FEED PU
ASM PART: F = 8-97178-485-5, 97178485, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		9-81355-035-0 01 1 -
19 03.901 PLUG; PISTON SPRING,FUEL FEED PU
ASM PART: A = 8-97114-005-0, 97114005, B = 8-97136-658-0, 97136658, C = 8-97146-780-0, 97146780, D = 8-97170-504-0, 97170504, E = 8-97170-505-0, 97170505, F = 8-97178-485-5, 97178485, G = 8-97212-101-0, 97212101, H = 8-97212-102-0, 97212102, I = 8-97212-188-1, 97212188, J = 8-97215-704-2, 97215704 		8-94171-185-0 01 1 -
28 03.935 TAPPET ASM; FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15754-002-0 01 1 -
28 03.935 TAPPET ASM; FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97201-265-0 01 1 -
29 03.901 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		1-15759-043-0 01 1 -
29 03.901 ROLLER; TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		8-97212-776-0 01 1 -
30 03.901 PIN; TAPPET ROLLER,FUEL FEED PUM
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-056-0 01 1 -
30 03.901 PIN; TAPPET ROLLER,FUEL FEED PUM
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81351-406-0 01 1 -
31 03.901 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: I = 8-97212-188-1, 97212188 		1-15759-057-0 02 1 -
31 03.901 GUIDE; TAPPET,FUEL FEED PUMP
ASM PART: F = 8-97178-485-5, 97178485, J = 8-97215-704-2, 97215704 		9-81351-416-0 02 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
