Sayfa 0-61 - Isuzu EPC

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#43840) — 238 parça

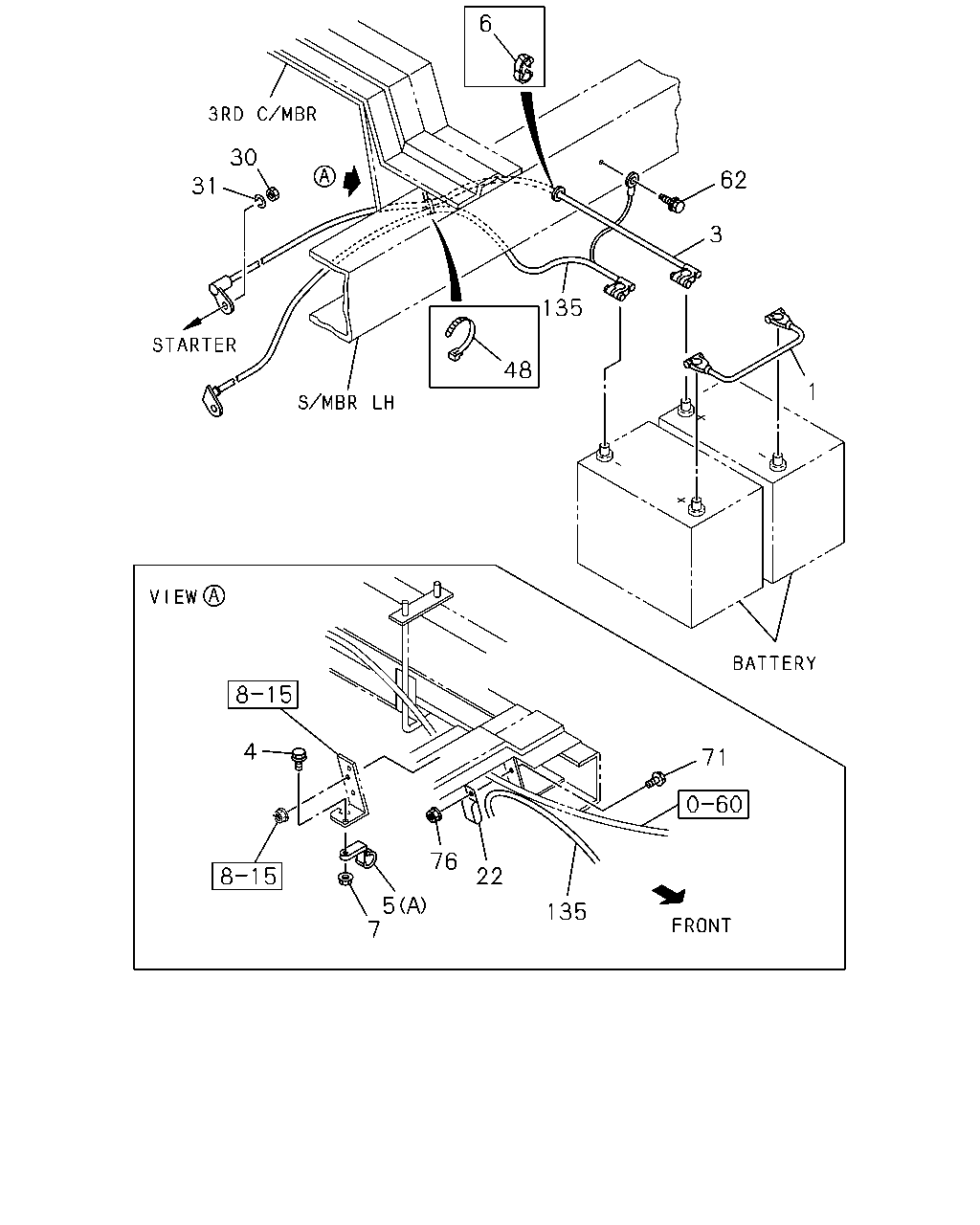

6 30 30 62 31 3 135 48 1 4 71 76 22 5 7 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9412-9711	●
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9712-0105		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0106-0212		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0301-0310			●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0311-0501		●	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0502-0506		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0507-0611		●		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-		●		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97046-759-5	01	1	9412-9711	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97180-184-0	01	1	9712-0212		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0301-0501			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0502-0611		●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0612-	●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0311-0501		●
4	02.559 BOLT; BATTERY CABLE 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9412-9602	●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9603-9711	●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-0212		●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0301-0501			●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0311-0501		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9412-9711	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9712-0212		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0301-0501			●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	02	1	0502-0502	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0502-0611		●		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0612-	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0311-0501		●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	9412-9711	●
6	02.343 GROMMET; BATTERY CABLE ID=17	8-94128-319-2	01	1	9712-0212		●
7	02.343 NUT; (+) CABLE 00.002 M8	9-09110-508-0	01	1	9412-9711	●
7	02.343 NUT; (+) CABLE 00.002 M8	9-09110-508-0	01	1	9712-0212		●
7	02.343 NUT; (+) CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0301-0501			●
7	02.343 NUT; (+) CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0501		●
22	02.343 CLIP; BATTERY CABLE 06.672 ID=16X2 L=20	9-09535-535-0	01	1	9412-9511	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	9512-9711	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	9712-0212		●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	0301-0501		●	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	0311-0501		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9412-9711	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9712-0212		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0301-0310			●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0311-0501		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0502-0506		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0507-0512		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0611		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-		●		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9412-9711	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9712-0212		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0301-0310			●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0311-0501		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0502-0506		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0507-0603		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0611		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-		●		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	02	1	9412-9501	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	01	1	9502-9711	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	9712-0212		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0301-0310			●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0311-0501		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0502-0506		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0611		●		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-		●		●	●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9412-9702	●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	9703-9711	●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	9712-0212		●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0301-0501			●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9412-9711	●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-0212		●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501		●	●
71	02.343 BOLT; BATTERY CABLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●	●	●
71	02.343 BOLT; BATTERY CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-0611		●		●
71	02.343 BOLT; BATTERY CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●	●	●	●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0501		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9711	●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0212		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501		●	●
76	02.343 NUT; BATTERY CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
76	02.343 NUT; BATTERY CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9412-9711	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9712-0212		●
135	02.343 CABLE; ENG TO BATTERY	8-97360-204-0	01	1	0301-0501		●	●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0502-0611		●		●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0612-	●	●	●	●	●

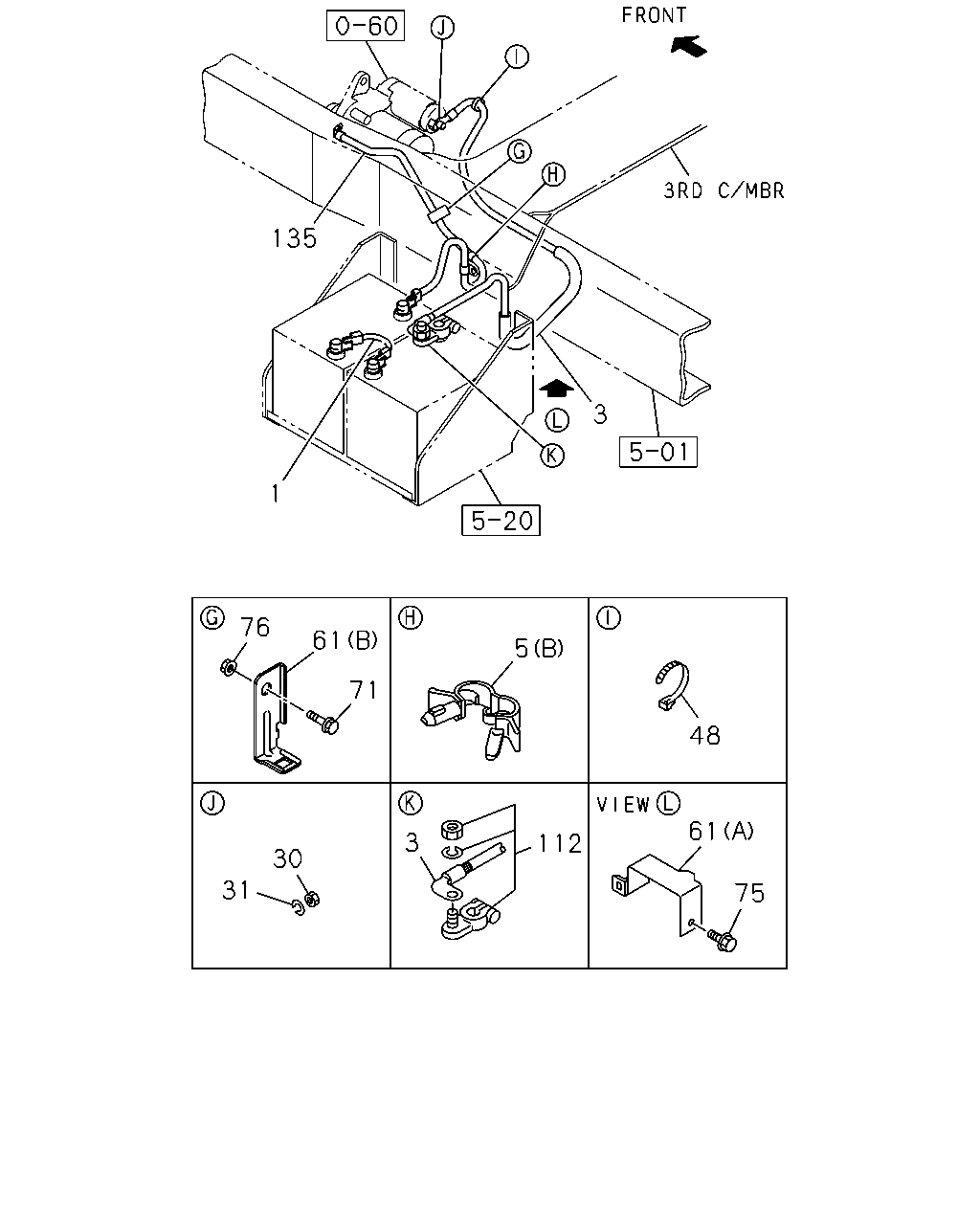

135 3 1 76 61 5 71 48 61 3 112 30 31 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9412-9711	●
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9712-0105		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0106-0212		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0301-0310			●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0311-0501		●	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0502-0506		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0507-0611		●		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-		●		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97046-759-5	01	1	9412-9711	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97180-184-0	01	1	9712-0212		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0301-0501			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0502-0611		●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0612-	●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0311-0501		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9412-9711	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9712-0212		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0301-0501			●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	02	1	0502-0502	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0502-0611		●		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0612-	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0311-0501		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9412-9711	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9712-0212		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0301-0310			●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0311-0501		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0502-0506		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0507-0512		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0611		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-		●		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9412-9711	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9712-0212		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0301-0310			●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0311-0501		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0502-0506		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0507-0603		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0611		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-		●		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	02	1	9412-9501	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	01	1	9502-9711	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	9712-0212		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0301-0310			●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0311-0501		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0502-0506		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0611		●		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-		●		●	●
61	02.333 BRACKET; BATTERY CABLE 02.559 (B)	8-97046-762-0	01	1	0502-0611		●
61	02.333 BRACKET; BATTERY CABLE 02.559 (B)	8-97046-762-0	01	1	0612-	●	●	●	●	●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97369-198-1	01	1	0502-		●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9412-9711	●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-0212		●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0301-0501		●	●
71	02.343 BOLT; BATTERY CABLE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●	●	●
71	02.343 BOLT; BATTERY CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-0611		●		●
71	02.343 BOLT; BATTERY CABLE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0612-	●	●	●	●	●
71	02.343 BOLT; BATTERY CABLE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0311-0501		●
75	02.333 BOLT; BRKT 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512		●
75	02.333 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9711	●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0212		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501		●	●
76	02.343 NUT; BATTERY CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
76	02.343 NUT; BATTERY CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0301-0310			●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0311-0501		●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0502-0506		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0507-0611		●		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0612-		●		●	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9412-9711	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9712-0212		●
135	02.343 CABLE; ENG TO BATTERY	8-97360-204-0	01	1	0301-0501		●	●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0502-0611		●		●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0612-	●	●	●	●	●

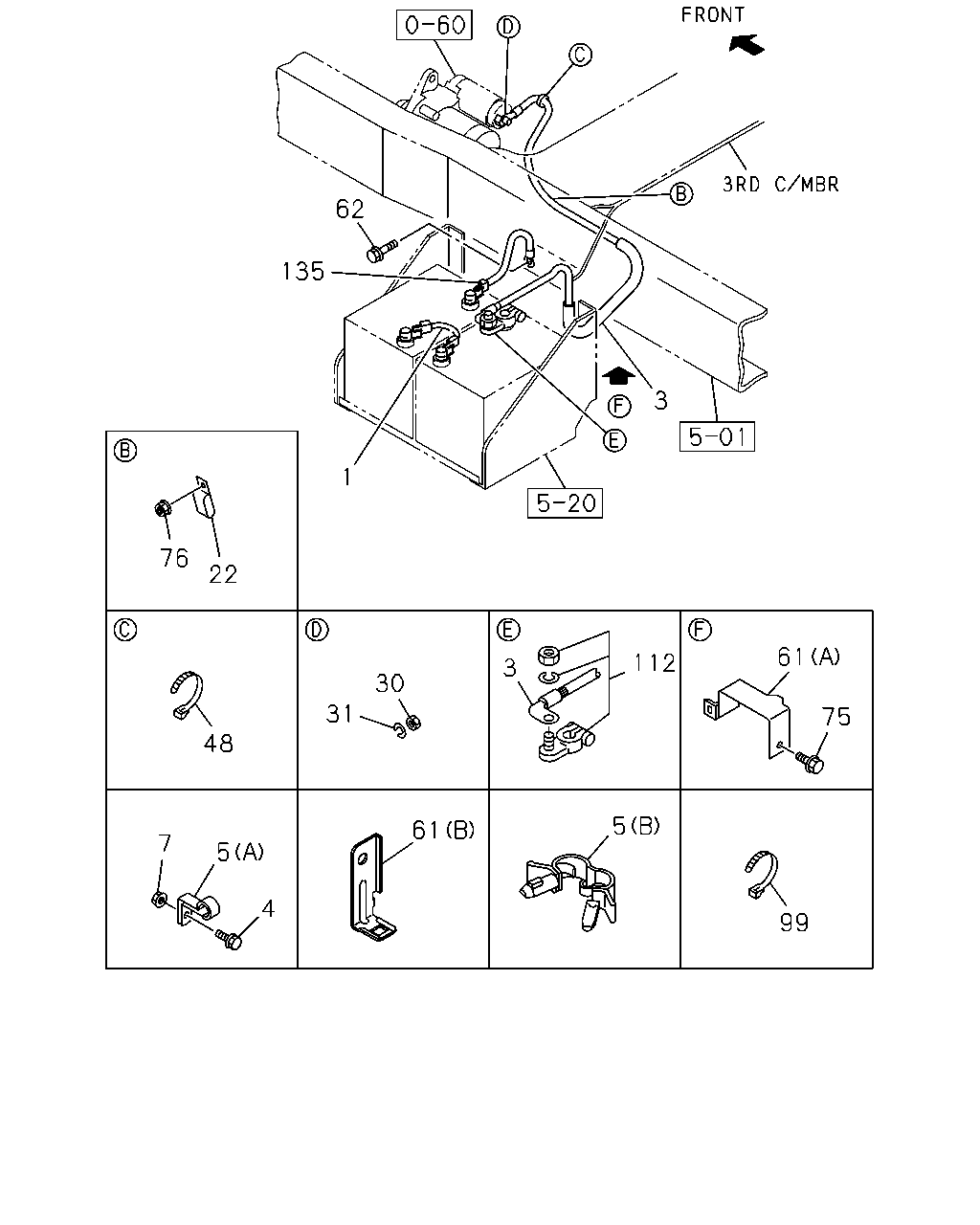

62 135 3 1 76 22 61 112 3 30 31 75 48 5 61 7 5 4 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9412-9711	●
1	02.341 CABLE; BATTERY L=180	1-82650-265-0	01	1	9712-0105		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0106-0212		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0301-0310			●
1	02.341 CABLE; BATTERY L=280	8-97230-719-1	01	1	0311-0501		●	●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0502-0506		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0507-0611		●		●
1	02.341 CABLE; BATTERY L=280	8-97230-719-2	01	1	0612-		●		●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97046-759-5	01	1	9412-9711	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97180-184-0	01	1	9712-0212		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0301-0501			●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0502-0611		●		●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97377-776-0	01	1	0612-	●	●	●	●	●
3	02.525 HARNESS; CABLE,BATTERY TO STARTE	8-97360-202-1	01	1	0311-0501		●
4	02.559 BOLT; BATTERY CABLE 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9412-9602	●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9603-9711	●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-0212		●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0301-0501			●
4	02.559 BOLT; BATTERY CABLE 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0311-0501		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9412-9711	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	9712-0212		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0301-0501			●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	02	1	0502-0502	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0502-0611		●		●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.162 (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0612-	●	●	●	●	●
5	02.559 CLIP; BATTERY CABLE TO BODY 03.430 (A) ID=13 H=15 L=25	1-09700-888-0	01	1	0311-0501		●
7	02.343 NUT; (+) CABLE 00.002 M8	9-09110-508-0	01	1	9412-9711	●
7	02.343 NUT; (+) CABLE 00.002 M8	9-09110-508-0	01	1	9712-0212		●
7	02.343 NUT; (+) CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0301-0501			●
7	02.343 NUT; (+) CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0501		●
22	02.343 CLIP; BATTERY CABLE 06.672 ID=16X2 L=20	9-09535-535-0	01	1	9412-9511	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	9512-9711	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	9712-0212		●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	0301-0501		●	●
22	02.343 CLIP; BATTERY CABLE 01.531 ID=16 L=28	9-09525-556-0	01	1	0311-0501		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9412-9711	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	9712-0212		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0301-0310			●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0311-0501		●	●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0502-0506		●
30	02.334 NUT; CABLE,STARTER TO BATTERY 02.559 M8	9-09110-408-0	01	1	0507-0512		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0601-0611		●		●
30	02.334 NUT; CABLE,STARTER TO BATTERY M8	0-91110-508-0	01	1	0612-		●		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9412-9711	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	9712-0212		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0301-0310			●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0311-0501		●	●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0502-0506		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 00.002 ID=8.2	9-09150-508-0	01	1	0507-0603		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0604-0611		●		●
31	02.334 WASHER; LK,CABLE,STARTER TO BATT 04.439 ID=8.2	0-91510-508-0	01	1	0612-		●		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	02	1	9412-9501	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-0	01	1	9502-9711	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	9712-0212		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0301-0310			●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0311-0501		●	●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0502-0506		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0507-0611		●		●
48	02.343 CLIP; CABLE 03.162 L=140	5-09707-031-1	01	1	0612-		●		●	●
61	02.333 BRACKET; BATTERY CABLE 02.559 (B)	8-97046-762-0	01	1	0502-0611		●
61	02.333 BRACKET; BATTERY CABLE 02.559 (B)	8-97046-762-0	01	1	0612-	●	●	●	●	●
61	02.333 BRACKET; BATTERY CABLE (A)	8-97369-198-1	01	1	0502-		●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	9412-9702	●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	9703-9711	●
62	02.343 BOLT; EARTH CABLE FIX M8X30 W/LK&PL WASHER	8-97087-204-0	01	1	9712-0212		●
62	02.343 BOLT; EARTH CABLE FIX M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0301-0501			●
75	02.333 BOLT; BRKT 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0502-0512		●
75	02.333 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0601-		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9412-9711	●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0212		●
76	02.343 NUT; BATTERY CABLE 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0501		●	●
76	02.343 NUT; BATTERY CABLE 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
76	02.343 NUT; BATTERY CABLE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
99	02.343 CLIP; BATTERY CABLE 03.162 L=140	5-09707-031-1	01	1	0507-				●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0301-0310			●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0311-0501		●	●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0502-0506		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0507-0611		●		●
112	02.343 TERMINAL; BATTERY <+>	8-97356-925-1	01	1	0612-		●		●	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9412-9711	●
135	02.343 CABLE; ENG TO BATTERY	8-97046-761-2	01	1	9712-0212		●
135	02.343 CABLE; ENG TO BATTERY	8-97360-204-0	01	1	0301-0501		●	●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0502-0611		●		●
135	02.343 CABLE; ENG TO BATTERY	8-98000-043-2	01	1	0612-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
