Sayfa 1-15 - Isuzu EPC

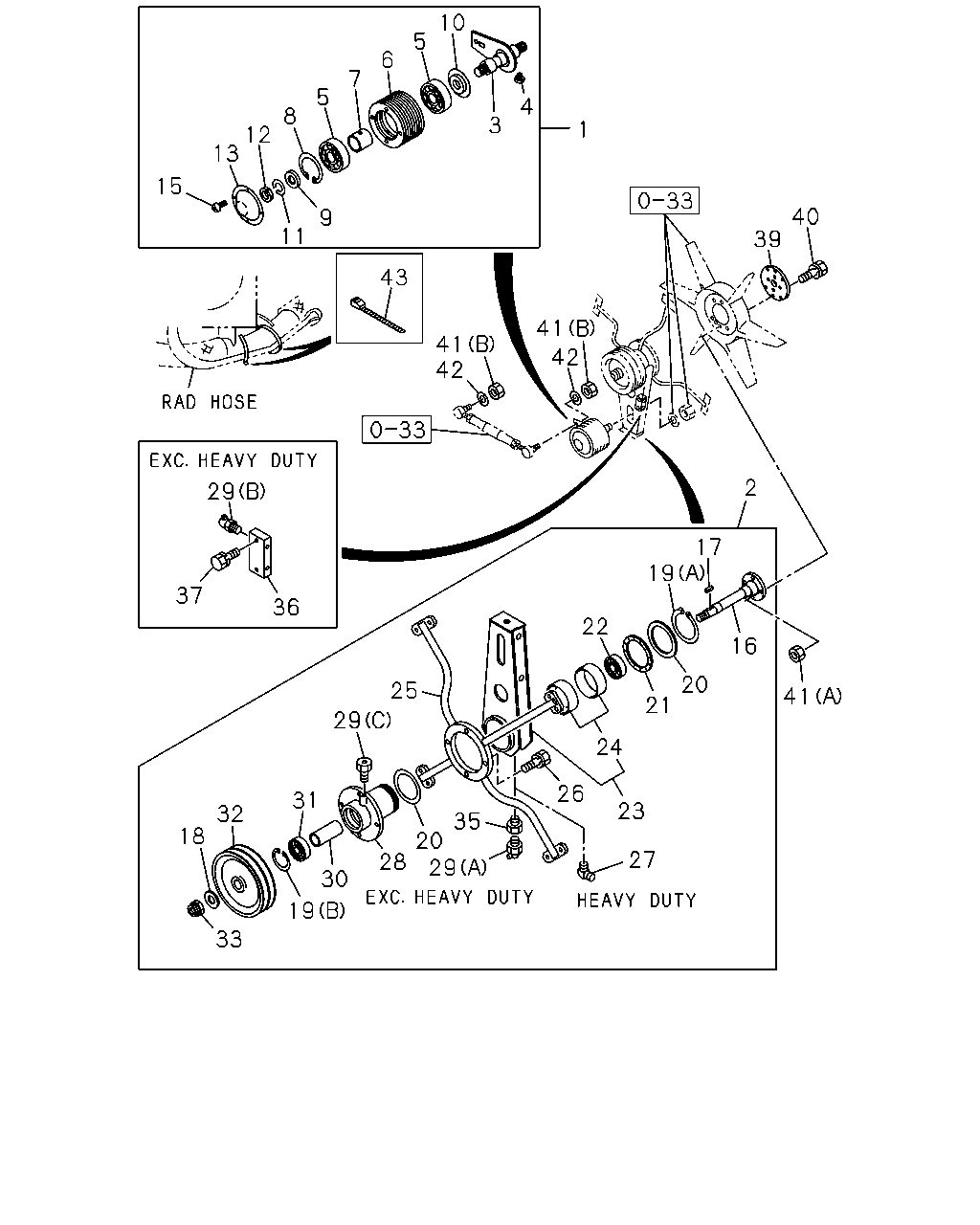

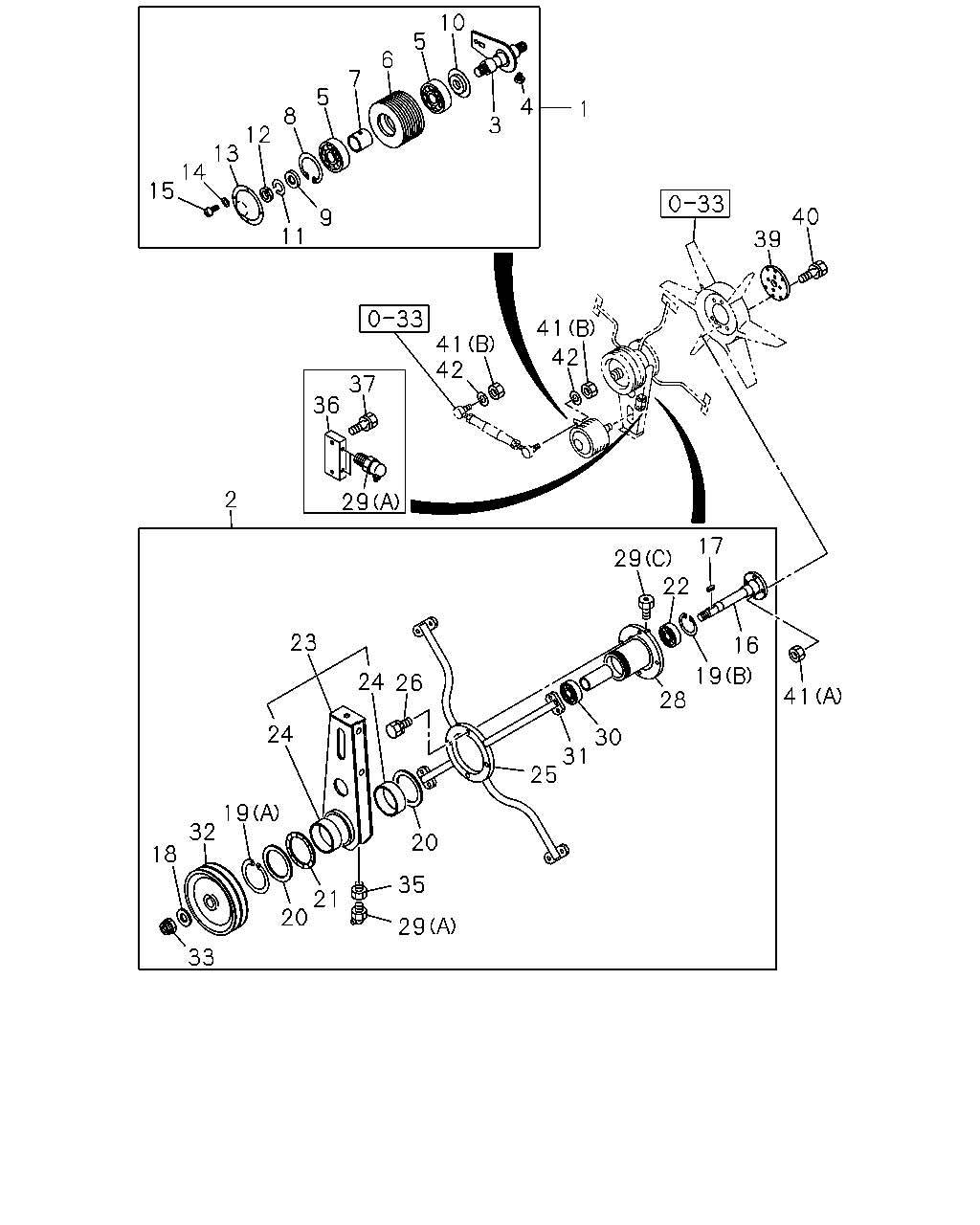

1-15 — SWING ARM AND IDLE PULLEY (#4384) — 394 parça

10 5 6 7 5 4 8 3 1 12 13 15 40 9 11 39 43 41 41 42 42 2 29 17 19 37 36 22 16 20 25 41 21 29 24 26 31 23 32 35 18 20 28 29 27 30 19 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PULLEY ASM; IDLE,COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21610-180-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21610-104-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-054-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-098-0	01	1	9505-9604				●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-211-0	01	1	9605-9709				●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-211-0	01	1	9710-				●	●	●
2	PULLEY ASM; FAN DRIVE,COOLING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-067-2	01	1	9101-9504	●	●	●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-114-2	01	1	9101-9504	●		●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-113-2	01	1	9101-9504		●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-202-1	01	1	9505-9604				●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-208-0	01	1	9605-9709				●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-208-2	01	1	9710-				●		●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-220-0	01	1	9710-9812					●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. AUSTRALIA EQUIPMENT<RR3>	1-21610-220-0	01	1	9901-0203					●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-220-1	01	1	0204-					●
2	PULLEY ASM; FAN DRIVE,COOLING AUSTRALIA EQUIPMENT<RR3>	1-21610-197-0	01	1	9901-0203					●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21611-044-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21611-042-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21611-041-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN	1-21611-026-0	01	1	9505-9709				●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN	1-21611-026-0	01	1	9710-				●	●	●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9101-9504	●	●	●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9505-9709				●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9710-				●	●	●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9101-9504	●	●	●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9505-9709				●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9710-				●	●	●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-010-1	01	1	9101-9504	●	●	●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-010-1	01	1	9505-9604				●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-093-0	01	1	9605-9709				●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-093-0	01	1	9710-				●	●	●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9101-9504	●	●	●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9505-9709				●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9710-				●	●	●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9101-9504	●	●	●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9505-9709				●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9710-				●	●	●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9101-9504	●	●	●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9505-9709				●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9710-				●	●	●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9101-9504	●	●	●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9505-9709				●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9710-				●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9101-9504	●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9505-9709				●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9710-0603				●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	0-91510-524-0	01	1	0604-				●	●	●
12	NUT; IDLE PULLEY TO SPINDLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M24	9-09840-264-0	01	1	9101-9504	●	●	●
12	NUT; IDLE PULLEY TO SPINDLE M24	9-09840-264-0	01	1	9505-9709				●
12	NUT; IDLE PULLEY TO SPINDLE M24	9-09840-264-0	01	1	9710-				●	●	●
12	NUT; IDLE PULLEY TO SPINDLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M24	9-99111-524-0	01	1	9101-9504	●	●	●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9101-9504	●	●	●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9505-9709				●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9710-				●	●	●
15	SCREW; DUST COVER,IDLE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M4X6	9-93490-406-0	04	1	9101-9504	●	●	●
15	SCREW; DUST COVER,IDLE PULLEY M4X6	9-93490-406-0	04	1	9505-9709				●
15	SCREW; DUST COVER,IDLE PULLEY M4X6	9-93490-406-0	04	1	9710-				●	●	●
15	SCREW; DUST COVER,IDLE PULLEY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M4X8 W/LK WASHER	9-03910-408-0	04	1	9101-9504	●	●	●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9101-9504	●	●	●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9505-9505				●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-034-0	01	1	9505-9709				●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-034-0	01	1	9710-				●		●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9710-					●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9101-9504	●	●	●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9505-9709				●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9710-				●	●	●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9101-9504	●	●	●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9505-9709				●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9710-				●	●	●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9101-9504	●	●	●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9505-9709				●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9710-				●	●	●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9101-9504	●	●	●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9505-9709				●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9710-				●	●	●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9101-9504	●	●	●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9505-9709				●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9710-				●	●	●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9101-9504	●	●	●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9505-9709				●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9710-				●	●	●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9101-9504	●	●	●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9505-9709				●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9710-				●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	8-98299-043-0	01	1	1504-				●		●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21625-037-0	01	1	9101-9504	●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	9505-9709				●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	9710-1503				●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	1504-					●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21625-060-0	01	1	9101-9504	●	●	●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9101-9504	●	●	●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9505-9709				●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9710-				●	●	●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-023-1	01	1	9101-9504	●	●	●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-070-0	01	1	9505-9709				●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-070-0	01	1	9710-				●		●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-067-0	01	1	9710-					●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50051-025-0	04	1	9101-9504	●	●	●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 FLANGE	0-28081-025-0	04	1	9505-9505				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 FLANGE	0-28181-025-0	04	1	9505-9509				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28781-030-0	04	1	9510-9709				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28781-030-0	04	1	9710-0512				●		●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28751-030-0	04	1	0601-				●		●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50051-025-0	04	1	9710-0906					●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-					●
27	NIPPLE; GREASE,SWING ARM,FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PT1/8 ELBOW	9-83765-158-0	01	1	9101-9504	●	●	●
28	CASE; DRIVE SHAFT,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21621-003-0	01	1	9101-9504	●	●	●
28	CASE; DRIVE SHAFT,COOLING FAN	1-21621-004-0	01	1	9505-9709				●
28	CASE; DRIVE SHAFT,COOLING FAN	1-21621-004-0	01	1	9710-				●	●	●
28	CASE; DRIVE SHAFT,COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21621-008-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9505-9709				●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9710-1503				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	1504-					●
29	NIPPLE; GREASE,FAN PULLEY CAGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	9505-9709				●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	9710-0512				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) PT1/8 ELBOW	9-09031-210-0	02	1	9101-9504	●	●	●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9101-9504	●	●	●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9505-9709				●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9710-				●	●	●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9101-9504	●	●	●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9505-9709				●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9710-				●	●	●
32	PULLEY; COOLING FAN DRIVE	9-13663-067-0	01	1	9101-9504	●		●
32	PULLEY; COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-13663-067-0	01	1	9101-9504		●
32	PULLEY; COOLING FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-13663-011-0	01	1	9101-9504		●
32	PULLEY; COOLING FAN DRIVE	1-13663-011-0	01	1	9505-9604				●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9605-9709				●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9710-9812				●		●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9901-0203				●		●
32	PULLEY; COOLING FAN DRIVE AUSTRALIA EQUIPMENT<RR3>	1-13663-094-0	01	1	9901-0203					●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-1	01	1	0204-				●		●
32	PULLEY; COOLING FAN DRIVE	1-13663-095-0	01	1	9710-9812					●
32	PULLEY; COOLING FAN DRIVE EXC. AUSTRALIA EQUIPMENT<RR3>	1-13663-095-0	01	1	9901-0203					●
32	PULLEY; COOLING FAN DRIVE	1-13663-095-1	01	1	0204-					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9101-9504	●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9505-9709				●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9710-9812				●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9901-0203				●		●
33	NUT; LK,FAN PULLEY EXC. AUSTRALIA EQUIPMENT<RR3> M20 LOCK NUT	9-09131-420-0	01	1	9901-0203					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	0204-0304					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-520-0	01	1	0204-0304				●		●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-520-0	01	1	0305-0604				●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	0-91370-020-0	01	1	0605-				●	●	●
33	NUT; LK,FAN PULLEY AUSTRALIA EQUIPMENT<RR3> M20 LOCK NUT	9-09131-520-0	01	1	9901-0203					●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	02	1	1504-				●		●
35	ADAPTER; FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PT1/8 STRAIGHT	9-09902-238-0	01	1	9101-9504	●	●	●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	9505-9709				●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	9710-1503				●	●	●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	1504-					●
36	HOLDER; GREASE NIPPLE	8-98298-363-0	01	1	1504-				●		●
36	HOLDER; GREASE NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-59469-003-0	01	1	9101-9504	●	●	●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	9505-9709				●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	9710-1503				●	●	●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	1504-					●
37	BOLT; NIPPLE HOLDER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X25 W/LK WASHER	0-50040-625-0	02	1	9101-9504	●	●	●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28080-625-0	02	1	9505-9509				●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28680-625-0	02	1	9510-9709				●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28680-625-0	02	1	9710-0512				●		●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28650-625-0	02	1	0601-1503				●		●
37	BOLT; NIPPLE HOLDER M6X25 W/LK WASHER	0-50040-625-0	02	1	9710-0906					●
37	BOLT; NIPPLE HOLDER M6X25 W/LK WASHER	0-50540-625-0	02	1	0907-					●
39	FLANGE; FAN DRIVE	1-21631-003-0	01	1	9101-9202	●		●
39	FLANGE; FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21631-003-0	01	1	9101-9202		●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9203-9504	●		●
39	FLANGE; FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9203-9504		●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9505-9709				●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9710-				●		●
40	BOLT; FLANGE M8X20 W/LK WASHER	0-50040-820-0	06	1	9101-9202	●		●
40	BOLT; FLANGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	06	1	9101-9202		●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X28 W/LK WASHER	0-50041-028-0	04	1	9203-9504	●	●	●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X25 FLANGE	0-28081-025-0	04	1	9505-9606				●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28681-030-0	04	1	9607-9709				●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28681-030-0	04	1	9710-0512				●		●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28651-030-0	04	1	0601-				●		●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9101-9504	●	●	●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9505-9702				●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9703-9709				●		●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9710-0512				●	●	●
41	NUT; FLANGE (B) M14	0-91110-514-0	02	1	0601-				●	●	●
41	NUT; FLANGE (A) M8	9-09110-408-0	06	1	9101-9202	●		●
41	NUT; FLANGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8	9-09110-408-0	06	1	9101-9202		●
41	NUT; FLANGE (A) M10	9-09110-510-0	04	1	9203-9504	●	●	●
41	NUT; FLANGE (A) M10	9-09110-510-0	04	1	9505-9606				●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9710-0602				●	●	●
41	NUT; FLANGE (A) M10 FLANGE	0-91180-210-0	04	1	0603-				●	●	●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9607-9702				●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9703-9709				●		●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9101-9504	●	●	●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9505-9702				●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9703-9709				●		●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9710-0603				●	●	●
42	WASHER; LK,FLANGE ID=14.2	0-91510-514-0	02	1	0604-				●	●	●
43	CLIP; BAND BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=250	5-09707-030-0	02	1	9101-9504	●	●	●
43	CLIP; BAND EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=250	5-09707-030-0	01	1	9101-9504	●	●	●

10 5 6 7 5 4 1 8 3 12 13 14 15 40 9 11 39 41 41 42 42 37 36 2 29 17 29 22 23 16 19 24 26 41 28 24 30 31 25 19 32 20 18 35 21 20 29 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	PULLEY ASM; IDLE,COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21610-180-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21610-104-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-054-1	01	1	9101-9504	●	●	●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-098-0	01	1	9505-9604				●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-211-0	01	1	9605-9709				●
1	PULLEY ASM; IDLE,COOLING FAN DRIVE	1-21610-211-0	01	1	9710-				●	●	●
2	PULLEY ASM; FAN DRIVE,COOLING BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-067-2	01	1	9101-9504	●	●	●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-114-2	01	1	9101-9504	●		●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21610-113-2	01	1	9101-9504		●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-202-1	01	1	9505-9604				●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-208-0	01	1	9605-9709				●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-208-2	01	1	9710-				●		●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-220-0	01	1	9710-9812					●
2	PULLEY ASM; FAN DRIVE,COOLING EXC. AUSTRALIA EQUIPMENT<RR3>	1-21610-220-0	01	1	9901-0203					●
2	PULLEY ASM; FAN DRIVE,COOLING	1-21610-220-1	01	1	0204-					●
2	PULLEY ASM; FAN DRIVE,COOLING AUSTRALIA EQUIPMENT<RR3>	1-21610-197-0	01	1	9901-0203					●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21611-044-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21611-042-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21611-041-0	01	1	9101-9504	●	●	●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN	1-21611-026-0	01	1	9505-9709				●
3	SPINDLE ASM; IDLE PULLEY,COOLING FAN	1-21611-026-0	01	1	9710-				●	●	●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9101-9504	●	●	●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9505-9709				●
4	NIPPLE; GREASE,IDLE PULLEY H=20.0	9-83765-012-0	01	1	9710-				●	●	●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9101-9504	●	●	●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9505-9709				●
5	BEARING; IDLE PULLEY,COOLING FAN	1-09800-024-0	02	1	9710-				●	●	●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-010-1	01	1	9101-9504	●	●	●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-010-1	01	1	9505-9604				●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-093-0	01	1	9605-9709				●
6	PULLEY; IDLE,COOLING FAN DRIVE	1-13663-093-0	01	1	9710-				●	●	●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9101-9504	●	●	●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9505-9709				●
7	SPACER; IDLE PULLEY BRG	1-21616-004-0	01	1	9710-				●	●	●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9101-9504	●	●	●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9505-9709				●
8	RING; SNAP,IDLE PULLEY BRG OD=95.5	9-09180-590-0	01	1	9710-				●	●	●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9101-9504	●	●	●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9505-9709				●
9	WASHER; IDLE PULLEY,COOLING FAN	1-21619-003-0	01	1	9710-				●	●	●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9101-9504	●	●	●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9505-9709				●
10	PLATE; SEAL,IDLE PULLEY	1-21622-003-0	01	1	9710-				●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9101-9504	●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9505-9709				●
11	WASHER; LK,IDLE PULLEY ID=24.5	9-09150-524-0	01	1	9710-0603				●	●	●
11	WASHER; LK,IDLE PULLEY ID=24.5	0-91510-524-0	01	1	0604-				●	●	●
12	NUT; IDLE PULLEY TO SPINDLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M24	9-09840-264-0	01	1	9101-9504	●	●	●
12	NUT; IDLE PULLEY TO SPINDLE M24	9-09840-264-0	01	1	9505-9709				●
12	NUT; IDLE PULLEY TO SPINDLE M24	9-09840-264-0	01	1	9710-				●	●	●
12	NUT; IDLE PULLEY TO SPINDLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M24	9-99111-524-0	01	1	9101-9504	●	●	●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9101-9504	●	●	●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9505-9709				●
13	COVER; DUST,IDLE PULLEY,COOLING FAN	1-21622-002-0	01	1	9710-				●	●	●
14	WASHER; LK,DUST COVER,IDLE PULLEY ID=4.1	9-09150-504-0	04	1	9505-9709				●
14	WASHER; LK,DUST COVER,IDLE PULLEY ID=4.1	9-09150-504-0	04	1	9710-0603				●	●	●
14	WASHER; LK,DUST COVER,IDLE PULLEY ID=4.1	0-91510-504-0	04	1	0604-				●	●	●
15	SCREW; DUST COVER,IDLE PULLEY BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M4X6	9-93490-406-0	04	1	9101-9504	●	●	●
15	SCREW; DUST COVER,IDLE PULLEY M4X6	9-93490-406-0	04	1	9505-9709				●
15	SCREW; DUST COVER,IDLE PULLEY M4X6	9-93490-406-0	04	1	9710-				●	●	●
15	SCREW; DUST COVER,IDLE PULLEY EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M4X8 W/LK WASHER	9-03910-408-0	04	1	9101-9504	●	●	●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9101-9504	●	●	●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9505-9505				●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-034-0	01	1	9505-9709				●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-034-0	01	1	9710-				●		●
16	SHAFT; SWING ARM,COOLING FAN DRIVE	1-21611-024-0	01	1	9710-					●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9101-9504	●	●	●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9505-9709				●
17	KEY; FAN PULLEY	9-08000-720-0	01	1	9710-				●	●	●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9101-9504	●	●	●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9505-9709				●
18	WASHER; PL,FAN PULLEY ID=21	9-09164-520-0	01	1	9710-				●	●	●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9101-9504	●	●	●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9505-9709				●
19	RING; SNAP,FAN PULLEY BRG (A) ID=74.5	9-09180-480-0	01	1	9710-				●	●	●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9101-9504	●	●	●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9505-9709				●
19	RING; SNAP,FAN PULLEY BRG (B) ID=57.9	9-09180-562-0	01	1	9710-				●	●	●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9101-9504	●	●	●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9505-9709				●
20	WASHER; SWING ARM,COOLING FAN DRIVE	1-09503-041-0	02	1	9710-				●	●	●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9101-9504	●	●	●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9505-9709				●
21	WASHER; WAVE,SWING ARM,COOLING FAN DRI	1-09550-004-0	01	1	9710-				●	●	●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9101-9504	●	●	●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9505-9709				●
22	BEARING; FAN SIDE,COOLING FAN DRIVE	1-09800-039-0	01	1	9710-				●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	8-98299-043-0	01	1	1504-				●		●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21625-037-0	01	1	9101-9504	●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	9505-9709				●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	9710-1503				●	●	●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE	1-21625-069-0	01	1	1504-					●
23	ARM ASM; SWING,COOLING FAN DRIVE PULLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21625-060-0	01	1	9101-9504	●	●	●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9101-9504	●	●	●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9505-9709				●
24	BUSHING; SWING ARM	1-09330-005-0	02	1	9710-				●	●	●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-023-1	01	1	9101-9504	●	●	●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-070-0	01	1	9505-9709				●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-070-0	01	1	9710-				●		●
25	STAY; DRIVE SHAFT CASE,FAN PULLEY	1-21625-067-0	01	1	9710-					●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50051-025-0	04	1	9101-9504	●	●	●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 FLANGE	0-28081-025-0	04	1	9505-9505				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 FLANGE	0-28181-025-0	04	1	9505-9509				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28781-030-0	04	1	9510-9709				●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28781-030-0	04	1	9710-0512				●		●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X30 FLANGE	0-28751-030-0	04	1	0601-				●		●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50051-025-0	04	1	9710-0906					●
26	BOLT; STAY TO CASE,COOLING FAN DRIVE M10X25 W/LK WASHER	0-50551-025-0	04	1	0907-					●
28	CASE; DRIVE SHAFT,COOLING FAN BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21621-003-0	01	1	9101-9504	●	●	●
28	CASE; DRIVE SHAFT,COOLING FAN	1-21621-004-0	01	1	9505-9709				●
28	CASE; DRIVE SHAFT,COOLING FAN	1-21621-004-0	01	1	9710-				●	●	●
28	CASE; DRIVE SHAFT,COOLING FAN EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21621-008-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9505-9709				●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	9710-1503				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (C) H=20.0	9-83765-012-0	01	1	1504-					●
29	NIPPLE; GREASE,FAN PULLEY CAGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	9101-9504	●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	9505-9709				●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	03	1	9710-0512				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE (A) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	03	1	0601-				●	●	●
29	NIPPLE; GREASE,FAN PULLEY CAGE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) PT1/8 ELBOW	9-09031-210-0	02	1	9101-9504	●	●	●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9101-9504	●	●	●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9505-9709				●
30	PIECE; DIST,COOLING FAN DRIVE	1-21616-008-0	01	1	9710-				●	●	●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9101-9504	●	●	●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9505-9709				●
31	BEARING; PULLEY SIDE,FAN DRIVE	1-09800-038-0	01	1	9710-				●	●	●
32	PULLEY; COOLING FAN DRIVE	9-13663-067-0	01	1	9101-9504	●		●
32	PULLEY; COOLING FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	9-13663-067-0	01	1	9101-9504		●
32	PULLEY; COOLING FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-13663-011-0	01	1	9101-9504		●
32	PULLEY; COOLING FAN DRIVE	1-13663-011-0	01	1	9505-9604				●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9605-9709				●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9710-9812				●		●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-0	01	1	9901-0203				●		●
32	PULLEY; COOLING FAN DRIVE AUSTRALIA EQUIPMENT<RR3>	1-13663-094-0	01	1	9901-0203					●
32	PULLEY; COOLING FAN DRIVE	1-13663-094-1	01	1	0204-				●		●
32	PULLEY; COOLING FAN DRIVE	1-13663-095-0	01	1	9710-9812					●
32	PULLEY; COOLING FAN DRIVE EXC. AUSTRALIA EQUIPMENT<RR3>	1-13663-095-0	01	1	9901-0203					●
32	PULLEY; COOLING FAN DRIVE	1-13663-095-1	01	1	0204-					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9101-9504	●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9505-9709				●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9710-9812				●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	9901-0203				●		●
33	NUT; LK,FAN PULLEY EXC. AUSTRALIA EQUIPMENT<RR3> M20 LOCK NUT	9-09131-420-0	01	1	9901-0203					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-420-0	01	1	0204-0304					●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-520-0	01	1	0204-0304				●		●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	9-09131-520-0	01	1	0305-0604				●	●	●
33	NUT; LK,FAN PULLEY M20 LOCK NUT	0-91370-020-0	01	1	0605-				●	●	●
33	NUT; LK,FAN PULLEY AUSTRALIA EQUIPMENT<RR3> M20 LOCK NUT	9-09131-520-0	01	1	9901-0203					●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	02	1	1504-				●		●
35	ADAPTER; FAN DRIVE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> PT1/8 STRAIGHT	9-09902-238-0	01	1	9101-9504	●	●	●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	9505-9709				●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	9710-1503				●	●	●
35	ADAPTER; FAN DRIVE PT1/8 STRAIGHT	9-09902-238-0	01	1	1504-					●
36	HOLDER; GREASE NIPPLE	8-98298-363-0	01	1	1504-				●		●
36	HOLDER; GREASE NIPPLE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-59469-003-0	01	1	9101-9504	●	●	●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	9505-9709				●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	9710-1503				●	●	●
36	HOLDER; GREASE NIPPLE	1-59469-003-0	01	1	1504-					●
37	BOLT; NIPPLE HOLDER EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X25 W/LK WASHER	0-50040-625-0	02	1	9101-9504	●	●	●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28080-625-0	02	1	9505-9509				●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28680-625-0	02	1	9510-9709				●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28680-625-0	02	1	9710-0512				●		●
37	BOLT; NIPPLE HOLDER M6X25 FLANGE	0-28650-625-0	02	1	0601-1503				●		●
37	BOLT; NIPPLE HOLDER M6X25 W/LK WASHER	0-50040-625-0	02	1	9710-0906					●
37	BOLT; NIPPLE HOLDER M6X25 W/LK WASHER	0-50540-625-0	02	1	0907-					●
39	FLANGE; FAN DRIVE	1-21631-003-0	01	1	9101-9202	●		●
39	FLANGE; FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21631-003-0	01	1	9101-9202		●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9203-9504	●		●
39	FLANGE; FAN DRIVE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9203-9504		●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9505-9709				●
39	FLANGE; FAN DRIVE EXC. FLUID DRIVE FAN<KA3>	1-21631-003-0	01	1	9710-				●		●
40	BOLT; FLANGE M8X20 W/LK WASHER	0-50040-820-0	06	1	9101-9202	●		●
40	BOLT; FLANGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER	0-50040-820-0	06	1	9101-9202		●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X28 W/LK WASHER	0-50041-028-0	04	1	9203-9504	●	●	●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X25 FLANGE	0-28081-025-0	04	1	9505-9606				●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28681-030-0	04	1	9607-9709				●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28681-030-0	04	1	9710-0512				●		●
40	BOLT; FLANGE EXC. FLUID DRIVE FAN<KA3> M10X30 FLANGE	0-28651-030-0	04	1	0601-				●		●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9101-9504	●	●	●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9505-9702				●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9703-9709				●		●
41	NUT; FLANGE (B) M14	9-99110-414-0	02	1	9710-0512				●	●	●
41	NUT; FLANGE (B) M14	0-91110-514-0	02	1	0601-				●	●	●
41	NUT; FLANGE (A) M8	9-09110-408-0	06	1	9101-9202	●		●
41	NUT; FLANGE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M8	9-09110-408-0	06	1	9101-9202		●
41	NUT; FLANGE (A) M10	9-09110-510-0	04	1	9203-9504	●	●	●
41	NUT; FLANGE (A) M10	9-09110-510-0	04	1	9505-9606				●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9710-0602				●	●	●
41	NUT; FLANGE (A) M10 FLANGE	0-91180-210-0	04	1	0603-				●	●	●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9607-9702				●
41	NUT; FLANGE (A) M10 FLANGE	0-91150-210-0	04	1	9703-9709				●		●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9101-9504	●	●	●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9505-9702				●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9703-9709				●		●
42	WASHER; LK,FLANGE ID=14.2	9-09150-514-0	02	1	9710-0603				●	●	●
42	WASHER; LK,FLANGE ID=14.2	0-91510-514-0	02	1	0604-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
