Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#43839) — 349 parça

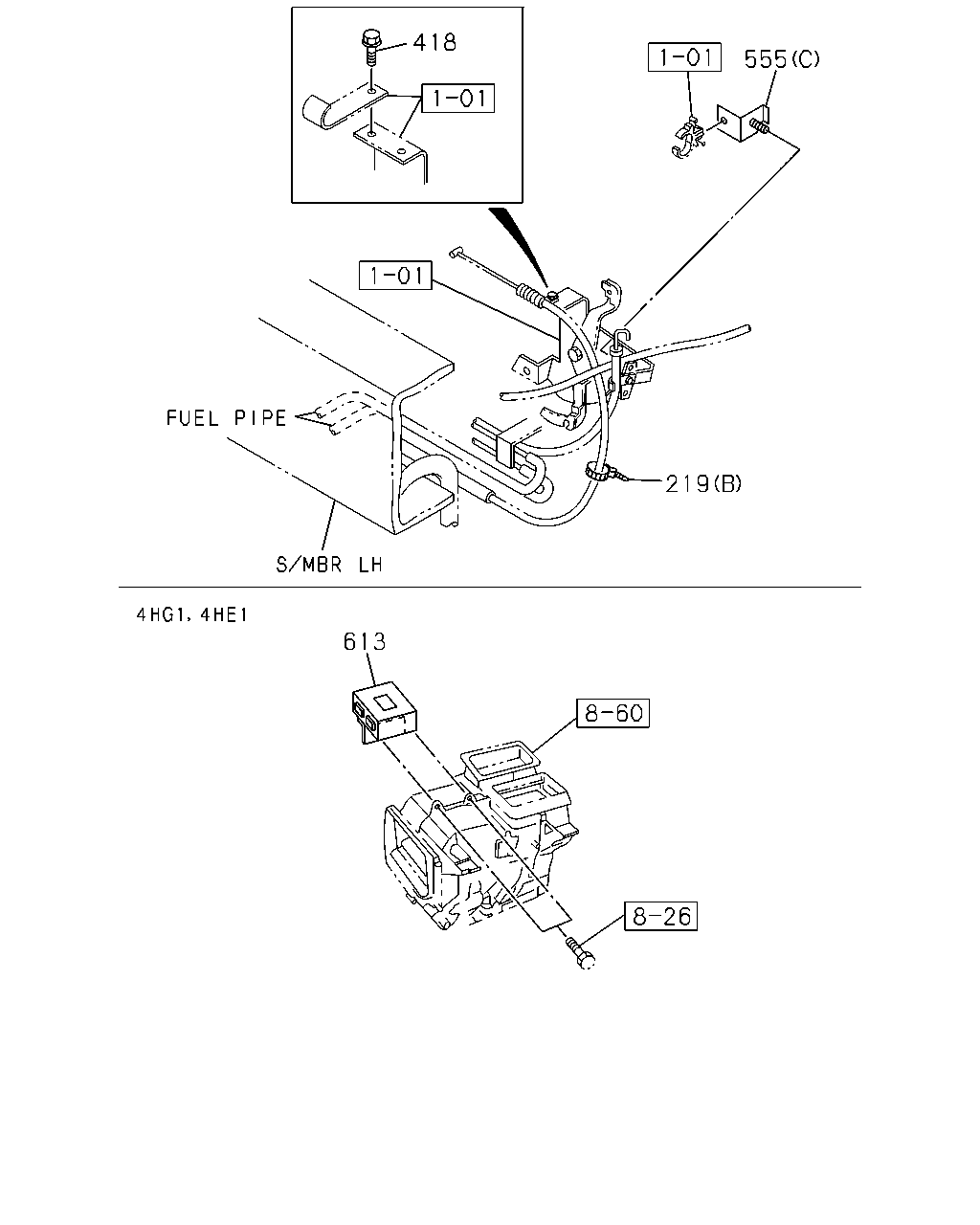

418 555 219 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0311-0501		●	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0311-0501		●	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	02	1	0502-0611		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	02	1	0612-		●		●
219	03.483 CLIP; ENG STOP CABLE 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.559 (B) L=250	5-09707-030-1	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	01	1	0311-0501			●
418	02.559 BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0301-0310			●
418	02.559 BOLT; CLIP CHARGE AIR COOLER<6PL> M8X25 FLANGE	0-28680-825-0	01	1	0311-0501			●
555	03.485 BRACKET; ENG STOP (B)	8-97113-497-1	01	1	9512-9711	●
555	03.485 BRACKET; ENG STOP (B)	8-97113-497-1	01	1	9712-9812		●
555	03.485 BRACKET; ENG STOP (A)	8-97121-595-0	01	1	9512-9701	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9702-9711	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9712-0212		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0301-0310			●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0311-0501		●	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0502-0611		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0612-		●		●
555	03.485 BRACKET; ENG STOP (C)	8-97188-280-0	01	1	0301-0310			●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> (C)	8-97188-280-0	01	1	0311-0501			●
613	03.670 CONTROL UNIT; ENG	8-97187-466-5	01	1	0612-				●
613	03.670 CONTROL UNIT; ENG EXC. KD PREPARATORY PACK<6HF>	8-98000-589-5	01	1	0507-					●
613	03.670 CONTROL UNIT; ENG TURBOCHARGER(K51)	8-97187-466-5	01	1	0311-0501		●
613	03.670 CONTROL UNIT; ENG	8-97223-183-1	01	1	0301-0310			●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL>	8-97223-183-1	01	1	0311-0501			●

489 553 490 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-9711	●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-0212		●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0301-0310			●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0501		●	●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
211	02.343 NUT; CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0611		●
211	02.343 NUT; CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●		●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310			●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501			●
489	03.483 BOLT; ENG STOPPER 03.417 M10X25 FLANGE	0-28081-025-0	01	1	9412-9511	●
490	03.485 NUT; ENG STOP 04.785 M10 FLANGE	0-91150-110-0	02	1	9412-9511	●
553	03.485 MOTOR ASM; ENG STOP	8-97088-560-0	01	1	9412-9511	●
553	03.485 MOTOR ASM; ENG STOP	8-97119-552-0	01	1	9512-9711	●
553	03.485 MOTOR ASM; ENG STOP	8-97119-552-0	01	1	9712-9806		●
553	03.485 MOTOR ASM; ENG STOP	8-97189-550-0	01	1	9807-9812		●
553	03.485 MOTOR ASM; ENG STOP	8-97217-565-0	01	1	9901-9910		●
553	03.485 MOTOR ASM; ENG STOP	8-97231-001-0	01	1	9911-0004		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0005-0212		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-071-0	01	1	0301-0501			●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0311-0611		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0612-		●		●

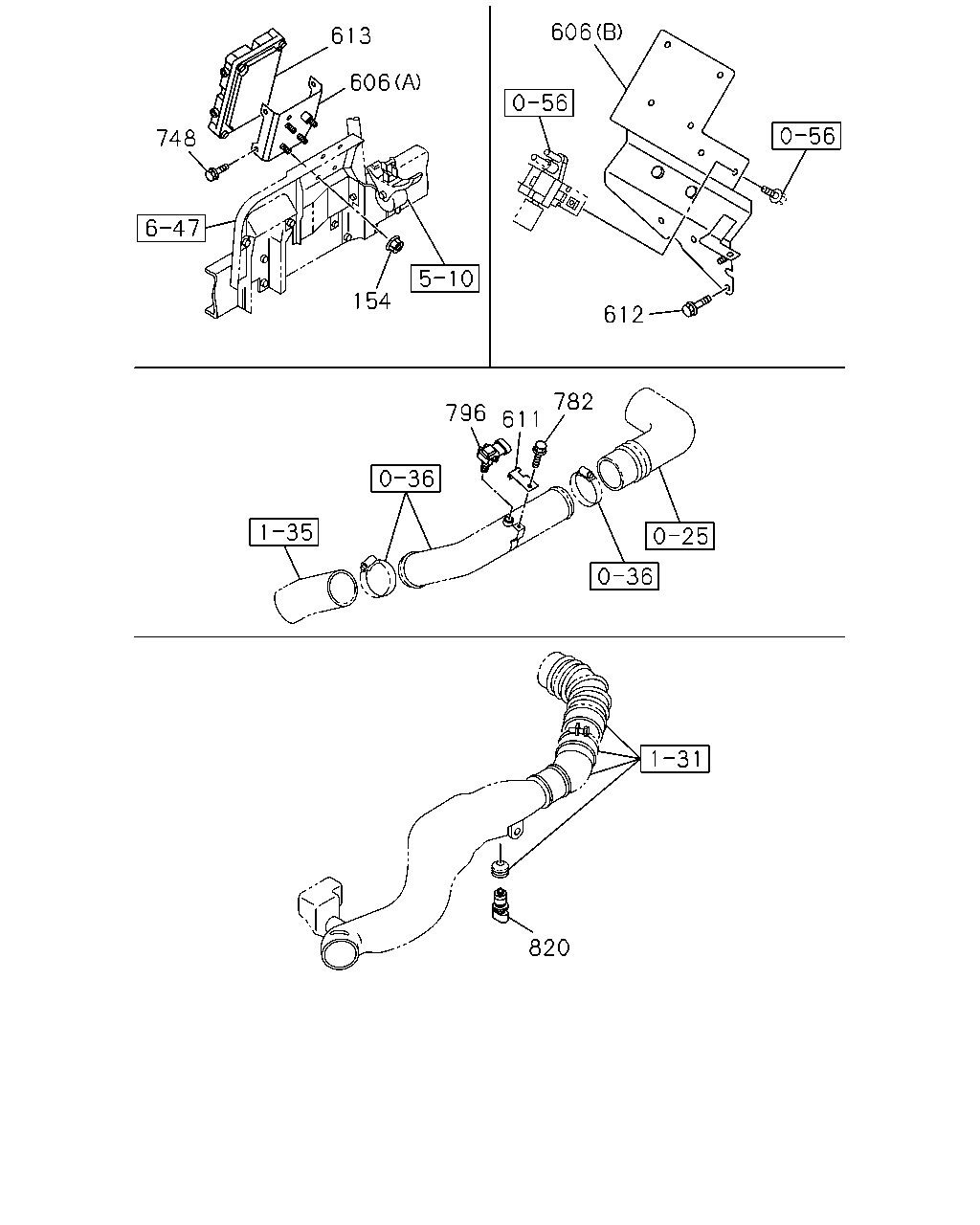

606 613 606 748 154 612 782 796 611 820

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
154	02.510 NUT; BRKT FIX 04.785 M10 FLANGE	0-91150-110-0	01	1	0507-0602					●
154	02.510 NUT; BRKT FIX 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-					●
154	02.510 NUT; BRKT FIX 10.147 M6 W/DISHED WASHER	8-94423-325-0	04	1	0507-0611					●
154	02.510 NUT; BRKT FIX 04.115 M6 W/DISHED WASHER	8-98029-921-0	04	1	0612-					●
606	03.680 BRACKET; CONT UNIT (A)	8-98000-703-0	01	1	0507-					●
606	03.680 BRACKET; CONT UNIT (B)	8-98013-406-1	01	1	0507-					●
611	01.150 BRACKET; SENSOR	8-97368-621-0	01	1	0507-					●
612	02.510 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	01	1	0507-0512					●
612	02.510 BOLT; BRKT 09.171 M10X25 FLANGE	0-28051-025-0	01	1	0601-					●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0507-0512					●
612	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-					●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9512-9512	●
612	02.510 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9601-9701	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9702-9711	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9712-0212		●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0301-0310			●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0311-0501		●	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0502-0611		●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0612-		●		●
613	03.670 CONTROL UNIT; ENG	8-97187-466-5	01	1	0612-				●
613	03.670 CONTROL UNIT; ENG EXC. KD PREPARATORY PACK<6HF>	8-98000-589-5	01	1	0507-					●
613	03.670 CONTROL UNIT; ENG TURBOCHARGER(K51)	8-97187-466-5	01	1	0311-0501		●
613	03.670 CONTROL UNIT; ENG	8-97223-183-1	01	1	0301-0310			●
613	03.670 CONTROL UNIT; ENG CHARGE AIR COOLER<6PL>	8-97223-183-1	01	1	0311-0501			●
748	02.500 BOLT; CONT UNIT 09.190 M6X30 FLANGE	0-28680-630-0	06	1	0507-0508					●
748	02.500 BOLT; CONT UNIT 10.450 M6X10	9-03800-610-0	03	1	0507-0604					●
748	02.500 BOLT; CONT UNIT M6X10	0-35050-610-0	03	1	0605-					●
782	02.510 BOLT; SENSOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512					●
782	02.510 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
796	01.150 SENSOR; MAP	8-09373-269-1	01	1	0507-0810					●
796	01.150 SENSOR; MAP	8-28139-775-0	01	1	0811-					●
820	01.150 SENSOR; INTAKE AIR TEMP	8-12146-830-0	01	1	0507-					●

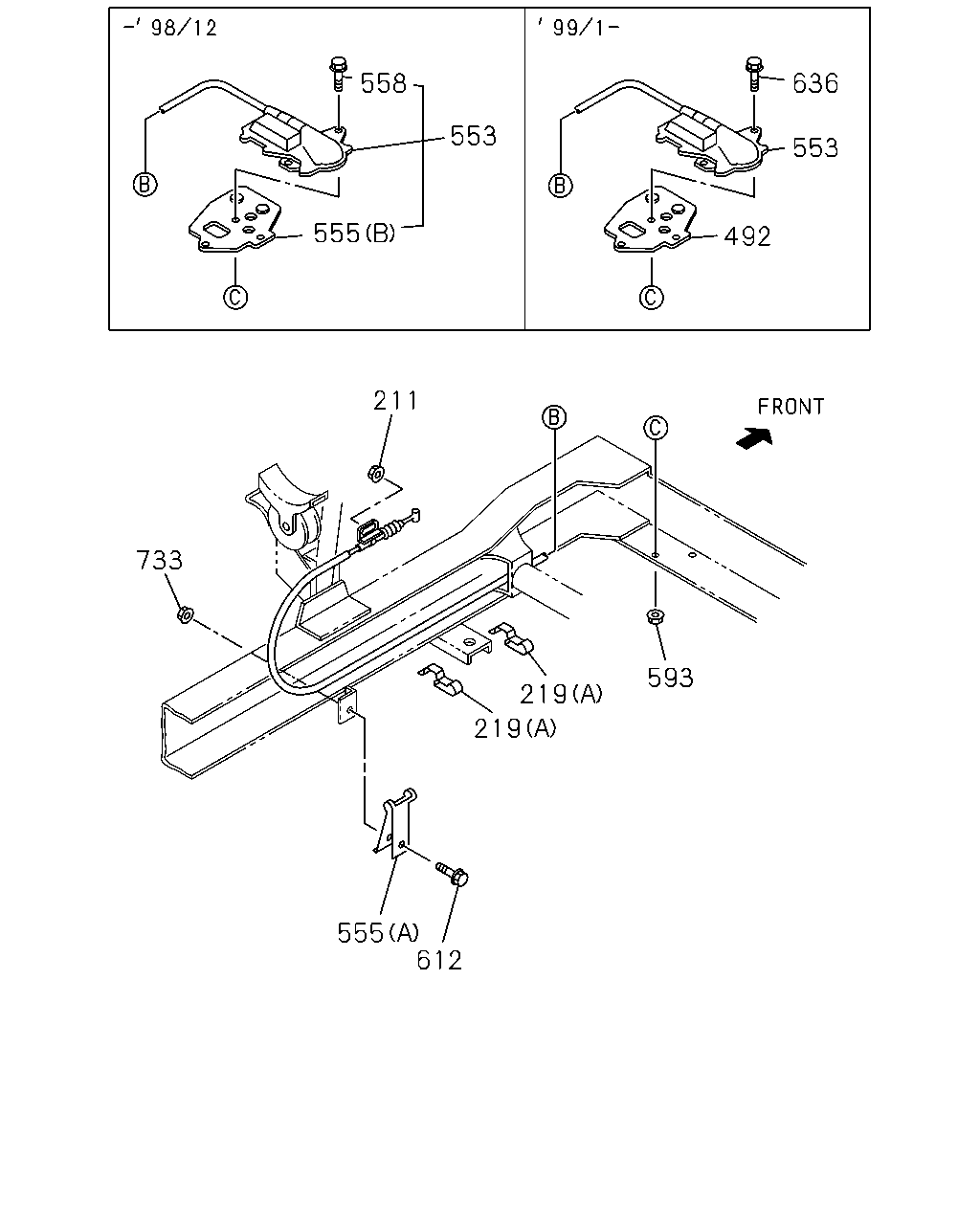

558 636 553 553 555 492 211 733 593 219 219 555 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	9412-9711	●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	9712-0212		●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0301-0310			●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0311-0501		●	●
211	02.343 NUT; CABLE FIX 04.594 M6 FLANGE	0-91150-106-0	01	1	0502-0602		●
211	02.343 NUT; CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0611		●
211	02.343 NUT; CABLE FIX 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-		●		●
211	02.343 NUT; CABLE FIX 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310			●
211	02.343 NUT; CABLE FIX CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0311-0501		●	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0311-0501		●	●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	02	1	0502-0611		●
219	03.483 CLIP; ENG STOP CABLE 02.525 (A) T=4.5 & 9	5-09709-023-0	02	1	0612-		●		●
219	03.483 CLIP; ENG STOP CABLE 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	9512-9711	●
219	03.483 CLIP; ENG STOP CABLE 03.115 (A) T=9 & 10.5	8-97041-091-0	01	1	9712-0212		●
219	03.483 CLIP; ENG STOP CABLE 02.559 (B) L=250	5-09707-030-1	01	1	0301-0310			●
219	03.483 CLIP; ENG STOP CABLE CHARGE AIR COOLER<6PL> 02.559 (B) L=250	5-09707-030-1	01	1	0311-0501			●
492	03.483 BRACKET; ENG STOPPER 03.485	8-97113-497-1	01	1	9901-0212		●
492	03.483 BRACKET; ENG STOPPER 03.485	8-97113-497-1	01	1	0301-0310			●
492	03.483 BRACKET; ENG STOPPER 03.485	8-97113-497-1	01	1	0311-0501		●	●
492	03.483 BRACKET; ENG STOPPER 03.485	8-97113-497-1	01	1	0502-0611		●
492	03.483 BRACKET; ENG STOPPER 03.485	8-97113-497-1	01	1	0612-		●		●
553	03.485 MOTOR ASM; ENG STOP	8-97088-560-0	01	1	9412-9511	●
553	03.485 MOTOR ASM; ENG STOP	8-97119-552-0	01	1	9512-9711	●
553	03.485 MOTOR ASM; ENG STOP	8-97119-552-0	01	1	9712-9806		●
553	03.485 MOTOR ASM; ENG STOP	8-97189-550-0	01	1	9807-9812		●
553	03.485 MOTOR ASM; ENG STOP	8-97217-565-0	01	1	9901-9910		●
553	03.485 MOTOR ASM; ENG STOP	8-97231-001-0	01	1	9911-0004		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0005-0212		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-071-0	01	1	0301-0501			●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0311-0611		●
553	03.485 MOTOR ASM; ENG STOP	8-97255-068-0	01	1	0612-		●		●
555	03.485 BRACKET; ENG STOP (B)	8-97113-497-1	01	1	9512-9711	●
555	03.485 BRACKET; ENG STOP (B)	8-97113-497-1	01	1	9712-9812		●
555	03.485 BRACKET; ENG STOP (A)	8-97121-595-0	01	1	9512-9701	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9702-9711	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	9712-0212		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0301-0310			●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0311-0501		●	●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0502-0611		●
555	03.485 BRACKET; ENG STOP (A)	8-97119-039-2	01	1	0612-		●		●
555	03.485 BRACKET; ENG STOP (C)	8-97188-280-0	01	1	0301-0310			●
555	03.485 BRACKET; ENG STOP CHARGE AIR COOLER<6PL> (C)	8-97188-280-0	01	1	0311-0501			●
558	03.485 SCREW; BRKT TO MOTOR GENERATOR 24V50A(6QN) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9807-9812		●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9512-9711	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-0212		●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310			●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501		●	●
593	02.483 NUT; BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611		●
593	02.483 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-		●		●
612	02.510 BOLT; BRKT 03.417 M10X25 FLANGE	0-28081-025-0	01	1	0507-0512					●
612	02.510 BOLT; BRKT 09.171 M10X25 FLANGE	0-28051-025-0	01	1	0601-					●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0507-0512					●
612	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-					●
612	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9512-9512	●
612	02.510 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9601-9701	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9702-9711	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	9712-0212		●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0301-0310			●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0311-0501		●	●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0502-0611		●
612	02.510 BOLT; BRKT 16.585 M8X20	1-09981-468-0	01	1	0612-		●		●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-0212		●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0310			●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501		●	●
636	02.510 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512		●
636	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0611		●
636	02.510 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0612-		●		●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9512-9711	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-0212		●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0301-0310			●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501		●	●
733	02.343 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
733	02.343 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0611		●
733	02.343 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-		●		●

46 10 10 645 46 10 578 578

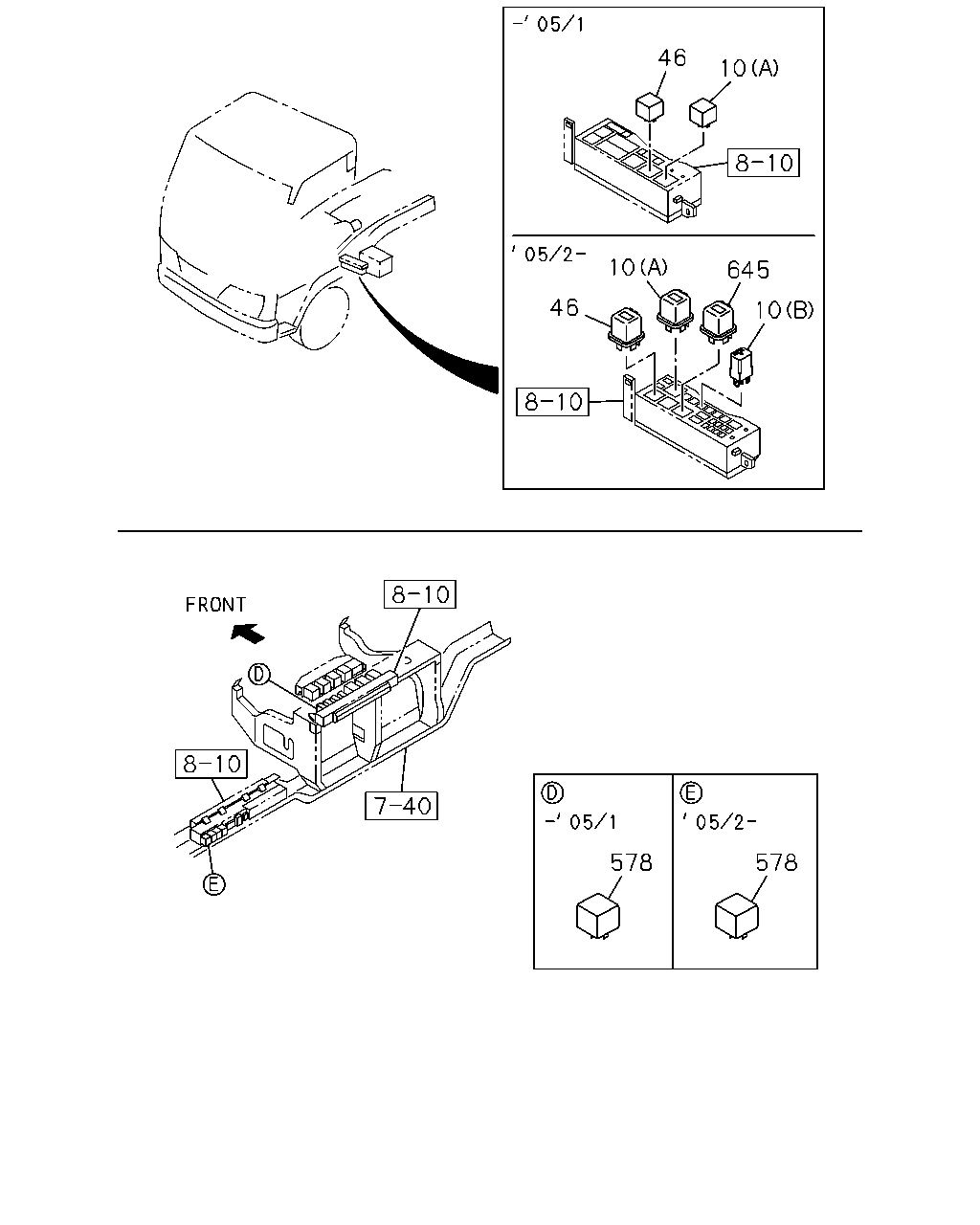

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	02.100 RELAY; STARTER 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	0507-					●
10	02.100 RELAY; STARTER (A)	8-97036-359-1	01	1	9412-9704	●	●	●	●	●
10	02.100 RELAY; STARTER 02.510 (A) 24V 50A	8-97173-947-0	01	1	9705-0106	●	●	●	●	●
10	02.100 RELAY; STARTER (A) 24V 50A	8-97264-947-0	01	1	0107-	●	●	●	●	●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	0507-		●			●
46	02.510 RELAY; GLOW PLUG 02.100	8-97036-359-1	01	1	9412-9704	●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	9705-9711	●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	9712-0212		●
46	02.510 RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0301-0310			●
46	02.510 RELAY; GLOW PLUG FAST GLOW SYSTEM<KM6> 24V 50A	8-97173-947-0	01	1	0311-0501		●	●
578	02.510 RELAY; CHARGE WARNING	8-97063-440-0	01	1	9412-9711	●
578	02.510 RELAY; CHARGE WARNING	8-97063-440-1	01	1	9712-0105	●	●	●	●	●
578	02.510 RELAY; CHARGE WARNING	8-97063-440-2	01	1	0106-0212		●
578	02.510 RELAY; CHARGE WARNING	8-97063-440-2	01	1	0301-0501	●	●	●	●	●
578	02.510 RELAY; CHARGE WARNING 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0502-	●	●	●	●	●
645	02.510 RELAY; ENG CONT 24V 30A MITUBA	8-97238-540-0	01	1	0507-					●

4 16 410 2 1 2 862 905 8 23 4 677 16 23 21 26 460 83 129 108 459 91 105 641 897 100 487 643

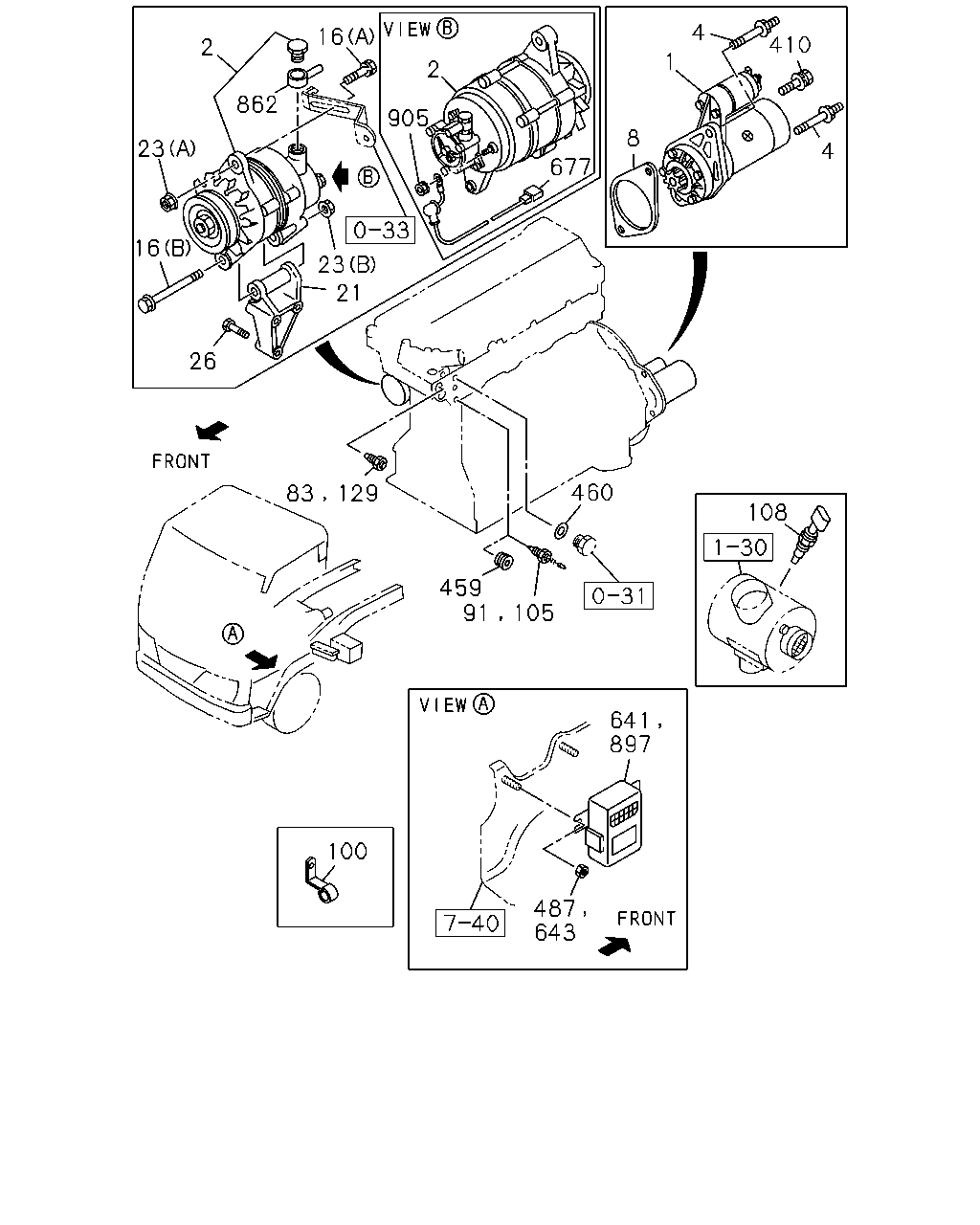

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-1	01	1	9412-9711	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97100-926-2	01	1	9712-9810		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97216-186-1	01	1	9811-0002		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97226-787-1	01	1	0003-0109		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-0	01	1	0110-0212		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97323-935-2	01	1	0301-0310			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-2	01	1	0311-0501		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97323-935-2	01	1	0311-0501			●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0502-0506		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0507-0611		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97323-935-4	01	1	0507-0611					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI	8-97323-935-4	01	1	0612-		●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI	8-97323-935-4	01	1	0612-					●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-3	01	1	9412-9711	●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW	8-97095-811-5	01	1	9712-9811		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97216-185-0	01	1	9812-0001		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97172-211-1	01	1	0002-0212		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97172-211-2	01	1	0311-0611		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-97172-211-2	01	1	0612-1006		●		●
1	02.041 STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI	8-98055-279-1	01	1	1007-		●		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A	8-97075-882-2	01	1	9503-9511	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97075-883-2	01	1	9503-9511	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97075-883-2	01	1	9512-9603	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A	8-97148-496-1	01	1	9604-9705	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97148-496-1	01	1	9706-9711	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A	8-97144-392-1	01	1	9712-9801		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97144-392-1	01	1	9802-0001		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97186-551-1	01	1	0002-0212		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97170-163-2	01	1	0301-0304			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0305-0305			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 24V 50A HITACHI	8-97351-572-0	01	1	0306-0308			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0309-0310			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0311-0501		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-0	01	1	0502-0506		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-1	01	1	0507-0611		●			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 24V60A(KG2) 24V 50A HITACHI	8-97351-572-1	01	1	0612-		●		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97143-011-1	01	1	9706-9711	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97175-390-1	01	1	9712-0201		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97300-353-0	01	1	0202-0212		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A	8-97250-258-2	01	1	0301-0501			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0311-0506		●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0507-0611		●			●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A HITACHI	8-97351-573-0	01	1	0612-		●		●	●
2	02.275 GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. IDENTIFICATION LABEL FOR KD<6UT> EXC. GENERATOR 24V60A(KG2) 24V 50A	8-97170-163-2	01	1	0306-0308			●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9412-9711	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97072-825-1	02	1	9712-9808		●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	9809-0212		●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0301-0310			●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0311-0501		●	●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0502-0506		●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0507-0611		●			●
4	02.042 BOLT; STARTER M10X15,M14X75 L=103	8-97212-602-0	02	1	0612-		●		●	●
8	02.042 SPACER; STARTER M/T MYY5T(RSM)	8-97350-947-0	01	1	0507-					●
16	02.277 BOLT; GEN 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	9412-9711	●
16	02.277 BOLT; GEN 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	9712-0212		●
16	02.277 BOLT; GEN 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	0301-0310			●
16	02.277 BOLT; GEN 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	0311-0501		●	●
16	02.277 BOLT; GEN 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	0502-0506		●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	0507-0611		●			●
16	02.277 BOLT; GEN EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 (A) M8X40 W/WASHER	8-97011-792-4	01	1	0612-		●		●	●
16	02.277 BOLT; GEN (B) M10X127	8-97065-159-1	01	1	9503-9605	●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	9606-9711	●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	9712-0212		●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	0301-0310			●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	0311-0501		●	●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	0502-0506		●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	0507-0611		●			●
16	02.277 BOLT; GEN (B) M10X133	8-97146-998-0	01	1	0612-		●		●	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9503-9711	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	9712-0212		●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0301-0310			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0311-0501		●	●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0502-0506		●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0507-0611		●			●
21	02.277 BRACKET; GEN	8-97075-884-2	01	1	0612-		●		●	●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9503-9711	●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9712-0212		●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0301-0310			●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0311-0501		●	●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0506		●
23	02.277 NUT; GEN 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0507-0602		●			●
23	02.277 NUT; GEN 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-0611		●			●
23	02.277 NUT; GEN 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0612-		●		●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9503-9711	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	9712-0212		●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0301-0310			●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0311-0501		●	●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0502-0506		●
23	02.277 NUT; GEN 08.917 (B) M10 FLANGE	0-91150-210-0	01	1	0507-0602		●			●
23	02.277 NUT; GEN 04.085 (B) M10 FLANGE	0-91180-210-0	01	1	0603-0611		●			●
23	02.277 NUT; GEN 04.085 (B) M10 FLANGE	0-91180-210-0	01	1	0612-		●		●	●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9503-9711	●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	9712-0212		●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0301-0310			●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0311-0501		●	●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0502-0506		●
26	02.277 BOLT; GEN BRKT 08.900 M10X50 FLANGE	0-28181-050-0	01	1	0507-0512		●			●
26	02.277 BOLT; GEN BRKT 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0601-0611		●			●
26	02.277 BOLT; GEN BRKT 02.042 M10X50 FLANGE	0-28151-050-0	01	1	0612-		●		●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9503-9711	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	9712-0212		●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0301-0310			●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0311-0501		●	●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0502-0506		●
26	02.277 BOLT; GEN BRKT 03.890 M10X70 FLANGE	0-28181-070-0	02	1	0507-0512		●			●
26	02.277 BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0601-0611		●			●
26	02.277 BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0612-		●		●	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9503-9711	●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9712-0212		●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9503-9711	●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9712-0212		●
83	01.150 THERMOMETER UNIT DENSO	8-94235-691-0	01	1	0311-		●
83	01.150 THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	0311-		●
91	01.150 SWITCH; THERMO HTR 03.883	8-97038-625-0	01	1	0301-0402			●
100	02.559 CLIP; HARNESS ID=11 L=20	9-09525-035-0	01	1	0507-0606					●
100	02.559 CLIP; HARNESS ID=11 L=20	0-95235-035-0	01	1	0607-					●
105	01.150 SWITCH; THERMO,QOS FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94121-152-1	01	1	0612-		●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	9503-9711	●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	9712-0212		●
105	01.150 SWITCH; THERMO,QOS	8-94121-152-1	01	1	0311-0312		●
108	01.150 SWITCH; THERMO	8-97021-507-1	01	1	9503-9511	●
108	01.150 SWITCH; THERMO	8-97189-295-0	01	1	0301-0310			●
108	01.150 SWITCH; THERMO CHARGE AIR COOLER<6PL>	8-97189-295-0	01	1	0311-0501			●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	0507-0611					●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	0612-				●	●
129	01.150 SENSOR; GLOW PLUG,THERMO TRANSTRON	8-97170-327-0	01	1	0507-0611					●
129	01.150 SENSOR; GLOW PLUG,THERMO TRANSTRON	8-97170-327-0	01	1	0612-1007				●	●
129	01.150 SENSOR; GLOW PLUG,THERMO NIPPON THERMOSTAT	8-98023-717-0	01	1	1008-				●	●
129	01.150 SENSOR; GLOW PLUG,THERMO HITACHI	8-97167-008-0	01	1	0301-0501			●
129	01.150 SENSOR; GLOW PLUG,THERMO TRANSTRON	8-97170-327-0	01	1	0301-0501			●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9412-9711	●
410	02.343 BOLT; BRKT,GRAND 12.187 M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9712-0212		●
459	02.183 PLUG 01.073 PT3/8	5-09605-005-0	01	1	0401-		●
460	02.363 GASKET; PLUG 04.868 ID=16.2	1-09630-086-0	01	1	0507-0611					●
460	02.363 GASKET; PLUG 04.868 ID=16.2 ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-086-0	01	1	0612-				●	●
460	02.363 GASKET; PLUG 01.252 ID=16.2 OD=24	9-09571-416-0	01	1	9512-9604	●
460	02.363 GASKET; PLUG 04.868 ID=16.2	1-09630-086-0	01	1	0301-0501			●
487	02.343 NUT 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602					●
487	02.343 NUT 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-					●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. INDONESIA EQUIPMENT(S4S)	8-97361-318-0	01	1	0507-		●
641	02.510 TIMER; QOS	8-97047-028-0	01	1	9412-9711	●
641	02.510 TIMER; QOS	8-97047-028-0	01	1	9712-9810		●
641	02.510 TIMER; QOS	8-97215-648-0	01	1	9811-0212		●
641	02.510 TIMER; QOS FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51)	8-97361-318-0	01	1	0311-0501		●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. INDONESIA EQUIPMENT(S4S) 04.594 M6 FLANGE	0-91150-106-0	02	1	0507-0602		●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. INDONESIA EQUIPMENT(S4S) 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-		●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9412-9711	●
643	02.510 NUT; TIMER,QOS 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-0212		●
643	02.510 NUT; TIMER,QOS FAST GLOW SYSTEM<KM6> EXC. TURBOCHARGER(K51) 04.594 M6 FLANGE	0-91150-106-0	02	1	0311-0501		●
677	02.277 HARNESS; GEN	8-97367-772-0	01	1	0507-					●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2)	8-97367-772-0	01	1	0305-0305			●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT>	8-97367-772-0	01	1	0306-0308			●
677	02.277 HARNESS; GEN EXC. GENERATOR 24V60A(KG2)	8-97367-772-0	01	1	0309-0501			●
862	02.313 CONNECTOR; GEN	8-97351-627-0	01	1	0507-					●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2)	8-97351-626-0	01	1	0305-0305			●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT>	8-97351-626-0	01	1	0306-0308			●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2)	8-97351-626-0	01	1	0309-0310			●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0311-0501		●
862	02.313 CONNECTOR; GEN EXC. GENERATOR 24V60A(KG2)	8-97351-626-0	01	1	0311-0501			●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0502-0611		●
862	02.313 CONNECTOR; GEN	8-97351-626-0	01	1	0612-		●		●
897	02.510 DRM	8-98013-144-7	01	1	0507-					●
905	02.559 NUT; HARNESS 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0507-					●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0305-0305			●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2), IDENTIFICATION LABEL FOR KD<6UT> 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0306-0308			●
905	02.559 NUT; HARNESS EXC. GENERATOR 24V60A(KG2) 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	0309-0501			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
