Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#43838) — 303 parça

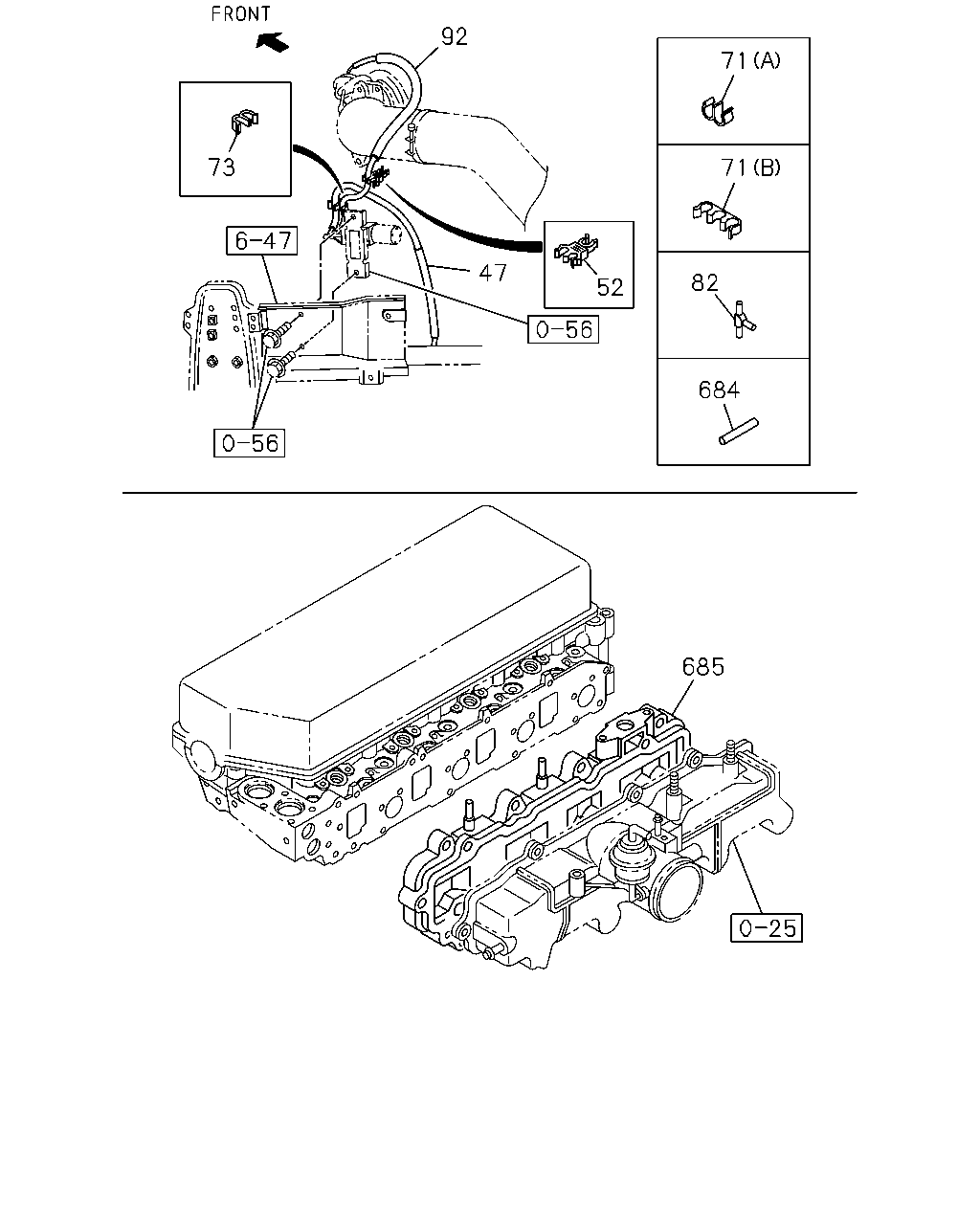

92 71 73 71 47 82 52 684 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
47	03.675 HOSE; VAC,VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 L=200 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
47	03.675 HOSE; VAC,VSV L=310	8-97037-962-1	01	1	9412-9711		●
47	03.675 HOSE; VAC,VSV L=310	8-97037-962-2	01	1	9712-0212	●
47	03.675 HOSE; VAC,VSV EXC. TURBOCHARGER(K51) L=310	8-97037-962-2	01	1	0311-0501	●
47	03.675 HOSE; VAC,VSV L=310	8-97037-962-2	01	1	0502-	●
52	03.680 CLIP; VSV HOSE	8-97022-016-0	01	1	9412-9504		●
52	03.680 CLIP; VSV HOSE ID=7.5 & 7.5	8-97019-084-0	01	1	9505-9711		●
52	03.680 CLIP; VSV HOSE ID=7.5 & 7.5	8-97019-084-0	01	1	9712-0212	●
52	03.680 CLIP; VSV HOSE EXC. TURBOCHARGER(K51) ID=7.5 & 7.5	8-97019-084-0	01	1	0311-0501	●
52	03.680 CLIP; VSV HOSE ID=7.5 & 7.5	8-97019-084-0	01	1	0502-	●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0507-			●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-			●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0507-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0507-	●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9412-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-0212	●
73	03.680 CLIP; VAC HOSE 02.559 L=250	5-09707-030-1	02	1	0301-0310				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	02	1	0311-0501				●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 ID=6.8X2	8-94126-636-0	01	1	0311-0501	●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	03	1	0311-0501				●
82	03.680 JOINT; 3 WAY AIR CONDITIONER MANUAL CONT(C60) 3WAY	8-94208-695-0	01	1	0507-	●
92	03.675 HOSE; VAC,THROTTLE BODY	8-97106-645-3	01	1	9412-0105		●
92	03.675 HOSE; VAC,THROTTLE BODY	8-97106-645-3	01	1	0106-0212	●
92	03.675 HOSE; VAC,THROTTLE BODY EXC. TURBOCHARGER(K51)	8-97106-645-3	01	1	0311-0501	●
92	03.675 HOSE; VAC,THROTTLE BODY	8-97106-645-3	01	1	0502-	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 L=30 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
684	03.675 HOSE; VAC,JOINT TO VSV AIR CONDITIONER MANUAL CONT(C60) 08.962 L=50 SERVICED BY L=3000	0-04730-300-0	01	1	0507-	●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0612-					●
685	03.680 CASE; INLET,EGR	8-97136-372-0	01	1	9512-9606		●
685	03.680 CASE; INLET,EGR	8-97146-873-0	01	1	9607-9711		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	9712-0212	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0311-	●

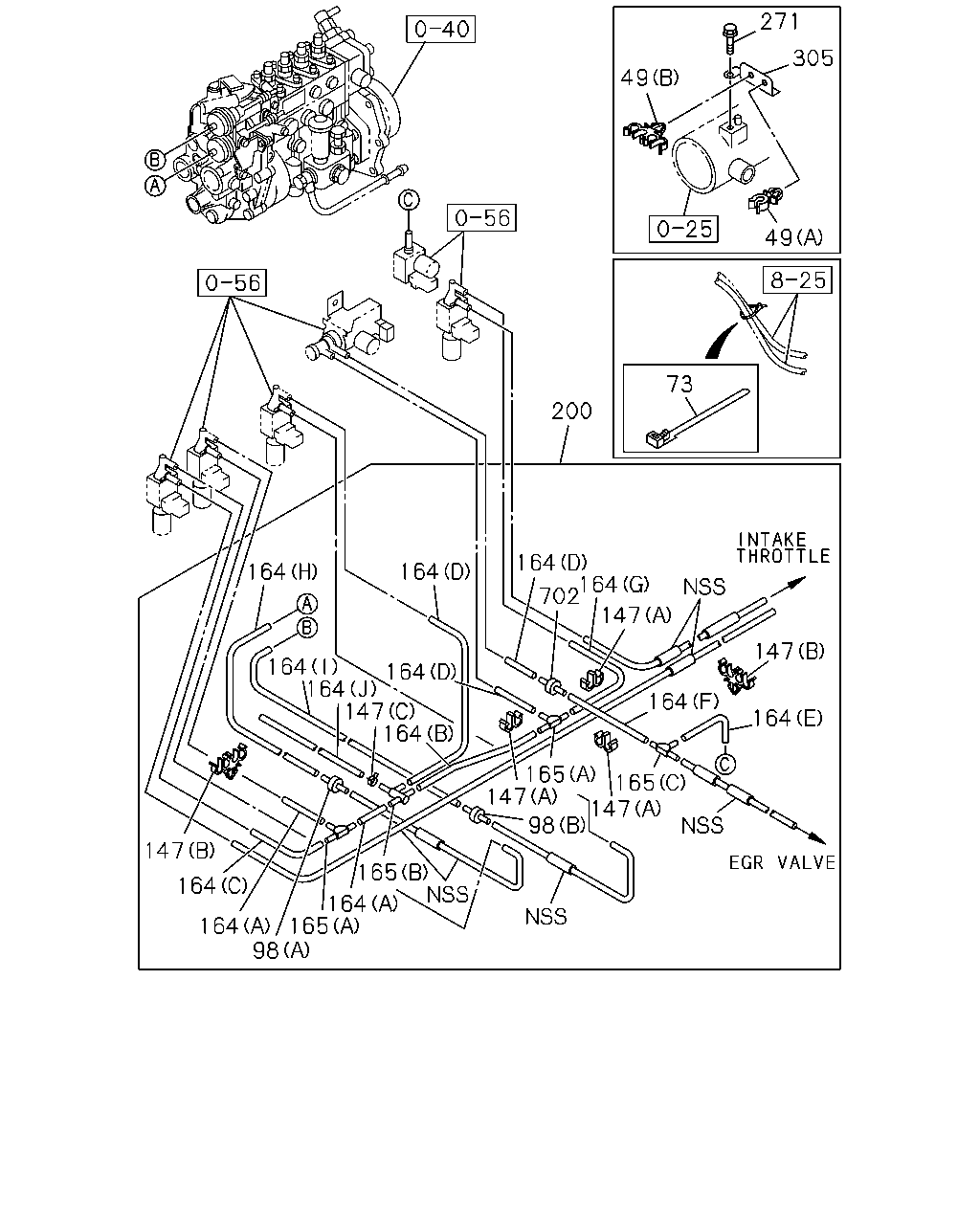

271 305 49 49 73 200 164 164 702 164 164 147 147 164 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
49	03.680 CLIP; HOSE 03.162 (A)	8-94253-984-0	01	1	0301-0310				●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> 03.162 (A)	8-94253-984-0	01	1	0311-0501				●
49	03.680 CLIP; HOSE (B) 4XID=6.7	8-94315-422-0	01	1	0301-0310				●
49	03.680 CLIP; HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	01	1	0311-0501				●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9412-9711		●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-0212	●
73	03.680 CLIP; VAC HOSE 02.559 L=250	5-09707-030-1	02	1	0301-0310				●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> HEATER & DEFROSTER(C41) 02.559 L=250	5-09707-030-1	02	1	0311-0501				●
73	03.680 CLIP; VAC HOSE EXC. TURBOCHARGER(K51) 03.162 ID=6.8X2	8-94126-636-0	01	1	0311-0501	●
73	03.680 CLIP; VAC HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	0502-	●
73	03.680 CLIP; VAC HOSE CHARGE AIR COOLER<6PL> EXC. HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	03	1	0311-0501				●
98	03.670 VALVE; DELAY (A)	8-94110-978-0	01	1	0301-0310				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> (A)	8-94110-978-0	01	1	0311-0501				●
98	03.670 VALVE; DELAY 03.415 (B) PINK	8-94145-108-0	01	1	0301-0310				●
98	03.670 VALVE; DELAY CHARGE AIR COOLER<6PL> 03.415 (B) PINK	8-94145-108-0	01	1	0311-0501				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (D) 4XID=6.8	8-94132-799-0	01	1	0311-0501	●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0301-0310				●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0311-0501	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0311-0501				●
147	03.680 CLIP; RUBBER HOSE (C) ID=7	8-94208-596-0	01	1	0301-0310				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (C) ID=7	8-94208-596-0	01	1	0311-0501				●
147	03.680 CLIP; RUBBER HOSE (B) 4XID=6.7	8-94315-422-0	02	1	0301-0310				●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	0311-0501				●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0612-					●
147	03.680 CLIP; RUBBER HOSE 02.251 (D) 4XID=6.8	8-94132-799-0	01	1	0612-					●
164	03.675 HOSE; RUBBER 08.962 (L) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0612-0807					●
164	03.675 HOSE; RUBBER 08.962 (L) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0808-					●
164	03.675 HOSE; RUBBER 08.962 (K) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0612-					●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (C) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501	●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0311-0501				●
164	03.675 HOSE; RUBBER 08.962 (J) L=300 SERVICED BY L=3000	0-04740-300-0	01	1	0301-0310				●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (J) L=300 SERVICED BY L=3000	0-04740-300-0	01	1	0311-0501				●
165	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	0612-					●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) (A) 3WAY	8-94208-695-0	01	1	0311-0501	●
165	03.680 JOINT; HOSE 03.670 (B) 4WAY	8-94100-256-0	01	1	0301-0310				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	0311-0501				●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	02	1	0301-0310				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0311-0501				●
165	03.680 JOINT; HOSE 03.145 (C) 3WAY	8-94237-690-0	01	1	0301-0310				●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	0311-0501				●
200	03.675 HOSE; VAC	8-97207-666-2	01	1	0612-0807					●
200	03.675 HOSE; VAC	8-98131-352-0	01	1	0808-					●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	0311-0501	●
200	03.675 HOSE; VAC	8-97352-676-0	01	1	0301-0310				●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL>	8-97352-676-0	01	1	0311-0501				●
271	03.675 BOLT; BRKT 00.685 M12X45 FLANGE	0-28181-245-0	01	1	0507-0512			●
271	03.675 BOLT; BRKT 00.685 M12X45 FLANGE	0-28151-245-0	01	1	0601-			●
271	03.675 BOLT; BRKT 00.002 M8X25 FLANGE	0-28690-825-0	01	1	0507-0512			●
271	03.675 BOLT; BRKT 02.277 M8X25 FLANGE	0-28660-825-0	01	1	0601-			●
271	03.675 BOLT; BRKT 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0301-0310				●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0311-0501				●
305	03.675 BRACKET; RUBBER HOSE	8-97182-758-0	01	1	0301-0310				●
305	03.675 BRACKET; RUBBER HOSE CHARGE AIR COOLER<6PL>	8-97182-758-0	01	1	0311-0501				●
702	03.670 VALVE; DERIVERY	8-97145-713-0	01	1	0301-0310				●
702	03.670 VALVE; DERIVERY CHARGE AIR COOLER<6PL>	8-97145-713-0	01	1	0311-0501				●

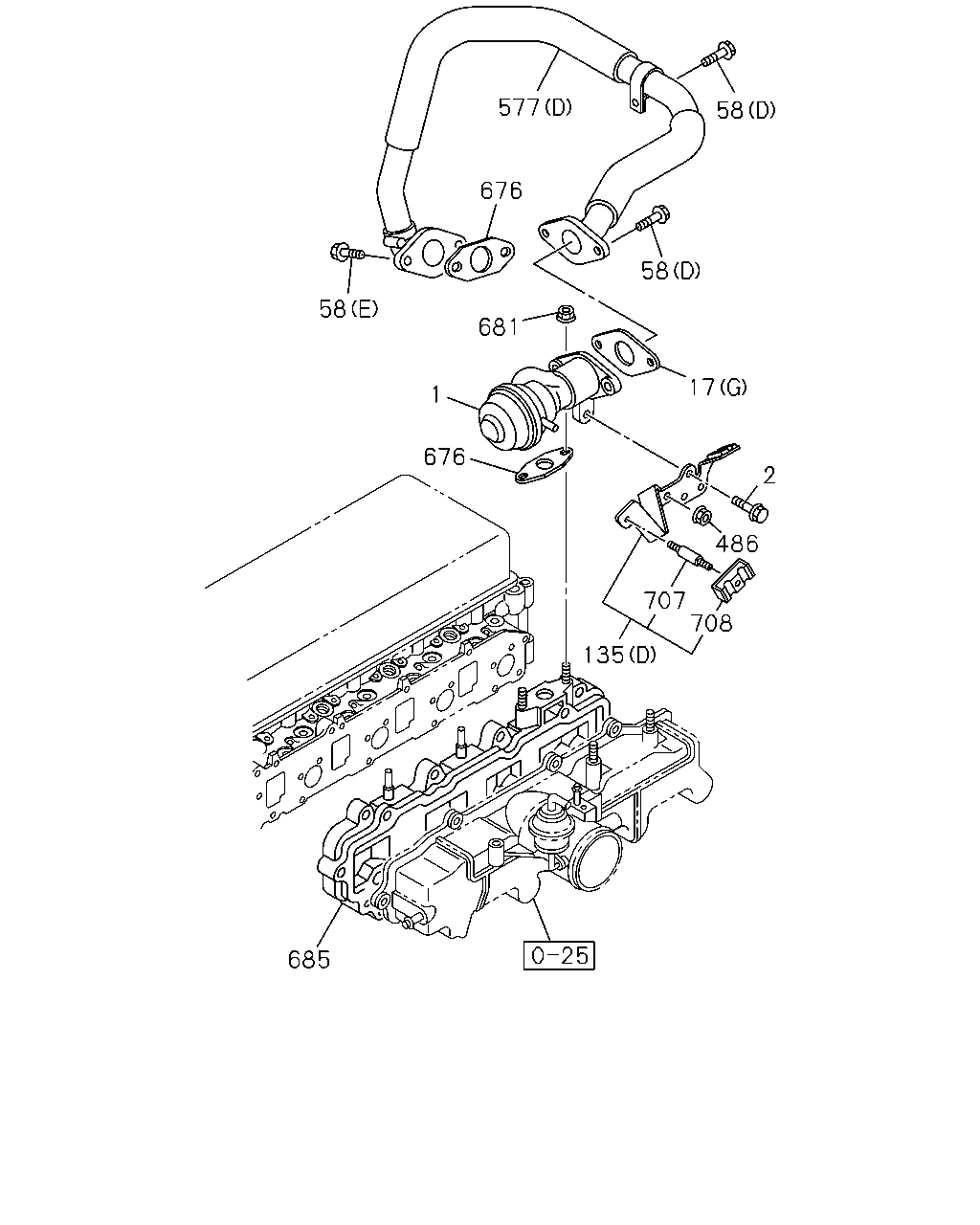

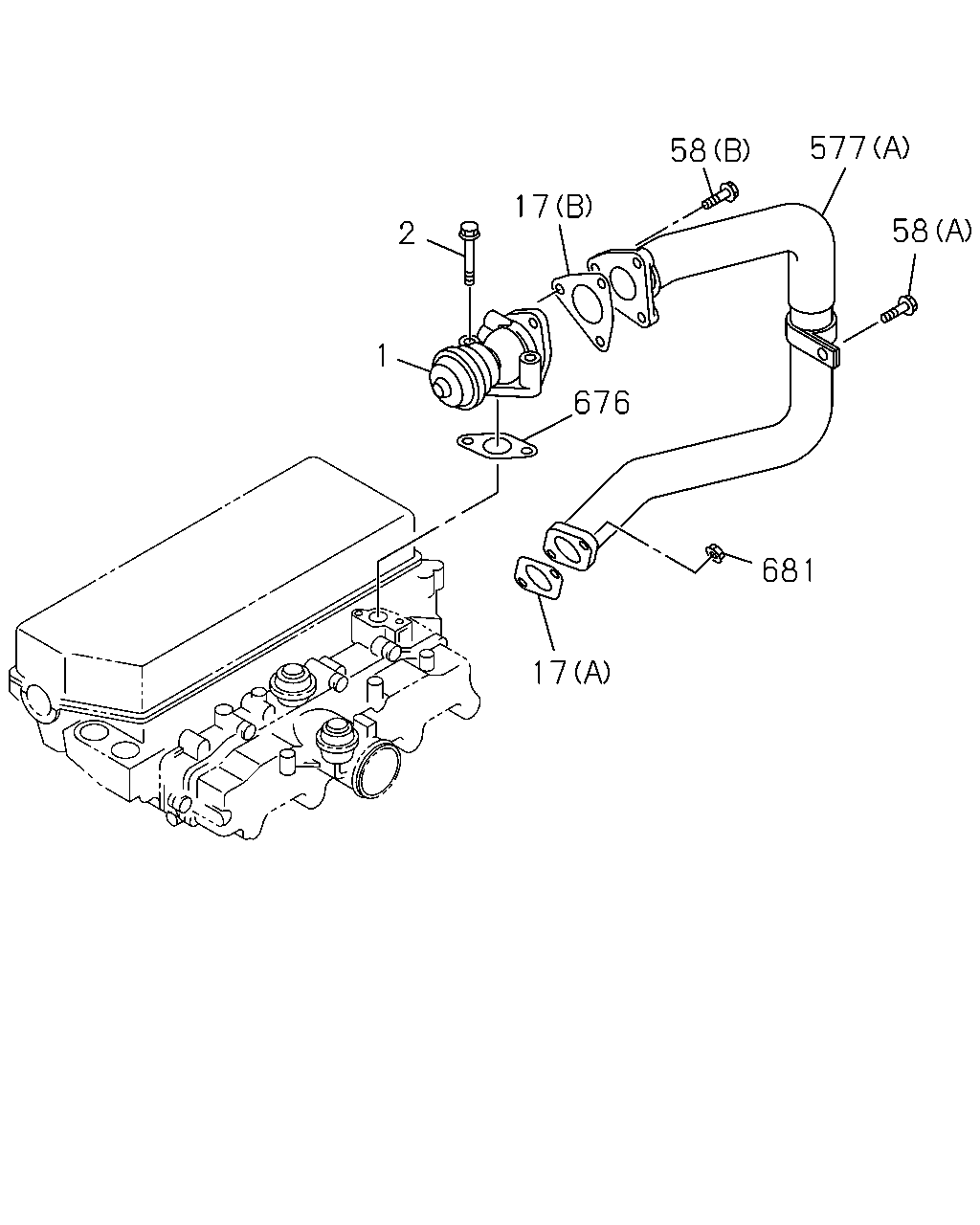

577 58 17 58 2 1 676 681 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0612-			●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-	●
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0301-0501		●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-			●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
2	03.670 BOLT; EGR VLV 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0301-0501		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97113-023-0	01	1	0612-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97213-386-0	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97367-918-0	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0301-0501		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0301-0501		●
58	03.417 BOLT; PIPE 01.531 (D) M8X20 FLANGE	0-28650-820-0	03	1	0612-			●
58	03.417 BOLT; PIPE (E) M8X23 FLANGE	8-97378-077-0	02	1	0612-			●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0301-0501		●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0301-0501		●
577	03.675 PIPE; AIR,EGR (D)	8-97200-643-2	01	1	0612-			●
577	03.675 PIPE; AIR,EGR (B)	8-98032-795-0	01	1	0512-	●
577	03.675 PIPE; AIR,EGR (B)	8-97310-501-3	01	1	0507-0601	●
577	03.675 PIPE; AIR,EGR (C)	8-97329-211-2	01	1	0507-	●
577	03.675 PIPE; AIR,EGR (A)	8-97148-952-3	01	1	0301-0501		●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0612-			●
676	03.417 GASKET; PIPE	8-97170-683-0	01	1	0301-0501		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0301-0501		●

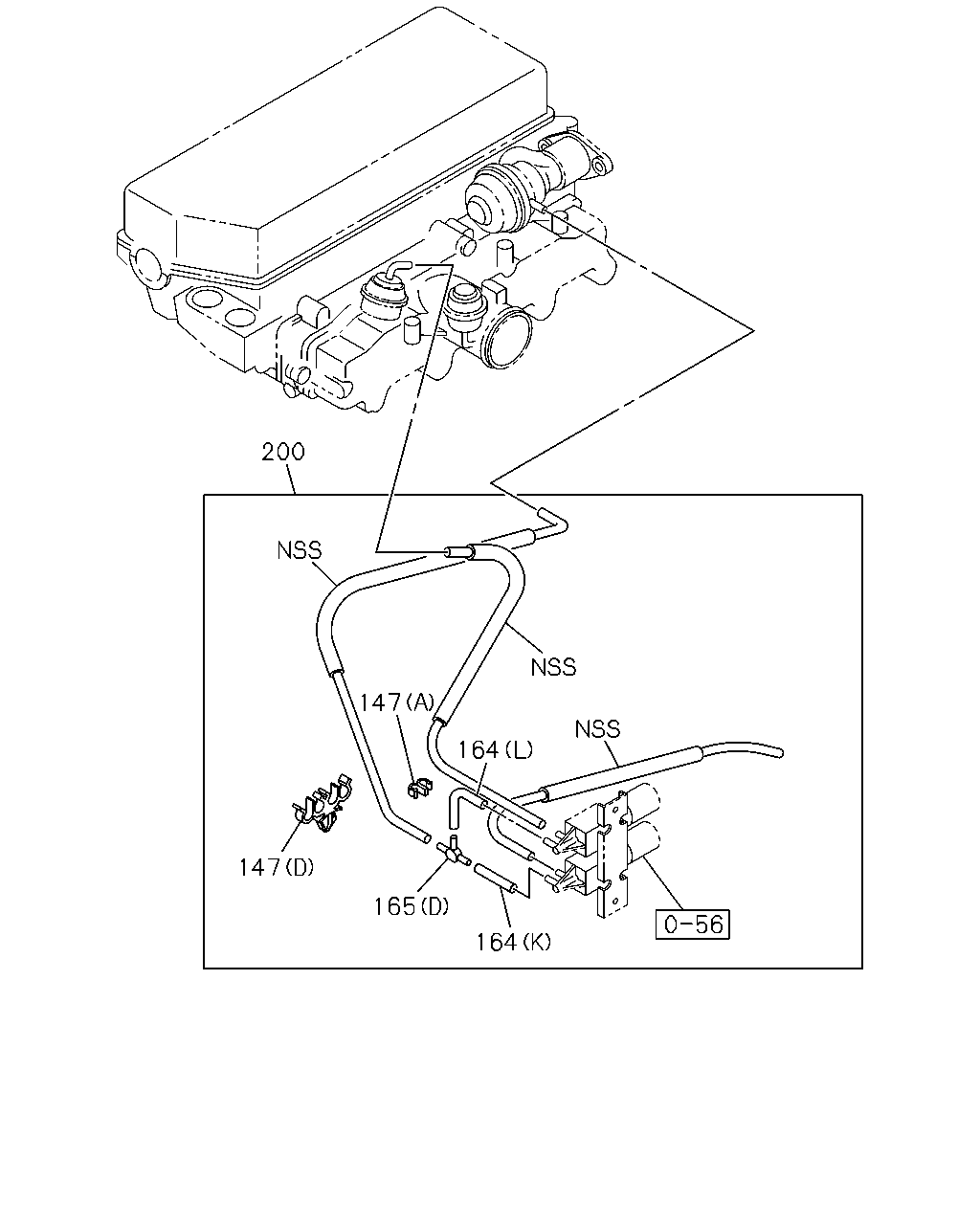

200 147 164 147 165 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D	E
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 02.251 (D) 4XID=6.8	8-94132-799-0	01	1	0311-0501	●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0301-0310		●
147	03.680 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0311-0501	●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0311-0501		●
147	03.680 CLIP; RUBBER HOSE (C) ID=7	8-94208-596-0	01	1	0301-0310		●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (C) ID=7	8-94208-596-0	01	1	0311-0501		●
147	03.680 CLIP; RUBBER HOSE (B) 4XID=6.7	8-94315-422-0	02	1	0301-0310		●
147	03.680 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> (B) 4XID=6.7	8-94315-422-0	02	1	0311-0501		●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0612-			●
147	03.680 CLIP; RUBBER HOSE 02.251 (D) 4XID=6.8	8-94132-799-0	01	1	0612-			●
164	03.675 HOSE; RUBBER 08.962 (L) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0612-0807			●
164	03.675 HOSE; RUBBER 08.962 (L) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0808-			●
164	03.675 HOSE; RUBBER 08.962 (K) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0612-			●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (C) L=65 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501	●
164	03.675 HOSE; RUBBER TURBOCHARGER(K51) 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501	●
164	03.675 HOSE; RUBBER 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0311-0501		●
164	03.675 HOSE; RUBBER 08.962 (J) L=300 SERVICED BY L=3000	0-04740-300-0	01	1	0301-0310		●
164	03.675 HOSE; RUBBER CHARGE AIR COOLER<6PL> 08.962 (J) L=300 SERVICED BY L=3000	0-04740-300-0	01	1	0311-0501		●
165	03.680 JOINT; HOSE (D) 3WAY	8-94208-695-0	01	1	0612-			●
165	03.680 JOINT; HOSE TURBOCHARGER(K51) (A) 3WAY	8-94208-695-0	01	1	0311-0501	●
165	03.680 JOINT; HOSE 03.670 (B) 4WAY	8-94100-256-0	01	1	0301-0310		●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.670 (B) 4WAY	8-94100-256-0	01	1	0311-0501		●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	02	1	0301-0310		●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> (A) 3WAY	8-94208-695-0	02	1	0311-0501		●
165	03.680 JOINT; HOSE 03.145 (C) 3WAY	8-94237-690-0	01	1	0301-0310		●
165	03.680 JOINT; HOSE CHARGE AIR COOLER<6PL> 03.145 (C) 3WAY	8-94237-690-0	01	1	0311-0501		●
200	03.675 HOSE; VAC	8-97207-666-2	01	1	0612-0807			●
200	03.675 HOSE; VAC	8-98131-352-0	01	1	0808-			●
200	03.675 HOSE; VAC TURBOCHARGER(K51)	8-97207-666-2	01	1	0311-0501	●
200	03.675 HOSE; VAC	8-97352-676-0	01	1	0301-0310		●
200	03.675 HOSE; VAC CHARGE AIR COOLER<6PL>	8-97352-676-0	01	1	0311-0501		●

577 58 676 58 58 681 17 1 676 2 486 707 708 135 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0612-					●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-			●
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0301-0501				●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-					●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512			●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
2	03.670 BOLT; EGR VLV 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0301-0501				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97113-023-0	01	1	0612-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97213-386-0	01	1	0507-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97367-918-0	01	1	0507-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0301-0501				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0301-0501				●
58	03.417 BOLT; PIPE 01.531 (D) M8X20 FLANGE	0-28650-820-0	03	1	0612-					●
58	03.417 BOLT; PIPE (E) M8X23 FLANGE	8-97378-077-0	02	1	0612-					●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512			●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508			●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512			●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-			●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0301-0501				●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0301-0501				●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0612-					●
135	03.680 BRACKET; EGR (A)	8-97310-498-2	01	1	0507-			●
135	03.680 BRACKET; EGR (C)	8-97375-952-0	01	1	0507-			●
135	03.680 BRACKET; EGR (B)	8-97376-723-0	01	1	0507-			●
486	03.671 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-					●
577	03.675 PIPE; AIR,EGR (D)	8-97200-643-2	01	1	0612-					●
577	03.675 PIPE; AIR,EGR (B)	8-98032-795-0	01	1	0512-			●
577	03.675 PIPE; AIR,EGR (B)	8-97310-501-3	01	1	0507-0601			●
577	03.675 PIPE; AIR,EGR (C)	8-97329-211-2	01	1	0507-			●
577	03.675 PIPE; AIR,EGR (A)	8-97148-952-3	01	1	0301-0501				●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	0612-					●
676	03.417 GASKET; PIPE	8-97170-683-0	01	1	0301-0501				●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-					●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-			●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0301-0501				●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	0612-					●
685	03.680 CASE; INLET,EGR	8-97136-372-0	01	1	9512-9606		●
685	03.680 CASE; INLET,EGR	8-97146-873-0	01	1	9607-9711		●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	9712-0212	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	0311-	●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	0612-					●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	0612-					●

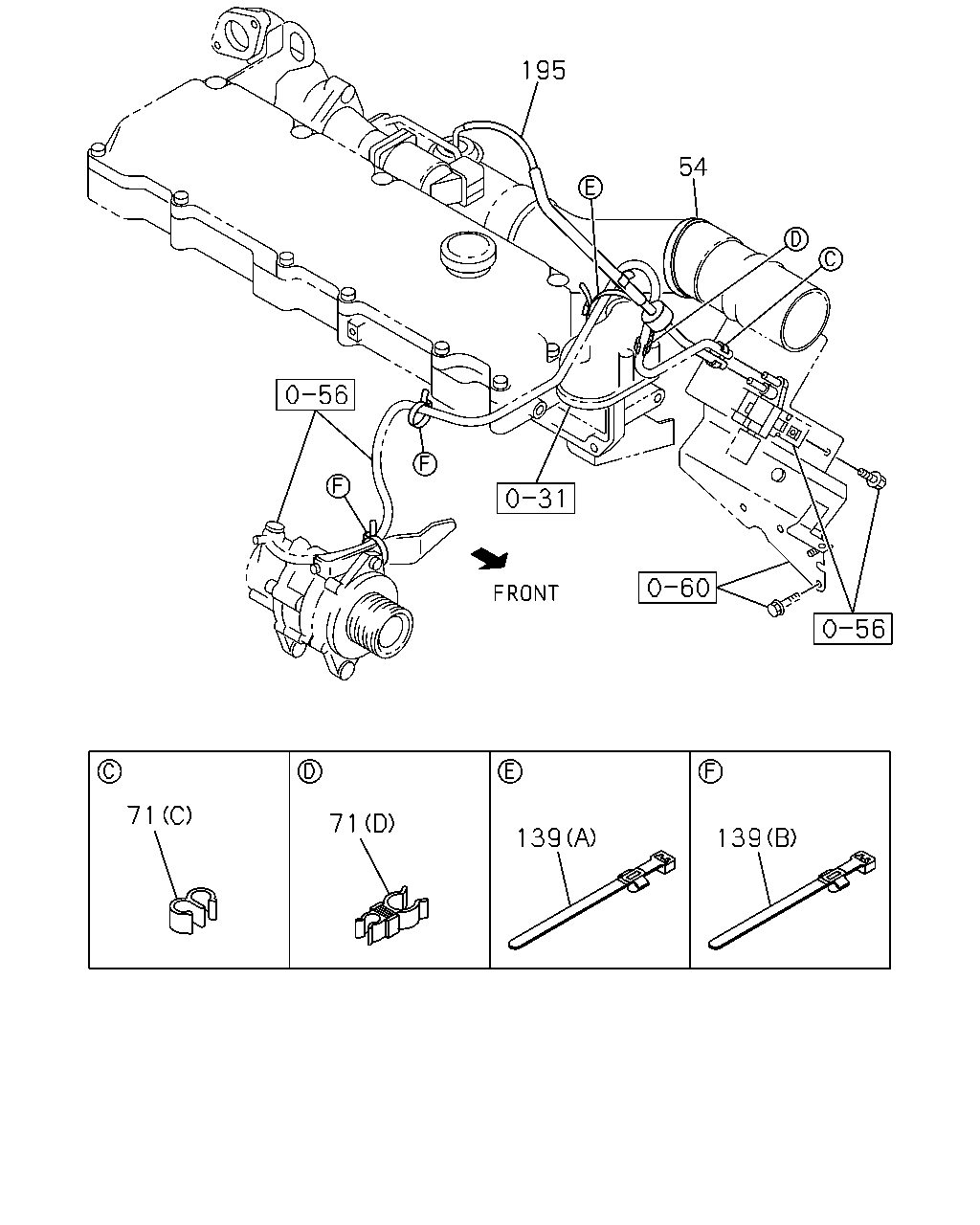

195 54 71 71 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
54	03.680 CLIP; 3 HOSE L=350	8-97373-487-0	01	1	0507-		●
71	03.680 CLIP; RUBBER HOSE 03.886 (C) ID=7.2	8-94163-380-0	01	1	0507-		●
71	03.680 CLIP; RUBBER HOSE 03.162 (D) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-		●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) ID=6.8X2	8-94126-636-0	01	1	0507-	●
71	03.680 CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	0507-	●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0507-		●
139	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0507-		●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0507-		●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0507-		●

12 2 1 16 4 5 58 1 17 58 472 577 135 17 58 270 270 271 135 704 17 17 577 472 135 709 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
1	03.670 VALVE; EGR	8-97115-533-3	01	1	0612-			●
1	03.670 VALVE; EGR	8-97379-625-6	01	1	0507-	●
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0301-0501		●
2	03.670 BOLT; EGR VLV 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0612-			●
2	03.670 BOLT; EGR VLV 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●
2	03.670 BOLT; EGR VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
2	03.670 BOLT; EGR VLV 09.171 M8X80 FLANGE	0-28080-880-0	02	1	0301-0501		●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0507-	●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●
16	03.275 STUD; EGR VLV 01.428 M8X20 L=32	9-04110-820-0	02	1	0507-0604	●
16	03.275 STUD; EGR VLV 02.510 M8X20 L=32	0-41010-820-0	02	1	0605-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97113-023-0	01	1	0612-			●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97213-386-0	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-1005	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-98036-507-0	01	1	1006-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97367-918-0	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0301-0501		●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0301-0501		●
58	03.417 BOLT; PIPE 01.531 (D) M8X20 FLANGE	0-28650-820-0	03	1	0612-			●
58	03.417 BOLT; PIPE (E) M8X23 FLANGE	8-97378-077-0	02	1	0612-			●
58	03.417 BOLT; PIPE 01.540 (C) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512	●
58	03.417 BOLT; PIPE 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508	●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512	●
58	03.417 BOLT; PIPE 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
58	03.417 BOLT; PIPE 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0301-0501		●
58	03.417 BOLT; PIPE 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	0301-0501		●
135	03.680 BRACKET; EGR (D)	8-97221-358-1	01	1	0612-			●
135	03.680 BRACKET; EGR (A)	8-97310-498-2	01	1	0507-	●
135	03.680 BRACKET; EGR (C)	8-97375-952-0	01	1	0507-	●
135	03.680 BRACKET; EGR (B)	8-97376-723-0	01	1	0507-	●
270	03.680 BOLT 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●
270	03.680 BOLT 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
271	03.675 BOLT; BRKT 00.685 M12X45 FLANGE	0-28181-245-0	01	1	0507-0512	●
271	03.675 BOLT; BRKT 00.685 M12X45 FLANGE	0-28151-245-0	01	1	0601-	●
271	03.675 BOLT; BRKT 00.002 M8X25 FLANGE	0-28690-825-0	01	1	0507-0512	●
271	03.675 BOLT; BRKT 02.277 M8X25 FLANGE	0-28660-825-0	01	1	0601-	●
271	03.675 BOLT; BRKT 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0301-0310		●
271	03.675 BOLT; BRKT CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0311-0501		●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-	●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
577	03.675 PIPE; AIR,EGR (D)	8-97200-643-2	01	1	0612-			●
577	03.675 PIPE; AIR,EGR (B)	8-98032-795-0	01	1	0512-	●
577	03.675 PIPE; AIR,EGR (B)	8-97310-501-3	01	1	0507-0601	●
577	03.675 PIPE; AIR,EGR (C)	8-97329-211-2	01	1	0507-	●
577	03.675 PIPE; AIR,EGR (A)	8-97148-952-3	01	1	0301-0501		●
681	03.671 NUT; EGR PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0301-0501		●
704	03.337 COOLER ASM; EGR	8-97310-496-1	01	1	0507-	●
709	03.670 BOLT; EGR COOLER 03.417 M8X23 FLANGE	8-97378-077-0	03	1	0507-	●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0507-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
