0-56 — EMISSION SYSTEM (#43837) — 132 parça

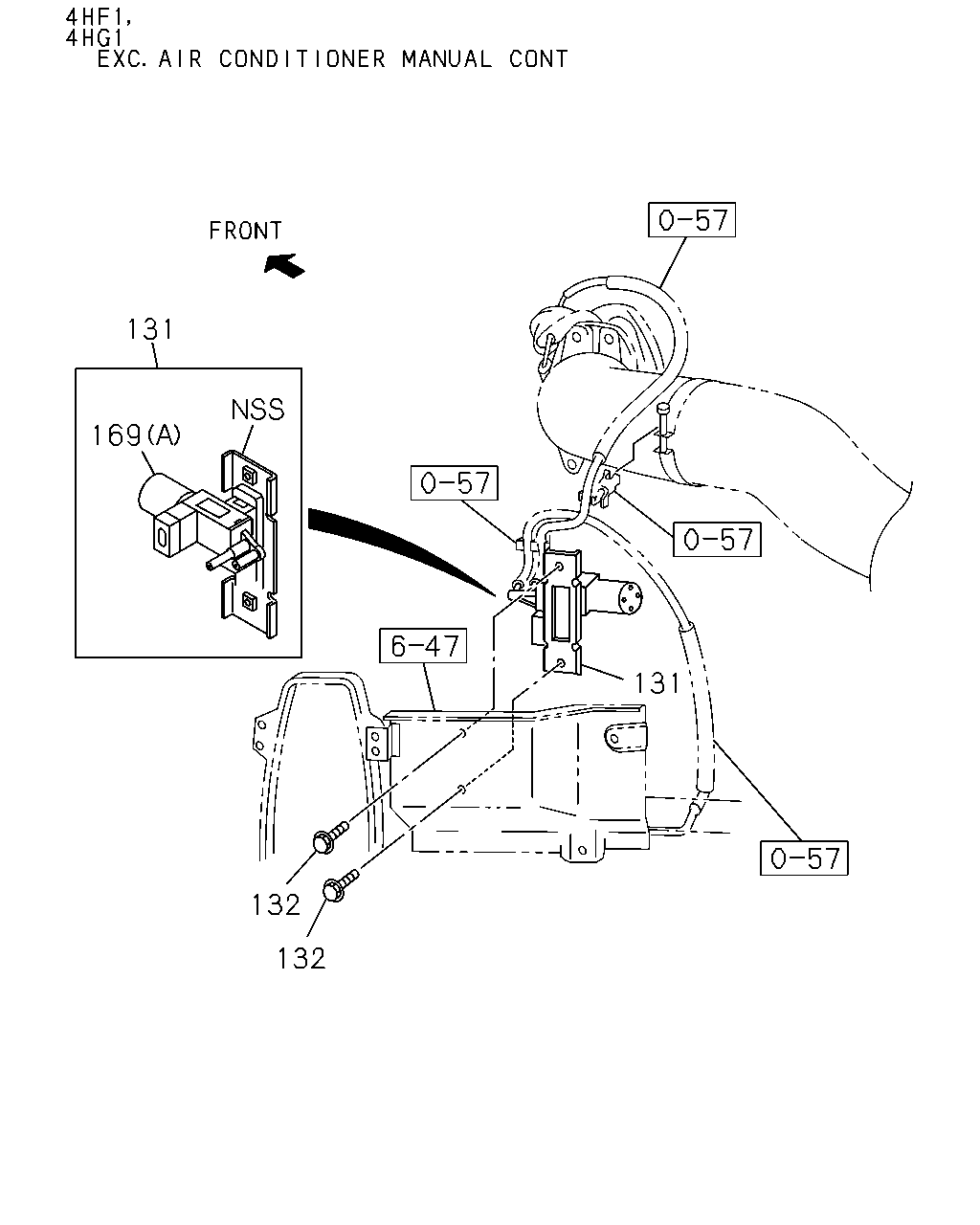

131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0507-0611	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0612-	●
131	03.670 VALVE; VAC SWITCHING	8-97030-324-1	01	1	0612-		●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9412-9711			●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9712-0212	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0301-0310				●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	0502-0506	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-	●
132	03.680 BOLT; VSV BRKT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-0611	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0612-	●	●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9412-9711			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-0212	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0312	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0612-	●
169	03.670 VALVE; VAC SWITCHING (B)	8-97012-878-0	01	1	0612-		●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9412-9511			●
169	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97021-705-1	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0612-	●	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9512-9711			●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9712-0212	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51) (A)	8-97021-705-1	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0502-0506	●

131 131 169 132 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0507-0611	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0612-	●
131	03.670 VALVE; VAC SWITCHING	8-97030-324-1	01	1	0612-		●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9412-9711			●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9712-0212	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0301-0310				●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	0502-0506	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-	●
132	03.680 BOLT; VSV BRKT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-0611	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0612-	●	●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9412-9711			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-0212	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0312	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0612-	●
169	03.670 VALVE; VAC SWITCHING (B)	8-97012-878-0	01	1	0612-		●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9412-9511			●
169	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97021-705-1	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0612-	●	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9512-9711			●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9712-0212	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51) (A)	8-97021-705-1	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0502-0506	●

3 32 2 14 14 349 15 131 1 15 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; VAC SW,EGR	8-97023-544-2	01	1	0301-0310				●
1	03.670 VALVE; VAC SW,EGR CHARGE AIR COOLER<6PL>	8-97023-544-2	01	1	0311-0501				●
2	03.671 BRACKET; VSV	8-97353-534-2	01	1	0301-0310				●
2	03.671 BRACKET; VSV CHARGE AIR COOLER<6PL>	8-97353-534-2	01	1	0311-0501				●
3	03.670 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0301-0310				●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	02	1	0311-0501				●
3	03.670 BOLT; VSV 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0301-0310				●
3	03.670 BOLT; VSV CHARGE AIR COOLER<6PL> 09.655 M5X8 W/LK WASHER	9-03910-508-0	03	1	0311-0501				●
14	03.670 VALVE; VAC SW (A)	8-97023-543-2	01	1	0301-0310				●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-2	01	1	0311-0501				●
14	03.670 VALVE; VAC SW (B)	8-97023-544-2	01	1	0301-0310				●
14	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (B)	8-97023-544-2	01	1	0311-0501				●
15	03.670 VALVE; VAC SW (A)	8-97023-543-2	01	1	0301-0310				●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (A)	8-97023-543-2	01	1	0311-0501				●
15	03.670 VALVE; VAC SW (B)	8-97184-183-0	01	1	0301-0310				●
15	03.670 VALVE; VAC SW CHARGE AIR COOLER<6PL> (B)	8-97184-183-0	01	1	0311-0501				●
32	03.680 CLIP; EGR HOSE 03.162	8-94253-984-0	01	1	0301-0310				●
32	03.680 CLIP; EGR HOSE CHARGE AIR COOLER<6PL> 03.162	8-94253-984-0	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0507-0611	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0612-	●
131	03.670 VALVE; VAC SWITCHING	8-97030-324-1	01	1	0612-		●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9412-9711			●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9712-0212	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0301-0310				●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	0502-0506	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-	●
182	03.670 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0301-0310				●
182	03.670 BOLT; VLV CHARGE AIR COOLER<6PL> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0311-0501				●
349	03.671 BOLT; CASE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0301-0310				●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0311-0501				●
349	03.671 BOLT; CASE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0301-0310				●
349	03.671 BOLT; CASE CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0311-0501				●

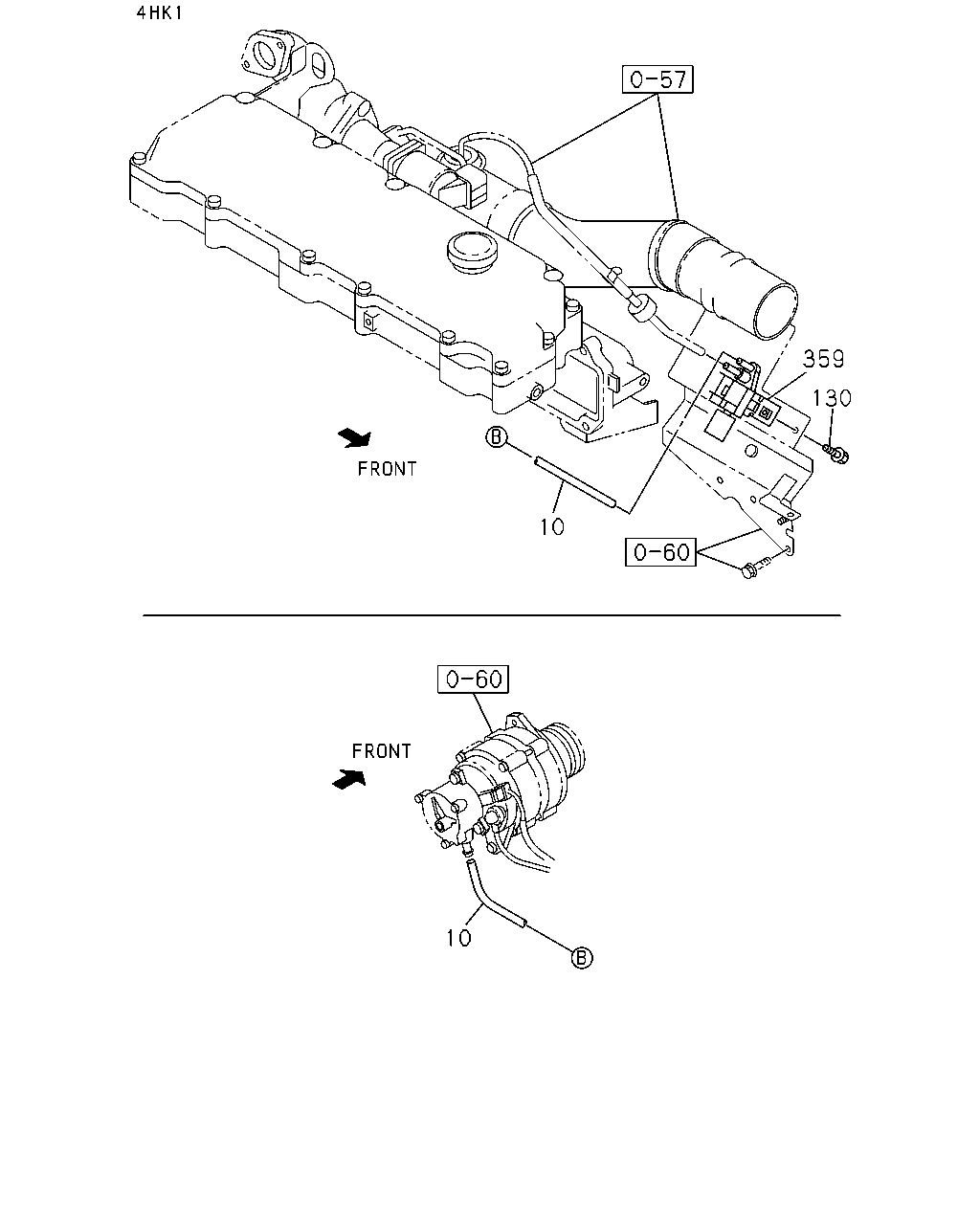

359 130 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	E
10	03.675 HOSE; RUBBER,PUMP TO VSV	8-97374-116-0	01	1	0507-	●
130	03.671 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0507-0512	●
130	03.671 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-	●
359	03.670 VALVE; VAC SWITCHING,I/THROTTLE	8-97116-759-0	01	1	0507-	●

131 169 131 132 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0507-0611	●
131	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60)	8-97030-324-1	01	1	0612-	●
131	03.670 VALVE; VAC SWITCHING	8-97030-324-1	01	1	0612-		●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9412-9711			●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	9712-0212	●
131	03.670 VALVE; VAC SWITCHING	8-97184-200-2	01	1	0301-0310				●
131	03.670 VALVE; VAC SWITCHING CHARGE AIR COOLER<6PL>	8-97184-200-2	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501	●
131	03.670 VALVE; VAC SWITCHING EXC. CHARGE AIR COOLER<6PL>	8-97116-759-0	01	1	0311-0501				●
131	03.670 VALVE; VAC SWITCHING	8-97116-759-0	01	1	0502-0506	●
131	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97116-759-0	01	1	0507-	●
132	03.680 BOLT; VSV BRKT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0502-0507	●
132	03.680 BOLT; VSV BRKT 02.334 M6X25 FLANGE	0-28680-625-0	02	1	0508-0512	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0601-0611	●
132	03.680 BOLT; VSV BRKT 00.685 M6X25 FLANGE	0-28650-625-0	02	1	0612-	●	●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9412-9711			●
132	03.680 BOLT; VSV BRKT 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-0212	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0312	●
132	03.680 BOLT; VSV BRKT TURBOCHARGER(K51) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0401-0501	●			●
132	03.680 BOLT; VSV BRKT EXC. TURBOCHARGER(K51),CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-97012-878-0	01	1	0612-	●
169	03.670 VALVE; VAC SWITCHING (B)	8-97012-878-0	01	1	0612-		●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9412-9511			●
169	03.670 VALVE; VAC SWITCHING EXC. AIR CONDITIONER MANUAL CONT(C60) (A)	8-97021-705-1	01	1	0507-0611	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0612-	●	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9512-9711			●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	9712-0212	●
169	03.670 VALVE; VAC SWITCHING TURBOCHARGER(K51) (A)	8-97012-878-0	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING EXC. TURBOCHARGER(K51) (A)	8-97021-705-1	01	1	0311-0501	●
169	03.670 VALVE; VAC SWITCHING (A)	8-97021-705-1	01	1	0502-0506	●
