Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#43836) — 356 parça

3 3 2 3 63 3 3 3 3 3 3 2 2 1 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-3	01	1	0612-	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9503-9711		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	9712-0212			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0301-0501				●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0311-			●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X40 FLANGE	8-97182-847-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (A) M10X24	9-09906-205-1	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9503-9711		●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9712-0212			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	0301-0501				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0311-0805			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0611					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0612-1101	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-0212			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0311-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0301-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0301-0501				●

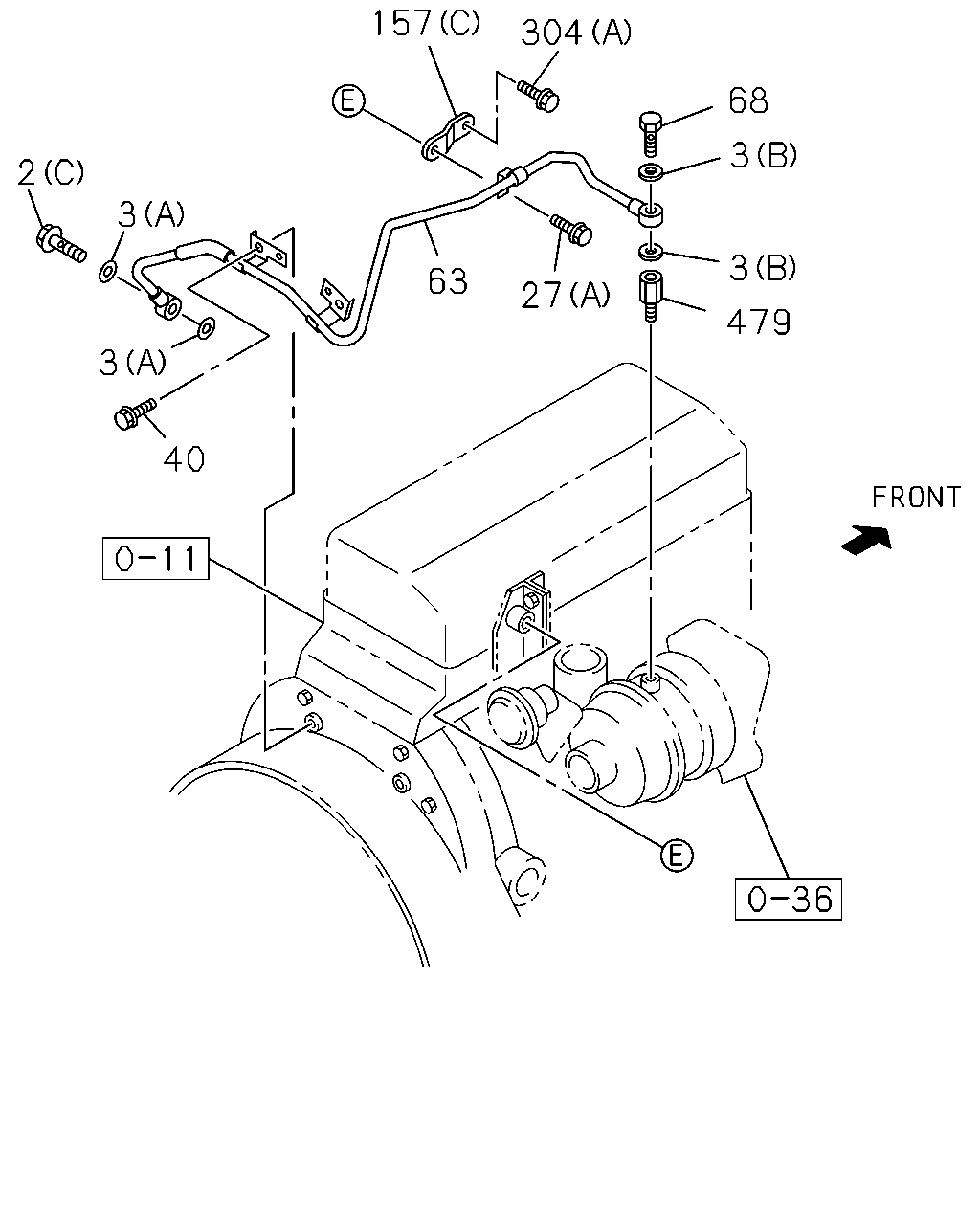

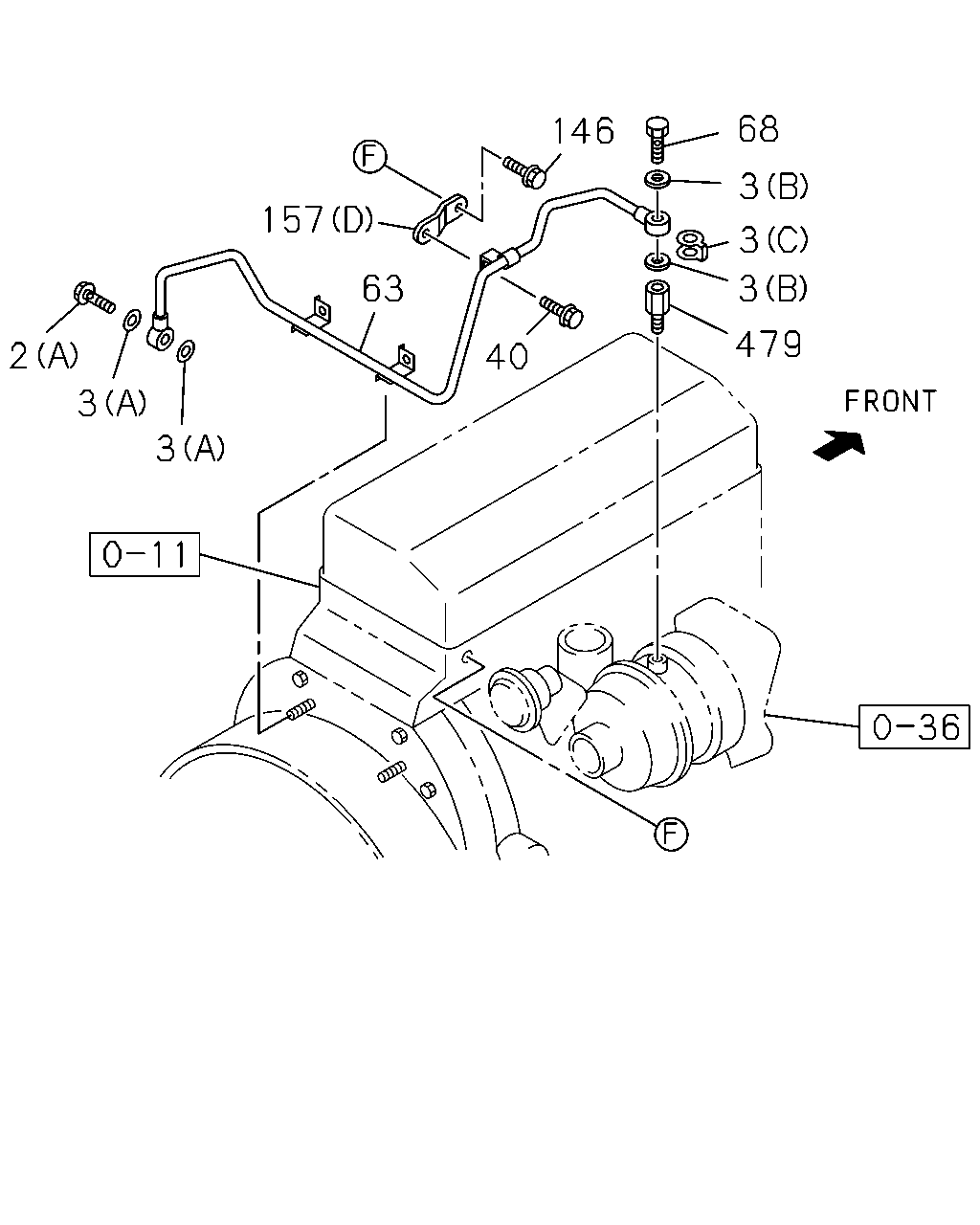

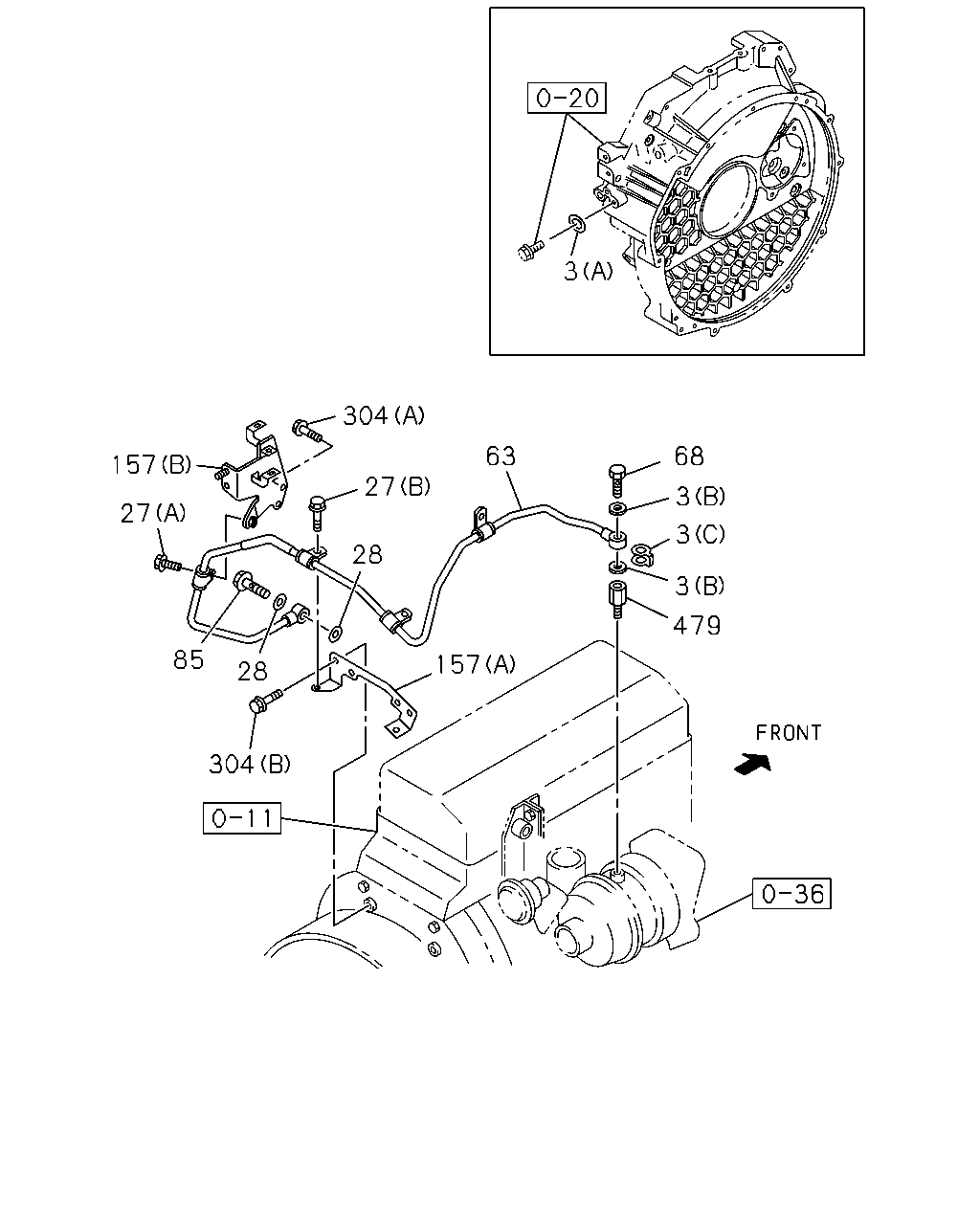

68 146 3 157 3 63 3 479 2 40 3 3 11 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X40 FLANGE	8-97182-847-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (A) M10X24	9-09906-205-1	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9503-9711		●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9712-0212			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	0301-0501				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0311-0805			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0611					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0612-1101	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-0212			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0311-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0301-0501				●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
40	01.531 BOLT; OIL PIPE 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0301-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0301-0501				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0611					●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0612-	●				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0301-0501				●
146	01.531 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE (D)	8-97181-586-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE (B)	8-97354-805-1	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (A)	8-97376-118-0	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0301-0501				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0611					●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0612-	●				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0301-0501				●

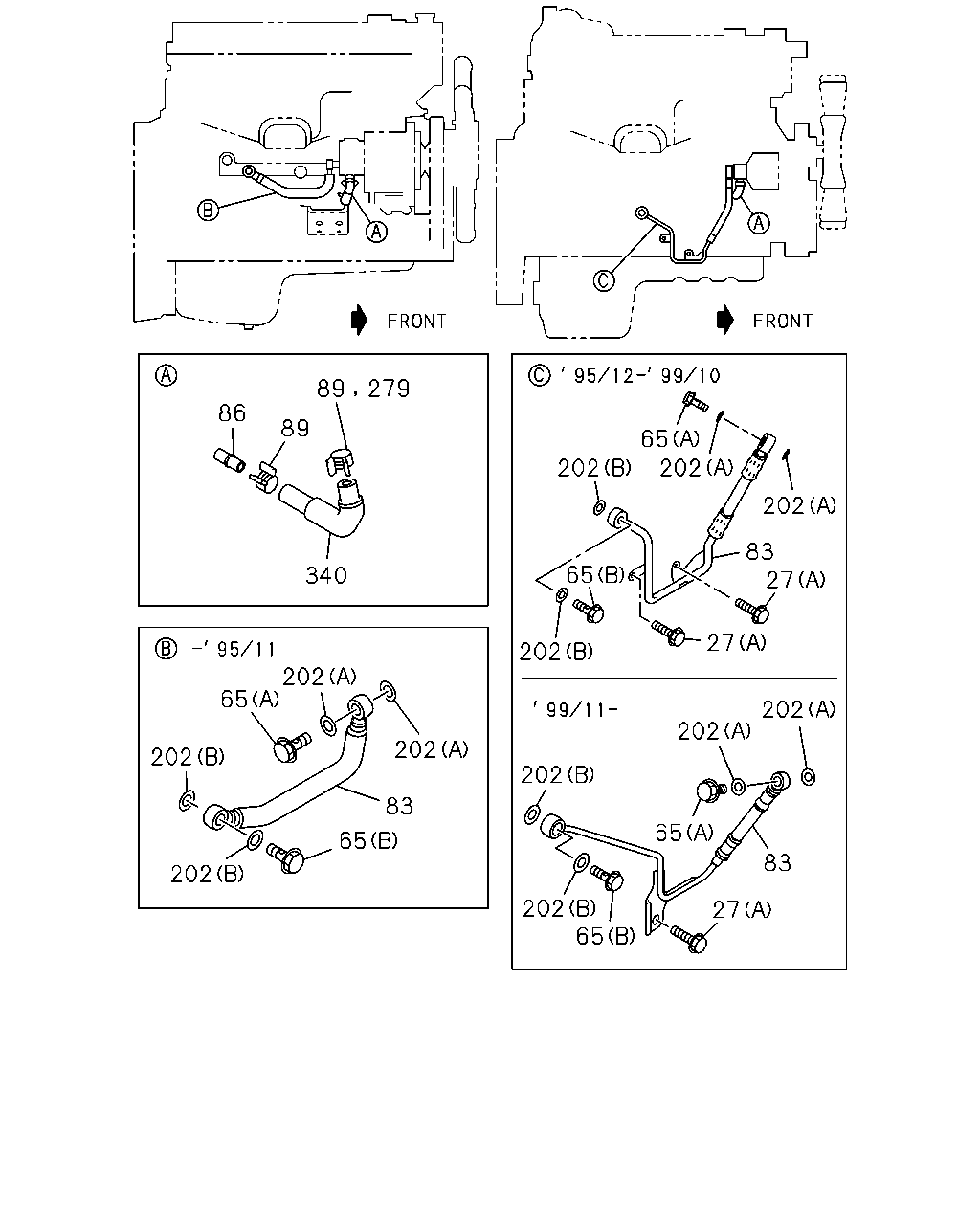

86 89 65 202 202 202 83 27 65 340 27 202 202 65 202 202 202 202 202 83 65 65 83 202 202 65 27 89 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
27	01.531 BOLT; OIL PIPE FIX 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9512-9711		●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9806-0212			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501			●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9503-9711		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9712-0212			●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0301-0310				●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0311-0501			●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0502-0506			●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0507-0611			●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0612-0805	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9503-9711		●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9712-9805			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	9806-0212			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0301-0310				●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0311-0501			●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0502-0506			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0507-0611			●		●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0612-	●		●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97029-287-1	01	1	9503-9511		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9512-9711		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9712-9910			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-670-0	01	1	9911-0212			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0301-0310				●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0311-0501			●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0502-0506			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0507-0611			●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0612-	●		●		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9503-9711		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9712-0212			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0301-0310				●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0311-0501			●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0502-0506			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0507-0611			●		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0612-	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9503-9511		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9512-9711		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9512-9711		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-0212			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-0212			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0301-0310				●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0301-0310				●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0311-0501			●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0311-0501			●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0502			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0502			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0506			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0507-0507			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0611			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0611			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0612-	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0612-	●		●		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9503-9711		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-0212			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0301-0310				●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0311-0501			●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0502-0506			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0611			●		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-	●		●		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9503-9711		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-0212			●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0301-0310				●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0501			●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0506			●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0611			●		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●		●		●
279	01.750 CLIP; RUBBER HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9503-9511		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	9503-9711		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	9712-0212			●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0301-0310				●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0311-0501			●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0502-0506			●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0507-0611			●		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0612-	●		●		●

86 202 89 65 89 202 202 83 340 202 65 27 63 3 3 3 3 3 2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-3	01	1	0612-	●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-0	01	1	9503-9711		●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	9712-0212			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97314-008-0	01	1	0301-0501				●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	0311-			●
2	01.531 BOLT; EYE,OIL PIPE (B) M10X40 FLANGE	8-97182-847-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (A) M10X24	9-09906-205-1	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9503-9711		●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9712-0212			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	0301-0501				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0311-0805			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0611					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0612-1101	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-0212			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0311-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0301-0501				●
27	01.531 BOLT; OIL PIPE FIX 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9512-9711		●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9806-0212			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501			●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●		●		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0301-0501				●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9503-9711		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	9712-0212			●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0301-0310				●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0311-0501			●	●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0502-0506			●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0507-0611			●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	1-09675-078-0	01	1	0612-0805	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (A) M10X21 FLANGE	8-97372-239-0	01	1	0806-	●		●		●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9503-9711		●
65	01.531 BOLT; JOINT,OIL PIPE (B) M14X33 FLANGE	1-09675-088-0	01	1	9712-9805			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	9806-0212			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0301-0310				●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0311-0501			●	●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0502-0506			●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0507-0611			●		●
65	01.531 BOLT; JOINT,OIL PIPE 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	0612-	●		●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97029-287-1	01	1	9503-9511		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9512-9711		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97139-538-0	01	1	9712-9910			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-670-0	01	1	9911-0212			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0301-0310				●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0311-0501			●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0502-0506			●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0507-0611			●		●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	0612-	●		●		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9503-9711		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	9712-0212			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0301-0310				●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0311-0501			●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0502-0506			●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0507-0611			●		●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	0612-	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9503-9511		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9512-9711		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9512-9711		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-0212			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	9712-0212			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0301-0310				●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0301-0310				●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0311-0501			●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0311-0501			●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0502			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0502			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0502-0506			●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0507-0507			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0611			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0508-0611			●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0612-	●		●		●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	0612-	●		●		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9503-9711		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9712-0212			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0301-0310				●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0311-0501			●	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0502-0506			●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0611			●		●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0612-	●		●		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9503-9711		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9712-0212			●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0301-0310				●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0501			●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-0506			●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-0611			●		●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●		●		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	9503-9711		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	9712-0212			●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0301-0310				●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0311-0501			●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0502-0506			●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0507-0611			●		●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	0612-	●		●		●

157 304 68 3 2 3 3 63 27 479 3 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	01.531 BOLT; EYE,OIL PIPE (B) M10X40 FLANGE	8-97182-847-0	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (A) M10X24	9-09906-205-1	01	1	0612-	●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9503-9711		●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9712-0212			●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X40 FLANGE	8-97182-847-0	01	1	0301-0501				●
2	01.531 BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0311-0805			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-			●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (B) M10X24	9-09906-205-1	01	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0611					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0612-1101	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-0212			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0311-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0301-0501				●
27	01.531 BOLT; OIL PIPE FIX 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9512-9711		●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9806-0212			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501			●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●		●		●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
40	01.531 BOLT; OIL PIPE 03.604 M10X16 FLANGE	0-28181-016-0	02	1	0301-0501				●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0301-0501				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0611					●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0612-	●				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0301-0501				●
157	01.519 BRACKET; OIL PIPE (D)	8-97181-586-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE (B)	8-97354-805-1	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (A)	8-97376-118-0	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0301-0501				●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
304	01.540 BOLT; BRKT,OIL PIPE 03.604 (B) M10X16 FLANGE	0-28181-016-0	02	1	0507-0512					●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-					●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0501				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0611					●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0612-	●				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0301-0501				●

20 3 304 63 68 157 27 3 27 3 28 3 479 85 157 28 304 11 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0612-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0507-0611					●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0612-1101	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.6	8-97331-137-1	01	1	1102-	●				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9503-9711		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9712-0212			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	05	1	0301-0501				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0311-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=12.2	9-09571-412-0	02	1	0301-0501				●
27	01.531 BOLT; OIL PIPE FIX 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (B) M8X12 FLANGE	0-28050-812-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9512-9711		●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9712-9805			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9806-0212			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0310				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501			●	●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0311-0501				●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0502-0506			●
27	01.531 BOLT; OIL PIPE FIX 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-0611			●		●
27	01.531 BOLT; OIL PIPE FIX 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●		●		●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97372-936-2	01	1	0612-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97385-207-0	01	1	0507-					●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97214-394-0	01	1	0301-0501				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0507-0611					●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	0612-	●				●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-0	01	1	0301-0501				●
85	01.531 BOLT; EYE,OIL PIPE FIX 03.330 M10X28 FLANGE	8-97149-995-0	01	1	0507-0710					●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X28	8-98037-823-0	01	1	0711-					●
157	01.519 BRACKET; OIL PIPE (D)	8-97181-586-0	01	1	0612-	●
157	01.519 BRACKET; OIL PIPE (B)	8-97354-805-1	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (A)	8-97376-118-0	01	1	0507-					●
157	01.519 BRACKET; OIL PIPE (C)	8-97181-586-0	01	1	0301-0501				●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512					●
304	01.540 BOLT; BRKT,OIL PIPE 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-					●
304	01.540 BOLT; BRKT,OIL PIPE 03.604 (B) M10X16 FLANGE	0-28181-016-0	02	1	0507-0512					●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (B) M10X16 FLANGE	0-28151-016-0	02	1	0601-					●
304	01.540 BOLT; BRKT,OIL PIPE 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0501				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0507-0611					●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0612-	●				●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	0301-0501				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
