Sayfa 0-42 - Isuzu EPC

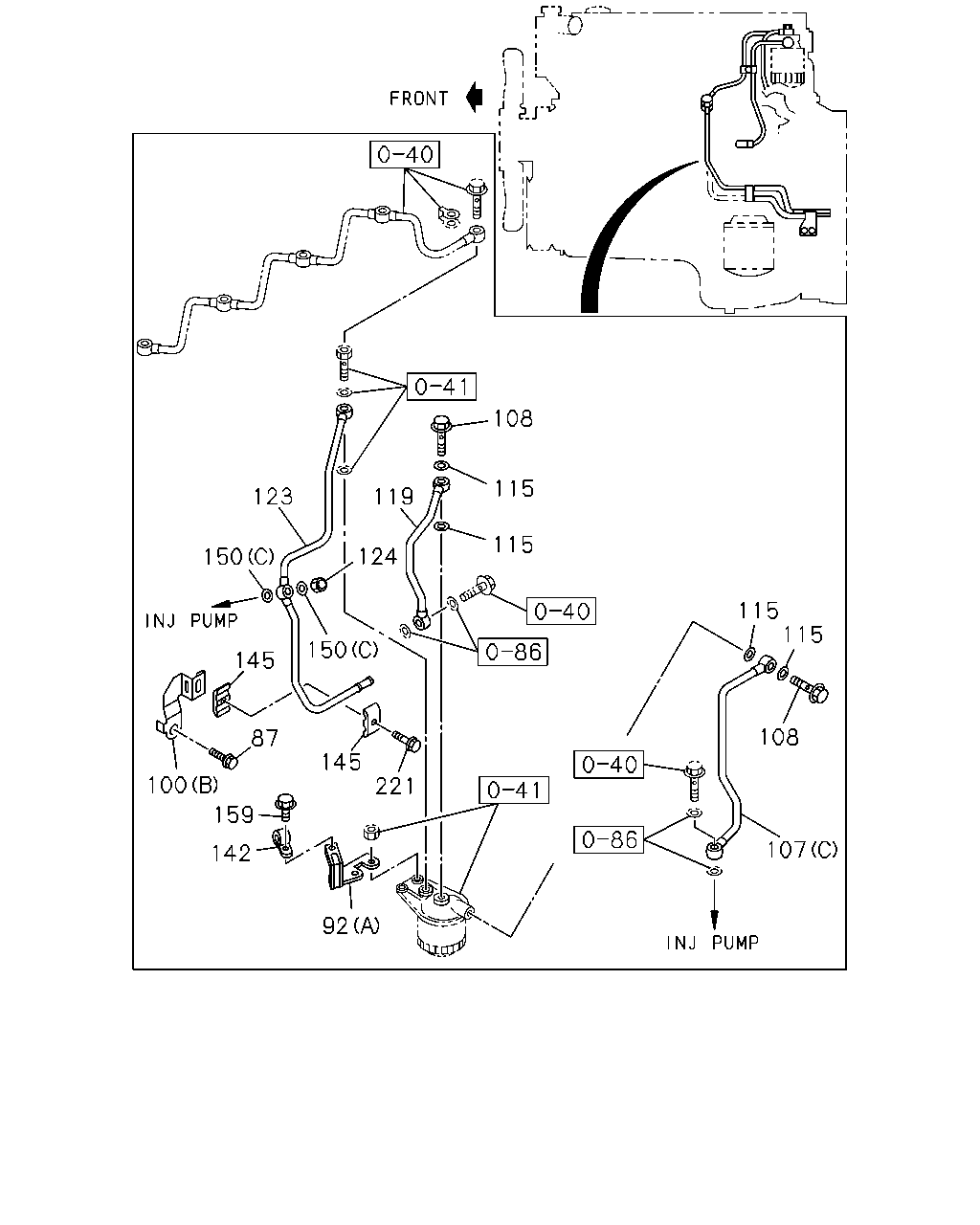

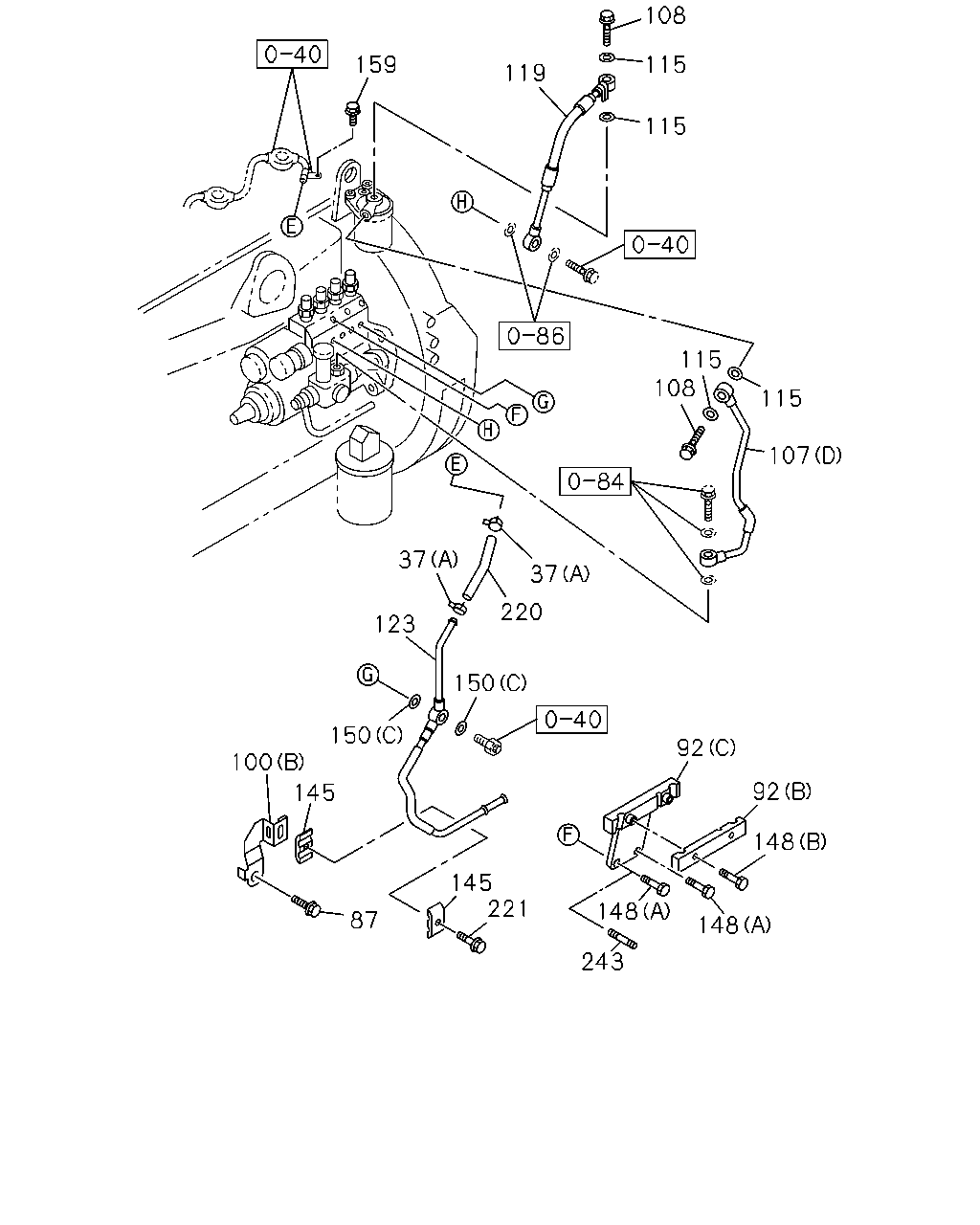

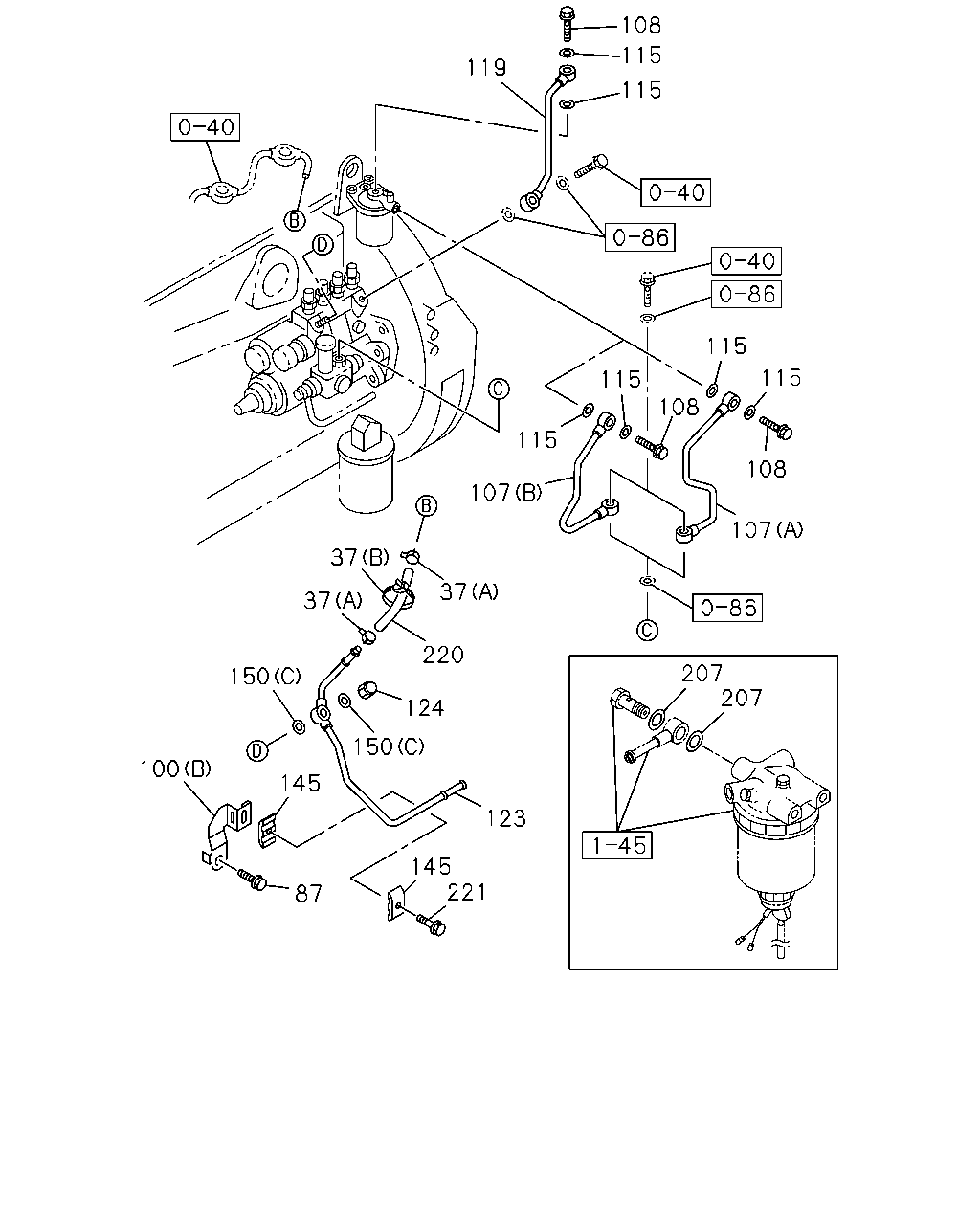

0-42 — FUEL PUMP AND PIPE (#43833) — 300 parça

108 115 119 115 115 115 115 108 115 108 107 107 37 37 37 220 207 207 150 124 150 100 145 123 145 221 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0612-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9512-9711		●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9712-0212			●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0301-0310				●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0311-0501			●	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0502-0611			●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0612-	●		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9503-9711		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-0212			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0301-0310				●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0311-0501			●	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0611			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9503-9511		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-0212			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0301-0310				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0311-0501			●	●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0502-0611			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0612-	●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	0612-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (C)	8-97080-924-0	01	1	9503-9511		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9512-9711		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9712-0212			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (D)	8-97148-967-3	01	1	0301-0501				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	0311-			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-9711		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-0212			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0301-0310				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0311-0501			●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0502-0611			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0612-	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9711		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0301-0310				●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-0501			●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-0611			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0612-	●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	0612-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9503-9511		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9512-9711		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-0212			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97357-237-0	01	1	0301-0501				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	0311-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0612-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9503-9511		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9512-9711		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-0212			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0301-0501				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	0311-			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9711		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-0212			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0311-0611			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0612-	●		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-9711		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9712-0212			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0301-0310				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0311-0501			●	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0502-0611			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	0612-	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0908					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9711		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-0212			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0310				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0311-0501			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-0611			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-	●		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9412-9511		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-			●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9512-9711		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212			●
207	03.890 GASKET; EYE BOLT EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-0501			●
220	03.163 HOSE; FUEL	8-97208-874-0	01	1	0612-	●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9512-9711		●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9712-9912			●
220	03.163 HOSE; FUEL L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0212			●
220	03.163 HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0501				●
220	03.163 HOSE; FUEL L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0311-			●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-					●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-0212			●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0301-0310				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0311-0501			●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0502-0512			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-0611			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0612-	●		●

100 101 99 207 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
99	03.162 CLIP; "A",FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	01	1	9503-9511		●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9503-9511		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-0212			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0301-0310				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0311-0501			●	●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0502-0611			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0612-	●		●
101	03.162 BOLT; FUEL CLIP 04.686 M6X25 FLANGE	0-28080-625-0	01	1	9503-9511		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9412-9511		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-			●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9512-9711		●
207	03.890 GASKET; EYE BOLT 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212			●
207	03.890 GASKET; EYE BOLT EXC. TURBOCHARGER(K51),ENGINE POWER N-SPEC(7QV) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-0501			●

108 159 115 119 115 115 108 115 107 37 37 220 123 150 150 92 100 92 145 148 145 221 148 87 148 243

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
37	03.162 CLIP; FUEL HOSE (B) L=140	5-09707-031-1	01	1	0612-	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9512-9711		●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	9712-0212			●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0301-0310				●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0311-0501			●	●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0502-0611			●
37	03.162 CLIP; FUEL HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0612-	●		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9503-9711		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-0212			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0301-0310				●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0311-0501			●	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0611			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●		●
92	03.162 BRACKET; FUEL PIPE (A)	8-97085-387-2	01	1	9503-9511		●
92	03.162 BRACKET; FUEL PIPE (C)	8-97166-995-1	01	1	0301-0501				●
92	03.162 BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0301-0501				●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9503-9511		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-0212			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0301-0310				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0311-0501			●	●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0502-0611			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0612-	●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	0612-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (C)	8-97080-924-0	01	1	9503-9511		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9512-9711		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9712-0212			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (D)	8-97148-967-3	01	1	0301-0501				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	0311-			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-9711		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-0212			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0301-0310				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0311-0501			●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0502-0611			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0612-	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9711		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0301-0310				●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-0501			●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-0611			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0612-	●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	0612-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9503-9511		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9512-9711		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-0212			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97357-237-0	01	1	0301-0501				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	0311-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0612-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9503-9511		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9512-9711		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-0212			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0301-0501				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	0311-			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-9711		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9712-0212			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0301-0310				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0311-0501			●	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0502-0611			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	0612-	●		●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0301-0303				●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	0304-0403				●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	02	1	0404-0501				●
148	03.162 BOLT; BRKT 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0301-0501				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0908					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9711		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-0212			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0310				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0311-0501			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-0611			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-	●		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512					●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9503-9511		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0301-0501				●
220	03.163 HOSE; FUEL	8-97208-874-0	01	1	0612-	●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9512-9711		●
220	03.163 HOSE; FUEL L=280 SERVICED BY L=3000	0-01256-300-0	01	1	9712-9912			●
220	03.163 HOSE; FUEL L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0001-0212			●
220	03.163 HOSE; FUEL L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0301-0501				●
220	03.163 HOSE; FUEL L=270 SERVICED BY L=3000	0-01256-300-0	01	1	0311-			●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-					●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-0212			●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0301-0310				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0311-0501			●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0502-0512			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-0611			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0612-	●		●
243	03.278 STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0304-0403				●

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
144	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602					●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0908					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9711		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-0212			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0310				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0311-0501			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-0611			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-	●		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512					●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9503-9511		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0301-0501				●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-					●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-0212			●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0301-0310				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0311-0501			●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0502-0512			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-0611			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0612-	●		●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0507-					●
325	03.278 STUD; CLIP 01.453 M6X40 L=50	9-04110-640-0	01	1	0507-0604					●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-					●

108 115 123 119 115 124 150 115 115 150 145 108 87 145 100 221 159 107 142 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9503-9711		●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-0212			●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0301-0310				●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0311-0501			●	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0502-0512			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0611			●
87	03.162 BOLT; STAY,FUEL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●		●
92	03.162 BRACKET; FUEL PIPE (A)	8-97085-387-2	01	1	9503-9511		●
92	03.162 BRACKET; FUEL PIPE (C)	8-97166-995-1	01	1	0301-0501				●
92	03.162 BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0301-0501				●
100	03.162 CLIP; "B",FUEL PIPE 03.330 (A) ID=6.1 & 9.6	8-97016-322-0	01	1	9503-9511		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9503-9711		●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	9712-0212			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0301-0310				●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0311-0501			●	●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0502-0611			●
100	03.162 CLIP; "B",FUEL PIPE (B)	8-97108-315-0	01	1	0612-	●		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (B)	8-97210-721-1	01	1	0612-	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (C)	8-97080-924-0	01	1	9503-9511		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9512-9711		●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	9712-0212			●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (D)	8-97148-967-3	01	1	0301-0501				●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL (A)	8-97088-046-3	01	1	0311-			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9503-9711		●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	9712-0212			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0301-0310				●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0311-0501			●	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0502-0611			●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0612-	●		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9503-9711		●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	9712-0212			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0301-0310				●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0311-0501			●	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0502-0611			●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0612-	●		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97211-323-1	01	1	0612-	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97080-925-1	01	1	9503-9511		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9512-9711		●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	9712-0212			●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97357-237-0	01	1	0301-0501				●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97088-047-0	01	1	0311-			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97223-179-0	01	1	0612-	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97070-345-3	01	1	9503-9511		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9512-9711		●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	9712-0212			●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0301-0501				●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97118-894-1	01	1	0311-			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9503-9711		●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9712-0212			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0311-0611			●
124	03.162 NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0612-	●		●
142	03.162 CLIP; FUEL PIPE 03.145 ID=7 L=16	9-09524-622-0	01	1	9503-9511		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9503-9711		●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	9712-0212			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0301-0310				●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0311-0501			●	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0502-0611			●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-1	02	1	0612-	●		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0908					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-					●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9503-9711		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	9712-0212			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0301-0310				●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0311-0501			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0502-0611			●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0612-	●		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512					●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-					●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9503-9511		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0301-0501				●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-					●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9503-9711		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	9712-0212			●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0301-0310				●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0311-0501			●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0502-0512			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0601-0611			●
221	03.163 BOLT; FUEL PIPE 00.685 M6X40 FLANGE	0-28650-640-0	01	1	0612-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
