0-41 — FUEL FILTER AND BRACKET (#43832) — 128 parça

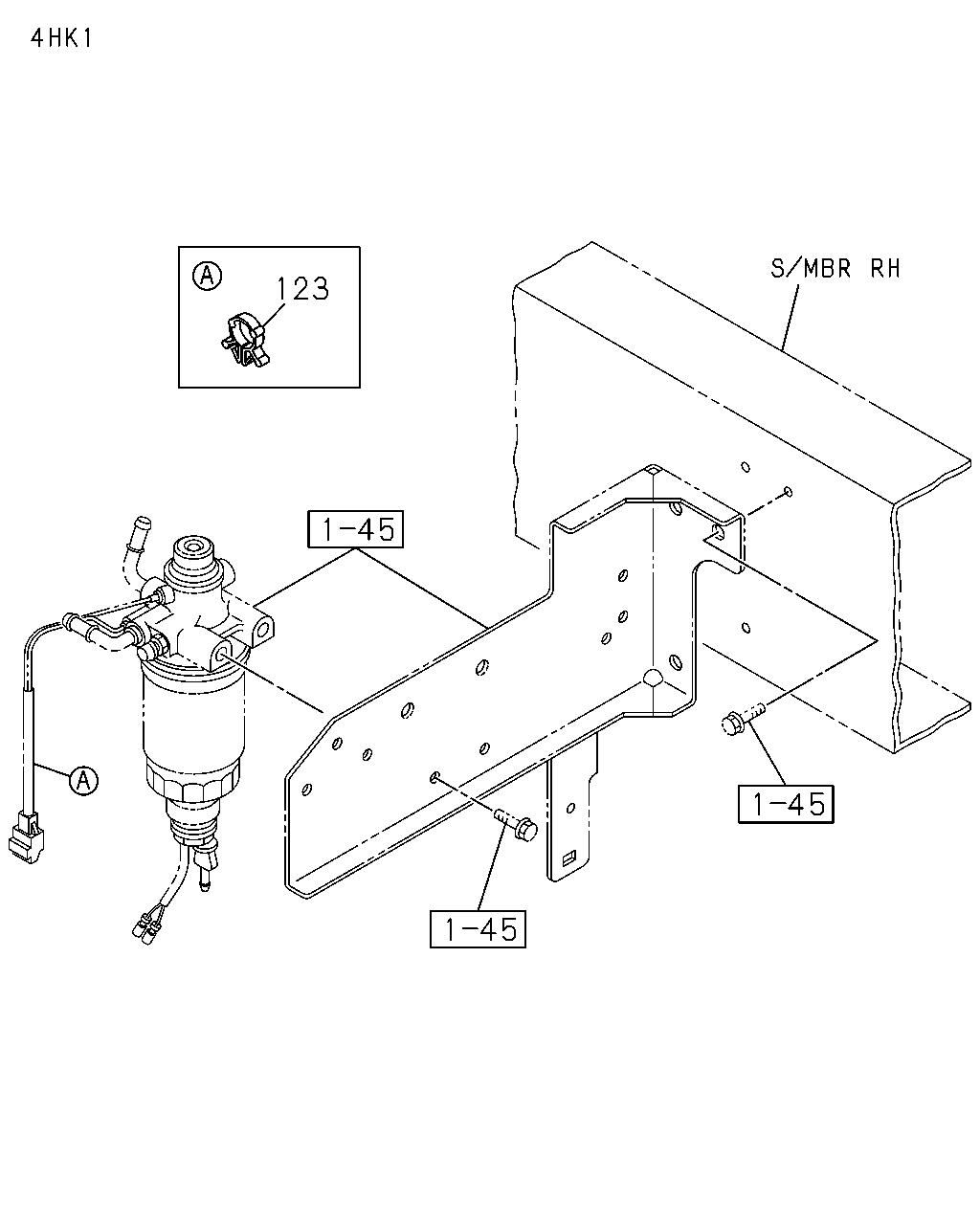

123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	123	03.890 CLIP; HARNESS ID=4.8	1-09701-218-0	01	1	0507-0508	●
	123	03.890 CLIP; HARNESS 02.559 ID=9	8-97063-874-0	01	1	0507-	●

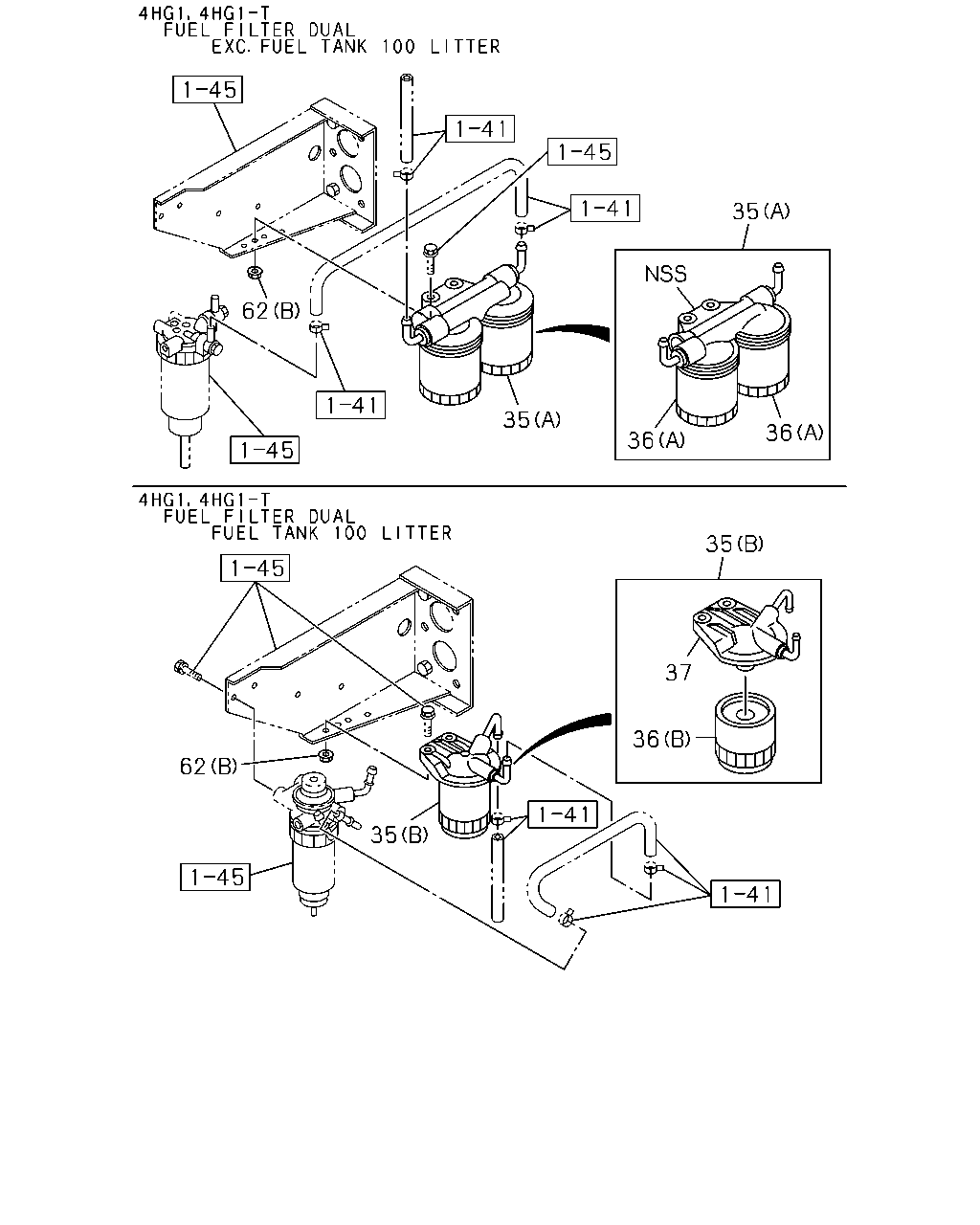

35 62 35 36 36 35 37 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A)	8-97070-864-0	01	1	0507-0611	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> (A)	8-97070-864-0	01	1	0612-	●	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-97070-865-0	01	1	0502-0505	●
35	03.890 FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0506-0506	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0507-0611	●
35	03.890 FILTER ASM; SUB FUEL FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (B)	8-98006-454-0	01	1	0612-	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 01.836 (A)	8-94144-613-0	02	1	0507-0611	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) EXC. FUEL TANK 100 LITTER<N02> 01.836 (A)	8-94144-613-0	02	1	0612-	●	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-94246-908-0	01	1	0502-0505	●
36	03.890 ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0506-0506	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0507-0611	●
36	03.890 ELEMENT; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B) (B)	8-97916-993-2	01	1	0612-	●	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97363-518-0	01	1	0502-0505	●
37	03.890 COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0506-0506	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0507-0611	●
37	03.890 COVER; FUEL FILTER FUEL TANK 100 LITTER<N02> FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0612-	●	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9503-9711			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-0212	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0301-0310				●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0311-0501	●			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (B) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0603-0611	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0612-	●	●

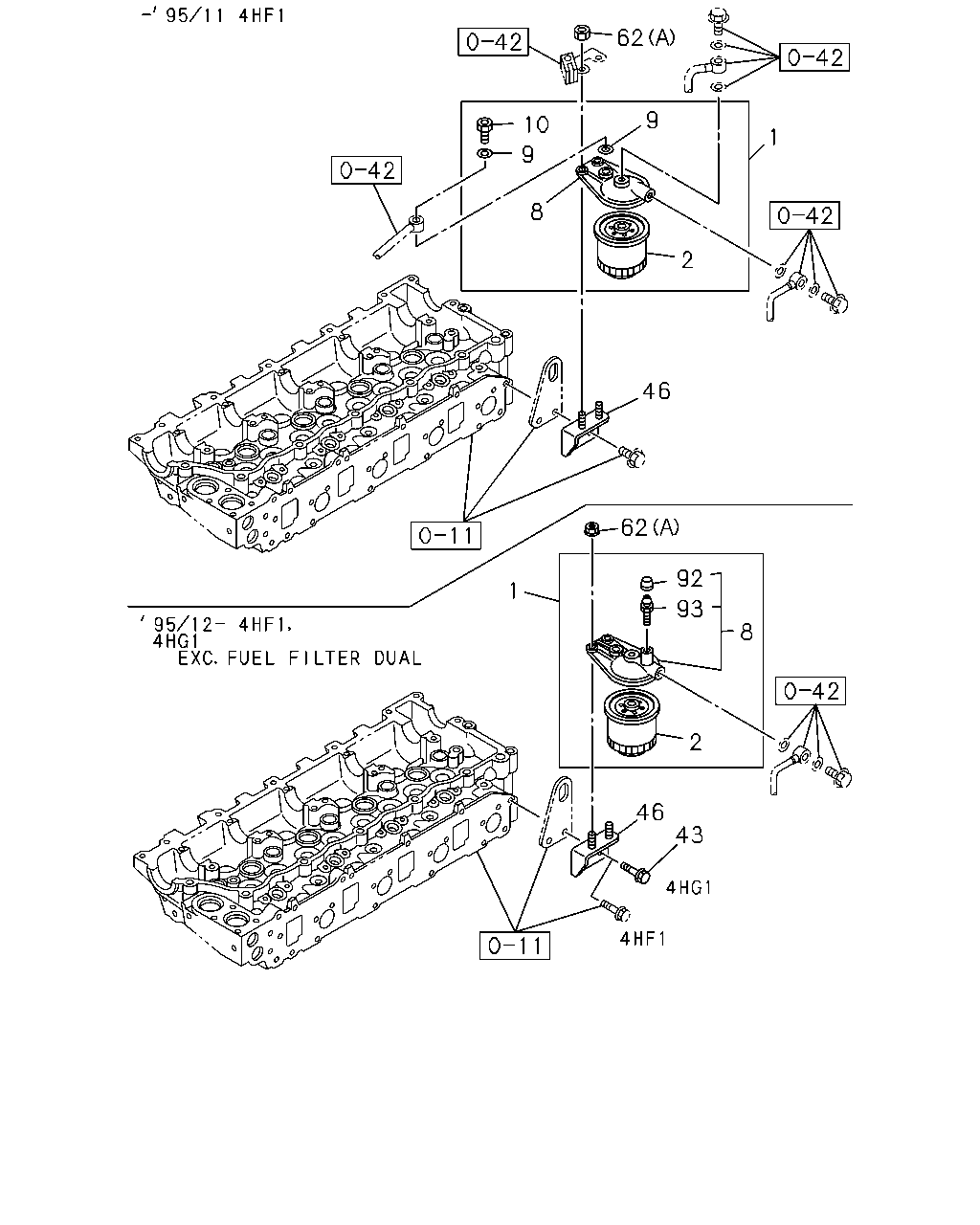

62 9 10 1 9 8 2 46 62 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9503-9511			●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9512-9702			●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9712-0212	●
1	03.890 FILTER ASM; FUEL	1-13200-890-3	01	1	0301-0501				●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0311-0611	●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0612-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9503-9511			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9512-9702			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9711			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9712-0212	●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0301-0501				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0311-0611	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0612-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9511			●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9512-9702			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-0212	●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0301-0501				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0311-0611	●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0612-	●	●
9	03.890 GASKET; EYE JOINT 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9503-9511			●
10	03.890 VALVE; OVERFLOW,FUEL FILTER 03.164	9-13260-056-2	01	1	9503-9511			●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9712-0212	●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0301-0501				●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0311-0611	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0612-	●	●
46	03.890 BRACKET	8-97061-452-0	01	1	0612-		●
46	03.890 BRACKET	8-94313-323-1	01	1	9503-9711			●
46	03.890 BRACKET	8-94313-323-1	01	1	9712-0212	●
46	03.890 BRACKET	8-97148-962-2	01	1	0301-0501				●
46	03.890 BRACKET	8-94313-323-2	01	1	0311-	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9503-9711			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-0212	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0301-0310				●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0311-0501	●			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (B) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0603-0611	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
92	03.417 CAP; FUEL FILTER	8-97117-109-0	01	1	9512-9702			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9703-9711			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9712-0212	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0311-0611	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0612-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97143-658-0	01	1	9512-9702			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9703-9711			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9712-0212	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0311-0611	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0612-	●	●

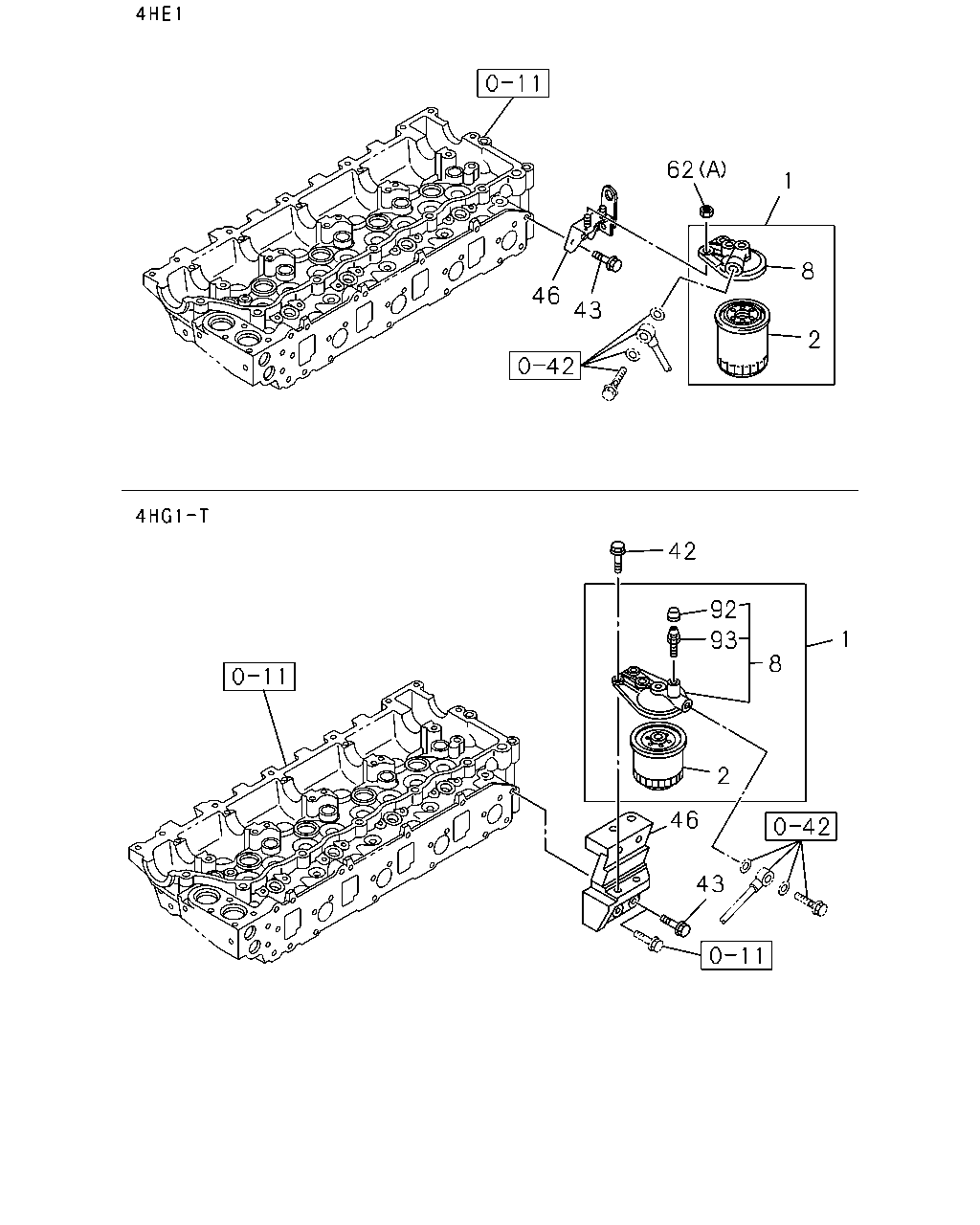

62 1 8 46 43 2 42 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
1	03.890 FILTER ASM; FUEL	8-94370-620-3	01	1	9503-9511			●
1	03.890 FILTER ASM; FUEL	8-97117-333-0	01	1	9512-9702			●
1	03.890 FILTER ASM; FUEL	8-97171-451-1	01	1	9703-9711			●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	9712-0212	●
1	03.890 FILTER ASM; FUEL	1-13200-890-3	01	1	0301-0501				●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0311-0611	●
1	03.890 FILTER ASM; FUEL	8-97171-451-2	01	1	0612-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94370-621-3	01	1	9503-9511			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97116-125-0	01	1	9512-9702			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-0	01	1	9703-9711			●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	9712-0212	●
2	03.890 ELEMENT KIT; FUEL FILTER	1-13240-079-1	01	1	0301-0501				●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0311-0611	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0612-	●	●
8	03.890 COVER; FUEL FILTER	5-13212-075-1	01	1	9503-9511			●
8	03.890 COVER; FUEL FILTER	8-97126-076-0	01	1	9512-9702			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9703-9711			●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	9712-0212	●
8	03.890 COVER; FUEL FILTER	1-13212-159-2	01	1	0301-0501				●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0311-0611	●
8	03.890 COVER; FUEL FILTER	8-97172-543-1	01	1	0612-	●	●
42	03.890 BOLT; FUEL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0612-		●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	9712-0212	●
43	03.890 BOLT; BRKT M12X25	0-28781-225-0	02	1	0301-0501				●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0311-0611	●
43	03.890 BOLT; BRKT 00.029 M12X28 FLANGE	0-28181-228-0	02	1	0612-	●	●
46	03.890 BRACKET	8-97061-452-0	01	1	0612-		●
46	03.890 BRACKET	8-94313-323-1	01	1	9503-9711			●
46	03.890 BRACKET	8-94313-323-1	01	1	9712-0212	●
46	03.890 BRACKET	8-97148-962-2	01	1	0301-0501				●
46	03.890 BRACKET	8-94313-323-2	01	1	0311-	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9503-9711			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-0212	●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0301-0310				●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0311-0501	●			●
62	03.895 NUT; FUEL FILTER 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 08.917 (B) M10 FLANGE	0-91150-210-0	02	1	0502-0602	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0603-0611	●
62	03.895 NUT; FUEL FILTER FUEL FILTER DUAL(S6B) 04.085 (B) M10 FLANGE	0-91180-210-0	02	1	0612-	●	●
92	03.417 CAP; FUEL FILTER	8-97117-109-0	01	1	9512-9702			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9703-9711			●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	9712-0212	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0311-0611	●
92	03.417 CAP; FUEL FILTER	8-97172-548-0	01	1	0612-	●	●
93	03.890 CONNECTOR; FUEL FILTER	8-97143-658-0	01	1	9512-9702			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9703-9711			●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	9712-0212	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0311-0611	●
93	03.890 CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0612-	●	●
