Sayfa 0-40 - Isuzu EPC

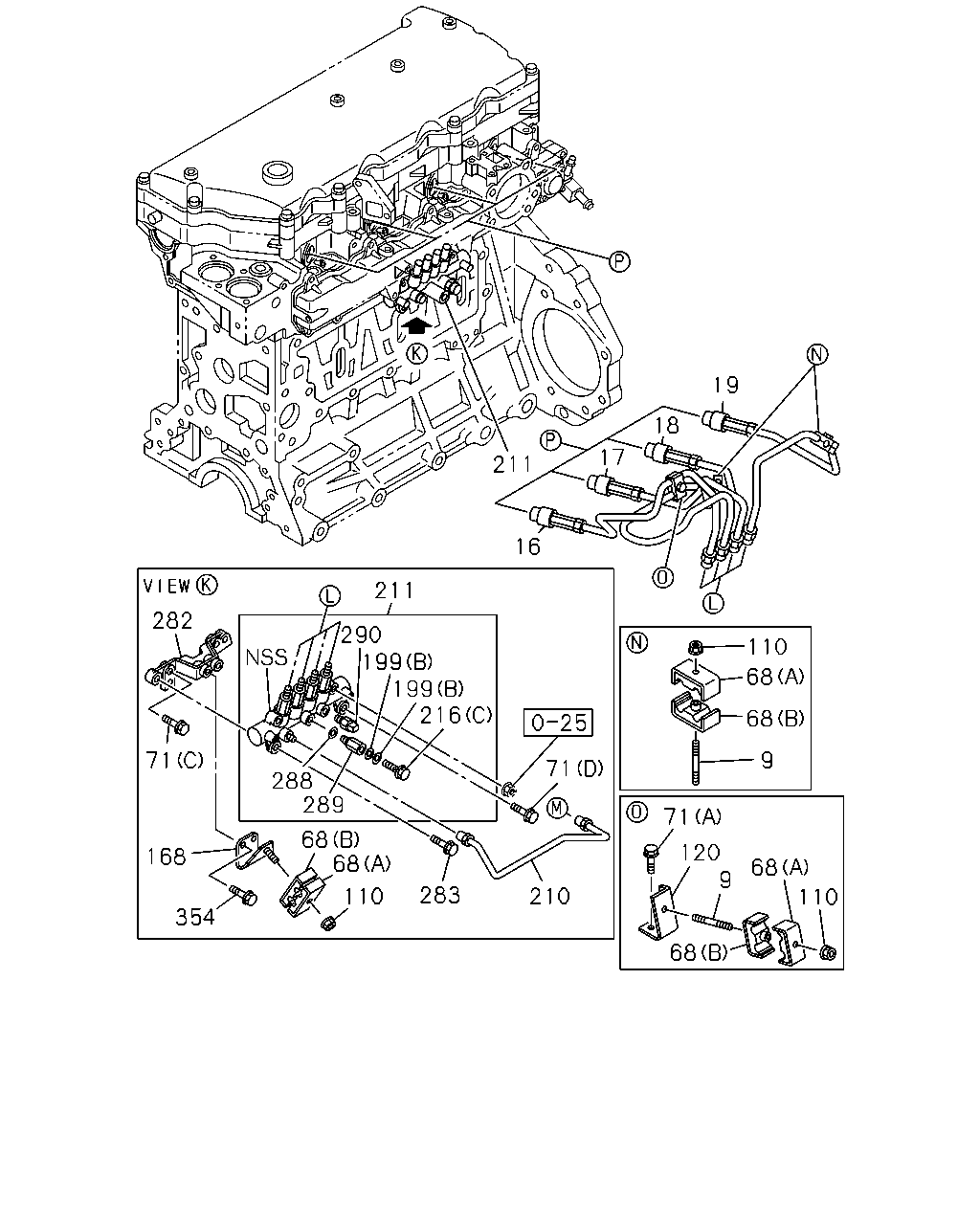

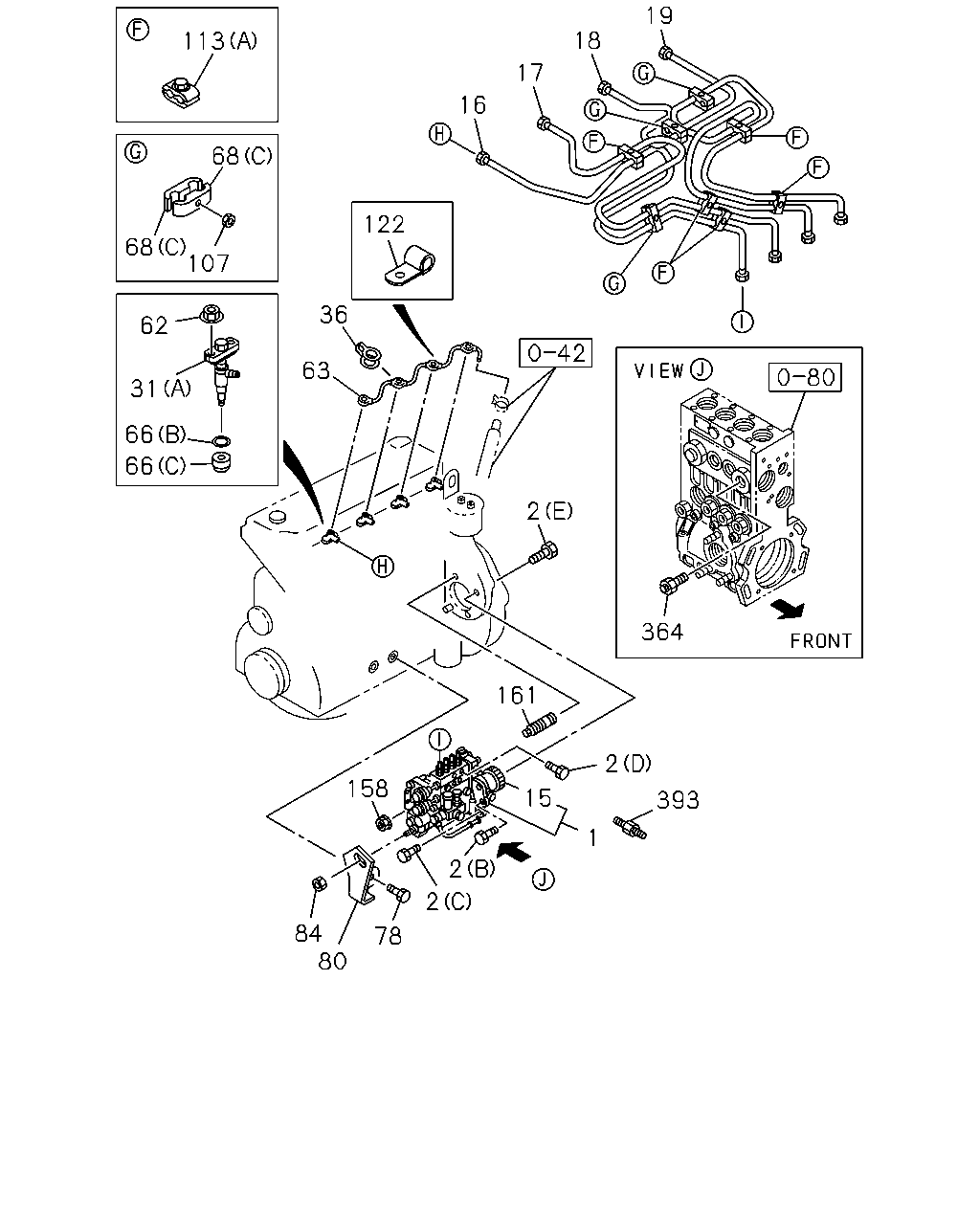

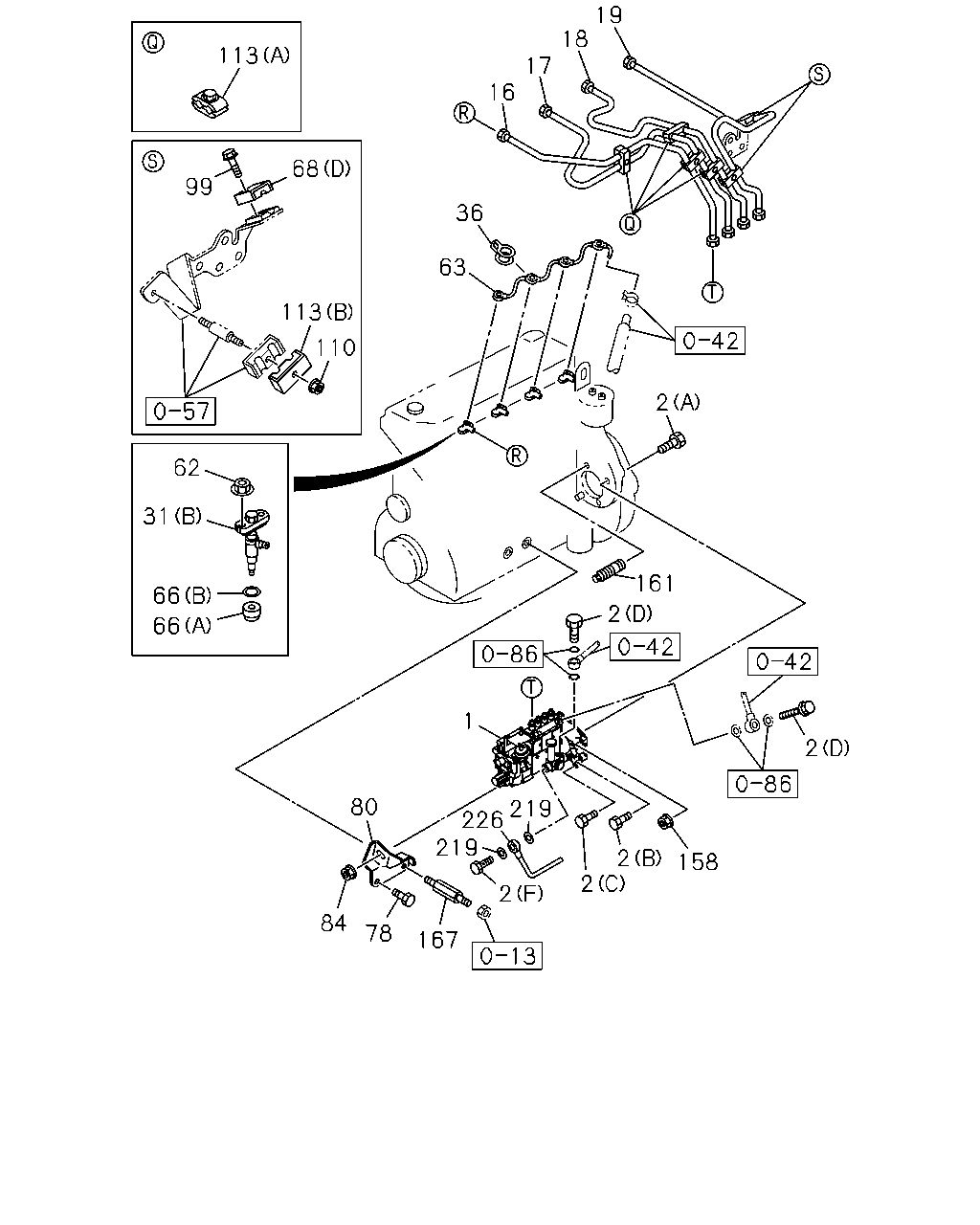

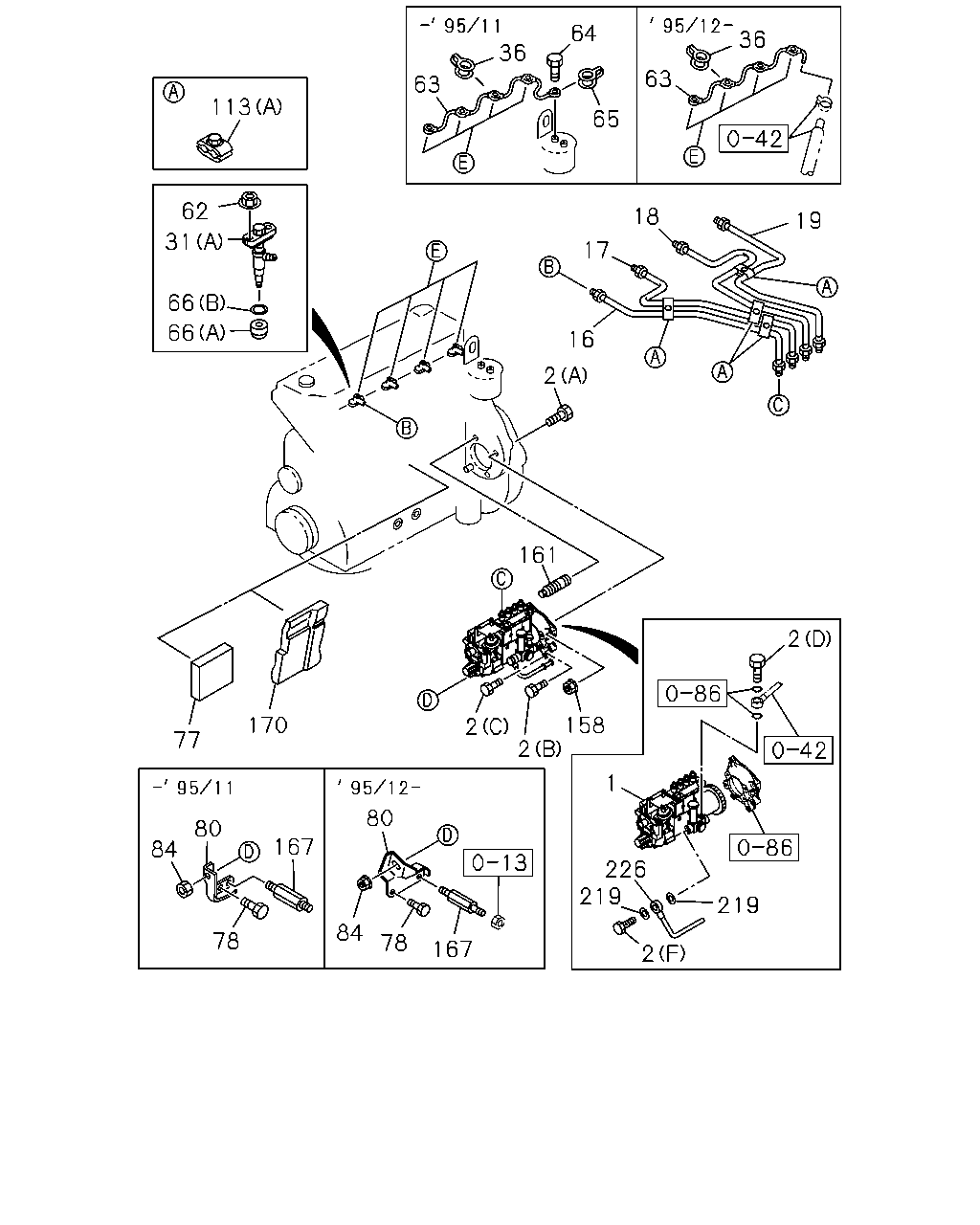

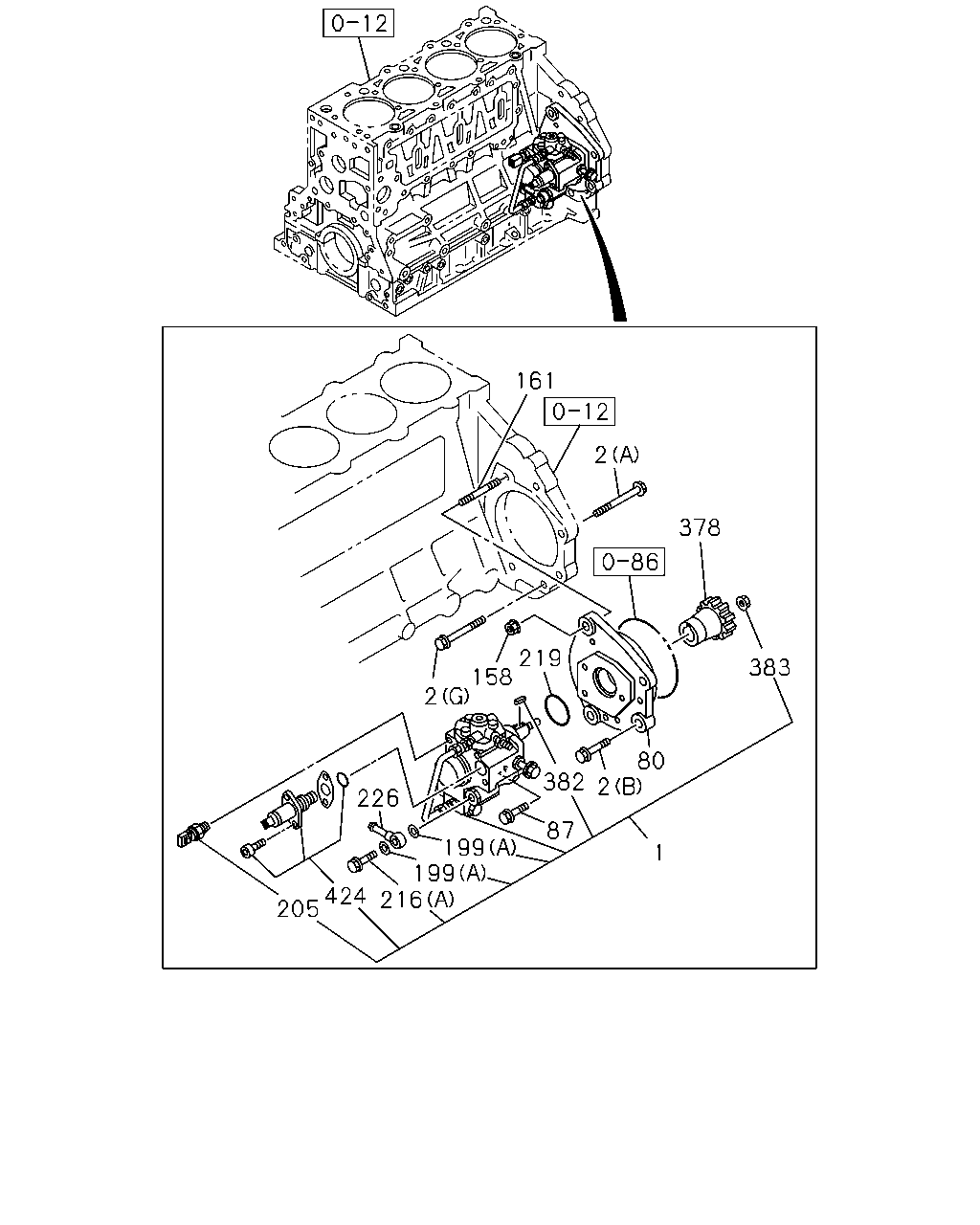

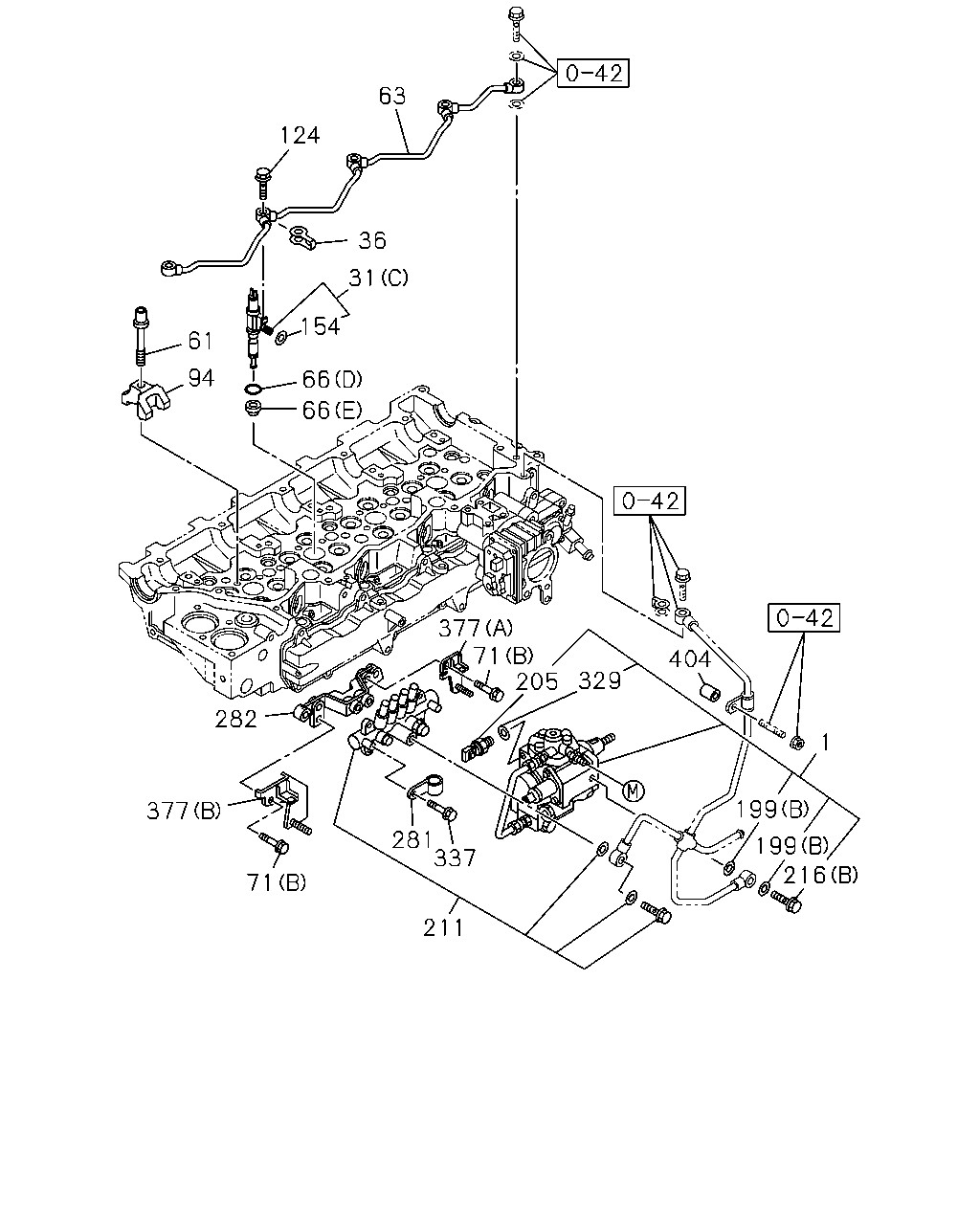

0-40 — FUEL INJECTION SYSTEM (#43831) — 900 parça

36 36 64 63 63 113 65 62 18 19 31 17 66 66 16 2 161 2 170 2 18 2 77 1 80 80 167 84 226 219 219 84 78 78 167 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-	●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0507-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97114-005-0	01	1	9503-9511				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97136-658-0	01	1	9512-9603				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-780-0	01	1	9604-9711				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9712-9807		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-504-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 08.900 (G) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512			●
2	03.330 BOLT; INJ PUMP 02.042 (G) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9712-9809		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0212		●
2	03.330 BOLT; INJ PUMP (E) M12X110	0-28186-211-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	9812-0212		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0506		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0612-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9503-9711				●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9712-0212		●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0301-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-		●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9503-9711				●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9712-0212		●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0301-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-		●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9503-9711				●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9712-0212		●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0301-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-		●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9503-9711				●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9712-0212		●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0301-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97114-017-0	04	1	9503-9511				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9512-9711				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	9712-0212		●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.3	8-98065-992-0	04	1	0909-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9503-9711				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9712-0212		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0301-0310					●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0311-0501		●			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0502-0611		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0612-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9503-9711				●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9712-0212		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0301-0310					●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0311-0501		●			●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-0611		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9503-9511				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9512-9711				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9712-0212		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0301-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-		●
64	03.162 BOLT; JOINT,FUEL FILTER M8X18 EYE-BOLT	1-09675-037-1	01	1	9503-9511				●
65	03.162 GASKET; FUEL FILTER 03.332 ID=8.6	8-94395-214-0	01	1	9503-9511				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9503-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0301-0310					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0311-0501		●			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0502-0611		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-94377-623-0	04	1	9503-9511				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9512-9703				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-97171-922-0	04	1	0301-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-		●
77	03.340 RUBBER; SPACE,INJ PUMP	8-97114-301-0	01	1	9503-9511				●
78	03.330 BOLT; BRKT TO C/BL 01.540 M10X20 FLANGE	0-28181-020-0	01	1	9503-9606				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9607-9711				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9712-0212		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0301-0310					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0311-0501		●			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-0611		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-			●
80	03.306 BRACKET; PUMP 03.330	8-94311-184-1	01	1	9503-9511				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9512-9711				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9712-0212		●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0301-0501					●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0611		●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9503-9711				●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-0212		●
84	03.330 NUT; BRKT TO BRKT 07.243 M12 FLANGE	0-91150-212-0	01	1	0301-0501					●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0311-0602		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0611		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-	●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9503-9711				●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9712-9804		●
113	03.162 CLIP; INJ PIPE (A)	8-97191-409-0	04	1	9805-9810		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	9811-0212		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0301-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0311-0611		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
161	03.340 STUD; INJ PUMP 01.837 M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9711				●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	9712-0212		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0310					●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501		●			●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0611		●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	9503-9711				●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	9712-0212		●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0311-0611		●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
170	03.332 INSULATOR; INJ PUMP	8-97130-296-0	01	1	9512-9711				●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-0212		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0611		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	9812-0212		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0311-0611		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●

31 31 32 32 34 34 58 58 45 138 140 43 140 44 43 146 46 140 44 43 47 272 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97114-017-0	04	1	9503-9511				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9512-9711				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	9712-0212		●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-		●
32	03.332 HOLDER ASM; NOZZLE (B)	8-97078-783-1	04	1	0612-	●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	9503-9711				●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	9712-0212		●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0301-0310					●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0311-0501		●			●
32	03.332 HOLDER ASM; NOZZLE (A)	8-94311-966-2	04	1	0502-		●
33	03.332 NOZZLE; INJ	8-97094-803-0	04	1	9503-9511				●
33	03.332 NOZZLE; INJ	8-97119-810-0	04	1	9512-9711				●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	9712-0212		●
33	03.332 NOZZLE; INJ	8-97148-961-1	04	1	0301-0501					●
33	03.332 NOZZLE; INJ	8-97119-809-0	04	1	0311-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.162 M8X18 EYE-BOLT	1-09675-037-1	04	1	0612-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9503-9711				●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	9712-0212		●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0301-0310					●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0311-0501		●			●
34	03.330 BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	04	1	0502-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0612-	●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9503-9711				●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	9712-0212		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0301-0310					●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0311-0501		●			●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	04	1	0502-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B)	8-97223-339-0	04	1	0612-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (C)	8-97349-452-0	04	1	0612-	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	9503-9711				●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	9712-0212		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0301-0310					●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0311-0501		●			●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-94329-555-0	04	1	0502-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0612-	●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9503-9711				●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	9712-0212		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0301-0310					●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0311-0501		●			●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	04	1	0502-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER	1-15341-008-0	04	1	0612-	●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9503-9711				●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	9712-0212		●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0301-0310					●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0311-0501		●			●
46	03.330 PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	08	1	0502-		●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0612-	●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9503-9711				●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	9712-0212		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0301-0310					●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0311-0501		●			●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0502-0611		●
58	03.332 FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	04	1	0612-	●	●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-004-0	04	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=1.20	1-15349-004-0	04	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	1-15349-042-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	1-15349-043-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.10	8-97116-029-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.20	8-97116-032-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.30	8-97116-033-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.40	8-97116-034-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.50	8-97116-035-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.51	8-97116-036-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	8-97116-037-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.53	8-97116-038-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	8-97116-039-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.55	8-97116-040-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	8-97116-041-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.57	8-97116-042-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	8-97116-043-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.59	8-97116-044-0	AR	1	0612-	●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.10	8-97027-432-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.20	8-97027-433-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.30	8-97027-434-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.40	8-97027-435-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.50	8-97027-436-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.52	8-97027-437-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.54	8-97027-438-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.56	8-97027-439-0	AR	1	0502-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	9503-9711				●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	9712-0212		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0301-0310					●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0311-0501		●			●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 03.332 (A) T=0.58	8-97027-440-0	AR	1	0502-		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	9503-9711				●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	9712-0212		●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0301-0310					●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0311-0501		●			●
146	03.332 SPACER; NOZZLE	8-94344-439-0	04	1	0502-		●
272	03.332 NOZZLE KIT; INJ	8-97352-267-0	04	1	0612-	●

63 124 36 31 154 61 94 66 66 377 71 205 404 329 282 1 199 377 281 337 199 216 71 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-	●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0507-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97114-005-0	01	1	9503-9511				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97136-658-0	01	1	9512-9603				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-780-0	01	1	9604-9711				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9712-9807		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-504-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97114-017-0	04	1	9503-9511				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9512-9711				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	9712-0212		●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.3	8-98065-992-0	04	1	0909-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9503-9711				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9712-0212		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0301-0310					●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0311-0501		●			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0502-0611		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0612-	●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0507-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9503-9511				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9512-9711				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9712-0212		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0301-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9503-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0301-0310					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0311-0501		●			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0502-0611		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-94377-623-0	04	1	9503-9511				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9512-9703				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-97171-922-0	04	1	0301-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-		●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0507-0512			●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-			●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-			●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-			●
94	03.330 BRACKET; INJ NOZZLE	8-97306-074-1	04	1	0507-0606			●
94	03.330 BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0607-			●
124	03.162 BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0507-			●
154	03.332 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 06.609 ID=11.0	9-09561-111-0	04	1	0507-1106			●
154	03.332 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=11.0	0-95690-111-0	04	1	1107-			●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-			●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0507-0605			●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-			●
211	03.331 RAIL ASM; COMMON	8-97306-063-3	01	1	0507-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-			●
281	03.162 CLIP 02.343 ID=16 H=24 L=20	9-09527-015-0	01	1	0507-0606			●
281	03.162 CLIP ID=16 H=24 L=20	0-95207-315-0	01	1	0607-			●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0507-1005			●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-			●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0507-			●
337	03.163 BOLT; CLIP 02.500 M6X10 FLANGE	0-28080-610-0	01	1	0507-0512			●
337	03.163 BOLT; CLIP 03.671 M6X10 FLANGE	0-28050-610-0	01	1	0601-			●
377	03.332 BRACKET; HARNESS (A)	8-97374-283-1	01	1	0507-			●
377	03.332 BRACKET; HARNESS (B)	8-98001-141-0	01	1	0507-			●
404	03.330 SPACER; FUEL LEAK OFF L=24.5	1-33659-186-1	01	1	0507-			●

161 2 378 219 158 383 2 80 2 382 226 87 199 199 216 1 424 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-	●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0507-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97114-005-0	01	1	9503-9511				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97136-658-0	01	1	9512-9603				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-780-0	01	1	9604-9711				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9712-9807		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-504-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 08.900 (G) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512			●
2	03.330 BOLT; INJ PUMP 02.042 (G) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9712-9809		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0212		●
2	03.330 BOLT; INJ PUMP (E) M12X110	0-28186-211-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	9812-0212		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0506		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-			●
80	03.306 BRACKET; PUMP 03.330	8-94311-184-1	01	1	9503-9511				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9512-9711				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9712-0212		●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0301-0501					●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0611		●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
87	03.330 BOLT; PUMP 04.686 M8X30 FLANGE	0-28680-830-0	03	1	0507-0512			●
87	03.330 BOLT; PUMP 03.403 M8X30 FLANGE	0-28650-830-0	03	1	0601-			●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9503-9711				●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-0212		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310					●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501		●			●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
158	03.330 NUT; INJ PUMP 00.685 M12 FLANGE	0-91250-112-0	01	1	0301-0501					●
161	03.340 STUD; INJ PUMP 01.837 M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9711				●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	9712-0212		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0310					●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501		●			●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0611		●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-			●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0507-0605			●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0606-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-0212		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0611		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	9812-0212		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0311-0611		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●
378	03.330 GEAR; PUMP Z=35	8-97601-698-1	01	1	0507-			●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	0507-			●
383	03.162 NUT; DRIVE SHAFT 03.616	8-97141-469-0	01	1	0507-			●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98043-687-0	01	1	0507-			●

19 18 113 17 16 68 99 36 63 113 110 2 62 31 161 66 2 66 1 2 219 226 219 80 2 2 158 2 84 78 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-	●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0507-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97114-005-0	01	1	9503-9511				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97136-658-0	01	1	9512-9603				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-780-0	01	1	9604-9711				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9712-9807		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-504-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 08.900 (G) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512			●
2	03.330 BOLT; INJ PUMP 02.042 (G) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9712-9809		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0212		●
2	03.330 BOLT; INJ PUMP (E) M12X110	0-28186-211-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	9812-0212		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0506		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0612-	●	●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9503-9711				●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9712-0212		●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0301-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-		●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9503-9711				●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9712-0212		●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0301-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-		●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9503-9711				●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9712-0212		●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0301-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-		●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9503-9711				●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9712-0212		●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0301-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97114-017-0	04	1	9503-9511				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9512-9711				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	9712-0212		●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.3	8-98065-992-0	04	1	0909-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9503-9711				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9712-0212		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0301-0310					●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0311-0501		●			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0502-0611		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0612-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9503-9711				●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9712-0212		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0301-0310					●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0311-0501		●			●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-0611		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9503-9511				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9512-9711				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9712-0212		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0301-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9503-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0301-0310					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0311-0501		●			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0502-0611		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-94377-623-0	04	1	9503-9511				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9512-9703				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-97171-922-0	04	1	0301-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-		●
68	03.162 CLIP; INJ PIPE (D)	1-09701-091-0	01	1	0612-	●
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (C)	8-97213-049-0	06	1	0301-0501					●
78	03.330 BOLT; BRKT TO C/BL 01.540 M10X20 FLANGE	0-28181-020-0	01	1	9503-9606				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9607-9711				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9712-0212		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0301-0310					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0311-0501		●			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-0611		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-			●
80	03.306 BRACKET; PUMP 03.330	8-94311-184-1	01	1	9503-9511				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9512-9711				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9712-0212		●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0301-0501					●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0611		●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9503-9711				●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-0212		●
84	03.330 NUT; BRKT TO BRKT 07.243 M12 FLANGE	0-91150-212-0	01	1	0301-0501					●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0311-0602		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0611		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
99	03.330 BOLT; CLIP,INJ,PIPE 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0612-	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-			●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-	●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9503-9711				●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9712-9804		●
113	03.162 CLIP; INJ PIPE (A)	8-97191-409-0	04	1	9805-9810		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	9811-0212		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0301-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0311-0611		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9503-9711				●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-0212		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310					●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501		●			●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
158	03.330 NUT; INJ PUMP 00.685 M12 FLANGE	0-91250-112-0	01	1	0301-0501					●
161	03.340 STUD; INJ PUMP 01.837 M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9711				●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	9712-0212		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0310					●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501		●			●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0611		●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	9503-9711				●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	9712-0212		●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0311-0611		●
167	03.330 SPACER; GUIDE TUBE	8-97065-515-2	01	1	0612-	●	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.616 ID=52	1-09623-300-0	01	1	0507-0603			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-98031-844-0	01	1	0604-			●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	9812-0212		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0311-0611		●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-	●	●
226	03.163 PIPE; FUEL	8-97320-019-0	01	1	0507-0808			●
226	03.163 PIPE; FUEL	8-98126-433-0	01	1	0809-			●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	9812-0212		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0311-0611		●
226	03.163 PIPE; FUEL	8-97203-567-0	01	1	0612-	●	●

19 18 113 17 16 68 122 68 107 36 62 63 31 66 66 2 364 161 2 158 15 393 1 2 2 84 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97215-704-2	01	1	0612-	●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97178-485-5	01	1	0612-	●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ	8-97306-044-9	01	1	0507-			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97114-005-0	01	1	9503-9511				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97136-658-0	01	1	9512-9603				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97146-780-0	01	1	9604-9711				●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9712-9807		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-505-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0311-0501		●
1	03.306 PUMP ASM; INJ EXC. HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-102-0	01	1	0502-		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97170-504-0	01	1	9808-9811		●
1	03.306 PUMP ASM; INJ HIGH ALTITUDE COMPENSATOR(EE2) SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-101-0	01	1	9812-0212		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97212-188-1	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 08.900 (G) M10X50 FLANGE	0-28181-050-0	01	1	0507-0512			●
2	03.330 BOLT; INJ PUMP 02.042 (G) M10X50 FLANGE	0-28151-050-0	01	1	0601-			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP 03.890 (C) M10X70 FLANGE	0-28181-070-0	01	1	0502-0512		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0601-0611		●
2	03.330 BOLT; INJ PUMP 02.277 (C) M10X70 FLANGE	0-28151-070-0	01	1	0612-	●	●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	9712-0212		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0301-0310					●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0311-0501		●			●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0502-0506		●
2	03.330 BOLT; INJ PUMP (B) M12X70 FLANGE	0-28181-270-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP 00.206 (B) M12X70 FLANGE	0-28151-270-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	9712-0212		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9503-9711				●
2	03.330 BOLT; INJ PUMP 00.685 (A) M12X88.5	8-94312-794-1	01	1	9712-9809		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	9810-0212		●
2	03.330 BOLT; INJ PUMP (E) M12X110	0-28186-211-0	01	1	0301-0501					●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	9812-0212		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0311-0506		●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28181-290-0	01	1	0507-0512		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0601-0611		●	●
2	03.330 BOLT; INJ PUMP (A) M12X90 FLANGE	0-28151-290-0	01	1	0612-	●	●	●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (D) M14X27 FLANGE	1-09675-086-0	02	1	0612-	●	●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0311-0611		●
2	03.330 BOLT; INJ PUMP 03.162 (F) M14X30	8-97203-957-0	01	1	0612-	●	●
15	03.340 COUPLING ASM; INJ PUMP	8-97367-625-0	01	1	0301-0501					●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9503-9711				●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9712-0212		●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0301-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-		●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9503-9711				●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9712-0212		●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0301-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-		●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9503-9711				●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9712-0212		●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0301-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-		●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9503-9711				●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9712-0212		●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0301-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-		●
31	03.332 NOZZLE ASM; INJ (B)	8-97200-570-3	04	1	0612-	●
31	03.332 NOZZLE ASM; INJ (C)	8-97602-485-6	04	1	0507-			●
31	03.332 NOZZLE ASM; INJ (A)	8-97114-017-0	04	1	9503-9511				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-812-0	04	1	9512-9711				●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	9712-0212		●
31	03.332 NOZZLE ASM; INJ (A)	8-97148-960-1	04	1	0301-0501					●
31	03.332 NOZZLE ASM; INJ (A)	8-97119-811-0	04	1	0311-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 03.162 ID=8.3	8-97600-925-0	04	1	0507-0908			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.3	8-98065-992-0	04	1	0909-			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9503-9711				●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	9712-0212		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0301-0310					●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0311-0501		●			●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0502-0611		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) ID=8.6	8-94395-214-0	04	1	0612-	●	●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9503-9711				●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	9712-0212		●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0301-0310					●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0311-0501		●			●
62	03.332 NUT; NOZZLE HOLDER 07.633 M8 FLANGE	0-91150-108-0	08	1	0502-0602		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0603-0611		●
62	03.332 NUT; NOZZLE HOLDER 01.062 M8 FLANGE	0-91180-108-0	08	1	0612-	●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0612-	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0507-			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97027-985-1	01	1	9503-9511				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9512-9711				●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	9712-0212		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97148-969-2	01	1	0301-0501					●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-97118-895-0	01	1	0311-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 07.003 (A)	8-97171-332-0	04	1	0612-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 01.609 (D) ID=23.3	8-94173-412-0	04	1	0507-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-97601-447-2	04	1	0507-0909			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (E) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9503-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0301-0310					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0311-0501		●			●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0502-0611		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-94326-439-0	04	1	0612-	●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-94377-623-0	04	1	9503-9511				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-94125-859-1	04	1	9512-9703				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9704-9711				●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	9712-0212		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (C)	8-97171-922-0	04	1	0301-0501					●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0311-		●
68	03.162 CLIP; INJ PIPE (D)	1-09701-091-0	01	1	0612-	●
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (C)	8-97213-049-0	06	1	0301-0501					●
78	03.330 BOLT; BRKT TO C/BL 01.540 M10X20 FLANGE	0-28181-020-0	01	1	9503-9606				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9607-9711				●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	9712-0212		●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0301-0310					●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0311-0501		●			●
78	03.330 BOLT; BRKT TO C/BL 04.785 M10X20 FLANGE	0-28781-020-0	01	1	0502-0512		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0601-0611		●
78	03.330 BOLT; BRKT TO C/BL 02.343 M10X20 FLANGE	0-28751-020-0	01	1	0612-	●	●
80	03.306 BRACKET; PUMP	8-97601-699-0	01	1	0507-			●
80	03.306 BRACKET; PUMP 03.330	8-94311-184-1	01	1	9503-9511				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9512-9711				●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	9712-0212		●
80	03.306 BRACKET; PUMP	8-97148-958-1	01	1	0301-0501					●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0311-0611		●
80	03.306 BRACKET; PUMP	8-97136-677-0	01	1	0612-	●	●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9503-9711				●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	9712-0212		●
84	03.330 NUT; BRKT TO BRKT 07.243 M12 FLANGE	0-91150-212-0	01	1	0301-0501					●
84	03.330 NUT; BRKT TO BRKT 08.917 M10 FLANGE	0-91150-210-0	01	1	0311-0602		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0611		●
84	03.330 NUT; BRKT TO BRKT 04.085 M10 FLANGE	0-91180-210-0	01	1	0612-	●	●
107	03.162 NUT; INJ PIPE CLIP 03.671 M5 FLANGE	8-94178-699-0	03	1	0301-0501					●
113	03.162 CLIP; INJ PIPE (B)	8-97213-481-0	01	1	0612-	●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9503-9711				●
113	03.162 CLIP; INJ PIPE (A)	8-97108-317-0	04	1	9712-9804		●
113	03.162 CLIP; INJ PIPE (A)	8-97191-409-0	04	1	9805-9810		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	9811-0212		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	05	1	0301-0501					●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0311-0611		●
113	03.162 CLIP; INJ PIPE (A)	8-97213-050-0	04	1	0612-	●	●
122	03.162 CLIP; LEAK OFF PIPE	9-09524-662-0	01	1	0301-0501					●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9503-9711				●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-0212		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0301-0310					●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0311-0501		●			●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0506		●
158	03.330 NUT; INJ PUMP 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0611		●	●
158	03.330 NUT; INJ PUMP 03.162 M10 FLANGE	0-91180-110-0	02	1	0612-	●	●	●
158	03.330 NUT; INJ PUMP 00.685 M12 FLANGE	0-91250-112-0	01	1	0301-0501					●
161	03.340 STUD; INJ PUMP 01.837 M10X36.5 L=48.5	8-94396-145-0	02	1	9503-9711				●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	9712-0212		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0301-0310					●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0311-0501		●			●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0502-0506		●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0507-0611		●	●
161	03.340 STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0612-0910	●	●	●
161	03.340 STUD; INJ PUMP 00.724 M10X46.5 L=58.5	8-97066-386-1	02	1	0911-	●	●	●
364	03.900 VALVE; OVER FLOW,INJ PUMP 03.318	1-15619-321-0	01	1	0301-0501					●
393	03.340 STUD; COVER 03.335	8-97212-809-0	02	1	0304-0403					●

19 18 17 211 16 211 282 290 199 199 216 110 68 68 71 9 71 288 289 71 68 68 120 9 168 68 283 110 210 110 354 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
9	03.340 STUD; CLIP 03.275 M6X30 L=38	9-04110-630-0	03	1	0507-0604			●
9	03.340 STUD; CLIP 00.413 M6X30 L=38	0-41010-630-0	03	1	0605-			●
16	03.330 PIPE; INJ NO.1	8-97209-493-1	01	1	0612-	●
16	03.330 PIPE; INJ NO.1	8-97371-831-1	01	1	0507-			●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9503-9711				●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	9712-0212		●
16	03.330 PIPE; INJ NO.1	8-97148-963-4	01	1	0301-0501					●
16	03.330 PIPE; INJ NO.1	8-97123-374-0	01	1	0311-		●
17	03.330 PIPE; INJ NO.2	8-97209-494-1	01	1	0612-	●
17	03.330 PIPE; INJ NO.2	8-97373-417-1	01	1	0507-			●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9503-9711				●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	9712-0212		●
17	03.330 PIPE; INJ NO.2	8-97148-964-3	01	1	0301-0501					●
17	03.330 PIPE; INJ NO.2	8-97123-375-0	01	1	0311-		●
18	03.330 PIPE; INJ NO.3	8-97209-495-1	01	1	0612-	●
18	03.330 PIPE; INJ NO.3	8-97371-833-1	01	1	0507-			●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9503-9711				●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	9712-0212		●
18	03.330 PIPE; INJ NO.3	8-97148-965-4	01	1	0301-0501					●
18	03.330 PIPE; INJ NO.3	8-97123-376-0	01	1	0311-		●
19	03.330 PIPE; INJ NO.4	8-97209-496-1	01	1	0612-	●
19	03.330 PIPE; INJ NO.4	8-97371-834-1	01	1	0507-			●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9503-9711				●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	9712-0212		●
19	03.330 PIPE; INJ NO.4	8-97148-966-3	01	1	0301-0501					●
19	03.330 PIPE; INJ NO.4	8-97123-377-1	01	1	0311-		●
68	03.162 CLIP; INJ PIPE (D)	1-09701-091-0	01	1	0612-	●
68	03.162 CLIP; INJ PIPE (A)	8-97330-118-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (B)	8-97330-119-1	04	1	0507-			●
68	03.162 CLIP; INJ PIPE (C)	8-97213-049-0	06	1	0301-0501					●
71	03.162 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	02	1	0507-0512			●
71	03.162 BOLT; BRKT 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0601-			●
71	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
71	03.162 BOLT; BRKT 01.271 (C) M8X40 FLANGE	0-28080-840-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 02.277 (C) M8X40 FLANGE	0-28050-840-0	01	1	0601-			●
71	03.162 BOLT; BRKT 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	0507-0512			●
71	03.162 BOLT; BRKT 00.386 (D) M8X50 FLANGE	0-28050-850-0	01	1	0601-			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0612-	●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602			●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-			●
120	03.330 BRACKET; INJ PIPE	8-97306-084-2	01	1	0507-			●
168	03.890 BRACKET; FUEL PIPE	8-97324-195-0	01	1	0507-			●
199	03.332 GASKET; EYE BOLT (B)	8-97602-218-0	04	1	0507-			●
199	03.332 GASKET; EYE BOLT (A)	1-15619-507-0	02	1	0507-			●
210	03.330 PIPE; INJ,C/R	8-97312-509-3	01	1	0507-			●
211	03.331 RAIL ASM; COMMON	8-97306-063-3	01	1	0507-			●
216	03.162 BOLT; EYE (C)	8-97602-173-0	01	1	0507-			●
216	03.162 BOLT; EYE (A)	5-15759-003-0	01	1	0507-			●
216	03.162 BOLT; EYE (B)	8-97351-388-0	01	1	0507-			●
282	03.163 BRACKET; COMMON RAIL	8-97324-194-0	01	1	0507-1005			●
282	03.163 BRACKET; COMMON RAIL	8-98157-115-0	01	1	1006-			●
283	03.330 BOLT; COMMON RAIL 01.531 M8X25 FLANGE	0-28080-825-0	01	1	0507-0512			●
283	03.330 BOLT; COMMON RAIL 03.275 M8X25 FLANGE	0-28050-825-0	01	1	0601-			●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0507-			●
289	03.331 LIMITER; FUEL PRESS	8-97318-691-0	01	1	0507-			●
290	03.331 SENSOR; PRESS	8-97318-684-0	01	1	0507-1102			●
290	03.331 SENSOR; PRESS	8-98119-790-0	01	1	1103-			●
354	03.163 BOLT; FUEL PIPE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0507-0512			●
354	03.163 BOLT; FUEL PIPE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
