Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#4383) — 395 parça

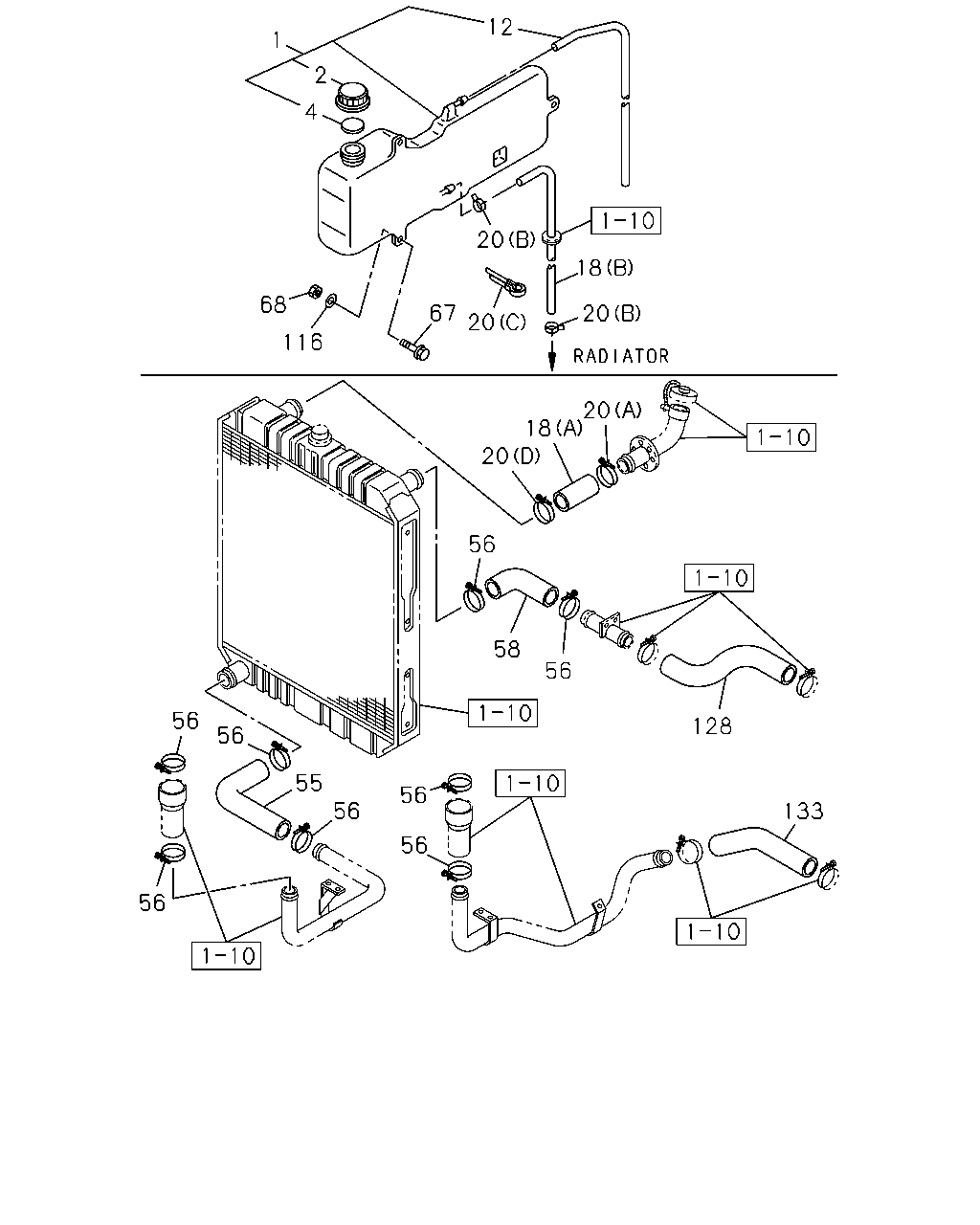

1 12 2 4 20 68 116 18 67 20 20 20 20 18 56 58 56 56 128 55 56 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-027-2	01	1	9101-9504	●	●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9505-9702				●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9703-9709				●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9710-				●	●	●
2	CAP; SURGE TANK OD=51 HOLE ID=2	1-22440-022-1	01	1	9101-9504	●	●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9505-9702				●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9703-9709				●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9710-				●	●	●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9505-9702				●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9703-9709				●	●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9710-				●	●	●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9505-9702				●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9703-9709				●	●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=935 SERVICED BY L=3050	8-94209-301-1	01	1	9101-9307	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9504	●	●	●
18	HOSE; RAD TO SURGE TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=44 L=110	1-09360-465-0	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9101-9307	●	●	●
20	CLIP; HOSE,RAD (B) ID=14	1-09704-102-0	02	1	9308-9504	●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=57	1-09704-066-0	02	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9505-9702				●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9703-9709				●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9710-				●	●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9710-				●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-385-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-322-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-14121-041-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-0	01	1	9505-9706				●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9710-9805				●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-1	01	1	9806-				●	●	●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> ID=63	1-09704-067-0	07	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BAND L=250	5-09707-030-0	01	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=63	1-09704-067-0	11	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9505-9702				●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9710-				●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-218-0	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9505-9702				●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9703-9709				●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-1	01	1	9710-				●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9505-9506				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9710-0512				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9507-9702				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9703-9709				●	●
68	NUT; BRKT M10	9-09110-510-0	02	1	9505-9509				●
68	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9510-9606				●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9710-0602				●	●	●
68	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9702				●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9703-9709				●	●
116	WASHER; PL,TANK FIX ID=10.5 OD=18	9-09160-510-0	02	1	9507-9509				●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-384-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-246-2	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21437-082-1	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL	1-21437-536-1	01	1	9505-				●
128	HOSE; WATER,RAD INL	1-21437-644-0	01	1	9702-9709					●
128	HOSE; WATER,RAD INL	1-21437-644-1	01	1	9710-					●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-386-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-308-1	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-546-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9505-9702				●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9703-9709				●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-1	01	1	9710-				●	●	●

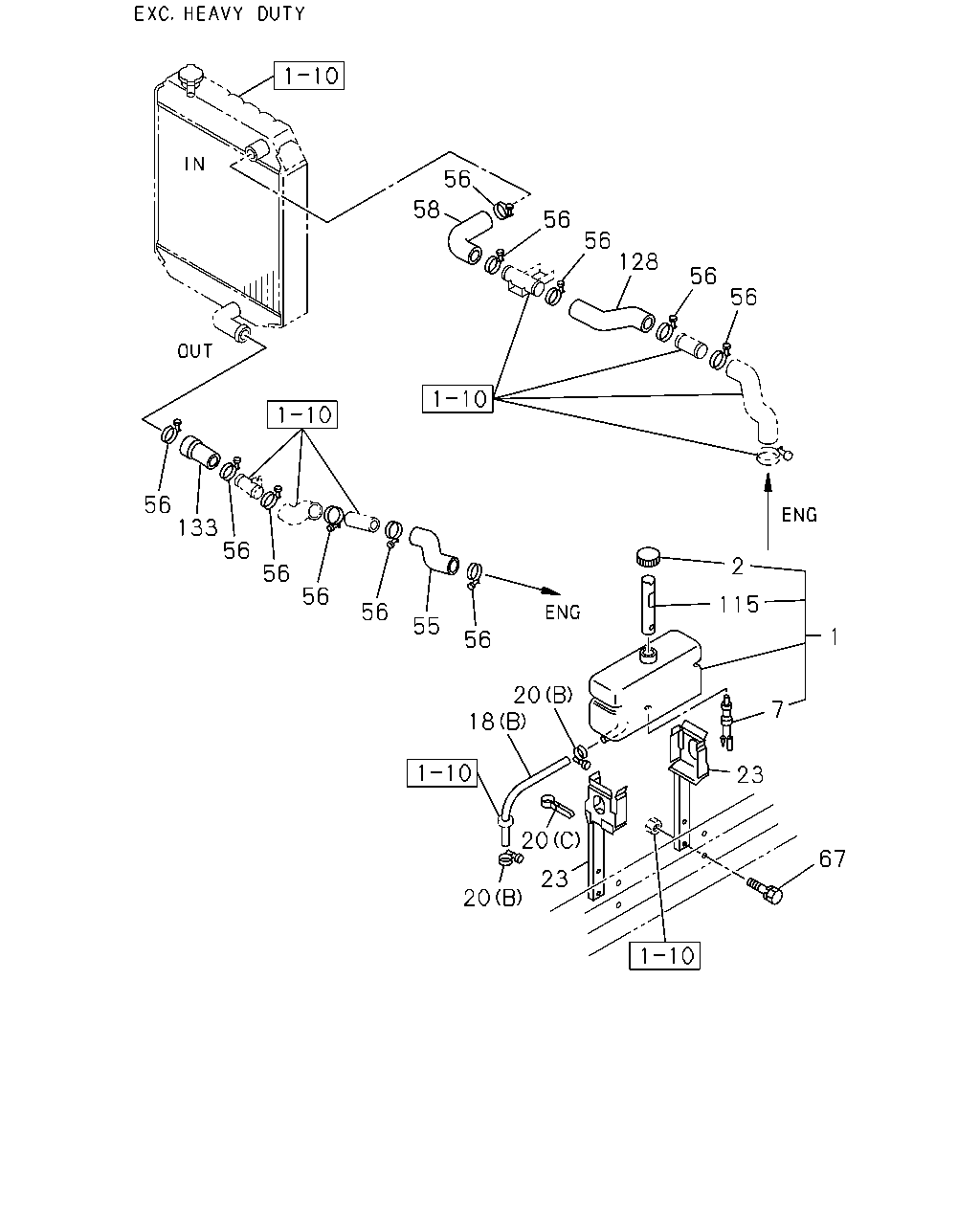

56 58 56 56 128 56 56 56 133 56 2 56 56 115 56 55 1 56 20 18 7 23 20 67 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-027-2	01	1	9101-9504	●	●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9505-9702				●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9703-9709				●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9710-				●	●	●
2	CAP; SURGE TANK OD=51 HOLE ID=2	1-22440-022-1	01	1	9101-9504	●	●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9505-9702				●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9703-9709				●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9710-				●	●	●
7	SWITCH ASM; TANK	1-82480-019-1	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=935 SERVICED BY L=3050	8-94209-301-1	01	1	9101-9307	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9504	●	●	●
18	HOSE; RAD TO SURGE TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=44 L=110	1-09360-465-0	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9101-9307	●	●	●
20	CLIP; HOSE,RAD (B) ID=14	1-09704-102-0	02	1	9308-9504	●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=57	1-09704-066-0	02	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9505-9702				●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9703-9709				●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9710-				●	●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9710-				●	●	●
23	BRACKET; RESERVE TANK FRT SIDE	1-21489-043-2	01	1	9101-9504	●	●	●
23	BRACKET; RESERVE TANK RR SIDE	1-21489-044-2	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-385-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-322-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-14121-041-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-0	01	1	9505-9706				●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9710-9805				●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-1	01	1	9806-				●	●	●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> ID=63	1-09704-067-0	07	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BAND L=250	5-09707-030-0	01	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=63	1-09704-067-0	11	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9505-9702				●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9710-				●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-218-0	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9505-9702				●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9703-9709				●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-1	01	1	9710-				●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9505-9506				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9710-0512				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9507-9702				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9703-9709				●	●
115	BAFFLE; RESERVE TANK	1-21489-018-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-384-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-246-2	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21437-082-1	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL	1-21437-536-1	01	1	9505-				●
128	HOSE; WATER,RAD INL	1-21437-644-0	01	1	9702-9709					●
128	HOSE; WATER,RAD INL	1-21437-644-1	01	1	9710-					●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-386-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-308-1	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-546-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9505-9702				●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9703-9709				●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-1	01	1	9710-				●	●	●

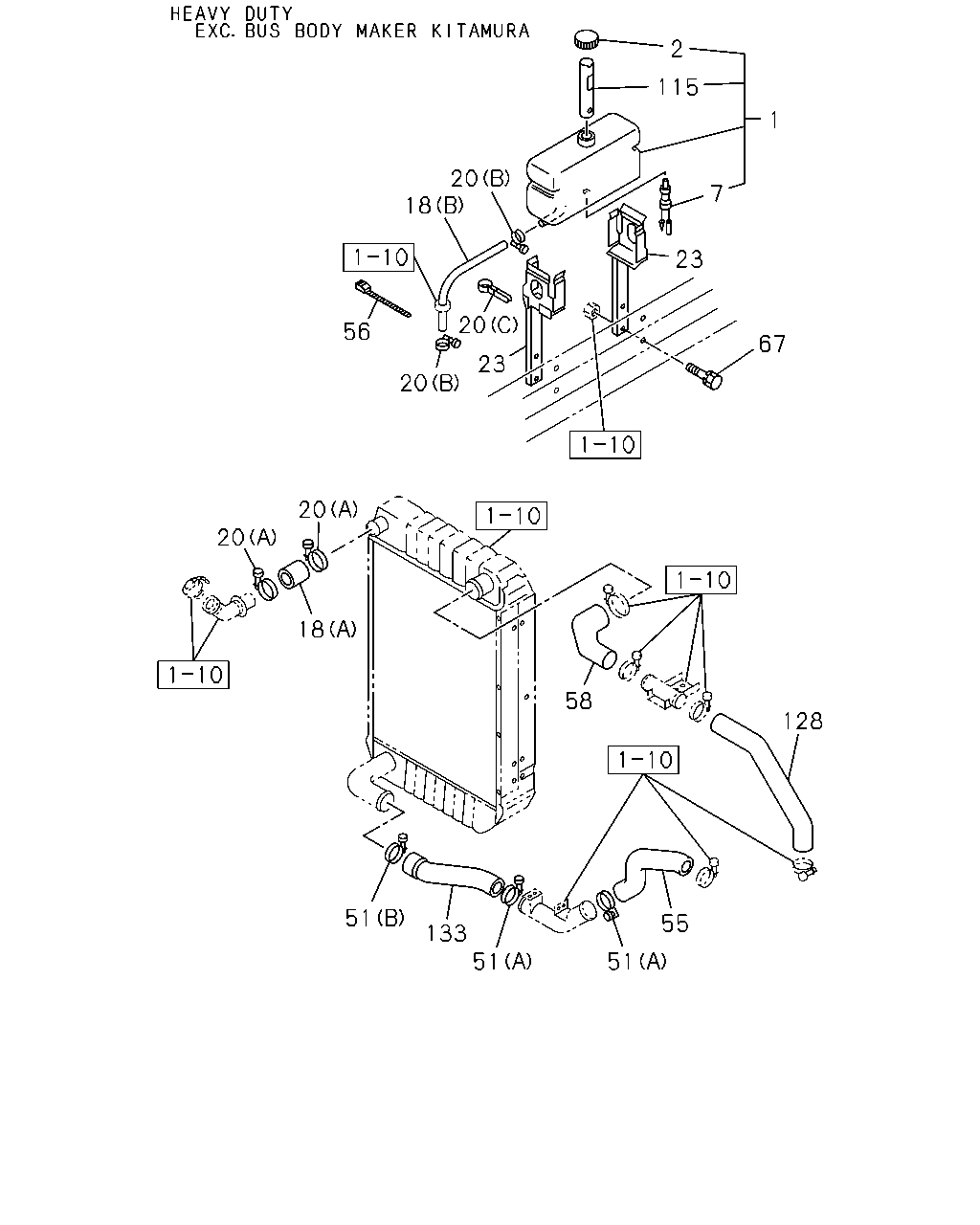

2 115 1 20 18 7 23 20 56 67 23 20 20 20 18 58 128 51 55 133 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-027-2	01	1	9101-9504	●	●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9505-9702				●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9703-9709				●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9710-				●	●	●
2	CAP; SURGE TANK OD=51 HOLE ID=2	1-22440-022-1	01	1	9101-9504	●	●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9505-9702				●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9703-9709				●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9710-				●	●	●
7	SWITCH ASM; TANK	1-82480-019-1	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=935 SERVICED BY L=3050	8-94209-301-1	01	1	9101-9307	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9504	●	●	●
18	HOSE; RAD TO SURGE TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=44 L=110	1-09360-465-0	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9101-9307	●	●	●
20	CLIP; HOSE,RAD (B) ID=14	1-09704-102-0	02	1	9308-9504	●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=57	1-09704-066-0	02	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9505-9702				●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9703-9709				●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9710-				●	●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9710-				●	●	●
23	BRACKET; RESERVE TANK FRT SIDE	1-21489-043-2	01	1	9101-9504	●	●	●
23	BRACKET; RESERVE TANK RR SIDE	1-21489-044-2	01	1	9101-9504	●	●	●
51	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (A) ID=63	1-09704-067-0	02	1	9101-9504	●	●	●
51	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) ID=74	1-09704-101-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-385-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-322-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-14121-041-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-0	01	1	9505-9706				●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9710-9805				●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-1	01	1	9806-				●	●	●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> ID=63	1-09704-067-0	07	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BAND L=250	5-09707-030-0	01	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=63	1-09704-067-0	11	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9505-9702				●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9710-				●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-218-0	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9505-9702				●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9703-9709				●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-1	01	1	9710-				●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9505-9506				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9710-0512				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9507-9702				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9703-9709				●	●
115	BAFFLE; RESERVE TANK	1-21489-018-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-384-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-246-2	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21437-082-1	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL	1-21437-536-1	01	1	9505-				●
128	HOSE; WATER,RAD INL	1-21437-644-0	01	1	9702-9709					●
128	HOSE; WATER,RAD INL	1-21437-644-1	01	1	9710-					●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-386-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-308-1	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-546-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9505-9702				●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9703-9709				●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-1	01	1	9710-				●	●	●

2 115 1 20 18 7 23 20 67 23 20 56 58 56 56 128 56 56 133 55 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-027-2	01	1	9101-9504	●	●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9505-9702				●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9703-9709				●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9710-				●	●	●
2	CAP; SURGE TANK OD=51 HOLE ID=2	1-22440-022-1	01	1	9101-9504	●	●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9505-9702				●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9703-9709				●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9710-				●	●	●
7	SWITCH ASM; TANK	1-82480-019-1	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=935 SERVICED BY L=3050	8-94209-301-1	01	1	9101-9307	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9504	●	●	●
18	HOSE; RAD TO SURGE TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=44 L=110	1-09360-465-0	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9101-9307	●	●	●
20	CLIP; HOSE,RAD (B) ID=14	1-09704-102-0	02	1	9308-9504	●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=57	1-09704-066-0	02	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9505-9702				●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9703-9709				●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9710-				●	●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9710-				●	●	●
23	BRACKET; RESERVE TANK FRT SIDE	1-21489-043-2	01	1	9101-9504	●	●	●
23	BRACKET; RESERVE TANK RR SIDE	1-21489-044-2	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-385-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-322-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-14121-041-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-0	01	1	9505-9706				●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9710-9805				●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-1	01	1	9806-				●	●	●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> ID=63	1-09704-067-0	07	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BAND L=250	5-09707-030-0	01	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=63	1-09704-067-0	11	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9505-9702				●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9710-				●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-218-0	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9505-9702				●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9703-9709				●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-1	01	1	9710-				●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9505-9506				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9710-0512				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9507-9702				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9703-9709				●	●
115	BAFFLE; RESERVE TANK	1-21489-018-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-384-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-246-2	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21437-082-1	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL	1-21437-536-1	01	1	9505-				●
128	HOSE; WATER,RAD INL	1-21437-644-0	01	1	9702-9709					●
128	HOSE; WATER,RAD INL	1-21437-644-1	01	1	9710-					●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-386-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-308-1	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-546-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9505-9702				●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9703-9709				●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-1	01	1	9710-				●	●	●

12 1 2 4 20 18 68 67 20 20 116 20 18 20 56 58 56 56 56 128 55 56 56 133 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TANK; SURGE,RAD	1-21480-027-2	01	1	9101-9504	●	●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9505-9702				●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9703-9709				●	●
1	TANK; SURGE,RAD	1-21480-078-1	01	1	9710-				●	●	●
2	CAP; SURGE TANK OD=51 HOLE ID=2	1-22440-022-1	01	1	9101-9504	●	●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9505-9702				●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9703-9709				●	●
2	CAP; SURGE TANK OD=51 NO-HOLE	1-22440-039-0	01	1	9710-				●	●	●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9505-9702				●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9703-9709				●	●
4	GASKET; SURGE TANK D=43 T=1.2	1-21489-093-0	01	1	9710-				●	●	●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9505-9702				●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9703-9709				●	●
12	HOSE; SURGE TANK L=300	1-09366-199-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=935 SERVICED BY L=3050	8-94209-301-1	01	1	9101-9307	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9308-9504	●	●	●
18	HOSE; RAD TO SURGE TANK BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=44 L=110	1-09360-465-0	01	1	9101-9504	●	●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (B) L=940 SERVICED BY L=3000	0-01258-300-0	01	1	9710-				●	●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9505-9702				●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9703-9709				●	●
18	HOSE; RAD TO SURGE TANK (A) L=138	8-97049-059-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9101-9307	●	●	●
20	CLIP; HOSE,RAD (B) ID=14	1-09704-102-0	02	1	9308-9504	●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) ID=57	1-09704-066-0	02	1	9101-9504	●	●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9505-9702				●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9703-9709				●	●
20	CLIP; HOSE,RAD (B) ID=15	1-09704-018-1	02	1	9710-				●	●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (A) ID=57	1-09704-066-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (D) ID=63	1-09704-067-0	01	1	9710-				●	●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9505-9702				●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9703-9709				●	●
20	CLIP; HOSE,RAD (C) ID=16 L=46	9-09917-428-0	01	1	9710-				●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-385-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-322-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-14121-041-0	01	1	9101-9504	●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-0	01	1	9505-9706				●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9710-9805				●	●	●
55	HOSE; WATER,RAD OUTLET	1-09360-844-1	01	1	9806-				●	●	●
55	HOSE; WATER,RAD OUTLET ISUZU M/T<X9A>	1-09360-844-0	01	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> ID=63	1-09704-067-0	07	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BAND L=250	5-09707-030-0	01	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=63	1-09704-067-0	11	1	9101-9504	●	●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9505-9702				●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9703-9709				●	●
56	CLIP; WATER HOSE,RAD ID=63	1-09704-067-0	04	1	9710-				●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-218-0	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-09360-539-1	01	1	9101-9504	●	●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9505-9702				●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-0	01	1	9703-9709				●	●
58	HOSE; WATER,RAD TO PIPE	1-09360-554-1	01	1	9710-				●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	04	1	9101-9204	●	●	●
67	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9504	●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9505-9506				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9710-0512				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	02	1	0601-				●	●	●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9507-9702				●
67	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	02	1	9703-9709				●	●
68	NUT; BRKT M10	9-09110-510-0	02	1	9505-9509				●
68	NUT; BRKT M10 FLANGE	0-91150-110-0	02	1	9510-9606				●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9710-0602				●	●	●
68	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-				●	●	●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9607-9702				●
68	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	9703-9709				●	●
116	WASHER; PL,TANK FIX ID=10.5 OD=18	9-09160-510-0	02	1	9507-9509				●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-384-0	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-246-2	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-21437-082-1	01	1	9101-9504	●	●	●
128	HOSE; WATER,RAD INL	1-21437-536-1	01	1	9505-				●
128	HOSE; WATER,RAD INL	1-21437-644-0	01	1	9702-9709					●
128	HOSE; WATER,RAD INL	1-21437-644-1	01	1	9710-					●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08>	1-21437-386-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08>	1-21437-308-1	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B>	1-09360-546-0	01	1	9101-9504	●	●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9505-9702				●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-0	01	1	9703-9709				●	●
133	HOSE; WATER,RAD,PIPE TO ENG	1-21437-537-1	01	1	9710-				●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
