Sayfa 0-36 - Isuzu EPC

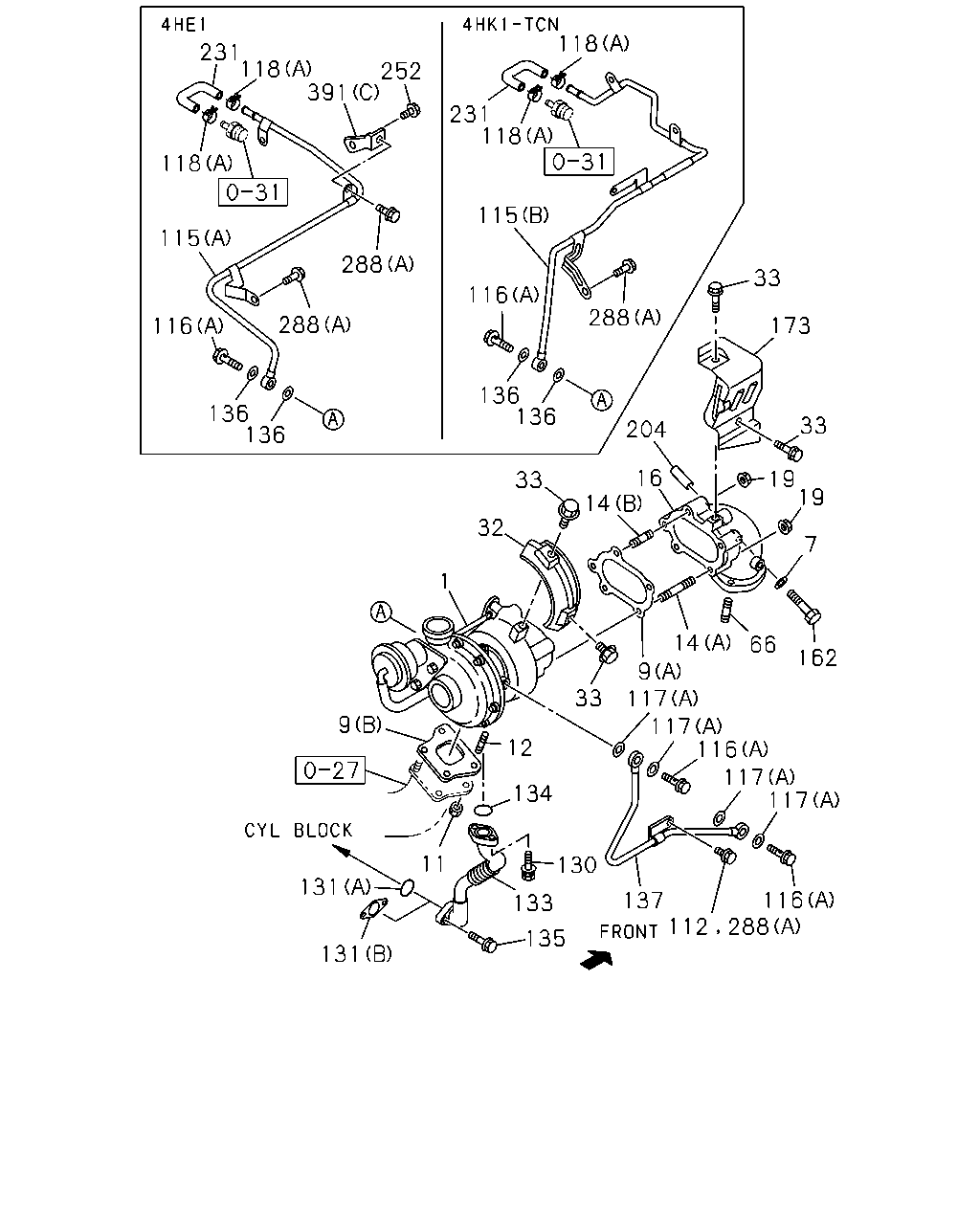

0-36 — TURBOCHARGER SYSTEM (#43829) — 270 parça

118 231 118 252 391 231 118 118 115 115 288 33 116 288 288 173 116 136 136 136 136 33 204 16 14 19 19 33 32 7 1 14 66 162 9 117 117 116 117 117 33 9 12 134 11 130 131 137 116 133 135 131 112 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0612-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0301-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0611		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0612-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0301-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0507-0611		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0612-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97374-412-0	01	1	0507-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0301-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97063-602-0	01	1	0301-0307			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97326-466-0	01	1	0308-0312			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97374-412-0	01	1	0401-0501			●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0507-		●
11	03.342 NUT; TURBOCHARGER M10 P=1.5 H=8	9-09842-007-0	04	1	0301-0501			●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0507-		●
12	03.342 STUD; TURBOCHARGER M10X28	9-04731-028-0	02	1	0301-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0611		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0612-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0611		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0612-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0301-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0301-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0612-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0301-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0611		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0612-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0301-0501			●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0507-		●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97351-168-0	01	1	0301-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0612-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0301-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0611		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0612-	●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0301-0501			●
112	03.417 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
112	03.417 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	0612-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-97372-533-0	01	1	0507-0902		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98137-574-0	01	1	0903-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-97229-039-0	01	1	0301-0501			●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0611		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0612-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0301-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0612-0902	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0301-0501			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0611		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0301-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0611		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0612-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0301-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0611		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0612-1006	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0301-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0612-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0301-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0611		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0612-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0301-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0611		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0612-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0301-0501			●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0507-		●
136	01.519 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0301-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0612-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0301-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0611		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0612-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0301-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0612-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0301-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0611		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0612-0709	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0301-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0611		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0612-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0301-0501			●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0301-0501			●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0612-	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0301-0501			●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0612-	●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0612-	●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0301-0501			●

118 288 231 33 173 118 33 291 252 204 33 115 19 116 391 14 391 288 19 14 7 162 117 117 9 16 1 117 66 117 137 117 116 134 117 131 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0612-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0301-0501			●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0507-0611		●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0612-	●	●
7	03.613 WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0301-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0507-0611		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0612-	●	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97374-412-0	01	1	0507-		●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A)	8-97039-777-1	01	1	0301-0501			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97063-602-0	01	1	0301-0307			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97326-466-0	01	1	0308-0312			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B)	8-97374-412-0	01	1	0401-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0507-0611		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0612-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0507-0611		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0612-	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0301-0501			●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0301-0501			●
16	03.609 ADAPTER; EXH PIPE	8-97178-487-3	01	1	0612-	●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-2	01	1	0710-		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0507-0709		●
16	03.609 ADAPTER; EXH PIPE	8-97039-749-1	01	1	0301-0501			●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0507-0611		●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0612-	●	●
19	03.342 NUT; EXH PIPE,TURBOCHARGER 03.604 M8 FLANGE	8-94170-486-0	05	1	0301-0501			●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0612-	●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0507-		●
33	03.342 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	06	1	0301-0501			●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0507-0604		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0605-0611		●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0612-	●	●
66	03.342 STUD; EXH PIPE 03.275 M10X25 L=40	9-04411-025-0	03	1	0301-0501			●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (C)	8-97210-077-2	01	1	0612-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-97372-533-0	01	1	0507-0902		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (B)	8-98137-574-0	01	1	0903-		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT (A)	8-97229-039-0	01	1	0301-0501			●
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0611		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0612-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0301-0501			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0612-0902	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0903-	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0903-	●	●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0507-0902		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0903-		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0301-0501			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0611		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0301-0501			●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0507-0512		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0601-0611		●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D M6X20 W/LK WASHER	0-50540-620-0	02	1	0612-	●	●
130	01.531 BOLT; OIL PIPE TO TURBOCHARGER D 03.704 M6X20 W/LK WASHER	0-50040-620-0	02	1	0301-0501			●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0507-0611		●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0612-1006	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=30	8-94394-671-0	01	1	1007-	●	●
131	01.531 GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=27.7	9-09566-228-0	01	1	0301-0501			●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-2	01	1	0612-1006	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-659-0	01	1	1007-	●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-2	01	1	0507-1006		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-98172-658-0	01	1	1007-		●
133	03.358 PIPE; OIL DRAIN,TURBOCHARGER	8-97148-925-1	01	1	0301-0501			●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0507-0611		●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0612-	●	●
134	01.531 GASKET; OIL PIPE,TURBOCHARGER DR ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0301-0501			●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0507-0512		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-0611		●
135	01.531 BOLT; OIL PIPE TO C/BL 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0612-	●	●
135	01.531 BOLT; OIL PIPE TO C/BL 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0301-0501			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0612-	●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0507-		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97357-769-0	01	1	0301-0501			●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0507-0611		●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0612-	●	●
162	03.613 BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0301-0501			●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0612-	●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0507-		●
173	03.417 PROTECTOR; HEAT,FUEL PIPE	8-97351-167-0	01	1	0301-0501			●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0507-0611		●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0612-0709	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-0710	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0710-	●	●
204	03.342 COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0301-0501			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0507-0611		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0612-	●	●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0301-0501			●
252	03.417 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0612-	●
252	03.417 BOLT; BRKT M12X19	8-97079-809-0	01	1	0301-0501			●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0612-	●
288	03.342 BOLT; WATER PIPE CLIP 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0612-	●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	04	1	0507-0512		●
288	03.342 BOLT; WATER PIPE CLIP 02.343 (A) M8X12 FLANGE	0-28050-812-0	04	1	0601-		●
288	03.342 BOLT; WATER PIPE CLIP 08.900 (A) M8X12 FLANGE	0-28080-812-0	03	1	0301-0501			●
291	03.374 NUT; PIPE TO BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0612-	●
391	03.342 BRACKET; WATER PIPE (A)	8-97210-078-0	01	1	0612-	●
391	03.342 BRACKET; WATER PIPE (B)	8-97221-061-0	01	1	0612-	●
391	03.342 BRACKET; WATER PIPE (C)	8-97068-554-0	01	1	0301-0501			●

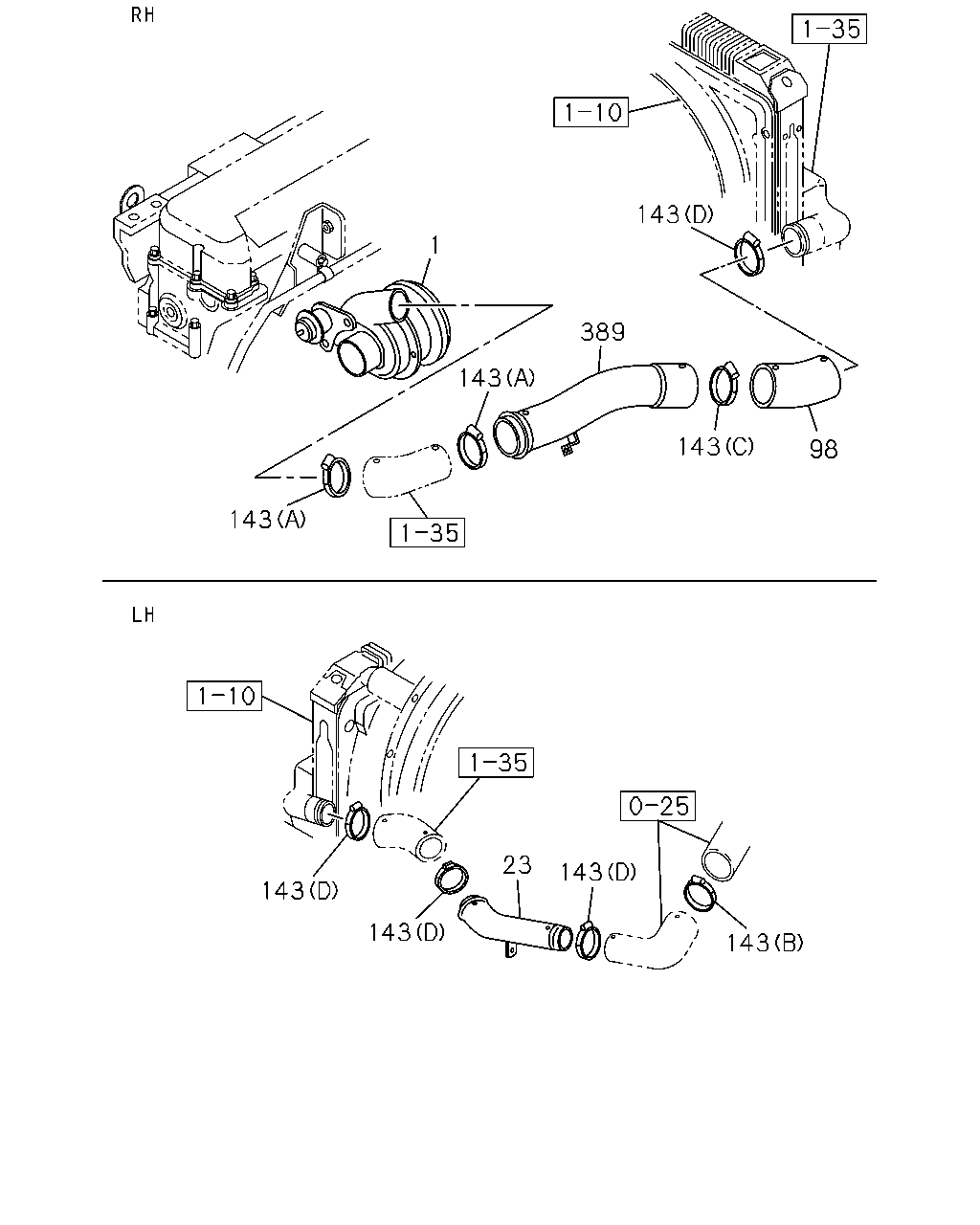

143 1 389 143 143 98 143 23 143 143 143 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-1	01	1	0612-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98000-031-2	01	1	0507-		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97208-966-3	01	1	0301-0501			●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-98000-540-0	01	1	0507-		●
23	03.417 PIPE; INTAKE,TURBOCHARGER	8-97350-405-1	01	1	0301-0310			●
23	03.417 PIPE; INTAKE,TURBOCHARGER CHARGE AIR COOLER<6PL>	8-97350-405-1	01	1	0311-0501			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-2	01	1	0507-		●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET	8-97221-536-1	01	1	0301-0310			●
98	03.407 HOSE; RUBBER,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL>	8-97221-536-1	01	1	0311-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (C) ID=58-79	1-09707-136-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=77-99	1-09707-141-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (A) ID=60-65	8-98096-418-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=70-90	8-98122-372-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=77-95	1-09707-198-0	01	1	0507-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=75-95	8-98133-357-0	01	1	0811-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (B) ID=75-95	8-98133-357-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=68-85	1-09707-202-0	04	1	0507-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=65-85	8-98133-350-0	04	1	0811-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (D) ID=65-85	8-98133-350-0	04	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (C) ID=58-76	1-09707-203-0	01	1	0507-0811		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=55-75	8-98133-349-0	01	1	0812-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (C) ID=55-75	8-98133-349-0	01	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65	1-09707-204-0	02	1	0507-0810		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=45-65	8-98133-348-0	02	1	0811-1001		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET IDENTIFICATION LABEL FOR KD<6UT> (A) ID=45-65	8-98133-348-0	02	1	1002-		●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	1-09707-135-0	02	1	0301-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-69	8-94316-991-0	02	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (A) ID=50-65	1-09707-204-0	02	1	0308-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (C) ID=58-79	1-09707-136-0	01	1	0301-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 03.417 (C) ID=58-79	8-94126-771-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET 01.159 (C) ID=58-76	1-09707-203-0	01	1	0308-0310			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> 01.159 (C) ID=58-76	1-09707-203-0	01	1	0311-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=68-89	1-09707-137-0	04	1	0301-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=68-85	8-94320-428-0	04	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (D) ID=68-85	1-09707-202-0	04	1	0308-0310			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (D) ID=68-85	1-09707-202-0	04	1	0311-0501			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=77-99	1-09707-141-0	01	1	0301-0303			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=77-95	1-09707-114-0	01	1	0304-0307			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET (B) ID=77-95	1-09707-198-0	01	1	0308-0310			●
143	03.407 CLIP; HOSE,TURBOCHARGER OUTLET CHARGE AIR COOLER<6PL> (B) ID=77-95	1-09707-198-0	01	1	0311-0501			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97350-404-1	01	1	0507-		●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC	8-97350-404-1	01	1	0301-0310			●
389	03.342 PIPE; INL,TURBOCHARGER TO CAC CHARGE AIR COOLER<6PL>	8-97350-404-1	01	1	0311-0501			●

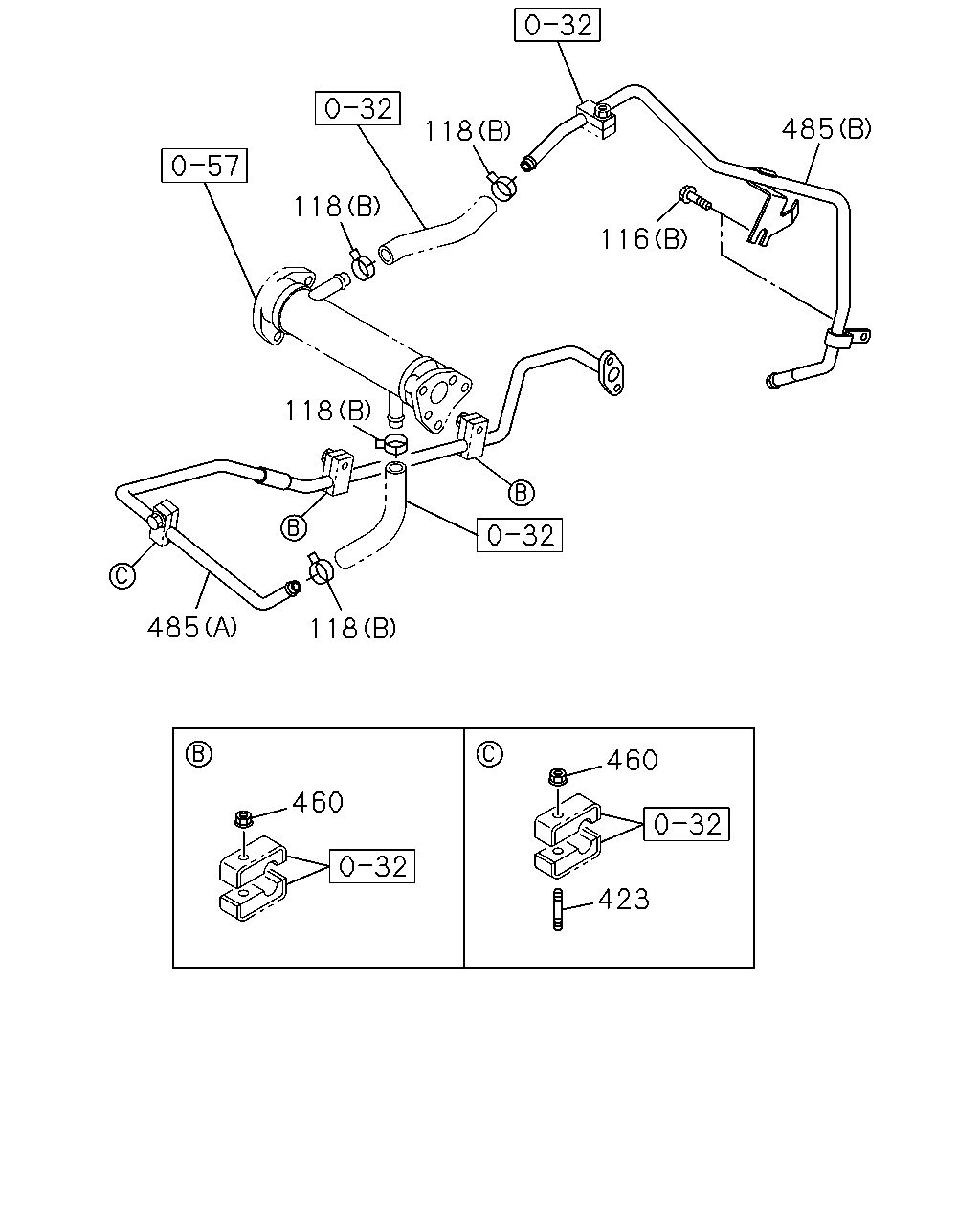

485 118 118 116 118 485 118 460 460 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
116	03.342 BOLT; WATER PIPE 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	0507-0512		●
116	03.342 BOLT; WATER PIPE 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0507-0611		●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0612-	●	●
116	03.342 BOLT; WATER PIPE (A) M14X30 EYE-BOLT	8-94455-144-0	03	1	0301-0501			●
118	03.342 CLIP; WATER HOSE 08.846 (B) ID=20	1-09707-084-1	04	1	0507-1102		●
118	03.342 CLIP; WATER HOSE 03.278 (B) ID=22	8-97359-141-0	04	1	1103-		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0507-0611		●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0612-	●	●
118	03.342 CLIP; WATER HOSE 03.162 (A) ID=15.5	8-94221-519-0	02	1	0301-0501			●
423	03.373 STUD; WATER PIPE 01.428 M8X20 L=32	9-04110-820-0	01	1	0507-0604		●
423	03.373 STUD; WATER PIPE 02.510 M8X20 L=32	0-41010-820-0	01	1	0605-		●
460	03.374 NUT; PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●
460	03.374 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
485	01.097 PIPE; WATER EGR (A)	8-97375-669-0	01	1	0507-		●
485	01.097 PIPE; WATER EGR (B)	8-98010-003-0	01	1	0507-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
