◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#43828) — 10 parça

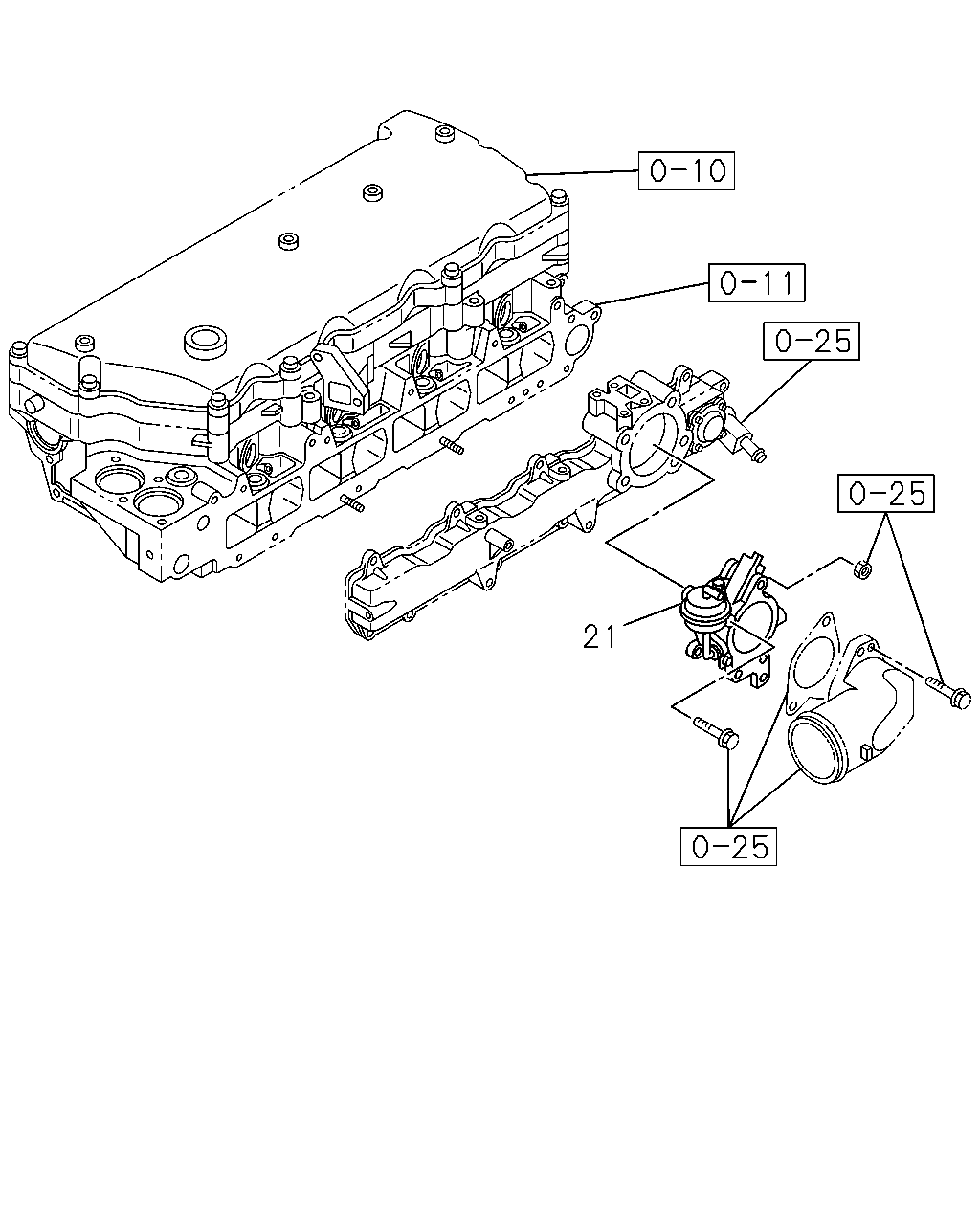

çizim 19369
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE 8-97369-668-0 01 1 0507- ●
21 03.440 VALVE ASM; THROTTLE 8-97075-902-1 01 1 9503-9511 ●

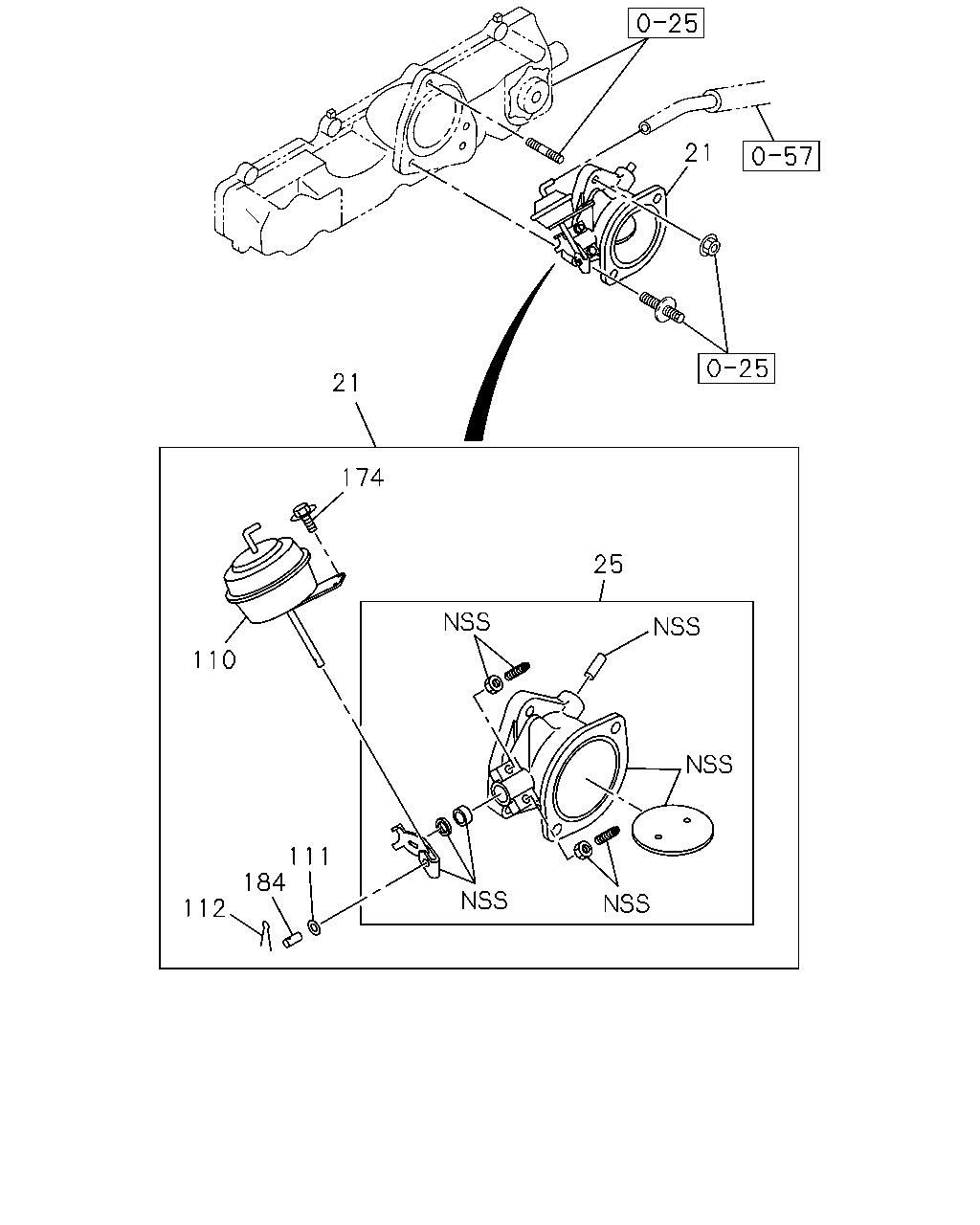

çizim 69949
21 21 174 25 110 111 184 112
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.440 VALVE ASM; THROTTLE 8-97369-668-0 01 1 0507- ●
21 03.440 VALVE ASM; THROTTLE 8-97075-902-1 01 1 9503-9511 ●
25 03.440 BODY ASM; THROTTLE 8-97087-753-0 01 1 9503-9511 ●
110 03.440 CHAMBER ASM; DIAPH 8-97022-149-1 01 1 9503-9511 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 9503-9511 ●
112 03.440 PIN; SPLIT,LEVER 8-97079-213-0 01 1 9503-9511 ●
174 03.440 BOLT; CHAMBER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 02 1 9503-9511 ●
184 03.440 PIN; LEVER 8-97022-150-1 01 1 9503-9511 ●
