0-33 — FAN AND FAN BELT (#43827) — 98 parça

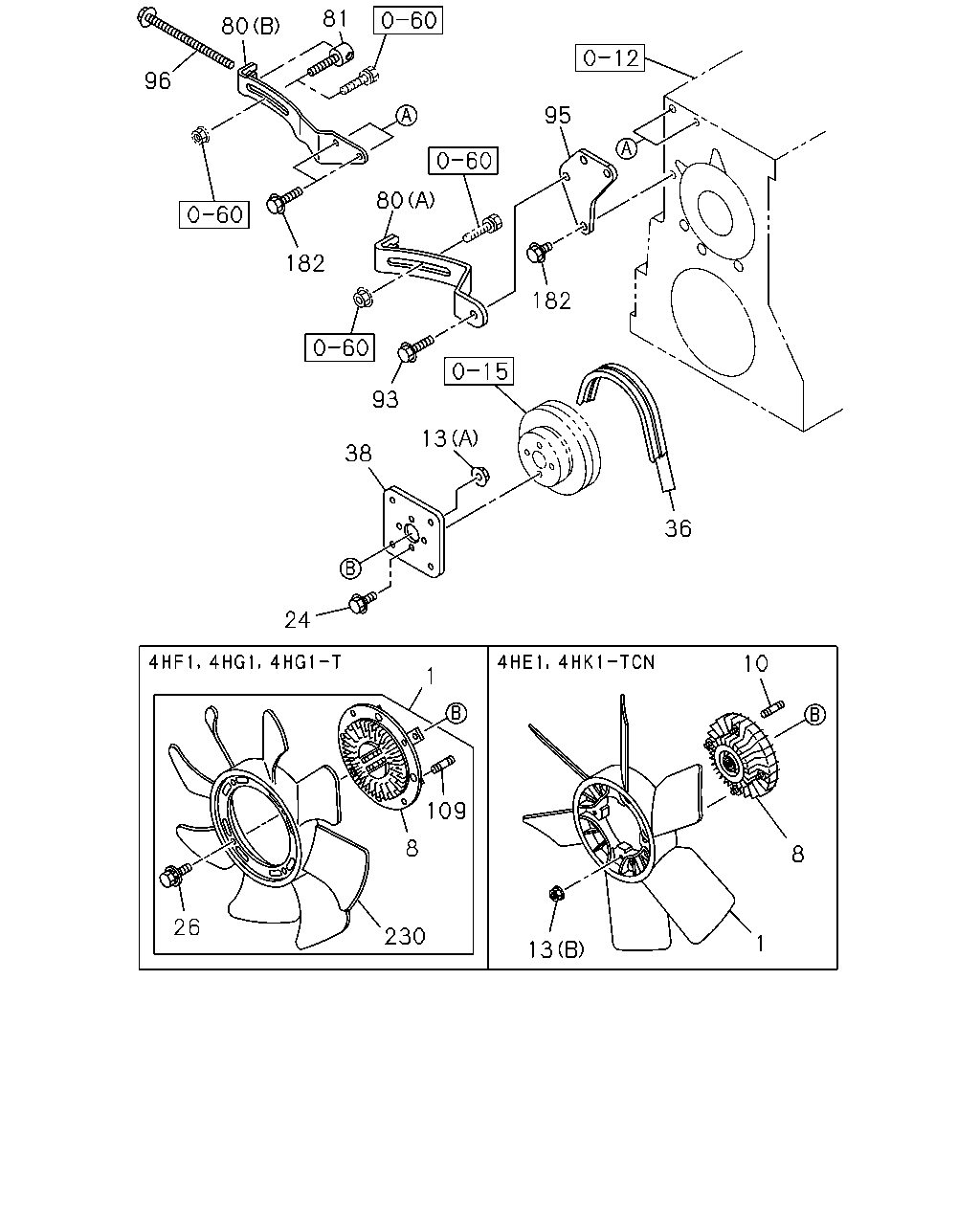

çizim 72177
81 80 96 95 182 182 93 13 38 36 24 10 1 109 8 8 26 230 1 13 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0507- ●
1 01.064 FAN; COOLING 8-97123-906-0 01 1 9412-9503 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0311-0611 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-2 01 1 0612- ● ●
1 01.064 FAN; COOLING 8-97129-772-1 01 1 9504-9711 ●
1 01.064 FAN; COOLING
OD=430 		8-97141-195-1 01 1 9712-0212 ●
1 01.064 FAN; COOLING 5-13662-012-1 01 1 0301-0310 ●
1 01.064 FAN; COOLING
CHARGE AIR COOLER<6PL> 		5-13662-012-1 01 1 0311-0501 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0507- ●
8 01.064 CLUTCH; COOLING FAN 8-97123-948-0 01 1 9412-9503 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0311-0611 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 0612- ● ●
8 01.064 CLUTCH; COOLING FAN 8-97129-738-0 01 1 9504-9711 ●
8 01.064 CLUTCH; COOLING FAN 8-97139-299-0 01 1 9712-0212 ●
8 01.064 CLUTCH; COOLING FAN 8-97148-797-0 01 1 0301-0310 ●
8 01.064 CLUTCH; COOLING FAN
CHARGE AIR COOLER<6PL> 		8-97148-797-0 01 1 0311-0501 ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0507-0604 ●
10 01.062 STUD; FAN CLU TO PLATE
02.510 M8X20 L=32 		0-41010-820-0 04 1 0605- ●
10 01.062 STUD; FAN CLU TO PLATE
01.428 M8X20 L=32 		9-04110-820-0 04 1 0301-0310 ●
10 01.062 STUD; FAN CLU TO PLATE
CHARGE AIR COOLER<6PL> 01.428 M8X20 L=32 		9-04110-820-0 04 1 0311-0501 ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0507- ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9412-9711 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 9712-0212 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0301-0310 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0311-0501 ● ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0502-0506 ●
13 01.062 NUT; COOLING FAN
07.633 (A) M8 FLANGE 		0-91150-108-0 04 1 0507-0602 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-0611 ● ●
13 01.062 NUT; COOLING FAN
(A) M8 FLANGE 		0-91180-108-0 04 1 0612- ● ● ●
13 01.062 NUT; COOLING FAN
07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0301-0310 ●
13 01.062 NUT; COOLING FAN
CHARGE AIR COOLER<6PL> 07.829 (B) M6 FLANGE 		5-09440-004-0 04 1 0311-0501 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9503-9711 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 9712-0212 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0301-0310 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0311-0501 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0502-0506 ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0507-0611 ● ●
24 01.062 BOLT; FAN
08.900 M8X18 FLANGE 		0-28080-818-0 04 1 0612- ● ● ●
26 01.062 BOLT; FAN TO CLU
03.670 M6X20 FLANGE 		0-28080-620-0 04 1 9412-9503 ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9504-9511 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0311-0611 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 0612- ● ●
26 01.062 BOLT; FAN TO CLU 8-94389-764-0 04 1 9512-9711 ●
26 01.062 BOLT; FAN TO CLU
01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712-0212 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8970944470) 		8-97094-446-2 01 1 9503-9706 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-0 01 1 9707-9711 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 9712-0212 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0301-0310 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0311-0501 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0502-0506 ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0507-0611 ● ●
36 01.066 BELT; COOLING FAN
1 SET=2 PIECE(8971801810) 		8-97180-199-1 01 1 0612- ● ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9503-9711 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 9712-0212 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0301-0310 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0311-0501 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0502-0506 ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0507-0611 ● ●
38 01.062 SPACER; FAN 8-97108-643-0 01 1 0612- ● ● ●
80 02.317 PLATE; ADJ
(A) 		8-97061-466-1 01 1 9503-9702 ●
80 02.317 PLATE; ADJ
(A) 		8-97172-415-0 01 1 9703-9711 ●
80 02.317 PLATE; ADJ
(A) 		8-97172-415-0 01 1 9712-0212 ●
80 02.317 PLATE; ADJ
(A) 		8-97172-415-0 01 1 0301-0305 ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 0306-0310 ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 0311-0501 ● ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 0502-0506 ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 0507-0611 ● ●
80 02.317 PLATE; ADJ
(B) 		8-97164-089-2 01 1 0612- ● ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0507-0611 ● ●
81 02.317 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60) 		8-97257-223-0 01 1 0612- ● ● ●
93 02.317 BOLT; ADJ PLATE BRKT
03.417 M10X25 FLANGE 		0-28081-025-0 01 1 9503-9606 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9607-9711 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9712-0212 ●
93 02.317 BOLT; ADJ PLATE BRKT
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0301-0305 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9503-9711 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 9712-0212 ●
95 02.317 BRACKET; ADJ PLATE 8-97037-510-0 01 1 0301-0305 ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0507-0611 ● ●
96 02.317 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE 		8-97172-720-1 01 1 0612- ● ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9412-9511 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0311-0611 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 0612- ● ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9512-9711 ●
109 01.062 STUD; FAN CLU
M8X13.5 L=22 		8-97049-577-1 04 1 9712-0212 ●
182 01.062 BOLT; BRKT
00.004 M8X32 FLANGE 		0-28080-832-0 03 1 9503-9510 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9511-9711 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 9712-0212 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0301-0305 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0306-0310 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0311-0501 ● ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0502-0506 ●
182 01.062 BOLT; BRKT
02.183 M8X35 FLANGE 		0-28680-835-0 02 1 0507-0512 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0601-0611 ● ●
182 01.062 BOLT; BRKT
01.060 M8X35 FLANGE 		0-28650-835-0 02 1 0612- ● ● ●
230 01.055 FAN; COOLING 8-97078-662-1 01 1 9412-9711 ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0311-0611 ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 0612- ● ●
230 01.055 FAN; COOLING 8-97140-854-1 01 1 9712-0212 ●
