1 |

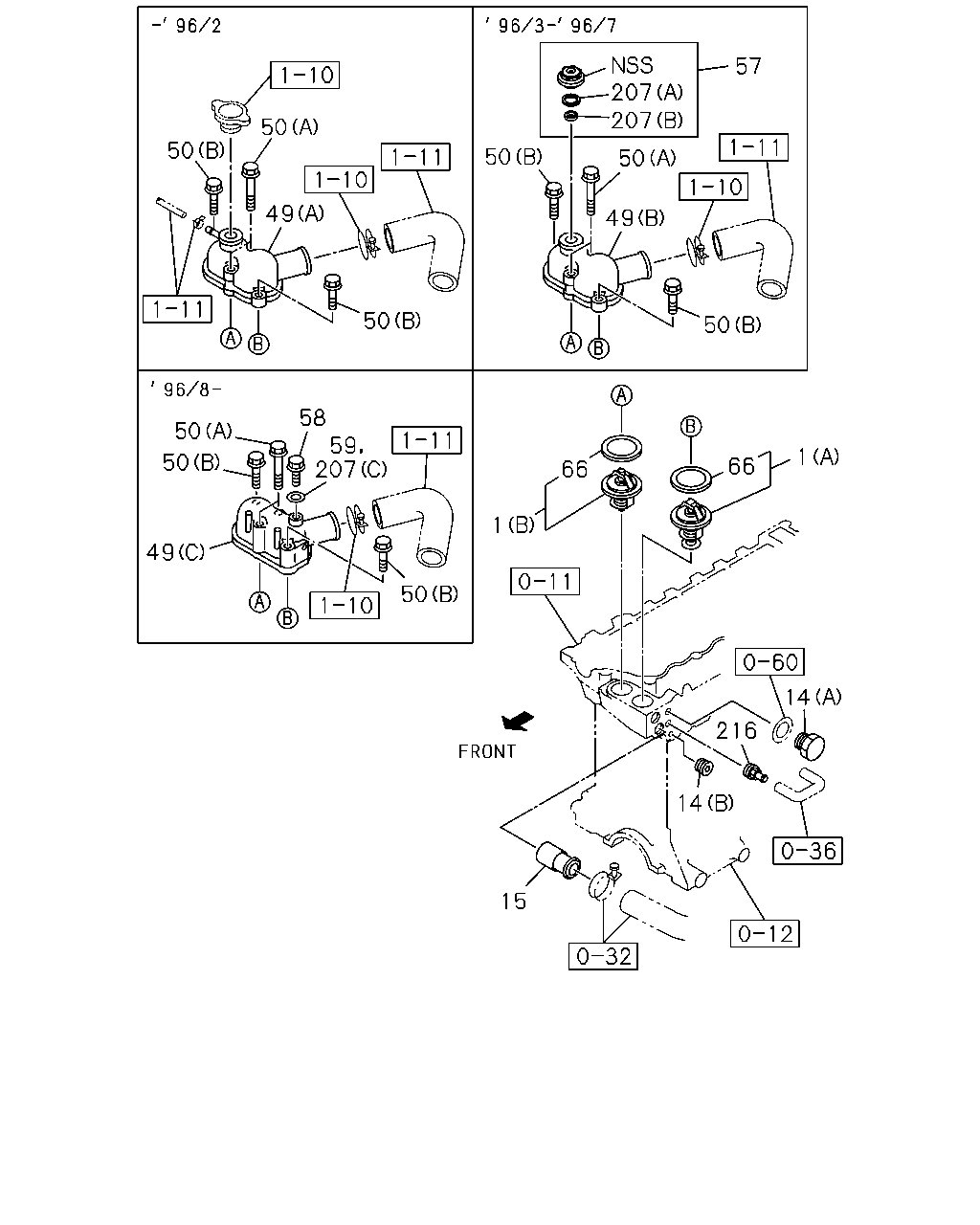

01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97300-787-2 |
01 |
1 |
0507-0611 |
● |
|
|
|
|
| |
1 |
01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
(B)
85 CELSIUS
|
8-97300-787-2 |
01 |
1 |
0612- |
● |
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97300-790-2 |
01 |
1 |
0507- |
● |
|
|
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97028-690-2 |
01 |
1 |
9503-9608 |
|
|
● |
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97164-569-0 |
01 |
1 |
9609-9610 |
|
|
● |
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97167-495-0 |
01 |
1 |
9611-9711 |
|
|
● |
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97167-495-0 |
01 |
1 |
9712-9907 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97231-887-0 |
01 |
1 |
9908-0008 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97263-194-0 |
01 |
1 |
0009-0010 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97300-787-1 |
01 |
1 |
0011-0212 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97300-787-2 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97116-057-0 |
01 |
1 |
9503-9610 |
|
|
● |
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97167-497-0 |
01 |
1 |
9611-9711 |
|
|
● |
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97167-497-0 |
01 |
1 |
9712-9907 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97231-889-0 |
01 |
1 |
9908-9911 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97233-417-0 |
01 |
1 |
9912-0008 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97263-193-0 |
01 |
1 |
0009-0010 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97300-789-1 |
01 |
1 |
0011-0212 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97300-790-1 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97300-789-2 |
01 |
1 |
0311-0611 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
(A)
82 CELSIUS
|
8-97300-789-2 |
01 |
1 |
0612- |
|
● |
|
|
● |
| |
1 |
01.246 THERMOSTAT
(B)
85 CELSIUS
|
8-97300-792-1 |
01 |
1 |
0311-0611 |
|
● |
|
|
|
| |
1 |
01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR
CONDITIONER MANUAL CONT(C60)
(B)
85 CELSIUS
|
8-97300-792-1 |
01 |
1 |
0612- |
|
● |
|
|
● |
| |
14 |
01.252 PLUG; SW
01.073
(B)
PT3/8
|
5-09605-005-0 |
01 |
1 |
0507-0611 |
● |
|
|
|
|
| |
14 |
01.252 PLUG; SW
01.073
(B)
PT3/8
|
5-09605-005-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
| |
14 |
01.252 PLUG; SW
04.520
(A)
M16X8 PLUG
|
9-09661-005-0 |
01 |
1 |
0507-0611 |
● |
|
|
|
|
| |
14 |
01.252 PLUG; SW
04.520
(A)
M16X8 PLUG
|
9-09661-005-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
| |
14 |
01.252 PLUG; SW
04.520
(A)
M16X8 PLUG
|
9-09661-005-0 |
01 |
1 |
9512-9604 |
|
|
● |
|
|
| |
14 |
01.252 PLUG; SW
04.520
(A)
M16X8 PLUG
|
9-09661-005-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
| |
14 |
01.252 PLUG; SW
01.073
(B)
PT3/8
|
5-09605-005-0 |
01 |
1 |
0404-0501 |
|
|
|
● |
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
9503-9711 |
|
|
● |
|
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
9712-0212 |
|
● |
|
|
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
0502-0506 |
|
● |
|
|
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
0507-0611 |
● |
● |
|
|
|
| |
15 |
01.251 PIPE; BYPASS
01.153
|
8-94342-574-0 |
01 |
1 |
0612- |
● |
● |
|
|
● |
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97329-914-0 |
01 |
1 |
0507- |
● |
|
|
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(A)
|
8-97061-513-3 |
01 |
1 |
9503-9504 |
|
|
● |
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(A)
|
8-97121-587-0 |
01 |
1 |
9505-9602 |
|
|
● |
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(B)
|
8-97145-685-1 |
01 |
1 |
9603-9607 |
|
|
● |
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97145-919-0 |
01 |
1 |
9608-9711 |
|
|
● |
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97145-919-0 |
01 |
1 |
9712-9805 |
|
● |
|
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97200-620-0 |
01 |
1 |
9806-0212 |
|
● |
|
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97200-620-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97200-620-0 |
01 |
1 |
0311-0407 |
|
● |
|
● |
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97372-769-0 |
01 |
1 |
0408-0501 |
|
● |
|
● |
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97372-769-0 |
01 |
1 |
0502-0611 |
|
● |
|
|
|
| |
49 |
01.153 PIPE; WATER OUTLET
(C)
|
8-97372-769-0 |
01 |
1 |
0612- |
|
● |
|
|
● |
| |
50 |
01.252 BOLT; OUTLET PIPE
03.278
(A)
M8X100 FLANGE
|
0-28080-800-0 |
02 |
1 |
9503-9607 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.780
(A)
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
9608-9711 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.780
(A)
M8X50 FLANGE
|
0-28080-850-0 |
02 |
1 |
9712-9805 |
|
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
02.559
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9806-0212 |
|
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
02.559
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0301-0310 |
|
|
|
● |
|
| |
50 |
01.252 BOLT; OUTLET PIPE
02.559
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
50 |
01.252 BOLT; OUTLET PIPE
02.559
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0502-0506 |
|
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
02.559
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
0507-0512 |
● |
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0601-0611 |
● |
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
06.216
(A)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0612- |
● |
● |
|
|
● |
| |
50 |
01.252 BOLT; OUTLET PIPE
(B)
M8X85 FLANGE
|
8-97023-062-0 |
02 |
1 |
9503-9504 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.251
(B)
M8X60 FLANGE
|
0-28080-860-0 |
02 |
1 |
9505-9603 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
(B)
M8X85 FLANGE
|
8-97023-062-0 |
02 |
1 |
9604-9607 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
9608-9711 |
|
|
● |
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
9712-0212 |
|
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
0301-0310 |
|
|
|
● |
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
0502-0506 |
|
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
0507-0611 |
● |
● |
|
|
|
| |
50 |
01.252 BOLT; OUTLET PIPE
01.097
(B)
M8X65 FLANGE
|
1-09044-072-1 |
02 |
1 |
0612- |
● |
● |
|
|
● |
| |
57 |
01.252 CAP
|
8-97146-740-0 |
01 |
1 |
9603-9607 |
|
|
● |
|
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
9608-9711 |
|
|
● |
|
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
9712-0212 |
|
● |
|
|
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
0502-0506 |
|
● |
|
|
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
0507-0611 |
● |
● |
|
|
|
| |
58 |
00.073 PLUG; WATER OUTLET PIPE
M8X16
|
8-97021-211-1 |
01 |
1 |
0612- |
● |
● |
|
|
● |
| |
59 |
01.251 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9608-9711 |
|
|
● |
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
01 |
1 |
0508-0611 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
01 |
1 |
0508-0611 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
01 |
1 |
0612- |
|
● |
|
|
● |
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
01 |
1 |
0612- |
|
● |
|
|
● |
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97028-669-1 |
02 |
1 |
9503-9610 |
|
|
● |
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97167-477-0 |
02 |
1 |
9611-9711 |
|
|
● |
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97167-477-0 |
02 |
1 |
9712-9907 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97231-848-0 |
02 |
1 |
9908-0010 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0011-0212 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0301-0310 |
|
|
|
● |
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0502-0506 |
|
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0507-0507 |
● |
● |
|
|
|
| |
66 |
01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEA
D)
|
8-97300-793-0 |
02 |
1 |
0508- |
● |
|
|
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
|
8-97146-739-0 |
01 |
1 |
9603-9607 |
|
|
● |
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
|
8-97146-741-0 |
01 |
1 |
9603-9607 |
|
|
● |
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
9712-0212 |
|
● |
|
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
0311-0501 |
|
● |
|
● |
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
0502-0506 |
|
● |
|
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
0507-0611 |
● |
● |
|
|
|
| |
207 |
08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE).
03.162
(C)
ID=8.2 OD=13.2
|
1-09630-082-0 |
01 |
1 |
0612- |
● |
● |
|
|
● |
| |
216 |
01.153 PIPE ASM; WATER,TURBOCHARGER RET
|
8-97358-699-0 |
01 |
1 |
0507-0611 |
● |
|
|
|
|
| |
216 |
01.153 PIPE ASM; WATER,TURBOCHARGER RET
|
8-97358-699-0 |
01 |
1 |
0612- |
● |
|
|
|
● |
| |
216 |
01.153 PIPE ASM; WATER,TURBOCHARGER RET
|
8-97358-699-0 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
