Sayfa 0-27 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶

0-27 — EXHAUST MANIFOLD (#43822) — 164 parça

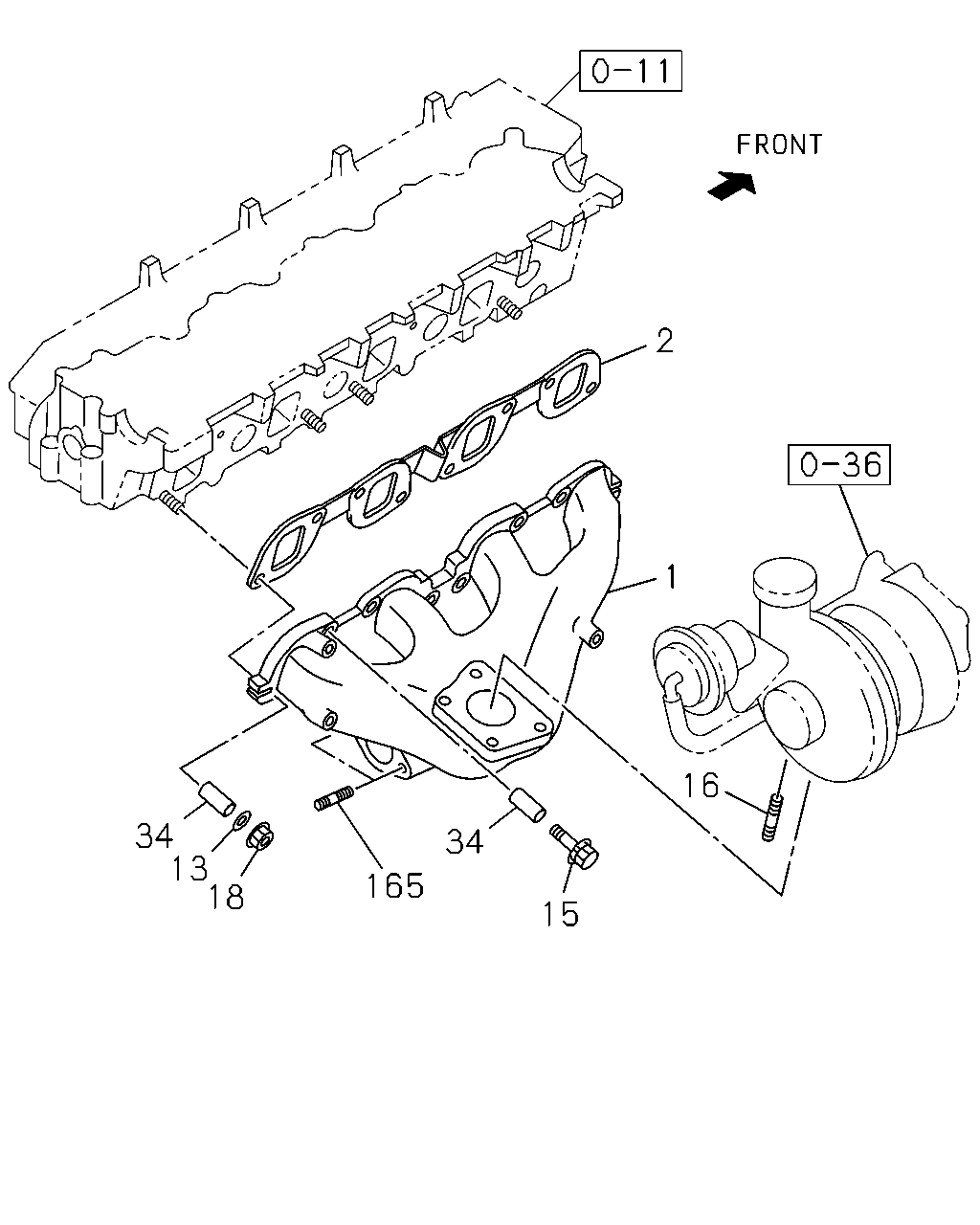

2 1 16 34 13 18 34 165 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0607	●
1	03.601 MANIFOLD; EXHAUST	8-98027-968-1	01	1	0608-	●
1	03.601 MANIFOLD; EXHAUST	8-97104-378-2	01	1	9503-9611		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9612-9711		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9712-0212			●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0301-0501				●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0311-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-866-1	01	1	9503-9609		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9610-9711		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9712-0212			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0301-0310				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0311-0501			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0502-0506			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0507-0611	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-2	01	1	0612-	●		●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9503-9711		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9712-0212			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0301-0310				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0311-0501			●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0502-0506			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0507-0611	●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0612-	●		●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9503-9711		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9712-0212			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0301-0310				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0311-0501			●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0502-0506			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0611	●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0612-	●		●		●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0507-	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9503-9711		●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9712-0212			●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0301-0501				●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0311-			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9503-9711		●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9712-0212			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0301-0310				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0311-0501			●	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0502-0506			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0611	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0612-	●		●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9503-9711		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9712-0003			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0004-0212			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0301-0310				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0311-0501			●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0502-0506			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0507-0611	●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0612-	●		●		●
165	03.417 STUD; EGR PIPE 03.613 M8X45 L=57	8-94105-162-1	02	1	0507-	●
165	03.417 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	02	1	0301-0501				●

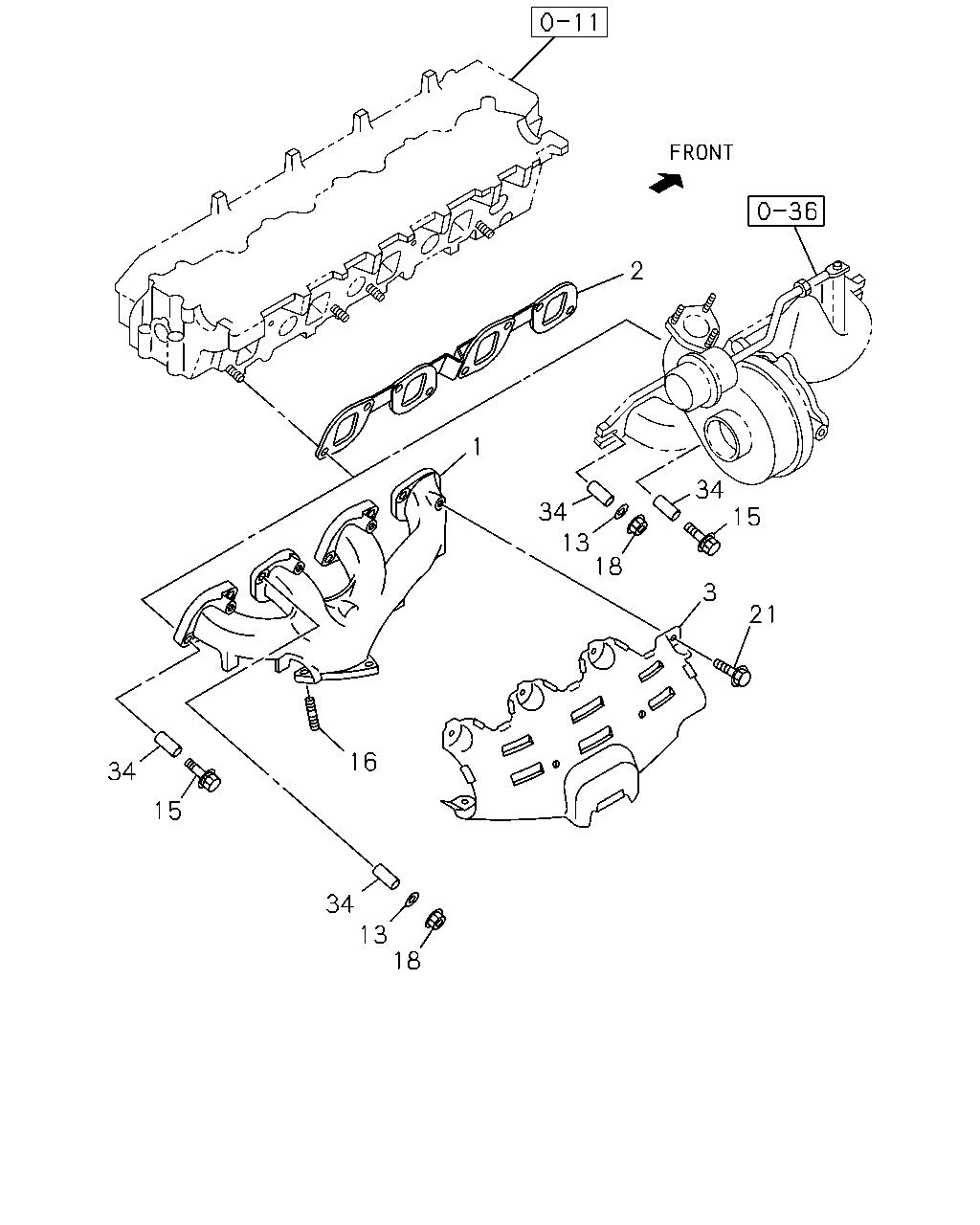

2 1 34 15 34 13 18 3 21 16 34 15 34 13 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0607	●
1	03.601 MANIFOLD; EXHAUST	8-98027-968-1	01	1	0608-	●
1	03.601 MANIFOLD; EXHAUST	8-97104-378-2	01	1	9503-9611		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9612-9711		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9712-0212			●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0301-0501				●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0311-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-866-1	01	1	9503-9609		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9610-9711		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9712-0212			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0301-0310				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0311-0501			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0502-0506			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0507-0611	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-2	01	1	0612-	●		●		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97095-067-0	01	1	9503-9509		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-0	01	1	9510-9511		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97139-487-1	01	1	9512-9611		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-0	01	1	9612-9711		●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-1	01	1	9712-0212			●
3	03.602 PROTECTOR; HEAT,EXH MANIF	8-97096-424-1	01	1	0311-			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9503-9711		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9712-0212			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0301-0310				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0311-0501			●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0502-0506			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0507-0611	●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0612-	●		●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9503-9711		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9712-0212			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0301-0310				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0311-0501			●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0502-0506			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0611	●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0612-	●		●		●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0507-	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9503-9711		●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9712-0212			●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0301-0501				●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0311-			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9503-9711		●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9712-0212			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0301-0310				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0311-0501			●	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0502-0506			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0611	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0612-	●		●		●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	06	1	9503-9611		●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	9612-9711		●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	9712-0212			●
21	03.604 BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	08	1	0311-			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9503-9711		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9712-0003			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0004-0212			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0301-0310				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0311-0501			●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0502-0506			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0507-0611	●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0612-	●		●		●

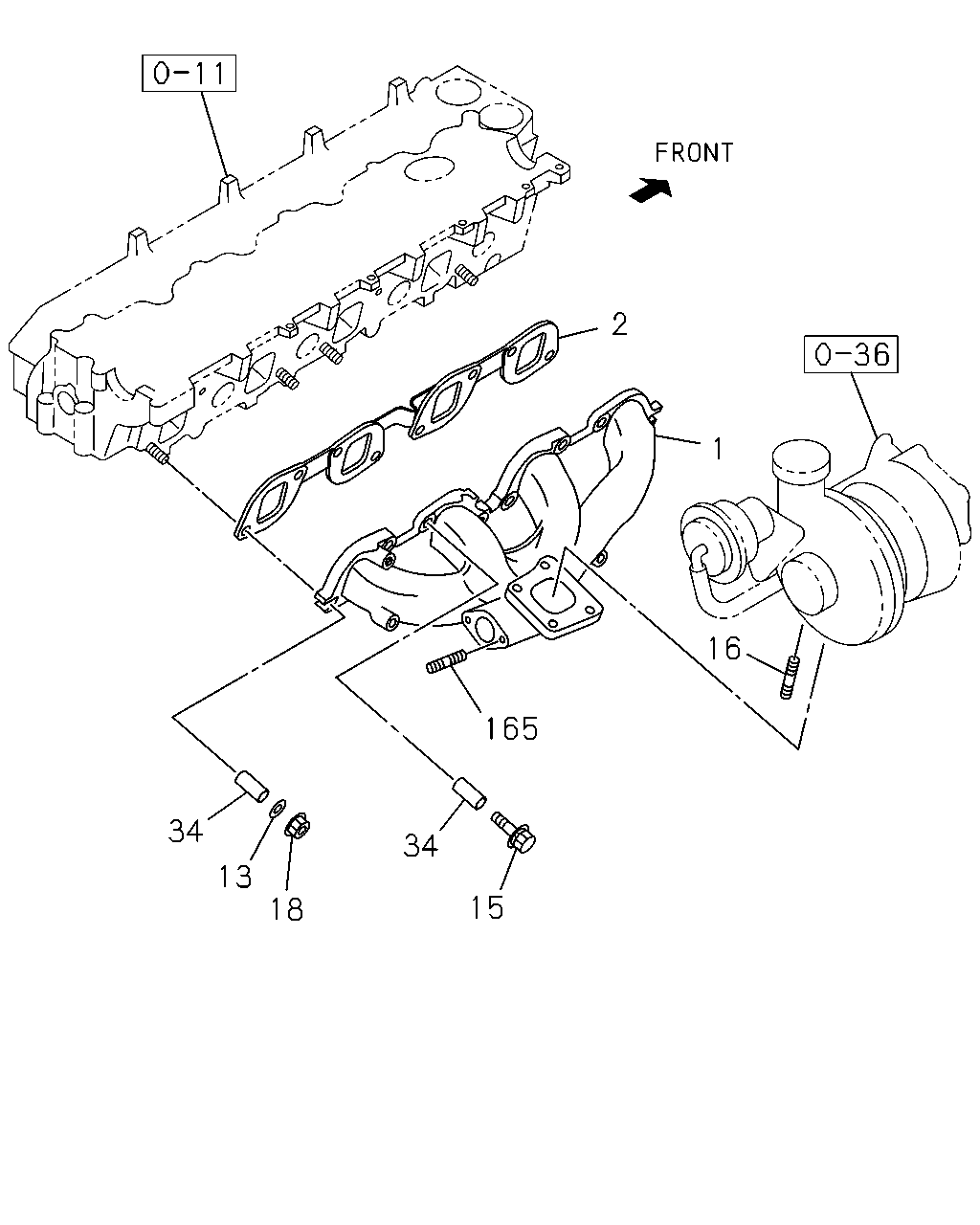

2 1 16 165 34 34 13 15 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0607	●
1	03.601 MANIFOLD; EXHAUST	8-98027-968-1	01	1	0608-	●
1	03.601 MANIFOLD; EXHAUST	8-97104-378-2	01	1	9503-9611		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9612-9711		●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-0	01	1	9712-0212			●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0301-0501				●
1	03.601 MANIFOLD; EXHAUST	8-97163-079-1	01	1	0311-			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97105-866-1	01	1	9503-9609		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9610-9711		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	9712-0212			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0301-0310				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0311-0501			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0502-0506			●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-0	01	1	0507-0611	●		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97146-499-2	01	1	0612-	●		●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9503-9711		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	9712-0212			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0301-0310				●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0311-0501			●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0502-0506			●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0507-0611	●		●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0612-	●		●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9503-9711		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	9712-0212			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0301-0310				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0311-0501			●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0502-0506			●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0611	●		●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0612-	●		●		●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0507-	●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9503-9711		●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	9712-0212			●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0301-0501				●
16	03.604 STUD; EXH PIPE TO MANIF M10X38 L=53	8-97077-549-0	03	1	0311-			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9503-9711		●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	9712-0212			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0301-0310				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0311-0501			●	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0502-0506			●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0611	●		●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0612-	●		●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9503-9711		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97108-653-0	08	1	9712-0003			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0004-0212			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0301-0310				●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0311-0501			●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0502-0506			●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0507-0611	●		●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0612-	●		●		●
165	03.417 STUD; EGR PIPE 03.613 M8X45 L=57	8-94105-162-1	02	1	0507-	●
165	03.417 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	02	1	0301-0501				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
