Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#43821) — 480 parça

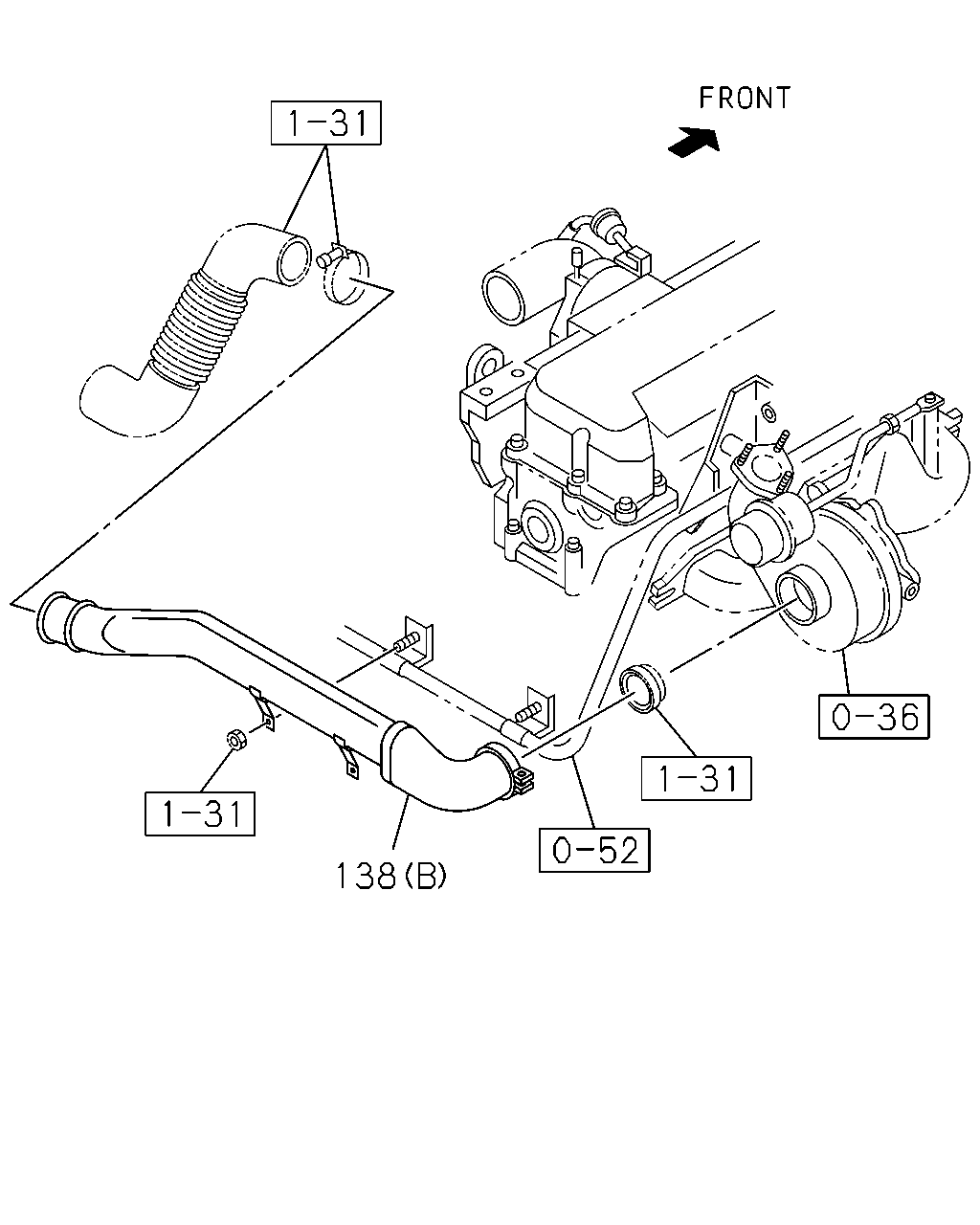

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-		●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9503-9711			●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9712-9804				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	9805-0212				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0611				●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●			●

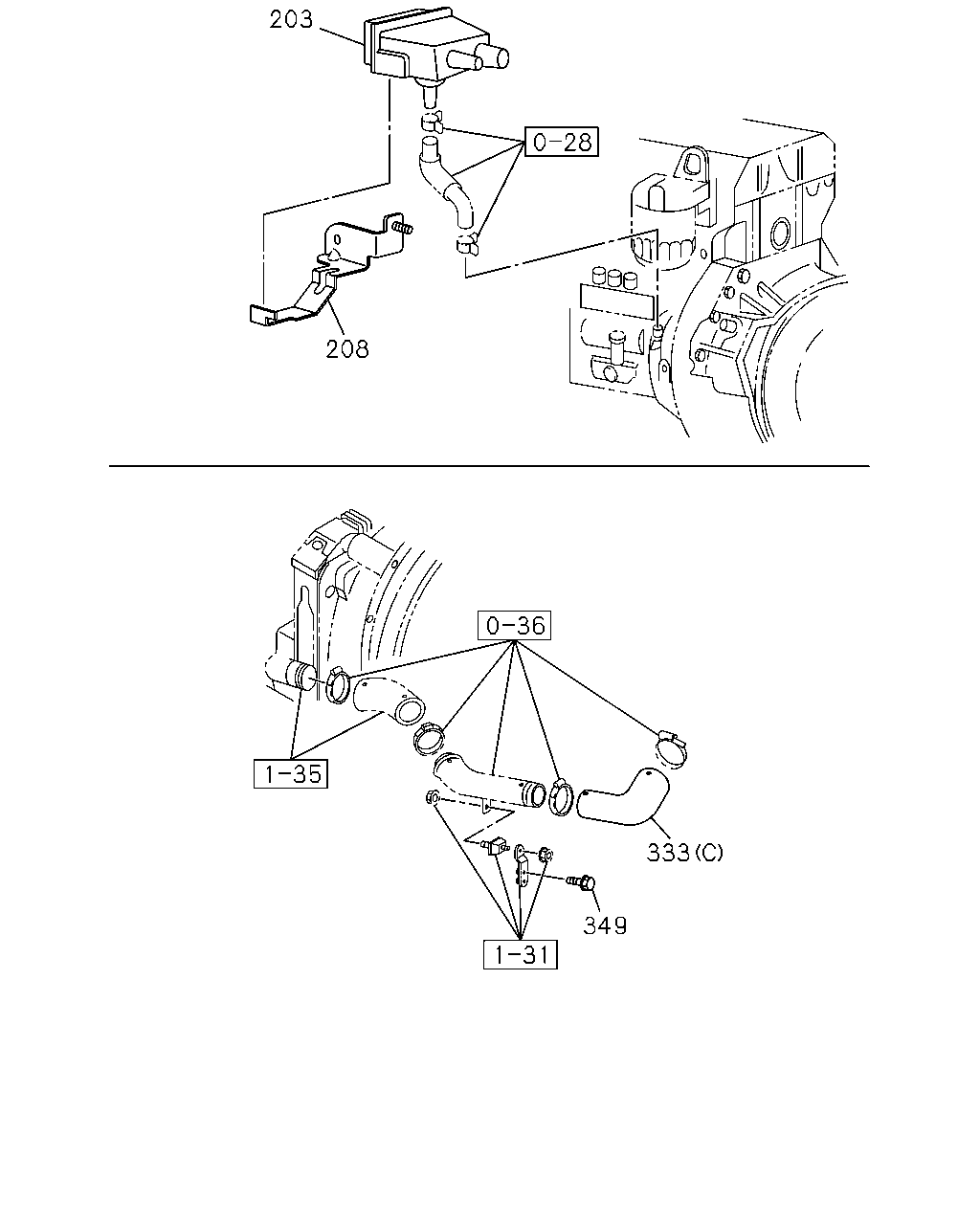

203 208 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0301-0501			●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-		●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0301-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-		●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-97189-631-0	01	1	0301-0310			●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (D)	8-97189-631-0	01	1	0311-0501			●
349	03.417 BOLT; BRKT,INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●
349	03.417 BOLT; BRKT,INL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
349	03.417 BOLT; BRKT,INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0310			●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501			●

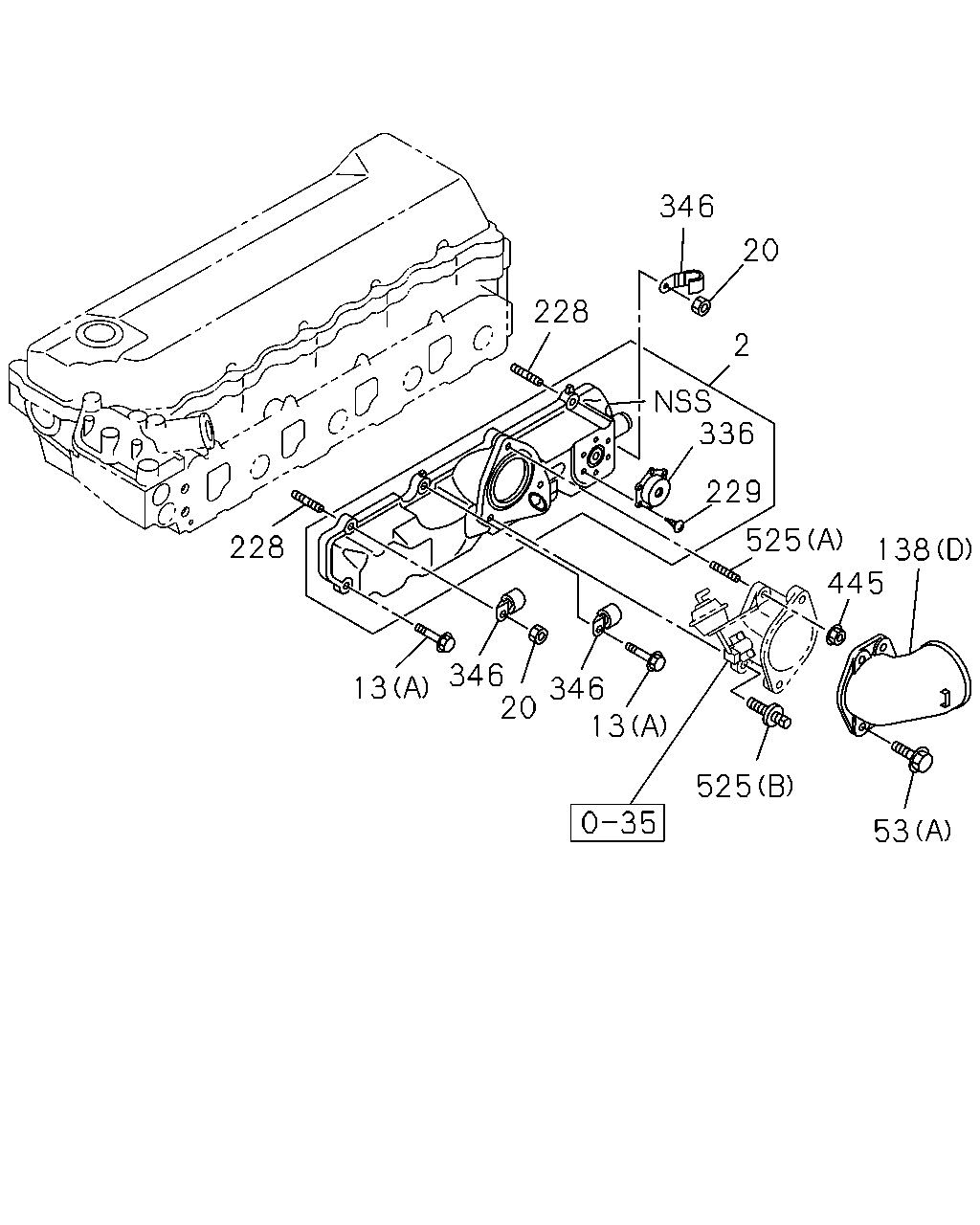

346 20 228 2 336 229 525 228 138 445 346 346 20 13 13 525 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-		●
2	03.407 COVER; INL	8-97033-719-1	01	1	9503-9511			●
2	03.407 COVER; INL	8-97109-049-4	01	1	9512-9608			●
2	03.407 COVER; INL	8-97146-866-1	01	1	9609-9711			●
2	03.407 COVER; INL	8-97146-866-2	01	1	9712-0212				●
2	03.407 COVER; INL	8-97219-653-1	01	1	0301-0501					●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	9503-9511			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9512-9711			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9712-0212				●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	06	1	0301-0501					●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9512-9606			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-0212				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0506				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●		●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
53	03.602 BOLT; INL PIPE 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9503-9606			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9711			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9712-0212				●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0512				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●			●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-		●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9503-9711			●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9712-9804				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	9805-0212				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0611				●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●			●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-		●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9503-9511			●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0301-0501					●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	12	1	9503-9511			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9512-9711			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9712-0212				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0311-0604				●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-				●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9503-9511			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9512-9711			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9712-0212				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0311-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9503-9511			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9512-9711			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-0212				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0301-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0611				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●			●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
525	03.275 STUD; CONT VLV 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9503-9511			●
525	03.275 STUD; CONT VLV 03.270 (B)	8-97033-689-0	01	1	9503-9511			●

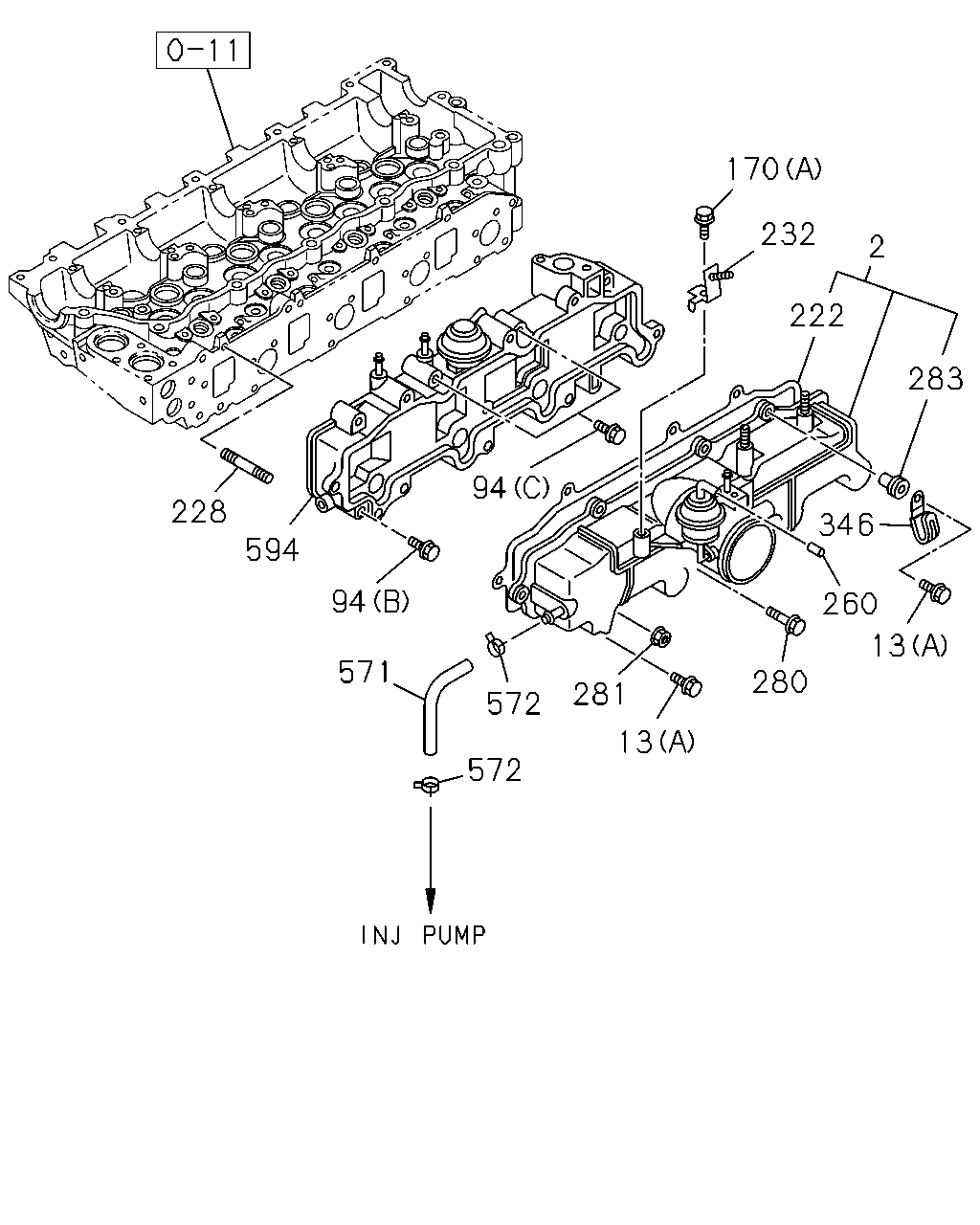

170 232 2 222 283 94 228 346 594 94 260 13 571 280 281 572 13 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-		●
2	03.407 COVER; INL	8-97033-719-1	01	1	9503-9511			●
2	03.407 COVER; INL	8-97109-049-4	01	1	9512-9608			●
2	03.407 COVER; INL	8-97146-866-1	01	1	9609-9711			●
2	03.407 COVER; INL	8-97146-866-2	01	1	9712-0212				●
2	03.407 COVER; INL	8-97219-653-1	01	1	0301-0501					●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	9503-9511			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9512-9711			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9712-0212				●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	06	1	0301-0501					●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-				●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	0612-	●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9607-9711			●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9712-0212				●
94	02.559 BOLT 01.780 (C) M8X50 FLANGE	0-28080-850-0	02	1	0301-0501					●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	0311-0512				●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0301-0501					●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0501					●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0301-0501					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9512-9711			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9712-0212				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97219-649-0	01	1	0301-0501					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0311-0611				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0612-	●			●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-		●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9503-9511			●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0301-0501					●
232	03.407 BRACKET; INJ PIPE	8-97190-249-0	01	1	0301-0501					●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9512-9711			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9712-0212				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0301-0310					●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0311-0501				●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-				●
280	03.403 BOLT; INL COVER 09.171 M8X80 FLANGE	0-28080-880-0	01	1	0301-0501					●
281	03.407 NUT; INL COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0301-0501					●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9712-0212				●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0301-0501					●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0311-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9503-9511			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9512-9711			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-0212				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0301-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0611				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●			●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0612-	●
571	03.265 HOSE; AIR BOOST 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0301-0501					●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0612-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0301-0501					●
594	03.278 CASE	8-97230-991-0	01	1	0301-0501					●

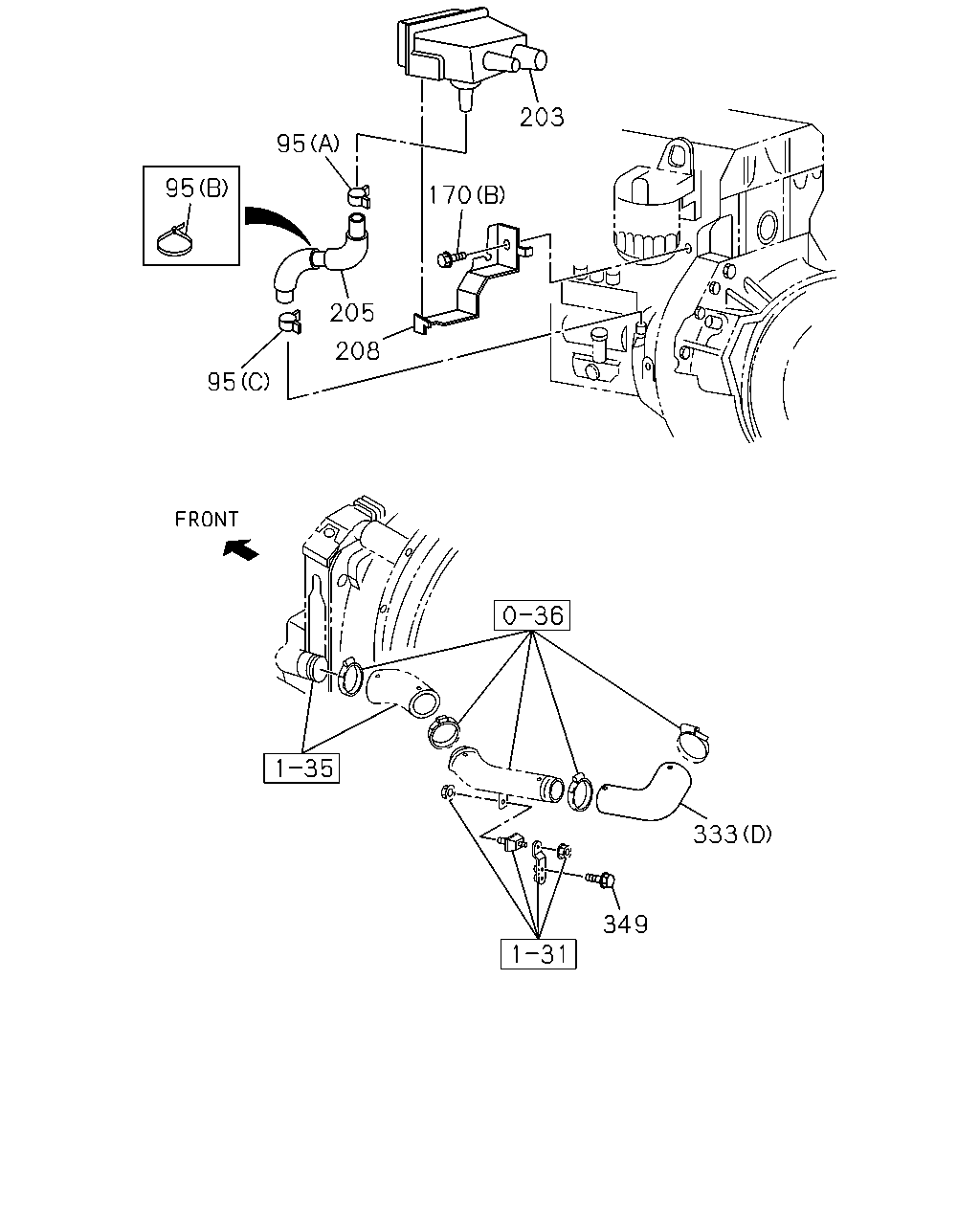

203 95 95 170 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0301-0501			●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0301-0501			●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0301-0501			●
170	03.162 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	0301-0501			●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	0301-0501			●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0507-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	0301-0501			●
205	01.745 HOSE; OIL DRAIN	8-97149-011-1	01	1	0301-0501			●
208	01.750 BRACKET; CATCH TANK,OIL	8-97375-702-0	01	1	0507-		●
208	01.750 BRACKET; CATCH TANK,OIL	8-97166-887-0	01	1	0301-0501			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-		●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-97189-631-0	01	1	0301-0310			●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (D)	8-97189-631-0	01	1	0311-0501			●
349	03.417 BOLT; BRKT,INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●
349	03.417 BOLT; BRKT,INL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
349	03.417 BOLT; BRKT,INL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0301-0310			●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0311-0501			●

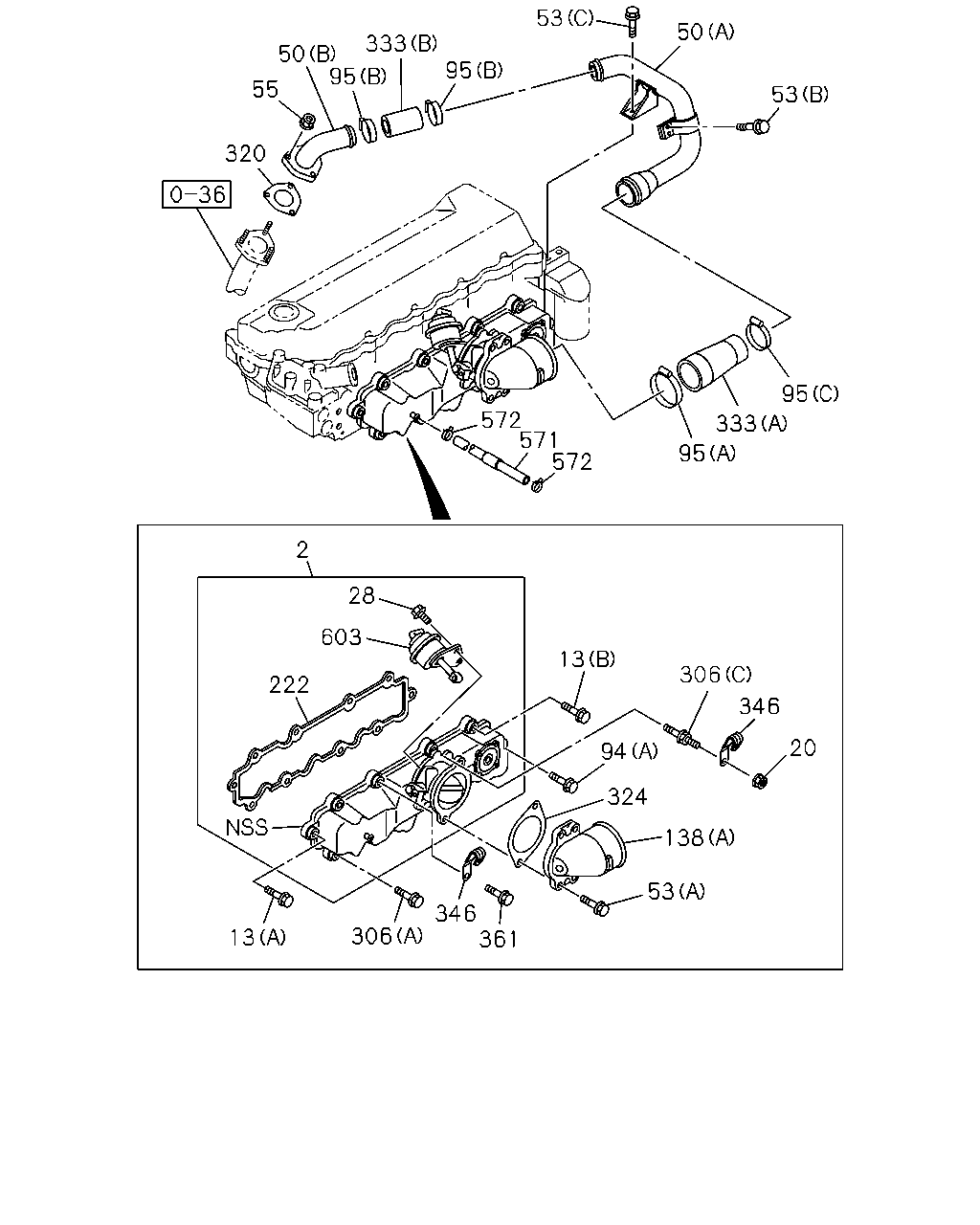

53 50 333 95 50 95 55 53 320 572 571 572 95 333 95 2 28 603 13 306 222 346 20 94 324 138 53 346 361 306 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-		●
2	03.407 COVER; INL	8-97033-719-1	01	1	9503-9511			●
2	03.407 COVER; INL	8-97109-049-4	01	1	9512-9608			●
2	03.407 COVER; INL	8-97146-866-1	01	1	9609-9711			●
2	03.407 COVER; INL	8-97146-866-2	01	1	9712-0212				●
2	03.407 COVER; INL	8-97219-653-1	01	1	0301-0501					●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	9503-9511			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9512-9711			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9712-0212				●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	06	1	0301-0501					●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9512-9606			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-0212				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0506				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9803-0212				●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0512				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0611				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●			●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	0612-	●
50	03.265 PIPE; INL (B)	8-97202-327-2	01	1	0612-	●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
53	03.602 BOLT; INL PIPE 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9503-9606			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9711			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9712-0212				●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0512				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●			●
55	03.407 NUT; INL PIPE 01.540 M6 FLANGE	0-91180-206-0	03	1	0612-	●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	0612-	●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9607-9711			●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9712-0212				●
94	02.559 BOLT 01.780 (C) M8X50 FLANGE	0-28080-850-0	02	1	0301-0501					●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	0311-0512				●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0301-0501					●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-198-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	1-09707-202-0	01	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (C) ID=68-85	8-94320-428-0	01	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-65	1-09707-204-0	02	1	0612-0810	●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=50-69	8-94316-991-0	02	1	0811-	●
95	03.278 CLIP; RUBBER HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0301-0501					●
95	03.278 CLIP; RUBBER HOSE 03.163 (A) ID=11	8-94238-570-0	01	1	0301-0501					●
95	03.278 CLIP; RUBBER HOSE 01.097 (C) ID=11	8-94238-925-0	01	1	0301-0501					●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-		●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9503-9711			●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9712-9804				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	9805-0212				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0611				●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9512-9711			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9712-0212				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97219-649-0	01	1	0301-0501					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0311-0611				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0612-	●			●
306	03.265 BOLT; VLV (C) M8X85 L=101	8-97118-454-0	01	1	0612-0701	●
306	03.265 BOLT; VLV (C) M8X85 L=101	8-98048-394-0	01	1	0702-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9512-9711			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9712-0212				●
306	03.265 BOLT; VLV (B)	8-97088-145-0	02	1	9512-9606			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0311-0512				●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0611				●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-	●			●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97202-328-1	01	1	0612-	●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97306-025-1	01	1	0507-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	9805-0212				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0311-0611				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0612-	●			●
333	03.278 HOSE; RUBBER,INL PIPE (A)	8-97201-103-2	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (B)	8-97369-717-3	01	1	0612-	●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-97189-631-1	01	1	0507-0608		●
333	03.278 HOSE; RUBBER,INL PIPE (C)	8-98053-755-0	01	1	0609-		●
333	03.278 HOSE; RUBBER,INL PIPE (D)	8-97189-631-0	01	1	0301-0310					●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL> (D)	8-97189-631-0	01	1	0311-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9503-9511			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9512-9711			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-0212				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0301-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0611				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●			●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
571	03.265 HOSE; AIR BOOST 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	0612-	●
571	03.265 HOSE; AIR BOOST 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0301-0501					●
572	03.407 CLIP; BOOST HOSE 03.145 ID=8	8-94107-762-0	02	1	0612-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	0301-0501					●
603	03.278 CHAMBER; THROTTLE	8-97162-186-0	01	1	9512-9711			●
603	03.278 CHAMBER; THROTTLE	8-97162-186-0	01	1	9712-9802				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9803-0212				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0311-0611				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-	●			●

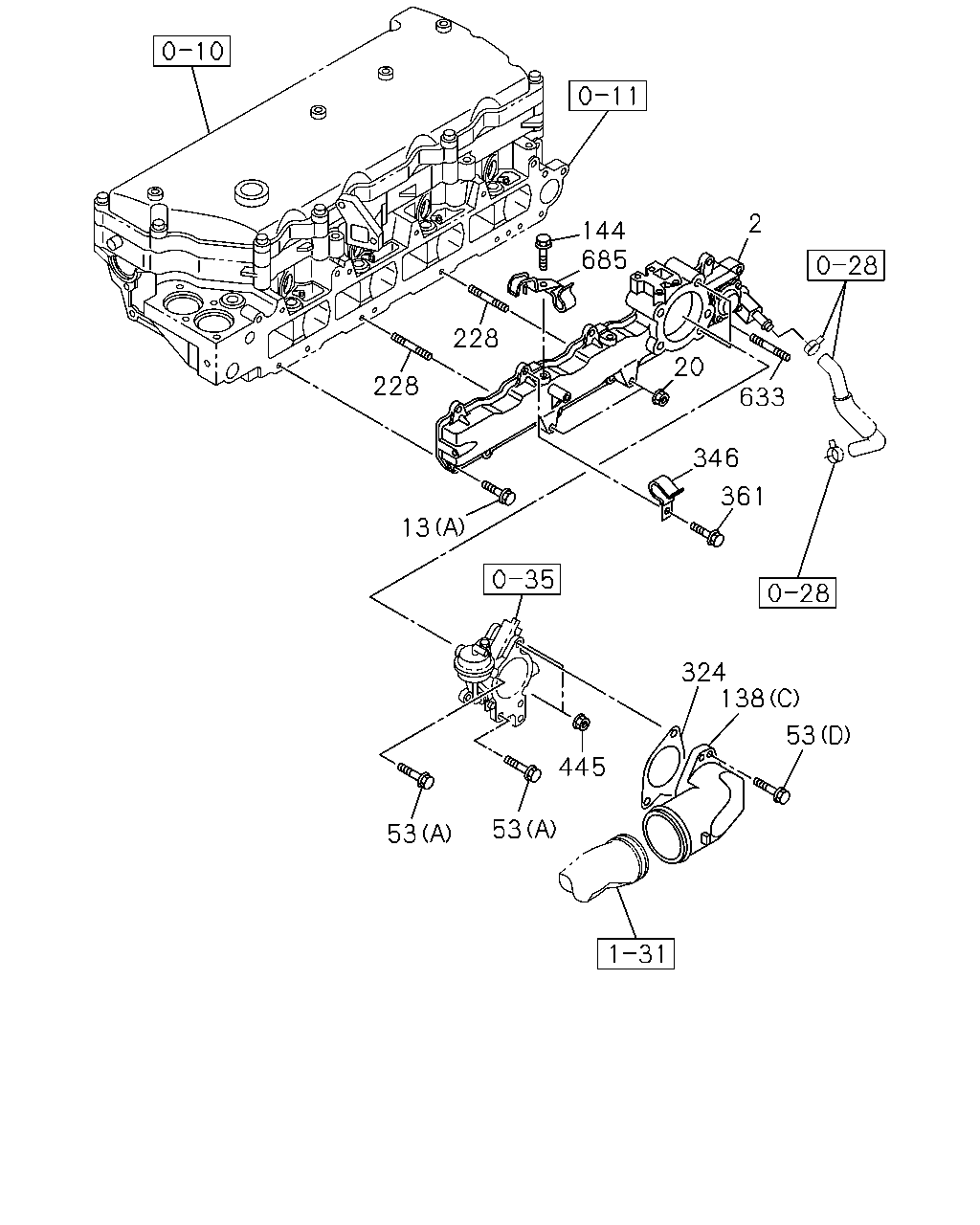

2 144 685 228 20 228 633 346 361 13 324 138 53 445 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-		●
2	03.407 COVER; INL	8-97033-719-1	01	1	9503-9511			●
2	03.407 COVER; INL	8-97109-049-4	01	1	9512-9608			●
2	03.407 COVER; INL	8-97146-866-1	01	1	9609-9711			●
2	03.407 COVER; INL	8-97146-866-2	01	1	9712-0212				●
2	03.407 COVER; INL	8-97219-653-1	01	1	0301-0501					●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	9503-9511			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9512-9711			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9712-0212				●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	06	1	0301-0501					●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9512-9606			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-0212				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0506				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●		●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
53	03.602 BOLT; INL PIPE 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9503-9606			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9711			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9712-0212				●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0512				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●			●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-		●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9503-9711			●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9712-9804				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	9805-0212				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0611				●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●			●
144	03.275 BOLT; BRKT FIX 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	0507-		●
228	03.407 STUD; INL COVER 00.413 M8X30 L=41	8-97016-313-0	02	1	9503-9511			●
228	03.407 STUD; INL COVER M8X84 L=95	8-97181-739-0	02	1	0301-0501					●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97306-025-1	01	1	0507-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	9805-0212				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0311-0611				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0612-	●			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9503-9511			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9512-9711			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-0212				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0301-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0611				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●			●
361	03.278 BOLT; CLIP 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
361	03.278 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512		●
361	03.278 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-		●
445	03.275 NUT; THROTTLE BODY TO MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
633	03.275 STUD; THROTTLE BODY 03.901 M8X25 L=37	9-04110-825-0	01	1	0507-0604		●
633	03.275 STUD; THROTTLE BODY M8X25 L=37	0-41010-825-0	01	1	0605-		●
633	03.275 STUD; THROTTLE BODY 00.413 M8X55 L=67	9-04110-855-0	01	1	0507-0604		●
633	03.275 STUD; THROTTLE BODY 01.097 M8X55 L=67	0-41010-855-0	01	1	0605-		●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	0507-		●

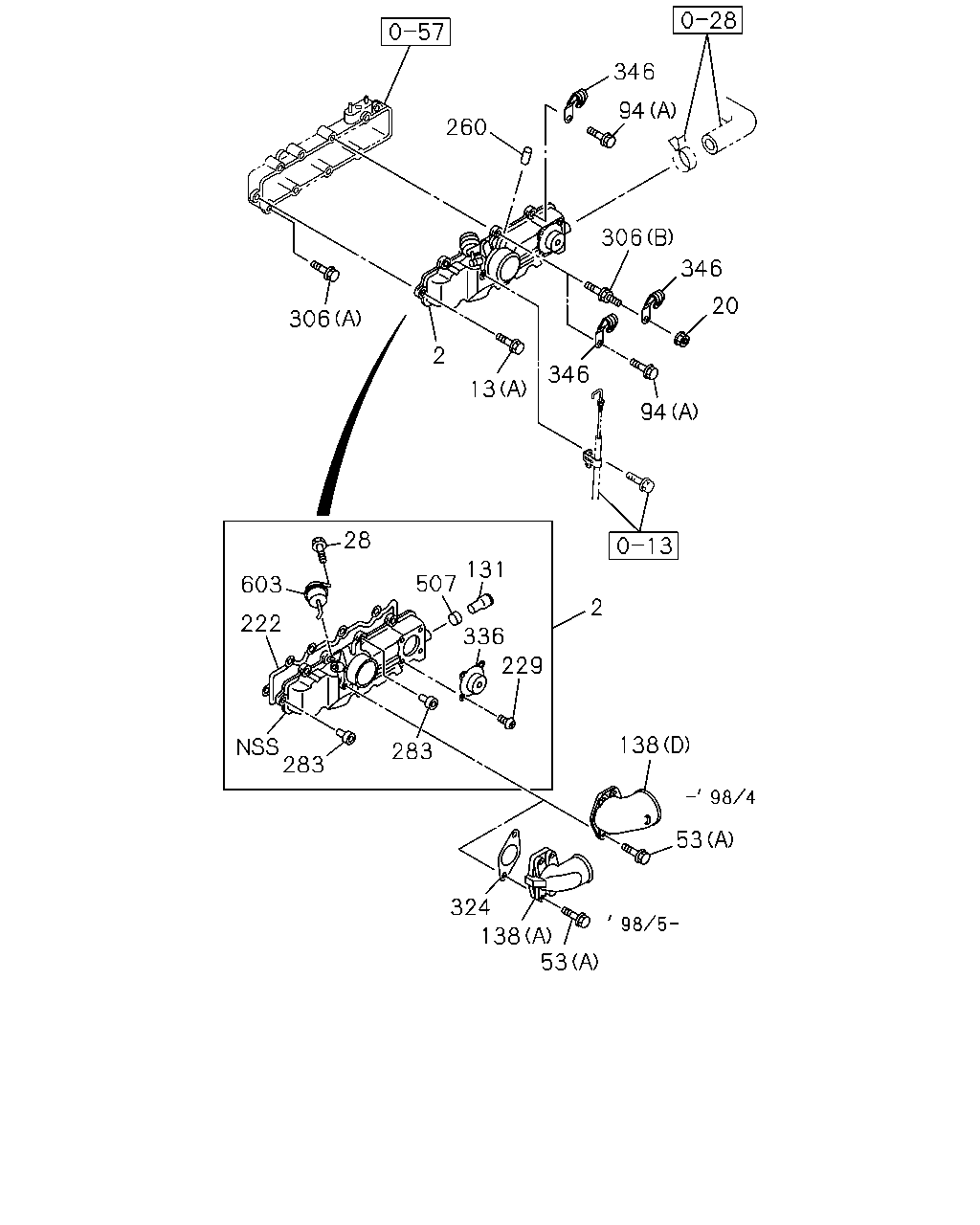

346 94 260 306 346 20 306 2 346 13 94 28 131 507 603 2 222 336 229 138 283 283 53 324 138 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	03.407 COVER; INL	8-97212-454-2	01	1	0612-	●
2	03.407 COVER; INL	8-97310-495-0	01	1	0507-		●
2	03.407 COVER; INL	8-97033-719-1	01	1	9503-9511			●
2	03.407 COVER; INL	8-97109-049-4	01	1	9512-9608			●
2	03.407 COVER; INL	8-97146-866-1	01	1	9609-9711			●
2	03.407 COVER; INL	8-97146-866-2	01	1	9712-0212				●
2	03.407 COVER; INL	8-97219-653-1	01	1	0301-0501					●
2	03.407 COVER; INL	8-97146-866-2	01	1	0311-				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	07	1	0612-	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-97118-455-0	01	1	0612-0701	●
13	03.275 BOLT; INL MANIF (B) M8X52 L=68	8-98048-395-0	01	1	0702-	●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	09	1	0507-0512		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	0601-		●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	07	1	9503-9511			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9512-9711			●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	9712-0212				●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	06	1	0301-0501					●
13	03.275 BOLT; INL MANIF (A) M8X30 FLANGE	0-28080-830-0	08	1	0311-0512				●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9503-9511			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	04	1	9512-9606			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9607-9711			●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-0212				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0311-0506				●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0611		●		●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	0612-	●	●		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9803-0212				●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	0311-0512				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0601-0611				●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0612-	●			●
53	03.602 BOLT; INL PIPE 01.531 (B) M8X20 FLANGE	0-28650-820-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	0612-	●
53	03.602 BOLT; INL PIPE 07.010 (D) M8X20 FLANGE	0-28080-820-0	01	1	0507-0512		●
53	03.602 BOLT; INL PIPE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0601-		●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	04	1	0507-0512		●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-		●
53	03.602 BOLT; INL PIPE 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9503-9606			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9607-9711			●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	9712-0212				●
53	03.602 BOLT; INL PIPE 04.686 (A) M8X30 FLANGE	0-28680-830-0	02	1	0311-0512				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-0611				●
53	03.602 BOLT; INL PIPE 03.403 (A) M8X30 FLANGE	0-28650-830-0	02	1	0612-	●			●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	0612-	●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9607-9711			●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	9712-0212				●
94	02.559 BOLT 01.780 (C) M8X50 FLANGE	0-28080-850-0	02	1	0301-0501					●
94	02.559 BOLT 03.275 (A) M8X30 FLANGE	0-28080-830-0	02	1	0311-0512				●
94	02.559 BOLT 00.206 (A) M8X30 FLANGE	0-28050-830-0	02	1	0601-				●
94	02.559 BOLT 01.540 (B) M8X45 FLANGE	0-28080-845-0	04	1	0301-0501					●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9512-9711			●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9712-0212				●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	0311-				●
138	03.265 PIPE; INL (B)	8-97178-748-3	01	1	0612-	●
138	03.265 PIPE; INL (C)	8-98001-263-0	01	1	0507-		●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9503-9711			●
138	03.265 PIPE; INL (D)	8-97044-648-0	01	1	9712-9804				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	9805-0212				●
138	03.265 PIPE; INL (A)	8-97180-566-1	01	1	0311-0611				●
138	03.265 PIPE; INL (A)	8-97180-566-2	01	1	0612-	●			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9512-9711			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	9712-0212				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97219-649-0	01	1	0301-0501					●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0311-0611				●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97084-938-2	01	1	0612-	●			●
229	03.278 SCREW; VENTILATION VLV 16.345 M4X8 TAPPING	0-71080-408-0	12	1	9503-9511			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9512-9711			●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9712-0212				●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	0311-0604				●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	0605-				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9512-9711			●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9712-0212				●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0301-0310					●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0311-0501				●	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	0502-				●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9712-0212				●
283	03.265 RUBBER L=18	8-97219-650-0	09	1	0301-0501					●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	0311-				●
306	03.265 BOLT; VLV (C) M8X85 L=101	8-97118-454-0	01	1	0612-0701	●
306	03.265 BOLT; VLV (C) M8X85 L=101	8-98048-394-0	01	1	0702-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9512-9711			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9712-0212				●
306	03.265 BOLT; VLV (B)	8-97088-145-0	02	1	9512-9606			●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	0311-0512				●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0601-0611				●
306	03.265 BOLT; VLV 09.173 (A) M8X45 FLANGE	0-28050-845-0	05	1	0612-	●			●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97306-025-1	01	1	0507-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-0	01	1	9805-0212				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0311-0611				●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEA D)	8-97180-546-1	01	1	0612-	●			●
336	03.415 VALVE; VENTILATION 03.270	8-97010-548-0	01	1	9503-9511			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9512-9711			●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9712-0212				●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	0311-				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0507-0801		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	05	1	9503-9511			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9512-9711			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9712-0212				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	0301-0501					●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0311-0611				●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	0612-0801	●			●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-	●			●
507	03.415 ORIFICE	8-97088-649-0	01	1	9512-9711			●
507	03.415 ORIFICE	8-97088-649-0	01	1	9712-0212				●
507	03.415 ORIFICE	8-97088-649-0	01	1	0311-				●
603	03.278 CHAMBER; THROTTLE	8-97162-186-0	01	1	9512-9711			●
603	03.278 CHAMBER; THROTTLE	8-97162-186-0	01	1	9712-9802				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9803-0212				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0311-0611				●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	0612-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
