0-22 — ENGINE MOUNTING (#43820) — 169 parça

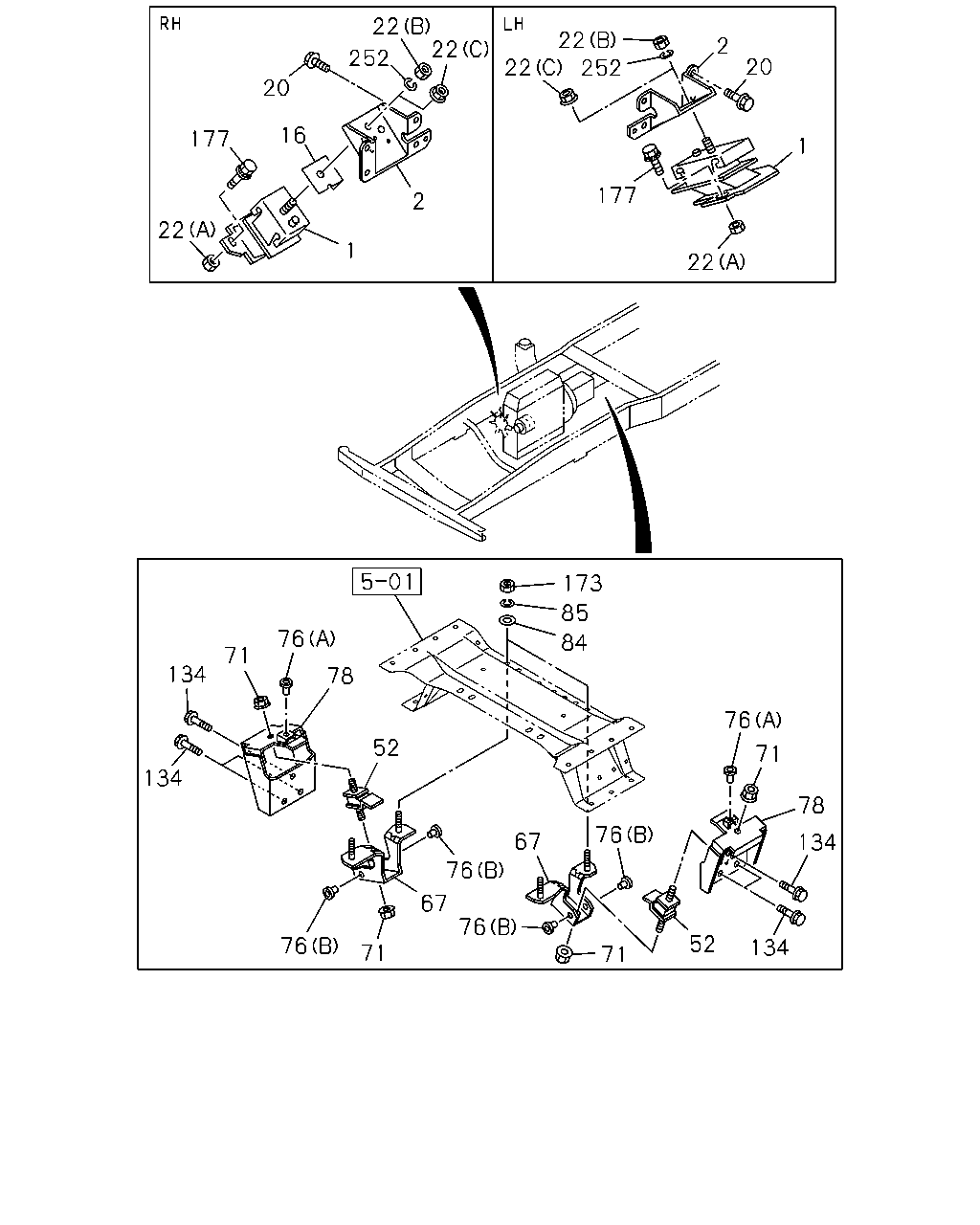

22 22 22 2 252 20 20 16 177 1 177 2 22 1 22 173 85 76 84 71 134 78 76 52 71 134 78 76 67 134 76 67 76 52 76 134 71 71 22 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-677-0	01	1	9503-9711	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-677-0	01	1	9712-	●	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-676-0	01	1	9503-9711	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-676-0	01	1	9712-	●	●	●	●	●
2	00.029 FOOT; ENG	8-94311-118-2	02	1	9503-9507	●
2	00.029 FOOT; ENG	8-97119-225-1	02	1	9508-9605	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9606-9711	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9712-9907				●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-0212				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0301-0310					●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0311-0501				●	●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0502-0506				●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0507-0611			●	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0612-		●	●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9412-9711	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9712-0212				●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	0301-	●	●	●	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9503-9711	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9712-0212				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0301-0310					●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0311-0501				●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0502-0506				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0507-0512			●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-0611			●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0612-		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 09.011 (A) M10	9-09110-410-0	04	1	9412-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9609-9703	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9704-9711	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-0204				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0205-0602	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9412-9711	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9712-0105	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0106-0212				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0301-0310					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0311-0501				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0502-0506				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0507-0512			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0601-0611			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0612-0612		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	0701-		●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97107-795-0	02	1	9412-	●	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-325-0	01	1	9412-9711	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-325-1	01	1	9712-0212				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-324-0	01	1	9412-9711	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-324-1	01	1	9712-0212				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97303-873-0	02	1	0301-	●	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9412-0212	●	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0301-0602	●	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	04	1	9412-0212	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0301-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	0301-	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94463-451-2	01	1	9412-0212	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97303-861-0	01	1	0301-	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97303-862-0	01	1	0301-	●	●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9412-0605	●	●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-	●	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9412-0603	●	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0610	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0301-0310	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT FLOOR REMOTE SHIFT<M11> 03.890 M12X25	0-28781-225-0	06	1	0311-0501	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT 03.890 M12X25	0-28781-225-0	06	1	0502-0506	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT FLOOR REMOTE SHIFT<M11> 03.890 M12X25	0-28781-225-0	06	1	0507-0512	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT FLOOR REMOTE SHIFT<M11> 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0601-0611	●	●	●	●	●
134	00.029 BOLT; SUPPORT BRKT 09.181 M12X25 FLANGE	0-28751-225-0	06	1	0612-	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9412-0512	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0610	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-	●	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9412-9711	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9712-0212				●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0301-0310					●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0311-0501				●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0502-	●	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9503-9711	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9712-0212				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0301-0310					●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0311-0501				●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0502-0506				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0507-0603			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0611			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0612-0612		●	●	●

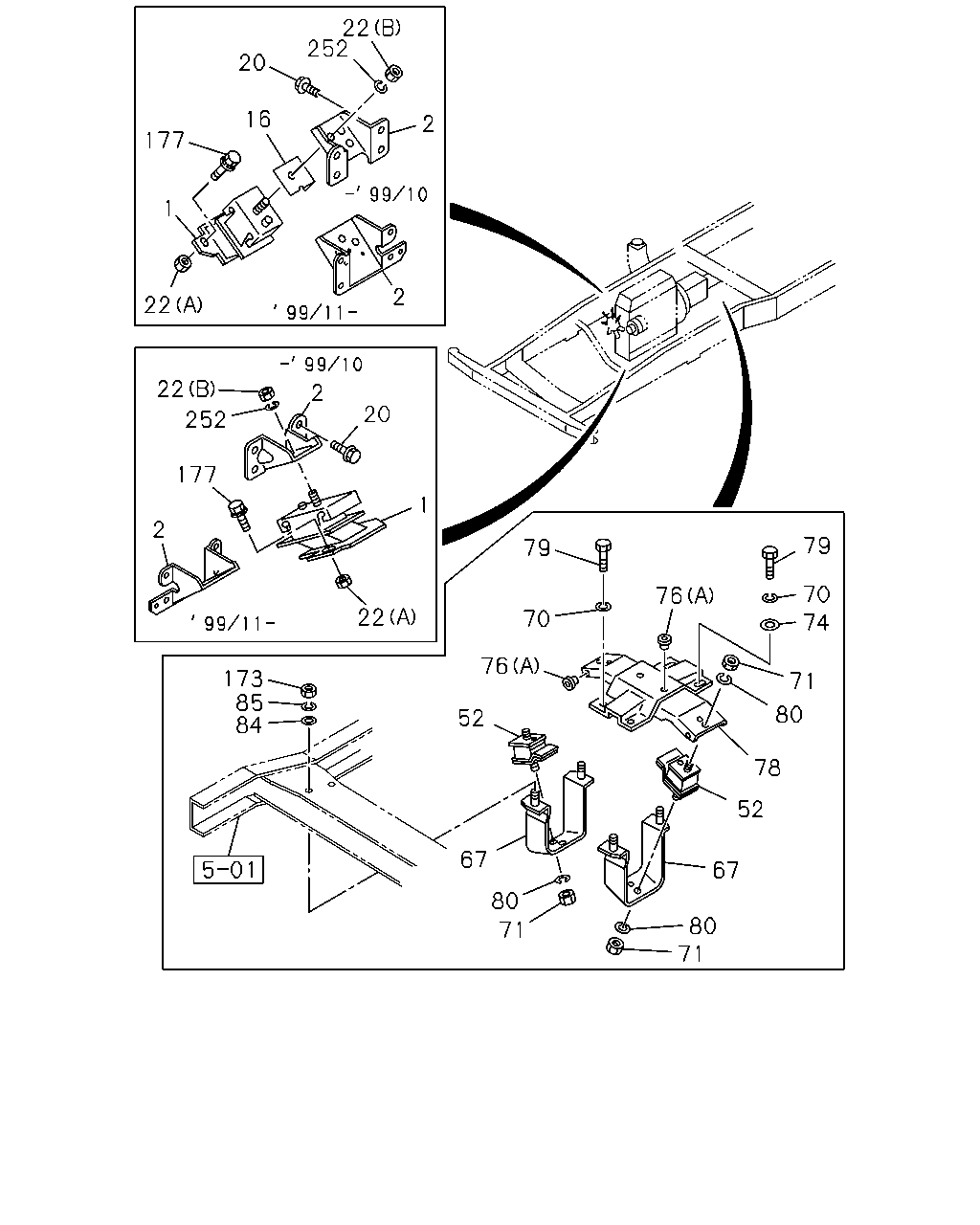

22 252 20 16 2 177 1 2 22 22 2 20 252 177 1 2 79 79 70 74 76 22 70 76 173 85 84 71 80 52 78 52 67 67 80 80 71 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-677-0	01	1	9503-9711	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-677-0	01	1	9712-	●	●	●	●	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-676-0	01	1	9503-9711	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97100-676-0	01	1	9712-	●	●	●	●	●
2	00.029 FOOT; ENG	8-94311-118-2	02	1	9503-9507	●
2	00.029 FOOT; ENG	8-97119-225-1	02	1	9508-9605	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9606-9711	●
2	00.029 FOOT; ENG	8-97145-013-0	02	1	9712-9907				●
2	00.029 FOOT; ENG	8-97228-330-0	02	1	9908-9910				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	9911-0212				●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0301-0310					●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0311-0501				●	●
2	00.029 FOOT; ENG	8-97228-669-1	02	1	0502-0506				●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0507-0611			●	●
2	00.029 FOOT; ENG	8-97228-669-2	02	1	0612-		●	●	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9412-9711	●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	9712-0212				●
16	07.039 PROTECTOR; HEAT,ENG MTG,FRT 00.027	8-94365-486-0	01	1	0301-	●	●	●	●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9503-9711	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	9712-0212				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0301-0310					●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0311-0501				●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0502-0506				●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0507-0512			●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-0611			●	●
20	00.029 BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0612-		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 09.011 (A) M10	9-09110-410-0	04	1	9412-9608	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	9609-9703	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9704-9711	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	02	1	9712-0204				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 08.917 (A) M10 FLANGE	0-91150-210-0	04	1	0205-0602	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 04.085 (A) M10 FLANGE	0-91180-210-0	04	1	0603-	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9412-9711	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	9712-0105	●	●	●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0106-0212				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0301-0310					●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0311-0501				●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0502-0506				●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.816 (B) M12	9-99110-412-0	02	1	0507-0512			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0601-0611			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 05.002 (C) M12	0-91110-512-0	02	1	0612-0612		●	●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT 02.042 (B) M12 FLANGE	0-91180-112-0	02	1	0701-		●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97107-795-0	02	1	9412-	●	●	●	●	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-325-0	01	1	9412-9711	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-325-1	01	1	9712-0212				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-324-0	01	1	9412-9711	●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97043-324-1	01	1	9712-0212				●
67	00.029 BRACKET; SUPPORT,ENG MTG,RR	8-97303-873-0	02	1	0301-	●	●	●	●	●
70	00.002 WASHER; LK,SUPPORT RUBBER TO TRA ID=10.2	9-09150-610-0	04	1	9412-9609	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 09.011 M10	9-09110-410-0	04	1	9412-0212	●	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	04	1	0301-0602	●	●	●	●	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 03.162 M10 FLANGE	0-91180-110-0	04	1	0603-	●	●	●	●	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9412-9711	●
74	00.002 WASHER; PL,SUPPORT RUBBER TO TRA 04.085 ID=10.5 OD=22	9-09164-610-0	02	1	9712-0212				●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	04	1	9412-0212	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER 00.027 (A)	8-94111-904-0	02	1	0301-	●	●	●	●	●
76	00.002 STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	0301-	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-94463-451-2	01	1	9412-0212	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97303-861-0	01	1	0301-	●	●	●	●	●
78	00.029 BRACKET; ENG MTG,RR	8-97303-862-0	01	1	0301-	●	●	●	●	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M10X28	9-02061-028-0	04	1	9412-9501	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS 03.280 M10X30	9-02061-030-0	04	1	9502-9609	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M10X25	0-28091-025-0	04	1	9610-9711	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M10X25	0-28091-025-0	04	1	9712-0212				●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9412-9711	●
80	00.002 WASHER; LK,SUPPORT RUBBER TO BRK ID=10.2	9-09150-510-0	04	1	9712-0212				●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME 03.706 ID=10.5 OD=32	9-09164-810-0	04	1	9412-0605	●	●	●	●	●
84	00.002 WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-	●	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	9412-0603	●	●	●	●	●
85	00.002 WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-0610	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 09.011 M10	9-09110-410-0	04	1	9412-0512	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 00.833 M10	0-91110-510-0	04	1	0601-0610	●	●	●	●	●
173	00.002 NUT; ENG MTG RR TO FRAME 03.162 M10 FLANGE	0-91180-110-0	04	1	0611-	●	●	●	●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9412-9711	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	9712-0212				●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0301-0310					●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0311-0501				●	●
177	00.002 BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0502-	●	●	●	●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9503-9711	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	9712-0212				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0301-0310					●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0311-0501				●	●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0502-0506				●
252	00.002 WASHER; LK,SUPPORT RUBBER 06.515 ID=12.2	9-09150-612-0	02	1	0507-0603			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-0611			●	●
252	00.002 WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0612-0612		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
