1-10 — RADIATOR (#4382) — 1536 parça

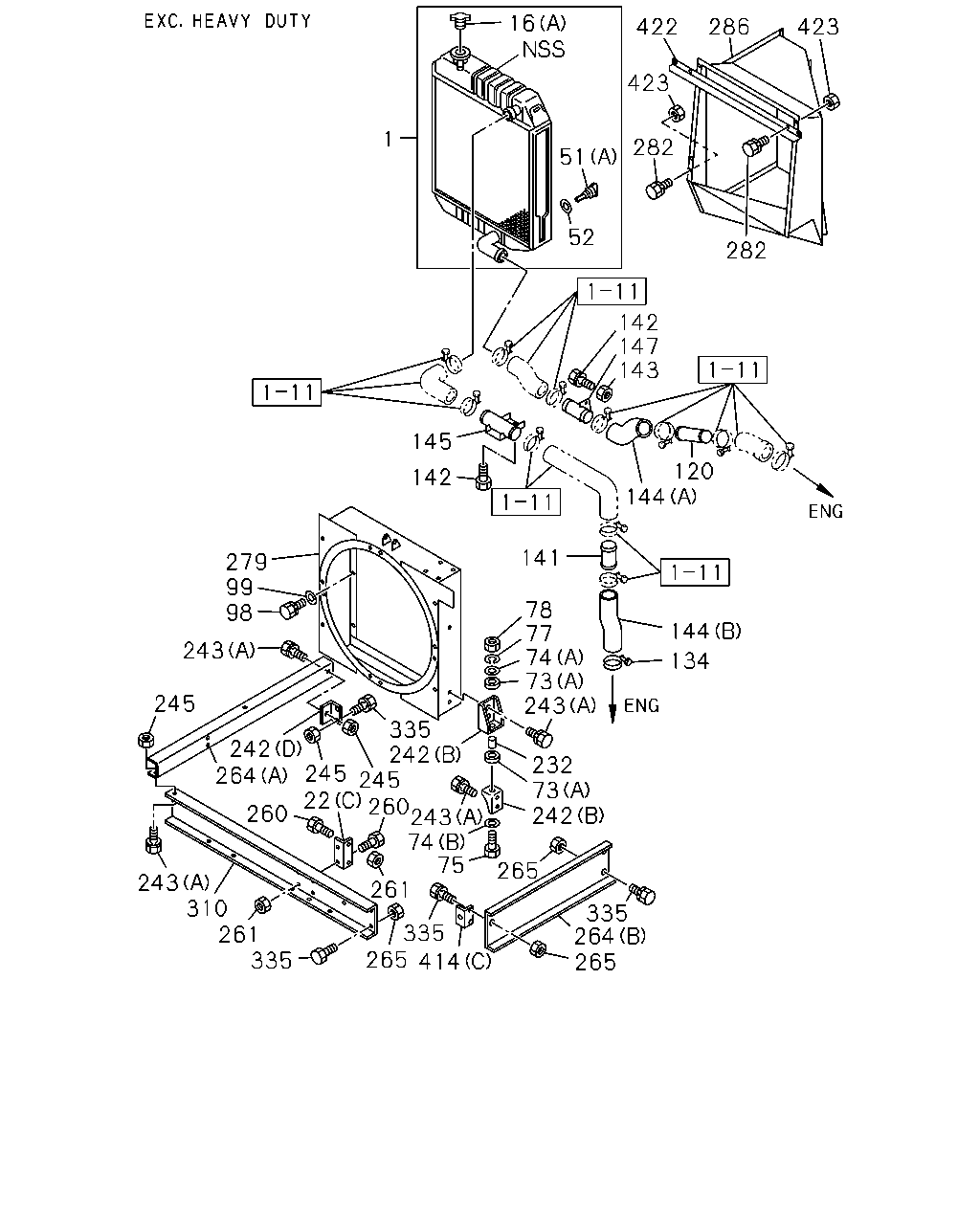

çizim 2932
16 422 286 423 423 282 1 51 52 282 142 147 143 145 120 144 142 141 279 99 98 78 77 74 73 243 144 243 134 245 335 242 242 264 245 245 22 260 243 74 75 232 73 242 260 265 243 310 261 335 261 335 264 265 335 265 414
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-160-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21464-161-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-052-2 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
52 GASKET; DRAIN PLUG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> T=2.5 		1-09630-014-0 01 1 9101-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=1.5 		1-09630-116-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> T=1.5 		1-09630-116-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> T=1.5 		1-09630-116-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=0.7 		1-09630-117-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> T=0.7 		1-09630-117-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> T=0.7 		1-09630-117-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=1.5 		9-09571-118-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=0.7 		9-09921-044-0 01 1 9211-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9703-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) T=10 		1-21467-008-0 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 04 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9710-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 04 1 9710- ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(C) 		1-09503-262-0 02 1 9710- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X50 		0-10806-050-0 02 1 9101-9504 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 		0-10806-060-0 02 1 9505-9507 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 9508-9509 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9510-9709 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9710-0105 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9710- ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9508-9709 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9710-0203 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 9710-0602 ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
98 BOLT; RAD FAN GUIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 06 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28181-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28181-070-0 04 1 9702-9702 ●
99 WASHER; PL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.5 OD=26 		9-09160-710-0 08 1 9101-9504 ● ● ●
99 WASHER; PL
ID=10.5 OD=32 		9-09164-810-0 04 1 9505-0605 ●
99 WASHER; PL
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ●
99 WASHER; PL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.4 OD=18 		9-09160-706-0 06 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=145 		1-21431-183-0 01 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9505-9702 ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9703-9709 ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9710-9805 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET 1-21431-267-0 01 1 9806- ● ● ●
134 CLIP; OUTLET PIPE,RAD
ID=68 		1-09704-074-0 01 1 9101-9504 ● ● ●
141 PIPE; RAD,INL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-134-0 01 1 9101-9504 ● ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9505-9702 ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9703-9709 ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9710- ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
144 HOSE; RUBBER,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) OUTLET 		1-14121-042-0 01 1 9101-9504 ● ● ●
144 HOSE; RUBBER,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) INLET 		1-21437-087-0 01 1 9101-9504 ● ● ●
145 PIPE; HOSE CONN,INL 1-21431-268-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21437-387-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21431-428-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-267-0 01 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=28 		1-21469-011-0 02 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9505-9709 ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9710-0105 ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=25 		1-14234-083-0 02 1 0106- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9505-9709 ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21469-091-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-093-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 02 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-085-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9505-9709 ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21419-035-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21419-018-1 04 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-21469-050-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9505-9709 ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9710-0203 ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 0204- ● ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9702-9709 ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9710- ● ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9702-9709 ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9710- ● ●
242 BRACKET; RAD
(E) 		1-21419-065-0 01 1 9710-9712 ●
242 BRACKET; RAD
(E) 		1-21419-066-0 01 1 9801- ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X30 W/LK WASHER 		0-50041-230-0 05 1 9101-9504 ● ● ●
243 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 10 1 9101-9504 ● ● ●
243 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9709 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9710-0203 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
243 BOLT; BRKT
(B) M12X30 FLANGE 		0-28081-230-0 03 1 9505-9606 ●
243 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9607 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9608-9709 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9703-0203 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 0204-0512 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 03 1 0601- ● ●
243 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9710-9712 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 9801-0512 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9101-9307 ● ● ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9308-9504 ● ● ●
245 NUT; BRKT
M12 		9-99110-512-0 03 1 9505-9606 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9709 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9703-0203 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0512 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9101-9504 ● ● ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
261 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ●
261 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
264 MEMBER; RAD MTG,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-075-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-046-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21469-053-1 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
(A) FRONT 		1-21469-105-0 01 1 9505- ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-106-0 01 1 9505-9507 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-108-0 01 1 9508-9512 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-110-0 01 1 9601- ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9505-9606 ●
265 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
265 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 12 1 9101-9110 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9111-9504 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
265 NUT; MEMBER
M10 		9-09110-510-0 06 1 9505-9606 ●
265 NUT; MEMBER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ●
265 NUT; MEMBER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
265 NUT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 07 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21551-339-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21551-286-2 01 1 9101-9504 ● ● ●
279 BELL MOUTH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21551-127-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH 1-21570-075-0 01 1 9505- ●
282 BOLT; BRKT,DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		9-01900-820-0 06 1 9101-9204 ● ● ●
282 BOLT; BRKT,DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 06 1 9205-9504 ● ● ●
286 DUCT ASM; AIR INL,RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21555-003-0 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-074-1 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-058-2 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG 1-21469-107-0 01 1 9505- ●
335 BOLT; MEMBER
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		0-20801-025-0 06 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9110 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9111-9504 ● ● ●
335 BOLT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 07 1 9101-9504 ● ● ●
335 BOLT; MEMBER
M10X25 FLANGE 		0-28081-025-0 06 1 9505-9606 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28681-030-0 06 1 9607-0512 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
335 BOLT; MEMBER
M12X30 FLANGE 		0-28081-230-0 02 1 9505-9606 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28681-235-0 02 1 9607-0512 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28651-235-0 02 1 0601- ●
414 BRACKET; MEMBER,FRT TO SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-157-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-050-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-440-0 01 1 9505-9507 ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-493-0 01 1 9508- ●
414 BRACKET; MEMBER,FRT TO SIDE
(A) 		1-21464-441-0 01 1 9505- ●
422 BRACKET; DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21559-040-1 01 1 9101-9504 ● ● ●
423 NUT; BRKT,DUCT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 06 1 9101-9504 ● ● ●
çizim 3228
371
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
371 GROMMET
ID=16 		9-09575-116-0 01 1 9101-9504 ● ● ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9505-9702 ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9703-9709 ● ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9710- ● ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9101-9504 ● ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9505-9702 ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9703-9709 ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9710- ● ● ●

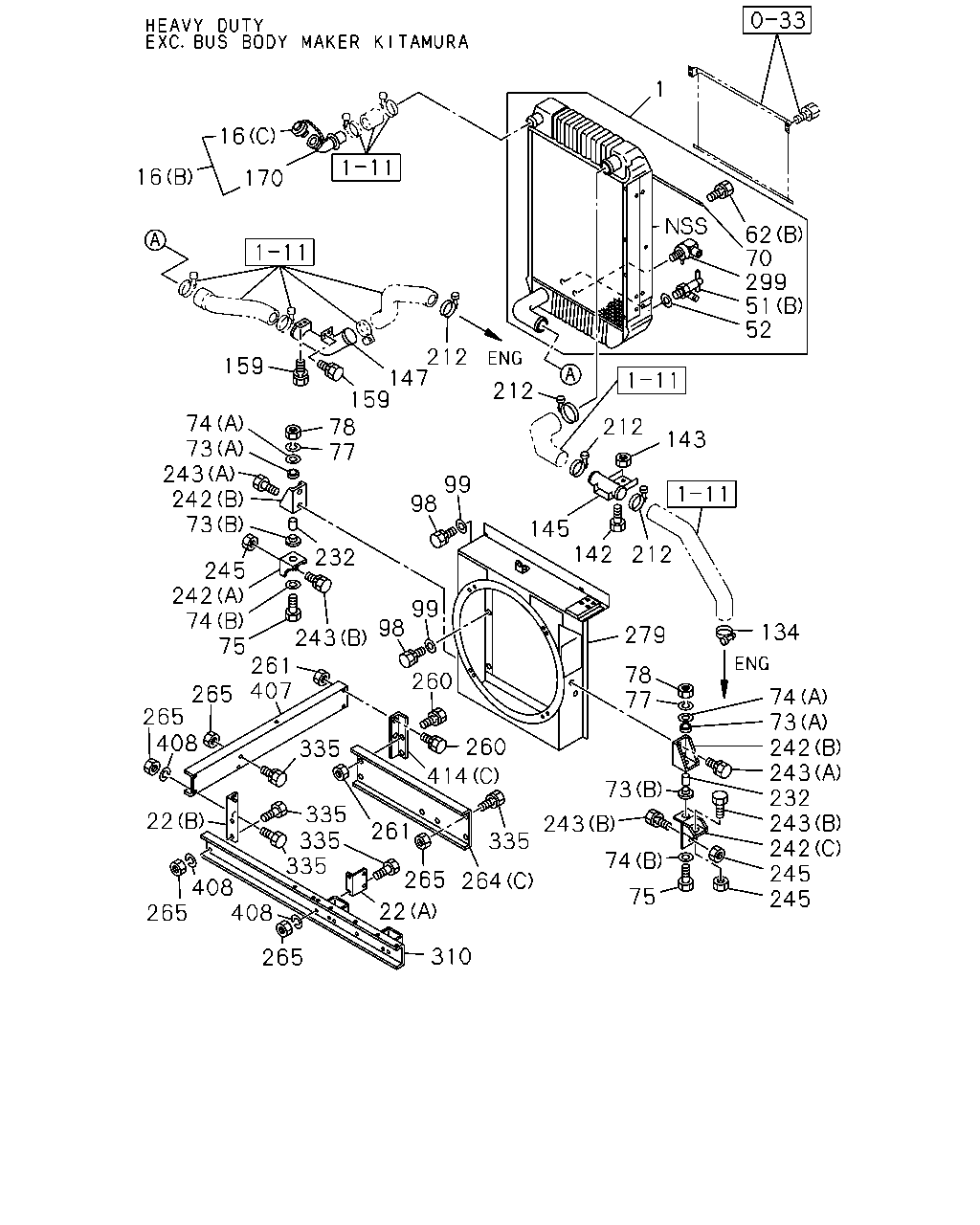

çizim 4266
1 16 16 170 62 70 299 51 52 212 147 159 78 77 159 212 74 73 243 242 73 212 143 99 98 145 142 212 232 245 242 74 75 261 407 99 98 134 279 243 78 77 260 265 265 408 74 73 242 243 232 243 242 245 245 260 335 414 73 335 335 335 22 243 261 335 74 265 264 408 265 408 75 22 310 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-160-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21464-161-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-052-2 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
52 GASKET; DRAIN PLUG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> T=2.5 		1-09630-014-0 01 1 9101-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=1.5 		1-09630-116-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> T=1.5 		1-09630-116-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> T=1.5 		1-09630-116-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=0.7 		1-09630-117-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> T=0.7 		1-09630-117-0 01 1 9101-9210 ● ● ●
52 GASKET; DRAIN PLUG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> T=0.7 		1-09630-117-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=1.5 		9-09571-118-0 01 1 9211-9504 ● ● ●
52 GASKET; DRAIN PLUG
MT643 A/T ALLISON(PR7) T=0.7 		9-09921-044-0 01 1 9211-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X95 		0-10806-095-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X75 		0-10806-075-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (A) M12X90 		0-10806-290-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
(C) M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
70 STAY; RAD
MT643 A/T ALLISON(PR7) 		1-21419-007-0 01 1 9101-9504 ● ● ●
70 STAY; RAD
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21419-007-0 01 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9703-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) T=10 		1-21467-008-0 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 04 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9710-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 04 1 9710- ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(C) 		1-09503-262-0 02 1 9710- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X50 		0-10806-050-0 02 1 9101-9504 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 		0-10806-060-0 02 1 9505-9507 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 9508-9509 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9510-9709 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9710-0105 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9710- ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9508-9709 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9710-0203 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 9710-0602 ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
98 BOLT; RAD FAN GUIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 06 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28181-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28181-070-0 04 1 9702-9702 ●
99 WASHER; PL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.5 OD=26 		9-09160-710-0 08 1 9101-9504 ● ● ●
99 WASHER; PL
ID=10.5 OD=32 		9-09164-810-0 04 1 9505-0605 ●
99 WASHER; PL
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ●
99 WASHER; PL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.4 OD=18 		9-09160-706-0 06 1 9101-9504 ● ● ●
134 CLIP; OUTLET PIPE,RAD
ID=68 		1-09704-074-0 01 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
145 PIPE; HOSE CONN,INL 1-21431-268-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21437-387-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21431-428-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-267-0 01 1 9101-9504 ● ● ●
159 BOLT; BRKT TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK&PL WASHER 		9-01960-820-0 04 1 9101-9204 ● ● ●
159 BOLT; BRKT TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9205-9504 ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21421-022-0 01 1 9201-9504 ● ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9505-9702 ●
170 PIPE; FILLER 1-21421-022-0 01 1 9703-9709 ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9710- ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=63 		1-09704-067-0 03 1 9101-9504 ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=74 		1-09704-101-0 01 1 9101-9504 ● ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9505-9702 ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9703-9709 ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9710- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=28 		1-21469-011-0 02 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9505-9709 ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9710-0105 ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=25 		1-14234-083-0 02 1 0106- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9505-9709 ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21469-091-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-093-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 02 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-085-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9505-9709 ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21419-035-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21419-018-1 04 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-21469-050-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9505-9709 ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9710-0203 ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 0204- ● ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9702-9709 ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9710- ● ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9702-9709 ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9710- ● ●
242 BRACKET; RAD
(E) 		1-21419-065-0 01 1 9710-9712 ●
242 BRACKET; RAD
(E) 		1-21419-066-0 01 1 9801- ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X30 W/LK WASHER 		0-50041-230-0 05 1 9101-9504 ● ● ●
243 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 10 1 9101-9504 ● ● ●
243 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9709 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9710-0203 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
243 BOLT; BRKT
(B) M12X30 FLANGE 		0-28081-230-0 03 1 9505-9606 ●
243 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9607 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9608-9709 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9703-0203 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 0204-0512 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 03 1 0601- ● ●
243 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9710-9712 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 9801-0512 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9101-9307 ● ● ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9308-9504 ● ● ●
245 NUT; BRKT
M12 		9-99110-512-0 03 1 9505-9606 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9709 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9703-0203 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0512 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9101-9504 ● ● ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
261 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ●
261 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
264 MEMBER; RAD MTG,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-075-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-046-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21469-053-1 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
(A) FRONT 		1-21469-105-0 01 1 9505- ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-106-0 01 1 9505-9507 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-108-0 01 1 9508-9512 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-110-0 01 1 9601- ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9505-9606 ●
265 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
265 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 12 1 9101-9110 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9111-9504 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
265 NUT; MEMBER
M10 		9-09110-510-0 06 1 9505-9606 ●
265 NUT; MEMBER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ●
265 NUT; MEMBER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
265 NUT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 07 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21551-339-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21551-286-2 01 1 9101-9504 ● ● ●
279 BELL MOUTH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21551-127-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH 1-21570-075-0 01 1 9505- ●
299 NIPPLE; RAD
MT643 A/T ALLISON(PR7) 		1-09660-456-0 02 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-074-1 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-058-2 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG 1-21469-107-0 01 1 9505- ●
335 BOLT; MEMBER
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		0-20801-025-0 06 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9110 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9111-9504 ● ● ●
335 BOLT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 07 1 9101-9504 ● ● ●
335 BOLT; MEMBER
M10X25 FLANGE 		0-28081-025-0 06 1 9505-9606 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28681-030-0 06 1 9607-0512 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
335 BOLT; MEMBER
M12X30 FLANGE 		0-28081-230-0 02 1 9505-9606 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28681-235-0 02 1 9607-0512 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28651-235-0 02 1 0601- ●
407 MEMBER; RAD MTG,SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21461-088-0 01 1 9101-9504 ● ● ●
407 MEMBER; RAD MTG,SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21461-082-1 01 1 9101-9504 ● ● ●
408 WASHER; LK,MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 		9-09150-510-0 06 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-157-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-050-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-440-0 01 1 9505-9507 ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-493-0 01 1 9508- ●
414 BRACKET; MEMBER,FRT TO SIDE
(A) 		1-21464-441-0 01 1 9505- ●

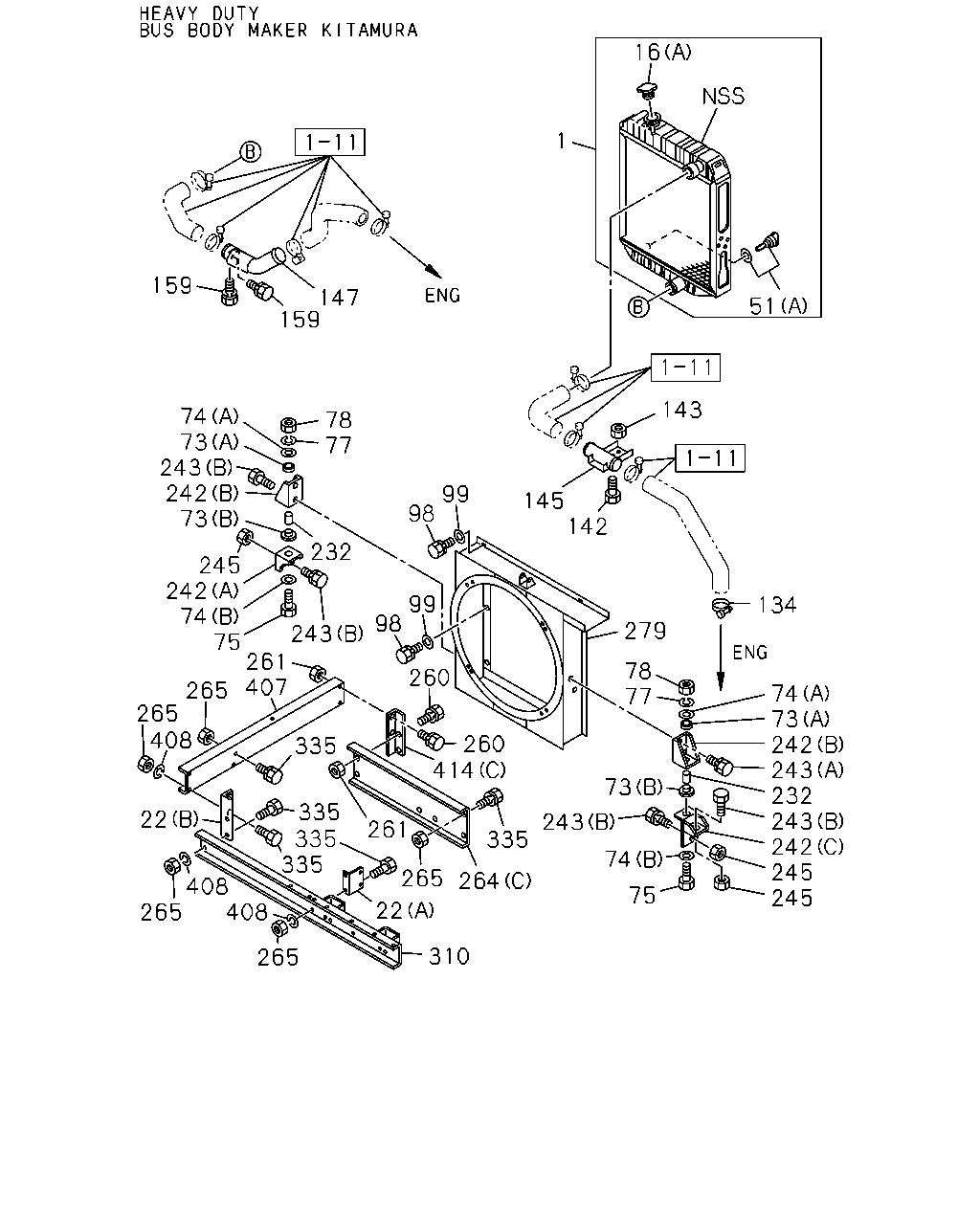

çizim 4267
16 1 159 147 159 51 143 74 73 243 242 73 78 77 99 98 145 142 232 245 242 74 75 261 407 99 98 134 279 243 78 77 260 265 265 408 74 73 242 243 232 243 242 245 245 260 414 335 73 335 335 335 22 243 261 335 74 265 264 408 265 408 75 22 310 265
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-160-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21464-161-0 01 1 9101-9504 ● ● ●
22 BRACKET; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-052-2 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9703-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) T=10 		1-21467-008-0 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 04 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9710-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 04 1 9710- ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(C) 		1-09503-262-0 02 1 9710- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X50 		0-10806-050-0 02 1 9101-9504 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 		0-10806-060-0 02 1 9505-9507 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 9508-9509 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9510-9709 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9710-0105 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9710- ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9508-9709 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9710-0203 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 9710-0602 ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
98 BOLT; RAD FAN GUIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 06 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28181-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28181-070-0 04 1 9702-9702 ●
99 WASHER; PL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.5 OD=26 		9-09160-710-0 08 1 9101-9504 ● ● ●
99 WASHER; PL
ID=10.5 OD=32 		9-09164-810-0 04 1 9505-0605 ●
99 WASHER; PL
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ●
99 WASHER; PL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.4 OD=18 		9-09160-706-0 06 1 9101-9504 ● ● ●
134 CLIP; OUTLET PIPE,RAD
ID=68 		1-09704-074-0 01 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
145 PIPE; HOSE CONN,INL 1-21431-268-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21437-387-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21431-428-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-267-0 01 1 9101-9504 ● ● ●
159 BOLT; BRKT TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK&PL WASHER 		9-01960-820-0 04 1 9101-9204 ● ● ●
159 BOLT; BRKT TO PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9205-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=28 		1-21469-011-0 02 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9505-9709 ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9710-0105 ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=25 		1-14234-083-0 02 1 0106- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9505-9709 ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21469-091-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-093-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 02 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-085-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9505-9709 ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21419-035-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21419-018-1 04 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-21469-050-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9505-9709 ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9710-0203 ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 0204- ● ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9702-9709 ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9710- ● ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9702-9709 ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9710- ● ●
242 BRACKET; RAD
(E) 		1-21419-065-0 01 1 9710-9712 ●
242 BRACKET; RAD
(E) 		1-21419-066-0 01 1 9801- ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X30 W/LK WASHER 		0-50041-230-0 05 1 9101-9504 ● ● ●
243 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 10 1 9101-9504 ● ● ●
243 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9709 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9710-0203 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
243 BOLT; BRKT
(B) M12X30 FLANGE 		0-28081-230-0 03 1 9505-9606 ●
243 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9607 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9608-9709 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9703-0203 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 0204-0512 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 03 1 0601- ● ●
243 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9710-9712 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 9801-0512 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9101-9307 ● ● ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9308-9504 ● ● ●
245 NUT; BRKT
M12 		9-99110-512-0 03 1 9505-9606 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9709 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9703-0203 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0512 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9101-9504 ● ● ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
261 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ●
261 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
264 MEMBER; RAD MTG,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-075-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-046-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21469-053-1 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
(A) FRONT 		1-21469-105-0 01 1 9505- ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-106-0 01 1 9505-9507 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-108-0 01 1 9508-9512 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-110-0 01 1 9601- ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9505-9606 ●
265 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
265 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 12 1 9101-9110 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9111-9504 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
265 NUT; MEMBER
M10 		9-09110-510-0 06 1 9505-9606 ●
265 NUT; MEMBER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ●
265 NUT; MEMBER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
265 NUT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 07 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21551-339-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21551-286-2 01 1 9101-9504 ● ● ●
279 BELL MOUTH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21551-127-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH 1-21570-075-0 01 1 9505- ●
310 MEMBER; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-074-1 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-058-2 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG 1-21469-107-0 01 1 9505- ●
335 BOLT; MEMBER
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		0-20801-025-0 06 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9110 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9111-9504 ● ● ●
335 BOLT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 07 1 9101-9504 ● ● ●
335 BOLT; MEMBER
M10X25 FLANGE 		0-28081-025-0 06 1 9505-9606 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28681-030-0 06 1 9607-0512 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
335 BOLT; MEMBER
M12X30 FLANGE 		0-28081-230-0 02 1 9505-9606 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28681-235-0 02 1 9607-0512 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28651-235-0 02 1 0601- ●
407 MEMBER; RAD MTG,SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21461-088-0 01 1 9101-9504 ● ● ●
407 MEMBER; RAD MTG,SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21461-082-1 01 1 9101-9504 ● ● ●
408 WASHER; LK,MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 		9-09150-510-0 06 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-157-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-050-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-440-0 01 1 9505-9507 ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-493-0 01 1 9508- ●
414 BRACKET; MEMBER,FRT TO SIDE
(A) 		1-21464-441-0 01 1 9505- ●
çizim 4270
1 475 476 16 170 142 16 212 120 143 212 155 141 212 156 51 143 142 157 212 385 385 77 385 98 68 62 74 73 243 242 232 73 74 75 55 240 386 279 78 77 74 73 242 243 263 384 261 98 99 260 93 414 264 261 232 73 243 242 245 74 243 379 335 414 379 260 265 93 75 264 335 310 265 78
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-090-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-089-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-158-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-159-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-051-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-045-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-438-0 01 1 9505-9512 ●
55 STAY; RAD TO UPR MBR 1-21464-502-1 01 1 9601- ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9702-9709 ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9710- ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X95 		0-10806-095-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X75 		0-10806-075-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (A) M12X90 		0-10806-290-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
(C) M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
68 BOLT; STAY TO BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9504 ● ● ●
68 BOLT; STAY TO BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9703-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) T=10 		1-21467-008-0 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 04 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9710-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 04 1 9710- ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(C) 		1-09503-262-0 02 1 9710- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X50 		0-10806-050-0 02 1 9101-9504 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 		0-10806-060-0 02 1 9505-9507 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 9508-9509 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9510-9709 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9710-0105 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9710- ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ● ●
77 WASHER; LK,CUSHION RUBBER
ID=10.2 		9-09150-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9508-9709 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9710-0203 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 9710-0602 ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
93 BOLT; BRKT FIX
M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
93 BOLT; BRKT FIX
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0512 ●
93 BOLT; BRKT FIX
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 06 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28181-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28181-070-0 04 1 9702-9702 ●
99 WASHER; PL
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.5 OD=26 		9-09160-710-0 08 1 9101-9504 ● ● ●
99 WASHER; PL
ID=10.5 OD=32 		9-09164-810-0 04 1 9505-0605 ●
99 WASHER; PL
ID=10.5 OD=32 		0-91614-810-0 04 1 0606- ●
99 WASHER; PL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=6.4 OD=18 		9-09160-706-0 06 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=145 		1-21431-183-0 01 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9505-9702 ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9703-9709 ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9710-9805 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET 1-21431-267-0 01 1 9806- ● ● ●
141 PIPE; RAD,INL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-134-0 01 1 9101-9504 ● ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9505-9702 ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9703-9709 ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9710- ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9505-9702 ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9703-9709 ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9710-9805 ● ● ●
155 BRACKET; RAD PIPE 1-21469-102-0 01 1 9806- ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9703-9709 ● ●
156 BOLT; BRKT TO RAD PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9505-9606 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9505-9706 ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9710-9805 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9702 ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9703-9709 ● ●
157 NUT; BRKT TO PIPE
M8 		9-09110-408-0 02 1 9505-9606 ● ● ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9710-9805 ● ● ●
157 NUT; BRKT TO PIPE
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
157 NUT; BRKT TO PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9607-9702 ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21421-022-0 01 1 9201-9504 ● ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9505-9702 ●
170 PIPE; FILLER 1-21421-022-0 01 1 9703-9709 ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9710- ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=63 		1-09704-067-0 03 1 9101-9504 ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=74 		1-09704-101-0 01 1 9101-9504 ● ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9505-9702 ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9703-9709 ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9710- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=28 		1-21469-011-0 02 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9505-9709 ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9710-0105 ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=25 		1-14234-083-0 02 1 0106- ● ●
240 NUT; STAY
M10 		9-09110-410-0 02 1 9101-9307 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 01 1 9505-9606 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9710-0602 ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9607-9702 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9703-9709 ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9505-9709 ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21469-091-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-093-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 02 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-085-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9505-9709 ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21419-035-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21419-018-1 04 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-21469-050-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9505-9709 ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9710-0203 ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 0204- ● ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9702-9709 ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9710- ● ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9702-9709 ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9710- ● ●
242 BRACKET; RAD
(E) 		1-21419-065-0 01 1 9710-9712 ●
242 BRACKET; RAD
(E) 		1-21419-066-0 01 1 9801- ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X30 W/LK WASHER 		0-50041-230-0 05 1 9101-9504 ● ● ●
243 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 10 1 9101-9504 ● ● ●
243 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9709 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9710-0203 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
243 BOLT; BRKT
(B) M12X30 FLANGE 		0-28081-230-0 03 1 9505-9606 ●
243 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9607 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9608-9709 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9703-0203 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 0204-0512 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 03 1 0601- ● ●
243 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9710-9712 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 9801-0512 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9101-9307 ● ● ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9308-9504 ● ● ●
245 NUT; BRKT
M12 		9-99110-512-0 03 1 9505-9606 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9709 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9703-0203 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
260 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 9607-0512 ●
260 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9101-9504 ● ● ●
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9505-9606 ●
261 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ●
261 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9710- ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9710- ● ● ●
264 MEMBER; RAD MTG,FRT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-075-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21464-046-0 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21469-053-1 01 1 9101-9504 ● ● ●
264 MEMBER; RAD MTG,FRT
(A) FRONT 		1-21469-105-0 01 1 9505- ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-106-0 01 1 9505-9507 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-108-0 01 1 9508-9512 ●
264 MEMBER; RAD MTG,FRT
(B) MTG SIDE 		1-21469-110-0 01 1 9601- ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
265 NUT; MEMBER
M12 		9-99110-512-0 02 1 9505-9606 ●
265 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 02 1 9607-0602 ●
265 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 12 1 9101-9110 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9111-9504 ● ● ●
265 NUT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 08 1 9101-9504 ● ● ●
265 NUT; MEMBER
M10 		9-09110-510-0 06 1 9505-9606 ●
265 NUT; MEMBER
M10 FLANGE 		0-91150-210-0 06 1 9607-0602 ●
265 NUT; MEMBER
M10 FLANGE 		0-91180-210-0 06 1 0603- ●
265 NUT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 07 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21551-339-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21551-286-2 01 1 9101-9504 ● ● ●
279 BELL MOUTH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21551-127-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH 1-21570-075-0 01 1 9505- ●
310 MEMBER; RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-074-1 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-058-2 01 1 9101-9504 ● ● ●
310 MEMBER; RAD MTG 1-21469-107-0 01 1 9505- ●
335 BOLT; MEMBER
M12X30 W/LK WASHER 		0-50041-230-0 02 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 		0-20801-025-0 06 1 9101-9504 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 06 1 9101-9110 ● ● ●
335 BOLT; MEMBER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9111-9504 ● ● ●
335 BOLT; MEMBER
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 07 1 9101-9504 ● ● ●
335 BOLT; MEMBER
M10X25 FLANGE 		0-28081-025-0 06 1 9505-9606 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28681-030-0 06 1 9607-0512 ●
335 BOLT; MEMBER
M10X30 FLANGE 		0-28651-030-0 06 1 0601- ●
335 BOLT; MEMBER
M12X30 FLANGE 		0-28081-230-0 02 1 9505-9606 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28681-235-0 02 1 9607-0512 ●
335 BOLT; MEMBER
M12X35 FLANGE 		0-28651-235-0 02 1 0601- ●
379 NUT; BRKT FIX
M10 		9-09110-510-0 04 1 9505-9606 ●
379 NUT; BRKT FIX
M10 FLANGE 		0-91150-210-0 04 1 9607-0602 ●
379 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
384 BOLT; ROD
M12X50 		0-10811-250-0 02 1 9101-9504 ● ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9505-9702 ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9703-9709 ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9710-0512 ● ● ●
384 BOLT; ROD
M12X50 		0-10861-250-0 08 1 0601- ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9505-9702 ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9703-9709 ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9710- ● ● ●
385 NUT; ROD
(A) 		9-09110-510-0 02 1 9101-9307 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 08 1 9505-9606 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9607-9702 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9703-9709 ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 08 1 9505-9606 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9607-9702 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9703-9709 ● ●
386 WASHER; LK,ROD
ID=12.2 		9-09150-512-0 02 1 9101-9504 ● ● ●
386 WASHER; LK,ROD
ID=12.2 		9-09150-512-0 08 1 9505-9606 ●
414 BRACKET; MEMBER,FRT TO SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21464-157-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21469-050-0 01 1 9101-9504 ● ● ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-440-0 01 1 9505-9507 ●
414 BRACKET; MEMBER,FRT TO SIDE
(B) 		1-21464-493-0 01 1 9508- ●
414 BRACKET; MEMBER,FRT TO SIDE
(A) 		1-21464-441-0 01 1 9505- ●
475 SWITCH; WATER LEVEL 1-82480-048-2 01 1 9505-9509 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9510-9701 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9702-9706 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9707-9709 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9710-9805 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9806-9807 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-092-0 01 1 9808-1205 ● ● ●
475 SWITCH; WATER LEVEL 8-97640-799-0 01 1 1206-1504 ● ● ●
475 SWITCH; WATER LEVEL 8-98300-699-0 01 1 1505- ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9505-9701 ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9702-9706 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9707-9709 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9710-9805 ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9806- ● ● ●
çizim 5545
16 16 1 170 476 475 25 242 25 242 143 142 212 212 141 51 142 212 385 98 68 62 240 55 120 212 155 156 143 74 78 73 243 242 73 232 75 74 157 385 385 263 384 78 74 73 243 242 75 73 74 78 73 73 75 73 78 74 243 232 242 73 243 242 245 74 75 243 79 80
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
25 BOLT; BRKT
M10X16 FLANGE 		0-28081-016-0 10 1 9702-1205 ●
25 BOLT; BRKT
ISUZU M/T<X9A> M10X12 FLANGE 		0-28081-012-0 10 1 9710-1205 ●
25 BOLT; BRKT
M10X12 FLANGE 		0-28051-012-0 10 1 1206- ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-090-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-089-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-158-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-159-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-051-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-045-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-438-0 01 1 9505-9512 ●
55 STAY; RAD TO UPR MBR 1-21464-502-1 01 1 9601- ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9702-9709 ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9710- ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X95 		0-10806-095-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X75 		0-10806-075-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (A) M12X90 		0-10806-290-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
(C) M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
68 BOLT; STAY TO BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9504 ● ● ●
68 BOLT; STAY TO BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 9703-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=10 		1-21467-001-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) T=10 		1-21467-008-0 02 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) T=10 		1-21467-001-1 04 1 9101-9504 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9505-9709 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9710-0203 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0204- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 04 1 9710- ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=10.5 OD=44 		1-09503-042-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9101-9504 ● ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9505-9709 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 9710-0203 ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 02 1 0204- ● ●
74 WASHER; PL,CUSHION RUBBER
(C) 		1-09503-262-0 02 1 9710- ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X50 		0-10806-050-0 02 1 9101-9504 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 		0-10806-060-0 02 1 9505-9507 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 9508-9509 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9510-9709 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X70 FLANGE 		0-28081-070-0 02 1 9710-0105 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28081-060-0 02 1 0106-0512 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M10X60 FLANGE 		0-28051-060-0 02 1 0601- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X77 		1-09009-162-0 02 1 9710- ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
78 NUT; CUSHION RUBBER
M10 		9-09110-510-0 02 1 9505-9507 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9508-9709 ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 9710-0203 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ● ●
78 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 02 1 9710-0602 ●
78 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 02 1 0603- ●
79 GUIDE; FAN,RAD 1-21570-080-0 01 1 9702-9706 ●
79 GUIDE; FAN,RAD
ISUZU M/T<X9A> 		1-21570-080-0 01 1 9707-9805 ●
79 GUIDE; FAN,RAD 1-21570-080-0 01 1 9806- ●
79 GUIDE; FAN,RAD
ISUZU M/T<X9A> 		1-21570-082-1 01 1 9710- ●
80 BOLT; FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9702-9706 ●
80 BOLT; FAN GUIDE
ISUZU M/T<X9A> M10X70 FLANGE 		0-28081-070-0 04 1 9707-9805 ●
80 BOLT; FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9806-1205 ●
80 BOLT; FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 1206- ●
80 BOLT; FAN GUIDE
ISUZU M/T<X9A> M10X80 FLANGE 		0-28081-080-0 04 1 9710-1205 ●
80 BOLT; FAN GUIDE
ISUZU M/T<X9A> M10X80 FLANGE 		0-28051-080-0 04 1 1206- ●
98 BOLT; RAD FAN GUIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10X25 W/LK WASHER 		0-50041-025-0 08 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M6X20 W/LK WASHER 		0-50040-620-0 06 1 9101-9504 ● ● ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28081-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28081-012-0 02 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X12 FLANGE 		0-28051-012-0 02 1 0601- ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9505-9701 ●
98 BOLT; RAD FAN GUIDE
RIGHT HAND DRIVE(LTR5FB) M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) EXC. TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28081-070-0 04 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28081-070-0 04 1 9703-0512 ●
98 BOLT; RAD FAN GUIDE
M10X70 FLANGE 		0-28051-070-0 04 1 0601- ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X12 FLANGE 		0-28181-012-0 02 1 9702-9702 ●
98 BOLT; RAD FAN GUIDE
LEFT HAND DRIVE(LTR6FB) TAIWAN EQUIPMENT<WW5> M10X70 FLANGE 		0-28181-070-0 04 1 9702-9702 ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=145 		1-21431-183-0 01 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9505-9702 ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9703-9709 ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9710-9805 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET 1-21431-267-0 01 1 9806- ● ● ●
141 PIPE; RAD,INL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-134-0 01 1 9101-9504 ● ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9505-9702 ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9703-9709 ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9710- ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9505-9702 ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9703-9709 ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9710-9805 ● ● ●
155 BRACKET; RAD PIPE 1-21469-102-0 01 1 9806- ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9703-9709 ● ●
156 BOLT; BRKT TO RAD PIPE
M8X20 FLANGE 		0-28080-820-0 02 1 9505-9606 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9505-9706 ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9710-9805 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 9806-0512 ● ● ●
156 BOLT; BRKT TO RAD PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
156 BOLT; BRKT TO RAD PIPE
ISUZU M/T<X9A> M8X25 FLANGE 		0-28680-825-0 02 1 9607-9702 ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9703-9709 ● ●
157 NUT; BRKT TO PIPE
M8 		9-09110-408-0 02 1 9505-9606 ● ● ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9710-9805 ● ● ●
157 NUT; BRKT TO PIPE
M8 FLANGE 		0-91150-108-0 02 1 9806-0602 ● ● ●
157 NUT; BRKT TO PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
157 NUT; BRKT TO PIPE
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 02 1 9607-9702 ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21421-022-0 01 1 9201-9504 ● ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9505-9702 ●
170 PIPE; FILLER 1-21421-022-0 01 1 9703-9709 ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9710- ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=63 		1-09704-067-0 03 1 9101-9504 ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=74 		1-09704-101-0 01 1 9101-9504 ● ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9505-9702 ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9703-9709 ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9710- ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=28 		1-21469-011-0 02 1 9101-9504 ● ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9505-9709 ●
232 COLLAR; DIST,CUSHION RUBBER
L=37.2 		1-14234-078-0 02 1 9710-0105 ● ●
232 COLLAR; DIST,CUSHION RUBBER
L=25 		1-14234-083-0 02 1 0106- ● ●
240 NUT; STAY
M10 		9-09110-410-0 02 1 9101-9307 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 01 1 9505-9606 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9710-0602 ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9607-9702 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9703-9709 ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9505-9709 ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(B) 		1-21419-041-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (B) 		1-21469-091-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-093-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		1-21419-041-0 02 1 9101-9504 ● ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (C) 		1-21469-085-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9505-9709 ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 9710-0203 ● ●
242 BRACKET; RAD
(C) 		1-21469-085-0 01 1 0204- ● ●
242 BRACKET; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21419-035-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21419-018-1 04 1 9101-9504 ● ● ●
242 BRACKET; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (D) 		1-21469-050-0 01 1 9101-9504 ● ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9505-9709 ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 9710-0203 ● ●
242 BRACKET; RAD
(A) 		1-21469-104-1 01 1 0204- ● ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9702-9709 ●
242 BRACKET; RAD
(D) 		1-21464-553-0 02 1 9710- ● ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9702-9709 ●
242 BRACKET; RAD
(F) 		1-21464-554-0 02 1 9710- ● ●
242 BRACKET; RAD
(E) 		1-21419-065-0 01 1 9710-9712 ●
242 BRACKET; RAD
(E) 		1-21419-066-0 01 1 9801- ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 04 1 9101-9504 ● ● ●
243 BOLT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) M12X30 W/LK WASHER 		0-50041-230-0 05 1 9101-9504 ● ● ●
243 BOLT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X25 W/LK WASHER 		0-50041-025-0 10 1 9101-9504 ● ● ●
243 BOLT; BRKT
(A) M10X25 FLANGE 		0-28081-025-0 04 1 9505-9606 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9607-9709 ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 9710-0203 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ●
243 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ●
243 BOLT; BRKT
(B) M12X30 FLANGE 		0-28081-230-0 03 1 9505-9606 ●
243 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 03 1 9607-9607 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9608-9709 ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 9703-0203 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 03 1 0204-0512 ● ●
243 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 03 1 0601- ● ●
243 BOLT; BRKT
(C) M10X30 FLANGE 		0-28681-030-0 02 1 9710-9712 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28681-035-0 02 1 9801-0512 ●
243 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9101-9307 ● ● ●
245 NUT; BRKT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M12 		9-99110-512-0 05 1 9308-9504 ● ● ●
245 NUT; BRKT
M12 		9-99110-512-0 03 1 9505-9606 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-9709 ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9703-0203 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 0204-0602 ● ●
245 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 NUT; BRKT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M10 		9-09110-510-0 06 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9710- ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9710- ● ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 02 1 9101-9504 ● ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9505-9702 ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9703-9709 ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9710-0512 ● ● ●
384 BOLT; ROD
M12X50 		0-10861-250-0 08 1 0601- ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9505-9702 ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9703-9709 ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9710- ● ● ●
385 NUT; ROD
(A) 		9-09110-510-0 02 1 9101-9307 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 08 1 9505-9606 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9607-9702 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9703-9709 ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 08 1 9505-9606 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9607-9702 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9703-9709 ● ●
475 SWITCH; WATER LEVEL 1-82480-048-2 01 1 9505-9509 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9510-9701 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9702-9706 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9707-9709 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9710-9805 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9806-9807 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-092-0 01 1 9808-1205 ● ● ●
475 SWITCH; WATER LEVEL 8-97640-799-0 01 1 1206-1504 ● ● ●
475 SWITCH; WATER LEVEL 8-98300-699-0 01 1 1505- ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9505-9701 ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9702-9706 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9707-9709 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9710-9805 ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9806- ● ● ●
çizim 36777
263 385 384 386 386 384 385 385 263 385 279 218 254 55 256 62 371 240 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-090-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21469-089-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-158-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21464-159-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-051-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21469-045-0 01 1 9101-9504 ● ● ●
55 STAY; RAD TO UPR MBR 1-21464-438-0 01 1 9505-9512 ●
55 STAY; RAD TO UPR MBR 1-21464-502-1 01 1 9601- ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9702-9709 ●
55 STAY; RAD TO UPR MBR 1-21464-519-0 01 1 9710- ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X95 		0-10806-095-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> (A) M10X75 		0-10806-075-0 01 1 9101-9504 ● ● ●
62 BOLT; STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (A) M12X90 		0-10806-290-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) M10X80 		0-10806-080-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
MT643 A/T ALLISON(PR7) (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) M8X20 W/LK&PL WASHER 		9-01960-820-0 02 1 9101-9504 ● ● ●
62 BOLT; STAY
(C) M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
62 BOLT; STAY
(C) M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
68 BOLT; STAY TO BRKT
M10X20 W/LK WASHER 		0-50041-020-0 02 1 9101-9504 ● ● ●
68 BOLT; STAY TO BRKT
M10X25 FLANGE 		0-28081-025-0 01 1 9505-9606 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9710-0512 ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 0601- ● ● ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9607-9702 ●
68 BOLT; STAY TO BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 9703-9709 ● ●
218 NUT; BRKT
M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
240 NUT; STAY
M10 		9-09110-410-0 02 1 9101-9307 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
240 NUT; STAY
M10 		9-09110-510-0 01 1 9505-9606 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9710-0602 ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9607-9702 ●
240 NUT; STAY
M10 FLANGE 		0-91150-210-0 01 1 9703-9709 ● ●
254 COLLAR; DIST,STAY,RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21529-003-0 01 1 9101-9504 ● ● ●
254 COLLAR; DIST,STAY,RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		9-14149-085-0 01 1 9101-9504 ● ● ●
254 COLLAR; DIST,STAY,RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-14149-021-0 01 1 9101-9504 ● ● ●
254 COLLAR; DIST,STAY,RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-51353-005-0 01 1 9101-9504 ● ● ●
254 COLLAR; DIST,STAY,RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21529-002-0 02 1 9101-9504 ● ● ●
256 WASHER; LK,STAY
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=12.2 		9-09150-512-0 02 1 9101-9504 ● ● ●
256 WASHER; LK,STAY
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ID=10.2 		9-09150-510-0 02 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
RH THREAD 		9-21460-134-1 04 1 9710- ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-0 01 1 9101-9504 ● ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9505-9702 ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9703-9709 ● ●
263 END ASM; RAD TIE ROD
LH THREAD 		9-21460-135-1 04 1 9710- ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21551-339-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21551-286-2 01 1 9101-9504 ● ● ●
279 BELL MOUTH
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21551-127-0 01 1 9101-9504 ● ● ●
279 BELL MOUTH 1-21570-075-0 01 1 9505- ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9101-9504 ● ● ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9505-9702 ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9703-9709 ● ●
371 GROMMET
ID=16 		9-09575-116-0 01 1 9710- ● ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9101-9504 ● ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9505-9702 ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9703-9709 ● ●
371 GROMMET
ID=20 		9-09575-520-0 02 1 9710- ● ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 02 1 9101-9504 ● ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9505-9702 ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9703-9709 ● ●
384 BOLT; ROD
M12X50 		0-10811-250-0 08 1 9710-0512 ● ● ●
384 BOLT; ROD
M12X50 		0-10861-250-0 08 1 0601- ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9505-9702 ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9703-9709 ● ●
385 NUT; ROD
(A) M10 LH THREAD 		1-09400-025-0 08 1 9710- ● ● ●
385 NUT; ROD
(A) 		9-09110-510-0 02 1 9101-9307 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 02 1 9308-9504 ● ● ●
385 NUT; ROD
(A) M10 		9-09110-510-0 08 1 9505-9606 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ● ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9607-9702 ●
385 NUT; ROD
(A) M10 FLANGE 		0-91150-210-0 08 1 9703-9709 ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 02 1 9101-9504 ● ● ●
385 NUT; ROD
(B) M12 		9-99110-512-0 08 1 9505-9606 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9710-0602 ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91180-212-0 08 1 0603- ● ● ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9607-9702 ●
385 NUT; ROD
(B) M12 FLANGE 		0-91150-212-0 08 1 9703-9709 ● ●
386 WASHER; LK,ROD
ID=12.2 		9-09150-512-0 02 1 9101-9504 ● ● ●
386 WASHER; LK,ROD
ID=12.2 		9-09150-512-0 08 1 9505-9606 ●
çizim 36825
475 16 170 476 16 142 141 143 212 212 1 51 144 120 155 147 142 144 212 212 142 142
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21410-525-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> 		1-21410-701-2 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21410-554-1 01 1 9101-9504 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-527-1 01 1 9101-9210 ● ● ●
1 RADIATOR ASM
MT643 A/T ALLISON(PR7) 		1-21410-526-2 01 1 9211-9504 ● ● ●
1 RADIATOR ASM 1-21410-702-1 01 1 9505-9706 ●
1 RADIATOR ASM
ISUZU M/T<X9A> 		1-21410-702-1 01 1 9707-9805 ●
1 RADIATOR ASM 1-21410-702-1 01 1 9806- ●
1 RADIATOR ASM 1-21410-736-0 01 1 9702-9709 ●
1 RADIATOR ASM 1-21410-736-2 01 1 9710-1205 ● ●
1 RADIATOR ASM 8-98213-112-0 01 1 1206-1504 ● ●
1 RADIATOR ASM 1-21410-736-2 01 1 1505- ● ●
16 CAP; RAD
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) 		1-21450-053-1 01 1 9101-9504 ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (C) 		1-21450-044-2 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (C) 		1-21450-044-2 01 1 9201-9504 ● ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9505-9702 ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9703-9709 ● ●
16 CAP; RAD
(C) 		1-21450-044-2 01 1 9710- ● ● ●
16 CAP; RAD
RIGHT HAND DRIVE(LTR5FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (B) 		1-21450-090-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) 		1-21450-090-0 01 1 9201-9504 ● ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9505-9702 ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9703-9709 ● ●
16 CAP; RAD
(B) 		1-21450-090-0 01 1 9710- ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS FRENCH<WJ8> (B) 		1-21450-118-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (B) 		1-21450-128-0 01 1 9101-9112 ● ● ●
16 CAP; RAD
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> CAUTIONS SPANISH<YN1> (C) 		1-21450-129-0 01 1 9101-9112 ● ● ●
51 PLUG; DRAIN
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> BUS BODY MAKER KITAMURA<Y08> (A) W/GASKET 		8-94321-236-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) 		1-09680-023-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
MT643 A/T ALLISON(PR7) (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> (B) 		9-09904-153-0 01 1 9101-9504 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9505-9706 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9707-9709 ● ●
51 PLUG; DRAIN
ISUZU M/T<X9A> (C) W/GASKET 		1-09609-009-0 01 1 9710-9805 ● ● ●
51 PLUG; DRAIN
(C) W/GASKET 		1-09609-009-0 01 1 9806- ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> L=145 		1-21431-183-0 01 1 9101-9504 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9505-9702 ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9703-9709 ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET
ISUZU M/T<X9A> 		1-21431-267-0 01 1 9710-9805 ● ● ●
120 PIPE; HOSE TO HOSE,RAD OUTLET 1-21431-267-0 01 1 9806- ● ● ●
141 PIPE; RAD,INL
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-134-0 01 1 9101-9504 ● ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9505-9702 ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9703-9709 ● ●
141 PIPE; RAD,INL 1-21431-267-0 01 1 9710- ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10X25 W/LK&PL WASHER 		0-50141-025-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> M8X18 W/LK WASHER 		0-50040-818-0 04 1 9101-9504 ● ● ●
142 BOLT; PIPE
M8X20 FLANGE 		0-28080-820-0 04 1 9505-9606 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9710-0512 ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ● ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9607-9702 ●
142 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 04 1 9703-9709 ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X20 W/LK WASHER 		0-50040-820-0 02 1 9101-9504 ● ● ●
142 BOLT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8X25 W/LK WASHER 		0-50040-825-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> M10 		9-09110-510-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> ISUZU M/T<X9A> EXC. BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 04 1 9101-9504 ● ● ●
143 NUT; PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> M8 		9-09110-408-0 02 1 9101-9504 ● ● ●
143 NUT; PIPE
M8 		9-09110-408-0 04 1 9505-9606 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9710-9805 ● ● ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9806-0602 ●
143 NUT; PIPE
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9607-9702 ●
143 NUT; PIPE
M8 FLANGE 		0-91150-108-0 04 1 9703-9709 ● ●
144 HOSE; RUBBER,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (A) OUTLET 		1-14121-042-0 01 1 9101-9504 ● ● ●
144 HOSE; RUBBER,PIPE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> (B) INLET 		1-21437-087-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BUS BODY MAKER KITAMURA<Y08> 		1-21437-387-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> 		1-21431-428-0 01 1 9101-9504 ● ● ●
147 PIPE; HOSE CONN,OUT
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21431-267-0 01 1 9101-9504 ● ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9505-9702 ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9703-9709 ● ●
155 BRACKET; RAD PIPE
ISUZU M/T<X9A> 		1-21469-102-0 01 1 9710-9805 ● ● ●
155 BRACKET; RAD PIPE 1-21469-102-0 01 1 9806- ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS SPANISH<YN1> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
LEFT HAND DRIVE(LTR6FB) BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. CAUTIONS FRENCH<WJ8> 		1-21421-022-0 01 1 9101-9112 ● ● ●
170 PIPE; FILLER
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-21421-022-0 01 1 9201-9504 ● ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9505-9702 ●
170 PIPE; FILLER 1-21421-022-0 01 1 9703-9709 ● ●
170 PIPE; FILLER 1-21421-022-0 01 1 9710- ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=63 		1-09704-067-0 03 1 9101-9504 ● ● ●
212 CLIP; HOSE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. BUS BODY MAKER KITAMURA<Y08> ID=74 		1-09704-101-0 01 1 9101-9504 ● ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9505-9702 ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9703-9709 ● ●
212 CLIP; HOSE
ID=63 		1-09704-067-0 04 1 9710- ● ● ●
475 SWITCH; WATER LEVEL 1-82480-048-2 01 1 9505-9509 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9510-9701 ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9702-9706 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9707-9709 ● ●
475 SWITCH; WATER LEVEL
ISUZU M/T<X9A> 		1-82480-071-0 01 1 9710-9805 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-071-0 01 1 9806-9807 ● ● ●
475 SWITCH; WATER LEVEL 1-82480-092-0 01 1 9808-1205 ● ● ●
475 SWITCH; WATER LEVEL 8-97640-799-0 01 1 1206-1504 ● ● ●
475 SWITCH; WATER LEVEL 8-98300-699-0 01 1 1505- ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9505-9701 ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9702-9706 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9707-9709 ● ●
476 GASKET; SWITCH,WATER LEVEL
ISUZU M/T<X9A> ID=28 T=2.5 		1-09630-126-0 01 1 9710-9805 ● ● ●
476 GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5 		1-09630-126-0 01 1 9806- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
