Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#43819) — 228 parça

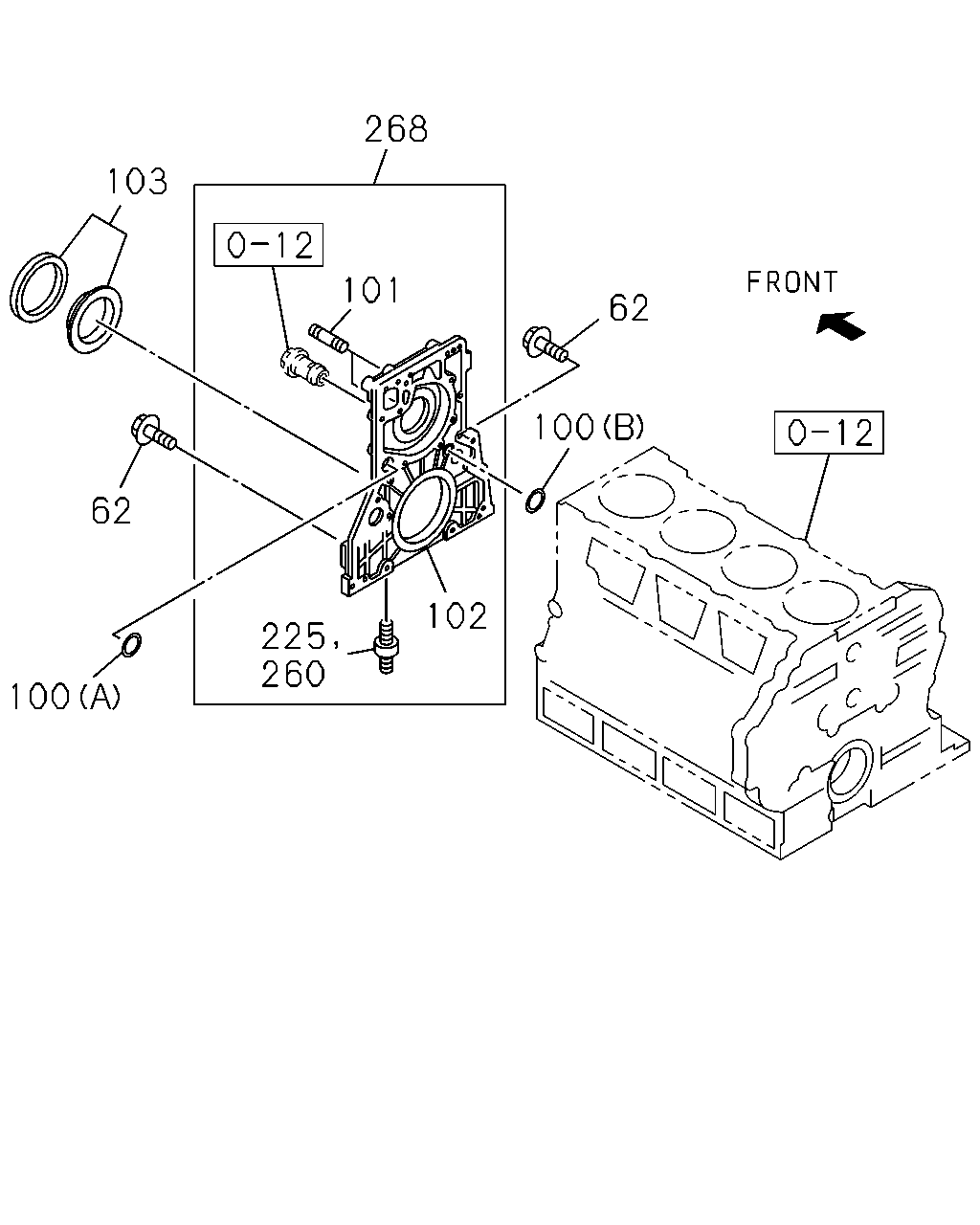

268 103 101 62 100 62 102 225 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	07	1	9503-9510	●
62	00.206 BOLT; COVER 08.900 M8X22 FLANGE	0-28080-822-0	01	1	9511-9511	●
62	00.206 BOLT; COVER 00.004 M8X32 FLANGE	0-28080-832-0	05	1	9503-9510	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9511-9711	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	9712-0212		●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0301-0310			●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0311-0501		●	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0502-0506		●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0507-0512		●		●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0611		●		●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0612-0706		●		●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0707-		●		●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9503-9711	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	9712-0212		●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0301-0310			●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0311-0501		●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0502-0506		●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0507-0611		●		●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0612-0706		●		●	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0707-		●		●	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9511-9711	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9712-0212		●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0301-0310			●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0311-0501		●	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0502-0506		●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0507-0512		●		●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0611		●		●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0612-		●		●	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0310			●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0311-0501		●	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0502-0506		●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0507-0512		●		●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0611		●		●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0612-		●		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9503-9711	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	9712-0212		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0301-0310			●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0311-0501		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0502-0506		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0507-0611		●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0612-		●		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9503-9711	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	9712-0212		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0301-0310			●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0311-0501		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0502-0506		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0507-0611		●		●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0612-		●		●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9503-9711	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	9712-0212		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0301-0310			●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0311-0501		●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0502-0506		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0507-0611		●		●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0612-		●		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9503-9711	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	9712-0212		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0301-0310			●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0311-0501		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0502-0506		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0507-0604		●		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-0611		●		●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0612-		●		●	●
102	00.137 RETAINER; FRT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) VOLTAGE 24V<7AE> ANTI EROSION SPEC<7XK> EXC. KD PREPARATORY PACK<6HF>	8-98081-351-1	01	1	1104-				●
102	00.137 RETAINER; FRT ANTI EROSION SPEC<7XK>	8-98081-351-1	01	1	1104-					●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0507-0706				●
102	00.137 RETAINER; FRT	8-97094-943-2	01	1	9503-9711	●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	9712-0212		●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0301-0501			●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0311-0611		●
102	00.137 RETAINER; FRT	8-97094-943-3	01	1	0612-0706		●			●
102	00.137 RETAINER; FRT	8-98039-932-1	01	1	0707-1103		●		●	●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	1104-		●
102	00.137 RETAINER; FRT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EURO3 SPECIFICATION(NT3) VOLTAGE 24V<7AE> EXC. KD PREPARATORY PACK<6HF>,ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	1104-				●
102	00.137 RETAINER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-932-2	01	1	1104-					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9503-9711	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94369-518-0	01	1	9712-0205		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0206-0212		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0301-0310			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0311-0501		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0502-0506		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0507-0611		●		●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0612-		●		●	●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9512-9711	●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	04	1	9712-0005		●
225	01.428 STUD; OIL PAN M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER	8-97087-632-2	03	1	0006-0012		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0101-0212		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0311-0611		●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0612-		●			●
260	01.428 STUD; OIL PAN ANTI EROSION SPEC<7XK> 02.510 M8X20 L=32	0-41010-820-0	04	1	1104-				●
260	01.428 STUD; OIL PAN M8X20 L=32	9-04110-820-0	04	1	9503-9511	●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98079-080-1	01	1	1104-					●
268	00.206 COVER; FRT ANTI EROSION SPEC<7XK>	8-98096-851-1	01	1	1104-				●
268	00.206 COVER; FRT	8-97148-937-2	01	1	0507-1103				●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-97148-937-3	01	1	1104-				●
268	00.206 COVER; FRT	8-97113-768-0	01	1	9503-9511	●
268	00.206 COVER; FRT	8-97074-859-2	01	1	9512-9711	●
268	00.206 COVER; FRT	8-97074-859-3	01	1	9712-0005		●
268	00.206 COVER; FRT	8-97259-417-0	01	1	0006-0012		●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0101-0212		●
268	00.206 COVER; FRT	8-97148-937-1	01	1	0301-0501			●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0311-0611		●
268	00.206 COVER; FRT	8-97259-416-0	01	1	0612-0706		●			●
268	00.206 COVER; FRT	8-98039-931-1	01	1	0707-1103		●			●
268	00.206 COVER; FRT	8-98039-931-2	01	1	1104-		●
268	00.206 COVER; FRT EXC. ANTI EROSION SPEC<7XK>	8-98039-931-2	01	1	1104-					●

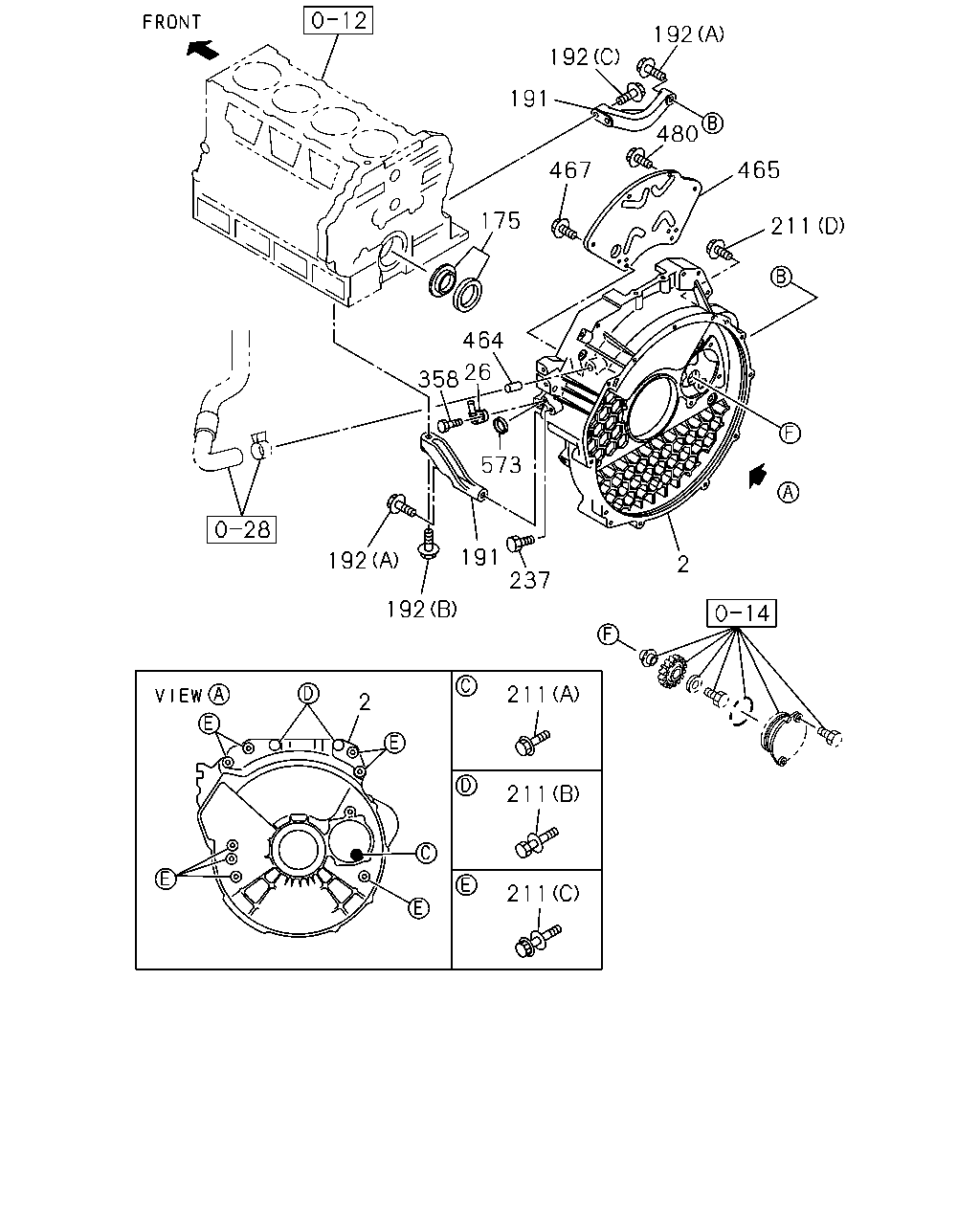

192 192 191 480 465 467 175 211 464 26 358 573 191 192 2 237 192 211 2 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0507-				●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-2	01	1	9503-9711	●
2	00.683 HOUSING; FLYWHEEL	8-97112-139-5	01	1	9712-9902		●
2	00.683 HOUSING; FLYWHEEL	8-97223-971-0	01	1	9903-9904		●
2	00.683 HOUSING; FLYWHEEL	8-97223-737-2	01	1	9905-0006		●
2	00.683 HOUSING; FLYWHEEL	8-97241-584-0	01	1	0007-0212		●
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0301-0308			●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0501			●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-2	01	1	0311-0611		●
2	00.683 HOUSING; FLYWHEEL	8-97364-899-4	01	1	0612-		●			●
26	03.306 ADAPTER	8-97354-819-0	01	1	0507-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9503-9711	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94370-637-0	01	1	9712-0205		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0206-0212		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0301-0310			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0311-0501		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0502-0506		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0507-0611		●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0612-		●		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97081-670-1	01	1	9412-9611	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	9612-9711	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	9712-0212		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0301-0310			●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0311-0501		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0502-0506		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0507-0611		●		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0612-		●		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97063-291-2	01	1	9412-9611	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	9612-9711	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	9712-0212		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0301-0310			●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0311-0501		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0502-0506		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0507-0611		●		●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0612-		●		●	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	9412-9711	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	9712-0212		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0301-0501			●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	9412-9711	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	9712-0212		●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0301-0310			●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0311-0501		●	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0502-0506		●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0507-0512		●		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-0611		●		●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0612-		●		●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	9412-9711	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	9712-0212		●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0301-0501			●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	01	1	0311-0501		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0502-0506		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0507-0512		●		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0601-0611		●		●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0612-		●		●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	0311-0506		●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X45 FLANGE	0-28181-045-0	02	1	0507-0512		●		●
192	00.206 BOLT; STAY TO HSG 09.181 (C) M10X45 FLANGE	0-28151-045-0	02	1	0601-0611		●		●
192	00.206 BOLT; STAY TO HSG 09.181 (C) M10X45 FLANGE	0-28151-045-0	02	1	0612-		●		●	●
211	00.669 BOLT; HSG (B) M8X20,M8X65 L=90	8-97200-622-1	02	1	0612-					●
211	00.669 BOLT; HSG (B),(C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0507-1102				●
211	00.669 BOLT; HSG (B),(C) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-				●
211	00.669 BOLT; HSG 04.510 (D) M10X40 FLANGE	0-28181-040-0	01	1	9503-9606	●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	9607-9711	●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	9712-0212		●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0301-0310			●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0311-0501		●	●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0502-0506		●
211	00.669 BOLT; HSG (D) M10X40 FLANGE	0-28781-040-0	01	1	0507-0512		●		●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0601-0611		●		●
211	00.669 BOLT; HSG 00.029 (D) M10X40 FLANGE	0-28751-040-0	01	1	0612-		●		●	●
211	00.669 BOLT; HSG 00.002 (A) M12X30 FLANGE	8-94343-919-0	01	1	9503-9511	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	9512-9711	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	9712-0212		●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0301-0310			●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0311-0501		●	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0502-0506		●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0507-0611		●		●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0612-		●		●	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9503-9711	●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	9712-0212		●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9503-9711	●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	9712-0212		●
211	00.669 BOLT; HSG (B),(C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0301-0501			●
211	00.669 BOLT; HSG (B) M8X65 W/PL WASHER	8-94388-781-0	02	1	0311-		●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0311-0501		●
211	00.669 BOLT; HSG EXC. HIGH ALTITUDE COMPENSATOR(EE2) (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0502		●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0502-0611		●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0612-1102		●			●
211	00.669 BOLT; HSG (C) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-		●			●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0507-0512				●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-				●
358	00.206 BOLT; ADAPTER 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512				●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-				●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9503-9711	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	9712-0212		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0301-0310			●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0311-0501		●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0502-0506		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0507-0611		●		●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0612-		●		●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0507-				●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-2	01	1	9503-9711	●
465	00.686 PLATE; FLYWHEEL HSG 00.669	8-94370-384-3	01	1	9712-0212		●
465	00.686 PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	0301-0308			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-0501			●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0311-0611		●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0612-		●			●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9503-9711	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	9712-0212		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0301-0310			●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0311-0501		●	●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0502-0506		●
467	00.686 BOLT; PLATE 02.500 M6X10 FLANGE	0-28080-610-0	06	1	0507-0507		●		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0508-0611		●		●
467	00.686 BOLT; PLATE 05.815 M6X10	0-20800-610-0	06	1	0612-0805		●		●	●
467	00.686 BOLT; PLATE 06.321 M6X10	8-98030-649-0	06	1	0806-		●		●	●
480	00.206 BOLT; COVER 00.685 M10X28 FLANGE	0-28181-028-0	02	1	0007-0108		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	9905-0212		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0301-0310			●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0311-0501		●	●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0502-0611		●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0612-		●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
