1 |

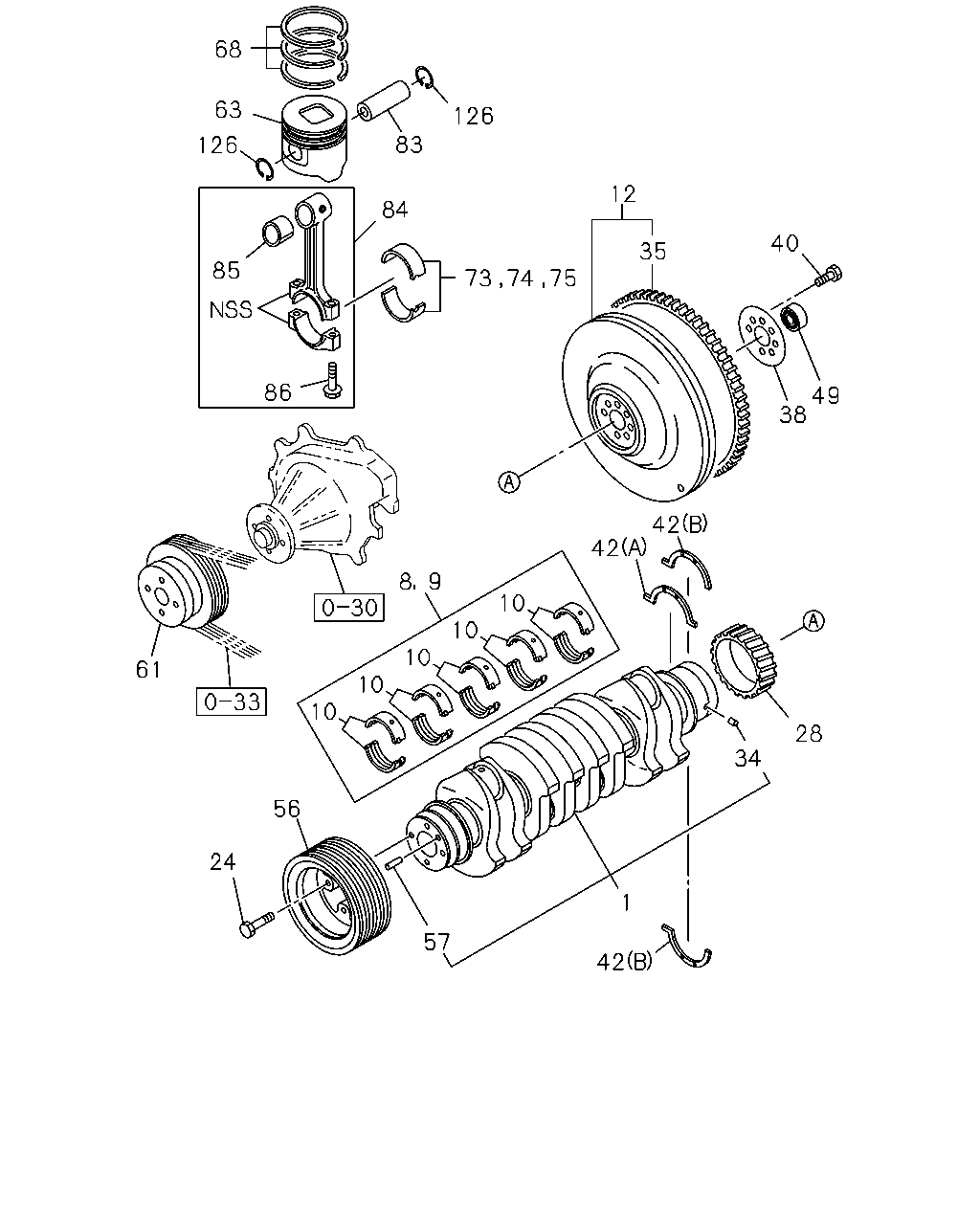

00.646 CRANKSHAFT
|
8-97352-534-3 |
01 |
1 |
0507-0509 |
● |
|
|
|
|
| |
1 |
00.646 CRANKSHAFT
|
8-98029-270-0 |
01 |
1 |
0510- |
● |
|
|
|
|
| |
1 |
00.646 CRANKSHAFT
|
8-97112-981-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
1 |
00.646 CRANKSHAFT
|
8-97112-981-2 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
1 |
00.646 CRANKSHAFT
|
8-97352-534-2 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
| |
1 |
00.646 CRANKSHAFT
|
8-97112-981-3 |
01 |
1 |
0311-0611 |
|
|
● |
|
|
| |
1 |
00.646 CRANKSHAFT
|
8-97112-981-3 |
01 |
1 |
0612- |
|
|
● |
|
● |
| |
8 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.25
|
8-97174-988-0 |
01 |
1 |
9512-9711 |
|
● |
|
|
|
| |
8 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.25
|
8-97174-988-0 |
01 |
1 |
9712-9904 |
|
|
● |
|
|
| |
8 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.25
|
5-87310-546-0 |
01 |
1 |
9905-0212 |
|
|
● |
|
|
| |
9 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.50
|
8-97174-989-0 |
01 |
1 |
9512-9711 |
|
● |
|
|
|
| |
9 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.50
|
8-97174-989-0 |
01 |
1 |
9712-9904 |
|
|
● |
|
|
| |
9 |
00.094 METAL KIT; CRANKSHAFT,U/S=0.50
|
5-87310-547-0 |
01 |
1 |
9905-0212 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97045-915-0 |
05 |
1 |
9503-9711 |
|
● |
|
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97045-915-0 |
05 |
1 |
9712-9904 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97219-456-0 |
05 |
1 |
9905-0212 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97219-456-0 |
05 |
1 |
0301-0303 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-0 |
05 |
1 |
0304-0310 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-0 |
05 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-0 |
05 |
1 |
0502-0506 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
05 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE
|
8-97372-076-1 |
05 |
1 |
0612- |
● |
|
● |
|
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97045-916-0 |
05 |
1 |
9503-9711 |
|
● |
|
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97045-916-0 |
05 |
1 |
9712-9904 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97219-457-0 |
05 |
1 |
9905-0212 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97219-457-0 |
05 |
1 |
0301-0303 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-0 |
05 |
1 |
0304-0310 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-0 |
05 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-0 |
05 |
1 |
0502-0506 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
05 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK
|
8-97372-077-1 |
05 |
1 |
0612- |
● |
|
● |
|
● |
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97045-917-0 |
05 |
1 |
9503-9711 |
|
● |
|
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97045-917-0 |
05 |
1 |
9712-9904 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97219-458-0 |
05 |
1 |
9905-0212 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97219-458-0 |
05 |
1 |
0301-0303 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-0 |
05 |
1 |
0304-0310 |
|
|
|
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-0 |
05 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-0 |
05 |
1 |
0502-0506 |
|
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
05 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
10 |
00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN
|
8-97372-078-1 |
05 |
1 |
0612- |
● |
|
● |
|
● |
| |
12 |
00.666 FLYWHEEL
|
8-97326-227-2 |
01 |
1 |
0507- |
● |
|
|
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97115-782-0 |
01 |
1 |
9503-9612 |
|
● |
|
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97169-129-0 |
01 |
1 |
9701-9711 |
|
● |
|
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97169-129-2 |
01 |
1 |
9712-9903 |
|
|
● |
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97115-782-0 |
01 |
1 |
9904-0212 |
|
|
● |
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97330-892-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
12 |
00.666 FLYWHEEL
|
8-97330-892-0 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
12 |
00.666 FLYWHEEL
|
8-97330-892-0 |
01 |
1 |
0502-0611 |
|
|
● |
|
|
| |
12 |
00.666 FLYWHEEL
|
8-97330-892-1 |
01 |
1 |
0612- |
|
|
● |
|
● |
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0301-0310 |
|
|
|
● |
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0502-0506 |
|
|
● |
|
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
24 |
00.659 BOLT; DAMPER
M16X42
|
8-97028-733-0 |
04 |
1 |
0612- |
● |
|
● |
|
● |
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
0507- |
● |
|
|
|
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97110-040-4 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97110-040-4 |
01 |
1 |
9712-9902 |
|
|
● |
|
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97109-626-1 |
01 |
1 |
9903-0212 |
|
|
● |
|
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-94394-342-4 |
01 |
1 |
0301-0501 |
|
|
|
● |
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97109-626-1 |
01 |
1 |
0311-0611 |
|
|
● |
|
|
| |
28 |
00.728 GEAR; CR/SHF
Z=42
|
8-97109-626-1 |
01 |
1 |
0612- |
|
|
● |
|
● |
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
34 |
00.738 PIN; GEAR SETTING
OD=5 L=6
|
9-09878-626-0 |
01 |
1 |
0612- |
● |
|
● |
|
● |
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
9503-9612 |
|
● |
|
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97169-134-0 |
01 |
1 |
9701-9711 |
|
● |
|
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97169-134-0 |
01 |
1 |
9712-9903 |
|
|
● |
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
9904-0212 |
|
|
● |
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-0 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
35 |
00.673 GEAR; RING
Z=138
|
8-97046-366-1 |
01 |
1 |
0612- |
● |
|
● |
|
● |
| |
38 |
00.862 WASHER; FLYWHEEL
00.669
|
8-94310-615-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
38 |
00.862 WASHER; FLYWHEEL
00.669
|
8-94310-615-0 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
38 |
00.862 WASHER; FLYWHEEL
ID=55 OD=110
|
8-94397-496-1 |
01 |
1 |
0612- |
● |
|
● |
|
● |
| |
40 |
00.669 BOLT; FLYWHEEL
M18X33
|
8-97112-999-0 |
08 |
1 |
9503-9702 |
|
● |
|
|
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
9703-9711 |
|
● |
|
|
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
9712-0212 |
|
|
● |
|
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0301-0310 |
|
|
|
● |
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0502-0506 |
|
|
● |
|
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
40 |
00.669 BOLT; FLYWHEEL
M16X42
|
8-97178-013-0 |
08 |
1 |
0612- |
● |
|
● |
|
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-94399-277-0 |
01 |
1 |
0612-0703 |
● |
|
● |
|
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(A)
|
8-97386-548-0 |
01 |
1 |
0704- |
● |
|
● |
|
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
9503-9711 |
|
● |
|
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
9712-0212 |
|
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0301-0310 |
|
|
|
● |
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0502-0506 |
|
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-94399-283-0 |
02 |
1 |
0612-0703 |
● |
|
● |
|
● |
| |
42 |
00.095 WASHER; THRUST,CR/SHF
(B)
|
8-97386-549-0 |
02 |
1 |
0704- |
● |
|
● |
|
● |
| |
49 |
00.669 BEARING; PILOT
00.649
|
8-97031-741-0 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
49 |
00.669 BEARING; PILOT
00.649
|
8-97031-741-0 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
49 |
00.669 BEARING; PILOT
|
8-97258-239-0 |
01 |
1 |
0612- |
● |
|
● |
|
● |
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97088-477-4 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97088-477-4 |
01 |
1 |
9712-9810 |
|
|
● |
|
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
9811-0212 |
|
|
● |
|
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0502-0506 |
|
|
● |
|
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
56 |
00.659 PULLEY; CR/SHF DAMPER
4-GROOVE
|
8-97222-031-3 |
01 |
1 |
0612- |
● |
|
● |
|
● |
| |
57 |
00.662 PIN; PULLEY
08.939
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
9503-9711 |
|
● |
|
|
|
| |
57 |
00.662 PIN; PULLEY
08.939
OD=8 L=16
|
9-08150-816-0 |
02 |
1 |
9712-0212 |
|
|
● |
|
|
| |
57 |
00.662 PIN; PULLEY
08.939
OD=8 L=20
|
9-08160-820-0 |
02 |
1 |
0301-0304 |
|
|
|
● |
|
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0305-0310 |
|
|
|
● |
|
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0502-0506 |
|
|
● |
|
|
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
57 |
00.662 PIN; PULLEY
00.862
OD=8 L=20
|
9-08150-820-0 |
02 |
1 |
0612- |
● |
|
● |
|
● |
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97364-396-1 |
01 |
1 |
0507- |
● |
|
|
|
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-94389-413-1 |
01 |
1 |
9503-9711 |
|
● |
|
|
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-2 |
01 |
1 |
9712-0212 |
|
|
● |
|
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-2 |
01 |
1 |
0301-0310 |
|
|
|
● |
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-3 |
01 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-3 |
01 |
1 |
0502-0611 |
|
|
● |
|
|
| |
61 |
00.659 PULLEY; FAN DRIVE
2-GROOVE
|
8-97174-757-3 |
01 |
1 |
0612- |
|
|
● |
|
● |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97219-032-1 |
04 |
1 |
0612- |
|
|
|
|
● |
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97602-800-0 |
04 |
1 |
0507- |
● |
|
|
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97176-655-0 |
04 |
1 |
9503-9511 |
|
● |
|
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97176-657-0 |
04 |
1 |
9512-9704 |
|
● |
|
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97183-667-0 |
04 |
1 |
9705-9711 |
|
● |
|
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97183-666-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
GRADE=AX
|
8-97251-696-0 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
NON GRADE
|
8-97183-666-1 |
04 |
1 |
0311- |
|
|
● |
|
|
| |
63 |
00.629 PISTON
ALSO INCLUDED IN LINER SET.
GRADE=CX
|
8-97251-697-0 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97603-423-1 |
04 |
1 |
0507- |
● |
|
|
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97028-691-0 |
04 |
1 |
9503-9511 |
|
● |
|
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97109-462-0 |
04 |
1 |
9512-9711 |
|
● |
|
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97105-867-0 |
04 |
1 |
9712-9911 |
|
|
● |
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97219-054-0 |
04 |
1 |
9912-0212 |
|
|
● |
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97166-992-1 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97219-054-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
68 |
00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
|
8-97219-054-0 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-1 |
04 |
1 |
0507-0701 |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-98064-282-0 |
04 |
1 |
0702-0706 |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-98055-480-0 |
04 |
1 |
0707- |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-1 |
04 |
1 |
0507-0701 |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-98064-281-0 |
04 |
1 |
0702-0706 |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-98055-479-0 |
04 |
1 |
0707- |
● |
|
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
9503-9511 |
|
● |
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
9503-9511 |
|
● |
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
9512-9711 |
|
● |
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-94395-757-1 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
9512-9711 |
|
● |
|
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97131-186-1 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
YELLOW
|
8-97045-800-0 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
73 |
00.616 METAL SET; CONN ROD,STANDARD
GREEN
|
8-97045-801-0 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
74 |
00.616 METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
9512-9711 |
|
● |
|
|
|
| |
74 |
00.616 METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
74 |
00.616 METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
74 |
00.616 METAL SET; CONN ROD,U/S=0.25
|
8-97175-127-0 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
75 |
00.616 METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
9512-9711 |
|
● |
|
|
|
| |
75 |
00.616 METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
75 |
00.616 METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
75 |
00.616 METAL SET; CONN ROD,U/S=0.50
|
8-97175-128-0 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
04 |
1 |
0507- |
● |
|
|
|
|
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-731-1 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
83 |
00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET.
|
8-94396-589-1 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
84 |
00.603 ROD ASM; CONN
|
8-94399-661-2 |
04 |
1 |
0507-0706 |
● |
|
|
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-98018-425-2 |
04 |
1 |
0707- |
● |
|
|
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-94473-443-6 |
04 |
1 |
9503-9506 |
|
● |
|
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-97135-032-0 |
04 |
1 |
9507-9711 |
|
● |
|
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-97135-032-1 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-94399-661-2 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
84 |
00.603 ROD ASM; CONN
|
8-97135-032-1 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
84 |
00.603 ROD ASM; CONN
|
8-97135-032-5 |
04 |
1 |
0612- |
|
|
● |
|
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
04 |
1 |
0507-0706 |
● |
|
|
|
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94391-794-1 |
04 |
1 |
0707- |
● |
|
|
|
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
9503-9711 |
|
● |
|
|
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
9712-0212 |
|
|
● |
|
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-94394-613-0 |
04 |
1 |
0301-0501 |
|
|
|
● |
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
0311-0611 |
|
|
● |
|
|
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
1-12251-036-0 |
04 |
1 |
0612-0805 |
|
|
● |
|
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
00.603
|
8-98075-233-0 |
04 |
1 |
0806-0905 |
|
|
● |
|
● |
| |
85 |
00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
|
8-98121-309-0 |
04 |
1 |
0906- |
|
|
● |
|
● |
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
9503-9711 |
|
● |
|
|
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
9712-0212 |
|
|
● |
|
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0301-0310 |
|
|
|
● |
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0311-0501 |
|
|
● |
● |
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0502-0506 |
|
|
● |
|
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0507-0611 |
● |
|
● |
|
|
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
1-12235-035-0 |
08 |
1 |
0612-1004 |
● |
|
● |
|
● |
| |
86 |
00.623 BOLT; CONNROD
M13X57 FLANGE
|
8-98091-141-0 |
08 |
1 |
1005- |
● |
|
● |
|
● |
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
08 |
1 |
0507- |
● |
|
|
|
|
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
9503-9711 |
|
● |
|
|
|
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
9712-0212 |
|
|
● |
|
|
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
1-09587-081-1 |
08 |
1 |
0301-0501 |
|
|
|
● |
|
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
0311-0611 |
|
|
● |
|
|
| |
126 |
00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
|
8-94318-798-2 |
08 |
1 |
0612- |
|
|
● |
|
● |
