Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#43815) — 220 parça

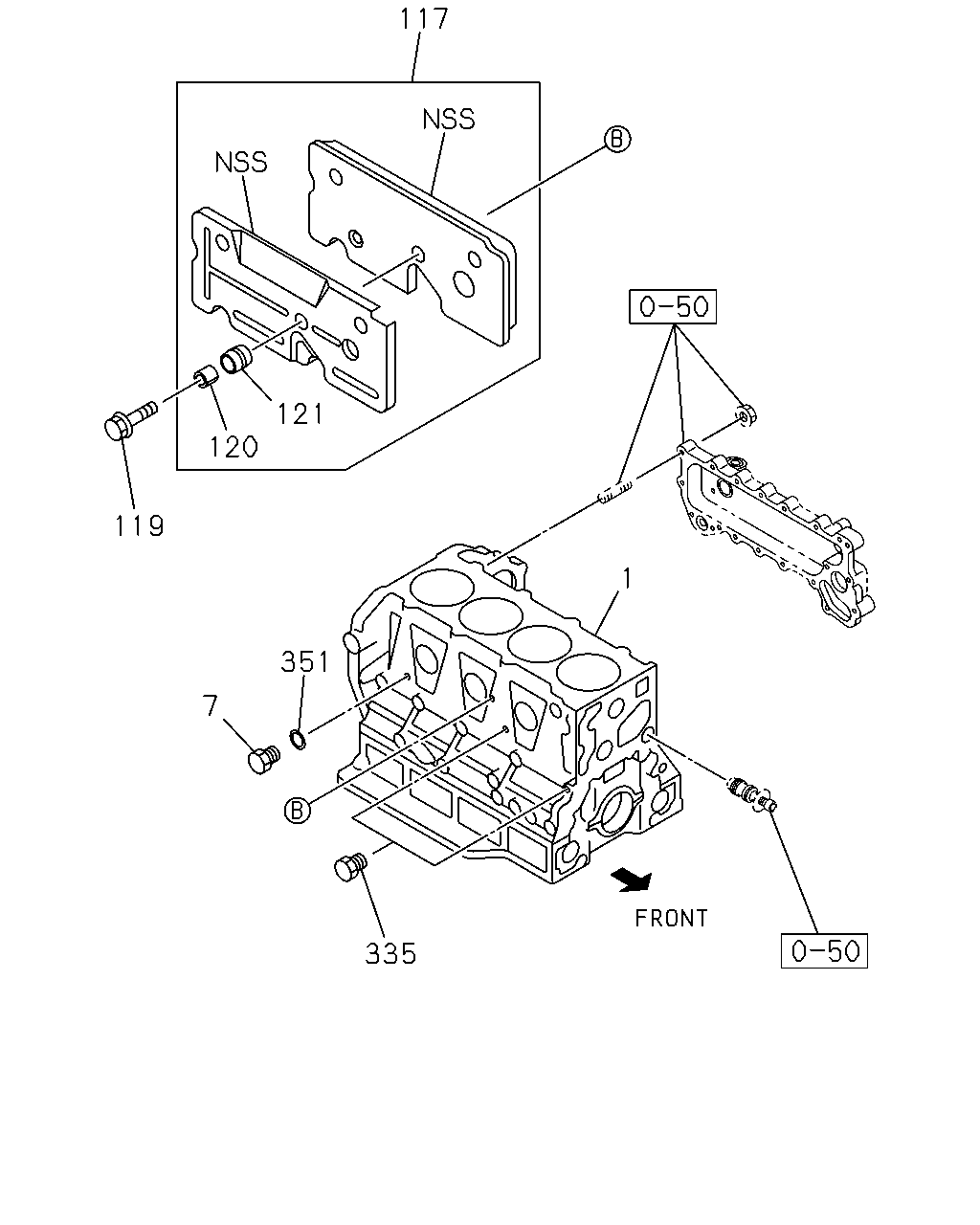

117 121 120 119 1 351 7 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL	8-98005-434-3	01	1	0612-	●
1	00.033 BLOCK ASM; CYL	8-98005-443-7	01	1	0507-		●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9503-9511			●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9512-9604			●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711			●
1	00.033 BLOCK ASM; CYL	8-97146-439-5	01	1	9712-9712				●
1	00.033 BLOCK ASM; CYL	8-97191-846-5	01	1	9712-0212				●
1	00.033 BLOCK ASM; CYL	8-97148-885-3	01	1	0301-0501					●
1	00.033 BLOCK ASM; CYL	8-97191-846-7	01	1	0311-0504				●
1	00.033 BLOCK ASM; CYL	8-98005-433-3	01	1	0505-				●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9503-9711			●
7	00.034 PLUG; WATER DRAIN 04.105 M10X7	9-09861-010-0	01	1	9712-0208				●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0209-0212				●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0301-0310					●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0311-0501				●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0502-0506				●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0507-0611		●		●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0612-	●	●		●
117	00.030 COVER ASM; C/BL	8-97118-347-0	01	1	9503-9511			●
119	00.034 BOLT; COVER FIX M8X22 W/LK&PL WASHER	8-94329-953-1	03	1	9503-9511			●
120	00.034 BUSHING; MTG RUBBER OD=13 T=9.5	8-94140-427-1	04	1	9503-9511			●
121	00.034 RUBBER; MTG,COVER OD=22	8-94140-428-1	04	1	9503-9511			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0507-0712		●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	02	1	0801-		●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	9503-9611			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9612-9711			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	9712-0212				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	02	1	0301-0501					●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0311-0611				●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0612-0712	●			●
335	01.531 PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-	●			●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	9503-9602			●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9603-9711			●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9712-0212				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0301-0310					●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0311-0501				●	●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0502-0506				●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0507-0611		●		●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0612-	●	●		●

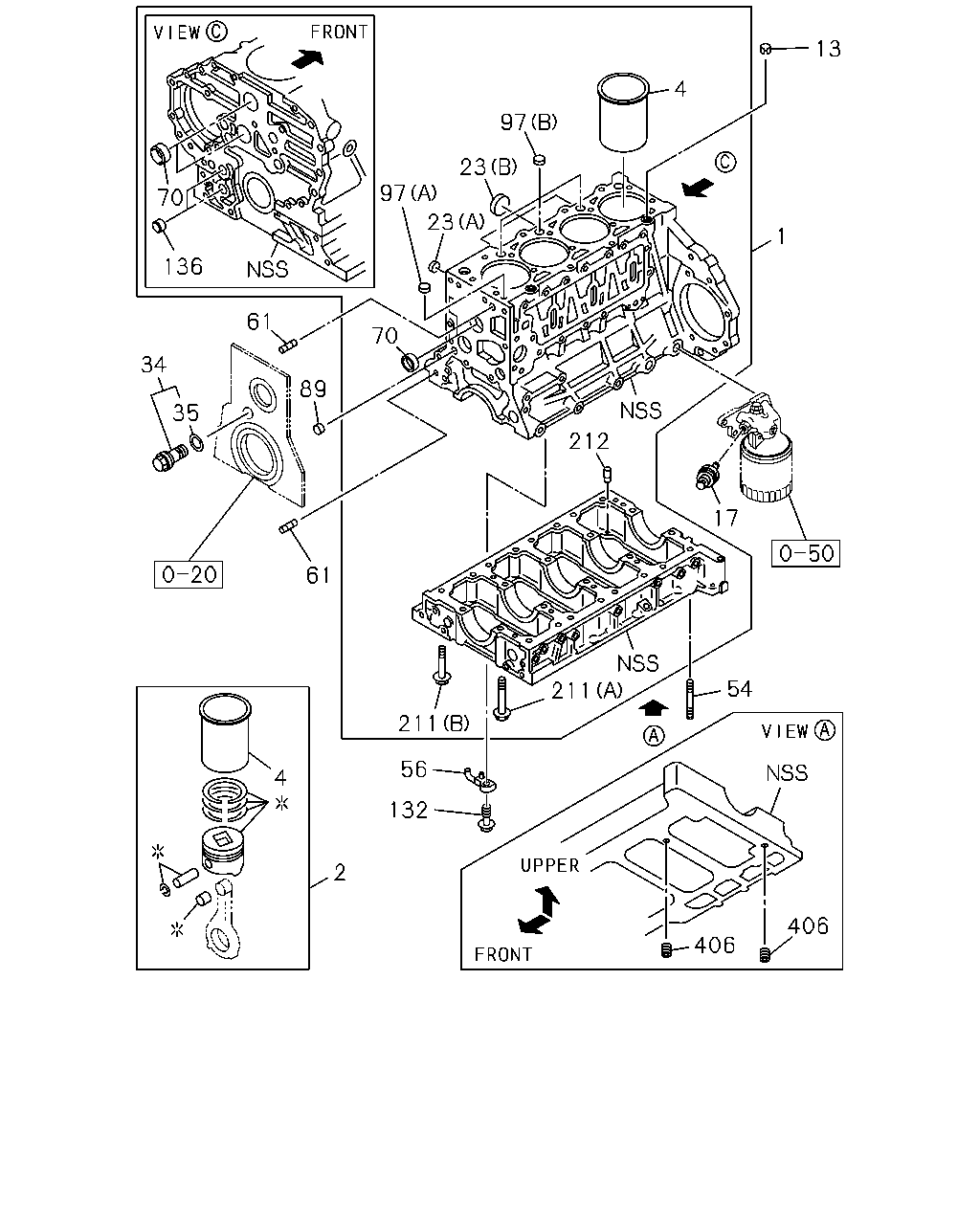

13 4 70 97 23 97 23 1 136 61 70 34 89 35 212 17 61 54 211 211 56 4 132 2 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	00.033 BLOCK ASM; CYL	8-98005-434-3	01	1	0612-	●
1	00.033 BLOCK ASM; CYL	8-98005-443-7	01	1	0507-		●
1	00.033 BLOCK ASM; CYL	8-97119-775-0	01	1	9503-9511			●
1	00.033 BLOCK ASM; CYL	8-97074-833-6	01	1	9512-9604			●
1	00.033 BLOCK ASM; CYL	8-97146-438-5	01	1	9605-9711			●
1	00.033 BLOCK ASM; CYL	8-97146-439-5	01	1	9712-9712				●
1	00.033 BLOCK ASM; CYL	8-97191-846-5	01	1	9712-0212				●
1	00.033 BLOCK ASM; CYL	8-97148-885-3	01	1	0301-0501					●
1	00.033 BLOCK ASM; CYL	8-97191-846-7	01	1	0311-0504				●
1	00.033 BLOCK ASM; CYL	8-98005-433-3	01	1	0505-				●
2	00.030 LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-834-5	04	1	0612-	●
2	00.030 LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-835-5	04	1	0612-	●
2	00.030 LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-579-0	04	1	0507-0706		●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87815-151-3	04	1	0707-		●
2	00.030 LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-580-0	04	1	0507-0706		●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87815-152-3	04	1	0707-		●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=1X	5-87813-332-0	04	1	9503-9511			●
2	00.030 LINER SET; ENG CYL 00.094 GRADE=3X	5-87813-333-0	04	1	9503-9511			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-336-0	04	1	9512-9704			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-390-0	04	1	9705-9711			●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-337-0	04	1	9512-9704			●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-391-0	04	1	9705-9711			●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-2	04	1	9712-0212				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-744-1	04	1	0301-0501					●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-2	04	1	9712-0212				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-745-1	04	1	0301-0501					●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87813-392-2	04	1	0311-0504				●
2	00.030 LINER SET; ENG CYL GRADE=1X	5-87814-836-5	04	1	0505-				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87813-393-2	04	1	0311-0504				●
2	00.030 LINER SET; ENG CYL GRADE=3X	5-87814-837-5	04	1	0505-				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	0507-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	0507-		●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-727-0	04	1	9503-9711			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97176-729-0	04	1	9712-0204				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0205-0212				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX	8-97176-723-0	04	1	0301-0501					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-728-0	04	1	9503-9711			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97176-730-0	04	1	9712-0204				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0205-0212				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX	8-97176-724-0	04	1	0301-0501					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-97351-558-0	04	1	0311-0504				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-0	04	1	0505-0611				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-1	04	1	0612-	●			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-97351-559-0	04	1	0311-0504				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-0	04	1	0505-0611				●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-1	04	1	0612-	●			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX	8-97176-725-0	04	1	0301-0501					●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX	8-97176-726-0	04	1	0301-0501					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9503-9711			●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	9712-0212				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0301-0310					●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0311-0501				●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0502-0506				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0507-0611		●		●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0612-	●	●		●
17	01.800 SWITCH; OIL PRESSURE	8-97072-947-0	01	1	9503-9711			●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	9712-0212				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0301-0310					●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0311-0501				●	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0502-0506				●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0507-0611		●		●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0612-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9503-9711			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=45	1-09600-005-1	03	1	9712-9810				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-9811				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	9811-0212				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0301-0310					●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0311-0501				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0502-0506				●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0507-0611		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0612-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9503-9711			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	9712-0212				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0301-0310					●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0311-0501				●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0502-0506				●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0507-0611		●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (A) OD=25	1-09600-016-0	01	1	0612-	●	●		●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9503-9711			●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	9712-0212				●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0301-0310					●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0311-0501				●	●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0502-0506				●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0507-0611		●		●
34	01.609 VALVE; OIL RELIEF	8-94386-047-1	01	1	0612-0706	●	●		●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0707-	●	●		●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	9503-9711			●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	9712-0212				●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0301-0310					●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0311-0501				●	●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0502-0506				●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0507-0611		●		●
35	01.609 GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	0612-	●	●		●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0507-		●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	9503-9511			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=32	9-04110-820-0	04	1	9503-9511			●
54	01.428 STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	0301-0501					●
56	01.519 JET; OIL,PISTON COOLING	8-97213-294-1	04	1	0612-	●
56	01.519 JET; OIL,PISTON COOLING	8-94395-194-0	04	1	0507-0703		●
56	01.519 JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0704-1007		●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-		●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9503-9711			●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-0	04	1	9712-0212				●
56	01.519 JET; OIL,PISTON COOLING	8-94399-166-0	04	1	0301-0501					●
56	01.519 JET; OIL,PISTON COOLING	8-94370-579-1	04	1	0311-				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9503-9711			●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	9712-0212				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0301-0310					●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0311-0501				●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0502-0506				●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0507-0611		●		●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0612-	●	●		●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	0507-		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9503-9711			●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-94399-639-0	04	1	9712-9810				●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	9811-0212				●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0301-0310					●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0311-0501				●	●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0502-0506				●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0507-0611		●		●
70	00.034 CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0612-	●	●		●
70	00.034 CUP; SEALING,FRT & RR 00.293 OD=25	1-09600-016-0	01	1	0301-0501					●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9503-9711			●
89	00.034 CUP; SEALING,OIL GALLERY 03.265 OD=20	9-11219-192-0	03	1	9712-9907				●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	9908-0212				●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0301-0310					●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0311-0501				●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0502-0506				●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0507-0611		●		●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0612-	●	●		●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0205-0212				●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0205-0212				●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0311-0506				●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0507-0611		●		●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0612-	●	●		●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0311-0506				●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0507-0611		●		●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0612-	●	●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9503-9711			●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	9712-0212				●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0301-0310					●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0311-0501				●	●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0502-0506				●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0507-0611		●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0612-0704	●	●		●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-	●	●		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0301-0310					●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0311-0501				●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0502-0506				●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-0	02	1	0507-0611		●		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0612-0812	●	●		●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●		●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9503-9711			●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	9712-0212				●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0301-0310					●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0311-0501				●	●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0502-0506				●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0507-0611		●		●
211	01.428 BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0612-	●	●		●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9503-9711			●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	9712-0212				●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0301-0310					●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0311-0501				●	●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0502-0506				●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0507-0611		●		●
211	01.428 BOLT; CRANKCASE 00.293 (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0612-	●	●		●
212	01.428 PIN; CRANKCASE 00.206 L=22	8-94483-674-0	02	1	9503-9604			●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9605-9711			●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	9712-0212				●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0301-0310					●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0311-0501				●	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-0506				●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0611		●		●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0612-	●	●		●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9503-9711			●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	9712-0212				●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0301-0310					●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0311-0501				●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0502-0506				●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0507-0611		●		●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0612-	●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
