◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#43814) — 438 parça

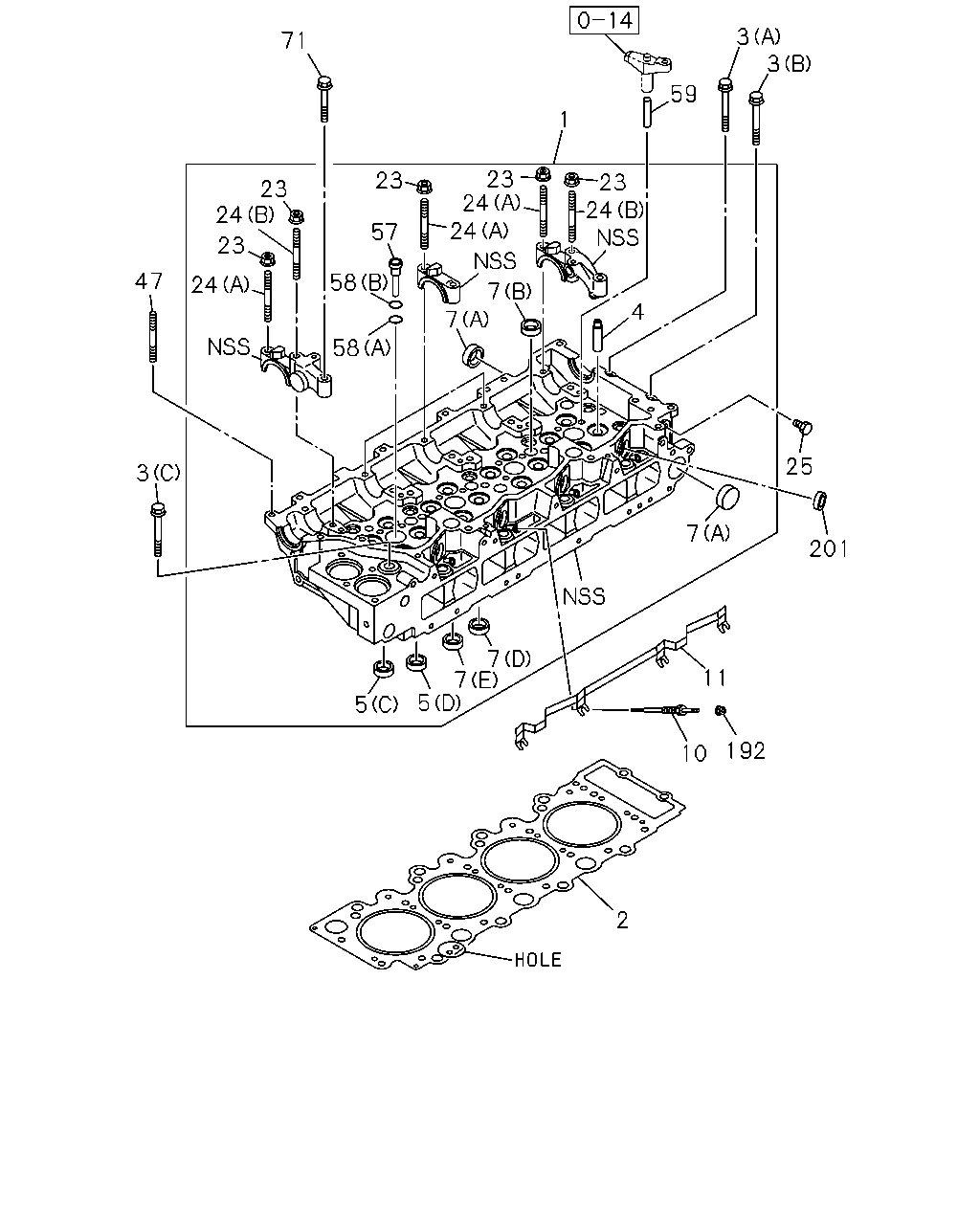

çizim 21705
3 3 71 59 1 23 24 24 23 23 24 23 24 57 23 47 58 24 7 4 7 58 25 3 7 201 7 7 5 11 5 192 10 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0612- ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ●
1 00.269 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-617-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9503-9511 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9512-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-1 01 1 9605-9711 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9712-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-4 01 1 0007-0212 ●
1 00.269 HEAD ASM; CYL 8-97358-366-1 01 1 0301-0501 ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0311- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97222-964-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97222-965-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97222-966-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97233-759-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97233-760-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97262-944-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97233-761-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97262-945-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0612- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0612- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0612- ● ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9503-9711 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9712-0212 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0301-0310 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0311-0501 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0502-0611 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-1 08 1 0507- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0703 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9503-9711 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9712-0212 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0301-0310 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0311-0501 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0611 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 9503-9511 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9512-9711 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9712-0212 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0301-0501 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0311-0611 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9712-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9712-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9712-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0612- ● ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0612- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-2 04 1 0612- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0507- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9503-9711 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9712-9810 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9503-9711 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 9712-0212 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0301-0501 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-1 04 1 9811-0212 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0301-0501 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0612-0612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0612- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9503-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509-9711 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9712-0212 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0301-0501 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9503-9711 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0212 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0301-0310 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0311-0501 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0502-0506 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0507-0602 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0611 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0612- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9503-9711 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9712-0212 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0301-0310 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0311-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0502-0506 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0507-0611 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0612- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9503-9711 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9712-0212 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0301-0310 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0311-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0502-0506 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0507-0611 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0612- ● ● ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0507- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0612- ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9503-9511 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 04 1 9512-9606 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9607-9711 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9712-0205 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0206-0212 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0301-0501 ●
47 00.413 STUD; CYL HD
M8X65 L=76 		8-94321-032-0 02 1 9607-9608 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9609-9711 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9712-0212 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0311-0512 ●
47 00.413 STUD; CYL HD
03.275 M8X40 L=58 		0-49140-840-0 02 1 0601-0910 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0911- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0311-0611 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0612- ● ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97602-301-1 04 1 0507-0510 ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97606-661-0 04 1 0511- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (B) ID=26.2 		8-98004-187-0 04 1 0511- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) (A) ID=26.4 		8-97604-916-0 04 1 0507- ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 0507- ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9503-9711 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9712-0212 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0301-0310 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0311-0501 ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0502-0506 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0507-0512 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0611 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0612- ● ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0602- ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		1-09639-034-0 04 1 0507- ●

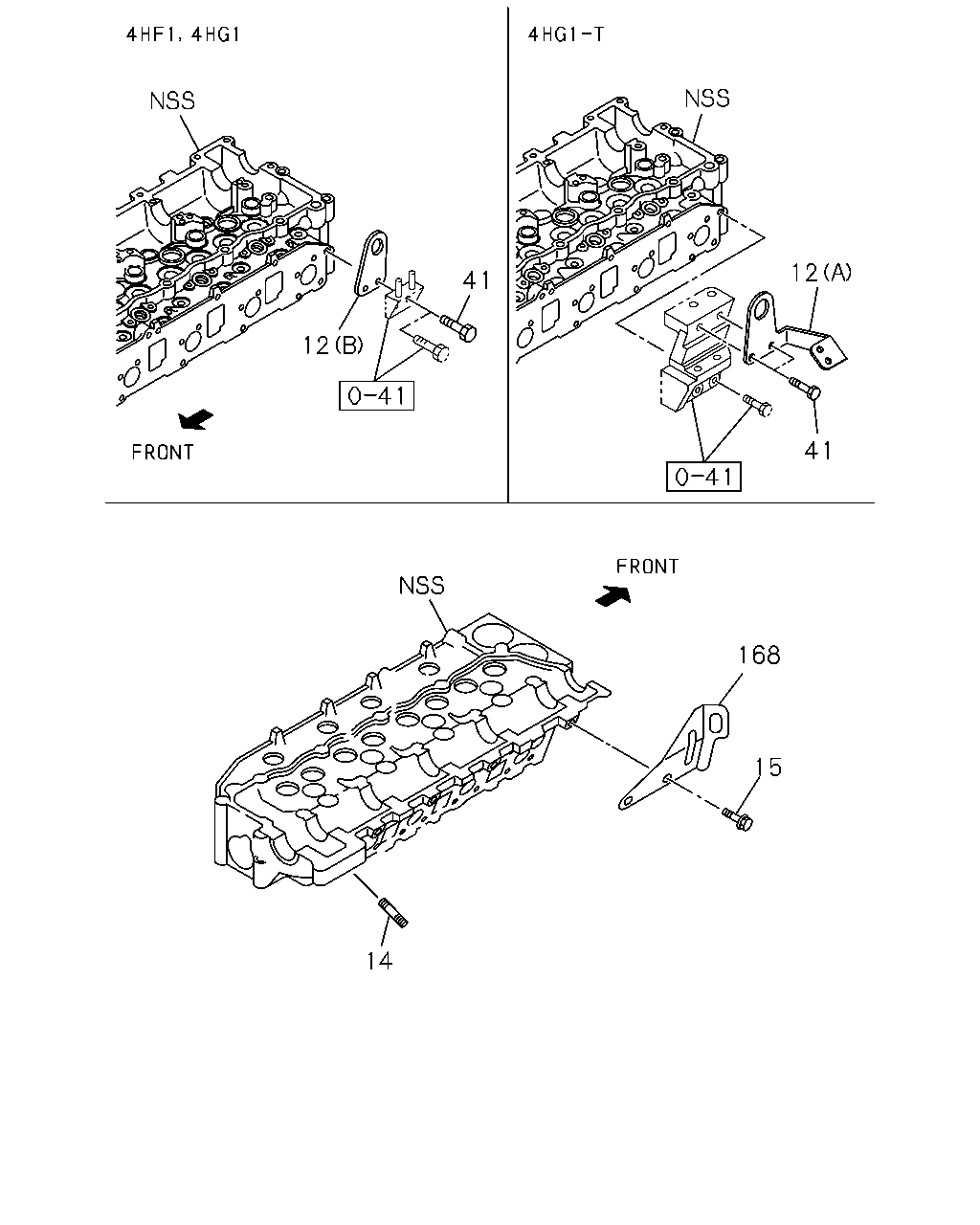

çizim 70100
12 41 12 41 41 41 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 00.004 HANGER; ENG,RR
(A) 		8-97210-326-0 01 1 0612- ●
12 00.004 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 9503-9711 ●
12 00.004 HANGER; ENG,RR
(B) 		8-97071-960-0 01 1 9712- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9503-9711 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9712-0212 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0301-0310 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0311-0501 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0502-0506 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0507-0611 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0612- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9503-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607-9711 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9712-0212 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0301-0310 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0311-0501 ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0506 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0507-0512 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0611 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0612- ● ● ●
41 09.181 BOLT; ENG HANGER
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0612- ●
41 09.181 BOLT; ENG HANGER
00.029 M12X28 FLANGE 		0-28181-228-0 02 1 9503-9711 ●
168 00.004 HANGER; ENG,FRT 8-97200-618-1 01 1 0612- ●
168 00.004 HANGER; ENG,FRT 8-97310-254-2 01 1 0507- ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9503-9711 ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9712-0001 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002-0212 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0301-0310 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0311-0501 ● ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0502- ●

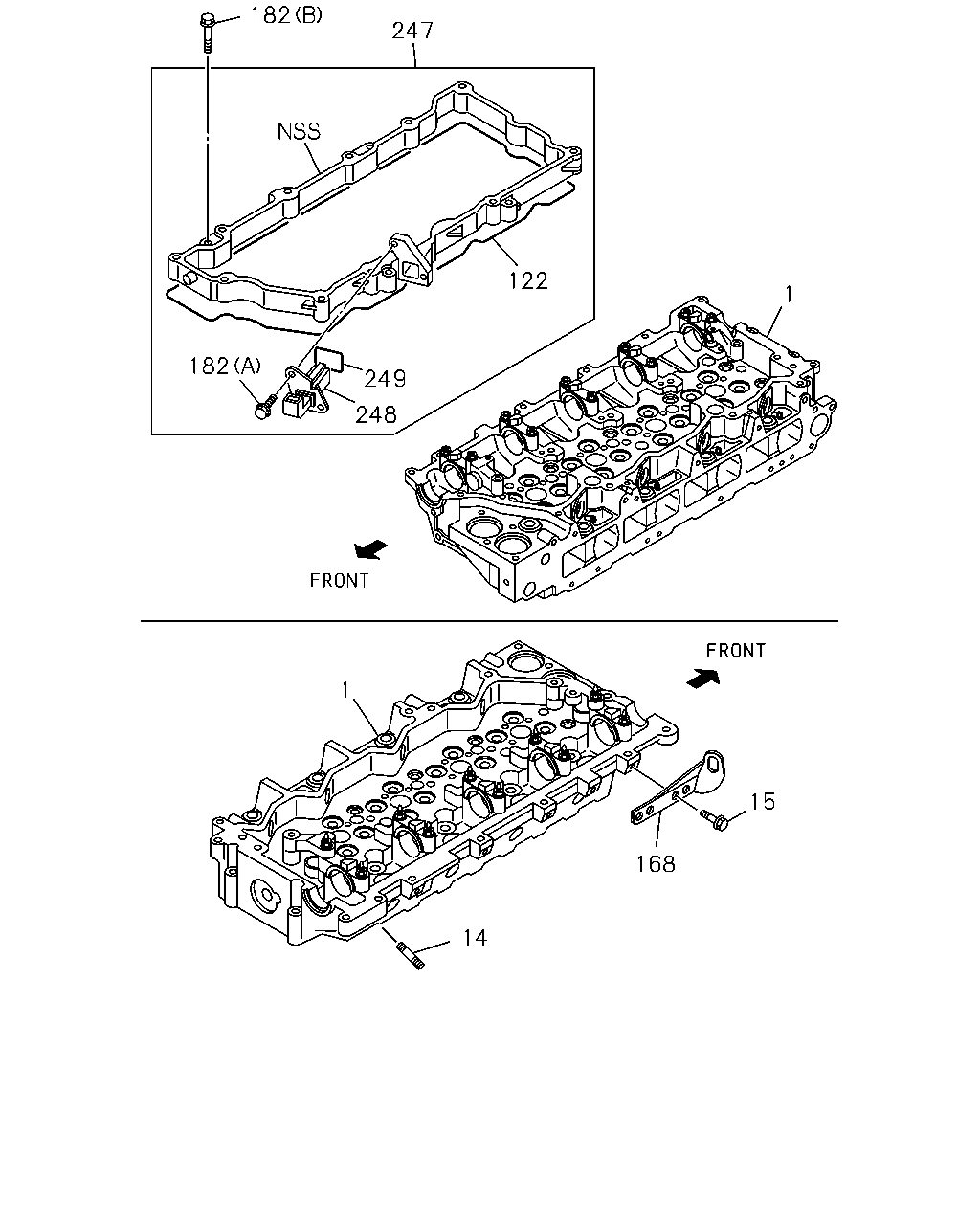

çizim 70149
182 247 122 1 182 249 248 1 15 168 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0612- ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ●
1 00.269 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-617-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9503-9511 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9512-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-1 01 1 9605-9711 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9712-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-4 01 1 0007-0212 ●
1 00.269 HEAD ASM; CYL 8-97358-366-1 01 1 0301-0501 ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0311- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9503-9711 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 9712-0212 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0301-0310 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0311-0501 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0502-0506 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0507-0611 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0612- ● ● ●
15 00.004 BOLT; HANGER,FRT
01.540 M10X20 FLANGE 		0-28181-020-0 02 1 9503-9606 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9607-9711 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 9712-0212 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0301-0310 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0311-0501 ● ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0502-0506 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0507-0512 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0611 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0612- ● ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) 		8-97331-360-1 01 1 0507- ●
168 00.004 HANGER; ENG,FRT 8-97200-618-1 01 1 0612- ●
168 00.004 HANGER; ENG,FRT 8-97310-254-2 01 1 0507- ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9503-9711 ●
168 00.004 HANGER; ENG,FRT 8-97104-515-1 01 1 9712-0001 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0002-0212 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0301-0310 ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0311-0501 ● ●
168 00.004 HANGER; ENG,FRT 8-97127-373-0 01 1 0502- ●
182 00.206 BOLT; CASE
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601- ●
182 00.206 BOLT; CASE
01.540 (B) M8X45 FLANGE 		0-28080-845-0 04 1 0507-0512 ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0601- ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0507- ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0507- ●
249 03.300 GASKET; CONNECTOR
01.152 		8-94391-310-0 01 1 0507- ●

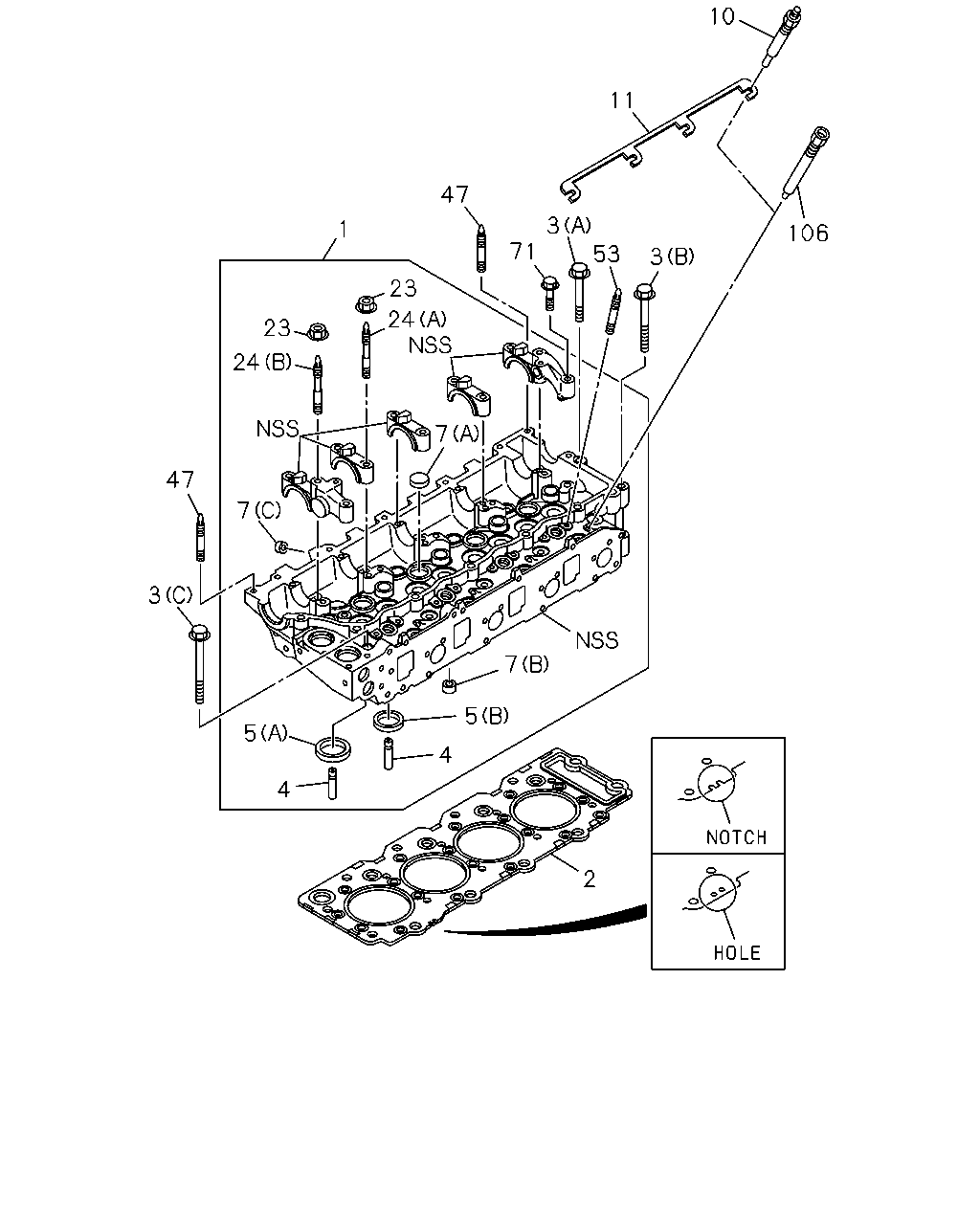

çizim 70383
10 11 47 3 53 1 106 71 3 23 24 23 24 7 47 7 3 7 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.269 HEAD ASM; CYL 8-97358-368-2 01 1 0612- ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ●
1 00.269 HEAD ASM; CYL 8-98008-363-8 01 1 0511-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-617-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97126-145-0 01 1 9503-9511 ●
1 00.269 HEAD ASM; CYL 8-97095-664-7 01 1 9512-9604 ●
1 00.269 HEAD ASM; CYL 8-97146-520-1 01 1 9605-9711 ●
1 00.269 HEAD ASM; CYL 8-97146-520-2 01 1 9712-0006 ●
1 00.269 HEAD ASM; CYL 8-97186-589-4 01 1 0007-0212 ●
1 00.269 HEAD ASM; CYL 8-97358-366-1 01 1 0301-0501 ●
1 00.269 HEAD ASM; CYL 8-97186-589-7 01 1 0311- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97105-871-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97105-872-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97105-873-0 01 1 9503-9711 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97144-984-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97222-964-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97144-985-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97222-965-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97144-986-0 01 1 9712-9904 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97222-966-0 01 1 9905-9908 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97233-759-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97262-943-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97233-760-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97262-944-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97233-761-0 01 1 9909-0006 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97262-945-1 01 1 0007-0210 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97349-489-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97349-490-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0311-0611 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97349-491-0 01 1 0612- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEA D) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507- ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0612- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0612- ● ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9503-9711 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 9712-0212 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0301-0310 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0311-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0502-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0611 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0612- ● ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9503-9711 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 9712-0212 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0301-0310 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0311-0501 ● ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0502-0611 ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=38 		8-94395-888-1 08 1 0507- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0703 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9503-9711 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 9712-0212 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0301-0310 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0311-0501 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0502-0611 ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0612- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 9503-9511 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9512-9711 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 9712-0212 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0301-0501 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0311-0611 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=52 		8-94394-127-0 04 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=16 		5-11129-006-0 05 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 07 1 0507- ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (A) OD=32 		1-09600-012-1 12 1 9712-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 9811-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 9712-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0612- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9503-9711 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12.3 		5-09600-013-0 04 1 9712-9810 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 9811-0212 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0301-0310 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0311-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0502-0611 ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0612- ● ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-3 04 1 0612- ● ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0612-0612 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-2 04 1 0612- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0507- ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9503-9711 ●
10 02.270 PLUG; GLOW 8-94135-377-4 04 1 9712-9810 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-0 04 1 9503-9711 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 9712-0212 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0301-0501 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-1 04 1 9811-0212 ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0301-0501 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0612-0612 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0612- ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507- ●
11 02.251 CONNECTOR; GLOW PLUG 8-94399-608-2 01 1 9503-9508 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9509-9711 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 9712-0212 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0301-0501 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9503-9711 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 9712-0212 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0301-0310 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0311-0501 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0502-0506 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0507-0602 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0611 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0612- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9503-9711 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 9712-0212 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0301-0310 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0311-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0502-0506 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0507-0611 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0612- ● ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9503-9711 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 9712-0212 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0301-0310 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0311-0501 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0502-0506 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0507-0611 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0612- ● ● ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 03 1 0612- ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9503-9511 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 04 1 9512-9606 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9607-9711 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 9712-0205 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0206-0212 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0301-0501 ●
47 00.413 STUD; CYL HD
M8X65 L=76 		8-94321-032-0 02 1 9607-9608 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9609-9711 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 9712-0212 ●
47 00.413 STUD; CYL HD
03.163 M8X40 L=57 		0-49740-840-0 02 1 0311-0512 ●
47 00.413 STUD; CYL HD
03.275 M8X40 L=58 		0-49140-840-0 02 1 0601-0910 ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0911- ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0311-0611 ●
47 00.413 STUD; CYL HD
M8X65 L=76 TORQUES 		8-97167-299-1 02 1 0612- ● ●
53 03.332 STUD; INJ NOZZLE
M8X68.5 L=90 		8-97014-415-1 08 1 9503-9705 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9706-9711 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 9712-0212 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0301-0310 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0311-0501 ● ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0502-0611 ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0612- ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9503-9711 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 9712-0212 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0301-0310 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0311-0501 ● ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0502-0506 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0507-0512 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0611 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0612- ● ● ●
106 00.293 PLUG; GLOW PLUG HOLE
02.270 		1-11119-018-0 04 1 0311- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
