◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 50701 - NPS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#43811) — 36 parça

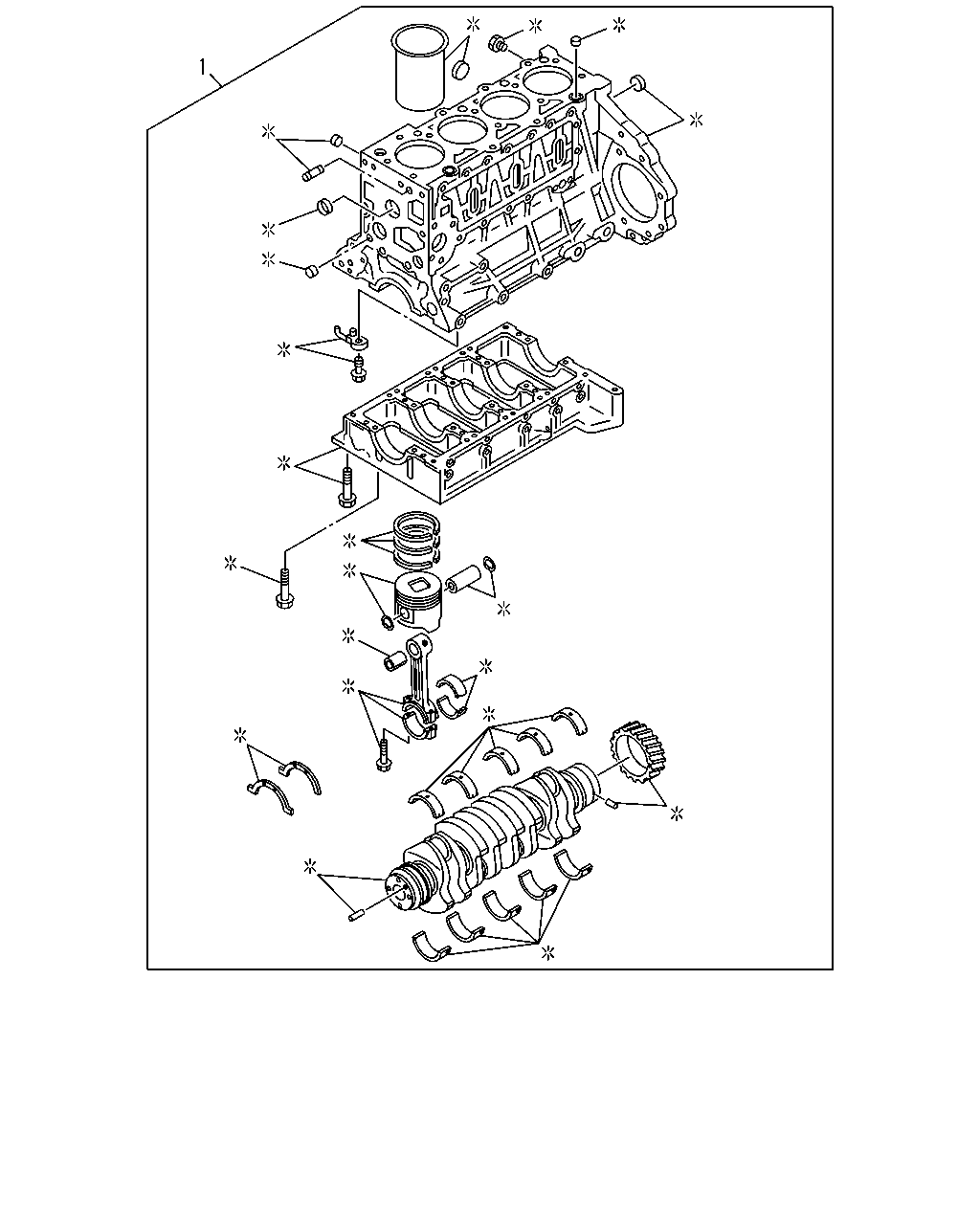

çizim 20856
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.033 ENGINE ASM; PARTIAL 5-87310-777-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-934-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 0911- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-784-5 01 1 0507-0706 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-936-4 01 1 0707-1001 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-094-2 01 1 1002- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-348-0 01 1 9503-9506 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-358-0 01 1 9507-9511 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-360-0 01 1 9512-9604 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-421-2 01 1 9605-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-422-2 01 1 9712-9712 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-494-1 01 1 9712-9902 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 9903-0212 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-556-2 01 1 0301-0501 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 0311-0504 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-774-3 01 1 0505-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-933-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 0911- ●

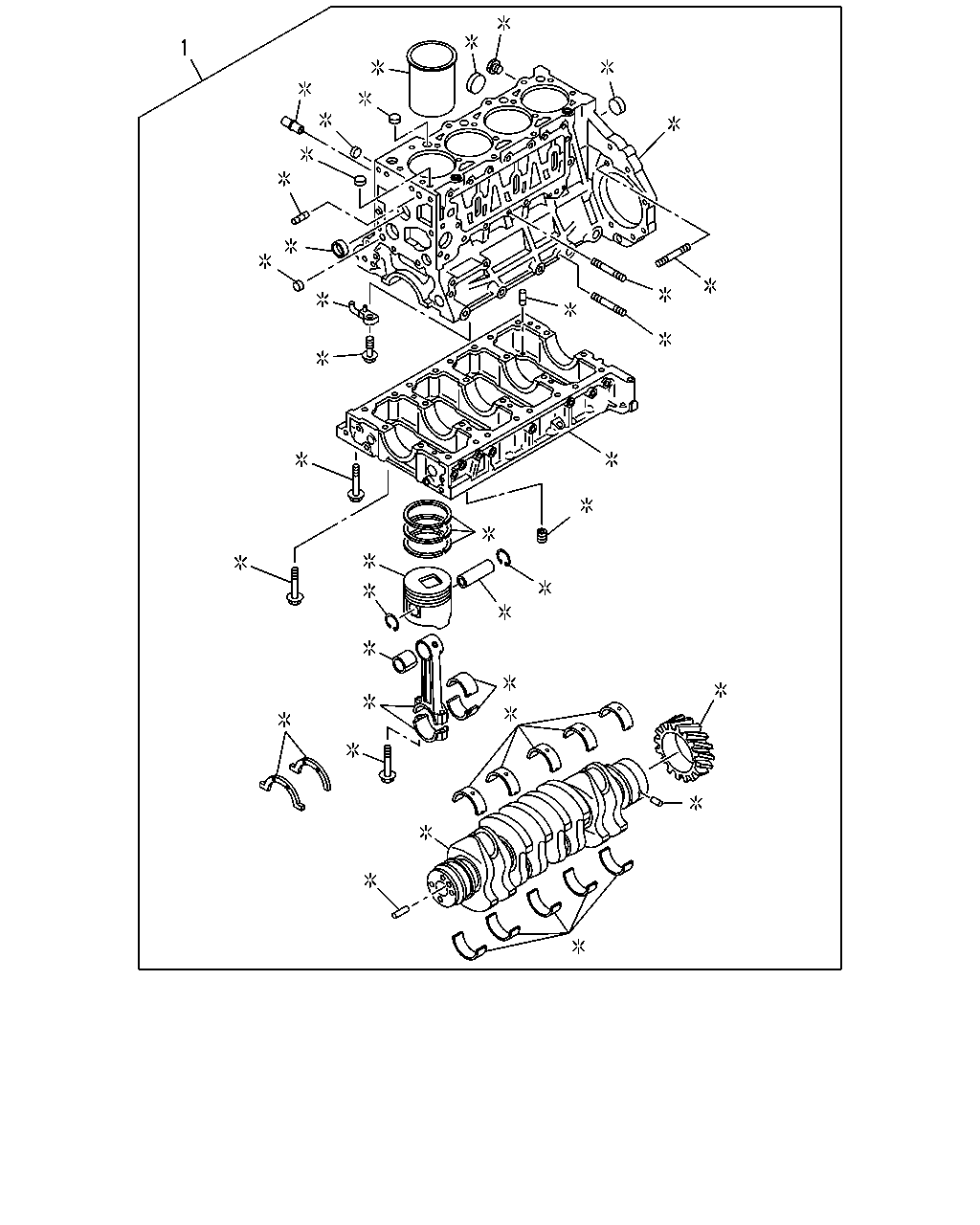

çizim 69819
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 00.033 ENGINE ASM; PARTIAL 5-87310-777-3 01 1 0612-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-934-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-087-3 01 1 0911- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-784-5 01 1 0507-0706 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-936-4 01 1 0707-1001 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-094-2 01 1 1002- ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-348-0 01 1 9503-9506 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-358-0 01 1 9507-9511 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-360-0 01 1 9512-9604 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-421-2 01 1 9605-9711 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-422-2 01 1 9712-9712 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-494-1 01 1 9712-9902 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 9903-0212 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-556-2 01 1 0301-0501 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-540-4 01 1 0311-0504 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-774-3 01 1 0505-0704 ●
1 00.033 ENGINE ASM; PARTIAL 5-87310-933-4 01 1 0705-0910 ●
1 00.033 ENGINE ASM; PARTIAL 5-87311-086-3 01 1 0911- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
