9-32 — REAR BODY; GUARD FRAME (#43809) — 40 parça

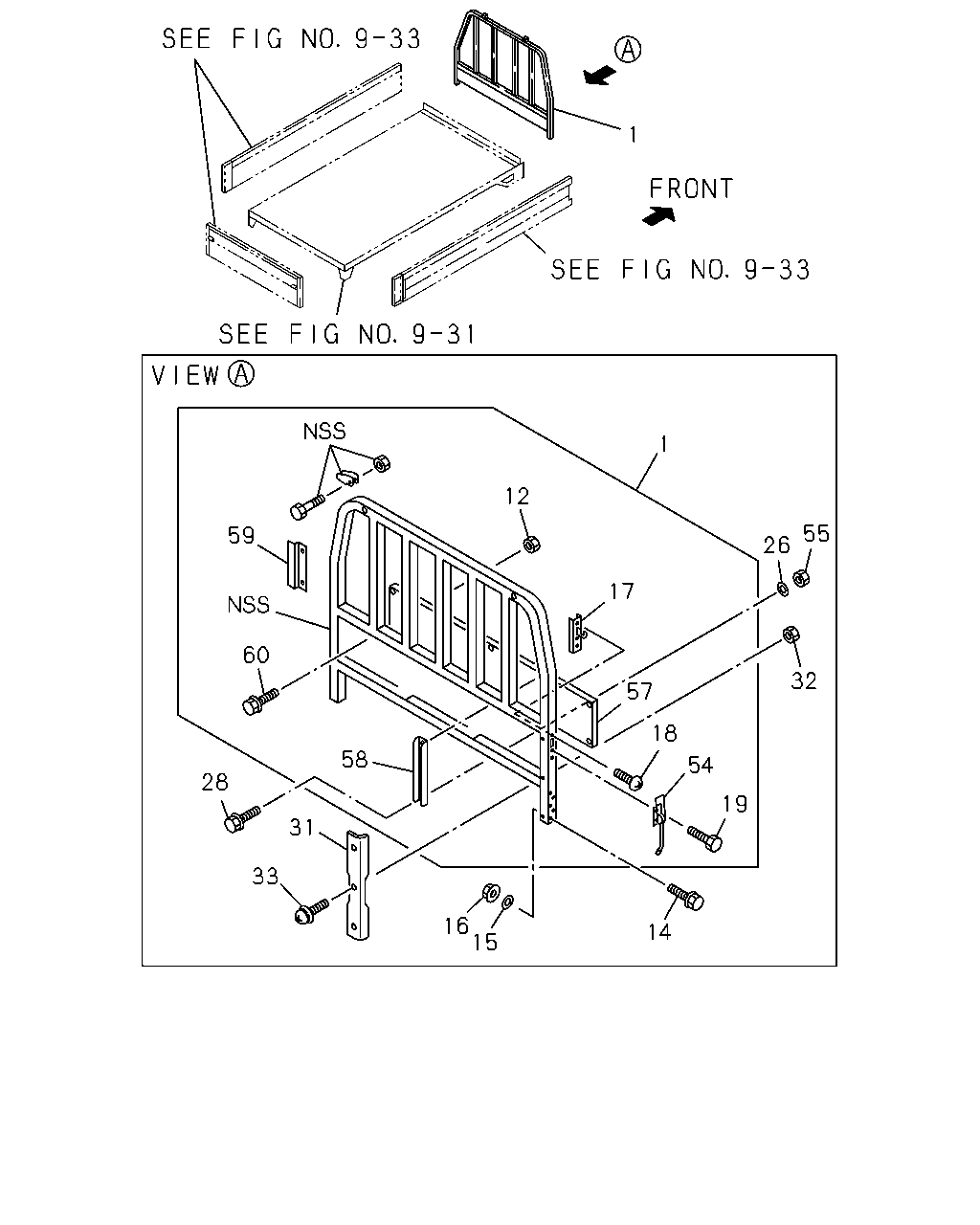

çizim 66919
1 1 12 55 59 26 17 60 32 57 18 58 54 28 19 31 33 16 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94195-222-1 01 1 9712-9803 ● ●
1 17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94196-111-0 01 1 9804- ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94193-828-0 01 1 9312-9510 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94194-719-0 01 1 9511-9606 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> 		8-94195-350-0 01 1 9607-9609 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94195-350-0 01 1 9610-9702 ● ●
1 17.455 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-94195-557-0 01 1 9610- ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9610-9711 ●
12 17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9712- ● ●
12 17.455 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.447 M8 FLANGE 		8-94193-939-0 05 1 9712- ●
14 17.455 BOLT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10X22 FLANGE 		8-97065-440-0 12 1 9312- ● ●
15 17.455 WASHER; PL,GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> 		8-97065-438-0 12 1 9312- ● ●
16 17.455 NUT; GUARD FRAME TO GUSSET
RR BODY FLAT BED<RS6> M10 FLANGE 		8-97065-439-0 12 1 9312- ● ●
17 17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-628-0 02 1 9712- ● ●
18 17.455 SCREW; HOOK TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X30 		8-94193-938-0 02 1 9712- ● ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X20 		8-94193-942-0 04 1 9610-9711 ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X20 		8-94193-942-0 04 1 9712- ● ●
19 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X20 		8-94193-942-0 04 1 9712- ●
26 17.455 WASHER; LK,GUARD FRAME TO BOLSTE
RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22 		9-09160-708-0 04 1 9312-9606 ● ●
26 17.455 WASHER; LK,GUARD FRAME TO BOLSTE
RR BODY FLAT BED<RS6> 06.760 ID=8.4 OD=22 		9-09160-708-0 02 1 9607- ● ●
28 17.070 BOLT; MEMBER TO BOLSTER
RR BODY FLAT BED<RS6> 09.008 M8X100 		8-97090-620-0 04 1 9312-9606 ● ●
28 17.070 BOLT; MEMBER TO BOLSTER
RR BODY FLAT BED<RS6> 09.008 M8X100 		8-97090-620-0 02 1 9607- ● ●
31 17.455 PROTECTOR; GUARD FRAME
RR BODY FLAT BED<RS6> WHITE PRIMER 		8-94192-023-2 02 1 9312- ● ●
32 17.455 NUT; PROTECTOR
RR BODY FLAT BED<RS6> M5 		8-97065-433-0 06 1 9312- ● ●
33 17.455 SCREW; PROTECTOR
RR BODY FLAT BED<RS6> 		8-97065-434-0 06 1 9312- ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.490 		8-94193-936-0 02 1 9610-9711 ●
54 17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 17.490 		8-94193-936-0 02 1 9712- ● ●
54 17.455 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 17.490 		8-94193-936-0 02 1 9712- ●
55 17.070 NUT; MEMBER
RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9312-9606 ● ●
55 17.070 NUT; MEMBER
RR BODY FLAT BED<RS6> 09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 9607- ● ●
57 17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-466-0 01 1 9712- ● ●
58 17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94195-457-0 02 1 9712- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-94194-454-0 01 1 9610-9711 ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-454-0 01 1 9712- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-94194-454-0 01 1 9712- ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-94194-453-0 01 1 9610-9711 ●
59 17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94194-453-0 01 1 9712- ● ●
59 17.455 REINFORCEMENT; HEADER BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-94194-453-0 01 1 9712- ●
60 17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR MARINE BLUE(890) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X35 		8-94193-941-0 05 1 9712- ● ●
60 17.455 SCREW; BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X30 		8-94193-938-1 05 1 9610- ●
