◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#43806) — 165 parça
çizim 20461
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) 		8-94123-034-1 01 1 9312- ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-94101-528-1 01 1 9312-9606 ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9607-9611 ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9612-9711 ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97161-497-0 01 1 9712- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 9312-9505 ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9506-9611 ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9612-9711 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 9712- ● ● ● ● ● ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9312-9611 ● ● ● ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9612-9711 ● ● ● ● ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ● ● ●

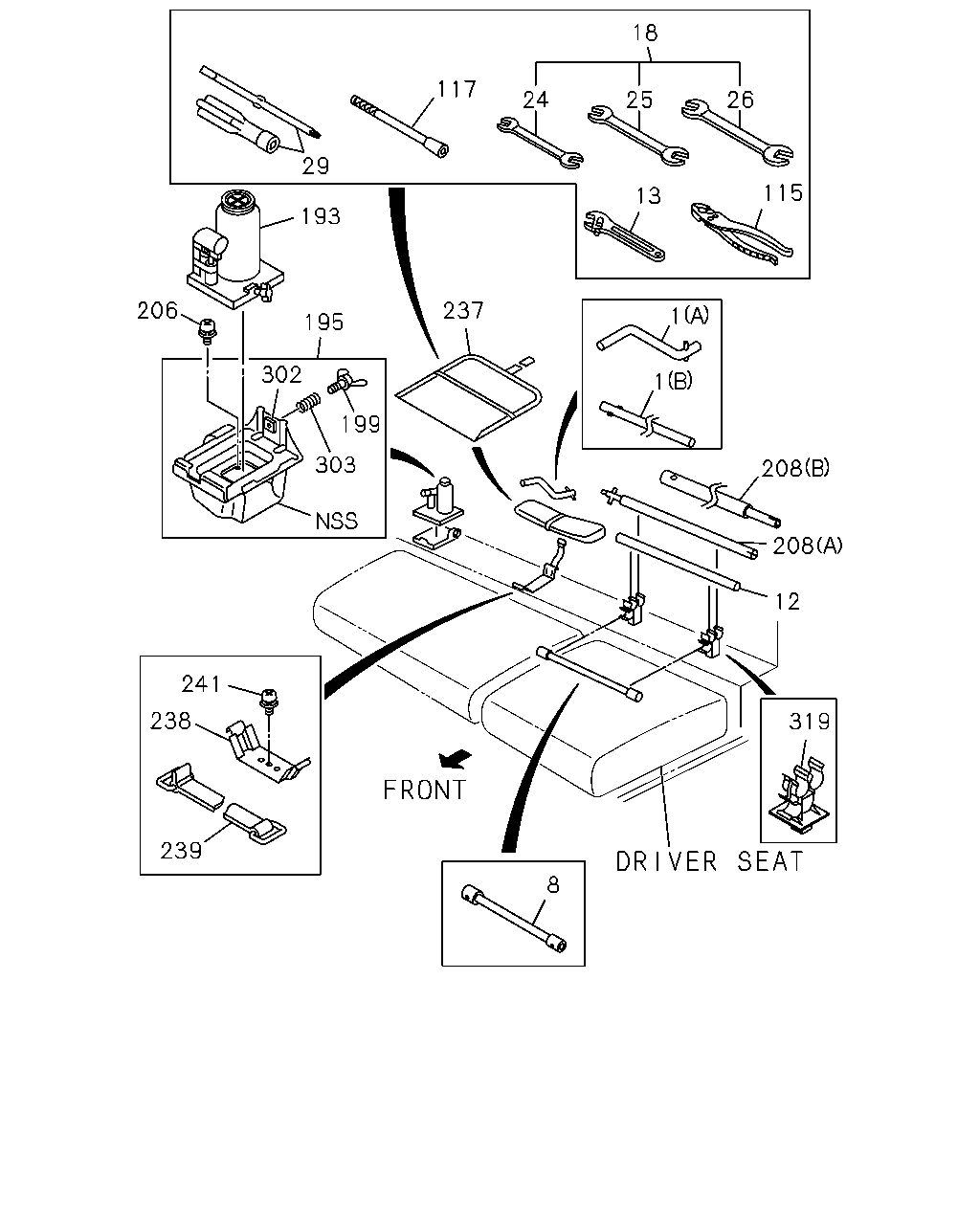

çizim 66928
18 117 24 25 26 29 115 13 193 206 237 1 195 302 1 199 303 208 208 12 241 238 319 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9312-9510 ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9511-9611 ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9612-9711 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9612-9711 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.820 (A) 		9-85512-608-0 01 1 9712- ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 (A) 		9-85512-608-0 01 1 9712- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280 		1-85515-007-0 01 1 9511- ● ●
8 08.821 WRENCH; WHEEL
EUROPEAN BASIC EQUIPMENT(EK4),TAIWAN EQUIPMENT(RWV) B=41X21 L=440 		1-85113-015-0 01 1 9312-9312 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) B=41X21 L=440 		1-85113-015-0 01 1 9312-9312 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX) B=41X21 L=440 		1-85113-015-0 01 1 9401-9506 ● ● ●
8 08.821 WRENCH; WHEEL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440 		1-85113-015-0 01 1 9401-9506 ● ●
8 08.821 WRENCH; WHEEL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440 		1-85113-015-0 01 1 9507-9510 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX) B=41X21 L=440 		1-85113-015-0 01 1 9507-9510 ● ● ●
8 08.821 WRENCH; WHEEL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) B=41X21 L=440 		1-85113-015-0 01 1 9511-9611 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440 		1-85113-015-0 01 1 9511-9611 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440 		1-85113-015-1 01 1 9612-9711 ● ● ● ●
8 08.821 WRENCH; WHEEL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> B=41X21 L=440 		1-85113-015-1 01 1 9612-9711 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> B=41X21 L=440 		1-85113-015-1 01 1 9612-9711 ● ●
8 08.821 WRENCH; WHEEL
(AQK),(ARN),(ARP),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9712-9808 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9712-9808 ● ● ●
8 08.821 WRENCH; WHEEL
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9XB), (9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9809-9809 ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9809-9809 ● ● ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 9809-9809 ●
8 08.821 WRENCH; WHEEL
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (BPN),(BPP),(BPQ),(BPR),(BPT),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9XB),(9ZM),(9ZP) ,(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9810- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=440 		1-85113-015-1 01 1 9810- ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) B=41X19 L=330 		8-94386-490-1 01 1 9312-9312 ● ● ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 9312-9312 ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> B=41X19 L=330 		8-94386-490-1 01 1 9401-9506 ● ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330 		8-94386-490-1 01 1 9401-9506 ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> B=41X19 L=330 		8-94386-490-1 01 1 9507-9611 ● ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330 		8-94386-490-1 01 1 9507-9611 ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> B=41X19 L=330 		8-94386-490-1 01 1 9612-9711 ● ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) B=41X19 L=330 		8-94386-490-1 01 1 9612-9711 ● ●
8 08.821 WRENCH; WHEEL
(06H),(07H),(08H),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(9HY), (9XD),(94H),(95H),(96H),(97H),(98H), (99H) B=41X19 L=330 		8-94386-490-1 01 1 9712-9808 ● ● ●
8 08.821 WRENCH; WHEEL
(ARN),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) B=41X19 L=330 		8-94386-490-1 01 1 9809-9809 ● ● ●
8 08.821 WRENCH; WHEEL
(ARN),(BPL),(BPM),(BPS),(06H),(07H), (08H),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (50C),(51C),(52C),(9HY),(94H),(95H), (96H),(97H),(98H),(99H) FRAME STRAIGHT TYPE<7KJ> B=41X19 L=330 		8-94386-490-1 01 1 9810- ● ● ●
8 08.821 WRENCH; WHEEL
(AQK),(ARN),(ARP),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> B=41X21 L=445 		8-97118-906-0 01 1 9802-9807 ● ● ● ● ● ●
8 08.821 WRENCH; WHEEL
HYDRO MASTER<7LT> B=41X21 L=445 		8-97118-906-0 01 1 9802-9807 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9312-9510 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9511-9611 ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9612-9711 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9612-9711 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-94430-092-0 01 1 9712- ● ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590 		8-94430-092-0 01 1 9712- ● ●
13 08.821 WRENCH; MONKEY
TOOL MADE IN JAPAN<6VY> 		5-85117-001-0 01 1 9312-9501 ● ● ●
13 08.821 WRENCH; MONKEY
EXC. TOOL MADE IN JAPAN<6VY> 		8-94310-178-0 01 1 9312-9407 ● ● ●
13 08.821 WRENCH; MONKEY 8-94310-178-0 01 1 9312-9407 ●
13 08.821 WRENCH; MONKEY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) HYDRO MASTER<7LT> 		8-94310-178-0 01 1 9612-9711 ● ● ●
13 08.821 WRENCH; MONKEY
HYDRO MASTER<7LT> 		8-94310-178-0 01 1 9712- ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9312-9611 ● ● ● ●
18 08.821 WRENCH KIT
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		9-85161-902-0 01 1 9612-9711 ● ● ● ● ●
18 08.821 WRENCH KIT 9-85161-902-0 01 1 9712- ● ● ● ● ● ●
24 08.821 WRENCH; 8X10
8X10 		9-99592-108-0 01 1 9312-9507 ● ● ● ●
25 08.821 WRENCH; 12X14
12X14 		9-09592-112-0 01 1 9312-9507 ● ● ● ●
26 08.821 WRENCH; 22X17
22X17 		9-85162-101-0 01 1 9312-9507 ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9312-9611 ● ● ● ●
29 08.821 DRIVER; SCREW
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160 		8-94242-798-1 01 1 9612-9711 ● ● ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9712- ● ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9312-9611 ● ● ● ●
115 08.821 PLIER
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		5-85171-002-0 01 1 9612-9711 ● ● ● ● ●
115 08.821 PLIER 5-85171-002-0 01 1 9712- ● ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9312-9611 ● ● ● ●
117 08.821 WRENCH; VALVE CAP
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX), G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		9-85163-906-1 01 1 9612-9711 ● ● ● ● ●
117 08.821 WRENCH; VALVE CAP 9-85163-906-1 01 1 9712- ● ● ● ● ● ●
193 08.820 JACK ASM
EUROPEAN BASIC EQUIPMENT(EK4),TAIWAN EQUIPMENT(RWV) 		8-97064-605-1 01 1 9312-9501 ● ● ●
193 08.820 JACK ASM
G.V.W. 7.0-7.5TON(RPX) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) 		8-97064-605-1 01 1 9312-9501 ● ● ●
193 08.820 JACK ASM
(06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(9XD),(94H),(95H), (95V),(96H),(97H),(98H),(99H) 		8-97048-424-1 01 1 9502-9505 ● ● ● ●
193 08.820 JACK ASM
(06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(9XD),(94H),(95H), (96H),(97H),(98H),(99H) 4TON 		8-97131-075-1 01 1 9506-9509 ● ● ● ●
193 08.820 JACK ASM
(ARN),(ARP),(06C),(06H),(07C),(07H), (08C),(08H),(09C),(10C),(11C),(50C), (51C),(53C),(54C),(9HY),(9XB),(9XD), (94H),(95H),(96H),(97H),(98H),(99H) 4TON 		8-97131-075-1 01 1 9510-9711 ● ● ● ●
193 08.820 JACK ASM
(ARN),(ARP),(AUH),(AUJ),(AUS),(AVK), (06C),(06H),(07C),(07H),(08C),(08H), (09C),(10C),(11C),(50C),(51C),(53C), (54C),(9HY),(9XB),(9XD),(94H),(95H), (96H),(97H),(98H),(99H) 4TON 		8-97131-075-1 01 1 9712-9809 ● ● ● ● ●
193 08.820 JACK ASM
(ARN),(ARP),(AUH),(AUJ),(AUS),(AVK), (BPL),(BPM),(BPN),(06C),(06H),(07C), (07H),(08C),(08H),(09C),(10C),(11C), (50C),(51C),(53C),(54C),(9HY),(9XB), (94H),(95H),(96H),(97H),(98H),(99H) 4TON 		8-97131-075-1 01 1 9810- ● ● ● ● ● ●
193 08.820 JACK ASM
G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) 5TON 		8-97064-604-1 01 1 9312-9501 ● ● ●
193 08.820 JACK ASM
5TON 		8-97064-604-1 01 1 9312-9501 ●
193 08.820 JACK ASM
(00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(88V),(9BP),(97V) 5TON 		8-97064-604-1 01 1 9502-9504 ● ● ● ●
193 08.820 JACK ASM
A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) ,M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSA5S(S2V),M/T MSA5G(S7G),M/T MSA5D(S7N) 5TON 		8-97131-076-0 01 1 9505-9505 ● ● ● ●
193 08.820 JACK ASM
(AQK),(00C),(01C),(02C),(03C),(04C), (05C),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(55C),(83V),(88V),(9BP),(95V), (97V) 5TON 		8-97131-076-1 01 1 9506-9511 ● ● ● ●
193 08.820 JACK ASM
(AQK),(00C),(01C),(02C),(03C),(04C), (05C),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(55C),(83V),(88V),(9BP),(95V), (97V) 5TON 		8-97131-076-1 01 1 9511-9611 ● ● ● ●
193 08.820 JACK ASM
(AQK),(00C),(01C),(02C),(03C),(04C), (05C),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(55C),(83V),(88V),(9BP),(95V), (97V) 5TON 		8-97131-076-1 01 1 9612-9711 ● ● ● ● ●
193 08.820 JACK ASM
(AQK),(00C),(01C),(02C),(03C),(04C), (05C),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (52C),(55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-1 01 1 9712-9809 ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-1 01 1 9712-9809 ● ● ● ●
193 08.820 JACK ASM
(AQK),(BPP),(BPQ),(BPR),(BPS),(BPT), (00C),(01C),(02C),(03C),(04C),(05C), (09H),(10H),(11H),(12H),(13H),(14H), (15H),(16H),(17H),(18H),(19H),(52C), (55C),(83V),(9BP),(95V),(97V) 5TON 		8-97131-076-1 01 1 9810- ● ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) EXC. FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-076-1 01 1 9810- ● ● ● ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-1 01 1 9604-9611 ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-1 01 1 9612-9711 ● ● ●
193 08.820 JACK ASM
(9ZM),(9ZP),(9ZQ) FRAME STRAIGHT TYPE<7KJ> 5TON 		8-97131-077-1 01 1 9712- ● ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9312-9611 ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9612-9711 ● ● ● ●
195 08.820 BRACKET; JACK 8-97856-997-3 01 1 9712- ● ● ● ● ●
195 08.820 BRACKET; JACK 8-94262-068-2 01 1 9312- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9312-9611 ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9612-9711 ● ● ● ● ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 9712- ● ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9312-9611 ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9612-9711 ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9712- ● ● ● ● ● ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9312-9510 ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9511-9611 ● ● ● ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9612-9711 ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9612-9711 ● ●
208 08.820 HANDLE; JACK
(A) 		9-85512-607-0 01 1 9712- ● ● ● ●
208 08.820 HANDLE; JACK
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		9-85512-607-0 01 1 9712- ● ●
208 08.820 HANDLE; JACK
FRAME STRAIGHT TYPE<7KJ> (B) L=580 		1-85515-005-1 01 1 9511- ● ●
237 08.821 BAG; TOOL
EUROPEAN BASIC EQUIPMENT(EK4),TAIWAN EQUIPMENT(RWV) 		1-85565-012-0 01 1 9312-9312 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) 		1-85565-012-0 01 1 9312-9312 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX) 		1-85565-012-0 01 1 9401-9506 ● ● ●
237 08.821 BAG; TOOL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		1-85565-012-0 01 1 9401-9506 ● ●
237 08.821 BAG; TOOL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		1-85565-012-0 01 1 9507-9509 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX) 		1-85565-012-0 01 1 9507-9509 ● ● ●
237 08.821 BAG; TOOL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-903-0 01 1 9510-9510 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX) 		8-97130-903-0 01 1 9510-9510 ● ● ●
237 08.821 BAG; TOOL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) 		8-97130-903-0 01 1 9511-9611 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-903-0 01 1 9511-9611 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 		8-97130-903-0 01 1 9612-9711 ● ● ● ●
237 08.821 BAG; TOOL
DISC BRAKE FRT<J52> G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97130-903-0 01 1 9612-9711 ● ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 		8-97130-903-0 01 1 9612-9711 ● ●
237 08.821 BAG; TOOL
(AQK),(ARN),(ARP),(AUH),(AUJ),(AUS), (AVK),(00C),(01C),(02C),(03C),(04C), (05C),(06C),(07C),(08C),(09C),(10C), (11C),(53C),(54C),(55C),(83V),(9BP), (9XB),(9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9712-9808 ● ● ● ● ● ●
237 08.821 BAG; TOOL
HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9712-9808 ● ● ●
237 08.821 BAG; TOOL
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (00C),(01C),(02C),(03C),(04C),(05C), (06C),(07C),(08C),(09C),(10C),(11C), (53C),(54C),(55C),(83V),(9BP),(9XB), (9ZM),(9ZP),(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9809-9809 ● ● ● ● ●
237 08.821 BAG; TOOL
HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9809-9809 ● ● ●
237 08.821 BAG; TOOL 8-97130-903-0 01 1 9809-9809 ●
237 08.821 BAG; TOOL
(AQK),(ARP),(AUH),(AUJ),(AUS),(AVK), (BPN),(BPP),(BPQ),(BPR),(BPT),(00C), (01C),(02C),(03C),(04C),(05C),(06C), (07C),(08C),(09C),(10C),(11C),(53C), (54C),(55C),(83V),(9BP),(9XB),(9ZM),(9ZP) ,(9ZQ),(95V),(97V) EXC. HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9810- ● ● ● ● ● ●
237 08.821 BAG; TOOL
HYDRO MASTER<7LT> 		8-97130-903-0 01 1 9810- ● ● ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) EXC. EUROPEAN BASIC EQUIPMENT(EK4), TAIWAN EQUIPMENT(RWV) 		8-94367-102-0 01 1 9312-9312 ● ● ●
237 08.821 BAG; TOOL 8-94367-102-0 01 1 9312-9312 ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94367-102-0 01 1 9401-9506 ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-94367-102-0 01 1 9401-9506 ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-94367-102-0 01 1 9507-9509 ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-94367-102-0 01 1 9507-9509 ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52> 		8-97130-902-0 01 1 9510-9611 ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-902-0 01 1 9510-9611 ● ●
237 08.821 BAG; TOOL
G.V.W. 6.0-6.5TON(RPV) EXC. DISC BRAKE FRT<J52>,FRAME STRAIGHT TYPE<7KJ> 		8-97130-902-0 01 1 9612-9711 ● ● ● ●
237 08.821 BAG; TOOL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 5.0-5.5TON(RPT) 		8-97130-902-0 01 1 9612-9711 ● ●
237 08.821 BAG; TOOL
(06H),(07H),(08H),(09H),(10H),(11H), (12H),(13H),(14H),(15H),(16H),(17H), (18H),(19H),(50C),(51C),(52C),(9HY), (9XD),(94H),(95H),(96H),(97H),(98H), (99H) 		8-97130-902-0 01 1 9712-9808 ● ● ●
237 08.821 BAG; TOOL
(ARN),(06H),(07H),(08H),(09H),(10H), (11H),(12H),(13H),(14H),(15H),(16H), (17H),(18H),(19H),(50C),(51C),(52C), (9HY),(9XD),(94H),(95H),(96H),(97H), (98H),(99H) 		8-97130-902-0 01 1 9809-9809 ● ● ●
237 08.821 BAG; TOOL
(ARN),(BPL),(BPM),(BPS),(06H),(07H), (08H),(09H),(10H),(11H),(12H),(13H), (14H),(15H),(16H),(17H),(18H),(19H), (50C),(51C),(52C),(9HY),(94H),(95H), (96H),(97H),(98H),(99H) FRAME STRAIGHT TYPE<7KJ> 		8-97130-902-0 01 1 9810- ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-94273-001-0 01 1 9312-9510 ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9511-9611 ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9612-9711 ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97866-879-0 01 1 9712- ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9312-9611 ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9612-9711 ● ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 9712- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9312-9611 ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9612-9711 ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 9712- ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9312-9611 ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9612-9711 ● ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 9712- ● ● ● ● ● ●
303 08.820 SPRING; WING BOLT 8-94279-944-0 01 1 9312-9409 ● ● ● ●
303 08.820 SPRING; WING BOLT 8-94279-944-0 01 1 9410-9410 ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9312-9611 ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9612-9711 ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
