Sayfa 8-90 - Isuzu EPC

8-90 — RADIO AND TV (#43805) — 188 parça

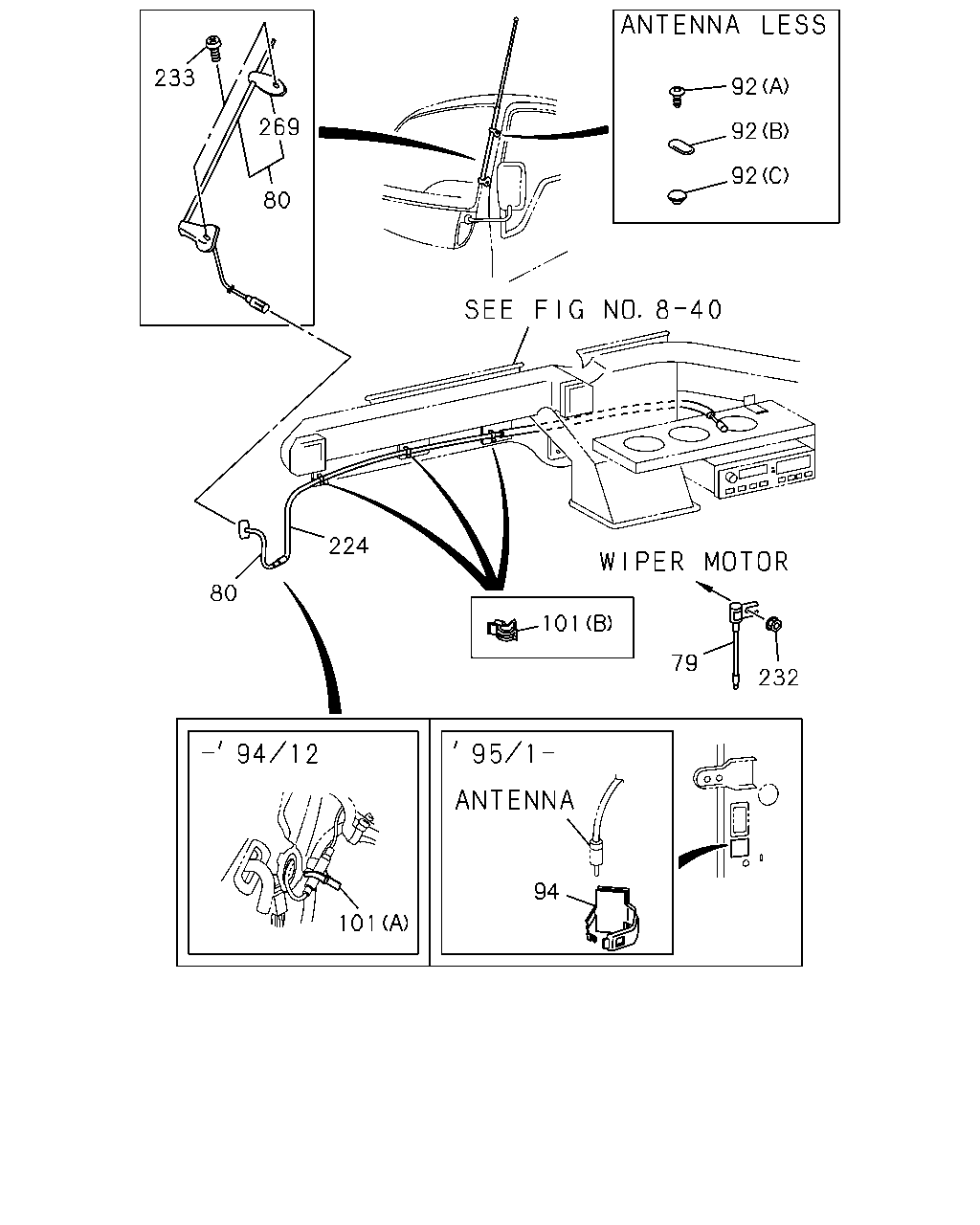

233 92 269 92 92 80 224 80 101 79 232 94 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
79	02.319 CONDENSER; RADIO RR FOG LAMP<T79> 09.663	9-83685-377-0	01	1	9312-9411	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97071-721-1	01	1	9312-9611	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97071-721-1	01	1	9612-9711	●	●	●	●	●
80	09.645 ANTENNA ANTENNA<U73>	8-97071-721-1	01	1	9712-9809	●	●	●		●	●
80	09.645 ANTENNA	8-97071-721-1	01	1	9712-9809				●
80	09.645 ANTENNA ANTENNA<U73>	8-97210-547-0	01	1	9810-	●	●	●		●	●
80	09.645 ANTENNA	8-97210-547-0	01	1	9810-				●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9312-9611	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9612-9711	●	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8	8-94279-921-0	01	1	9712-	●	●	●		●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9312-9404	●	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9405-9611	●	●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9612-9711	●	●	●		●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (B)	8-97088-275-2	01	1	9712-	●	●	●		●	●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 08.155 (A) OD=16 L=11	1-76378-155-0	01	1	9405-9711				●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> 09.775 (C)	8-94203-634-1	01	1	9405-9407				●
92	09.647 COVER; HOLE,ANTENNA EXC. ANTENNA<U73> (C)	1-09983-097-0	01	1	9408-9711				●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-0	01	1	9501-9611	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-0	01	1	9612-9711	●	●	●	●	●
94	09.656 CLIP; ANTENNA FEEDER ANTENNA<U73>	1-09987-155-0	01	1	9712-	●	●	●		●	●
94	09.656 CLIP; ANTENNA FEEDER	1-09987-155-0	01	1	9712-				●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 03.162 (A) L=170	5-09707-054-0	01	1	9312-9412	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> (B) ID=7	8-97085-207-0	03	1	9312-9503	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 (B) ID=7	5-09707-053-0	03	1	9504-9611	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 (B) ID=7	5-09707-053-0	03	1	9612-9711	●	●	●	●	●
101	09.649 CLIP; FEEDER TO BRKT ANTENNA<U73> 04.342 (B) ID=7	5-09707-053-0	03	1	9712-	●	●	●		●	●
101	09.649 CLIP; FEEDER TO BRKT 04.342 (B) ID=7	5-09707-053-0	03	1	9712-				●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97041-980-1	01	1	9312-9412	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9501-9611	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9612-9711	●	●	●	●	●
224	09.647 CABLE; EXT,FEEDER ANTENNA<U73>	8-97118-847-0	01	1	9712-	●	●	●		●	●
224	09.647 CABLE; EXT,FEEDER	8-97118-847-0	01	1	9712-				●
232	09.663 NUT; CONDENSER RR FOG LAMP<T79> 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-9411	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97068-547-1	02	1	9312-9405	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97068-547-2	01	1	9406-9411	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9412-9611	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9612-9711	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X20	8-97120-686-0	01	1	9712-	●	●	●		●	●
233	09.647 SCREW M6X20	8-97120-686-0	01	1	9712-				●
233	09.647 SCREW ANTENNA<U73> 05.812 M6X16	9-03486-616-0	01	1	9406-9411	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9412-9611	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9612-9711	●	●	●	●	●
233	09.647 SCREW ANTENNA<U73> M6X16	8-97123-696-0	01	1	9712-	●	●	●		●	●
233	09.647 SCREW M6X16	8-97123-696-0	01	1	9712-				●
269	09.647 SUPPORT KIT; ANTENNA ANTENNA<U73>	8-97108-184-0	01	1	9712-	●	●	●		●	●
269	09.647 SUPPORT KIT; ANTENNA	8-97108-184-0	01	1	9712-				●

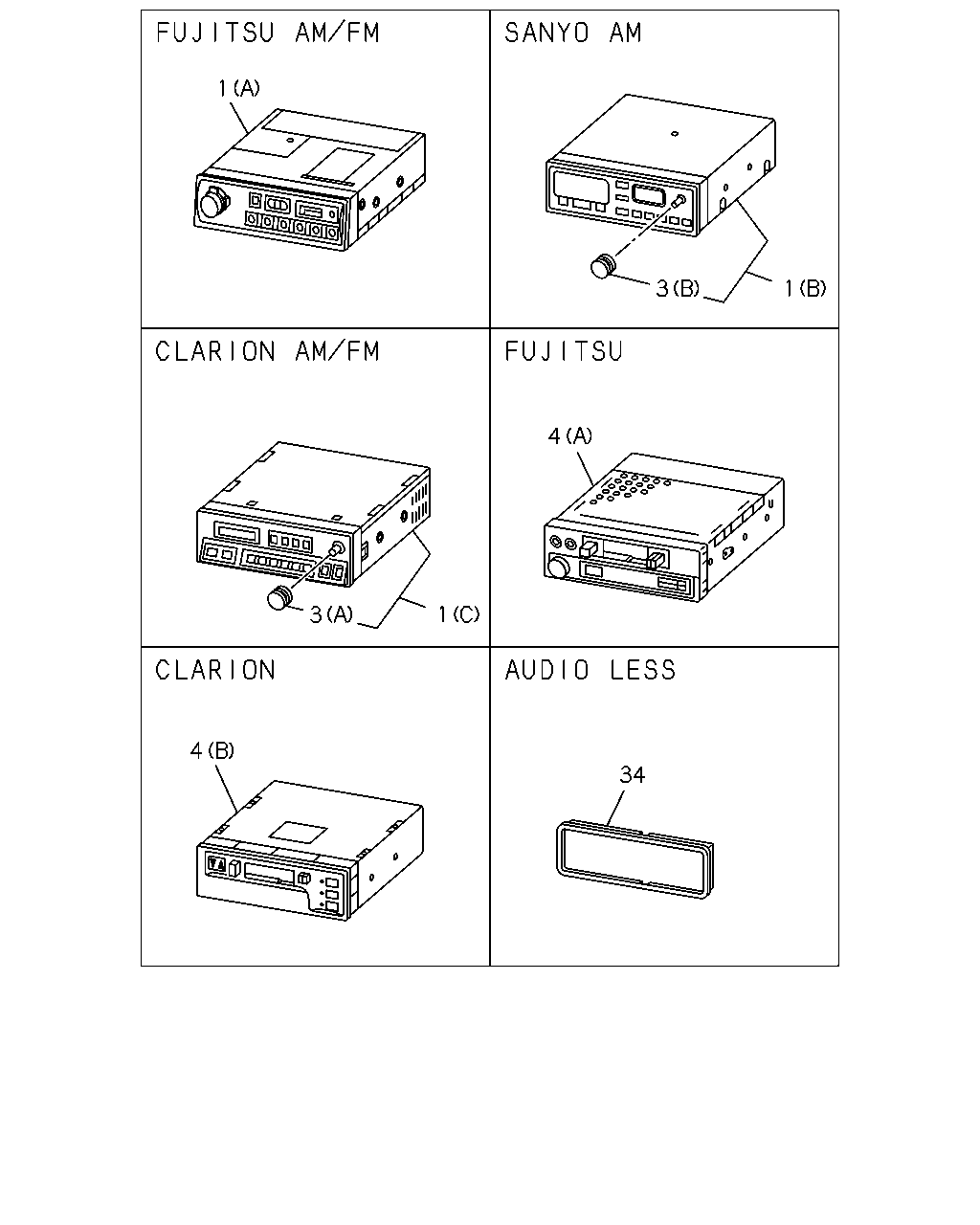

1 1 3 4 1 3 4 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97091-586-0	01	1	9312-9502	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9503-9611	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9612-9711	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9712-	●	●	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97091-587-0	01	1	9312-9509	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9510-9611	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9612-9711	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9712-	●	●	●		●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9312-9506	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9507-9704	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9705-9711	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9712-9801	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9802-	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9312-9506	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9507-9704	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9705-9711	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9712-9801	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9802-	●	●	●		●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION	8-97108-088-0	01	1	9312-9502	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (A) CLARION	8-97108-088-0	01	1	9503-9509	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (A) CLARION	8-97093-559-0	01	1	9503-9509	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION	8-97093-559-0	01	1	9510-9611	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION	8-97093-559-0	01	1	9612-9711	●	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM>,TUNER BAND ASIA<7DN> (A) CLARION	8-97093-559-0	01	1	9712-	●	●	●		●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9312-9506	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9507-9704	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9705-9711	●	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9712-9801	●	●	●
3	09.649 ATTACH KIT; AM/FM RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO	8-97093-557-0	01	1	9802-	●	●	●		●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9312-9611	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9612-9711	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9712-	●	●	●		●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9312-9506	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9507-9704	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9705-9711	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9712-9801	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9802-	●	●	●		●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9312-9611	●	●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9612-9711	●	●	●	●	●
34	09.650 COVER; RADIO HOLE EXC. RADIO AM W/AMPLIFIER(RS2),RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97856-203-3	01	1	9712-	●	●	●	●	●	●

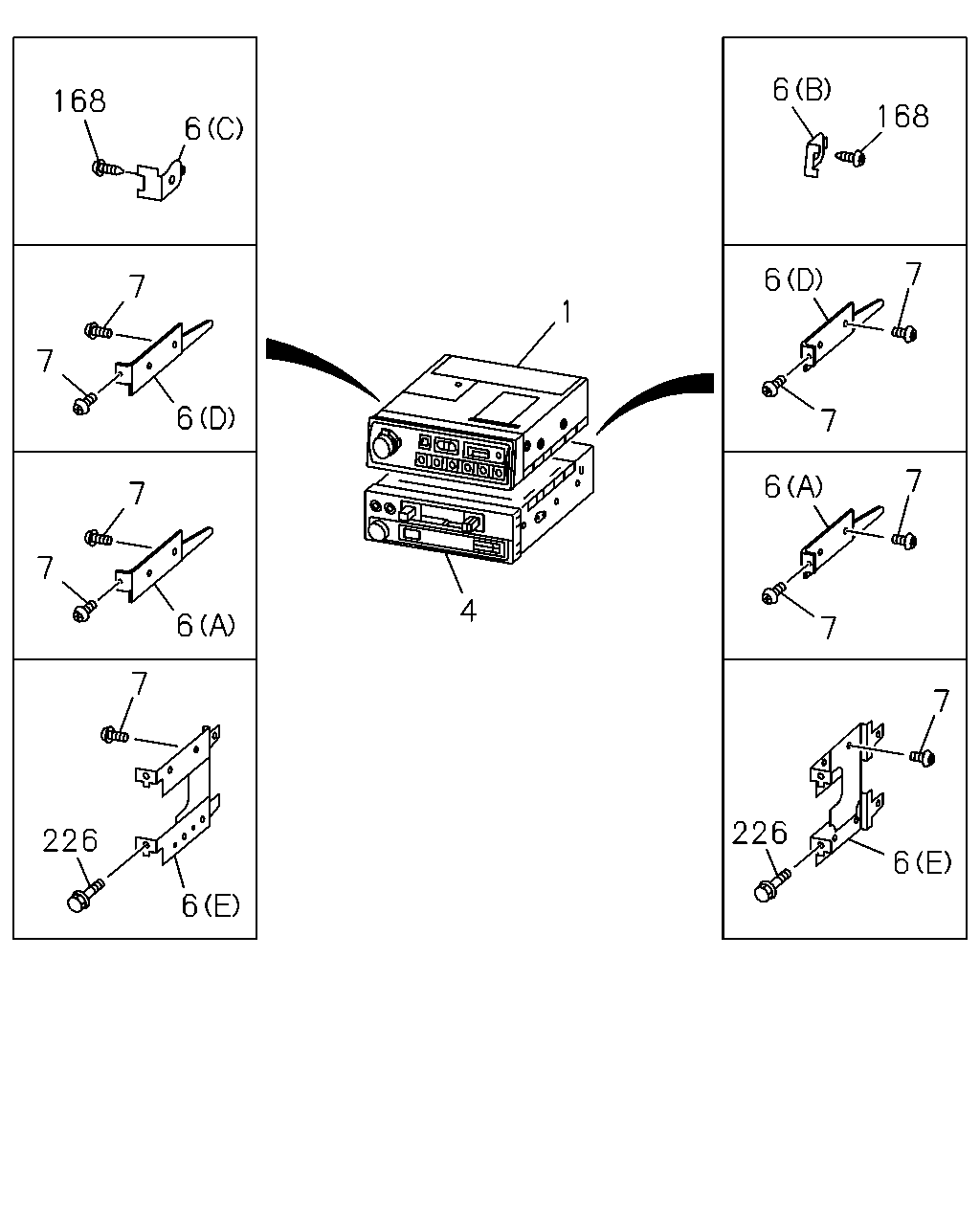

6 168 168 6 7 6 7 1 7 6 7 7 6 7 7 4 6 7 7 7 226 226 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97091-586-0	01	1	9312-9502	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9503-9611	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9612-9711	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND LATIN AMERICA<7DM> (C) CLARION AM/FM	8-97120-647-0	01	1	9712-	●	●	●		●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97091-587-0	01	1	9312-9509	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9510-9611	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9612-9711	●	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> TUNER BAND ASIA<7DN> (C) CLARION AM/FM	8-97120-649-0	01	1	9712-	●	●	●		●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9312-9506	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9507-9704	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9705-9711	●	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9712-9801	●	●	●
1	09.650 RADIO RADIO AM W/AMPLIFIER(RS2) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (B) SANYO AM	8-97088-264-0	01	1	9802-	●	●	●		●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9312-9506	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9507-9704	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9705-9711	●	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9712-9801	●	●	●
1	09.650 RADIO RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) TUNER BAND ASIA<7DN> EXC. VOLTAGE 24V<7AE> (A) FUJITSU AM/FM	8-97088-266-0	01	1	9802-	●	●	●		●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9312-9611	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9612-9711	●	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) VOLTAGE 24V<7AE> (B) CLARION	8-97088-291-0	01	1	9712-	●	●	●		●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9312-9506	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9507-9704	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9705-9711	●	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9712-9801	●	●	●
4	09.650 CASSETTE DECK; AUDIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. VOLTAGE 24V<7AE> (A) FUJITSU	8-97088-290-0	01	1	9802-	●	●	●		●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9312-9611	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9612-9711	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-615-2	01	1	9712-	●	●	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9312-9611	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9612-9711	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) (A)	8-97853-614-2	01	1	9712-	●	●	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (C)	8-97108-200-0	01	1	9312-9312	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D)	8-97857-877-0	01	1	9312-9312	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-104-1	01	1	9401-9611	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-104-1	01	1	9612-9711	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-104-1	01	1	9712-	●	●	●		●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (B)	8-97108-199-0	01	1	9312-9312	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (D)	8-97857-875-0	01	1	9312-9312	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-103-1	01	1	9401-9611	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-103-1	01	1	9612-9711	●	●	●	●	●
6	09.645 BRACKET; RADIO TO PANEL RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) (E)	8-97859-103-1	01	1	9712-	●	●	●		●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9312-9611	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9612-9711	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9712-	●	●	●		●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9312-9611	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9612-9711	●	●	●	●	●
7	09.650 SCREW; RADIO RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	08	1	9712-	●	●	●		●	●
7	09.650 SCREW; RADIO RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ),RADIO AM/FM W /CASSETTE 2 SPEAKERS(6VL) 08.852 M5X14	8-94323-227-0	AR	1	9312-9412	●	●	●	●	●	●
168	09.645 SCREW; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 16.802 M5X16 TAPPING W/PL WASHER	0-74110-516-0	02	1	9312-9312	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9312-9604	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9604-9611	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9612-9711	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM W/AMPLIFIER(RS2),RADIO AM/FMSTEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	9712-	●	●	●		●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9604	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-9611	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9612-9711	●	●	●	●	●
226	09.647 BOLT; BRKT RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9712-	●	●	●		●	●

222 116 222 171 222 5 48 117 221 49 221 48 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9509-9611	●	●	●	●
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9612-9711	●	●	●	●	●
5	09.647 HARNESS; EXT ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97131-327-0	02	1	9712-	●	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97048-670-0	02	1	9312-9508	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97130-574-0	02	1	9509-9611	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97130-574-0	02	1	9612-9612	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97169-451-0	02	1	9701-9711	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97169-451-0	02	1	9712-9809	●	●	●		●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> VOLTAGE 24V<7AE> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97207-695-0	02	1	9810-	●	●	●		●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97048-675-0	02	1	9312-9506	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97048-675-0	02	1	9507-9508	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97130-575-0	02	1	9509-9704	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97130-575-0	02	1	9705-9801	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97130-575-0	02	1	9802-9809	●	●	●	●	●
48	09.650 SPEAKER; AUDIO ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2), VOLTAGE 24V<7AE>	8-97207-696-0	02	1	9810-	●	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9312-9611	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9612-9711	●	●	●	●	●
49	09.655 SCREW; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9712-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9312-9611	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9612-9711	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-325-3	01	1	9712-	●	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9312-9611	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9612-9711	●	●	●	●	●
116	16.165 PANEL; SPEAKER,FRT DOOR ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-324-3	01	1	9712-	●	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9312-9611	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9612-9711	●	●	●	●	●
117	16.165 SCREW; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.067 M5X14	8-94279-325-0	06	1	9712-	●	●	●	●	●	●
171	09.650 COVER; SPEAKER RADIO AM/FM STEREO 2 SPEAKERS(6GZ), RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97852-331-2	02	1	9312-9403	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9404-9611	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9612-9711	●	●	●	●	●
171	09.650 COVER; SPEAKER ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2)	8-97852-331-4	02	1	9712-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-3	02	1	9312-9611	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-3	02	1	9612-9711	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (A)	8-97852-327-4	02	1	9712-	●	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9312-9611	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9612-9711	●	●	●	●	●
221	16.165 SEAL; SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) (B)	8-97852-601-1	02	1	9712-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9312-9611	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9612-9711	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 09.264 (A)	1-09987-144-0	02	1	9712-	●	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.345 (B) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9312-9611	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 16.345 (B) D=8X8 L=7.5 M5 YELLOW	8-94279-740-0	06	1	9612-9705	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9706-9711	●	●	●	●	●
222	16.165 GROMMET; SCREW,SPEAKER PANEL ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 01.269 (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
