◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#43804) — 212 parça

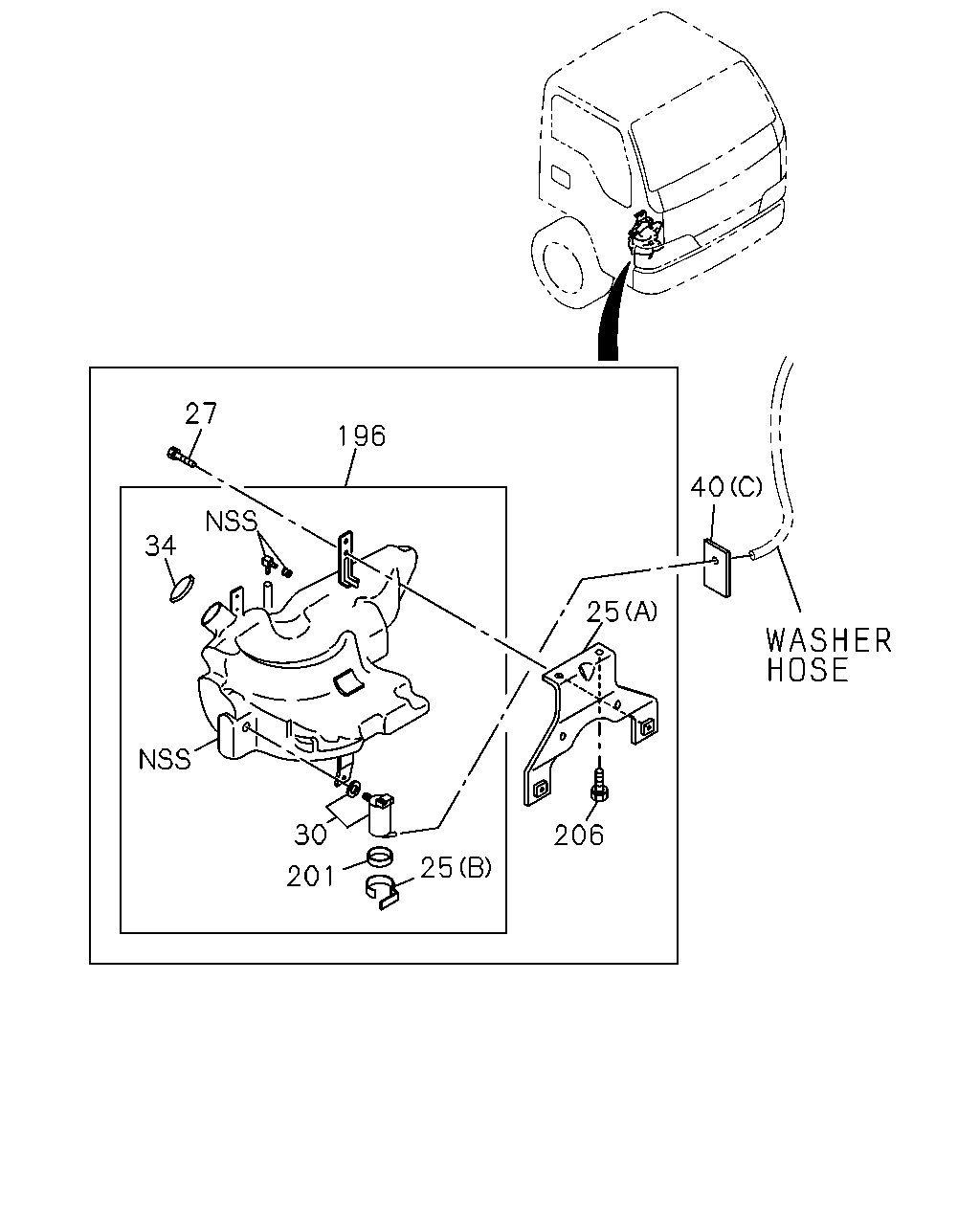

çizim 66842
27 196 40 34 25 30 206 25 201
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 9312-9611 ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 9612-9711 ● ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 9712- ● ● ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-142-0 01 1 9312-9411 ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9412-9611 ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9612-9711 ● ● ● ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 9712- ● ● ● ● ● ●
27 16.065 BOLT; WASHER TANK
03.483 M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9312-9603 ● ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9604-9611 ● ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9612-9711 ● ● ● ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 9712- ● ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
VOLTAGE 24V<7AE> 		8-97855-139-0 01 1 9312-9611 ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
VOLTAGE 24V<7AE> 		8-97855-139-0 01 1 9612-9711 ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
VOLTAGE 24V<7AE> 		8-97855-139-0 01 1 9712- ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
EXC. VOLTAGE 24V<7AE> 		8-97855-138-0 01 1 9312-9506 ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
EXC. VOLTAGE 24V<7AE> 		8-97855-138-0 01 1 9507-9704 ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
EXC. VOLTAGE 24V<7AE> 		8-97855-138-0 01 1 9705-9801 ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK
EXC. VOLTAGE 24V<7AE> 		8-97855-138-0 01 1 9802- ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 9312-9611 ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 9612-9711 ● ● ● ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712- ● ● ● ● ● ●
196 16.065 TANK; WASHER
VOLTAGE 24V<7AE> 		8-97855-066-3 01 1 9312-9611 ● ● ● ●
196 16.065 TANK; WASHER
VOLTAGE 24V<7AE> 		8-97855-066-3 01 1 9612-9711 ● ● ● ● ●
196 16.065 TANK; WASHER
VOLTAGE 24V<7AE> 		8-97855-066-3 01 1 9712- ● ● ● ● ●
196 16.065 TANK; WASHER
EXC. VOLTAGE 24V<7AE> 		8-97855-065-3 01 1 9312-9506 ● ●
196 16.065 TANK; WASHER
EXC. VOLTAGE 24V<7AE> 		8-97855-065-3 01 1 9507-9704 ● ● ●
196 16.065 TANK; WASHER
EXC. VOLTAGE 24V<7AE> 		8-97855-065-3 01 1 9705-9801 ● ● ● ●
196 16.065 TANK; WASHER
EXC. VOLTAGE 24V<7AE> 		8-97855-065-3 01 1 9802- ● ● ● ● ●
201 16.064 LINING; WIPER MOTOR 8-97855-141-0 01 1 9312-9611 ● ● ● ●
201 16.064 LINING; WIPER MOTOR 8-97855-141-0 01 1 9612-9711 ● ● ● ● ●
201 16.064 LINING; WIPER MOTOR 8-97855-141-0 01 1 9712- ● ● ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9312-9603 ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9604-9611 ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9612-9711 ● ● ● ● ●
206 16.065 BOLT; BRKT,WASHER TANK
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ● ● ●

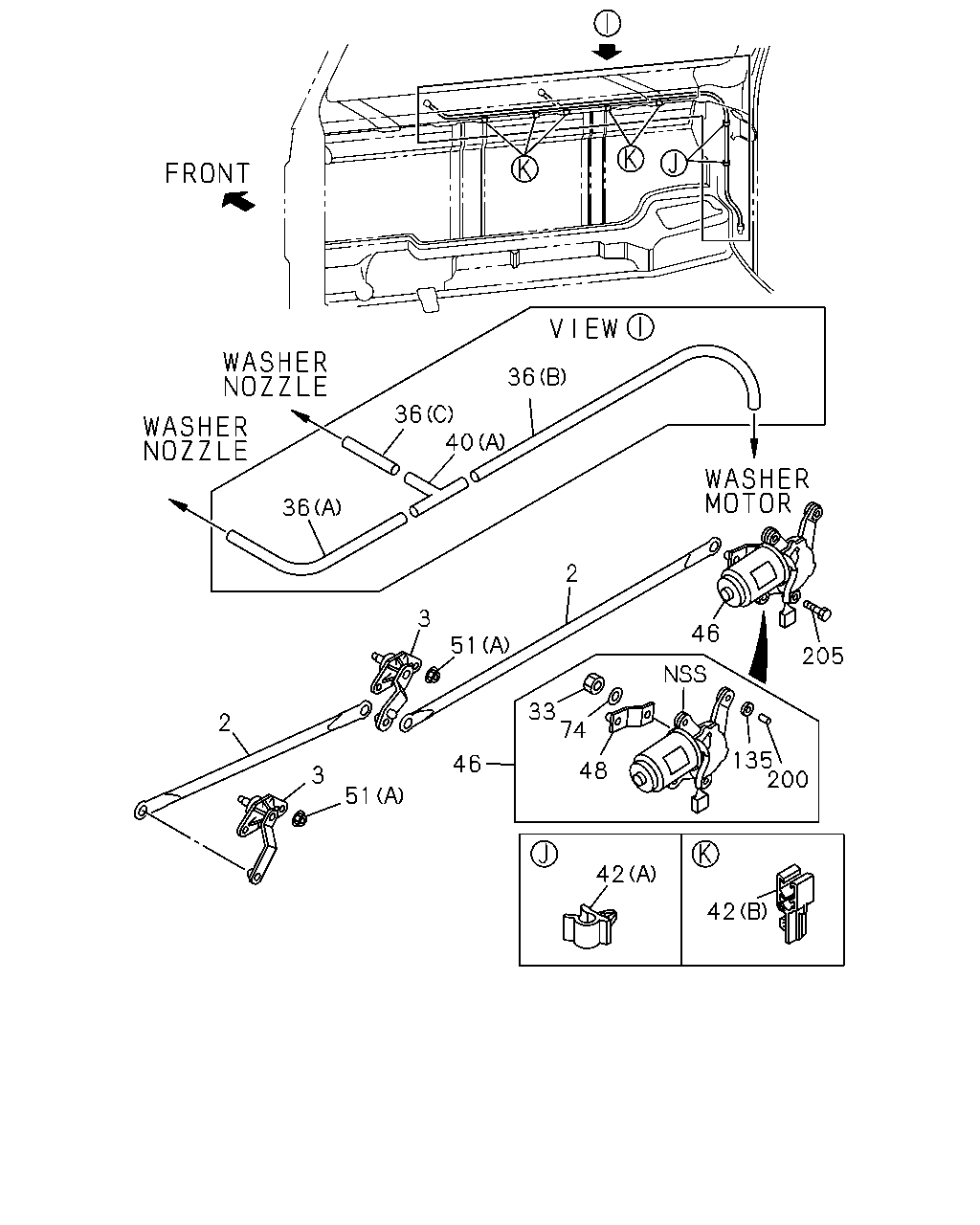

çizim 66843
36 36 40 36 2 46 3 51 205 33 74 2 135 200 46 48 3 51 42 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.063 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 9312-9611 ● ● ● ●
2 16.063 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 9612-9711 ● ● ● ● ●
2 16.063 LINK; FRT WIPER 8-97855-152-0 01 1 9312-9611 ● ● ● ●
2 16.063 LINK; FRT WIPER 8-97855-152-0 01 1 9612-9711 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
L=791 W/CAP 		8-97855-154-0 01 1 9712- ● ● ● ● ● ●
2 16.063 LINK; FRT WIPER 8-97855-152-0 01 1 9712- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-148-0 01 1 9312-9611 ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-148-0 01 1 9612-9711 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-147-0 01 1 9312-9611 ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-147-0 01 1 9612-9711 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-148-0 01 1 9712- ● ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97855-147-0 01 1 9712- ● ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9312-9611 ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9612-9711 ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(A)L=730 (B)L=730 (C)L=120 SERVICED BY L=10000 		9-09914-906-0 01 1 9312-9603 ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9604-9611 ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9612-9711 ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9604-9611 ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9612-9711 ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(D) 		8-97216-112-0 02 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9312-9611 ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9612-9711 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9312-9611 ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9612-9711 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9712- ● ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
VOLTAGE 24V<7AE> 		8-97855-062-5 01 1 9312-9611 ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
VOLTAGE 24V<7AE> 		8-97855-062-5 01 1 9612-9711 ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
VOLTAGE 24V<7AE> 		8-97855-062-5 01 1 9712- ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 24V<7AE> 		8-97855-060-5 01 1 9312-9506 ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 24V<7AE> 		8-97855-060-5 01 1 9507-9704 ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 24V<7AE> 		8-97855-060-5 01 1 9705-9801 ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER
EXC. VOLTAGE 24V<7AE> 		8-97855-060-5 01 1 9802- ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97855-162-0 01 1 9312-9611 ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97855-162-0 01 1 9612-9711 ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-97855-162-0 01 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9312-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9509-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9712- ● ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9312-9611 ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9612-9711 ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 9712- ● ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9312-9611 ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9612-9711 ● ● ● ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 9712- ● ● ● ● ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 01 1 9312-9611 ● ● ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 01 1 9612-9711 ● ● ● ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 9712- ● ● ● ● ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 9312-9611 ● ● ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 9612-9711 ● ● ● ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 9712- ● ● ● ● ● ●
çizim 67242
17 198 125 51 10 11 9 5 7 39 199 17 198 125 51 10 11 9 5 7 39 199
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.063 ARM; WIPER
DRIVER 		8-97096-224-1 01 1 9312-9611 ● ● ● ●
5 16.063 ARM; WIPER
DRIVER 		8-97096-224-1 01 1 9612-9711 ● ● ● ● ●
5 16.063 ARM; WIPER
DRIVER 		8-97119-488-0 01 1 9712- ● ● ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97096-226-1 01 1 9312-9611 ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97096-226-1 01 1 9612-9711 ● ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97119-490-0 01 1 9712- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97096-227-0 01 1 9312-9510 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9511-9611 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9612-9711 ● ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9712- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97096-228-0 01 1 9312-9510 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-229-0 01 1 9312-9510 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9511-9611 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9612-9711 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9712- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-230-0 01 1 9312-9510 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9312-9611 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9612-9711 ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9712- ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9312-9611 ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9612-9711 ● ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9712- ● ● ● ● ● ●
17 16.063 OTHER PARTS; WIPER LINK 8-97855-155-1 02 1 9312-9611 ● ● ● ●
17 16.063 OTHER PARTS; WIPER LINK 8-97855-155-1 02 1 9612-9711 ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9312-9611 ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9612-9711 ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-108-0 02 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9312-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9509-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9712- ● ● ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9509-9611 ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9612-9711 ● ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9312-9611 ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9612-9711 ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-0 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 9712- ● ● ● ● ● ●
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 9312-9611 ● ● ● ●
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 9612-9711 ● ● ● ● ●

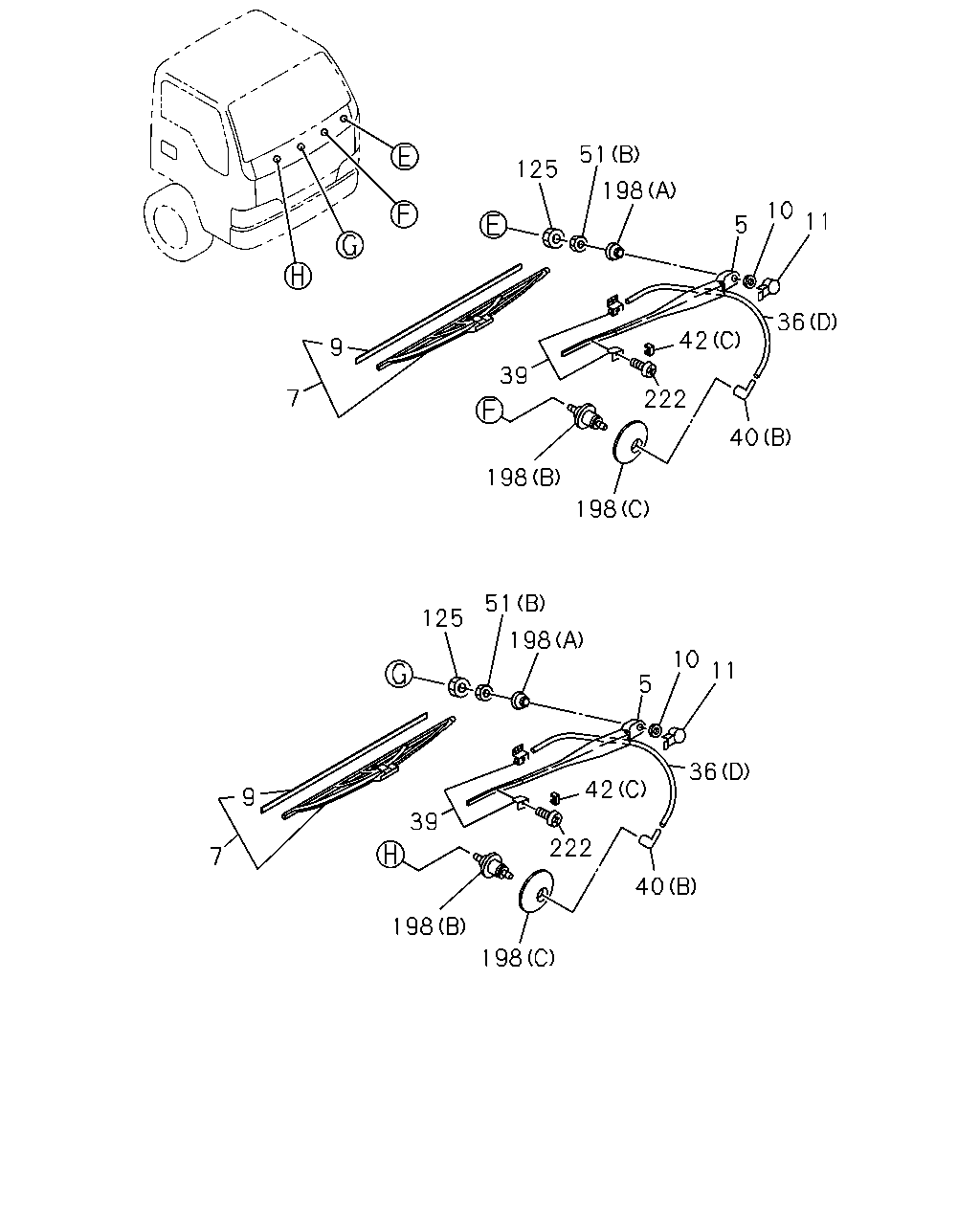

çizim 70826
51 125 198 10 11 5 36 42 9 39 7 222 40 198 198 51 125 198 10 11 5 36 42 9 39 222 7 40 198 198
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.063 ARM; WIPER
DRIVER 		8-97096-224-1 01 1 9312-9611 ● ● ● ●
5 16.063 ARM; WIPER
DRIVER 		8-97096-224-1 01 1 9612-9711 ● ● ● ● ●
5 16.063 ARM; WIPER
DRIVER 		8-97119-488-0 01 1 9712- ● ● ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97096-226-1 01 1 9312-9611 ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97096-226-1 01 1 9612-9711 ● ● ● ● ●
5 16.063 ARM; WIPER
ASSIST 		8-97119-490-0 01 1 9712- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97096-227-0 01 1 9312-9510 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9511-9611 ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9612-9711 ● ● ● ● ●
7 16.062 BLADE; WIPER
L=500 		8-97134-561-0 02 1 9712- ● ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97096-228-0 01 1 9312-9510 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-229-0 01 1 9312-9510 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9511-9611 ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9612-9711 ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97804-040-0 02 1 9712- ● ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-97096-230-0 01 1 9312-9510 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9312-9611 ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9612-9711 ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.559 M8 		9-09110-408-0 02 1 9712- ● ● ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9312-9611 ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9612-9711 ● ● ● ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(A)L=730 (B)L=730 (C)L=120 SERVICED BY L=10000 		9-09914-906-0 01 1 9312-9603 ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9604-9611 ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9612-9711 ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9604-9611 ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9612-9711 ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (A)L=1100 (C)L=320 SERVICED BY L=10000 		8-94389-303-0 01 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(D) 		8-97216-112-0 02 1 9712- ● ● ● ● ● ●
36 16.065 HOSE; WASHER
(B)L=810 SERVICED BY L=10000 		9-09914-906-0 01 1 9712- ● ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9312-9611 ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97855-025-2 02 1 9612-9711 ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-97216-108-0 02 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		5-83363-006-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9312-9611 ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9612-9711 ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 9712- ● ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		8-97216-115-0 02 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9312-9611 ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9612-9711 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9312-9611 ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 06 1 9612-9711 ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 07 1 9712- ● ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
(C) 		8-97216-114-0 02 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9312-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
00.854 (A) M8 FLANGE 		5-09440-005-0 04 1 9712- ● ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9509-9611 ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9612-9711 ● ● ● ● ●
51 16.063 NUT; WIPER MOTOR LINK
(B) 		8-97135-435-0 02 1 9712- ● ● ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9509-9611 ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9612-9711 ● ● ● ● ●
125 16.065 SPACER; WIPER PIVOT 8-97135-434-0 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9312-9611 ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9612-9711 ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(A) 		8-97855-021-1 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(B) 		8-97855-134-0 02 1 9712- ● ● ● ● ● ●
198 16.063 COVER; PIVOT,WIPER
(C) 		8-97855-135-0 02 1 9712- ● ● ● ● ● ●
222 16.064 SCREW; WASHER NOZZLE 8-97216-113-0 04 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
