◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#43803) — 291 parça

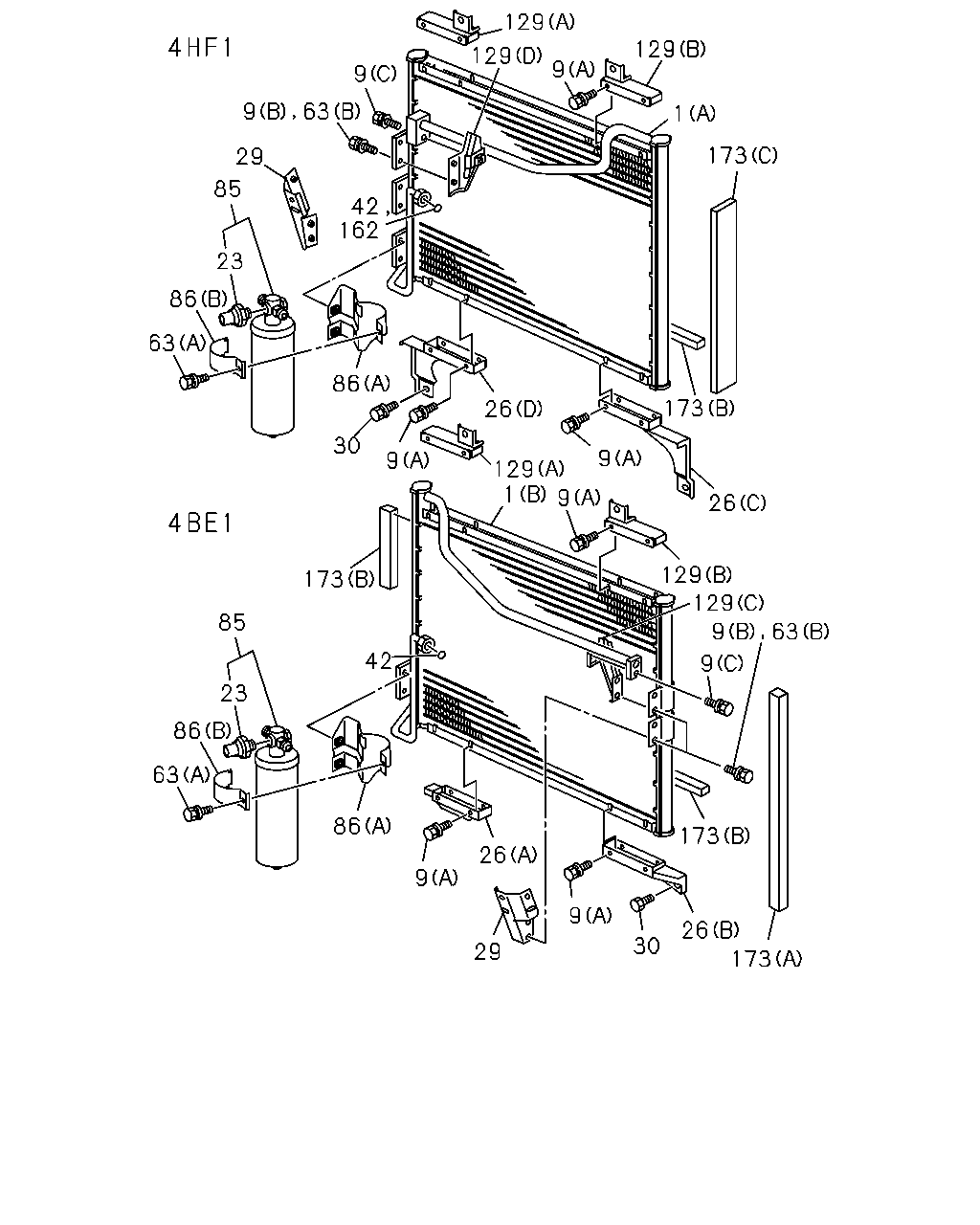

çizim 20853
129 129 129 9 9 9 63 1 173 29 85 42 162 23 86 63 86 173 26 30 9 9 129 1 9 26 129 129 173 85 9 63 42 9 23 86 63 86 173 26 9 9 26 30 29 173
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9312-9611 ● ● ●
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9612-9711 ● ● ● ●
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9712- ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97108-625-1 01 1 9312-9604 ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-364-2 01 1 9406-9506 ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-364-2 01 1 9507-9510 ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9406-9507 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9508-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9406-9507 ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9508-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9406-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 08 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 08 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 16 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 16 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 02 1 9406-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9406-9506 ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9507-9507 ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9510 ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9511-9604 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9605-9611 ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9612-9711 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9712- ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9312-9405 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9312-9611 ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9612-9711 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9712- ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9312-9611 ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9612-9711 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9712- ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9406-9506 ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9507-9510 ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9511-9604 ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9406-9506 ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9507-9510 ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9511-9604 ● ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9312-9611 ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9612-9711 ● ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9712- ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9312-9604 ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9406-9506 ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9507-9510 ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9312-9611 ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9612-9708 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9709-9711 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ● ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9406-9510 ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9511-9604 ● ● ● ●
42 09.190 GASKET; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9605-9611 ● ● ●
42 09.190 GASKET; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9612-9711 ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9312-9405 ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 02 1 9406-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9406-9510 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9511-9604 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9605-9611 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9612-9711 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9712- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9406-9507 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9508-9510 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9511-9604 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9605-9611 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9612-9711 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9712- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9312-9405 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 02 1 9406-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9312-9405 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 04 1 9406-9507 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 04 1 9508-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9406-9507 ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9508-9510 ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9511-9604 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9605-9611 ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9612-9711 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9712- ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9312-9405 ● ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9406-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9406-9506 ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9507-9507 ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9406-9510 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9511-9604 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9605-9611 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9612-9711 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9712- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9406-9510 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9511-9604 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9605-9611 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9612-9711 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9712- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9312-9405 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9406-9510 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9312-9405 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9312-9405 ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9511-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9511-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9605-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9511-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9605-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9312-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9406-9510 ● ● ● ●
162 09.195 GASKET; PIPE TO DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9712- ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9312-9405 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9312-9405 ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9406-9510 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9511-9611 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9612-9711 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9712- ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 01 1 9312-9405 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9406-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9511-9611 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9612-9711 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9712- ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9312-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 01 1 9511-9604 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9511-9604 ● ● ● ●

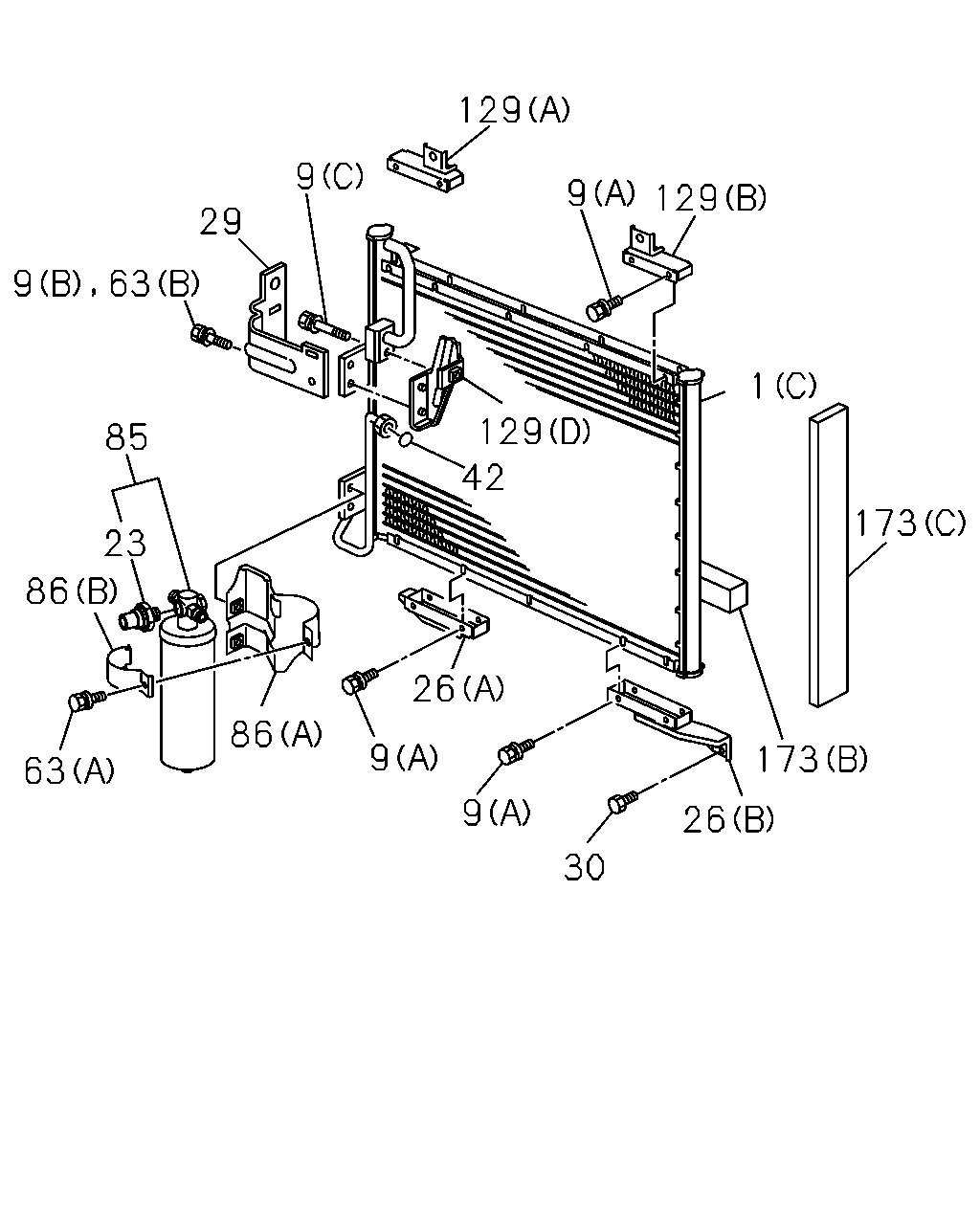

çizim 66877
129 9 9 129 29 9 63 1 129 85 42 173 23 86 26 86 9 173 63 9 26 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9312-9611 ● ● ●
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9612-9711 ● ● ● ●
1 09.190 CONDENSER; A/C
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97108-624-1 01 1 9712- ● ● ●
1 09.190 CONDENSER; A/C
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97108-625-1 01 1 9312-9604 ● ● ● ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-364-2 01 1 9406-9506 ●
1 09.190 CONDENSER; A/C
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97107-364-2 01 1 9507-9510 ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9406-9507 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9508-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 04 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9406-9507 ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9508-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 08 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9406-9510 ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9511-9604 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9605-9611 ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9612-9711 ● ● ● ●
9 09.190 BOLT; BRKT
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9712- ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 04 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 08 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 08 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 08 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) 		8-97018-671-0 16 1 9406-9507 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97114-209-0 16 1 9508-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 01 1 9312-9405 ● ● ● ●
9 09.190 BOLT; BRKT
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97091-336-0 02 1 9406-9510 ● ● ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9406-9506 ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97018-669-0 02 1 9507-9507 ● ●
9 09.190 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.175 (B) 		8-97112-752-0 02 1 9508-9510 ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9510 ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9511-9604 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9605-9611 ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9612-9711 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9712- ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9312-9405 ● ● ● ●
23 09.172 SWITCH; PRESSURE,CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) "R-134A" 		8-97095-659-0 01 1 9406-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9312-9611 ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9612-9711 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-035-2 01 1 9712- ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9312-9611 ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9612-9711 ● ● ● ●
26 09.190 BRACKET; LOW
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97096-036-2 01 1 9712- ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9312-9510 ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9406-9506 ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9507-9510 ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-961-2 01 1 9511-9604 ● ● ● ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9406-9506 ●
26 09.190 BRACKET; LOW
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9507-9510 ● ●
26 09.190 BRACKET; LOW
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97107-368-1 01 1 9511-9604 ● ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9312-9611 ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9612-9711 ● ● ● ●
29 09.190 BRACKET; SIDE
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-626-0 01 1 9712- ● ● ●
29 09.190 BRACKET; SIDE
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97108-628-1 01 1 9312-9604 ● ● ● ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9406-9506 ●
29 09.190 BRACKET; SIDE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-366-0 01 1 9507-9510 ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9312-9611 ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 04 1 9612-9708 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9709-9711 ● ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 04 1 9712- ● ● ● ● ● ●
42 09.190 GASKET; CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9406-9510 ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9511-9604 ● ● ● ●
42 09.190 GASKET; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9605-9611 ● ● ●
42 09.190 GASKET; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9612-9711 ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 01 1 9312-9405 ● ● ● ●
42 09.190 GASKET; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6 		8-94481-700-0 02 1 9406-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9406-9510 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9511-9604 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9605-9611 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9612-9711 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9712- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9406-9507 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9508-9510 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9511-9604 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9605-9611 ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9612-9711 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 02 1 9712- ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 01 1 9312-9405 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) M6X20 		1-15729-461-0 02 1 9406-9510 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 02 1 9312-9405 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97018-669-0 04 1 9406-9507 ● ● ● ●
63 09.175 BOLT; RECEIVER TANK
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-752-0 04 1 9508-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9406-9507 ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9508-9510 ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9511-9604 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9605-9611 ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9612-9711 ● ● ● ●
85 09.172 DRYER; RECEIVER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9712- ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9312-9405 ● ● ● ●
85 09.172 DRYER; RECEIVER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 09.195 		8-97096-032-0 01 1 9406-9510 ● ● ● ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9406-9506 ●
85 09.172 DRYER; RECEIVER
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97107-365-0 01 1 9507-9507 ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9406-9510 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9511-9604 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9605-9611 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9612-9711 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9712- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9406-9510 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9511-9604 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9605-9611 ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9612-9711 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9712- ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-1 01 1 9312-9405 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97077-536-2 01 1 9406-9510 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-0 01 1 9312-9405 ● ● ● ●
86 09.196 BRACKET; RECEIVER DRYER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97107-367-1 01 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9312-9405 ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9511-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97095-962-1 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9511-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9605-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9406-9510 ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9511-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9605-9611 ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9612-9711 ● ● ● ●
129 09.190 BRACKET; UPR
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9712- ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97095-957-1 01 1 9312-9604 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97095-955-2 01 1 9406-9510 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-1 01 1 9312-9405 ● ● ● ●
129 09.190 BRACKET; UPR
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97095-956-2 01 1 9406-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 02 1 9312-9405 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-0 02 1 9312-9405 ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9406-9510 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9511-9611 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9612-9711 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97096-037-1 02 1 9712- ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-0 01 1 9312-9405 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9406-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9511-9611 ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9612-9711 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 02 1 9712- ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9312-9510 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97096-033-1 01 1 9511-9604 ● ● ● ●
173 09.190 INSULATOR; CONDENSER
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97096-034-1 02 1 9511-9604 ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
