◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#43801) — 80 parça

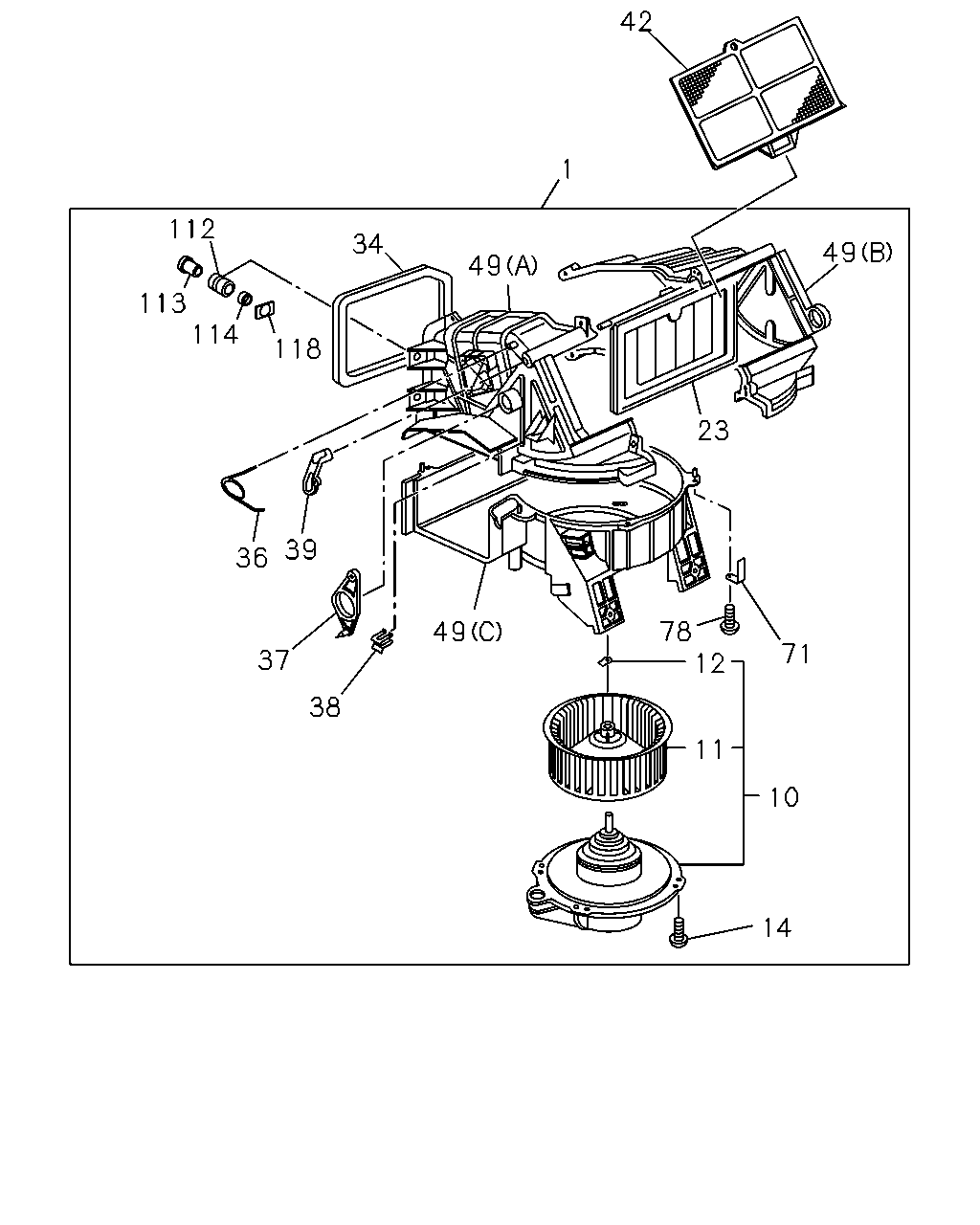

çizim 66944
42 1 112 34 49 49 113 114 118 23 39 36 78 12 49 71 37 38 11 10 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97069-816-2 01 1 9312-9409 ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97120-692-1 01 1 9410-9611 ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97120-692-1 01 1 9612-9711 ● ● ● ● ●
1 08.855 BLOWER ASM
VOLTAGE 24V<7AE> 		8-97120-692-3 01 1 9712- ● ● ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97069-815-2 01 1 9312-9409 ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97120-691-1 01 1 9410-9506 ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97120-691-1 01 1 9507-9704 ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97120-691-3 01 1 9705-9801 ● ● ● ●
1 08.855 BLOWER ASM
EXC. VOLTAGE 24V<7AE> 		8-97120-691-3 01 1 9802- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97101-657-1 01 1 9312-9611 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97101-657-1 01 1 9612-9711 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97101-657-1 01 1 9712-9809 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
VOLTAGE 24V<7AE> 		8-97211-954-0 01 1 9810- ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97101-656-1 01 1 9312-9506 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97101-656-1 01 1 9507-9704 ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97101-656-1 01 1 9705-9801 ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97101-656-1 01 1 9802-9809 ● ● ● ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
EXC. VOLTAGE 24V<7AE> 		8-97211-953-0 01 1 9810- ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9312-9611 ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9612-9711 ● ● ● ● ●
11 08.857 IMPELLER; FAN MOTOR 8-97096-067-0 01 1 9712- ● ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9312-9611 ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9612-9711 ● ● ● ● ●
12 08.857 RING; SNAP,FAN MOTOR 8-94243-962-0 01 1 9712- ● ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 		8-94248-820-0 04 1 9312-9506 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9507-9611 ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9612-9711 ● ● ● ● ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 		9-09829-324-1 04 1 9712- ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-2 01 1 9312-9406 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97101-650-1 01 1 9407-9611 ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97101-650-1 01 1 9612-9711 ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97101-650-1 01 1 9712-9809 ● ● ● ● ● ●
23 08.857 SHUTTER; BLOWER UNIT 8-97096-640-3 01 1 9810- ● ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9312-9611 ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9612-9711 ● ● ● ● ●
34 08.856 LINING; BLOWER UNIT 8-97085-612-1 01 1 9712- ● ● ● ● ● ●
36 09.786 SPRING; BLOWER UNIT 8-97109-014-0 01 1 9312-9611 ● ● ● ●
36 09.786 SPRING; BLOWER UNIT 8-97109-014-0 01 1 9612-9711 ● ● ● ● ●
36 09.786 SPRING; BLOWER UNIT 8-97109-014-0 01 1 9712-9809 ● ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97101-667-1 01 1 9312-9611 ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97101-667-1 01 1 9612-9711 ● ● ● ● ●
37 09.786 LEVER; MODE LEVER 8-97101-667-1 01 1 9712- ● ● ● ● ● ●
38 09.787 CLIP; BLOWER UNIT 8-94337-654-0 01 1 9312-9409 ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 9312-9611 ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 9612-9711 ● ● ● ● ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT 8-97101-666-1 01 1 9712- ● ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT 8-97085-641-0 01 1 9312-9406 ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9407-9611 ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9612-9711 ● ● ● ● ●
42 08.857 FILTER; BLOWER UNIT
AIR CONDITIONER MANUAL CONT(C60) 09.170 		8-97085-611-1 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97101-647-2 01 1 9312-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97101-647-2 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(A) 		8-97101-647-2 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 9312-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(B) 		8-97101-648-1 01 1 9712- ● ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 9312-9611 ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 9612-9711 ● ● ● ● ●
49 08.857 CASE; BLOWER UNIT
(C) 		8-97101-649-0 01 1 9712- ● ● ● ● ● ●
71 08.857 CLIP; HARNESS
09.216 		8-97061-837-0 01 1 9312-9506 ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9507-9611 ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9612-9711 ● ● ● ● ●
71 08.857 CLIP; HARNESS 1-83574-080-0 01 1 9712- ● ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 11 1 9312-9406 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 09 1 9407-9506 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9507-9611 ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9612-9711 ● ● ● ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 		8-94324-850-0 08 1 9712- ● ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9312-9611 ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9612-9711 ● ● ● ● ●
112 08.857 ISOLATOR; CASE 8-97096-641-0 02 1 9712- ● ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9312-9611 ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9612-9711 ● ● ● ● ●
113 08.857 BUSHING; ISOLATOR 8-97096-642-0 02 1 9712- ● ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9312-9611 ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9612-9711 ● ● ● ● ●
114 08.857 NUT; ISOLATOR
00.854 M8 FLANGE 		5-09440-005-0 02 1 9712- ● ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 01 1 9312-9611 ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 01 1 9612-9711 ● ● ● ● ●
118 08.857 BRACKET; BUSHING 8-97107-979-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
