Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-40A - FUEL INJECTION SYSTEM
▶
0-40A — FUEL INJECTION SYSTEM
(#438) — 91 parça
Tümü
A - 6RA1TC ENG
B - 6RB1TC ENG
C - 6RB1 TURBO ENG
◀

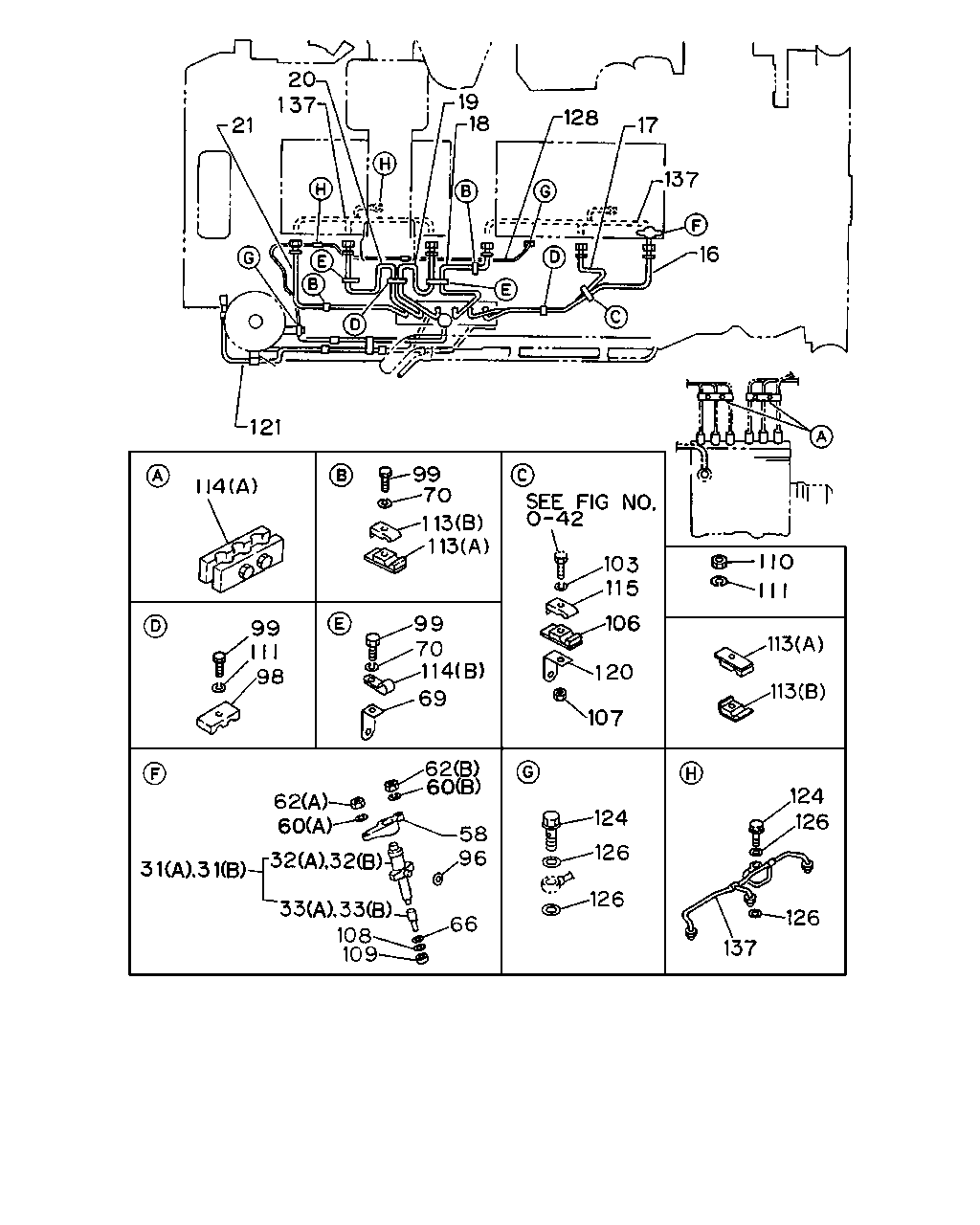

[040A] NO.2 (47 parça)
[040A] NO.1 (22 parça)
[040A] NO.3 (22 parça)
▶
20
19
137
21
18
128
17
137
16
121
114
99
113
70
113
103
99
99
111
98
70
114
69
115
110
111
113
113
106
120
107
124
31
31
62
60
62
60
32
32
33
33
108
109
58
96
126
126
124
126
126
137
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
16
PIPE; INJ NO.1
1-15413-041-0
01
1
8712-
●
●
●
17
PIPE; INJ NO.2
1-15413-042-0
01
1
8712-
●
●
●
18
PIPE; INJ NO.3
1-15413-043-0
01
1
8712-
●
●
●
19
PIPE; INJ NO.4
1-15413-044-0
01
1
8712-
●
●
●
20
PIPE; INJ NO.5
1-15413-045-0
01
1
8712-
●
●
●
21
PIPE; INJ NO.6
1-15413-046-0
01
1
8712-
●
●
●
31
NOZZLE ASM; INJ
(B)
1-15300-159-1
06
1
8712-
●
●
31
NOZZLE ASM; INJ
(A)
1-15300-041-1
06
1
8712-9306
●
32
HOLDER ASM; NOZZLE
(B)
1-15330-042-2
06
1
8712-
●
●
32
HOLDER ASM; NOZZLE
(A)
9-15330-085-2
06
1
8712-9306
●
33
NOZZLE; INJ
(B)
1-15311-156-0
06
1
8712-
●
●
33
NOZZLE; INJ
(A)
1-15311-073-0
06
1
8712-9306
●
58
FLANGE; INJ,NOZZLE HOLDER
9-15337-017-0
06
1
8712-
●
●
●
60
WASHER; NOZZLE HOLDER
(B) ID=10
1-09503-033-1
06
1
8712-
●
●
●
60
WASHER; NOZZLE HOLDER
(A) ID=8.4 OD=16
1-09503-039-0
06
1
8712-
●
●
●
62
NUT; NOZZLE HOLDER
(B) M8
9-09110-408-0
06
1
8712-
●
●
●
62
NUT; NOZZLE HOLDER
(A) M10
9-09110-510-0
06
1
8712-
●
●
●
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.8 OD=18
9-15315-075-0
06
1
8712-
●
●
●
69
BRACKET; INJ PIPE CLIP
1-15419-103-0
01
1
8712-9001
●
●
69
BRACKET; INJ PIPE CLIP
1-15419-103-0
02
1
8712-9404
●
●
69
BRACKET; INJ PIPE CLIP
1-15419-103-0
01
1
9405-
●
70
WASHER; LK,BRKT
ID=5.1
9-09150-505-0
05
1
8712-
●
●
●
96
GASKET; HOLDER TO SLEEVE NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09639-019-0
06
1
8712-
●
●
●
98
CLIP; "A",INJ PIPE
9-15419-613-0
01
1
8712-
●
●
●
99
BOLT; CLIP,INJ,PIPE
M5X20
9-09802-539-0
01
1
8712-
●
●
●
99
BOLT; CLIP,INJ,PIPE
M5X10
9-92050-510-0
01
1
8712-9005
●
●
●
99
BOLT; CLIP,INJ,PIPE
M5X10
0-20800-510-0
01
1
9006-
●
●
103
WASHER; LK,CLIP,INJ PIPE
ID=5.1
9-09150-505-0
02
1
8712-9001
●
●
●
103
WASHER; LK,CLIP,INJ PIPE
ID=5.1
9-09150-505-0
01
1
9002-
●
●
106
CLIP; INJ PIPE
9-15419-613-0
06
1
8712-9306
●
107
NUT; INJ PIPE CLIP
M5
9-99110-405-0
04
1
8712-
●
●
●
108
GASKET; SLEEVE NUT TO HD
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09639-018-0
06
1
8712-
●
●
●
109
NUT; GASKET
M18.5
9-15419-105-0
06
1
8712-
●
●
●
110
NUT; CLIP
M10
9-09110-410-0
04
1
8712-9001
●
110
NUT; CLIP
M10
9-09110-410-0
02
1
9002-9306
●
111
WASHER; LK,CLIP
ID=10.2
9-09150-510-0
02
1
8712-9306
●
113
CLIP; INJ PIPE
(A)
1-09700-110-0
02
1
8712-
●
●
●
113
CLIP; INJ PIPE
(B)
1-15419-102-0
02
1
8712-
●
●
●
114
CLIP; INJ PIPE
(A) ID=6
1-15419-099-0
02
1
8712-
●
●
●
114
CLIP; INJ PIPE
(B) ID=7 L=20
9-09524-632-0
01
1
8712-
●
●
●
115
CLIP; "B",INJ PIPE
9-15419-614-0
01
1
8712-
●
●
●
120
BRACKET; INJ PIPE
1-15419-103-0
01
1
8712-
●
●
121
PIPE; FUEL,FEED PUMP,SUCTION
1-15414-092-0
01
1
8712-
●
●
●
124
BOLT; EYE LEAK OFF PIPE
M8X18 EYE BOLT
1-09675-037-1
05
1
8712-
●
●
●
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
10
1
8712-
●
●
●
128
PIPE ASM; INJ
1-15413-297-2
01
1
8712-
●
●
●
137
PIPE ASM; LEAK OFF
9-15413-003-1
02
1
8712-
●
●
●
2
1
3
15
4
10
6
11
7
7
8
7
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
1-15602-453-0
01
1
8712-9001
●
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
1-15602-598-2
01
1
9002-
●
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)
1-15602-458-0
01
1
8712-9001
●
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)
1-15602-457-0
01
1
8712-9001
●
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
1-15602-444-1
01
1
8712-9306
●
2
BOLT; INJ PUMP
M10X90
9-01656-090-0
04
1
8712-9004
●
●
●
2
BOLT; INJ PUMP
M10X90
0-16806-090-0
04
1
9005-
●
●
3
WASHER; LK,INJ PUMP
ID=10.2
9-09150-510-0
04
1
8712-
●
●
●
4
WASHER; INJ PUMP
ID=10.5 OD=18
9-09160-510-0
04
1
8712-
●
●
●
6
BRACKET; INJ PUMP TO C/BL
9-19751-118-1
01
1
8712-
●
●
●
7
BOLT; INJ PUMP BRKT
M10X80
9-01656-080-0
02
1
8712-9004
●
●
●
7
BOLT; INJ PUMP BRKT
M10X80
0-16806-080-0
02
1
9005-
●
●
7
BOLT; INJ PUMP BRKT
M10X40 W/LK WASHER
9-01931-040-0
01
1
8712-9002
●
●
●
7
BOLT; INJ PUMP BRKT
M10X40 W/LK WASHER
0-50051-040-0
01
1
9003-
●
●
7
BOLT; INJ PUMP BRKT
M14X55
9-91656-455-0
01
1
8712-9005
●
●
●
7
BOLT; INJ PUMP BRKT
M14X55
0-16806-455-0
01
1
9006-
●
●
8
WASHER; LK,INJ PUMP BRKT
ID=10.2
9-09150-510-0
02
1
8712-
●
●
●
8
WASHER; LK,INJ PUMP BRKT
ID=14.2
9-09150-514-0
01
1
8712-
●
●
●
10
DOWEL; INJ PUMP
OD=14 L=9
9-19759-019-1
02
1
8712-
●
●
●
11
WASHER; INJ PUMP BRKT
ID=10.5 OD=18
9-09160-510-0
01
1
8712-
●
●
●
11
WASHER; INJ PUMP BRKT
ID=15
9-09160-514-0
01
1
8712-
●
●
●
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-035-1
01
1
8712-
●
●
●
31
31
37
37
38
38
32
39
40
32
44
38
45
39
139
44
45
46
46
33
35
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
31
NOZZLE ASM; INJ
(B)
1-15300-159-1
06
1
8712-
●
●
31
NOZZLE ASM; INJ
(A)
1-15300-041-1
06
1
8712-9306
●
32
HOLDER ASM; NOZZLE
(B)
1-15330-042-2
06
1
8712-
●
●
32
HOLDER ASM; NOZZLE
(A)
9-15330-085-2
06
1
8712-9306
●
33
NOZZLE; INJ
(B)
1-15311-156-0
06
1
8712-
●
●
33
NOZZLE; INJ
(A)
1-15311-073-0
06
1
8712-9306
●
35
NUT; NOZZLE RET,NOZZLE HOLDER
(B)
1-15332-019-0
06
1
9307-
●
35
NUT; NOZZLE RET,NOZZLE HOLDER
(A)
9-15332-024-0
06
1
8712-9306
●
37
NUT; CAP,NOZZLE HOLDER
(B)
1-15334-003-0
06
1
8712-9306
●
●
37
NUT; CAP,NOZZLE HOLDER
(B)
1-15334-011-0
06
1
9307-
●
37
NUT; CAP,NOZZLE HOLDER
(A)
1-15334-001-0
06
1
8712-9306
●
38
GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
5-15339-060-0
06
1
8712-
●
●
38
GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
9-15339-056-0
06
1
8712-9306
●
39
SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
(B)
5-15345-005-0
06
1
8712-
●
●
39
SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
(A)
9-15343-011-0
06
1
8712-9306
●
40
NUT; ADJ SCREW,NOZZLE HOLDER
1-15332-002-0
06
1
8712-9306
●
44
SPRING; NOZZLE,NOZZLE HOLDER
(B)
5-15343-005-0
06
1
8712-
●
●
44
SPRING; NOZZLE,NOZZLE HOLDER
(A)
9-15343-013-0
06
1
8712-9306
●
45
ROD; PUSH,NOZZLE HOLDER
(B)
5-15341-003-0
06
1
8712-
●
●
45
ROD; PUSH,NOZZLE HOLDER
(A)
9-15341-008-0
06
1
8712-9306
●
46
PIN; NOZZLE SET,NOZZLE HOLDER
9-15347-003-0
12
1
8712-
●
●
●
139
WASHER; NOZZLE SPRING,NOZZLE HOLDER
9-15339-057-0
06
1
8712-9306
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
