8-65 — CONTROL LEVER; HEATER AND AIR CON (#43799) — 73 parça

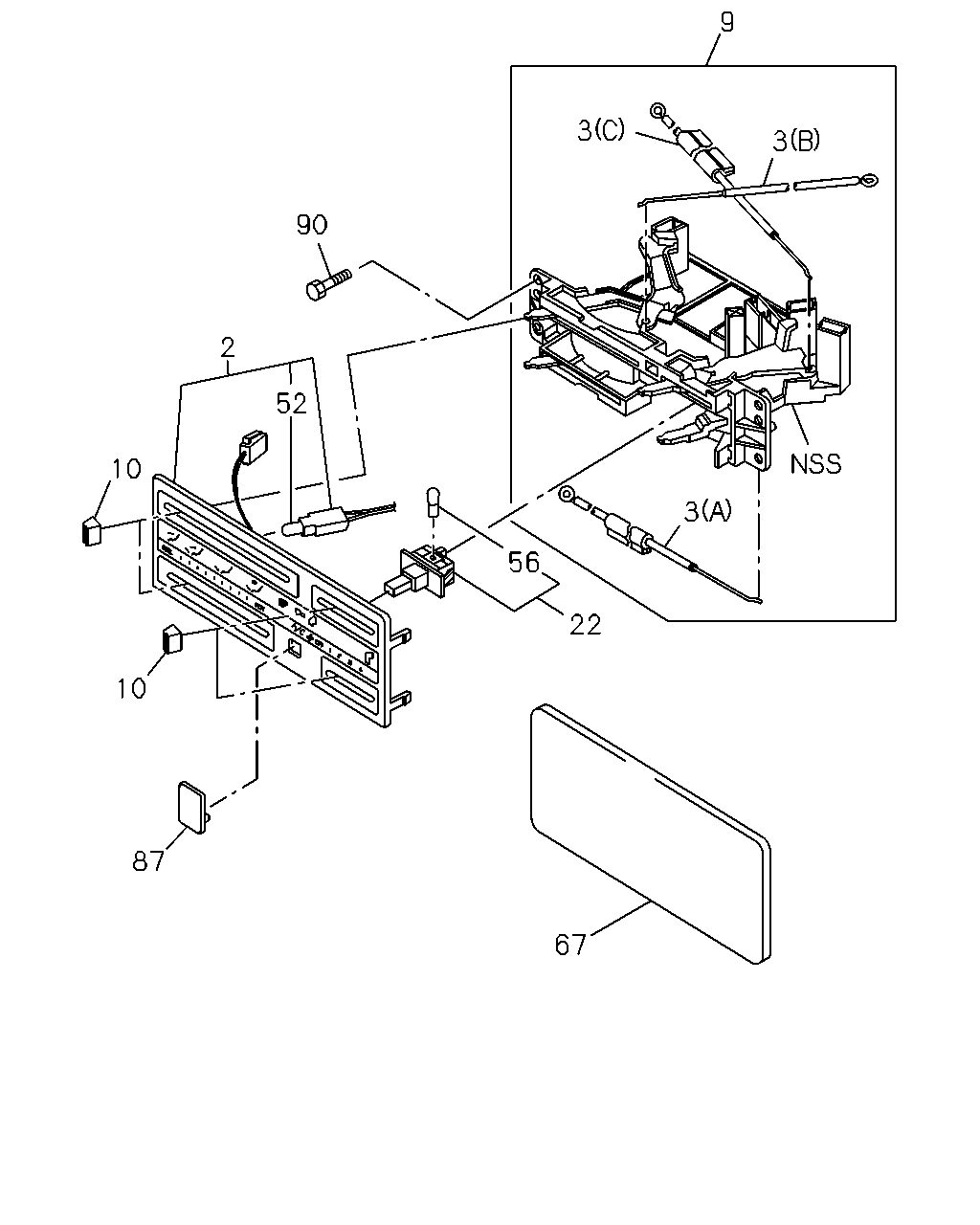

çizim 70069
9 3 3 90 2 52 10 3 56 22 10 87 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-2 01 1 9312-9611 ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-2 01 1 9612-9711 ● ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
VOLTAGE 24V<7AE> 		8-97048-331-2 01 1 9712- ● ● ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9312-9506 ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9507-9704 ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9705-9711 ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9712-9801 ● ● ● ●
2 08.852 PANEL ASM; CONT,ILLUMINATION
EXC. VOLTAGE 24V<7AE> 		8-97048-330-1 01 1 9802- ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 9312-9611 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 9612-9711 ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97101-674-0 01 1 9712- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-0 01 1 9312-9611 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-0 01 1 9612-9711 ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97102-659-0 01 1 9712- ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-0 01 1 9312-9611 ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-0 01 1 9612-9711 ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97101-660-0 01 1 9712- ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-344-0 01 1 9312-9611 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-344-0 01 1 9612-9711 ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-344-0 01 1 9712- ● ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-345-0 01 1 9312-9611 ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-345-0 01 1 9612-9711 ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-345-0 01 1 9712- ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-377-0 04 1 9312-9405 ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 9406-9611 ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 9612-9711 ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 9712- ● ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97035-377-0 03 1 9312-9405 ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 9406-9611 ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 9612-9711 ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 9712- ● ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-0 01 1 9312-9506 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 9507-9611 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-1 01 1 9507-9611 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-1 01 1 9612-9711 ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 9612-9711 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 		8-97048-329-1 01 1 9712- ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 9712- ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-94442-974-0 01 1 9312-9408 ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-97117-963-0 01 1 9409-9506 ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-97117-963-0 01 1 9507-9704 ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9507-9704 ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-97117-963-0 01 1 9705-9801 ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9705-9801 ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 		8-97117-963-0 01 1 9802- ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97117-963-0 01 1 9802- ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97100-291-0 01 1 9312-9611 ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97100-291-0 01 1 9612-9711 ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
VOLTAGE 24V<7AE> 28V 65MA 		8-97100-291-0 01 1 9712- ● ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9312-9506 ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9507-9704 ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9705-9711 ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9712-9801 ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
EXC. VOLTAGE 24V<7AE> 14V 140MA 		8-97100-290-0 01 1 9802- ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97079-939-0 01 1 9312-9611 ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97079-939-0 01 1 9612-9708 ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97182-224-0 01 1 9709-9711 ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 28V 33MA 		8-97182-224-0 01 1 9712- ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9312-9506 ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9507-9704 ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9705-9801 ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 14V 60MA 		8-94337-134-0 01 1 9802- ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 9312-9611 ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 9612-9711 ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 9712- ● ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 9312-9611 ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 9612-9711 ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 9712- ● ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9312-9410 ● ● ● ●
90 08.849 BOLT; CONT PANEL
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9411-9604 ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9604-9611 ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9612-9711 ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 9712- ● ● ● ● ● ●
