Sayfa 8-60 - Isuzu EPC

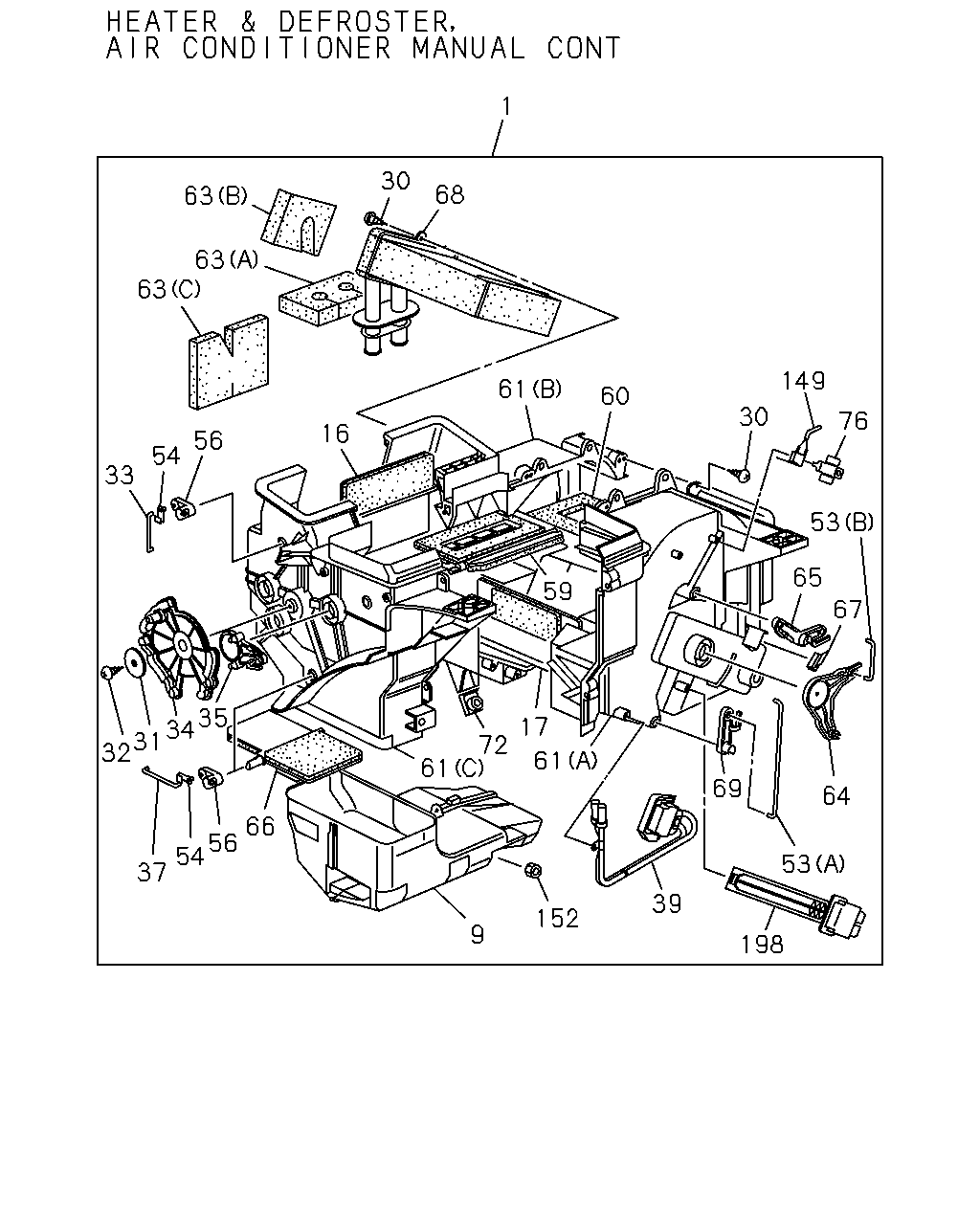

8-60 — HEATER UNIT; FRONT (#43798) — 266 parça

1 30 68 63 63 63 61 149 60 30 76 16 56 54 33 53 65 59 67 35 34 31 32 17 72 61 61 69 64 66 56 54 37 53 39 152 9 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9312-9611	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9612-9701	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9702-9711	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9712-9801	●			●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9712-9801		●	●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97174-733-2	01	1	9712-9801		●	●			●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9802-9804	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9802-9804		●	●		●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97174-733-2	01	1	9802-9804		●	●		●	●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9805-	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9805-		●	●			●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97174-733-2	01	1	9805-		●	●			●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9312-9611	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9612-9711	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9712-	●	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97188-843-1	01	1	9712-9804		●	●			●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97188-843-1	01	1	9805-		●	●			●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9312-9611	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9612-9711	●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9712-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9312-9611	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9612-9711	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9712-	●	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	9312-9611	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	9612-9711	●	●	●	●	●
17	09.786 SHUTTER; HTR UNIT,CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-640-0	01	1	9712-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9312-9611	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9612-9711	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9712-9801	●			●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9712-9801		●	●			●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	11	1	9712-9801		●	●			●
30	08.845 SCREW; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9802-9804	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9802-9804		●	●		●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	11	1	9802-9804		●	●		●	●
30	08.845 SCREW; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9805-	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9805-		●	●			●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 08.852 M4X16	8-94324-850-0	11	1	9805-		●	●			●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9312-9611	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9612-9711	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9712-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	15	1	9712-9804		●	●			●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	15	1	9805-		●	●			●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9312-9611	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9612-9711	●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9712-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 08.846 M5X16	8-94248-820-0	01	1	9312-9503	●	●	●	●
32	08.852 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 M5X16	8-94248-820-0	01	1	9504-9611	●	●	●	●
32	08.852 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 M5X16	8-94248-820-0	01	1	9612-9704	●	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	9504-9611	●	●	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 10.240 M5X20	9-09829-324-1	01	1	9612-9704	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9705-9711	●	●	●	●	●
32	08.852 SCREW; HTR UNIT 10.240 M5X20	9-09829-324-1	01	1	9712-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9312-9611	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9612-9711	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9712-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9312-9611	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9612-9711	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT	8-97101-669-0	01	1	9712-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9312-9611	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9612-9711	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9712-	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9312-9611	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9612-9711	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9712-	●	●	●	●	●	●
39	08.854 CLIP; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 08.857	8-97096-145-0	02	1	9712-9804		●	●			●
39	08.854 CLIP; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 08.857	8-97096-145-0	02	1	9805-		●	●			●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-566-0	01	1	9312-9611	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-566-0	01	1	9612-9711	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97087-566-0	01	1	9712-	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-567-1	01	1	9312-9611	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-567-1	01	1	9612-9711	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-567-1	01	1	9712-	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9312-9611	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9612-9711	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9712-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9312-9611	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9612-9711	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9712-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9312-9611	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9612-9711	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9712-	●	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-639-0	01	1	9312-9611	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-639-0	01	1	9612-9701	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	9702-9711	●	●	●	●	●
60	08.854 DOOR; MIX,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97087-556-1	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9712-9801	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9712-9801	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9712-9801		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97101-634-3	01	1	9712-9801		●	●			●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9802-9804	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9802-9804	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9802-9804		●	●		●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97101-634-3	01	1	9802-9804		●	●		●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9805-		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A)	8-97101-634-3	01	1	9805-		●	●			●
61	08.854 CASE; HTR UNIT 4HG1 ENG(RJH),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-					●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> (A)	8-97142-810-0	01	1	9712-9804		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (A)	8-97142-810-0	01	1	9805-		●	●			●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-571-0	01	1	9312-9503	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97131-323-0	01	1	9504-9611	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97131-323-0	01	1	9612-9701	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97131-580-0	01	1	9702-9711	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97131-580-0	01	1	9712-	●	●	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97101-644-0	01	1	9312-9503	●	●	●	●
63	08.856 LINING; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-97101-645-0	01	1	9312-9503	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	9312-9611	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	9612-9711	●	●	●	●	●
64	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-670-1	01	1	9712-	●	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9312-9611	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9612-9711	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9712-9801	●			●	●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-672-0	01	1	9712-9801		●	●			●
65	09.786 LEVER; MIX,DOOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97101-672-0	01	1	9712-9801		●	●			●
65	09.786 LEVER; MIX,DOOR 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9802-9804	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-672-0	01	1	9802-9804		●	●		●	●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97101-672-0	01	1	9802-9804		●	●		●	●
65	09.786 LEVER; MIX,DOOR 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-672-0	01	1	9805-	●	●	●	●	●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97101-672-0	01	1	9805-		●	●			●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97101-672-0	01	1	9805-		●	●			●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97200-276-0	01	1	9712-9804		●	●			●
65	09.786 LEVER; MIX,DOOR 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97200-276-0	01	1	9805-		●	●			●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9312-9611	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9612-9711	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9712-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9312-9611	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9612-9711	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9712-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9312-9611	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9612-9711	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9712-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-637-0	01	1	9312-9611	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-637-0	01	1	9612-9701	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-735-0	01	1	9702-9711	●	●	●	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-735-0	01	1	9712-	●	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	9312-9611	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	9612-9711	●	●	●	●	●
69	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97101-671-0	01	1	9712-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9312-9611	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9612-9711	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9712-	●	●	●	●	●	●
76	08.854 BRACKET; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97045-869-0	01	1	9712-9804		●	●			●
76	08.854 BRACKET; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97045-869-0	01	1	9805-		●	●			●
149	08.852 SWITCH ASM; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97087-582-0	01	1	9712-9804		●	●			●
149	08.852 SWITCH ASM; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97087-582-0	01	1	9805-		●	●			●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9407-9611	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9612-9711	●	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9712-	●	●	●	●	●	●
198	08.845 HEATER; ELEC 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97087-581-0	01	1	9712-9804		●	●			●
198	08.845 HEATER; ELEC 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97087-581-0	01	1	9805-		●	●			●

1 61 30 16 56 54 33 104 59 67 104 35 31 72 61 61 104 66 56 54 29 37 152 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9312-9611	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97069-814-3	01	1	9612-9701	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9702-9711	●	●	●	●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9712-9801	●			●	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9712-9801		●	●			●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97174-733-2	01	1	9712-9801		●	●			●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9802-9804	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9802-9804		●	●		●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4)	8-97174-733-2	01	1	9802-9804		●	●		●	●
1	08.845 HEATER UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97174-733-2	01	1	9805-	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97174-733-2	01	1	9805-		●	●			●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX)	8-97174-733-2	01	1	9805-		●	●			●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9312-9611	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9612-9711	●	●	●	●	●
1	08.845 HEATER UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97071-697-3	01	1	9712-	●	●	●	●	●	●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL>	8-97188-843-1	01	1	9712-9804		●	●			●
1	08.845 HEATER UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL>	8-97188-843-1	01	1	9805-		●	●			●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9312-9611	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9612-9711	●	●	●	●	●
9	08.854 DUCT; HTR UNIT	8-97101-638-0	01	1	9712-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9312-9611	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9612-9711	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR	8-97101-642-0	01	1	9712-	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9312-9611	●	●	●	●
29	08.857 COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9612-9711	●	●	●	●	●
29	08.857 COVER; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97102-661-0	01	1	9712-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9312-9611	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9612-9711	●	●	●	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9712-9801	●			●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9712-9801		●	●			●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	11	1	9712-9801		●	●			●
30	08.845 SCREW; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9802-9804	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9802-9804		●	●		●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	11	1	9802-9804		●	●		●	●
30	08.845 SCREW; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	11	1	9805-	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	11	1	9805-		●	●			●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) 08.852 M4X16	8-94324-850-0	11	1	9805-		●	●			●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9312-9611	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9612-9711	●	●	●	●	●
30	08.845 SCREW; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-94324-850-0	10	1	9712-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	15	1	9712-9804		●	●			●
30	08.845 SCREW; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 08.852 M4X16	8-94324-850-0	15	1	9805-		●	●			●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9312-9611	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9612-9711	●	●	●	●	●
31	08.852 WASHER; HTR UNIT	8-94129-950-0	01	1	9712-	●	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9312-9611	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9612-9711	●	●	●	●	●
33	09.786 ROD; SHUTTER LEVER 08.866	8-97087-566-0	01	1	9712-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9312-9611	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9612-9711	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT	8-97101-673-0	03	1	9712-	●	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9312-9611	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9612-9711	●	●	●	●	●
37	08.852 ROD; LEVER	8-97101-677-2	02	1	9712-	●	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9312-9611	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9612-9711	●	●	●	●	●
54	08.854 CLIP; SHUTTER LEVER	1-83574-136-0	03	1	9712-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9312-9611	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9612-9711	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT	8-97096-142-0	03	1	9712-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9312-9611	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9612-9711	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE	8-97101-641-0	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (A)	8-97101-634-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9712-9801	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9712-9801	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9712-9801		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97101-634-3	01	1	9712-9801		●	●			●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9802-9804	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9802-9804	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9802-9804		●	●		●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A)	8-97101-634-3	01	1	9802-9804		●	●		●	●
61	08.854 CASE; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	8-97101-634-3	01	1	9805-		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A)	8-97101-634-3	01	1	9805-		●	●			●
61	08.854 CASE; HTR UNIT 4HG1 ENG(RJH),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97101-634-3	01	1	9805-					●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT (B)	8-97101-635-3	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9312-9611	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9612-9711	●	●	●	●	●
61	08.854 CASE; HTR UNIT (C)	8-97101-636-3	01	1	9712-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4) CHARGE AIR COOLER<6PL> (A)	8-97142-810-0	01	1	9712-9804		●	●			●
61	08.854 CASE; HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> (A)	8-97142-810-0	01	1	9805-		●	●			●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9312-9611	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9612-9711	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR	8-97101-643-0	01	1	9712-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9312-9611	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9612-9711	●	●	●	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	02	1	9712-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9312-9611	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9612-9711	●	●	●	●	●
67	08.854 CLIP; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.787	8-94337-654-0	01	1	9712-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9312-9611	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9612-9711	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT	8-97085-613-0	01	1	9712-	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	9312-9611	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	9612-9711	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.845 (A)	8-94328-657-0	04	1	9712-	●	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	9312-9611	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	9612-9711	●	●	●	●	●
104	08.854 CAP; CASE,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-94387-703-0	01	1	9712-	●	●	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9407-9611	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9612-9711	●	●	●	●	●
152	08.854 NUT; HTR UNIT 08.845	8-97085-613-0	01	1	9712-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
