Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#43796) — 194 parça

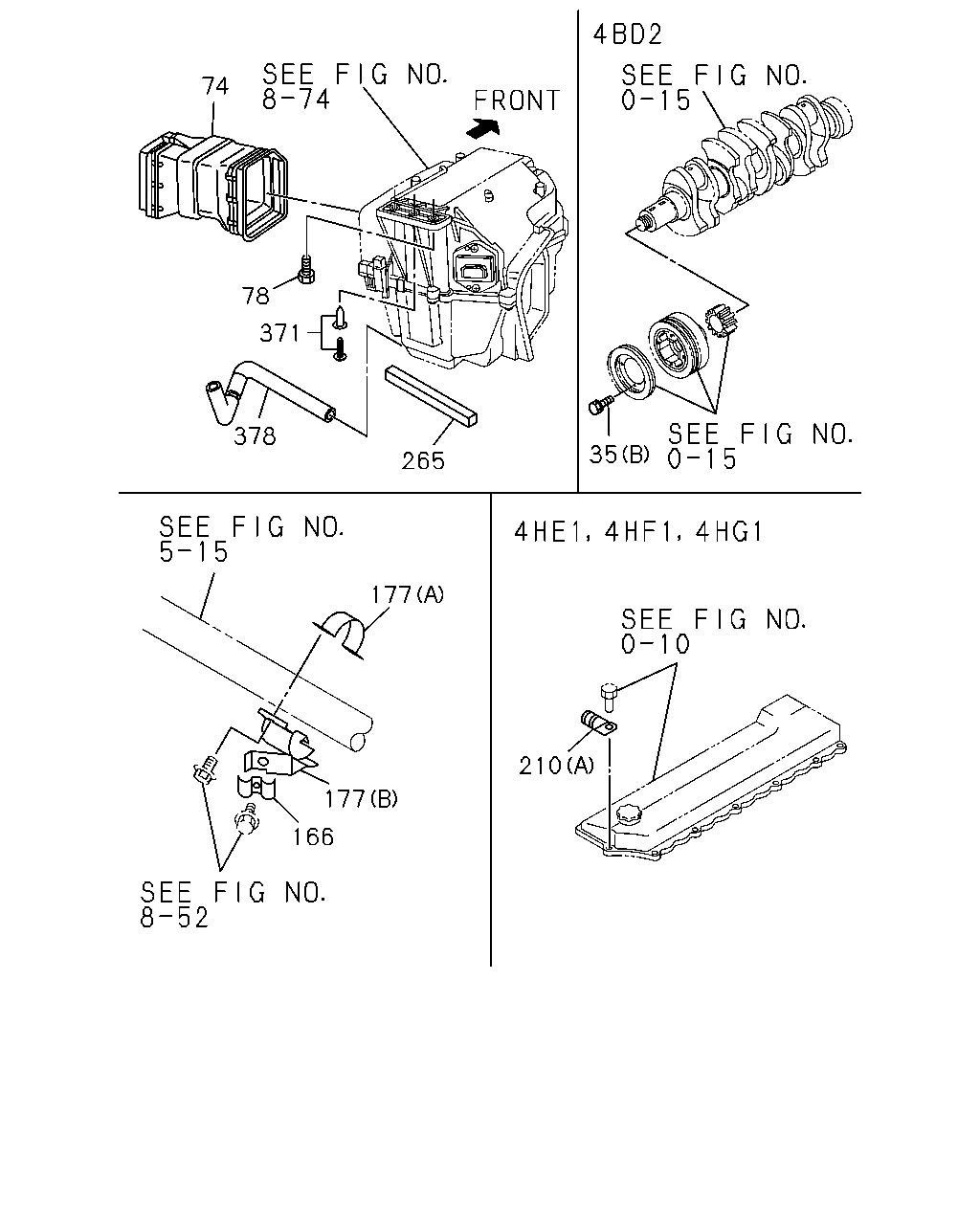

74 78 371 378 35 265 177 210 177 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9502	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9503-9510	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9704		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9705-		●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97069-830-0	01	1	9312-9611	●	●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97069-830-0	01	1	9612-9711	●	●	●	●	●
74	09.215 DUCT; EVAP TO HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-97069-830-1	01	1	9712-	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9312-9506	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9507-9605	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9507-9605	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9606-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 01.540 M6X20	0-28280-620-0	02	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	9312-9404	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9405-9605	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-9611	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9612-9711	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9606-9611	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9612-9711	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9406-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 04.104 M10X45 W/LK&PL WASHER	0-50141-045-0	01	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	04	1	9406-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	04	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	9406-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 16.335 M8X20 FLANGE	0-28280-820-0	01	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9406-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9406-9711	●	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9712-	●	●	●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9406-9506		●
78	09.211 BOLT; EVAP,A/C 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 01.840 M10X40 W/LK&PL WASHER	0-50141-040-0	01	1	9507-	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	9312-9611	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	9612-9711	●	●	●	●	●
166	09.226 BRACKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97090-310-1	01	1	9712-	●	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	9312-9611	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	9612-9711	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97087-192-0	01	1	9712-	●	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-771-0	01	1	9312-9611	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-771-0	01	1	9612-9711	●	●	●	●	●
177	09.242 BRACKET; PIPE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97096-771-0	01	1	9712-	●	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9312-9406	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9409-9611	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711	●	●	●		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9712-	●	●	●		●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-9502	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9503-9611	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9612-9711	●	●	●		●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-	●	●	●		●	●
265	09.260 LINING; COOLER UNIT 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97100-512-0	01	1	9406-9711	●	●	●	●
265	09.260 LINING; COOLER UNIT 4JG2 ENG(RJC),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60)	8-97100-512-1	01	1	9712-	●	●	●
371	09.211 CLIP; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 04.594 GRAY	8-94350-828-0	01	1	9312-9504	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	9312-9611	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	9612-9711	●	●	●	●	●
378	09.211 HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-97096-815-0	01	1	9712-	●	●	●	●	●	●

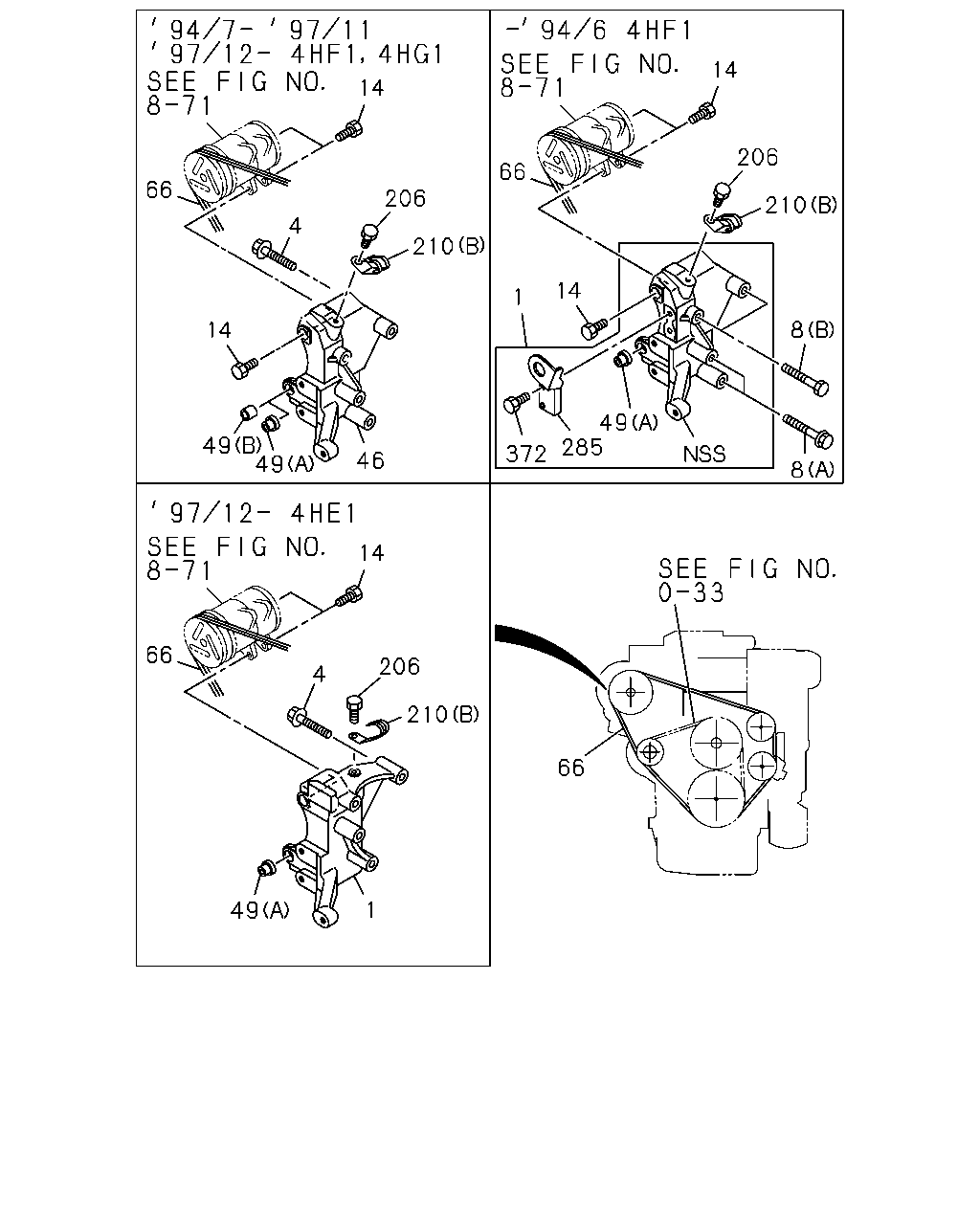

14 14 206 66 66 206 210 4 14 1 8 14 49 285 49 49 372 46 8 14 66 206 4 210 66 49 1 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
1	09.242 BRACKET; A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97065-502-2	01	1	9312-9406	●	●	●
1	09.242 BRACKET; A/C 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97116-230-2	01	1	9712-9801		●	●		●
1	09.242 BRACKET; A/C 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60)	8-97116-230-2	01	1	9802-		●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	02	1	9503-9511	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9512-9611	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9612-9711	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 M10X90 FLANGE	0-28181-090-0	01	1	9712-	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9503-9611	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9612-9711	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE	8-94399-863-1	02	1	9712-	●	●	●	●	●
4	09.171 BOLT; A/C CMPR BRKT 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE	8-94397-359-1	02	1	9712-9801		●	●		●
4	09.171 BOLT; A/C CMPR BRKT 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE	8-94397-359-1	02	1	9802-		●	●	●	●
8	09.171 BOLT; BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.173 (A) M10X90 FLANGE	0-28181-090-0	02	1	9312-9406	●	●	●
8	09.171 BOLT; BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.683 (B) M10X55 FLANGE	8-94399-863-1	02	1	9312-9406	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9312-9611	●	●	●
14	09.171 BOLT; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9612-9711	●	●	●	●
14	09.171 BOLT; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40	0-28281-040-0	04	1	9712-	●	●	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-228-0	01	1	9407-9412	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-030-0	01	1	9501-9511	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-247-0	01	1	9512-9604	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9604-9611	●	●	●
46	09.171 BRACKET; CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9612-9711	●	●	●	●
46	09.171 BRACKET; CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97147-029-0	01	1	9712-	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9312-9502	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9503-9604	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9604-9611	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9612-9711	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97147-059-0	02	1	9712-	●	●	●	●
49	09.171 COLLAR; BRKT,CMPR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9712-9801		●	●		●
49	09.171 COLLAR; BRKT,CMPR 4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94201-057-1	02	1	9802-		●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9611	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●	●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9312-9406	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9409-9611	●	●	●
206	09.242 BOLT; CLIP BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9612-9711	●	●	●	●
206	09.242 BOLT; CLIP BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 M6X12 FLANGE	0-28280-612-0	01	1	9712-	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9312-9406	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9409-9611	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9612-9711	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	9712-	●	●	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9312-9502	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9503-9611	●	●	●
210	09.242 CLIP; HARNESS 4HF1 ENG(RLS) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9612-9711	●	●	●	●
210	09.242 CLIP; HARNESS 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-	●	●	●	●	●
285	09.190 HANGER; ENG BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97065-504-1	01	1	9312-9406	●	●	●
372	09.171 BOLT; HANGER,CMPR BRKT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9312-9406	●	●	●

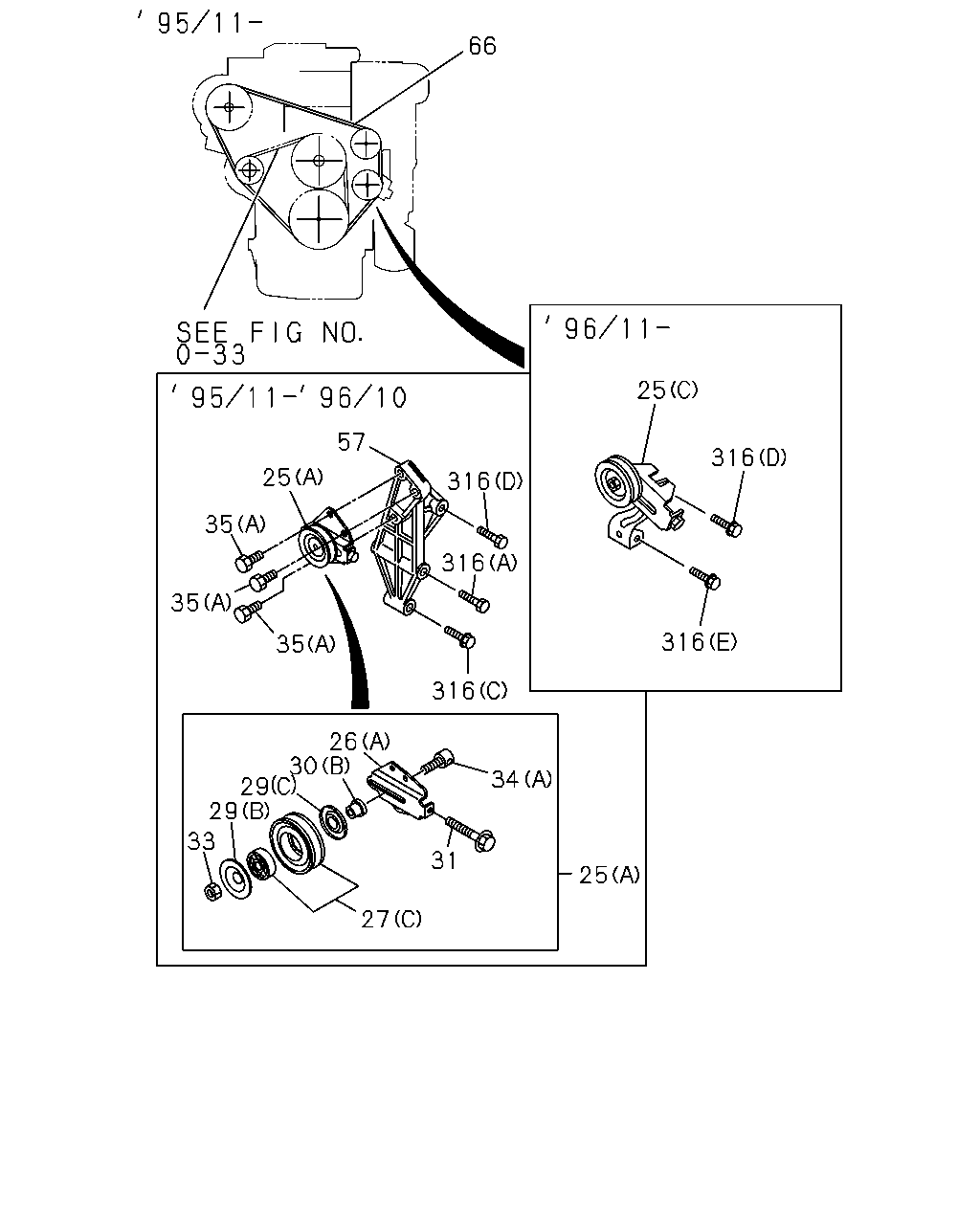

66 25 30 29 34 26 27 25 57 35 35 35 316 25 316 35 35 26 26 30 29 29 34 34 39 33 31 31 27 27 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9610	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9611	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9612-9711	●	●	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-361-0	01	1	9312-9502	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9503-9610	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9312-9510	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94200-984-1	01	1	9312-9502	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9312-9510	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-862-0	01	1	9503-9610	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9312-9510	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9503-9610	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9503-9610	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9312-9510	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9503-9610	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9312-9502	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9503-9610	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9503-9610	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9312-9510	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9312-9502	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9503-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9502	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9503-9510	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9704		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9705-		●	●	●
39	09.181 WASHER; LK,ADJ BOLT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	1-83579-492-0	01	1	9312-9502	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9312-9502	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9503-9510	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-248-0	01	1	9511-9610	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9611	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●		●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9312-9610	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9612-9711	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9312-9510	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9511-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9612-9711	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 (C) M10X50 FLANGE	0-28181-050-0	01	1	9511-9511	●	●	●

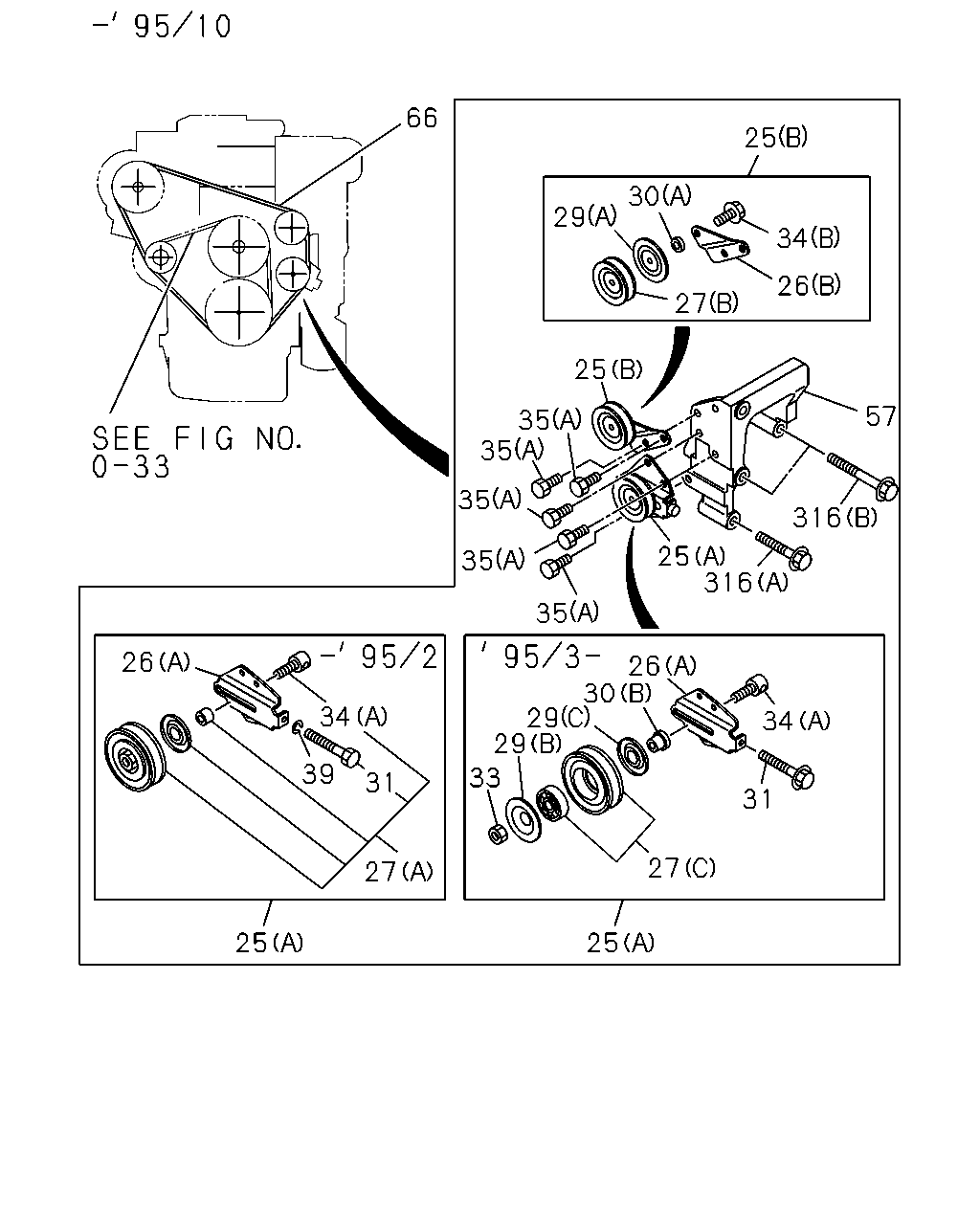

66 25 57 316 25 316 35 316 35 316 35 316 26 30 29 29 34 33 31 25 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE	8-94334-696-2	01	1	9312-9610	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9611-9611	●	●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9612-9711	●	●	●		●
25	09.180 PULLEY ASM; IDLER,CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE	8-97161-198-0	01	1	9712-	●	●	●		●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE	8-94334-873-0	01	1	9312-9510	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-361-0	01	1	9312-9502	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-633-0	01	1	9503-9610	●	●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97060-362-0	01	1	9312-9510	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94200-984-1	01	1	9312-9502	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	9-13663-606-0	01	1	9312-9510	●	●	●
27	09.180 PULLEY; IDLE,A/C 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97167-862-0	01	1	9503-9610	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	9-13369-603-0	01	1	9312-9510	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-629-0	01	1	9503-9610	●	●	●
29	09.181 COVER; DUST,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (C)	8-97126-630-0	01	1	9503-9610	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-94340-702-0	01	1	9312-9510	●	●	●
30	09.181 COLLAR; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97126-632-0	01	1	9503-9610	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 06.665	8-94238-324-0	01	1	9312-9502	●	●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-638-0	01	1	9503-9610	●	●	●
33	09.181 NUT; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97126-639-0	01	1	9503-9610	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 02.277 (B) M10X30	0-28121-030-0	01	1	9312-9510	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97060-285-0	01	1	9312-9502	●	●	●
34	09.181 SHAFT; IDLE PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97126-631-0	01	1	9503-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9312-9502	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	05	1	9503-9510	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9610	●	●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9312-9704		●	●
35	09.181 BOLT; IDLER PULLEY TO C/BL 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 03.704 (B) M8X16 W/LK WASHER	0-50040-816-0	04	1	9705-		●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9312-9502	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97081-262-2	01	1	9503-9510	●	●	●
57	09.171 BRACKET; IDLER PULLEY 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97136-248-0	01	1	9511-9610	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97014-702-2	01	1	9312-9407	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9408-9611	●	●	●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97094-448-1	01	1	9612-9706	●	●	●		●
66	01.066 BELT; A/C CMPR 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9707-9711	●	●	●		●
66	01.066 BELT; A/C CMPR 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569	8-97180-183-0	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X100 FLANGE	0-28181-000-0	01	1	9312-9610	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9611-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9612-9711	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (E) M10X65 FLANGE	8-94344-540-1	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 03.330 (B) M10X60 FLANGE	0-28181-060-0	02	1	9312-9510	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9511-9611	●	●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9612-9711	●	●	●		●
316	09.242 BOLT; BRKT FIX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (D) M8X50 FLANGE	0-28080-850-0	01	1	9712-	●	●	●		●	●
316	09.242 BOLT; BRKT FIX 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60) 08.900 (C) M10X50 FLANGE	0-28181-050-0	01	1	9511-9511	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
