Sayfa 8-45 - Isuzu EPC

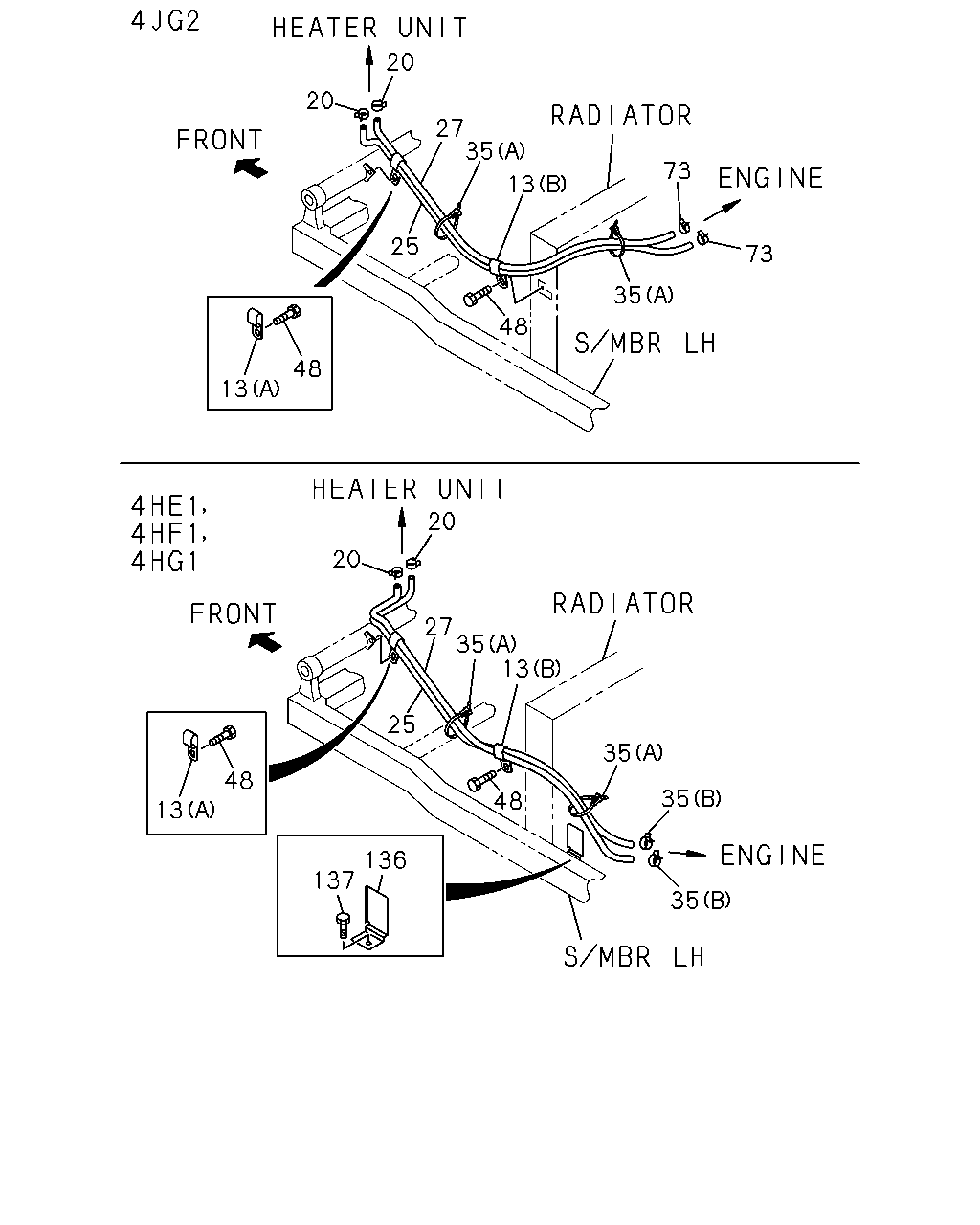

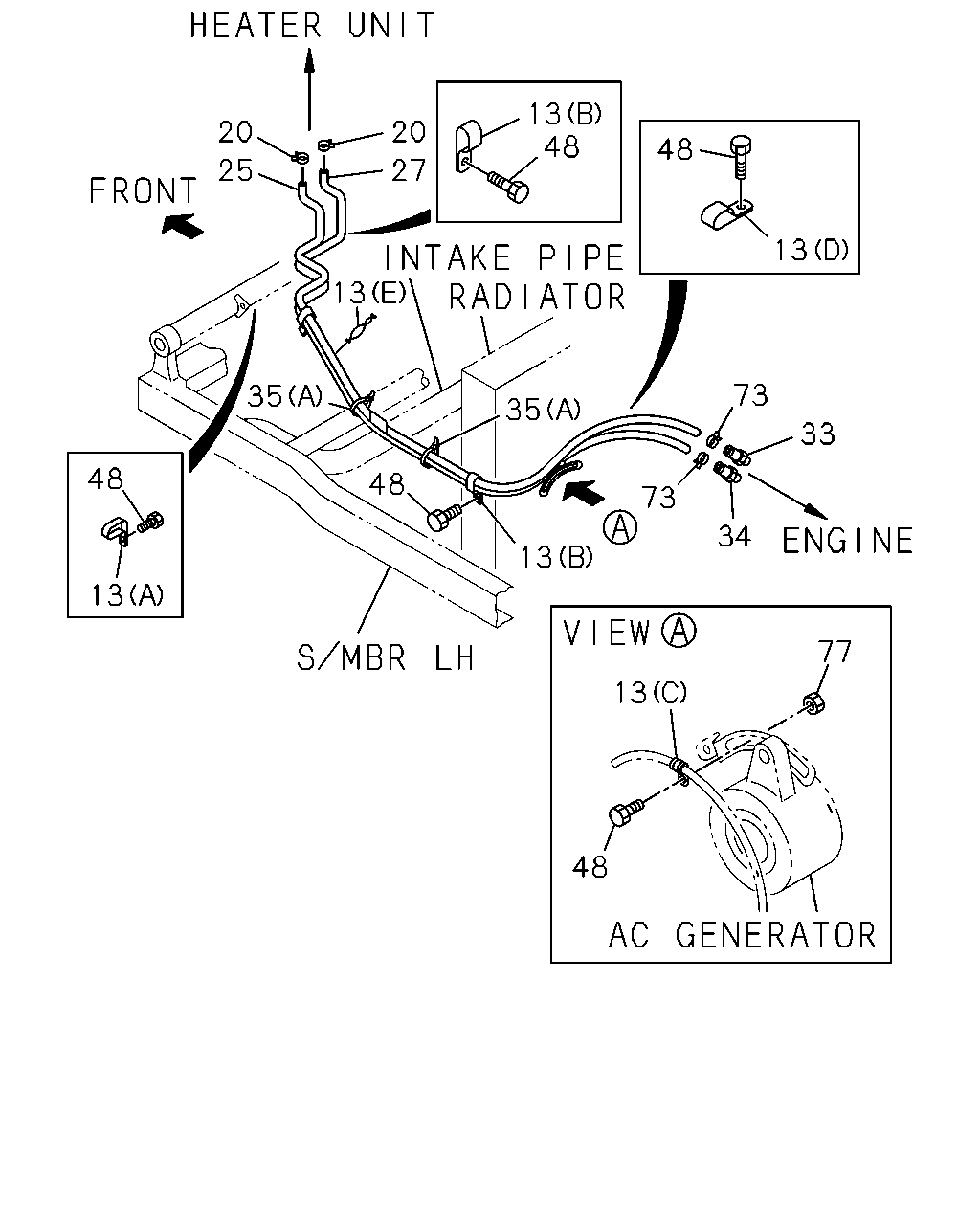

8-45 — HEATER PIPING (#43795) — 384 parça

13 48 20 20 48 25 27 13 13 73 35 35 33 48 48 73 34 13 13 77 13 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9405-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-9704		●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9705-9709		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9312-9312	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9401-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9707-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9312-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9612-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97107-386-0	01	1	9312-9504	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97129-249-0	01	1	9505-9510	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-460-4	01	1	9312-9502	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-460-4	01	1	9503-9504	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9505-9611	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9612-9711	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9712-9801	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-224-1	01	1	9712-9801		●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9802-	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-224-1	01	1	9802-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-458-3	01	1	9312-9504	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-248-0	01	1	9505-9711	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-248-0	01	1	9712-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97073-459-3	01	1	9312-9504		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-229-0	01	1	9505-9506		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-229-0	01	1	9507-9710	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97188-335-0	01	1	9711-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-860-3	01	1	9712-9801		●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-860-3	01	1	9802-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97107-385-0	01	1	9312-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97129-255-0	01	1	9505-9510	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9312-9502	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9503-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9505-9611	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9612-9711	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9712-9801	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9802-	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9802-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-463-3	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9505-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97073-464-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9507-9710	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97188-336-0	01	1	9711-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV)	8-97093-355-3	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV)	8-97105-966-0	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97105-966-2	01	1	9402-9504		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9505-9711		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9802-		●	●		●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9611	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-		●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	02	1	9401-9410		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9704		●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9705-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9704		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9705-9711		●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-				●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9802-		●	●		●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-	●	●	●	●
77	08.866 NUT; WATER HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9510	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-	●	●	●	●

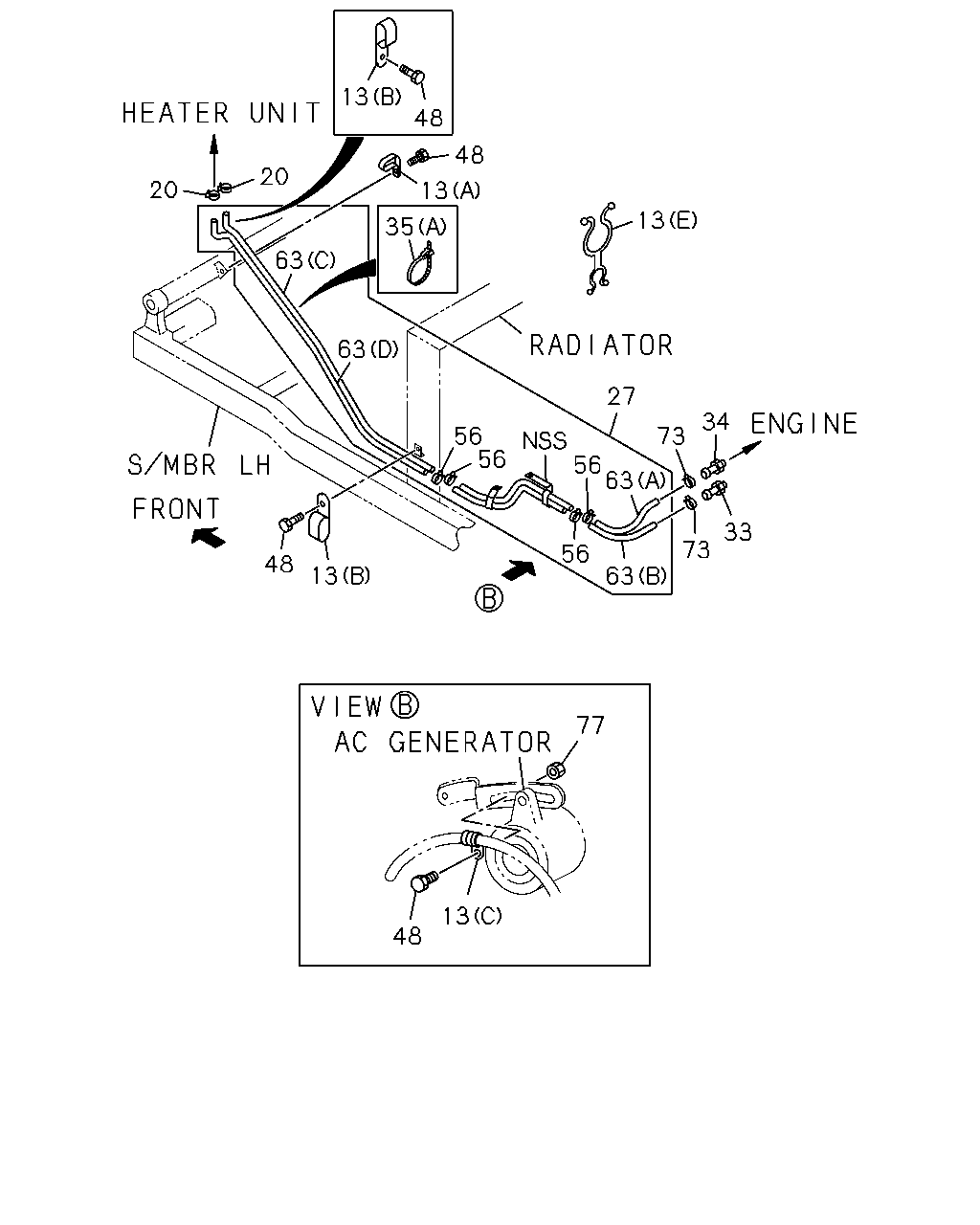

13 48 48 20 20 13 13 35 63 63 27 34 56 56 73 56 63 33 73 56 48 13 63 77 13 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9405-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-9704		●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9705-9709		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9312-9312	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9401-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9707-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9312-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9612-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97107-385-0	01	1	9312-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97129-255-0	01	1	9505-9510	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9312-9502	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9503-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9505-9611	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9612-9711	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9712-9801	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9802-	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9802-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-463-3	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9505-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97073-464-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9507-9710	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97188-336-0	01	1	9711-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV)	8-97093-355-3	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV)	8-97105-966-0	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97105-966-2	01	1	9402-9504		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9505-9711		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9802-		●	●		●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
33	08.866 UNION; WATER HOSE,ENG OUT 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9312-9510	●	●	●	●
34	08.866 UNION; WATER HOSE,ENG IN 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.540	9-09903-497-1	01	1	9511-	●	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9611	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-		●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	02	1	9401-9410		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9704		●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9705-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9704		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9705-9711		●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-				●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9802-		●	●		●	●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	9312-9711		●	●
56	08.846 CLAMP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	9712-		●	●
56	08.846 CLAMP; HTR HOSE HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	04	1	9712-				●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (D)	8-97106-966-0	01	1	9402-9711		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (D)	8-97106-966-0	01	1	9712-		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41) (D)	8-97106-966-0	01	1	9712-				●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (C)	8-97106-967-0	01	1	9402-9711		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (C)	8-97106-967-0	01	1	9712-		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41) (C)	8-97106-967-0	01	1	9712-				●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (B)	8-97106-969-0	01	1	9402-9711		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (B)	8-97106-969-0	01	1	9712-		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41) (B)	8-97106-969-0	01	1	9712-				●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A)	8-97106-970-0	01	1	9402-9711		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A)	8-97106-970-0	01	1	9712-		●	●
63	08.846 HOSE; WATER HEATER & DEFROSTER(C41) (A)	8-97106-970-0	01	1	9712-				●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (B) '93/12/20-	8-97106-969-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (A) '93/12/20-	8-97106-970-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (A)	8-97107-198-0	01	1	9312-9312		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (B)	8-97107-199-0	01	1	9312-9312		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (C)	8-97107-200-0	01	1	9312-9312		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (C) '93/12/20-	8-97109-132-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (D)	8-97107-202-0	01	1	9312-9312		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV) (D) '93/12/20-	8-97109-134-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV) (D)	8-97106-966-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV) (C)	8-97106-967-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV) (B)	8-97106-969-0	01	1	9312-9401		●	●
63	08.846 HOSE; WATER 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV) (A)	8-97106-970-0	01	1	9312-9401		●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-	●	●	●	●
77	08.866 NUT; WATER HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9312-9510	●	●	●	●
77	08.866 NUT; WATER HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE	0-91150-208-0	01	1	9511-	●	●	●	●

20 20 27 35 73 13 25 73 35 48 48 13 20 20 27 35 13 25 35 48 48 35 13 136 137 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	5-83574-003-0	01	1	9312-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4HF1 ENG(RLS),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	AR	1	9312-9404	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9405-9510	●	●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9511-9704		●	●
13	08.846 CLIP; HTR HOSE 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9705-9709		●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9312-9312	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9401-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=22X44 OVAL	8-94259-882-1	01	1	9612-9706	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9707-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9710-9711					●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9712-9801	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	5-83574-006-0	01	1	9802-	●	●	●		●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> (A)	5-83574-006-0	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-94480-291-0	01	1	9312-9405	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9406-9510	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.866 (C) ID=24.5 H=23 L=25	1-09700-862-0	01	1	9511-	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9312-9611	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	02	1	9612-9709	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9710-9711	●	●	●	●	●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9712-9801	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9712-9801		●	●			●
13	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=18	9-83651-948-1	01	1	9802-	●	●	●
13	08.846 CLIP; HTR HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> (B) B=18	9-83651-948-1	01	1	9802-		●	●		●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9312-9404	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BD1 ENG(LJ6),4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9405-9510	●	●	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9511-9602	●	●	●	●
13	08.846 CLIP; HTR HOSE 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 08.866 (E) L=116	8-94148-972-0	01	1	9603-	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9312-9611	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9612-9711	●	●	●	●	●
20	08.866 CLIP; WATER HOSE TO HTR PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 ID=22	8-94382-401-0	02	1	9712-	●	●	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97107-386-0	01	1	9312-9504	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97129-249-0	01	1	9505-9510	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-460-4	01	1	9312-9502	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-460-4	01	1	9503-9504	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9505-9611	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9612-9711	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9712-9801	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-224-1	01	1	9712-9801		●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-224-1	01	1	9802-	●	●	●		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-224-1	01	1	9802-		●	●		●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-458-3	01	1	9312-9504	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-248-0	01	1	9505-9711	●	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-248-0	01	1	9712-	●	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97073-459-3	01	1	9312-9504		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-229-0	01	1	9505-9506		●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-229-0	01	1	9507-9710	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4JG2 ENG(RJC) POWER STEERING<N40>	8-97188-335-0	01	1	9711-	●	●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-860-3	01	1	9712-9801		●	●			●
25	08.846 HOSE; WATER,ENG TO HTR UNIT 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-860-3	01	1	9802-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97107-385-0	01	1	9312-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD1 ENG(LJ6) HEATER & DEFROSTER(C41)	8-97129-255-0	01	1	9505-9510	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9312-9502	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97073-465-4	01	1	9503-9504	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9505-9611	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-1	01	1	9612-9711	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9712-9801	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97129-223-2	01	1	9802-	●	●	●		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL>	8-97129-223-2	01	1	9802-		●	●		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97073-463-3	01	1	9312-9504	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9505-9711	●	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BE1 ENG(RLH) HEATER & DEFROSTER(C41)	8-97129-253-0	01	1	9712-	●	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97073-464-3	01	1	9312-9504		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9505-9506		●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97129-234-0	01	1	9507-9710	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4JG2 ENG(RJC) POWER STEERING<N40>	8-97188-336-0	01	1	9711-	●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) TAIWAN EQUIPMENT(RWV)	8-97093-355-3	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) EXC. TAIWAN EQUIPMENT(RWV)	8-97105-966-0	01	1	9312-9401		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97105-966-2	01	1	9402-9504		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9505-9711		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4BD2 ENG(RLW) HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-		●	●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI HEATER & DEFROSTER(C41)	8-97129-349-0	01	1	9712-				●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9712-9801		●	●			●
27	08.846 HOSE; WATER,HTR UNIT TO WATER PI 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97148-861-2	01	1	9802-		●	●		●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9503-9611	●	●	●
35	08.852 CLIP; WATER HOSE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9612-9711	●	●	●		●
35	08.852 CLIP; WATER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22	8-94382-401-0	02	1	9712-	●	●	●		●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9312-9611	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-0	02	1	9612-9711	●	●	●	●	●
35	08.852 CLIP; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9312-9409	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9410-9502	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9503-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9511-9711	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE	0-28080-616-0	02	1	9312-9312	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 M6X14	8-94479-695-1	03	1	9401-9410	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9411-9510	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9511-9611	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	03	1	9612-9706	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	01	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9712	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-	●	●	●		●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9802-		●	●		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 01.656 M6X14	8-94479-695-1	02	1	9401-9410		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9411-9704		●	●
48	09.262 BOLT; CLIP FIX 4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.686 M6X14 FLANGE	0-28080-614-0	02	1	9705-9706	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9707-9711	●	●	●	●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●	●	●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.680 M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9312-9606		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9607-9704		●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9705-9711		●	●	●
48	09.262 BOLT; CLIP FIX 4BD2 ENG(RLW) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-		●	●
48	09.262 BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	9712-				●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-9801		●	●			●
48	09.262 BOLT; CLIP FIX 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9802-		●	●		●	●
73	08.846 CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22	8-94382-401-0	02	1	9312-9406	●	●	●	●
73	08.846 CLIP; HTR HOSE 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) HEATER & DEFROSTER(C41) ID=22	8-94382-401-0	02	1	9407-	●	●	●	●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97183-818-2	01	1	9712-9801		●	●			●
136	08.846 GUIDE; WATER HOSE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL>	8-97183-818-2	01	1	9802-		●	●		●	●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-9801		●	●			●
137	08.846 BOLT; GUIDE 4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9802-		●	●		●	●

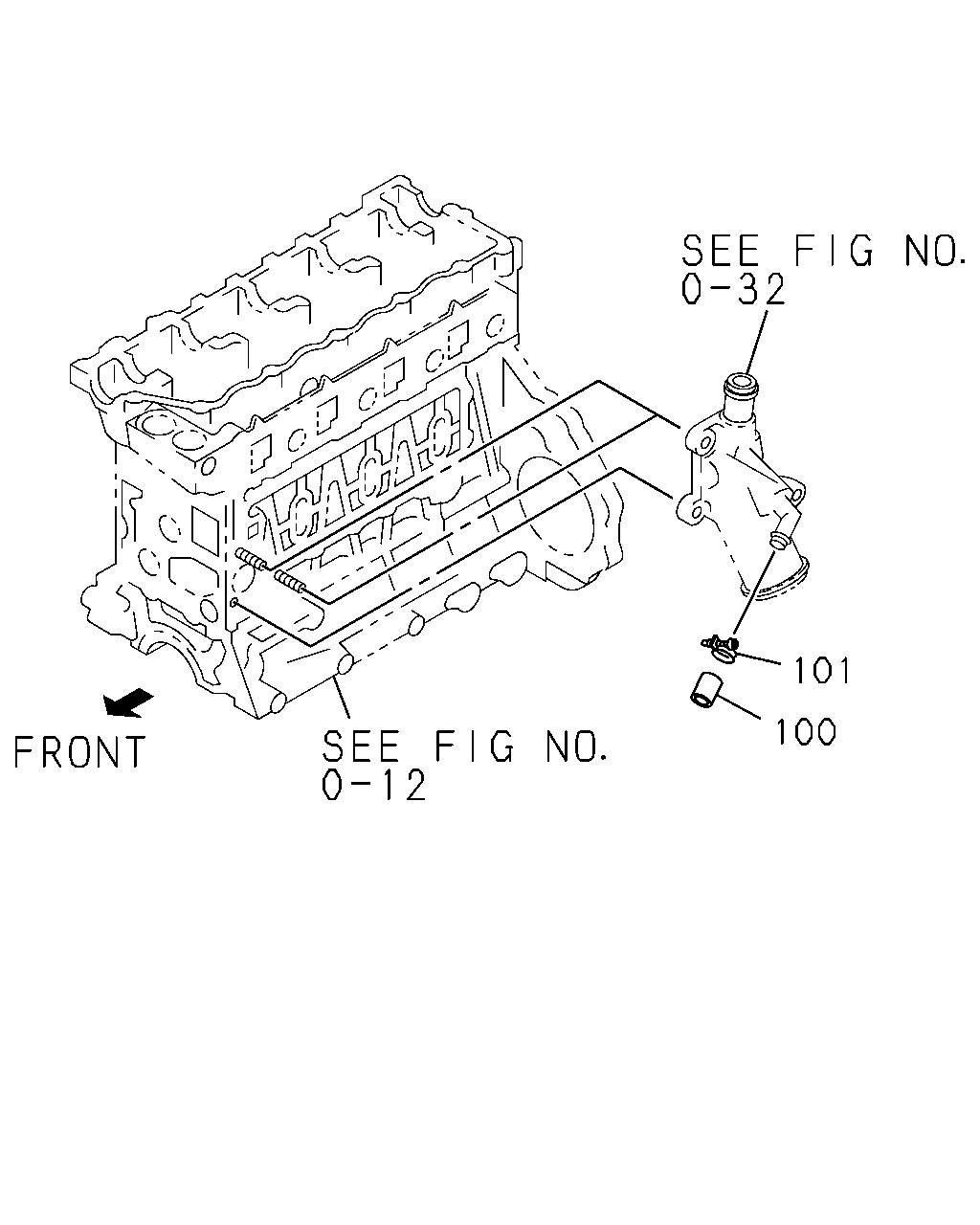

101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9312-9611	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9612-9711	●	●	●	●
100	08.846 CAP; RUBBER,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166	8-94107-793-0	01	1	9712-	●	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9312-9611	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9612-9711	●	●	●	●
101	08.846 CLIP; CAP,WATER PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 ID=25	8-94233-115-0	01	1	9712-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
