8-40 — HEATER SYSTEM (#43794) — 120 parça

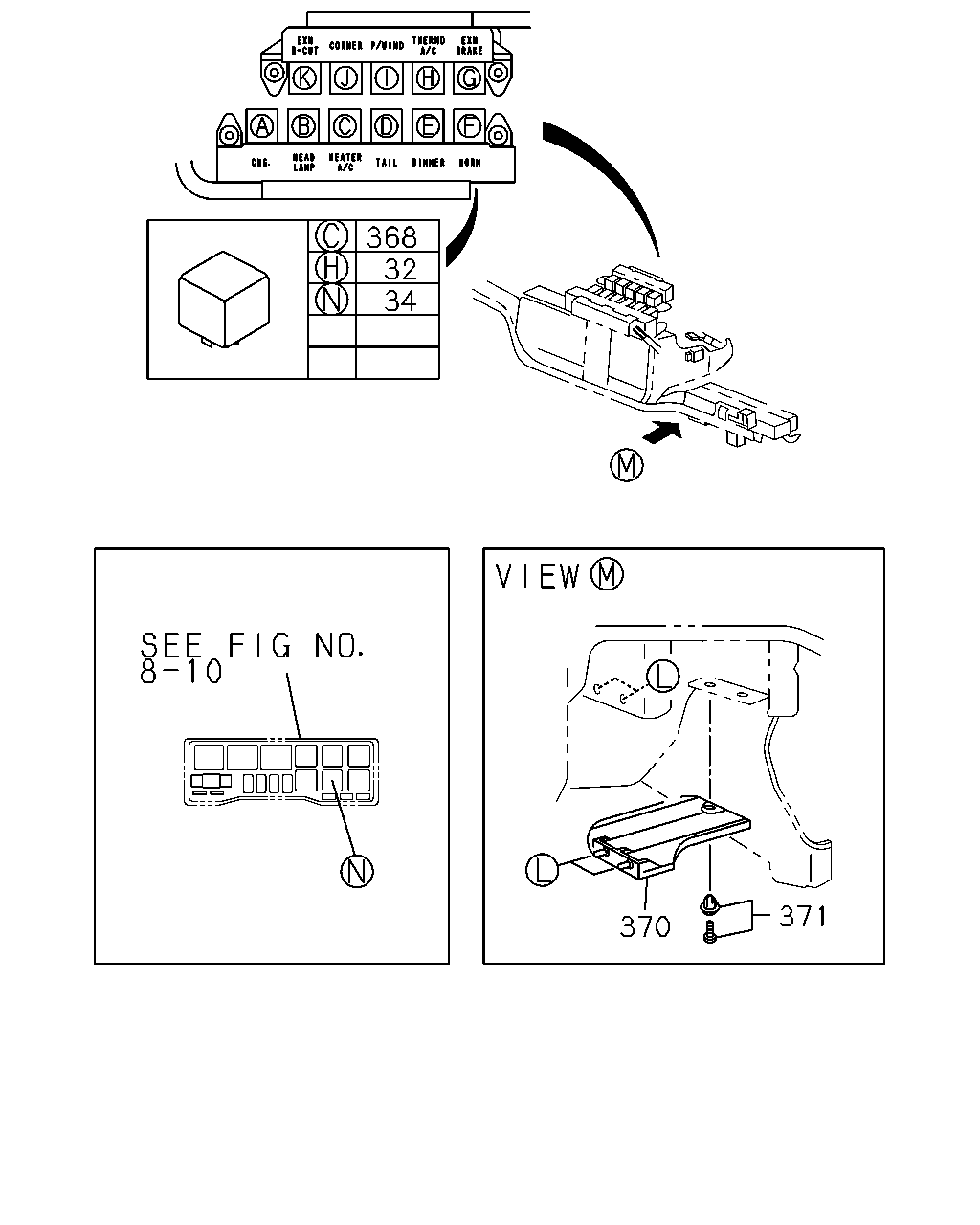

368 32 34 371 370

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9312-9611	●	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9612-9711	●	●	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●	●	●		●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-0	01	1	9312-9506		●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9507-9704	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9705-9801	●	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●
34	02.510 RELAY; A/C CUT 4BD1 ENG(LJ6),4BE1 ENG(RLH) AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A JIDECO	8-97062-815-0	01	1	9312-9505	●	●	●	●
34	02.510 RELAY; A/C CUT 4BD1 ENG(LJ6) AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A JIDECO	8-97062-815-0	01	1	9506-9510	●	●	●
368	09.277 RELAY; HEATER AND A/C VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9312-9611	●	●	●	●
368	09.277 RELAY; HEATER AND A/C VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9612-9711	●	●	●	●	●
368	09.277 RELAY; HEATER AND A/C VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●	●	●		●	●
368	09.277 RELAY; HEATER AND A/C EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-0	01	1	9312-9506		●	●
368	09.277 RELAY; HEATER AND A/C EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9507-9704	●	●	●
368	09.277 RELAY; HEATER AND A/C EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9705-9711	●	●	●	●
368	09.277 RELAY; HEATER AND A/C EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-9801	●	●	●	●
368	09.277 RELAY; HEATER AND A/C EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●
370	08.866 PLATE; BAFFLE,BLOWER UNIT	8-97856-617-0	01	1	9312-9611	●	●	●	●
370	08.866 PLATE; BAFFLE,BLOWER UNIT	8-97856-617-0	01	1	9612-9711	●	●	●	●	●
370	08.866 PLATE; BAFFLE,BLOWER UNIT	8-97856-617-0	01	1	9712-	●	●	●	●	●	●
371	08.866 FASTENER; BAFFLE PLATE 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9312-9611	●	●	●	●
371	08.866 FASTENER; BAFFLE PLATE 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9612-9711	●	●	●	●	●
371	08.866 FASTENER; BAFFLE PLATE 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9712-	●	●	●	●	●	●

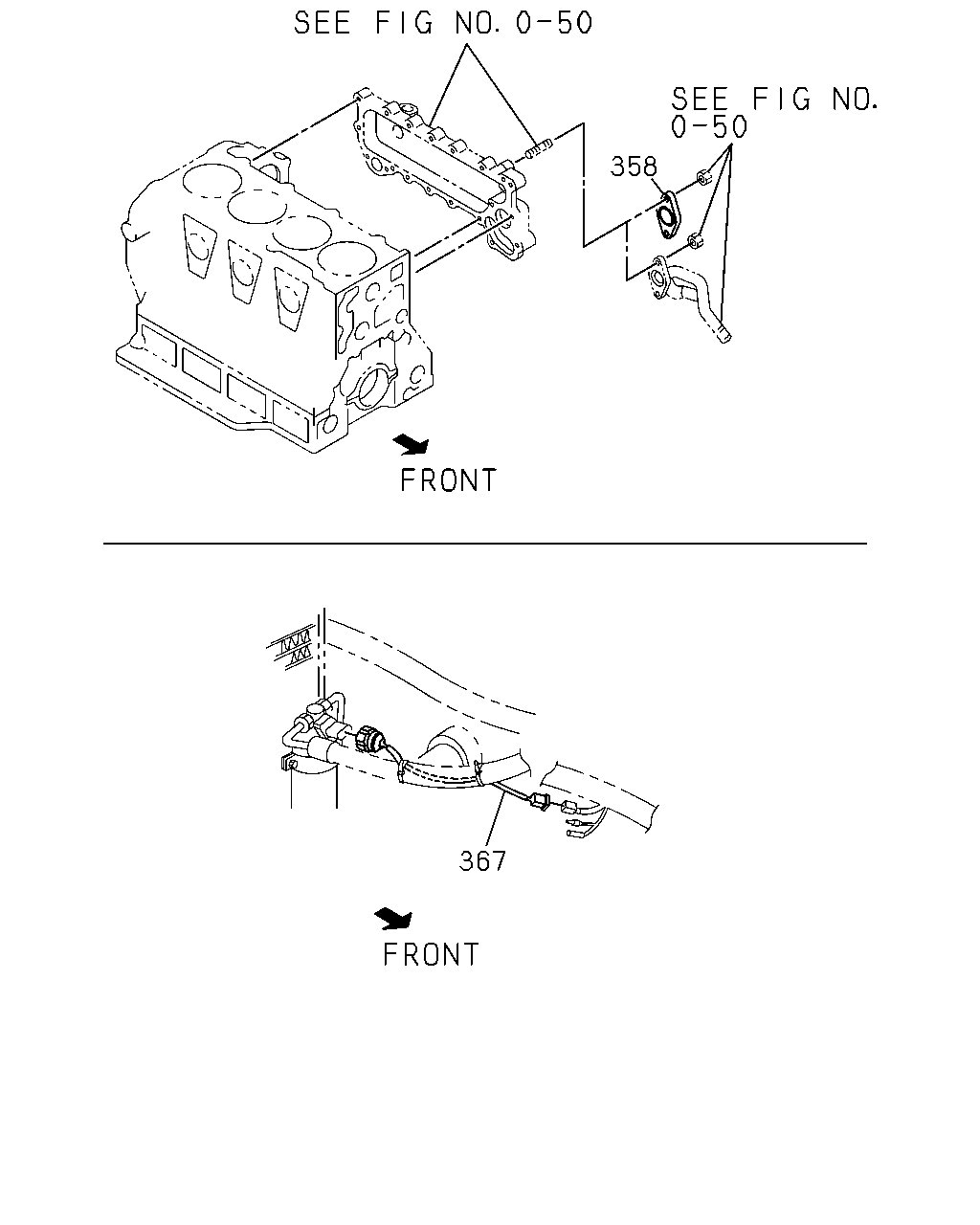

358 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
358	08.845 COVER; HEATER 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97049-052-0	01	1	9312-9604	●	●	●
358	08.845 COVER; HEATER 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	9605-9611	●	●	●
358	08.845 COVER; HEATER 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97147-028-0	01	1	9612-9711	●	●	●		●
367	08.552 HARNESS; EXT 4BE1 ENG(RLH),4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-950-0	01	1	9312-9604	●	●	●	●
367	08.552 HARNESS; EXT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-950-0	01	1	9604-9611	●	●	●
367	08.552 HARNESS; EXT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-950-0	01	1	9612-9711	●	●	●		●
367	08.552 HARNESS; EXT 4HF1 ENG(RLS) AIR CONDITIONER MANUAL CONT(C60)	8-97106-950-0	01	1	9712-	●	●	●

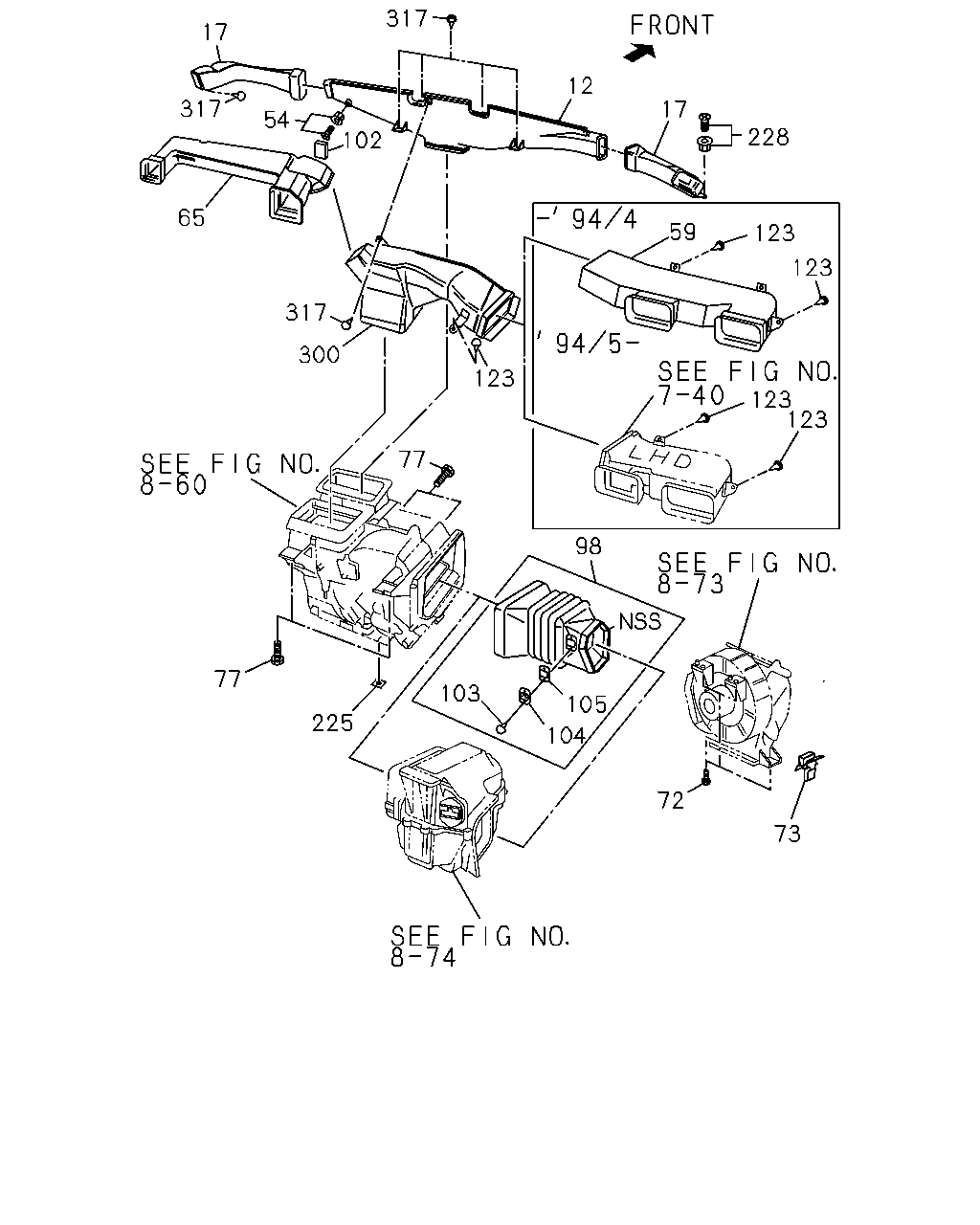

317 17 12 317 17 54 102 228 65 59 123 123 317 300 123 123 123 77 98 77 103 105 225 104 72 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	09.779 NOZZLE; DEFROSTER	8-97069-818-0	01	1	9312-9611	●	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97069-818-0	01	1	9612-9711	●	●	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97069-818-0	01	1	9712-	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97069-819-0	01	1	9312-9611	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97069-819-0	01	1	9612-9711	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97069-819-0	01	1	9712-	●	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97080-135-0	01	1	9312-9611	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97080-135-0	01	1	9612-9711	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97080-135-0	01	1	9712-	●	●	●	●	●	●
54	09.262 CLIP; VENT DUCT 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9312-9602	●	●	●	●
59	09.786 DUCT; VENT,ASSIST SIDE	8-97069-825-0	01	1	9312-9404	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE	8-97069-822-0	01	1	9312-9611	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE	8-97069-822-0	01	1	9612-9711	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE	8-97069-822-0	01	1	9712-	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 01.540 M6X20	0-28280-620-0	02	1	9312-9605	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-9611	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9612-9711	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-	●	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	9312-9611	●	●	●	●
72	08.857 BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	9612-9711	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	9712-	●	●	●	●	●	●
73	08.807 CLIP; HARNESS TO BLOWER UNIT 09.787	8-94337-654-0	01	1	9410-9611	●	●	●	●
73	08.807 CLIP; HARNESS TO BLOWER UNIT 09.787	8-94337-654-0	01	1	9612-9711	●	●	●	●	●
73	08.807 CLIP; HARNESS TO BLOWER UNIT 09.787	8-94337-654-0	01	1	9712-	●	●	●	●	●	●
77	08.845 BOLT; HTR UNIT 01.540 M6X20	0-28280-620-0	02	1	9312-9605	●	●	●	●
77	08.845 BOLT; HTR UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9606-9611	●	●	●	●
77	08.845 BOLT; HTR UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9612-9711	●	●	●	●	●
77	08.845 BOLT; HTR UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	9712-	●	●	●	●	●	●
77	08.845 BOLT; HTR UNIT M8X25	8-97103-451-0	02	1	9312-9611	●	●	●	●
77	08.845 BOLT; HTR UNIT M8X25	8-97103-451-0	02	1	9612-9711	●	●	●	●	●
77	08.845 BOLT; HTR UNIT M8X25	8-97103-451-0	02	1	9712-	●	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97069-829-0	01	1	9312-9611	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97069-829-0	01	1	9612-9711	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97069-829-1	01	1	9712-	●	●	●		●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE>	8-97069-828-0	01	1	9312-9506		●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE>	8-97069-828-0	01	1	9507-9704	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE>	8-97069-828-0	01	1	9705-9711	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE>	8-97069-828-1	01	1	9712-9801	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97069-828-1	01	1	9712-9801				●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE>	8-97069-828-1	01	1	9802-	●	●	●	●	●
102	09.262 LINING; HTR DUCT	8-97145-038-0	01	1	9603-9611	●	●	●	●
102	09.262 LINING; HTR DUCT	8-97145-038-0	01	1	9612-9711	●	●	●	●	●
102	09.262 LINING; HTR DUCT	8-97145-038-0	01	1	9712-	●	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9312-9611	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9612-9711	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	9712-	●	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97083-135-0	01	1	9312-9611	●	●	●	●
104	08.855 RESISTOR; HTR DUCT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97083-135-0	01	1	9612-9711	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97083-135-0	01	1	9712-9802	●	●	●		●	●
104	08.855 RESISTOR; HTR DUCT VOLTAGE 24V<7AE> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97177-238-0	01	1	9803-	●	●	●		●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE> 09.277	8-97083-136-0	01	1	9312-9506		●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE> 09.277	8-97083-136-0	01	1	9507-9704	●	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE> 09.277	8-97083-136-0	01	1	9705-9711	●	●	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE> 09.277	8-97083-136-1	01	1	9712-9801	●	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277	8-97083-136-1	01	1	9712-9801				●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) ,VOLTAGE 24V<7AE> 09.277	8-97083-136-1	01	1	9802-	●	●	●	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	9312-9611	●	●	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	9612-9711	●	●	●	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	9712-	●	●	●	●	●	●
123	09.786 SCREW; DUCT 16.165 M5X12 TAPPING W/PL WASHER	0-74310-512-0	05	1	9312-9404	●	●	●	●
123	09.786 SCREW; DUCT 16.067 M5X14	8-94279-325-0	02	1	9405-9408	●	●	●	●
123	09.786 SCREW; DUCT 16.165 M5X12 TAPPING W/PL WASHER	0-74310-512-0	02	1	9409-9602	●	●	●	●
123	09.786 SCREW; DUCT 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	9603-9611	●	●	●	●
123	09.786 SCREW; DUCT 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	9612-9711	●	●	●	●	●
123	09.786 SCREW; DUCT 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	9712-	●	●	●	●	●	●
225	08.845 SEAL; WATER	8-97856-616-0	04	1	9312-9611	●	●	●	●
225	08.845 SEAL; WATER	8-97856-616-0	04	1	9612-9711	●	●	●	●	●
225	08.845 SEAL; WATER	8-97856-616-0	04	1	9712-	●	●	●	●	●	●
228	09.780 CLIP; DEFROSTER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9312-9611	●	●	●	●
228	09.780 CLIP; DEFROSTER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9612-9711	●	●	●	●	●
228	09.780 CLIP; DEFROSTER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	9712-	●	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97069-823-0	01	1	9312-9611	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97069-823-0	01	1	9612-9711	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97069-823-0	01	1	9712-	●	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.165 M5X12 TAPPING W/PL WASHER	0-74310-512-0	06	1	9312-9602	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	06	1	9603-9611	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	06	1	9612-9711	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	06	1	9712-	●	●	●	●	●	●

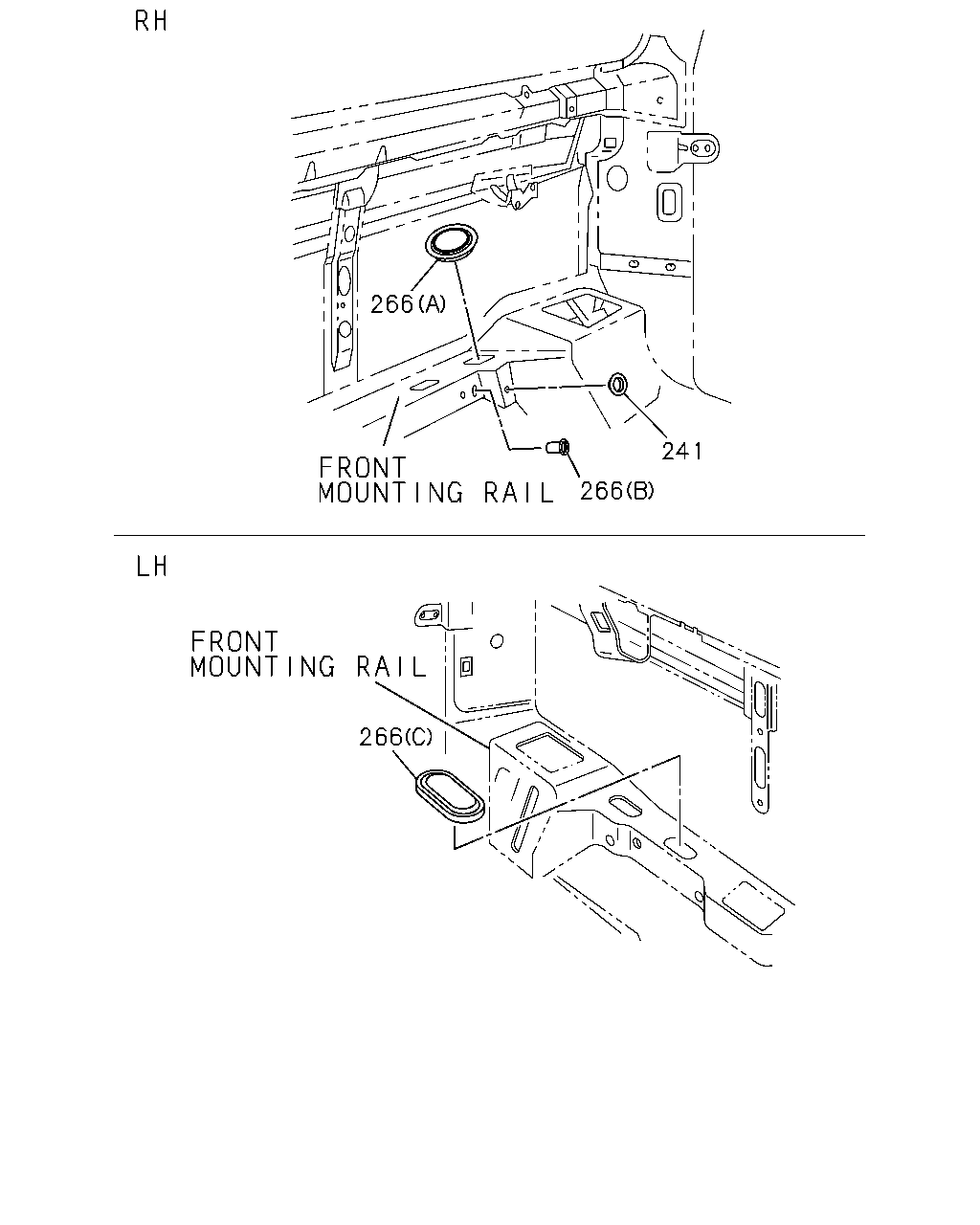

266 241 266 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	9312-9611	●	●	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	9612-9711	●	●	●	●	●
241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	9712-	●	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	9312-9611	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	9612-9711	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	9712-	●	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13	9-09756-019-0	01	1	9312-9611	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13	9-09756-019-0	01	1	9612-9711	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13	9-09756-019-0	01	1	9712-	●	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	9312-9611	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	9612-9711	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	9712-	●	●	●	●	●	●
