Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#43793) — 206 parça

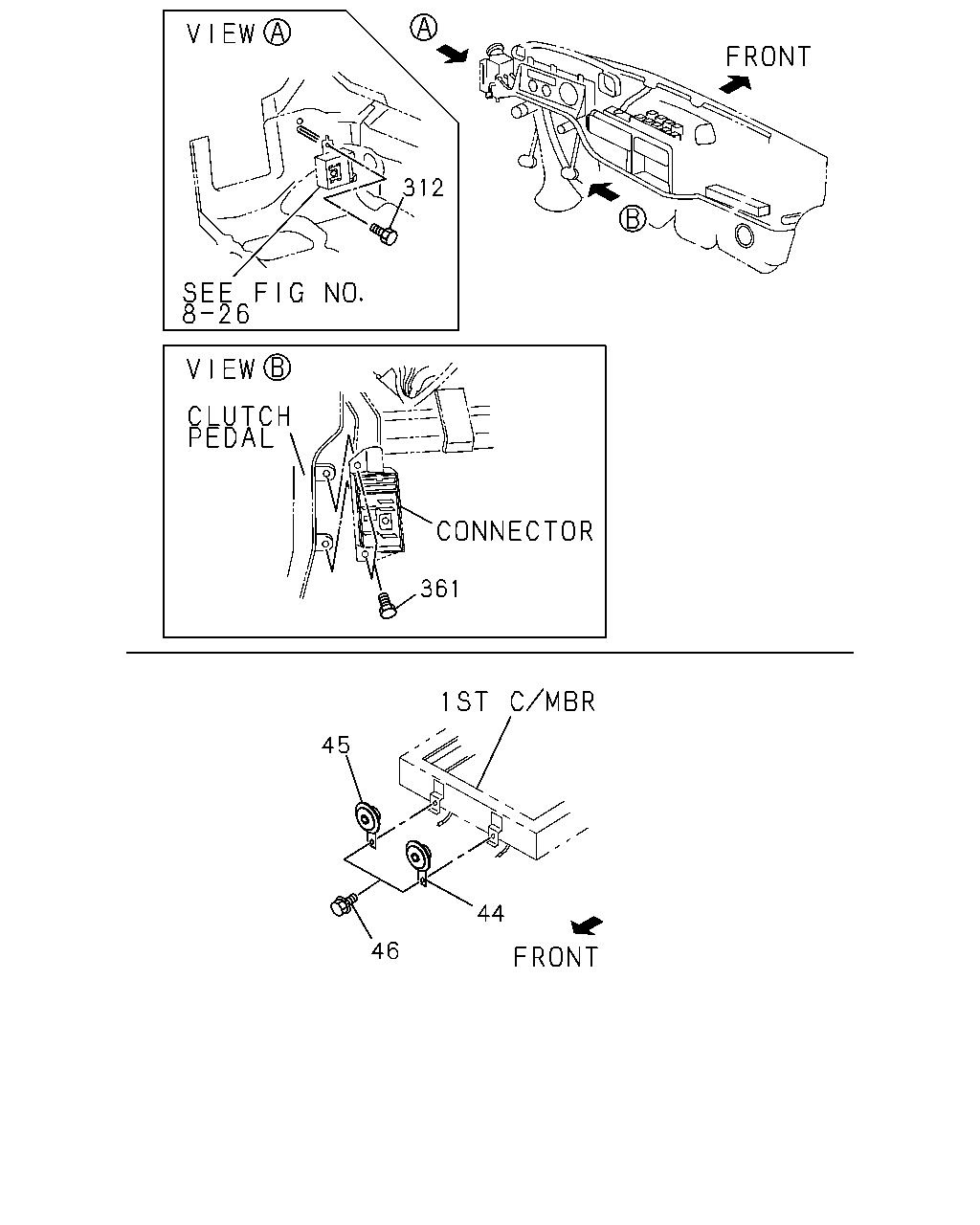

312 361 45 44 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97091-306-0	01	1	9312-9404	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9405-9611	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9612-9711	●	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9712-9801	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-97109-363-0	01	1	9712-9801					●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-363-0	01	1	9802-	●	●	●		●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97091-305-0	01	1	9312-9404		●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9405-9506		●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9507-9704	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9705-9711	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9712-9801	●	●	●
44	02.810 HORN; HIGH NOTE	8-97109-361-0	01	1	9712-9801				●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-361-0	01	1	9802-	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97091-307-0	01	1	9312-9404	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9405-9611	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9612-9711	●	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9712-9801	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK>	8-97109-364-1	01	1	9712-9801					●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> VOLTAGE 24V<7AE>	8-97109-364-1	01	1	9802-	●	●	●		●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97091-303-0	01	1	9312-9404		●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-0	01	1	9405-9506		●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9507-9704	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9705-9711	●	●	●	●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9712-9801	●	●	●
45	02.810 HORN; LOW NOTE	8-97109-362-1	01	1	9712-9801				●
45	02.810 HORN; LOW NOTE SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> EXC. VOLTAGE 24V<7AE>	8-97109-362-1	01	1	9802-	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	9312-9406	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9407-9611	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9612-9711	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9612-9711	●	●	●	●	●
46	02.812 BOLT; HORN TO BODY DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9712-	●	●	●		●	●
46	02.812 BOLT; HORN TO BODY SINGLE HEAVY DUTY HORN<6HG>,DUAL HEAVY DUTY HORN<6KK> 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9712-	●	●	●		●	●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9712-				●
46	02.812 BOLT; HORN TO BODY 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9712-				●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9312-9510	●	●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9511-9801		●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9802-9807	●	●	●
312	09.765 BOLT; BUZZER SAVE MECH TROUBLE DOOR LOCK<6LK> 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9808-	●	●	●		●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-9611	●	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9612-9711	●	●	●	●	●
361	02.559 BOLT; CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9712-	●	●	●	●	●	●

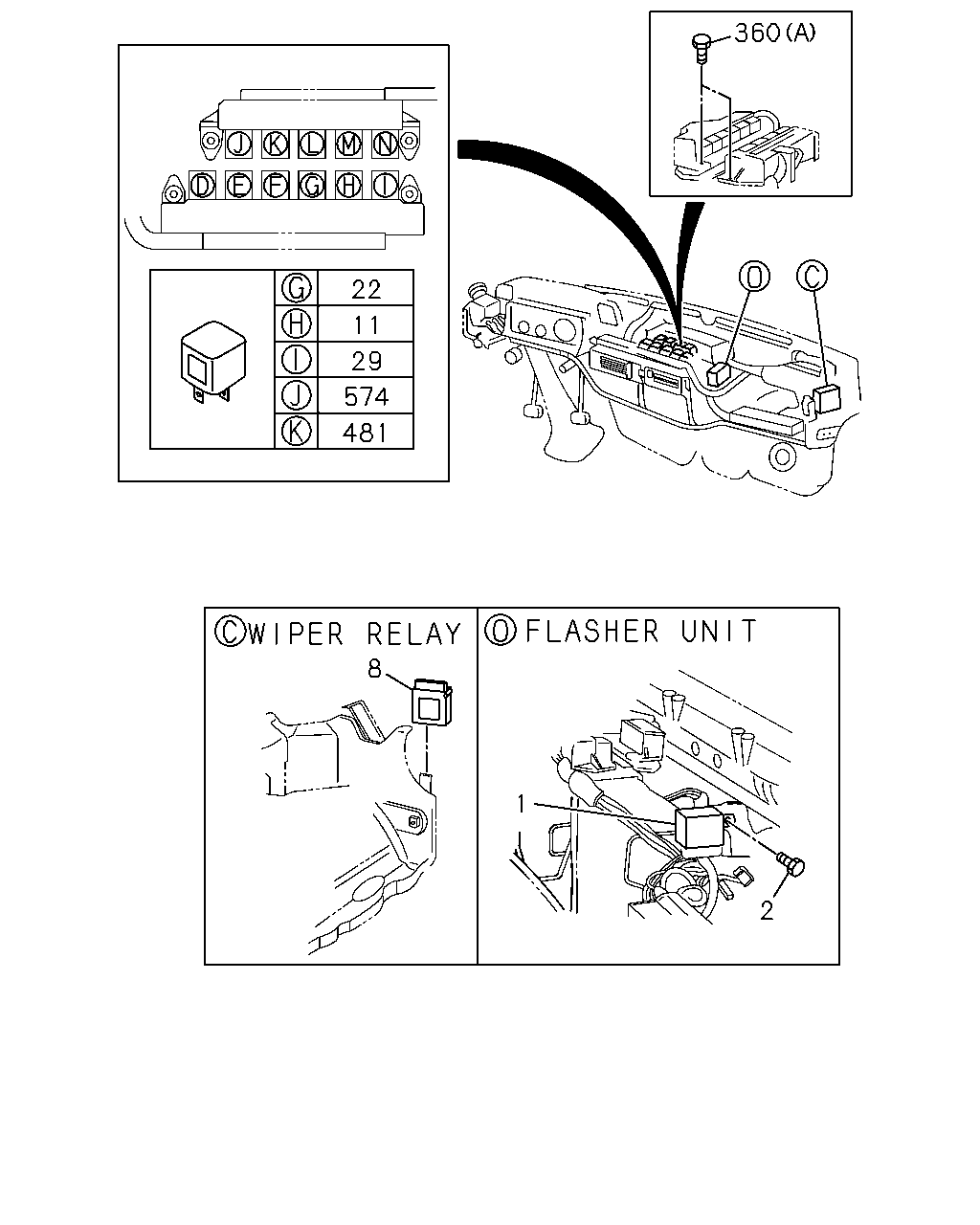

360 22 11 29 574 481 8 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9312-9611	●	●	●	●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9612-9711	●	●	●	●	●
1	02.575 UNIT; FLASHER VOLTAGE 24V<7AE>	8-97086-508-1	01	1	9712-	●	●	●		●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9312-9506		●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9507-9704	●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9705-9711	●	●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9712-9801	●	●	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 24V<7AE>	8-97086-509-1	01	1	9802-	●	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9312-9603	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9604-9611	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9612-9711	●	●	●	●	●
2	02.892 BOLT; FLASHER UNIT 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	01	1	9712-	●	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97855-015-0	01	1	9312-9611	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97855-015-0	01	1	9612-9711	●	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> VOLTAGE 24V<7AE>	8-97184-233-0	01	1	9712-	●	●	●		●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9312-9506		●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9507-9704	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-014-0	01	1	9705-9711	●	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9712-9801	●	●	●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13>	8-97855-186-0	01	1	9712-9801				●
8	16.067 RELAY; WIPER INTERMITTENT WIPER<C13> EXC. VOLTAGE 24V<7AE>	8-97855-186-0	01	1	9802-	●	●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9312-9611	●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9612-9711	●	●	●	●	●
11	02.485 RELAY; DIMMER VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●	●	●		●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-0	01	1	9312-9506		●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9507-9704	●	●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9705-9711	●	●	●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-9801	●	●	●	●
11	02.485 RELAY; DIMMER EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9312-9611	●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9612-9711	●	●	●	●	●
22	02.679 RELAY; STOP LAMP VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●	●	●		●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-0	01	1	9312-9506		●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9507-9704	●	●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9705-9711	●	●	●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-9801	●	●	●	●
22	02.679 RELAY; STOP LAMP EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9312-9611	●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9612-9711	●	●	●	●	●
29	02.815 RELAY; HORN VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●	●	●		●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-0	01	1	9312-9506		●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9507-9704	●	●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9705-9711	●	●	●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-9801	●	●	●	●
29	02.815 RELAY; HORN EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9802-	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9312-9603	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9604-9611	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9604-9611		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9612-9704	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9612-9704		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9705-9711	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9705-9711		●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9712-		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9312-9503	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9504-9603	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9604-9611	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9604-9611		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9612-9704	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9612-9704		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9705-9711	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9705-9711		●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9712-	●	●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9712-		●	●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9604	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-9611	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9612-9711	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9712-	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 01.531 (B) M8X25 FLANGE	0-28080-825-0	03	1	9312-9503	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-9510	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9511-9603	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9706-9711	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9706-9711		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801		●	●			●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-		●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9706-9711		●	●		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9712-		●	●		●
481	04.439 RELAY; PTO 4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) POWER TAKE OFF CONTROL ELECTRIC<7GR> ISRAEL EQUIPMENT(7LX) 08.852 12V 20A	8-97060-926-1	01	1	9505-9711		●	●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9805-		●	●		●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-9801		●	●			●
574	02.510 RELAY; CANCEL,BUZZER HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO	8-97062-815-1	01	1	9802-9804		●	●		●	●
574	02.510 RELAY; CANCEL,BUZZER VOLTAGE 24V<7AE> HYDRO BRAKE BOOSTER<7QQ> 24V 12.5A JIDECO	8-97062-815-1	01	1	9805-		●	●		●
574	02.510 RELAY; CANCEL,BUZZER 24V 12.5A JIDECO	8-97062-815-1	01	1	9805-						●

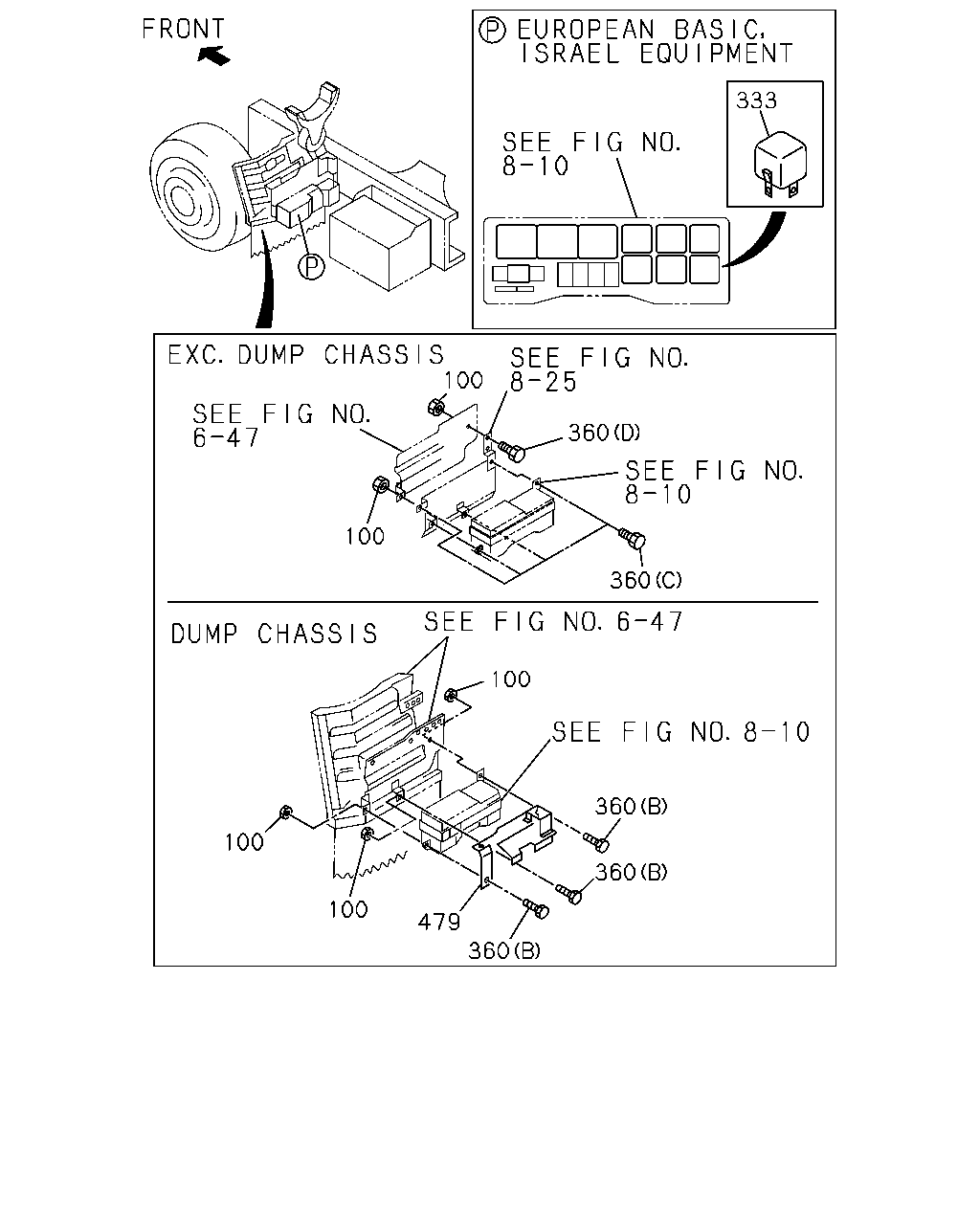

333 100 360 100 360 100 360 100 360 100 479 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
100	09.277 NUT; RELAY BOX COVER 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	9312-9603	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611	●	●	●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9604-9611		●	●
100	09.277 NUT; RELAY BOX COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9704	●	●	●		●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9612-9704		●	●
100	09.277 NUT; RELAY BOX COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	9705-9711	●	●	●		●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9705-9711		●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-	●	●	●		●	●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●	●
100	09.277 NUT; RELAY BOX COVER 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 07.633 M8 FLANGE	0-91150-108-0	03	1	9312-9510	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 07.633 M8 FLANGE	0-91150-108-0	03	1	9511-9603	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	9604-9711	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE	0-91150-108-0	03	1	9604-9711		●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-9801	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-9801		●	●		●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-9801		●	●			●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-9801		●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	9802-9802	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9802-9802		●	●		●	●
100	09.277 NUT; RELAY BOX COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.633 M8 FLANGE	0-91150-108-0	03	1	9802-9802		●	●		●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE	0-91150-108-0	03	1	9802-9802		●	●
100	09.277 NUT; RELAY BOX COVER 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	03	1	9803-	●	●	●	●
100	09.277 NUT; RELAY BOX COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	03	1	9803-		●	●		●	●
100	09.277 NUT; RELAY BOX COVER 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 07.633 M8 FLANGE	0-91150-108-0	03	1	9803-		●	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-		●	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A JIDECO	8-97062-815-1	01	1	9712-						●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4) 08.852 12V 20A	8-97060-926-0	01	1	9312-9504		●	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 08.852 12V 20A	8-97060-926-1	01	1	9505-9704		●	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) 08.852 12V 20A	8-97060-926-1	01	1	9705-9711		●	●
333	09.277 RELAY; MARKER LAMP ISRAEL EQUIPMENT(7LX) 08.852 12V 20A	8-97060-926-1	01	1	9705-9711				●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-	●
333	09.277 RELAY; MARKER LAMP EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A	8-97060-926-1	01	1	9712-		●	●
333	09.277 RELAY; MARKER LAMP 08.852 12V 20A	8-97060-926-1	01	1	9712-				●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9312-9603	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9604-9611	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9604-9611		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9612-9704	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9612-9704		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9705-9711	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9705-9711		●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8X16 FLANGE	0-28080-816-0	01	1	9712-		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 01.531 (C) M8X25 FLANGE	0-28080-825-0	04	1	9312-9503	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9504-9603	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9604-9611	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9604-9611		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9612-9704	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9612-9704		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9705-9711	●	●	●		●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9705-9711		●	●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9712-	●	●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	9712-		●	●
360	02.483 BOLT; RELAY BOX 08.225 (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9312-9604	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9604-9611	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9612-9711	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 10.230 (A) M6X16 W/LK&PL WASHER	8-94139-963-0	04	1	9712-	●	●	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 01.531 (B) M8X25 FLANGE	0-28080-825-0	03	1	9312-9503	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9504-9510	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9511-9603	●	●	●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9705-9705		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9706-9711	●	●	●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9706-9711		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801		●	●			●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9712-9801		●	●
360	02.483 BOLT; RELAY BOX 4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXC. FRAME STRAIGHT TYPE<7KJ> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-	●	●	●	●
360	02.483 BOLT; RELAY BOX 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-		●	●		●	●
360	02.483 BOLT; RELAY BOX 4BD2 ENG(RLW) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS<V4B> 02.559 (B) M8X25 FLANGE	0-28680-825-0	03	1	9802-		●	●
360	02.483 BOLT; RELAY BOX 4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9706-9711		●	●		●
360	02.483 BOLT; RELAY BOX 4HG1 ENG(RJH),4HF1 ENG(RLS) TIRE SIZE 8.25-16<7QP> 07.010 (B) M8X20 FLANGE	0-28080-820-0	03	1	9712-		●	●		●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97072-505-2	01	1	9312-9505	●
479	09.277 PROTECTOR; RELAY BOX DUMP CHASSIS(V4D)	8-97114-263-0	01	1	9506-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
