8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#43792) — 135 parça

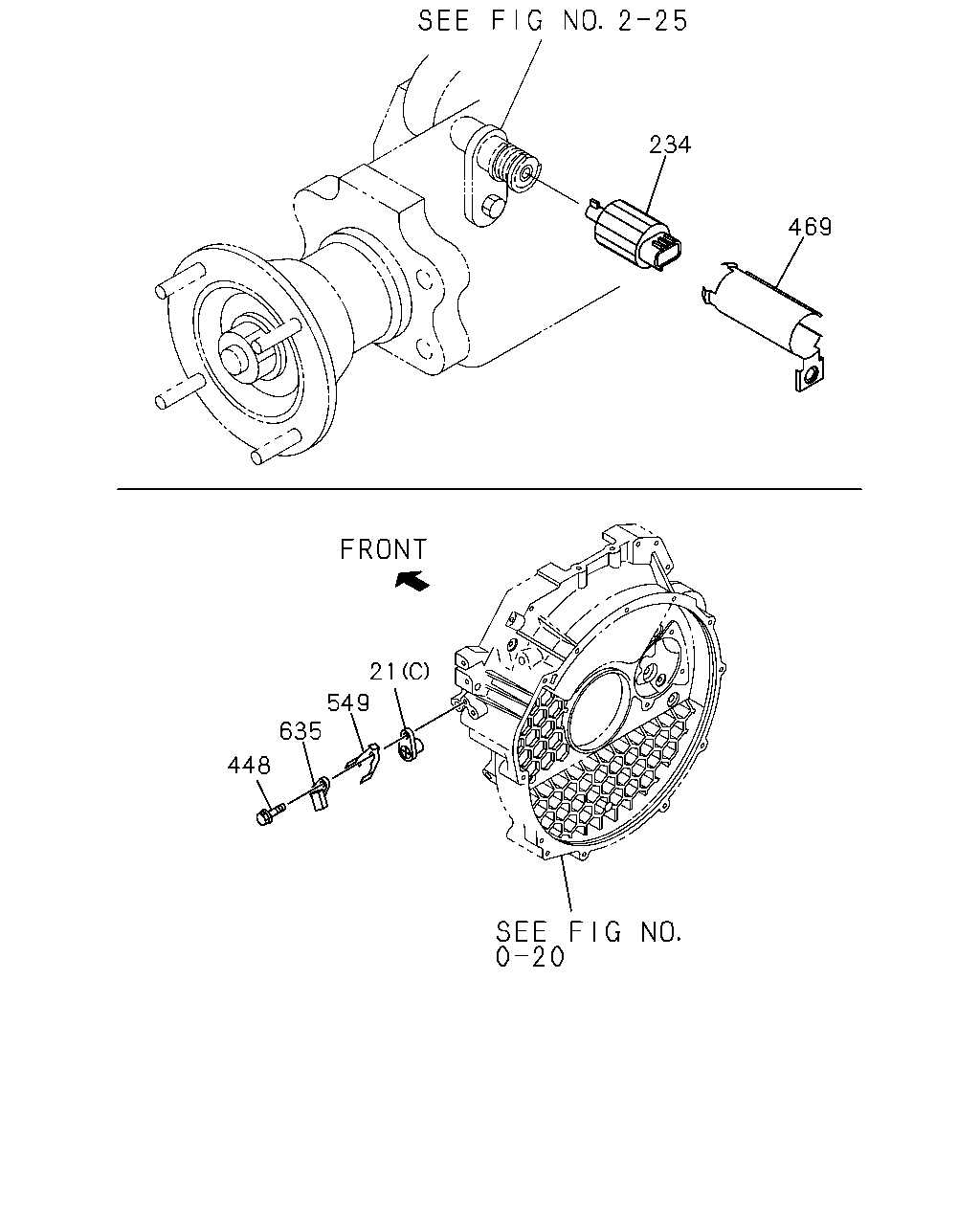

çizim 67423
234 469 21 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16>,COLOMBIA EQUIPMENT(X74) 09.748 (C) 		8-97101-974-0 01 1 9604-9611 ● ● ●
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16>,COLOMBIA EQUIPMENT(X74) 09.748 (C) 		8-97101-974-0 01 1 9612-9711 ● ● ● ●
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16> 09.748 (C) 		8-97101-974-0 01 1 9712- ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. HIGH ALTITUDE COMPENSATOR(EE2), POWER STEERING<N40>,TACHOMETER<U16> 09.748 (C) 		8-97101-974-0 01 1 9712- ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 AR 1 9312-9511 ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45) ,M/T MSA5G(S7G) 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45) ,M/T MSA5G(S7G) 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-97136-694-0 01 1 9712-9801 ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9805- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9805- ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9805- ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 9805- ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9410-9506 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9507-9704 ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> EXC. POWER TAKE OFF CONTROL ELECTRIC<7GR> 02.485 (B) 		8-94310-890-0 01 1 9507-9704 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9705-9711 ● ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> EXC. POWER TAKE OFF CONTROL ELECTRIC<7GR> 02.485 (B) 		8-94310-890-0 01 1 9705-9711 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9802- ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 9802- ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN DARK GRAY 		8-97065-834-0 01 1 9312-9502 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9503-9611 ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9612-9711 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 9712- ● ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HF1 ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9604-9611 ● ● ●
448 02.500 BOLT; SENSOR
4HF1 ENG(RLS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9612-9711 ● ● ● ●
448 02.500 BOLT; SENSOR
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9712- ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR 8-97094-699-2 01 1 9312-9510 ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97094-699-2 01 1 9511-9611 ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97094-699-2 01 1 9612-9701 ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9702-9711 ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
FLOOR REMOTE SHIFT<M11> 		8-97168-308-0 01 1 9712- ● ● ● ● ● ●
549 02.510 SHEET
4HF1 ENG(RLS) 09.743 		8-97130-170-0 01 1 9604-9611 ● ● ●
549 02.510 SHEET
4HF1 ENG(RLS) 09.743 		8-97130-170-0 01 1 9612-9711 ● ● ● ●
549 02.510 SHEET
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) 09.743 		8-97161-633-2 01 1 9712- ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) 		8-97122-324-0 01 1 9604-9611 ● ● ●
635 09.750 SENSOR; TACHOMETER
4HF1 ENG(RLS) 		8-97122-324-0 01 1 9612-9711 ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) YAZAKI 		8-97161-655-0 01 1 9712-9809 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) YAZAKI 		8-97214-325-0 01 1 9810- ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) KANSEI 		8-97163-104-0 01 1 9712- ● ● ● ● ●

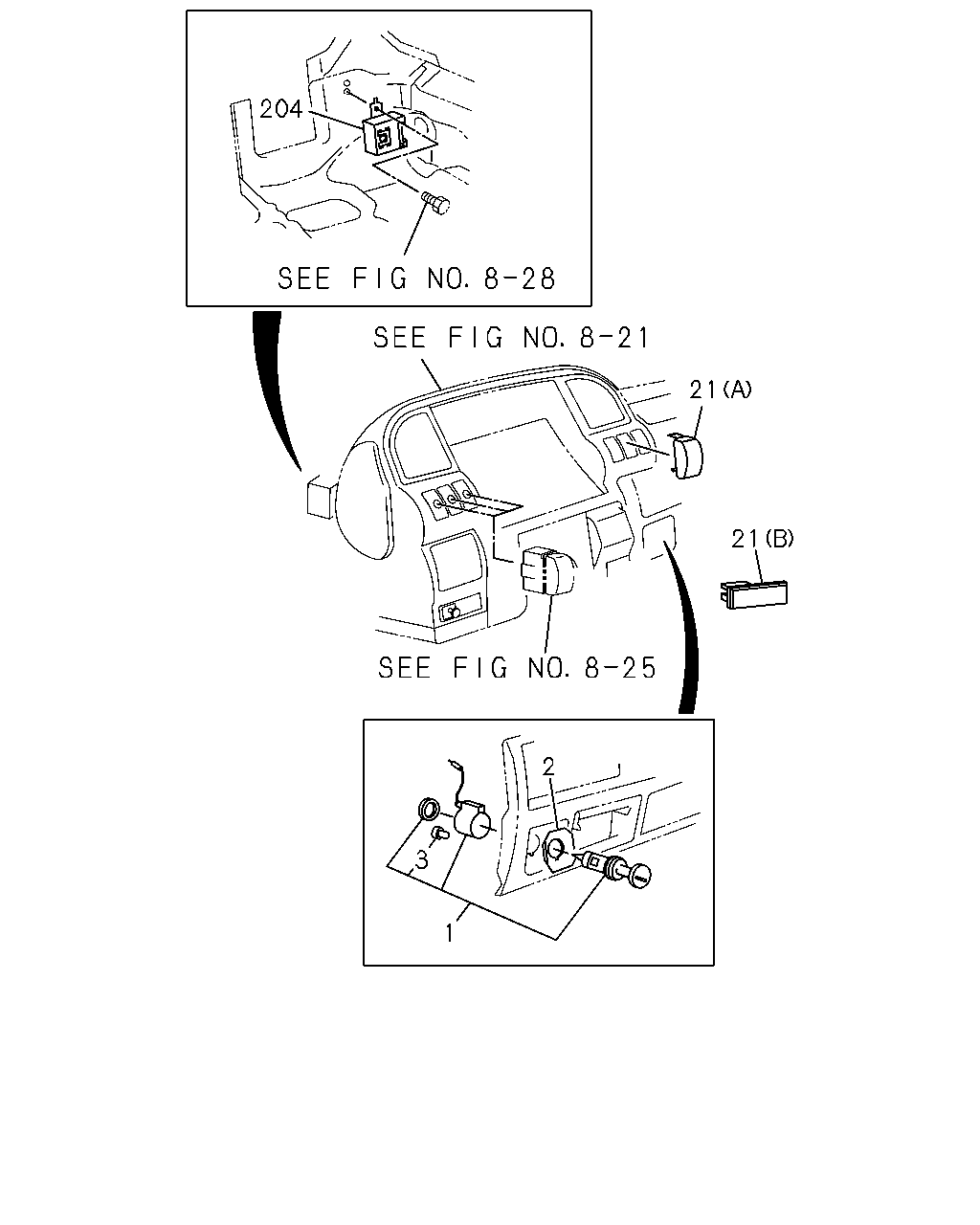

çizim 70795
204 21 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9312-9611 ● ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9612-9711 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
VOLTAGE 24V<7AE> 		8-97064-970-1 01 1 9712- ● ● ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-0 01 1 9312-9506 ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9507-9704 ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9705-9711 ● ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9712-9801 ● ● ● ●
1 09.709 LIGHTER; CIGAR
EXC. VOLTAGE 24V<7AE> 		8-97073-936-1 01 1 9802- ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9312-9611 ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9612-9711 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 9712- ● ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 		8-97092-962-0 01 1 9312-9611 ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 		8-97092-962-0 01 1 9612-9612 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9701-9711 ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
VOLTAGE 24V<7AE> 28V 1.8W 		8-97173-159-0 01 1 9712- ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 		8-97092-963-0 01 1 9312-9506 ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 		8-97092-963-0 01 1 9507-9612 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9701-9704 ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9705-9711 ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9712-9801 ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
EXC. VOLTAGE 24V<7AE> 14V 1.4W 		8-97173-160-0 01 1 9802- ● ● ● ● ●
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16>,COLOMBIA EQUIPMENT(X74) 09.748 (C) 		8-97101-974-0 01 1 9604-9611 ● ● ●
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FAN FLUID DRIVE<KA3> FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16>,COLOMBIA EQUIPMENT(X74) 09.748 (C) 		8-97101-974-0 01 1 9612-9711 ● ● ● ●
21 09.744 COVER; HOLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. AIR CONDITIONER MANUAL CONT(C60) ,HIGH ALTITUDE COMPENSATOR(EE2), POWERSTEERING<N40>,TAIWAN EQUIPMENT(RWV), TACHOMETER<U16> 09.748 (C) 		8-97101-974-0 01 1 9712- ● ● ●
21 09.744 COVER; HOLE
4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FLOOR REMOTE SHIFT<M11> EXC. HIGH ALTITUDE COMPENSATOR(EE2), POWER STEERING<N40>,TACHOMETER<U16> 09.748 (C) 		8-97101-974-0 01 1 9712- ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 AR 1 9312-9511 ● ● ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45) ,M/T MSA5G(S7G) 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
21 09.744 COVER; HOLE
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A) 		8-97047-694-1 01 1 9511-9611 ● ●
21 09.744 COVER; HOLE
09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
M/T MXA5D(RMF),M/T MXA5R(RMT),M/T MXA5S(RNA),M/T MXA6S(RNB),M/T MSB5S(R45) ,M/T MSA5G(S7G) 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
21 09.744 COVER; HOLE
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 09.778 (A) 		8-97047-694-1 01 1 9612-9711 ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9712-9801 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-97136-694-0 01 1 9712-9801 ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4) (A) 		8-97136-694-0 01 1 9802-9804 ● ● ● ●
21 09.744 COVER; HOLE
(A) 		8-97136-694-0 01 1 9805- ● ● ● ● ● ●
21 09.744 COVER; HOLE
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4BD2 ENG(RLW) (A) 		8-97136-694-0 01 1 9805- ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. RR FOG LAMP<T79> (A) 		8-97136-694-0 01 1 9805- ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) EXC. EUROPEAN BASIC EQUIPMENT(EK4), ISRAEL EQUIPMENT(7LX) (A) 		8-97136-694-0 01 1 9805- ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9410-9506 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9507-9704 ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> EXC. POWER TAKE OFF CONTROL ELECTRIC<7GR> 02.485 (B) 		8-94310-890-0 01 1 9507-9704 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9705-9711 ● ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> EXC. POWER TAKE OFF CONTROL ELECTRIC<7GR> 02.485 (B) 		8-94310-890-0 01 1 9705-9711 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-JATCO(RMK) ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9712-9801 ● ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> ADJUST HEADLAMP<6RC> EXC. PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 9802- ● ● ● ● ●
21 09.744 COVER; HOLE
ADJUST HEADLAMP<6RC> EXC. FLOOR REMOTE SHIFT<M11> 02.485 (B) 		8-94310-890-0 01 1 9802- ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9312-9510 ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9511-9801 ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9802-9807 ● ● ●
204 02.195 BUZZER; KEY REMIND
SAVE MECH TROUBLE DOOR LOCK<6LK> 09.765 		8-97036-649-0 01 1 9808- ● ● ● ●

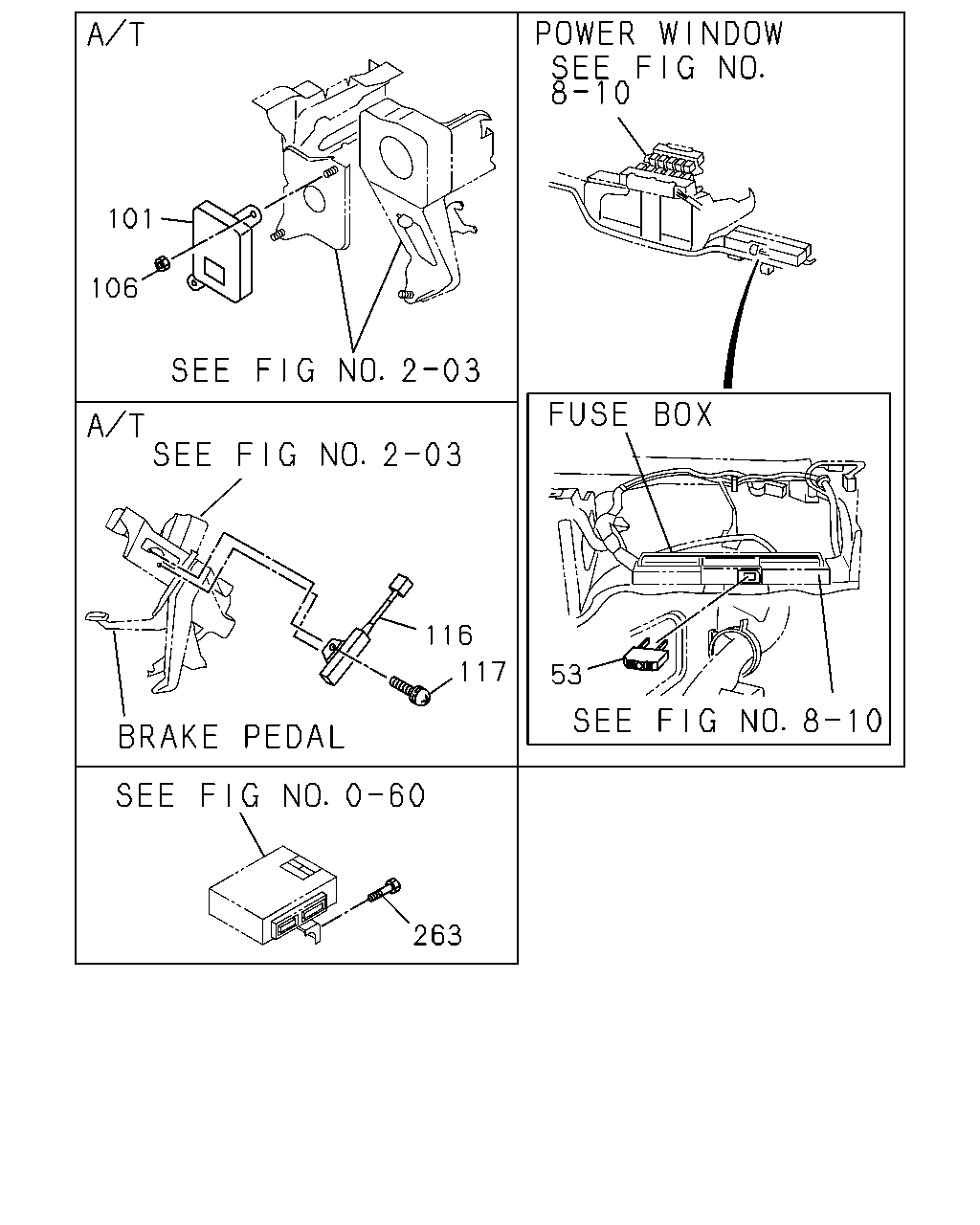

çizim 70859
101 106 116 117 53 263
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A 		8-94447-470-0 01 1 9312-9611 ● ● ● ●
53 02.510 BREAKER; ELEC CIRCUIT
POWER WINDOW FRT DOOR<A32> 20A 		8-94447-470-0 01 1 9612-9711 ● ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 		8-97128-847-0 01 1 9505-9711 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 		8-97127-871-0 01 1 9712- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97095-898-1 01 1 9505-9510 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97115-794-0 01 1 9511-9711 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97166-978-0 01 1 9712- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK) 		8-97166-980-0 01 1 9712- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97188-006-0 01 1 9802-9802 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97206-040-0 01 1 9803-9809 ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97216-570-0 01 1 9810- ●
106 04.115 NUT; ELEC CONT UNIT
A/T 4 SPEED-JATCO(RMK) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9505- ● ●
106 04.115 NUT; ELEC CONT UNIT
A/T 4 SPEED-AISIN(RNJ) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9802- ●
116 02.510 RESISTOR; DROPPING,A/T
4BD2 ENG(RLW) A/T 4 SPEED-JATCO(RMK) 		8-97032-220-1 01 1 9505- ● ●
116 02.510 RESISTOR; DROPPING,A/T
4HF1 ENG(RLS) A/T 4 SPEED-JATCO(RMK) 		8-97017-146-1 01 1 9505-9711 ● ●
116 02.510 RESISTOR; DROPPING,A/T
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) A/T 4 SPEED-JATCO(RMK) 		8-97017-146-1 01 1 9712- ● ●
117 02.500 BOLT; DROPPING RESISTOR
A/T 4 SPEED-JATCO(RMK) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 01 1 9505-9603 ● ●
117 02.500 BOLT; DROPPING RESISTOR
A/T 4 SPEED-JATCO(RMK) 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9604- ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9712-9801 ● ● ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9802- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
