◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50697 - NPR/NQR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#43791) — 292 parça

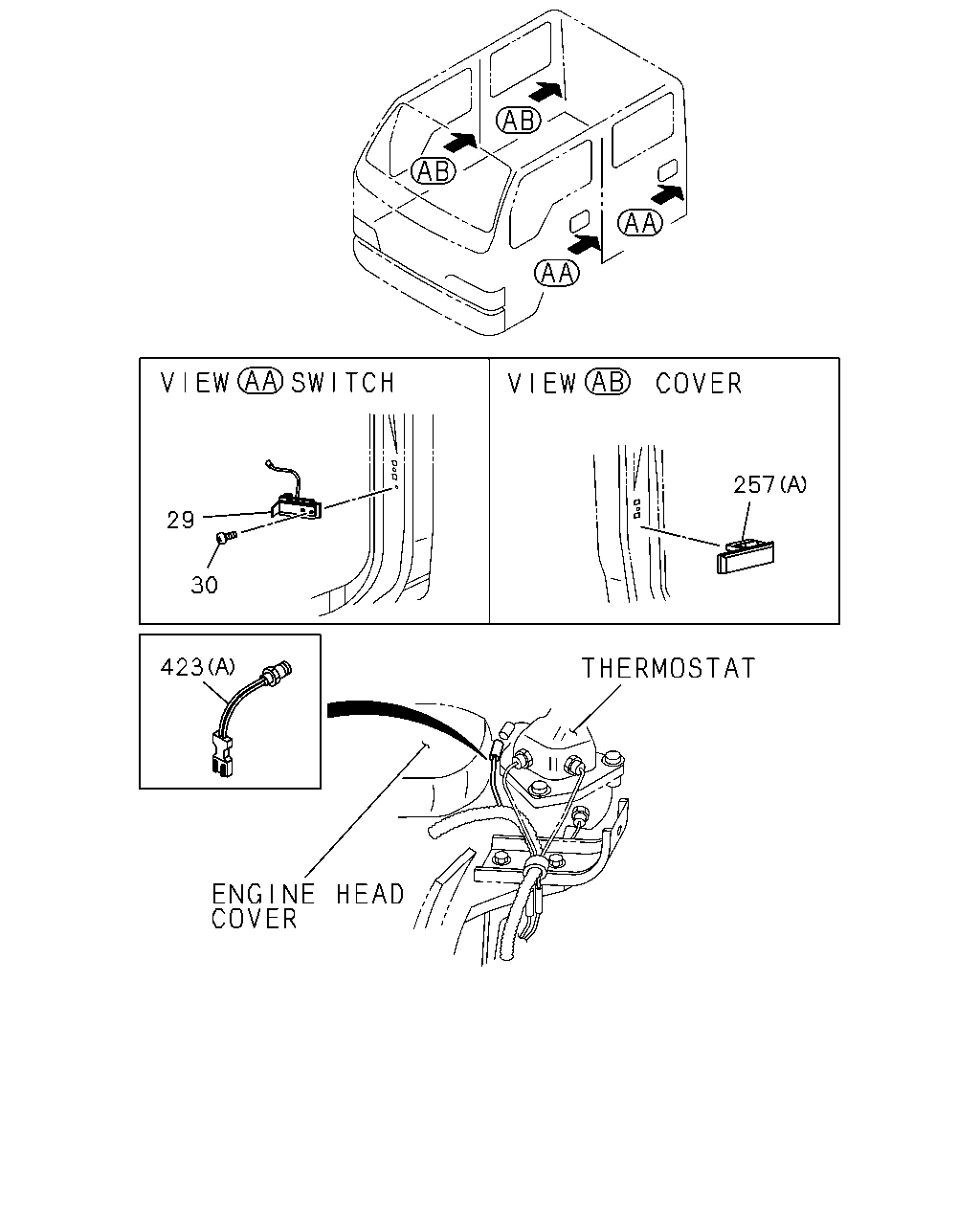

çizim 17768
257 29 30 423
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
29 16.263 SWITCH; DOOR 8-97855-032-1 02 1 9312-9404 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9405-9611 ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9612-9711 ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 01 1 9712- ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-2 02 1 9405- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9312-9404 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9405-9611 ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9612-9711 ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9712- ● ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 9405- ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405-9611 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9612-9711 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9712- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC<7GR> EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9507-9711 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312- ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9312-9711 ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9712- ● ●
423 03.883 SWITCH; ENG WARMING
HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9712- ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97136-814-0 01 1 9712-9804 ● ●
423 03.883 SWITCH; ENG WARMING
EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97136-814-0 01 1 9712-9804 ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (B) 		8-97136-814-0 01 1 9805- ● ●
423 03.883 SWITCH; ENG WARMING
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (B) 		8-97136-814-0 01 1 9805- ●

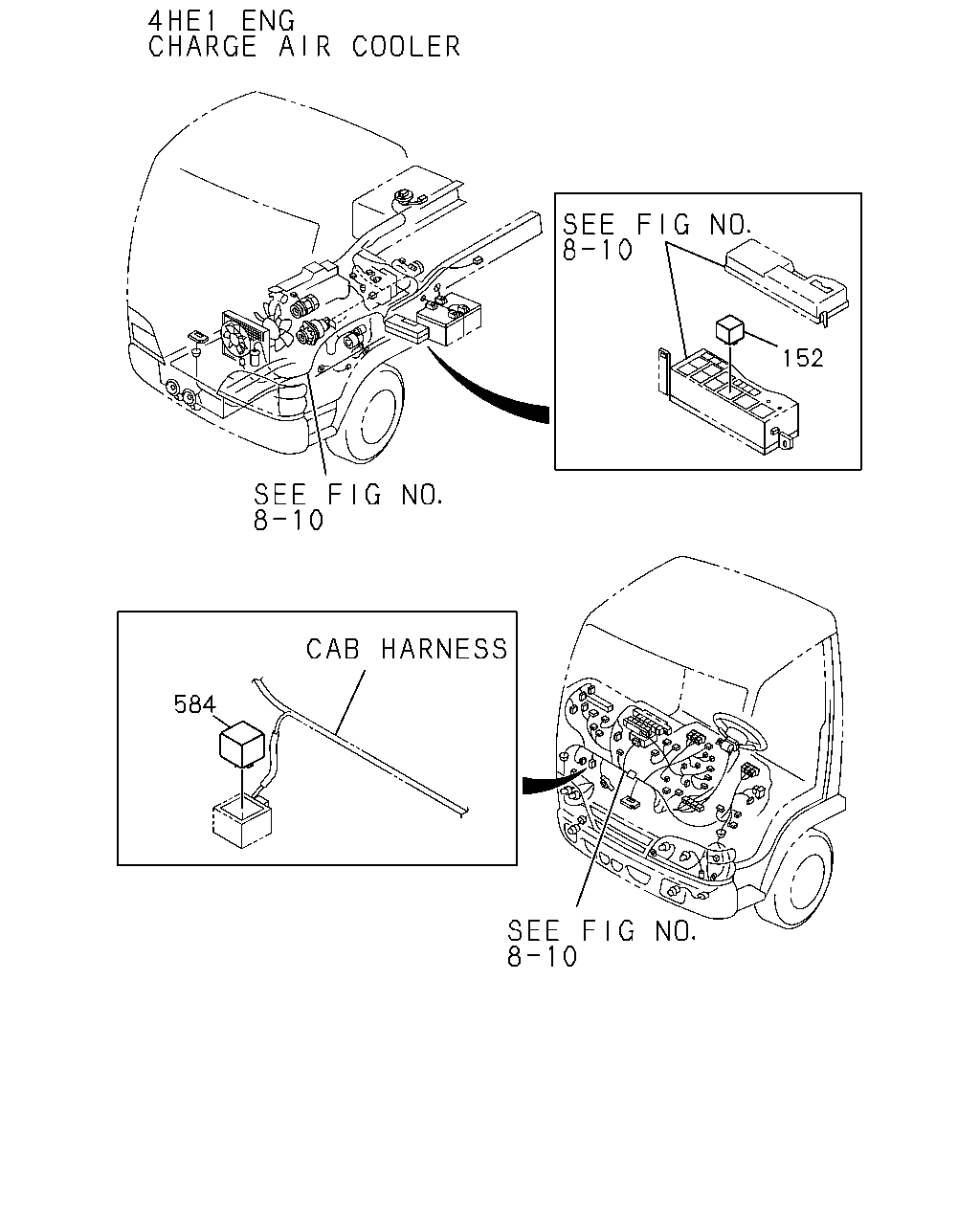

çizim 67426
152 584
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
152 02.510 RELAY; CERAMIC HTR
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. TAIWAN EQUIPMENT(RWV) 24V 50A 		8-97173-947-0 01 1 9712-9801 ● ● ●
152 02.510 RELAY; CERAMIC HTR
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) CHARGE AIR COOLER<6PL> 24V 50A 		8-97173-947-0 01 1 9802- ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712-9801 ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9802- ● ● ● ●
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9802- ●

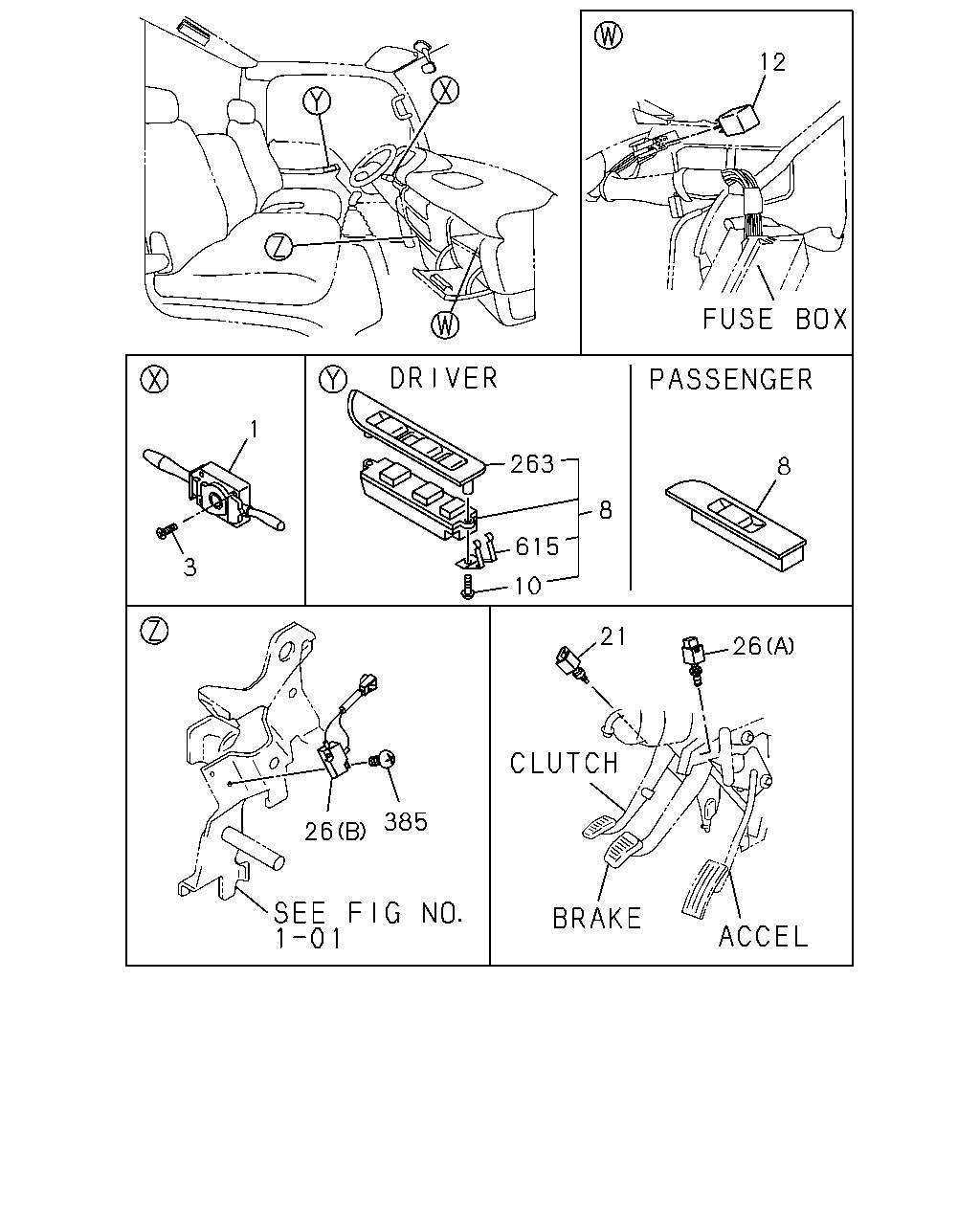

çizim 67461
12 1 263 8 8 615 3 10 21 26 385 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> LEYLAND EQUIPMENT<S9Z> 		8-97167-653-0 01 1 9609-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97167-653-0 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9312-9611 ● ● ● ●
1 02.895 SWITCH; COMB
EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9612-9711 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97071-007-2 01 1 9712- ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-005-2 01 1 9312-9608 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. LEYLAND EQUIPMENT<S9Z> 		8-97071-005-2 01 1 9609-9611 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. LEYLAND EQUIPMENT<S9Z> 		8-97071-005-2 01 1 9612-9711 ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-97071-005-2 01 1 9612-9711 ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-006-2 01 1 9312-9611 ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-97071-006-2 01 1 9612-9711 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9312-9611 ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-97071-008-2 01 1 9612-9711 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9312-9611 ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9612-9711 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 9712- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97073-839-1 01 1 9312-9611 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97073-839-1 01 1 9612-9711 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97140-631-0 01 1 9712-9805 ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-97205-727-0 01 1 9806- ● ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-835-2 01 1 9312-9610 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-338-0 01 1 9611-9611 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-338-0 01 1 9612-9711 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-344-0 01 1 9712-9801 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-344-0 01 1 9712-9801 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-344-0 01 1 9802- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-97166-344-0 01 1 9802- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-929-2 01 1 9312-9506 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97073-929-2 01 1 9507-9611 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-339-0 01 1 9612-9704 ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-339-0 01 1 9705-9711 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-345-0 01 1 9712-9801 ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> DRIVER SIDE 		8-97166-345-0 01 1 9802- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9312-9611 ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9612-9711 ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-239-0 02 1 9712- ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312-9611 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9712-9801 ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 12V 20A 		8-97060-926-1 01 1 9712-9801 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 24V<7AE> 12V 20A 		8-97060-926-1 01 1 9802- ● ● ● ● ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9312-9611 ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> 04.054 		8-94331-723-1 01 1 9612-9711 ● ● ● ● ●
21 02.575 SWITCH; CLU
FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 9712- ● ● ● ● ● ●
26 03.636 SWITCH; ACCEL
EXHAUST BRAKE<NF8> 04.054 (A) 		8-94368-343-0 01 1 9312-9312 ● ● ● ●
26 03.636 SWITCH; ACCEL
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B) 		8-97855-192-0 01 1 9401-9510 ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> (B) 		8-97855-192-0 01 1 9511-9611 ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> (B) 		8-97855-192-0 01 1 9612-9711 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97855-192-0 01 1 9712-9802 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) (B) 		8-97855-192-0 01 1 9803-9803 ● ● ● ●
26 03.636 SWITCH; ACCEL
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) (B) 		8-97855-192-0 01 1 9804- ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> (B) 		8-97855-191-0 01 1 9401-9704 ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> (B) 		8-97855-191-0 01 1 9705-9711 ● ● ●
26 03.636 SWITCH; ACCEL
4BD2 ENG(RLW) (B) 		8-97855-191-0 01 1 9712- ● ●
26 03.636 SWITCH; ACCEL
(B) 		8-97855-191-0 01 1 9712- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-237-0 01 1 9312-9611 ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-237-0 01 1 9612-9711 ● ● ● ● ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> 		8-97219-236-0 01 1 9712- ● ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
EXHAUST BRAKE<NF8> M3X25 TAPPING 		9-07076-325-0 02 1 9401-9403 ● ● ● ●
385 08.909 SCREW; ACCEL SW
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> M3X25 TAPPING 		9-07076-325-0 02 1 9404-9704 ● ●
385 08.909 SCREW; ACCEL SW
4BD2 ENG(RLW) EXHAUST BRAKE<NF8> M3X25 TAPPING 		9-07076-325-0 02 1 9705-9711 ● ● ●
385 08.909 SCREW; ACCEL SW
4BD2 ENG(RLW) M3X25 TAPPING 		9-07076-325-0 02 1 9712- ● ●
385 08.909 SCREW; ACCEL SW
M3X25 TAPPING 		9-07076-325-0 02 1 9712- ●
385 08.909 SCREW; ACCEL SW
4BD1 ENG(LJ6),4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9404-9510 ● ● ● ●
385 08.909 SCREW; ACCEL SW
4JG2 ENG(RJC),4BE1 ENG(RLH),4BD2 ENG(RLW) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9511-9611 ● ● ● ●
385 08.909 SCREW; ACCEL SW
4JG2 ENG(RJC),4BE1 ENG(RLH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9612-9711 ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9712-9802 ● ● ● ● ●
385 08.909 SCREW; ACCEL SW
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9803-9803 ● ● ● ●
385 08.909 SCREW; ACCEL SW
4JG2 ENG(RJC),4HG1 ENG(RJH),4BE1 ENG(RLH),4HF1 ENG(RLS),4HE1 ENG(RLY) 03.451 M3X16 TAPPING 		0-71280-316-0 02 1 9804- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9312-9611 ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9612-9711 ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> 		8-97219-238-0 01 1 9712- ● ● ● ● ● ●

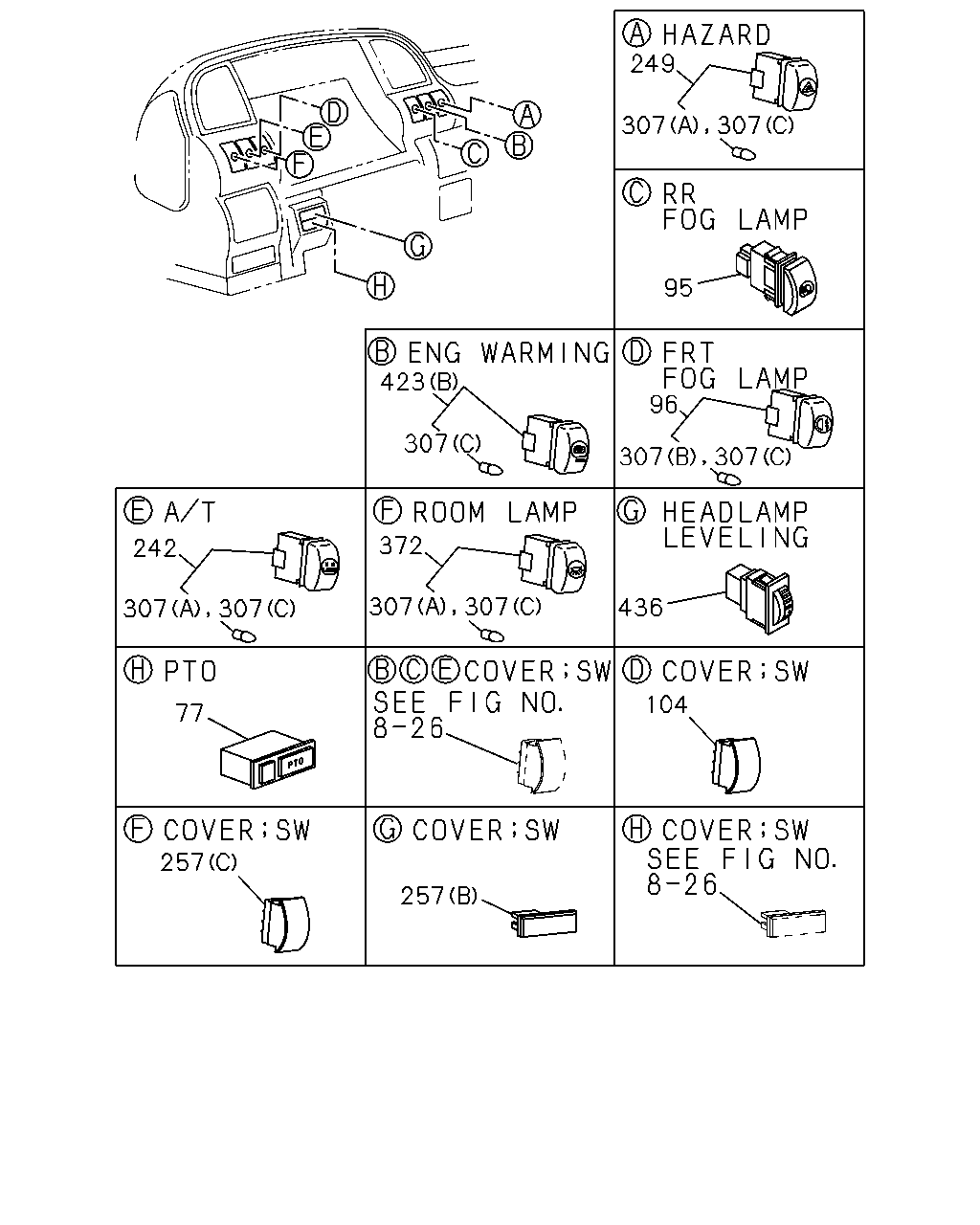

çizim 70783
249 307 307 95 423 96 307 307 307 372 242 307 307 436 307 307 104 77 257 257
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC<7GR> 		8-97132-306-0 01 1 9507-9711 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> VOLTAGE 24V<7AE> 		8-97170-447-0 01 1 9712- ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> 		8-97170-447-0 01 1 9712- ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97071-795-0 01 1 9312-9506 ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97071-795-0 01 1 9507-9704 ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97071-795-0 01 1 9705-9711 ● ● ● ●
95 02.575 SWITCH; RR FOG LAMP
RR FOG LAMP<T79> EXC. VOLTAGE 24V<7AE> 		8-97170-429-0 01 1 9712- ● ● ●
95 02.575 SWITCH; RR FOG LAMP 8-97170-429-0 01 1 9712- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9312-9611 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97076-351-3 01 1 9612-9711 ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> VOLTAGE 24V<7AE> 		8-97170-441-0 01 1 9712- ● ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9312-9506 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9507-9704 ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97076-350-4 01 1 9705-9711 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9712-9801 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> 		8-97140-964-0 01 1 9802- ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-97047-694-1 01 1 9312-9611 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97102-419-0 01 1 9505-9703 ● ●
242 04.054 SWITCH
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> 		8-97117-654-0 01 1 9704-9711 ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9312-9611 ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97076-345-2 01 1 9612-9703 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97117-658-0 01 1 9704-9711 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97136-690-0 01 1 9712-9807 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
VOLTAGE 24V<7AE> 		8-97202-475-0 01 1 9808- ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9312-9506 ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97076-344-2 01 1 9507-9703 ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97117-657-0 01 1 9704-9704 ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97117-657-0 01 1 9705-9711 ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97136-691-1 01 1 9712-9801 ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97136-691-1 01 1 9802-9807 ● ● ● ● ●
249 02.485 SWITCH; HAZARD
EXC. VOLTAGE 24V<7AE> 		8-97202-476-0 01 1 9808- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9405-9611 ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9612-9711 ● ● ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 01 1 9712- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9312-9409 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9511-9611 ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.778 (C) 		8-97047-694-1 01 1 9612-9711 ● ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (C) 		8-97136-694-0 01 1 9712- ● ● ● ● ● ●
257 16.081 COVER; HOLE,SW
POWER TAKE OFF CONTROL ELECTRIC<7GR> EXC. ADJUST HEADLAMP<6RC> 02.485 (B) 		8-94310-890-0 01 1 9507-9711 ● ●
257 16.081 COVER; HOLE,SW
16.494 (A) 		8-94229-914-1 02 1 9312- ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (B) 14V 60MA 		8-97116-329-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9704-9704 ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9705-9801 ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9705-9801 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9705-9801 ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9802-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9802-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9802-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 01 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> (A) 14V 60MA 		8-97116-328-0 01 1 9511-9703 ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (B) 28V 40MA 		8-97116-331-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9704-9704 ● ● ●
307 08.991 BULB ASM; SW
(C) 28V 40MA 		8-97116-331-0 01 1 9704-9704 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ● ●
307 08.991 BULB ASM; SW
(C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> (C) 28V 40MA 		8-97116-331-0 01 1 9705-9711 ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4) (C) 28V 40MA 		8-97116-331-0 02 1 9712-9804 ● ●
307 08.991 BULB ASM; SW
EUROPEAN BASIC EQUIPMENT(EK4) (C) 28V 40MA 		8-97116-331-0 02 1 9712-9804 ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 28V 40MA 		8-97116-331-0 02 1 9805-9807 ● ●
307 08.991 BULB ASM; SW
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 28V 40MA 		8-97116-331-0 02 1 9805-9807 ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (C) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9511-9611 ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ● ● ● ● ●
307 08.991 BULB ASM; SW
A/T 4 SPEED-JATCO(RMK) VOLTAGE 24V<7AE> (A) 28V 40MA 		8-97116-330-0 01 1 9612-9703 ● ●
307 08.991 BULB ASM; SW
EXC. VOLTAGE 24V<7AE> (C) 14V 60MA 		8-97116-329-0 02 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9712-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> (C) 28V 40MA 		8-97116-331-0 01 1 9712-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 01 1 9712-9807 ● ● ● ● ●
307 08.991 BULB ASM; SW
VOLTAGE 24V<7AE> (C) 28V 40MA 		8-97116-331-0 02 1 9808- ● ● ● ● ●
307 08.991 BULB ASM; SW
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 28V 40MA 		8-97116-331-0 02 1 9808- ● ●
307 08.991 BULB ASM; SW
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (C) 28V 40MA 		8-97116-331-0 02 1 9808- ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> 		8-97076-361-2 01 1 9312-9510 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9511-9611 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97076-361-2 01 1 9612-9703 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97122-193-0 01 1 9704-9711 ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
VOLTAGE 24V<7AE> ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 9712- ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9312-9506 ● ●
372 08.852 SWITCH; ROOM LAMP
EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9507-9510 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97076-360-2 01 1 9511-9703 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97117-660-0 01 1 9704-9704 ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97117-660-0 01 1 9705-9711 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9712-9801 ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> EXC. VOLTAGE 24V<7AE> 		8-97136-692-0 01 1 9802- ● ● ● ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9312-9711 ● ●
423 03.883 SWITCH; ENG WARMING
4BD2 ENG(RLW) HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9712- ● ●
423 03.883 SWITCH; ENG WARMING
HEATER & DEFROSTER(C41) (A) 		8-97038-625-0 01 1 9712- ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97136-814-0 01 1 9712-9804 ● ●
423 03.883 SWITCH; ENG WARMING
EUROPEAN BASIC EQUIPMENT(EK4) (B) 		8-97136-814-0 01 1 9712-9804 ●
423 03.883 SWITCH; ENG WARMING
4HE1 ENG(RLY) EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (B) 		8-97136-814-0 01 1 9805- ● ●
423 03.883 SWITCH; ENG WARMING
EUROPEAN BASIC EQUIPMENT(EK4),ISRAEL EQUIPMENT(7LX) (B) 		8-97136-814-0 01 1 9805- ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9312-9506 ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9507-9704 ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9705-9711 ● ● ● ●
436 02.485 SWITCH; HEADLAMP LEVELING
ADJUST HEADLAMP<6RC> 		8-97105-971-0 01 1 9712- ● ● ● ● ●

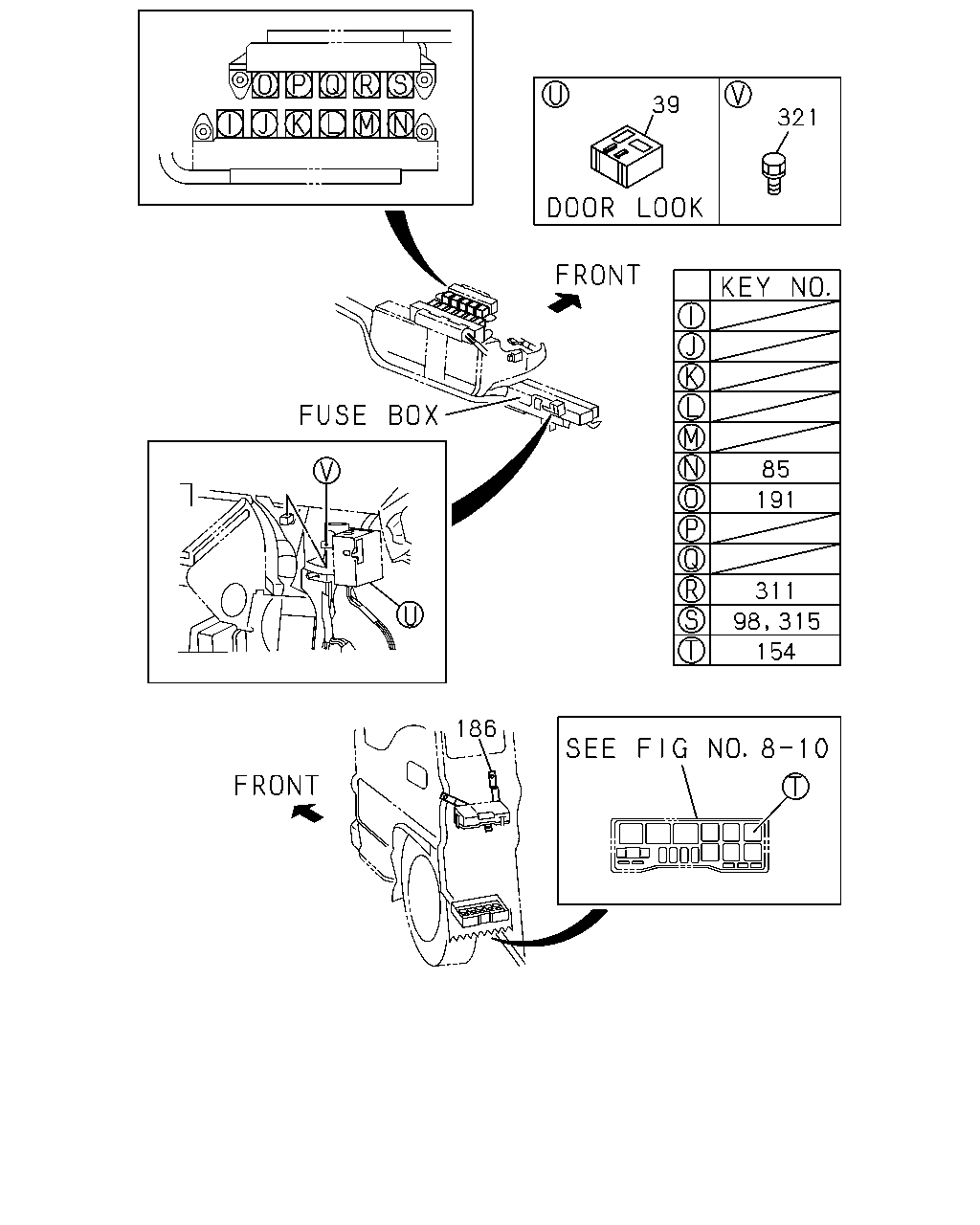

çizim 70794
39 321 85 191 311 98 315 154 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97063-659-1 01 1 9312-9408 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9409-9611 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97063-659-1 01 1 9612-9705 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9706-9711 ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> VOLTAGE 24V<7AE> 		8-97177-214-0 01 1 9712- ● ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9409-9506 ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9507-9704 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97063-658-0 01 1 9705-9705 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9706-9711 ● ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9712-9801 ● ● ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-97177-215-0 01 1 9712-9801 ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. VOLTAGE 24V<7AE> 		8-97177-215-0 01 1 9802- ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312-9611 ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712-9801 ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 12V 20A 		8-97060-926-1 01 1 9712-9801 ●
85 02.485 RELAY; HEADLAMP
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9802- ● ● ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
98 02.485 RELAY; RR FOG LAMP
RR FOG LAMP<T79> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9405 ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9405 ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9406-9704 ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ●
154 09.277 RELAY; CONDENSER FAN
4BD2 ENG(RLW) AIR CONDITIONER MANUAL CONT(C60) EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 12V 20A 		8-97060-926-1 01 1 9712- ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97065-157-2 01 1 9312-9312 ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) 		8-97088-652-1 01 1 9401-9603 ● ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97088-652-1 01 1 9604-9611 ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9604-9611 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 		8-97088-652-1 01 1 9612-9704 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9612-9704 ● ●
186 09.277 BRACKET; RELAY BOX
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. TIRE SIZE 8.25-16<7QP> 		8-97088-652-1 01 1 9705-9711 ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9705-9711 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 9712-9801 ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9712-9801 ● ●
186 09.277 BRACKET; RELAY BOX
4HG1 ENG(RJH),4HF1 ENG(RLS),4HE1 ENG(RLY) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,TIRE SIZE8.25-16<7QP> 		8-97088-652-1 01 1 9802- ● ● ● ● ●
186 09.277 BRACKET; RELAY BOX
4BD2 ENG(RLW) MINI BUS CHASSIS<V4B> FRAME STRAIGHT TYPE<7KJ> 		8-97088-652-1 01 1 9802- ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9312-9611 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
VOLTAGE 24V<7AE> 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXHAUST BRAKE<NF8> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712-9801 ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9802- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. CHINA EQUIPMENT(YT2) 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9402 ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9403-9611 ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9704 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9705-9711 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712-9801 ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
VOLTAGE 24V<7AE> EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),ISRAEL EQUIPMENT(7LX) 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9802- ● ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9504 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-0 01 1 9505-9506 ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 9712-9801 ● ● ●
311 02.596 RELAY; CORNERING LAMP
EXC. EUROPEAN BASIC EQUIPMENT(EK4), BRAZIL EQUIPMENT(RWF),CHINA EQUIPMENT(YT2),VOLTAGE 24V<7AE>,ISRAEL EQUIPMENT(7LX) 08.852 12V 20A 		8-97060-926-1 01 1 9802- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9611 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-0 01 1 9312-9611 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> VOLTAGE 24V<7AE> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9612-9711 ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
VOLTAGE 24V<7AE> 02.510 24V 12.5A JIDECO 		8-97062-815-1 01 1 9712- ● ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-0 01 1 9312-9506 ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9507-9704 ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> ,VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9705-9711 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9712-9801 ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
EXC. VOLTAGE 24V<7AE> 08.852 12V 20A 		8-97060-926-1 01 1 9802- ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9312-9611 ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9612-9711 ● ● ● ● ●
321 16.341 BOLT; RELAY
AUTO DOOR LOCK<AU4> 01.269 M5X20 		8-94436-927-0 01 1 9712- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
