◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10676 - LT 111,112,132,133 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#4379) — 326 parça

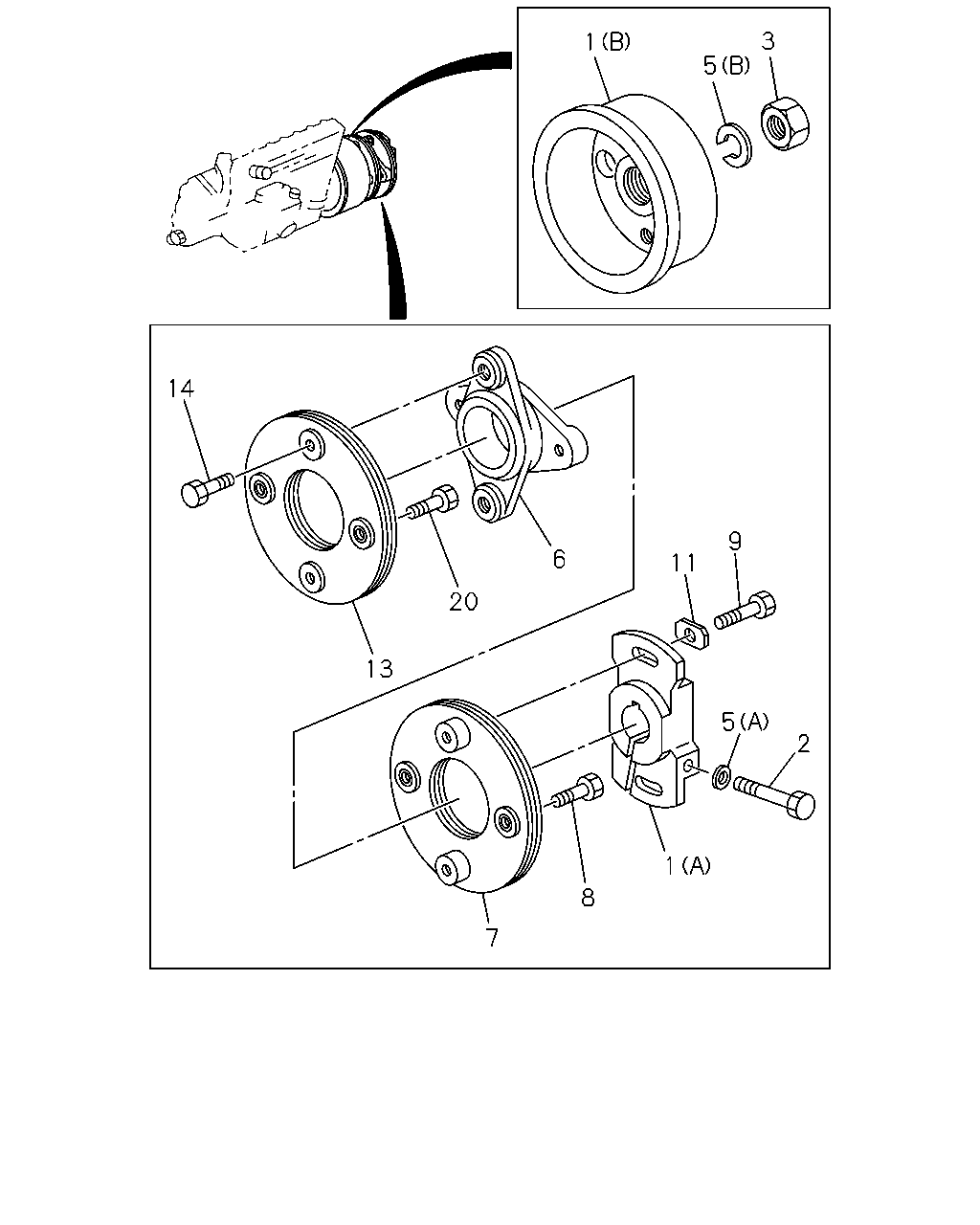

çizim 37285
3 5 1 14 9 6 11 20 13 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COUPLING; INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> (A) 		1-15781-013-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-010-0 01 1 9101-9303 ● ● ●
1 COUPLING; INJ PUMP DRIVE
RIGHT HAND DRIVE(LTR5FB) (A) 		1-15781-010-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> (A) 		1-15781-010-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-010-0 01 1 9304-9504 ● ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9505-9511 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-031-0 01 1 9703-9709 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-031-0 01 1 9710- ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 9703-9709 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 9710- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-132-0 01 1 9101-9504 ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9505-9601 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9703-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ● ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9703-9709 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9710- ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9703-9709 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9710- ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9703-9709 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9710- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-082-0 01 1 9101-9307 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-082-0 01 1 9101-9307 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-104-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-068-0 01 1 9101-9303 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-068-0 01 1 9304-9504 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9505-9510 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9703-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710- ● ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-080-0 01 1 9101-9307 ●
7 PLATE; COUPLING,COUPLING SIDE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-080-0 01 1 9101-9307 ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-065-0 01 1 9101-9504 ● ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9505-9510 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9703-9709 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9710- ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9101-9307 ●
8 BOLT; PLATE TO CROSS COUPLING
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9101-9307 ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-120-0 02 1 9304-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9101-9303 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9304-9310 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9311-9504 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9505-9601 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9703-9709 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-116-0 02 1 9101-9307 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-116-0 02 1 9101-9307 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-122-0 02 1 9101-9504 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9505-9510 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9703-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9710- ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9703-9709 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9710- ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-093-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-093-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-093-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-093-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15789-080-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-065-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9101-9303 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9304-9502 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9503-9504 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9505-9510 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9703-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9101-9307 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9101-9307 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-120-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9505-9511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9601- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9101-9303 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9304-9504 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9703-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-121-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-121-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-121-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-121-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15789-118-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-119-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9505-9511 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9601- ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9101-9303 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9304-9310 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9311-9504 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9703-9709 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ● ●

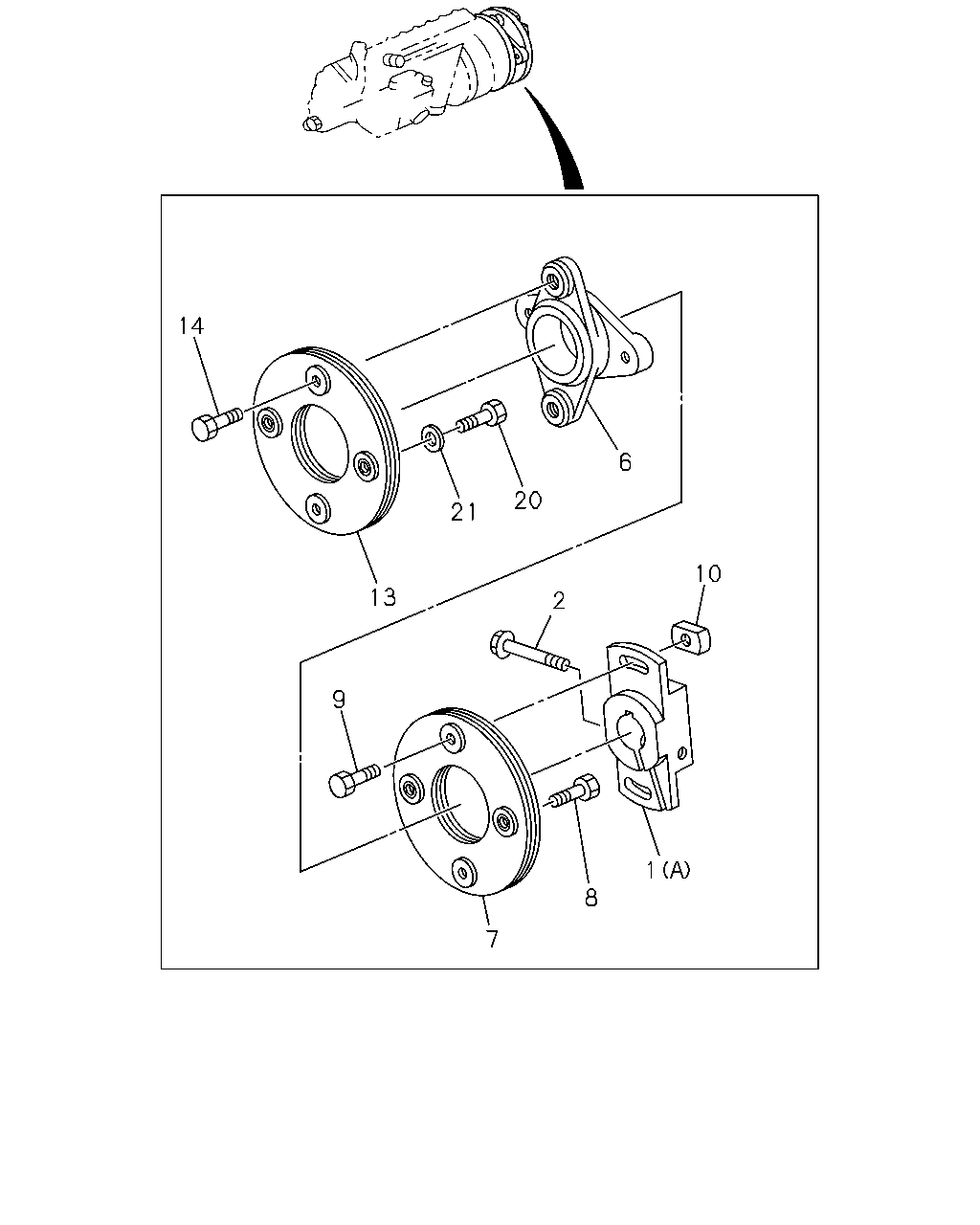

çizim 38831
14 6 20 21 10 13 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 COUPLING; INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> (A) 		1-15781-013-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-010-0 01 1 9101-9303 ● ● ●
1 COUPLING; INJ PUMP DRIVE
RIGHT HAND DRIVE(LTR5FB) (A) 		1-15781-010-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> (A) 		1-15781-010-0 01 1 9304-9504 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-010-0 01 1 9304-9504 ● ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9505-9511 ●
1 COUPLING; INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-014-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) 		1-15782-019-0 01 1 9601- ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-031-0 01 1 9703-9709 ●
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15781-031-0 01 1 9710- ● ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 9703-9709 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-041-0 01 1 9710- ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-132-0 01 1 9101-9504 ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9505-9601 ●
2 BOLT; COUPLING FIX,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-010-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-170-0 01 1 9601- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9703-9709 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9710- ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-082-0 01 1 9101-9307 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-082-0 01 1 9101-9307 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-082-0 01 1 9308-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-104-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-068-0 01 1 9101-9303 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-068-0 01 1 9101-9303 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-068-0 01 1 9304-9504 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-068-0 01 1 9304-9504 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9505-9510 ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-155-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-184-0 01 1 9601- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9703-9709 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9710- ● ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-080-0 01 1 9101-9307 ●
7 PLATE; COUPLING,COUPLING SIDE
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-080-0 01 1 9101-9307 ●
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-080-0 01 1 9308-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-065-0 01 1 9101-9504 ● ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-065-0 01 1 9101-9504 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9505-9510 ●
7 PLATE; COUPLING,COUPLING SIDE
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9601- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9703-9709 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9710- ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9101-9307 ●
8 BOLT; PLATE TO CROSS COUPLING
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9101-9307 ●
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9308-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-120-0 02 1 9304-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9101-9303 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-126-0 02 1 9101-9303 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9304-9310 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9304-9310 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9311-9504 ● ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9311-9504 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9505-9601 ●
8 BOLT; PLATE TO CROSS COUPLING
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15749-501-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9703-9709 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9710- ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-116-0 02 1 9101-9307 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-116-0 02 1 9101-9307 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-116-0 02 1 9308-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-122-0 02 1 9101-9504 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-122-0 02 1 9101-9504 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9505-9510 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-122-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-182-0 02 1 9601- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9703-9709 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9710- ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9101-9504 ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9505-9510 ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-066-0 02 1 9601- ●
10 NUT; PLATE TO COUPLING,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-167-0 02 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-093-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-093-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-093-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-093-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15789-080-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-065-0 01 1 9304-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9101-9303 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-81385-024-0 01 1 9101-9303 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9304-9502 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9304-9502 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		9-81385-024-0 01 1 9503-9504 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		9-81385-024-0 01 1 9503-9504 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9505-9510 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-194-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-199-0 01 1 9601- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9703-9709 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9710- ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9101-9307 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9101-9307 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-117-0 02 1 9308-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-120-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9505-9511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-120-0 02 1 9601- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9101-9303 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-126-0 02 1 9101-9303 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-126-0 02 1 9304-9504 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-126-0 02 1 9304-9504 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9703-9709 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9710- ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D> AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-121-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
RIGHT HAND DRIVE(LTR5FB) BRK SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-15789-121-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> EXC. TAIWAN EMISSION REGULATION<TAL> 		1-15789-121-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-121-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
LEFT HAND DRIVE(LTR6FB) AIR COMPRESSOR HEAVY DUTY<E1Q> TAIWAN EMISSION REGULATION<TAL> 		1-15789-118-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP
LEFT HAND DRIVE(LTR6FB) TAIWAN EMISSION REGULATION<TAL> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-119-0 02 1 9304-9504 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9505-9511 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-119-0 02 1 9601- ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9101-9303 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-127-0 02 1 9101-9303 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9304-9310 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9304-9310 ●
20 BOLT; COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-127-0 02 1 9311-9504 ● ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-127-0 02 1 9311-9504 ●
20 BOLT; COUPLING TO INJ PUMP
EMISSION SYSTEM ECE REQUIREMENTS<SFV> 		1-15789-183-0 02 1 9601- ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9703-9709 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9710- ● ●
21 WASHER; LK,COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-007-0 02 1 9101-9303 ● ●
21 WASHER; LK,COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-007-0 02 1 9101-9303 ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-007-0 02 1 9101-9303 ●
21 WASHER; LK,COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-15789-007-0 02 1 9101-9303 ●
21 WASHER; LK,COUPLING TO INJ PUMP
EXC. BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>, BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> 		1-15789-007-0 02 1 9304-9504 ● ●
21 WASHER; LK,COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> EXC. AIR COMPRESSOR HEAVY DUTY<E1Q>,TAIWAN EMISSION REGULATION<TAL> 		1-15789-007-0 02 1 9304-9504 ●
21 WASHER; LK,COUPLING TO INJ PUMP 1-15789-007-0 02 1 9304-9504 ●
21 WASHER; LK,COUPLING TO INJ PUMP
BUS BODY FRAME TYPE HEAVY DUTY VAR2<B2D>,BUS BODY FRAME TYPE HEAVY DUTY VAR4<C3B> BRK SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR COMPRESSOR HEAVY DUTY<E1Q> 		1-15789-007-0 02 1 9304-9504 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
